Audiovox VBP620 User manual

VBP620
PORTABLE6.2"LCD MONITORAND DVDPLAYER
INABAG

Notice:
This Productincorporates copyrightprotection technologythat is pro-
tectedby methodclaims of certain U.S. Patents andotherintellectual
property rights ownedby Macrovision Corporationandother rights own-
ers. Use ofthiscopyright protectiontechnologymust be authorizedby
Macrovision Corporation,and isintendedforhomeand otherlimitedview-
inguses onlyunless otherwise authorized byMacrovision Corporation.
Reverse engineeringor disassemblyis prohibited.
An LCD panel and/or videomonitor maybe installed in a motor vehicle
and visibleto thedriver ifthe LCD panelor video monitor isused for
vehicleinformation,system control,rearor sideobservation or navigation.
Ifthe LCD panelor videomonitor is used for television reception, video
or DVD play, theLCD panel orvideo monitor must be installed so that
these featureswillonlyfunctionwhenthevehicle isin park!orwhen the
vehicle"s parking brake isapplied.
An LCD panelorvideo monitorusedfortelevision reception,video or
DVD playthat operates whenthe vehicle is in gear or when theparking
brakeisnot appliedmust beinstalledto the rear ofthe driver"sseat
where it will not be visible,directlyor indirectly, to the operatorofthe
motor vehicle.

3
A.Introduction
Thankyou forselecting theVBP620 portableDVD playerin a bag.
The main features include a 6.2" Screen (16:9 Aspect Ratio) Liquid
CrystalDisplay (LCD) monitor andaDVD player.The unit applies
the lateststate ofthe art electronicsand is designed foruse in hotels,
offices home or vehicle. The unit isconstructed toprovide yearsof
reliable, trouble-free service, andis compact so that youcan take it
with you anywhereand is designedforquick andeasyinstallation.
Please read the entireinstruction manual supplied with thisproduct
prior to operation. The documentation will assist you in installingthe
systemproperly toobtain the bestequipmentperformance.All manu-
als should bestored for lateruse.
B. Cautions and Warnings
1. Placement
Topreventfire orelectric shock, donotexpose thisappliance to
rain or moisture. Do notplace the set on an unstable cart, stand,
tripod,bracketortable topreventitfromfalling. Keep the unitaway
fromstrongmagnets,heatsources,directsunlight,excessivedust.
If theunitisbrought directly from a coldtoa warm location,mois-
ture maycondenseinsidetheunit. Whenyou moveitfrom acold
toa warmlocation,wait foraboutonehour before operatingthe
unit, orremovethe disc andleave the unitturned onuntilthe mois-
ture evaporates.
2. Installation
Ensure thattheVBP620 is installedinaccordancewiththe in-
structions andillustrations provided inthis manual.
3. Object and Liquid
Do not pushobjects ofany kind into theunit through openings;do
notspill orspray liquid ofany kindonorinthesystem(this may
result in a fire or electric shock). Do not place anythingheavy on
the unit. Toensure proper ventilation and proper operation, never
coverorblocktheslotsand openingswithaclothor othermaterial.

4
4.Disassembly
Do not attempt to disassemblethe cabinet. Thereis a riskof elec-
tricshock and/orexposure toLaserRadiation.Contactqualified
service personnel ifyour system is in need of repair.
5.Cleaning Unit
When cleaning, makesurethe systemis unplugged fromthepower
source.Do not useliquid cleanersor aerosol cleaners.Use a
clothlightlydampenedwith water forcleaning the exteriorof the
systemonly.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources such as hot air ducts. Do not touch the surface of
disc.Handlethe discbyits edge. Cleanthediscby wiping thedisc
from thecenter outwith acleaning cloth. Removethe disc from
theunit andstoreitinitscaseafterplaying.Someplaybackopera-
tions of discs may be intentionallyfixedbysoftwareproducers.
Since this unit plays discs accordingto the disc contents the soft-
wareproducersdesigned,some playbackfeaturesmay notbe
available. Also refer to the instructions supplied with the discs.
C. Contents
1. 1x 6.2""LCD Monitor & DVDPlayer Combination
2. 1x AC to DCAdapter
3. 1xRemote Control w/Battery(CR2025)
4. 1 x Instruction Manual
5. 1 x Power Adapter w/Built-In FMModulator
6. 1x MountingBag w/Straps
7. 1 x Carrying bag
8. 1 xRechargable BatteryPack(PartNumber RB05)
9.1xAudio/Video InputCable
10.1x Audio/ VideoOutputCable

5
OPTIONAL:
Wireless IR headphones(Part Number IRHSCS)
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plugone end ofthe AC to DC adapter into the DC 9V jackon the
rightsideofthe main unit, then plugthe otherend intothe120V AC
powerreceptacle.
2. Powering the systemin a car
Plugone endofthe DCPower adapter into the DC 9V jackon
theunit, then plugtheother end intothe cigarette lighter socket.
Figure1
3.Powering the system with rechargeable Battery
Please refer to K. *Rechargeable BatteryInstallation andUse
(Page 34 and 36).
E. Installation Prior to installation
Make sure that theunitisplacedinto the mountingbag with theclear
plasticcovering aroundDVDdoor, Load adisc into the DVD
compartment andthen fastenthe Velcro strap acrossthe top portion
ofthe unit. If youareinstallingthe bagontothe seatbackyou will need
to attachthesuppliedSeatStandofftothebackofthemounting bag
with theVelcro bands to obtain theproper viewingangle asshownin
Figure.2

6

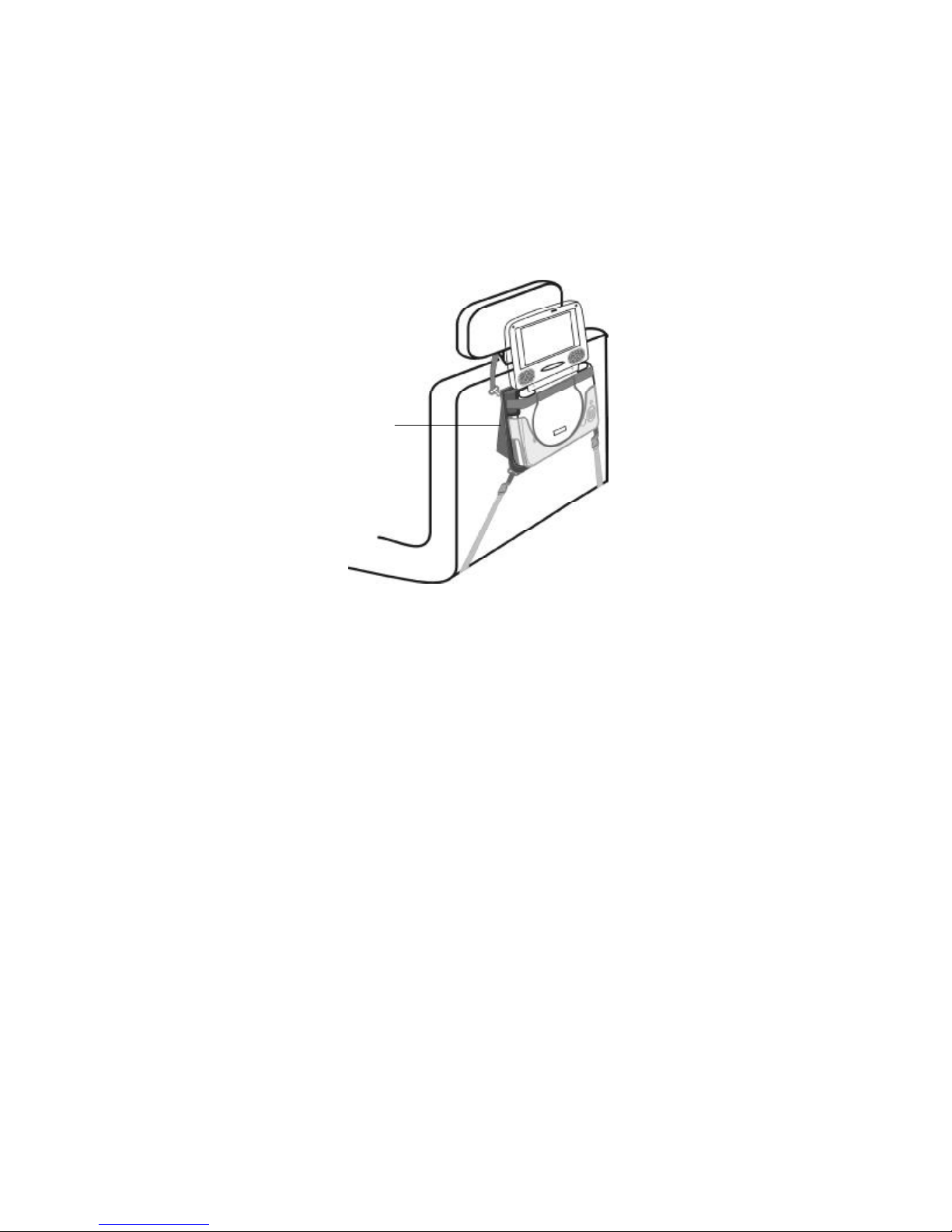

1.Installing the System onto the seat backin a car
(Refer to Figure 2)
Figure2
1).Take oneof thesuppliedstraps from the carrier bag. Connect
thelatchtoone oftheuppermetal rings on the mountingbag.
Connectthe S!hookto theother upper metalringandplacethe
loopoverthe headrest. Adjust thestrapuntil thebag isfirmly
secured.
2).Take anotherstrapfrom thecarrierbag, andconnectthelatchto
the lower metalring on the left side of the bag. Attach the S!
hook to the same ring afterlooping thestrap aroundtheseat rail.
Repeat thisprocessfor the right side.Insome vehicles, it may
be necessary to attach the S!connector to the rail directly,as it
may not be longenough to reach back to the ring.
3).Adjust the straps tightlyso that the bagis secured.
Seat Standoff

7
2. Installing the system between the driver/passenger seat
(Refer to Figure 3)
Figure3
1). Takeone strap and connectthe latch tothe uppermetal ringon
the leftside of the bag. Attach the S!hook tothe samering
after looping thestrap aroundthe headrest of thedriver"sseat.
Repeat thisprocess for the right side(Passenger Seat).
2).Take anotherstrapandconnectthe latch to lower metal ring on
the leftside of the bag. Attach the S!hook tothe samering
after loopingthe strap around thedriver"sseat rail. Repeat this
processfor therightside. Insome vehicles,it maybeneces-
sary to attachthe S!connector directly totherail, as itmaynot
be long enoughto reach backto thering.
3).Adjust the straps tightlyso that the bagis secured.

8
F.Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 4)
Figure4
1) Screen Mode Button
2)Pause Button
3) Play Button
4) Open Button
5) Previous Button
6) Stop Button
7) NextButton
8) IR Transmitter
9)Remote Control Sensor
10) PowerLED
11) PowerOn/OffSwitch
12)Brightness control
13) Volume control
14)HeadphoneJack 1
15)HeadphoneJack 2
16) IR On/Off Switch
17)DC9V Input Jack
18) DVD Video Output Jack
19) DVDL+R Audio Output
Jack
20) VideoInput Jack
21)AudioL+R InputJack

9
2. Remote ControlView (Refer to Figure5)
1) DISPLAYButton
2) ANGLE Button
3) SUBTITLE Button
4) AUDIO Button
5) ZOOM Button
6) UP/DOWN/LEFT/RIGHT/
ENTER Button
7) RETURN Button
8) A-B Button
9)FORWARD Button
10) REVERSE Button
11)SLOWButton
12) STOP Button
13)NUMERIC KEYPAD
14) SETUP Button
15)MENUButton
16) REPEATButton
17) PREVIOUS Button
18)NEXT Button
19) PLAY ButtonFigure5
20) PAUSE Button

10
G. Loading and Playing a Disc
a.Afterconnecting powerto theunit, slide thePOWERON/OFF on
theright side to ON, the DVD player"s POWER indicator lights.
b.Openthedisctray by pressingOPEN atthe lowerrightof thedisc
tray,andplace adisc intothetraywith thedisc"slabel facingup.
c. Press at the right side of thedoor untilit clicks shut. Theunit will
load the discandstart playing.
d.RotateBRIGHTand VOLUMEtoadjustthe LCD"sbrightness and
the DVDplayer"s volume.
e. Tostop playing a disc, press STOP.
f.ToturnofftheDVD player, slidePOWER ON/OFF to OFF. The
DVD player"s POWER indicator turns off.
g.Toremove the disc, openthe disctray,just useyour finger to
access the rightinnercorner of thedisctray and lift upthedisc
and remove it from the disc tray. Pleaserefer to Figure 6.
Figure6

11
H.SETUP
Press #SETUP"to displaytheMainscreenof theSETUP Menuon
the screen. Press #SETUP"again to exit the SETUP Menu and the
unit will resume itslast playbackmode.
1) Press #SETUP", the General Setup Page!will displayon screen.

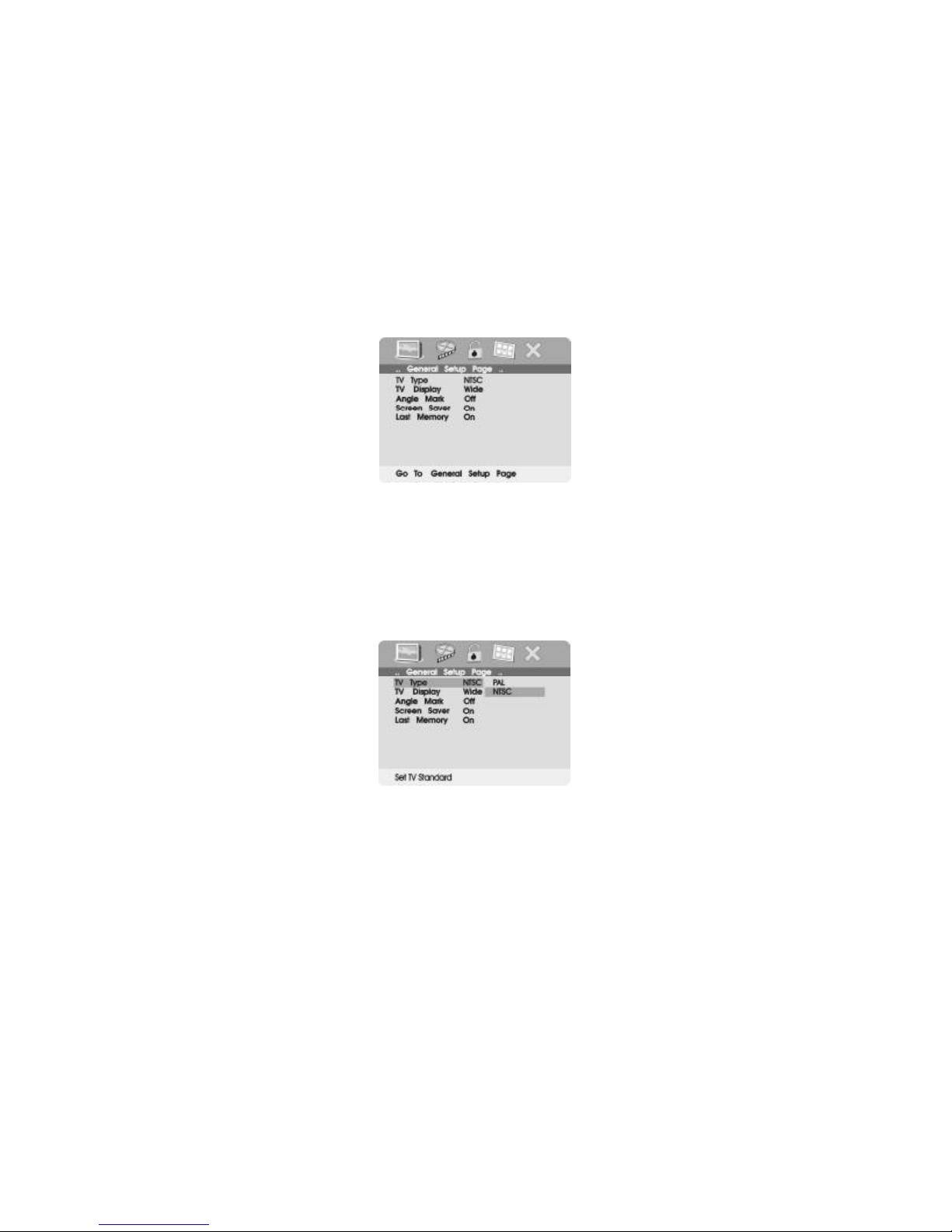

General SETUPMenu Screen
a).Select #TV Type"using UP/DOWN,andthenpresstheRIGHT
button toenterthe submenu.Choose TVType usingUP/DOWN
and then pressENTER to confirmthesetting.Press theLEFT
button to return.
TV TypeScreenDisplay
b).Select #TV Display"usingthe UP/DOWNbutton, and then press
RIGHTtoenterthesubmenu.Select theTV displaymodeon
the screen usingUP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.

12
TV DisplayScreen Display
*Normal/PS: When theplayerisconnected toanormalTV,and a
wide pictureis shownon the full screen.
*Normal/LB:When the player isconnected to anormalTV,and a
widepictureis shownonthe screenwith a black stripatboththe
top and bottom ofthe screen.
* Wide:When theplayeris connected to awide screen TV, a wide
picture isshown on the full screen.
c).Select #AngleMark"usingthe UP/DOWNbuttton, and then pressthe
RIGHTbutton to enterthesubmenu. Choose Angle Markon or off
using the UP/DOWNbutton and then press ENTER to confirmthe
setting. Press the LEFT button to return.
AngleMark Screen Display
*On:The screen willshow the anglemark icon. (*If anangleoption
is available).
* Off:Thescreen will not displaytheAngle Markicon.
NOTE: Not all discs contain above features.

13
d).Select #Screen Saver"using theUP/DOWNbutton,andthenpress
theRIGHTbuttonto enterthesubmenu.ChooseScreenSaveron or
offusingthe UP/DOWNbuttonand thenpressENTERto confirm the
setting. Press the LEFT button to return.
ScreenSaver Display
*On: Enables screen saver
*Off: Disables screen saver (off)
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximately five minutes ifthe sameimageremains on the screen.
e).Select #Last Memory"byusingthe UP/DOWN button,andthen press
theRIGHTbutton toenterthe submenu.Choose LastMemoryonor
offusing theUP/DOWNbuttonand thenpressENTERto confirm the
setting. Pressthe LEFT button to return.
Last MemoryScreen Display
*On: The unit will return to the last position on the disc.
*Off: The unit will not return tothe last position on the disc.
NOTE: For last position memorytofunction, the power to the
unit must remain on and the discdoor must remain closed.

14
2) Select Video QualitySetup!by using the LEFT/RIGHT button, press
ENTER to enterthevideoquality setuppage.
MainSetup Menu Video Quality
a).Select #Brightness"by usingthe UP/DOWNbutton ,then press
ENTER you can change the brightness bypressingthe LEFT or
RIGHTbutton. ToexitBrightness setting,press ENTER againto
return the mainMenu.
Brightness Screen Display
b).Select #Contrast"by using theUP/DOWNbutton,thenpress EN-
TER you can adjust the Contrast bypressingthe LEFT or RIGHT
buttton.
ContrastScreen Display
To exit Contrast setting,pressENTER again to return tothe main Menu.

15
c).Select #Hue"by using the UP/DOWNbutton,then press ENTER
youcanadjust theHue by pressingtheLEFT orRIGHTbutton.
Hue(Tint) ScreenDisplay
Toexit Hue setting, pressENTERagainto return the mainMenu.
d).Select #Saturation"by usingtheUP/DOWNbutton,thenpressEN-
TERyou can adjustthe Saturation by pressing the LEFTor RIGHT
button.
Saturation (Color)Screen Display
ToexitSaturation setting,press ENTER again toreturntothe main
Menu.
3).Select Password!using theLEFT or RIGHT buttons,press ENTER
to enter the password setup page,then press theRIGHT button to
enter thesubmenu.
PasswordChange Menu

16
PressENTER toenter the #Password ChangePage". Input theOld
Password ortheDefault Password, theNewPassword, andthe Con-
firmedNewPassword. Press ENTER to confirm the change.
PasswordChangeMenu
Password VerifyInput Screen Display
NOTE: TheDefault Password is 3308.This passwordis always ef-
fectiveevenafteryou haveselected your ownpasswordand changed
it. Toavoidthepossibility of others using thedefault passwordto
setthe parental level and changethe password,you can recordthis
defaultpassword inanother area anddeleteitfrom this manual.
Somediscscan be limited dependingonthe ageofusers while
somediscs cannot.

17
4).With nodisc insidetheplayer, select Preference!usingtheLEFTor
RIGHT button, then press ENTER toenter the preference page.
a.Select #Audio"usingthe UP/DOWN button, then press RIGHT to
enter the submenu. Select the audiolanguageyou desire using
theUPor DOWNbutton, thenpressENTERto confirm the setting.
Press LEFT to return.
PreferenceAudioLanguage
b. Select #Subtitle"the usingUP/DOWN button, thenpress RIGHT to
enter the submenu.Select the desired subtitle language or Sub-
title Offusing theUP or DOWNbutton, then pressENTER to con-
firmthe setting. PressLEFT to return.
PreferenceSubtitleLanguage

18
c. Select #Disc Menu"using the UP/DOWNbutton,thenpressRIGHT to
enter thesubmenu. Select theDiscMenuLanguage youdesireusing
theUP or DOWN buttons ,then press ENTER to confirm the setting.
Press LEFT to return.
Preference Disc Menu Language
Note: Languageand subtitle selectionis only available for discs that
are recorded intheabove listed languages.If theselected,language
isnot available, the player will play and displayon the screenthe
original recorded languagecontained in the disc.
d.Select #Parental"using theUP/DOWN button,thenpress RIGHTto
enterthe submenu.
Parental PreferenceScreenDisplay
Select theparentallevelyou desireusing the UPorDOWN buttonfor
discs with lock-out function or multiple ratinglevels. These are listed
fromthe lowest level (1 Kid Safe) to thehighest level (Adult). Entera
4digit password,thenpressENTERtoconfirm theparental level
setting.
NOTE: The levelof8 Adult is the factorydefault.

19

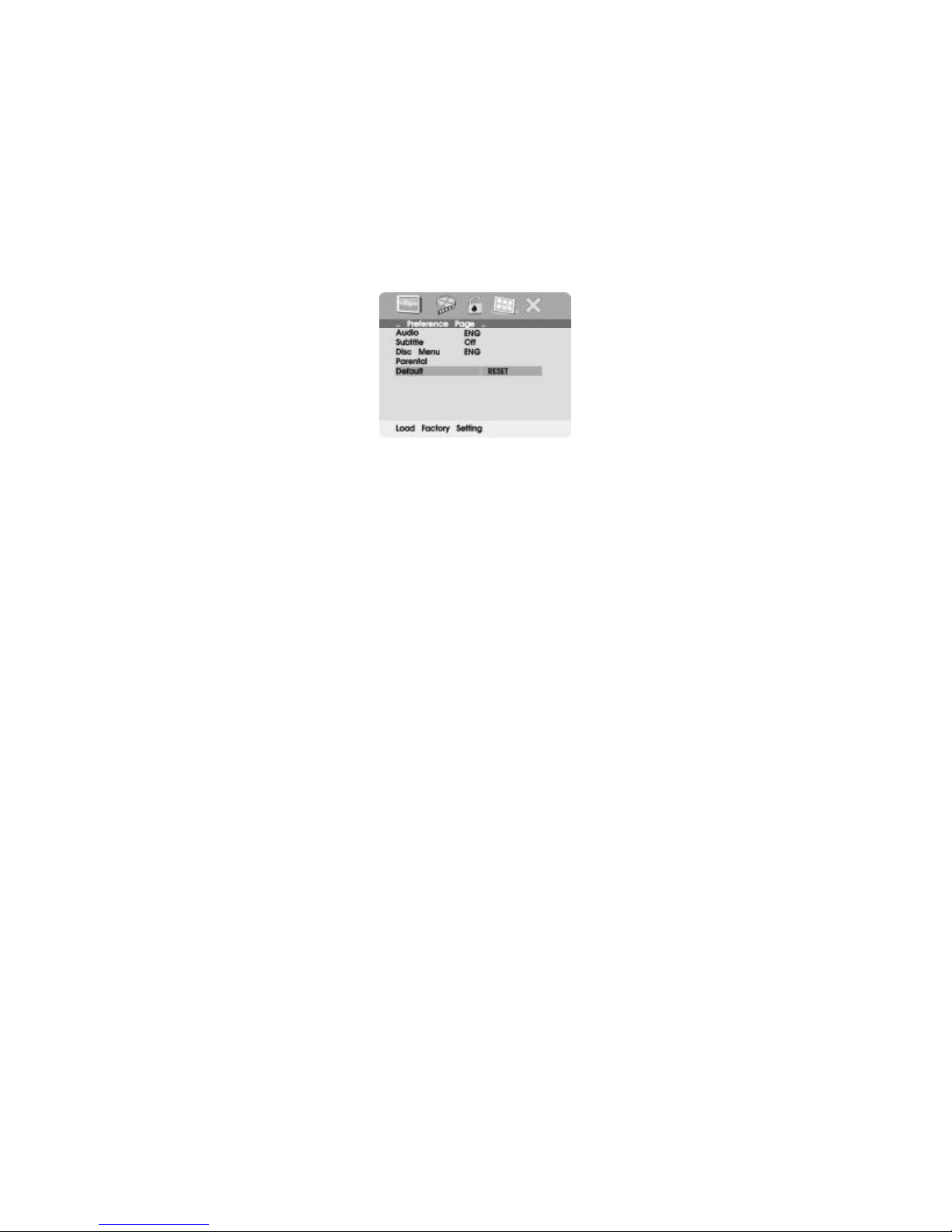

e. Select #Default"using the UP/DOWNbutton, then press RIGHT to
enter the submenu. PressENTER to make the settingreturn tothe
factory-set mode.
Loading FactorySetting
NOTE: The parental settingis not affected bythe default reset func-
tion.

20
I. Playing DVD
1. Basic Operation
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turnthe uniton/off
Remove/load the disc
Start Play/Execute item or setting
Play at 1/2, 1/4,1/8 or 1/16times speed
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Go tothe nextchapter, track orsceneduring
playback
Gobacktothe previous chapter, trackor
scene during playback
Scan forward at 2, 4, 8,16 or 32 times speed
Scanbackwardat 2,4, 8, 16or 32times speed
Used forMenu Navigation
Execute item or confirm setting
Select item, settingor password
Return
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
Repeat aspecific portionfrompointAtopoint
B ofthe disc
Display information (title,chapter, track, time,
etc.).
Changethe viewingangles on thescene
Selectthesubtitlelanguage andturn it on/off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setupmenutoselect andset
items, and exit the setup menu.
