Audix ADX20i User manual

ADX20i/ADX20iP
OVERVIEW
Designed, assembled and tested by Audix in the USA, the ADX20i is a miniaturized
condenser microphone used for professional stage and studio applications. The
ADX20i is known for its clarity, excellent transient response, resistance to feedback,
SPL handling and ease of operation. The ADX20i is primarily used for miking
saxophone and other brass instruments.
The ADX20i is characterized with a uniformly controlled cardioid polar pattern. This
provides excellent isolation and feedback control on stage as well as natural sound
reproduction at very close distances.
With a smooth and accurate response over a frequency range of 40 Hz - 20 kHz, the
ADX20i is lightweight, compact and simple to use. Housed in an aluminum ring and
isolated by means of a rubber shock mount system, the ADX20i comes with a spring
tension gooseneck clip (MC20i) for easy mounting to the bell of an instrument. A
number of optional accessories are available which allows for the ADX20i to be used
on a microphone stand for a wider variety of applications.
The ADX20i is designed for use with Audix wireless systems. The ADX20iP is designed
for use with a standard microphone cable. The ADX20iP operates on phantom
voltage of 5-52 Volts and is supplied with a phantom power adapter (APS910), 6’
integrated microphone cable, gooseneck clip (MC20i) and carrying pouch.
MODELS
ADX20i - Includes microphone with 6’cable, gooseneck clip and windscreen
ADX20iP - Same as above with phantom power adapter (APS910)
SUPPLIED ACCESSORIES
APS910 - Phantom power adapter
MC20i - Gooseneck clip with shock mount. Butterfly clamp attaches to bell of horn.
P1 - Carrying pouch.
WS20 - External foam windscreen for reducing wind, sibilance, and pop noise.
OPTIONAL ACCESSORIES
MCMICRO - Microphone stand adapter for The Micros series. Fits any 12 mm
diameter microphone.
SMTMICRO - Optional microphone stand adapter with rubber shock mount housed
within an aluminum ring. Attaches to any standard 5/8’ threaded microphone stand.
Condenser Instrument
Microphone
ADX20iP
FEATURES
· Miniature condenser clip-on microphone
· Can be used wired or wireless
· Natural, accurate sound reproduction
· Butterfly type clip ideal for brass instruments
· Rubber shock mount system reduces vibration
· Designed, assembled & tested in the USA
· 3 year warranty
APPLICATIONS
· Saxophone
· Trombone, trumpet
· Room ambience, recording
· Accordion
· Cello, upright bass
APS910 MC20i P1 WS20 MCMICRO SMTMICRO

Hi
Lo
FREQUENCY RESPONSE
POLAR PATTERNS
ARCHITECT AND ENGINEER SPECIFICATIONS
The microphone shall be of the condenser type with a modular threaded
capsule. The microphone shall be available in a hypercardioid polar pattern
and shall have a 6’ cable terminating in a mini-XLR female connector. The
microphone shall have a sensitivity of 6 mV / Pa and a nominal impedance of
250 ohms at 1 kHz. The microphone shall have a maximum SPL level of 135 dB
at 0.5% THD and shall be machined out of brass with a length of 30 mm and a
capsule diameter of 12 mm.
OPERATION AND MAINTENANCE
The ADX20i is designed to plug directly into the bodypack of a wireless system.
For wired applications see the ADX20iP.
The ADX20iP is a low impedance microphone and should be plugged into a
“microphone level” input on your console, mixer, or recording device. The
ADX20iP requires phantom power and will NOT operate without phantom
power voltage (minimum of 5 - 52 Volts) which is available on most professional
microphone preamps and mixing devices. If phantom power is not available on
your equipment, you may use the APS910. Avoid plugging or unplugging the
microphone from a PA system unless the channel is muted or the volume of
the system is turned down. Failure to do so may result in a loud “popping” noise
which could seriously damage the speakers in the PA system.
APS910 phantom power supply: Note that the mini XLRf connector at the
end of the ADX20i microphone cable plugs into mini XLRm side of the APS910
phantom power adapter. From there, plug a standard XLR-XLR microphone
cable to complete the connection from the APS910 to the mixing board.
Important: Be sure that the round ports on the microphone capsule always
remain exposed and do not get covered up in any way by the shockmount in
the clip.
The ADX20i is manufactured to exacting specs with roadworthy construction.
However, the capsule is highly sensitive and should be handled with care. Avoid
extreme temperatures and be sure to store your microphone in the pouch
provided when not in use. Moisture of any kind can adversely effect the sound
and performance of your microphone.
USER TIPS
Saxophone and brass: For the most accurate and natural sound the microphone
should be positioned towards, but not inside, the bell. Some experimentation may
be required to find the proper blend between the instrument and the room.
When striving for greater isolation on stage and higher gain before feedback,
the hypercardioid capsule may be more helpful. The ADX20iP can be used on a
microphone stand or microphone bar for stereo recording (see accessories for
microphone stand adapters).
Live sound: In general, when using multiple microphones on a stage for live
sound, position the microphones at least 2-3 feet apart from each other to avoid
phase cancellation issues.
Further miking techniques may be found at www.audixusa.com.
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
www.audixusa.com
503.682.6933 Fax: [phone]
Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070
ver 4.0 05-17
PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.
SERVICE AND WARRANTY: This microphone is under warranty for a period of 3 years to be free of defects in material and workmanship. In the event of a product failure due to materials or
workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes
any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No
Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any,
for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of
any kind. Should your microphone fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN
THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL
NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S
SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

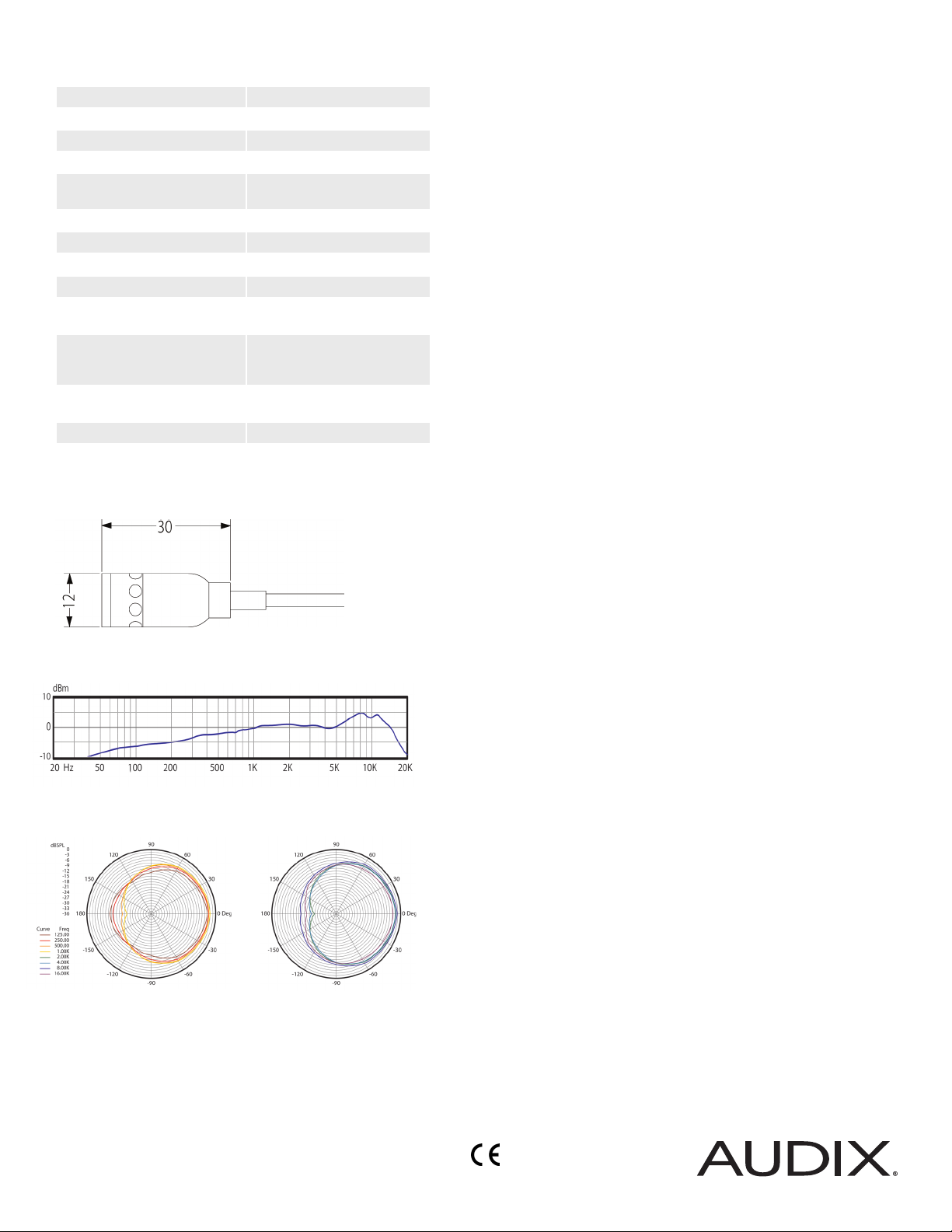

DIMENSIONS (mm)
SPECIFICATIONS
ADX20iP
Transducer Type Pre-Polarized Condenser
Frequency Response 40 Hz - 20 kHz
Polar Pattern Cardioid
Output Impedance 250 ohms
Sensitivity Cardioid - 6 mV / Pa @ 1k
Hypercardioid - 5.6 mV / Pa @1k
Equivalent Noise Level <29 dB (A-weighted)
Signal to Noise Ratio >65 dB
Maximum SPL ≥135 dB
Power Requirements 9-52 V phantom
Connector Shielded 6’ terminating to a
miniature 3 pin XLRf
Polarity Positive pressure on diaphragm
produces positive voltage on pin
2 relative to pin 3
Materials / Finish Machined Brass Capsule / Black
Finish
Weight 48 g / 1.7 oz
Length 29 mm / 1.14 in
