Audix M1280B User manual

M1280B
OVERVIEW
The M1280B, a miniaturized condenser microphone with a fully integrated preamp and
detachable cable, has complete immunity from RF interference caused by cell phones
and GSM devices. The M1280B is equipped with a cardioid capsule and is also available
with hypercardioid, omni or shotgun capsules. The M1280B has a very wide frequency
response and may be used in a wide variety of live, studio and broadcast applications.
The M1280B is available with a wide array of clips and accessories allowing the
microphone to be used for drums, percussion, musical instruments, overhead stage
miking, podiums, conferences and presentations.
MODEL VARIATIONS
M1280BHC - Hypercardioid mic
M1280BO - Omni-directional mic
M1280BS - Supercardioid (shotgun) mic
SUPPLIED ACCESSORIES
CBLM25 - 25’ cable with mini-XLRf - XLRm connectors
MCHANGER - Hanging clip
MCMICRO - Mic stand adapter
WS1218 - External foam windscreen
OPTIONAL ACCESSORIES
DCLAMPMICRO - Lug mount with shock mount ring, adapted for hand
percussion instruments
DVICEMICRO - Drum rim mount attachment with shockmount ring
DFLEXMICRO - Wide jaw butterfly clip with shockmount ring
MCSWIVEL - Shock mount adaptor with ball and socket pivot for complete
mic positioning
MC20i - Clamp on clip for saxophone with shockmount ring
MGN Series - 6”, 12” or 18” gooseneck with base terminating in standard XLRm
MICROBOOM - 24”, 50” or 84” carbon fiber boom arm with clutch assembly
SMTMICRO - Stand adapter with rubber insulated shockmount
Dynamic Instrument
Microphone
M1280B
FEATURES
· Lightweight, small profile
· Miniaturized preamp circuitry
· No external power adapter needed
· 12 mm gold vapor diaphragm
· Immune to RF interference
· Extremely low noise, high SPL handling
· Designed, assembled, manufactured &
tested in the USA
· 3 year warranty
APPLICATIONS
· Overhead mic for choir, group vocal
· Acoustic instruments
· Ambient room miking
· Symphonic area miking
· Speech, Presentation, Podium
· Cymbals, Percussion
· Acoustic guitar
MCHANGER MCMICRO MCSWIVEL MICROBOOM M1280B on DFLEXMICRO

Transducer Type Condenser
Frequency Response 40 Hz - 20 kHz
Polar Pattern Cardioid, Hypercardioid, Omni,
Supercardioid
Output Impedance 150 ohms
Sensitivity 10 mV (C/HC), 12 mV (O),
18 mV (S) / Pa @ 1k
Signal/Noise Ratio 73 dB
Equivalent Noise Level 21 dB (A-weighted)
Maximum SPL ≥147 dB
Dynamic Range 126 dB
Power Requirements 18 - 52 V
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3 of output
XLR connector
Materials / Finish Machined Brass / Black Finish
Weight 28 g / 1 oz
Length 67 mm / 2.6 in
FREQUENCY RESPONSE
POLAR PATTERNS
ARCHITECT AND ENGINEER SPECIFICATIONS
The microphone shall be of the condenser type with a modular threaded
capsule available in cardioid, hypercardioid, omni-directional and supercardioid
polar patterns. The microphone shall be protected from RF interference. The
microphone shall have a fully integrated preamp circuit thereby eliminating the
need for a remote preamplifier module. The microphone shall operate on 18 -
52 Volts DC and the nominal output impedance shall be equal to 150 ohms at
1 kHz. The microphone shall have a sensitivity of 10 mV (C/HC), 12 mV (O), 18
mV (S) / pA at 1 kHz. The microphone shall have a maximum SPL level of 147 dB
with THD of .5% and the microphone shall be machined out of brass and the
dimensions shall be 12 mm in diameter by 67 mm in length. The microphone
shall be the Audix M1280B.
OPERATION AND MAINTENANCE
The M1280B is a low impedance microphone and should be plugged into a“mic
level” input on your console, mixer or recording device. The M1280B requires
phantom power and will NOT operate without phantom power voltage (48
Volts recommended) which is available on most professional mic preamps and
mixing devices. If phantom power is not available on your equipment, use a
phantom power supply such as the Audix APS2.
Avoid plugging or unplugging the microphone from a PA system unless the
channel is muted or the volume of the system turned down. Failure to do so may
result in a loud “popping” noise which could seriously damage the speakers in
the PA system, studio monitors or headphones.
USER TIPS
The M1280B, despite its size, has all the attributes of a world class recording
microphone. Low noise integrated electronics allows the microphone to
function in the close field as well as in the far field. It can be used on a wide
variety of acoustics instruments as well as on voice and vocal ensembles.
Cardioid: The cardioid pattern is helpful with resistance to feedback. For
percussion the M1280B should be used 1 - 2 feet above the cymbals, or because
of its small size, could also be used in hard to reach areas such as beneath the
cymbals. For orchestral instruments, the M1280B may be positioned anywhere
from 3 - 12 inches depending on instrument and room acoustics. For speech
or voice the typical working distance is 8 - 10 inches. For area miking or group
vocals the working distance can be between 2 - 3 feet from the sound source.
Hypercardioid: In situations where the volume is loud on stage or there
are many open microphones, this pattern is helpful in further isolating the
instrument or vocal from the rest of the instruments on stage. The microphone
can be worked at ½ the distance of cardioid if necessary.
Supercardioid: This pattern is best for podium applications. It is helpful in pin-
pointing hard to reach areas, especially for recording outdoors, and with video.
Omni-Directional: The Omni pattern offers the most accurate and natural
sound reproduction of all the patterns. It is ideal for recording, live broadcasts or
video, where sound reinforcement speakers are not an issue.
Further miking techniques may be found on our website at www.audixusa.com
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
www.audixusa.com
503.682.6933 Fax: [phone]
Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070
ver 3.0 12-15
PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.
SERVICE AND WARRANTY: This microphone is under warranty for a period of 3 years to be free of defects in material and workmanship. In the event of a product failure due to materials or
workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes
any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No
Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any,
for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of
any kind. Should your microphone fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN
THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL
NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S
SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

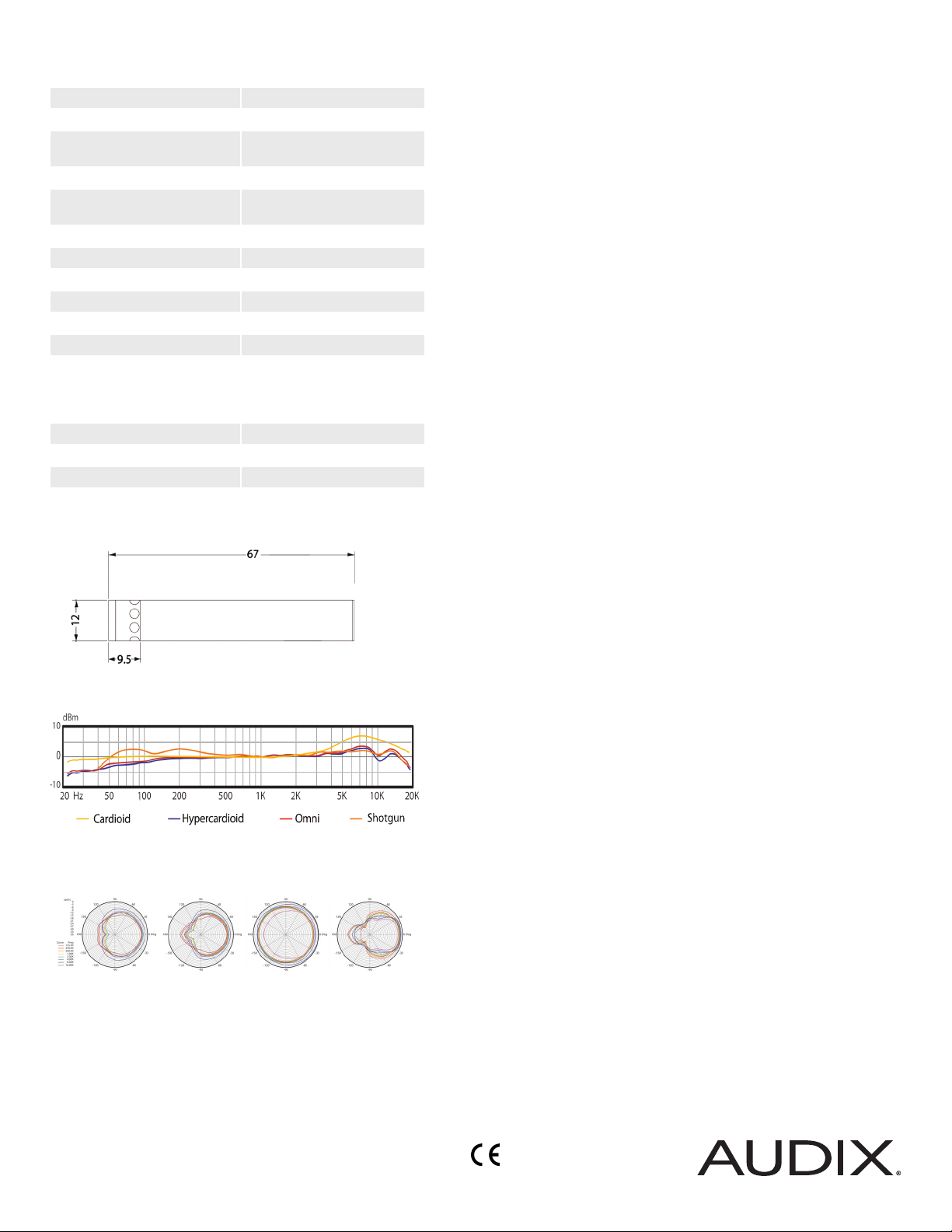

DIMENSIONS (mm)
SPECIFICATIONS
M1280B
Cardioid Hypercardioid Omni Shotgun
