PIPA next instructions
EN
Designed
around your life
Contents
Product information
Product Registration 3
Warranty 3
Contact 4
Child Usage Requirements 5
For Use with Base and without Base 6
Warnings 8
Parts List 13
Product Use 15
Cleaning and Maintenance 23
French (FR) 25
German (DE) 53
Dutch (NL) 79
Italian (IT) 105
Spanish (ES) 131
Portuguese (PT) 157
Polish (PL) 183
Czech (CZ) 209
Slovak (SK) 233
Croatian (HR) 259
Slovenain (SL) 283
Russian (RU) 307
Swedish (SV) 331
Finnish (FI) 355
Romanian (RO) 379
Greek (EL) 405
Turkish (TR) 429
Arabic (AR) 454

43 PIPA next instructions PIPA next instructions
EN EN
Contact
For replacement parts, service, or additional warranty
questions, please contact our customer service
department.
[e-mail]
www.nunababy.com
In the United Kingdom:
[e-mail]
www.nunababy.com
NUNA International B.V.
Van der Valk Boumanweg 178 C
2352JD Leiderdorp
The Netherlands
Product Information
Model Number:_______________________________________________________
Manufactured Date: ________________________________________________
Product Registration
Please fill in the above information. The model
number and the manufactured in date are located on
the bottom of the PIPA next and PIPA next base.
To register your product please visit:
www.nunababy.com/register-gear
Warranty
We have purposely designed our high-quality
products so that they can grow with both your child
and your family. Because we stand by our product,
our gear is covered by a custom warranty per product,
starting from the day it was purchased. Please
have the proof of purchase, model number and
manufactured in date available when you contact us.
For warranty information please visit:
www.nunababy.com/warranty

65 PIPA next instructions PIPA next instructions
EN EN
1 “i-Size” (Integral Universal ISOFIX Enhanced
Child Restraint Systems) is a category of
Enhanced Child Restraint System primarily
designed for use in all i-Size seating position of a
vehicle.
2 According to the UN Regulation No. 129, the
Enhanced Child Restraint with base is a Universal
ISOFIX ISO/R2 Enhanced Child Restraint and
should be fitted using the ISOFIX connections.
3 This is an "i-Size" Enhanced Child Restraint
System. It is approved according to UN
Regulation No. 129, for use in, i-Size compatible
vehicle seating positions as indicated by vehicle
manufacturers in the vehicle users’ manual.
R129-030526
UN Regulation
No.129/03
i-Size
universal
ISOFIX
Infant Carrier Module
"PIPA next"
40cm-83cm
030525
UN Regulation
No.129/03
PIPA next
40cm-83cm / ≤13kg
PIPA next + Base
R129-030526
For Use with Base
and without Base
Child Usage Requirements
This product is suitable for use with children who
meet the following requirements:

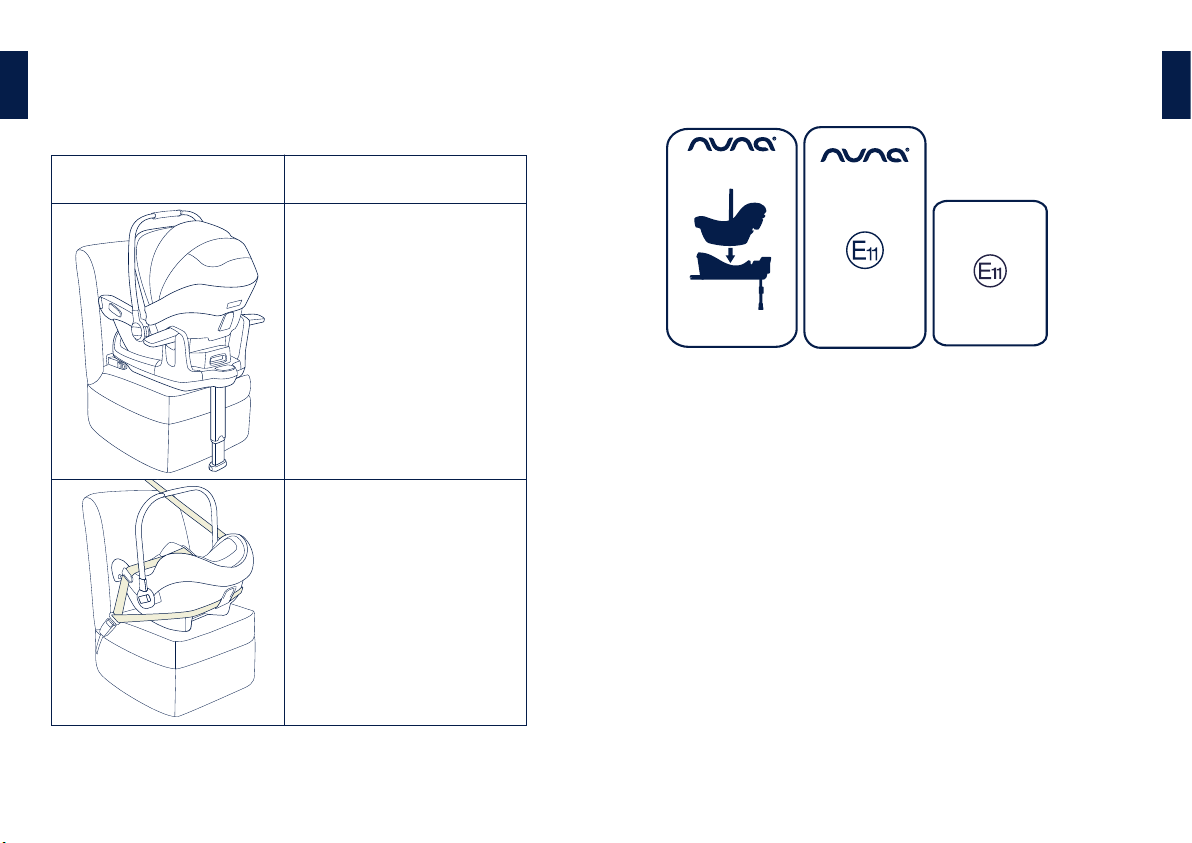

Figure for Installation Suitable for
Child height 40cm-83cm/
Child weight≤13kg
(approximately 15 months
old or under)
Child height 40cm-83cm/
Child weight≤13kg
Child age≤15 months

87 PIPA next instructions PIPA next instructions
EN EN
WARNING
Failure to follow these warnings and
instructions could result in serious injury or
death.
Any straps holding the infant carrier module
to the vehicle should be tight, that any load
leg should be in contact with the vehicle
floor, that any straps restraining the child
should be adjusted to the child’s body, and
that straps should not be twisted.
After your child is placed in this enhanced
child restraint, the safety belt must be used
correctly.
Any luggage or other objects liable to cause
injuries in the event of a collision shall be
properly secured.
Be sure that the enhanced child restraint
is installed in such a way that no part of
it interferes with movable seats or in the
operation of vehicle doors.
Before carrying the infant carrier module by
hand, ensure that the child is fastened with
the child harness, and that the handle is
correctly locked in a vertical position.
Consult the distributor for issues concerning
maintenance, repair and part replacement.
4 This is an Universal Belted Enhanced Child
Restraint System. It is approved according to UN
Regulation No. 129, for use primarily in “Universal
seating positions” as indicated by vehicle
manufacturers in the vehicle user’s manual.
5 If in doubt, consult either the Enhanced Child
Restraint System manufacturer or the retailer.

109PIPA next instructions PIPA next instructions
EN EN
The enhanced child restraint system soft
goods should not be replaced with any
other than the ones recommended by the
manufacturer, because the soft goods
constitutes an integral part of the restraint
performance.
To avoid the risk of falling out, always secure
the child using the child harness when the
child is placed in infant carrier module, even
when the enhanced child restraint is not in
the vehicle.
To avoid serious injury or death, NEVER
place infant carrier module on elevated
surface seat with child in it.
The parts of this enhanced child restraint
should not be lubricated in any way.
Remove this infant carrier module and base
from the vehicle seat when it is not in regular
use.
ALWAYS secure child in enhanced child
restraint, even on short trips, as this is when
most accidents occur.
NEVER leave your child unattended with this
enhanced child restraint.
NEVER use a second-hand enhanced child
restraint or an enhanced child restraint
whose history you do not know because it
may have structural damage that endangers
your child’s safety.
Correct Installation is only permitted by use
of the ISOFIX connectors.
Frequently check the ISOFIX guides for dirt
and clean them if necessary. Reliability can
be effected by ingress of dirt, dust, food
particles etc.
Please check before you purchase this
enhanced child restraint to make sure it can
be installed properly in your vehicle.
Please keep this enhanced child restraint
without a textile cover away from sunlight,
because it may be too hot for child’s skin.
Always touch the Enhanced Child Restraint
before placing child in it.
To use this enhanced child restraint with
the ISOFIX connections according to UN
Regulation No. 129, your child must meet the
following requirements.
Child height 40cm-83cm/Child weight≤13kg
(approximately 15 months old or under).
To use this infant carrier module with vehicle
belt, your child must meet the following
requirements.
Child height 40cm-83cm/
Child weight ≤ 13kg/Child age ≤ 15 months.

1211 PIPA next instructions PIPA next instructions
EN EN
DO NOT install this enhanced child restraint
without following the instructions in this
manual or you may put your child at serious
risk of injury or death.
DO NOT make any modification to this
enhanced child restraint or use it along with
component parts from other manufacturers.
DO NOT use the enhanced child restraint
system without the soft goods.
DO NOT use this enhanced child restraint if
it has damaged or missing parts.
DO NOT have your child in large/oversized
clothes because this may prevent your child
from being properly and securely fastened
by the shoulder harness straps and the
crotch strap between the legs.
DO NOT leave this enhanced child restraint,
or other items unbelted or unsecured in your
vehicle because an unsecured enhanced
child restraint can be thrown around and
may injure occupants in a sharp turn, sudden
stop, or collision.
DO NOT put anything other than the
recommended inner cushions in this
enhanced child restraint.
NEVER use ropes or any other substitutes to
secure enhanced child restraint in vehicle or
to secure child into enhanced child restraint.
NO enhanced child restraint can guarantee
full protection from injury in an accident.
However, proper use of this enhanced child
restraint will reduce the risk of serious injury
or death to your child.
DO NOT use the rearward facing enhanced
child restraint systems in seating positions
where there is an active frontal airbag
installed. Death or serious injury may occur.
Please reference vehicle owner’s manual for
more information.
DO NOT place any objects in the load leg
area in front of your base.
DO NOT use any load bearing contact
points other than those described in the
instructions and marked on the enhanced
child restraint.
DO NOT continue to use this enhanced
child restraint after it has suffered any
type of crash, even a minor one. Replace
immediately as there may be invisible,
structural damage from the crash.

1413 PIPA next instructions PIPA next instructions
EN EN
14
18
13
11
12
8
1
2
9
10
4
3
7
6
5
20
22
21
15
17
16
19

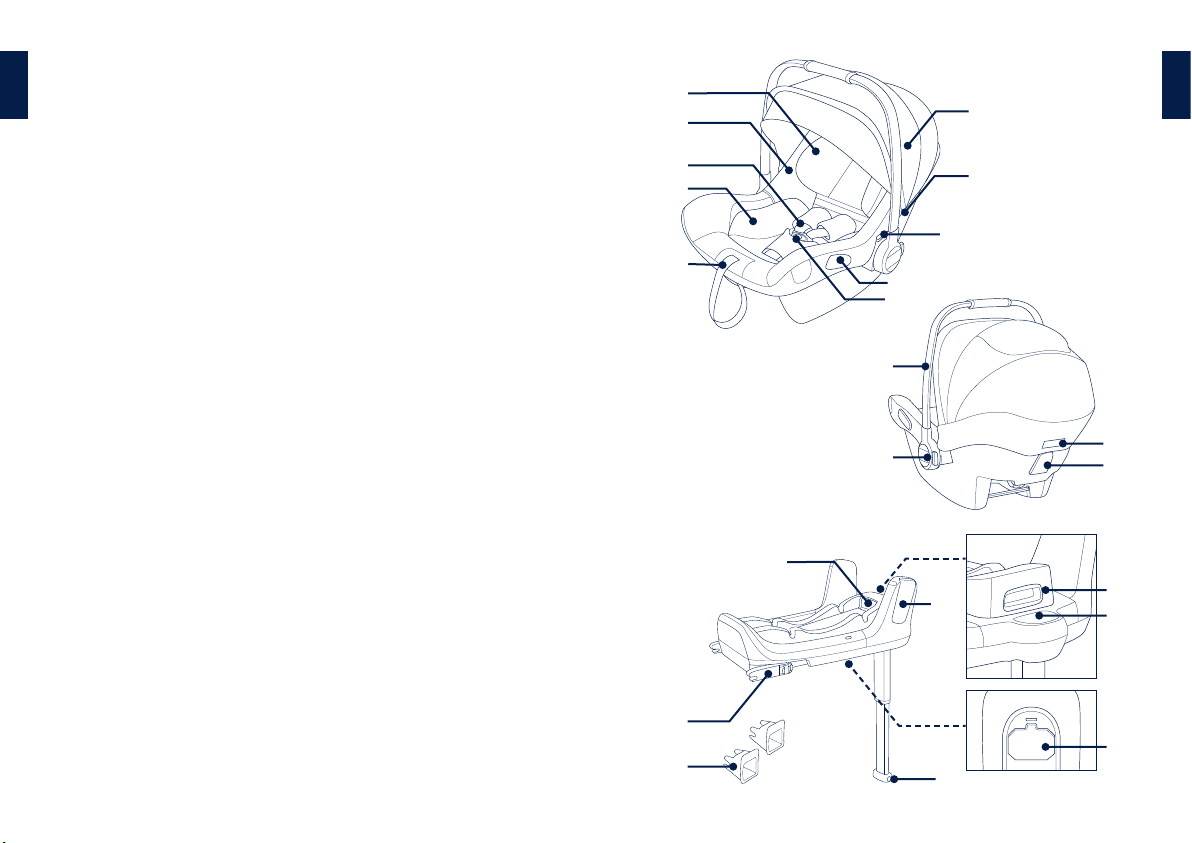

Parts List
Make sure all parts are available before assembly. The
infant carrier module and base can be sold separately.
If any part is missing, please contact Nuna (see page
3 & 4 for information). No tools are required for
assembly.
1Head support
2Seat Pad
3Shoulder Harness
Straps
4Infant Insert
5Adjustment Webbing
6Safety Buckle
7Side Guides
8Stroller Release
Button A
9Canopy Mount
10 Canopy
11 Handle
12 Handle Button
13 Rear Guide
14 Stroller Release
Button B
15 ISOFIX Connector
16 ISOFIX Guides
17 Load Leg Adjust
Button
18 Side Impact Shield
19 ISOFIX Adjust Button
20 Infant Carrier Module
Release Button
21 Load Leg Indicator
22 Instruction
Manual Storage
Compartment

1615 PIPA next instructions PIPA next instructions
EN EN

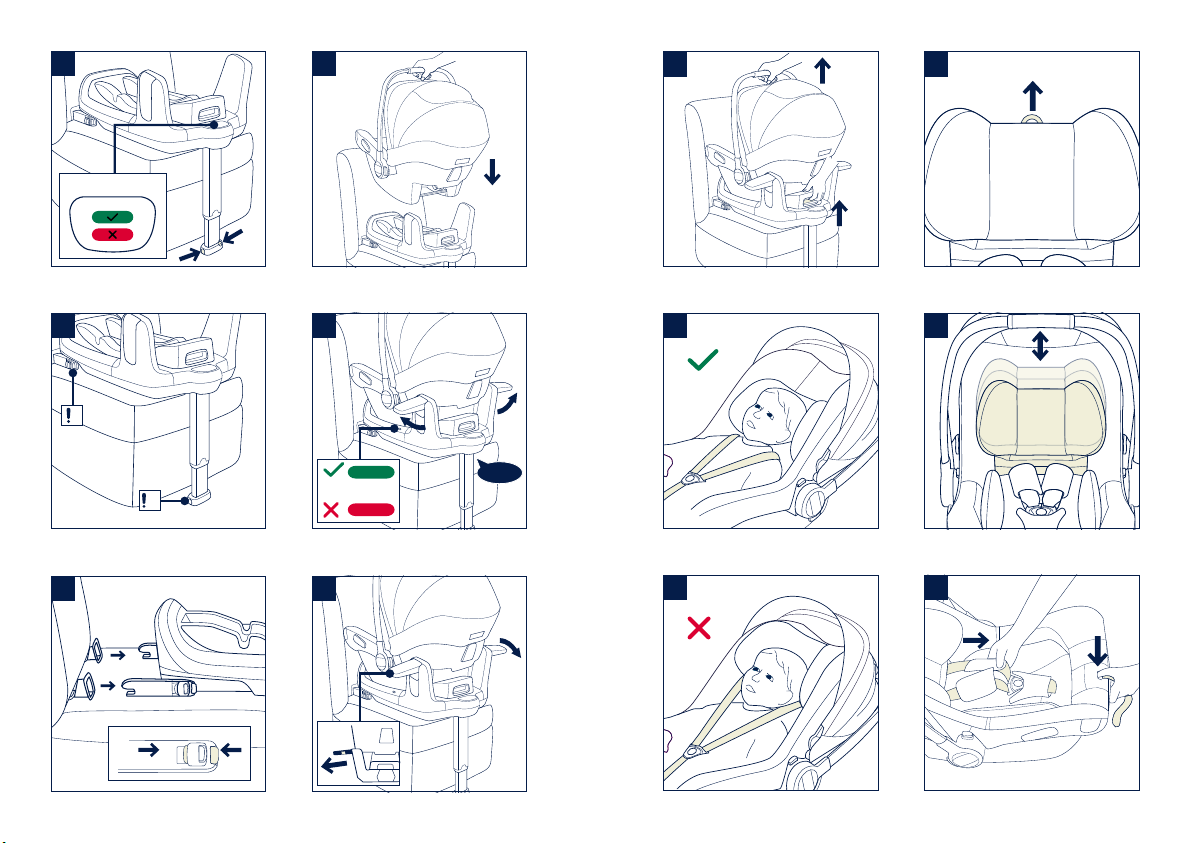

Installation with Base
1Unfold the load leg from storage compartment.
(7)
2Fit the ISOFIX guides with the ISOFIX anchor
points. (8) The ISOFIX guides can protect the
surface of the vehicle seat from being torn. They
can also guide the ISOFIX connectors.
3Press the ISOFIX Adjust Button to adjust the
ISOFIX connectors. (9)
4Line up the ISOFIX connectors with the ISOFIX
guides, and then click both ISOFIX connectors
into the ISOFIX anchor points. (10)
Make sure that both ISOFIX connectors are
securely attached to their ISOFIX anchor points.
There should be two audible clicks and the colors
of the indicators on the both ISOFIX connectors
should be completely green. (10)-1
Check to make sure the base is securely installed
by pulling on the both ISOFIX connectors.
5After placing the base on the vehicle seat,
extend the load leg to floor (11). When the load
leg indicator shows green means it is installed
correctly, red means it is installed incorrectly.
(11) -2
Product Use
Installation Concerns
This infant carrier module is suitable for vehicle seats
with i-Size ISOFIX anchor points with the Base. (1)
DO NOT use the rearward facing enhanced child
restraint systems in seating positions where there is
an active frontal airbag installed. Death or serious
injury may occur. (2) Please reference vehicle owner’s
manual for more information.
DO NOT install this enhanced child restraint on vehicle
seats that face sideways or rearward with respect to
the moving direction of the vehicle. (3)
It is recommended to install this enhanced child
restraint on the rear vehicle seat. (4)
DO NOT install this enhanced child restraint on
vehicle seats movable during installation.
Handle Adjustment
1The handle of the infant carrier module can be
adjusted to 3 positions. (5)
2To adjust the handle, squeeze handle buttons on
both sides to release it. (6)-1
3Rotate handle until it clicks into any of the 3
positions. (6)-2

1817 PIPA next instructions PIPA next instructions
EN EN
9To release the infant carrier module, pull the
enhanced child restraint up while squeezing the
infant carrier module release button. (17)
Height Adjustment
for Head Support and Shoulder Harnesses
Check that Shoulder Harness Straps are set at the
proper height. Please choose the proper pair of
shoulder harness slots according to the child’s height.
Shoulder Harness Straps must be nearest to your
childs shoulders (18), but not above the shoulder
line. (19)
If the Shoulder Harness Straps are not at proper
height, the child might be ejected from the
enhanced child restraint if there is a crash.
Pull the head support adjustment lever (20),
meanwhile pull up or push down the head support
until it snaps into one of the 7 positions. The head
support positions are shown as (21).
The load leg has 19 positions. When the load leg
indicator shows red this means the load leg is in
the wrong position.
Make sure the load leg is in full contact with the
vehicle floor pan.
To shorten the load leg, squeeze the load leg
release button and pull the load leg upwards.
(11)-1
The completely assembled base is shown as (12).
The ISOFIX connectors must be attached and
locked onto the ISOFIX anchor points. (12)-1
The load leg must be installed correctly with
green indicator. (12)-2
6To remove the base, press the secondary lock
button (13)-1 first and then the button (13)-2 on
the latch connectors before removing the base
from the vehicle seat.
7Press the ISOFIX adjust button to fold the ISOFIX.
8Push the infant carrier module down into the base
(14), if the enhanced child restraint is secure, the
side impact shield will be open and the enhanced
child restraint indicator shows green. (15) The
side impact shield which is away from the door
can be closed as shown on (16) when do not use
it.
Pull up on the infant carrier module to be sure it is
securely latched into the base.

2019 PIPA next instructions PIPA next instructions
EN EN
Make sure the space between the child and the
Shoulder Harness Straps is about the thickness of
one hand.
Canopy
1Unzip the zipper of the front canopy bow. (27)
2Pull the dream drape™ out of the canopy. (28)
3Attach the magnets on each corner to the front of
the infant carrier module with magnets. (29)
4The canopy window can be opened for
ventilation. (30)
Detach & Assemble Soft Goods
see images (31)-(42)
To re-assemble the soft goods, reverse the
aforementioned steps.
Installation without Base

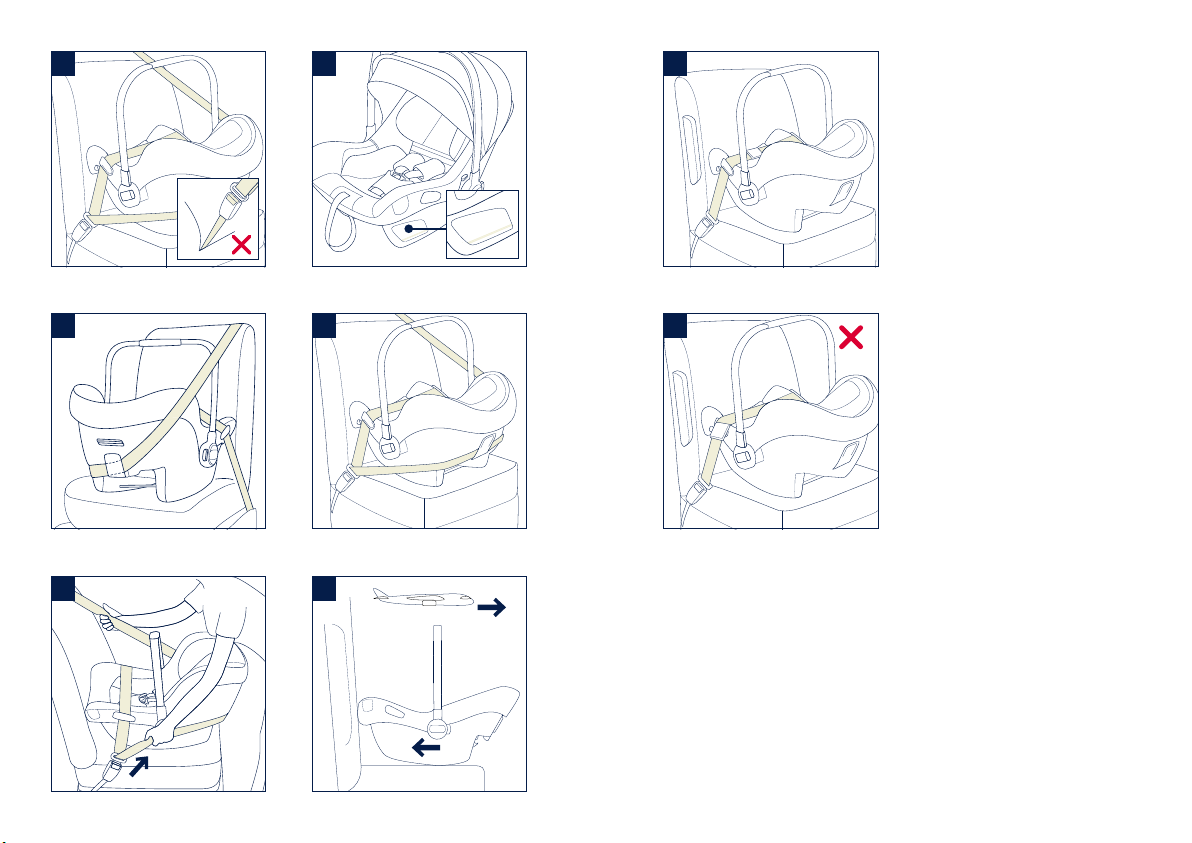

1DO NOT install this infant carrier module on
vehicle seats with Lap Belts. (43)
2This infant carrier module is suitable for vehicle
seats with a 3-point Retractor Safety Belt
(without base) only. (44)
3Place the infant carrier module onto the vehicle
seat where you wish to put it. Pull the vehicle
safety belt out and lock it into the vehicle buckle,
sliding the vehicle lap belt into the side guides of
the infant carrier module. (45)

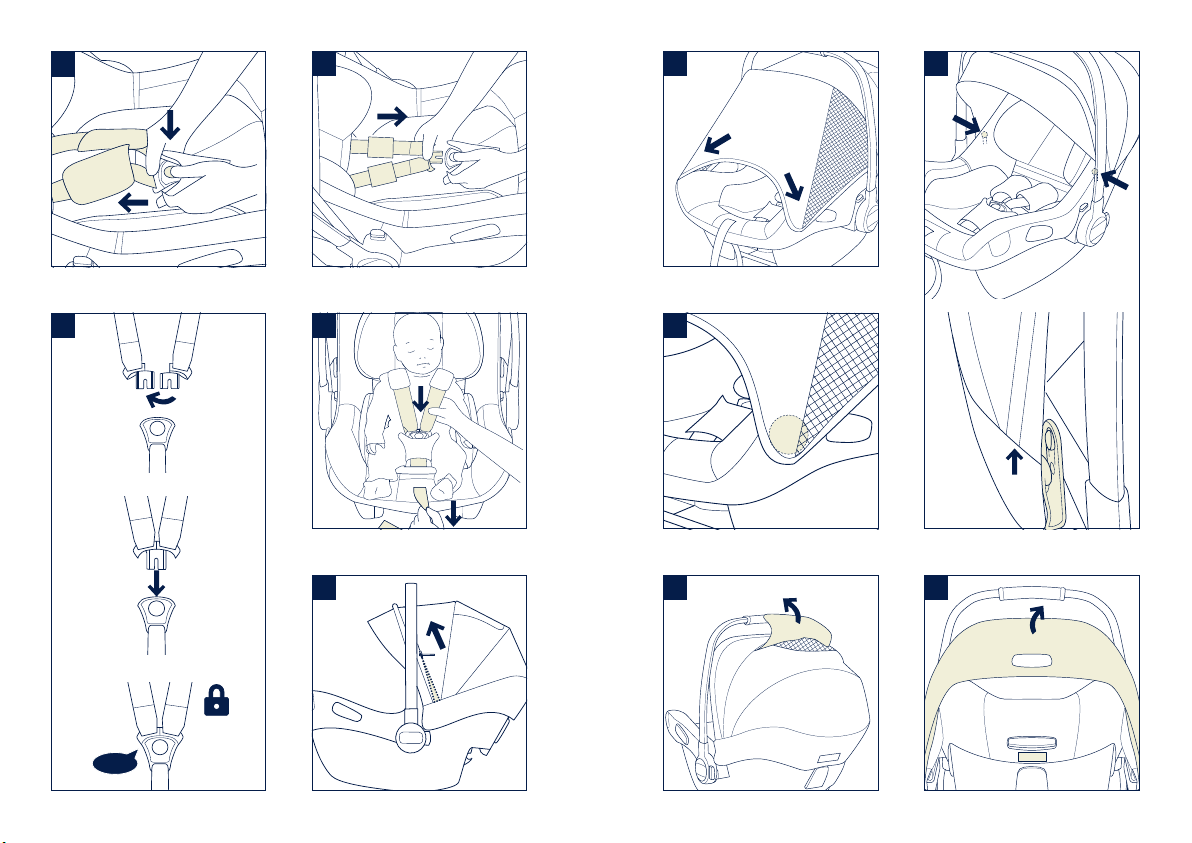

Securing Child
Use Infant Insert
After the child is placed into the seat, check whether
the Shoulder Harness Straps are at proper height.
1While pressing the harness adjustment button,
pull completely the two Shoulder Harness Straps
of the enhanced child restraint. (22)
2Unlock the buckle of the harnesses by pressing
the red button. (23)
3Place the child into the infant carrier module and
lock the buckle. (25) Please refer to (24).
4Tighten the shoulder harness straps by pulling the
adjustment webbing. (26)
We recommend
using the full infant
insert while the baby
is under 60 cm or
until they outgrow
the insert. The infant
insert increases side
impact protection.
Remove the infant insert
when the infant’s
shoulders no longer fit
comfortably.

2221 PIPA next instructions PIPA next instructions
EN EN
Note that the infant carrier module must remain
belted on the aircraft seat even when unoccupied.
Note that the infant carrier module is only for use on
a passenger seat authorized by the airline.
Warnings not to use the infant carrier module in the
area of airbag deployment. (2)
Note that Rearward facing infant carrier module
should only be installed on forward facing passenger
seats. (50)
How to install the infant carrier module using the aircraft
seat’s safety belt:
1Place the infant carrier module opposite to the
flight direction onto the passenger seat.
2Ensure that the carry handle is in the topmost
position.
3Place the safety belt into both belt guides.
4Close the safety belt (refer to the safety
instructions by the airline).
5Tighten the safety belt by pulling the belt end.(51)
The buckle of the safety belt must under no
circumstances lie within the dark green belt guides.
(52)
Removal:
Open the safety belt of the passenger seat (refer to the
safety instructions by the airline).
Now you can take the infant carrier module from the
passenger seat.
The infant carrier module can not be used if the
vehicle safety belt buckle (female buckle end)
is too long to anchor the infant carrier module
securely. (45)-1
4Slide diagonal belt into the rear guide. (46)
5Pull the vehicle shoulder belt to fasten the infant
carrier module tightly and securely. (47)
6Level line on infant carrier module must be level
to the ground when the infant carrier module is
installed. (48)
Tension the vehicle safety belt as much as
possible, checking that it is not loose or twisted.
After installing the infant carrier module, always
check that the vehicle belts are routed correctly
and securely fastened into the vehicle buckle.
(49)
Aeroplane Installation
Note that safety of the child for not complying
with the installation and instruction manual is not
guaranteed.
Note that the installation of the infant carrier
module on an aircraft seat differs from the
installation on a car seat.
Note that 2-Point “Lap Belt” attachment is only
permitted in aircraft.

2423 PIPA next instructions PIPA next instructions
EN EN
Cleaning and Maintenance
Clean the frame, plastic parts, and fabric with a damp
cloth, but do not use abrasives or bleach. Do not use
silicon lubricants as they will attract dirt and grime.
To ensure long-lasting use, wipe this product off with
a soft, absorbent cloth after using it in rainy weather.
Refer to the care labels attached to the soft goods for
washing and drying instructions.
It is normal for fabric to color from sunlight and to
show wear and tear after a long period of use, even
when used normally.
For reasons of safety, only use original Nuna parts.
Check regularly if everything functions properly. If
any parts are torn, broken, or missing, stop using this
product.
NUNA International B.V. Nuna and all associated logos are trademarks.

Sommaire
Informations sur le produit
Enregistrement du produit 27
Garantie 27
Contact 28
Conditions d'utilisation avec un enfant 29
Utilisation avec ou sans la base 30
Avertissements 32
Liste des pièces 39
Utilisation du produit 41
Nettoyage et maintenance 51
IMPORTANT !
CONSERVEZ CES
INSTRUCTIONS POUR
UNE UTILISATION
FUTURE :
LIRE ATTENTIVEMENT
2625 Instructions PIPA next Instructions PIPA next
FR FR
