Aurora Multimedia TV/ FM Tuner V Tune Pro User manual

Installation and
Operations
Manual
Manual Rev: 031115
Firmware Rev: 1.10
205 Commercial Court Morganville, NJ 07751
Voice: [phone] Fax: [phone]
www.auroramultimedia.com
TV/ FM Tuner
Closed Captioning, OSD, RS-232, IR, Contact Closure Control
V Tune Pro

Table of Contents
Product Description ................................1
Warning ................................................. 2
Unpacking ............................................ 2
Installation ............................................. 2
Remote Control .................................... 3
Specifications ........................................ 7
Control Port ............................................ 8
RS-232 Protocol ..................................... 9
Warranty ............................................ 14
System Overview ................................... 2
Front Panel ............................................ 4
Setup Mode . ........................................ 5
Connector Specifications ..................... 11
Troubleshooting .................................... 12
Upgrading Firmware ............................. 13
FCC Statement ..................................... 15

1.0 Product Description
The is a 181-channel Closed Caption TV Tuner with composite video
out. Built in OSD allows for on-screen channels and volume. The VTune Pro allows
up to 999 units to be connected together via 1 RS-232 port and the advanced
addressable RS-232 command set. It is a perfect low cost TV or FM Tuner for any
AV System. The VTune is also a great compliment to stand alone display devices
such as Plasma, LCD, and CRT displays. Using the RS-232, IR, or Contact Closure
Control ensures that this affordable compact TV/FM Tuner is easily integrated into
any audio/video system.
VTune Pro
-1-
+or
Plasma Display LCD Projector
?
?
?
?
?
?
?
?
?
181 Channel TV Tuner
FM Tuner:
North America (87.5 - 107.9MHz)
International (87.4 - 108.0MHz)
Composite Video Output
Stereo Audio Output
Closed Captioning
On Screen Display
2 RS-232 ports for looping, IR, Contact
Closure Control
Includes Full Featured IR remote control
Customizable for control of other RS-232
Devices (call Aurora for info)
?
?
?
?
?
?
?
?
?
Features

3.0 Unpacking
(1) - VTune Pro
(1) - Installation and Operations Manual
(1) - 12 Volt power supply
(1) - I Remote
(1)-6PinMini DIN Male - Female 9 Pin (Firmware Upgrade / RS-232 Control Cable)
RC-2
(1)-6PinMini DIN Male-6PinMale (Loop through cable for multi-unit control)
Note: Please examine the VTune Pro for any signs of shipping damage.
2.0 : Static (Still) pictures will cause “burn in” on certain types of displays and may
damage the display device. When using static images, reducing brightness and/or contrast
can help reduce the risk of damage to the display device. Refer to the display’s owners and
technical manual about additional precautions.
Caution
-2-
Antenna Input
(Cable TV, etc.)

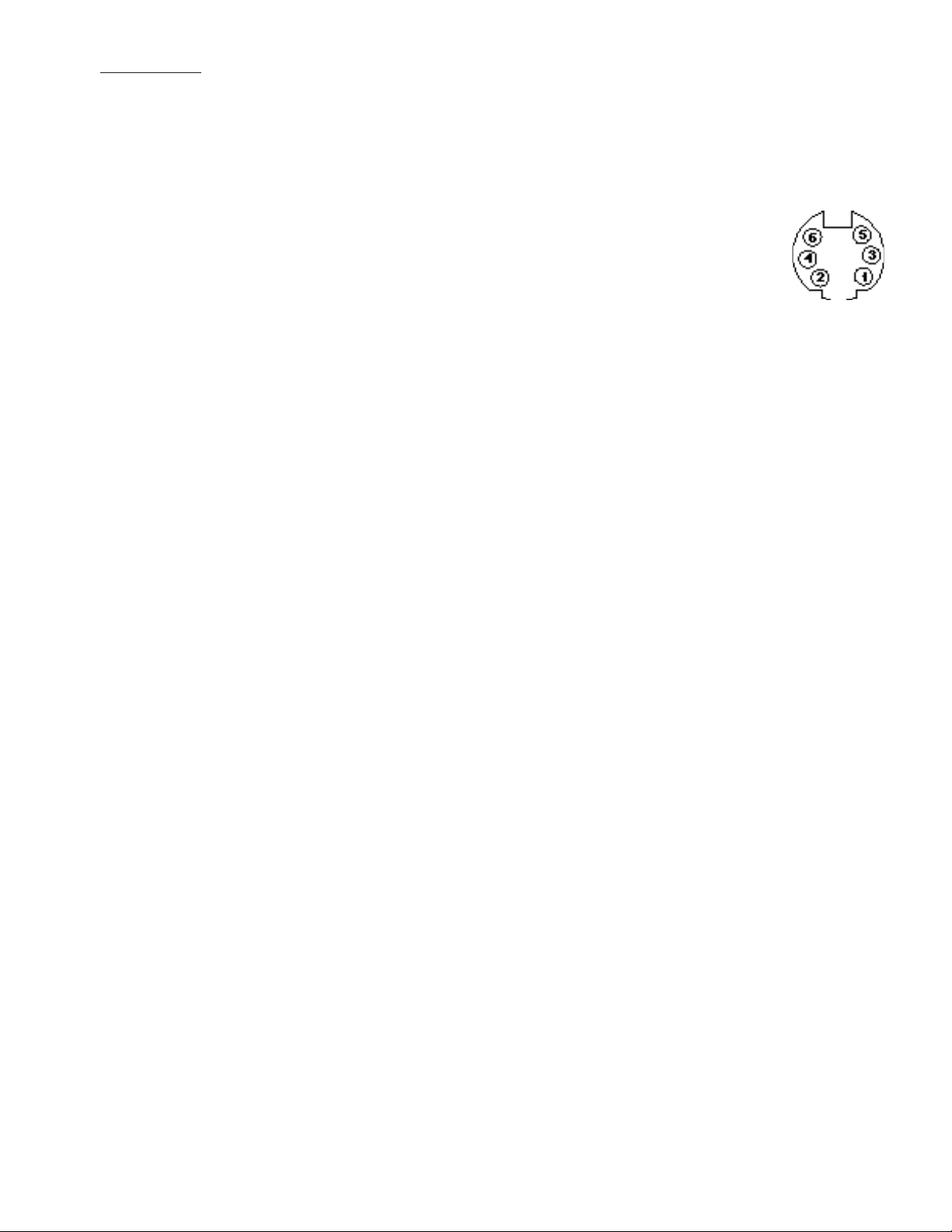

For RS-232 Control use
the provided 6 pin mini
DIN to 9 pin female
cable.

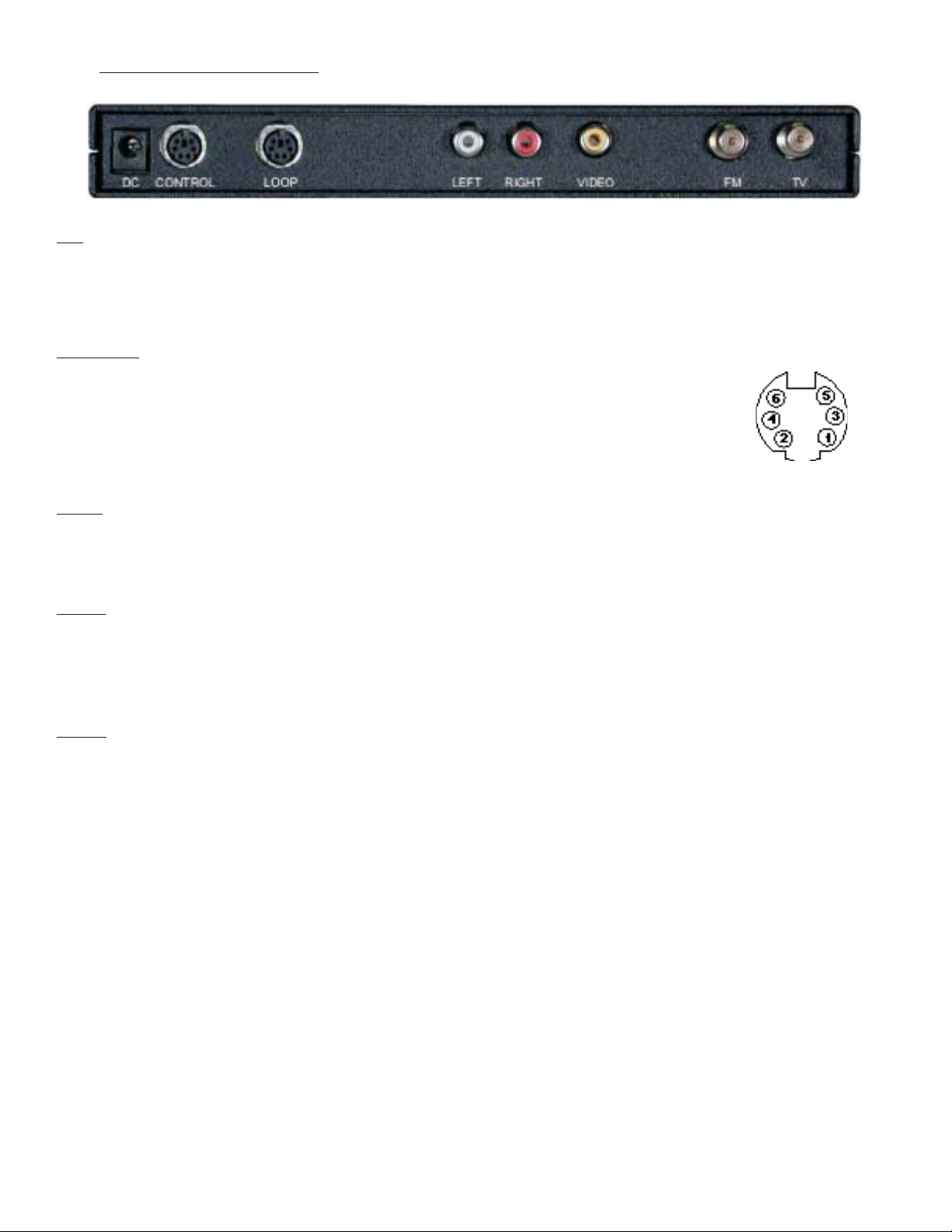

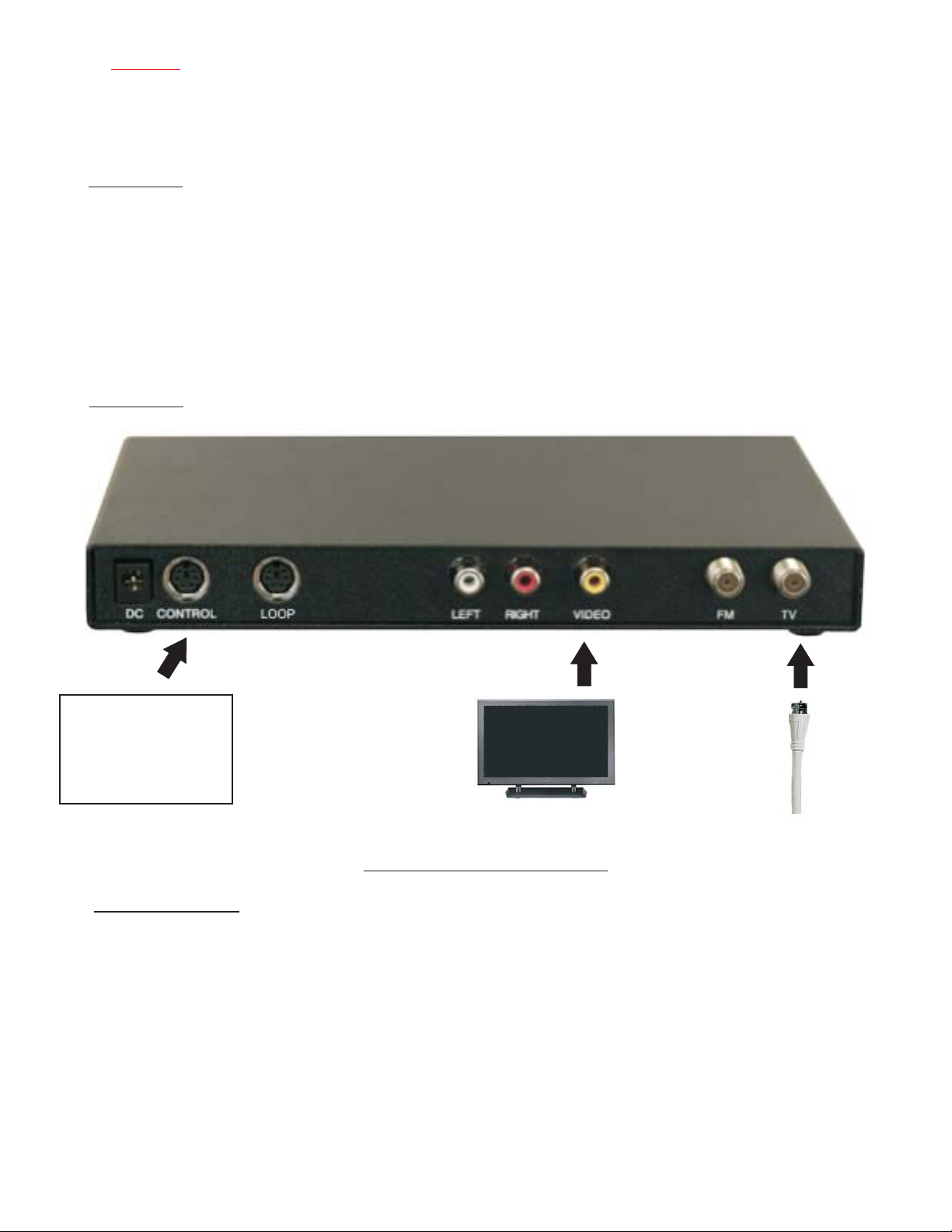

4.0 Installation
VTune Pro Setup/Connection
Display Device
5.0 System Overview
The VTune Pro is an RS232, contact closure, and IR controllable 181 Channel TV Tuner and FM Tuner. The unit was
designed for easy integration into systems that need remote control of the capabilities. The powerful yet simple RS232
protocol gives a user full 2 way feedback of channel selections. Control systems can take advantage of the RS232 to
allow true channel updating on a touch panel or web browser. Ordinary IR only tuners can not give this type of
information. Kiosks can take advantage of the contact closure port for direct access of channel, volume, and source
selection. Twelve built in presets make getting to a users favorite TV or FM channels a breeze.
Another great feature of the VTune Pro is the ability to upgrade the firmware for additional features or fixes. Try to keep an
eye out for the latest releases on www.auroramultimedia.com to take advantage of the new version. The firmware is
easily upload to the VTune Pro with the Flash123 utility that is free on our web site.

6.0 Remote Control

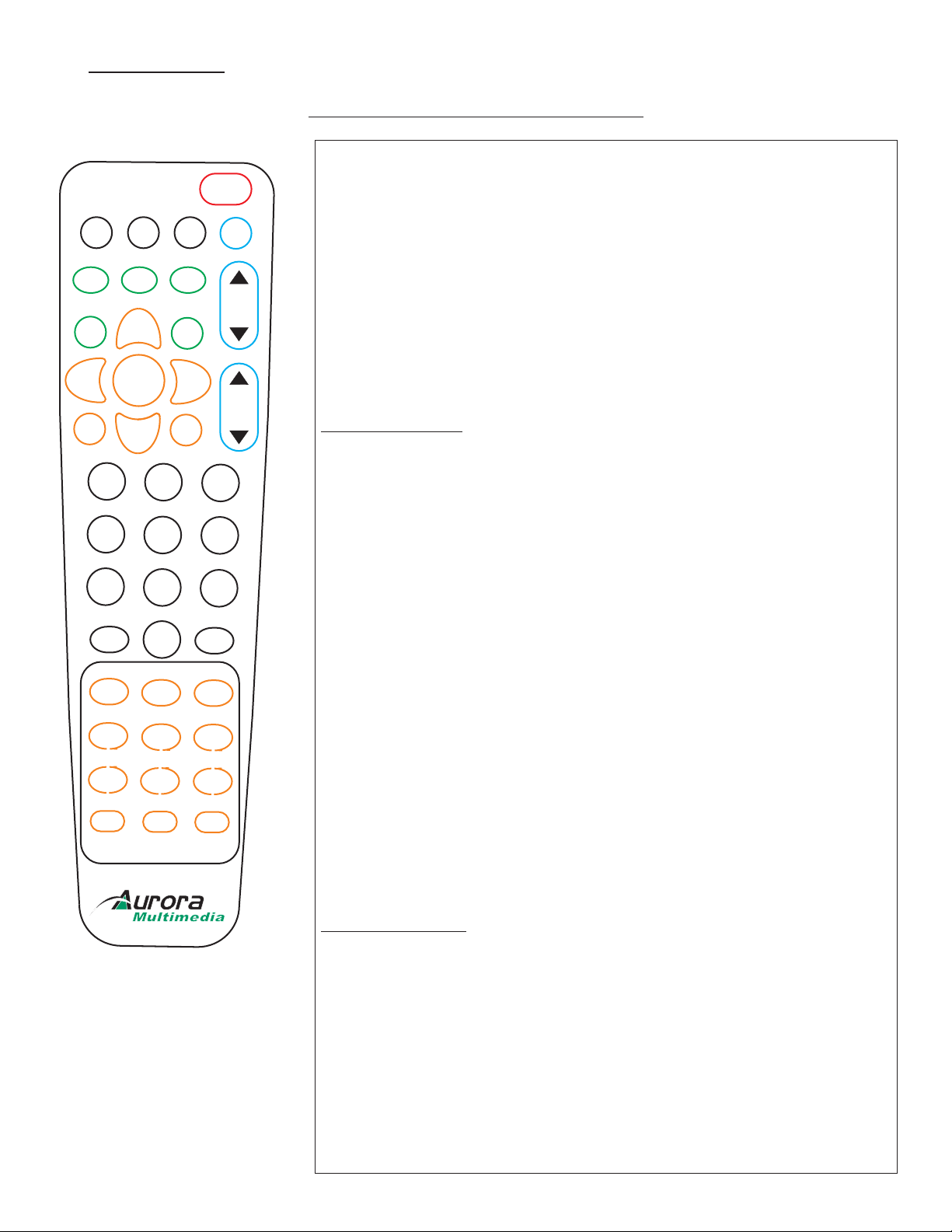

Using the Aurora IRC-7 Remote Control
-3-
1. POWER - Turns on and off the VTune
2. F1 - See Setup Mode section for detail
3. F2 -
4. F3 -
5. MUTE - Toggles the volume mute on/off
6. VOLUME - Ramps the volume up or down
7. CHANNEL - Changes the TV channel + or -
11. TV INPUT - Selects the TV Antenna as the Main source
See Setup Mode section for detail
See Setup Mode section for detail
8. CC - Closed Captioning1&2
9. EDS - Extended Data Service
10. AUDIO - Not Used (Future use)
12. FM INPUT - Selects the FM Antenna as the Main source
13. UP ARROW - Not Used (Future use)
14. DOWN ARROW - Not Used (Future use)
15. LEFT ARROW - FM Scan -
16. RIGHT ARROW - FM Scan +
17. SELECT - Confirms selection. Entering Channel 12 then Select
will immediately change the channel as compared to waiting for the 3
second time out.
18. MENU - Not Used (Future use)
19. INFO - Displays current channel and volume level
20 - 29 Number Keys - Used for direct channel selection
30. SET - Pressing this and one of the Preset buttons within 1.5
seconds stores current channel.
31. LAST - Returns to the last channel selected
32 - 43 Preset Keys - P1 thru P12 selects the stored preset for TV or
FM.
Source Selection
Preset Selections
8
5
2
9
6
3
0
IRC-7
SELECT
POWER
MUTE
VOL
CH
P2 P3
P6
P5
P9
P8
P12
LAST
P11
Presets
F2 F3
FM
V Tune Pro
INFO
EDS
AUDIO
7
4
1
P1
P4
P7
P10
SET
F1
TV
MENU
CC
23
8910
11 13 12
15
17
18 14 19
20 21
23 24
26 27
30 29
32 33
35 36
38 39
41 42
45
16
22
25
28
31
34
37
40
43
1
6
7
