Aurora DXE-CAT-S2C-4K User manual

i
Manual Number: 160229
USERS GUIDE
DXE-CAT-S2C-4K
HDMI HDBaseT CAT Extender with IP Control

i
User Guide
SAFETY INSTRUCTIONS
Please review the following safety precautions. If this is the first time using this model, then read this manual
before installing or using the product. If the product is not functioning properly, please contact your local
dealer or Aurora for further instructions.
The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage
inside the product that may be sufficient to constitute a risk of electric shock to anyone opening
the case. It is also used to indicate improper installation or handling of the product that could
damage the electrical system in the product or in other equipment attached to the product.
The exclamation point in the triangle is used to alert you to important operating and maintenance
instructions. Failure to follow these instructions could result in injury to you or damage to the
product.
Be careful with electricity:
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord
matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter
and power connection cables designed for this unit.
Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy
items.
Lightning: For protection from lightning or when the product is left unattended for a long period,
disconnect it from the power source.
.
Also follow these precautions:
Ventilation: Do not block the ventilation slots if applicable on the product or place any heavy object on
top of it.
Blocking the air flow could cause damage. Arrange components so that air can flow freely. Ensure that
there is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly
ventilated area, away from direct sunlight or any source of heat.
Overheating: Avoid stacking the Aurora product on top of a hot component such as a power amplifier.
Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.
Proper Connections: Be sure all cables and equipment are connected to the unit as described in this
manual.
Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the cover.
Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.
Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
ESD: Handle this unit with proper ESD care. Failure to do so can result in failure.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interferences received, including interference that may cause undesired
operation.
Trademarks
All trademarks in this document are the properties of their respective owners.

ii
User Guide
TABLE OF CONTENTS
PACKAGE CONTENTS .............................................................................................................1
INTRODUCTION........................................................................................................................2
About..................................................................................................................................................... 2
Features................................................................................................................................................ 3
Front & Rear Panel DXE-CAT-TX2C-4K............................................................................................... 4
Front & Rear Panel DXE-CAT-RX2-4K................................................................................................. 5
IR EXTENDERS.........................................................................................................................6
IR Connections ..................................................................................................................................... 6
IR Jack Pinout....................................................................................................................................... 6
Default IP .............................................................................................................................................. 7

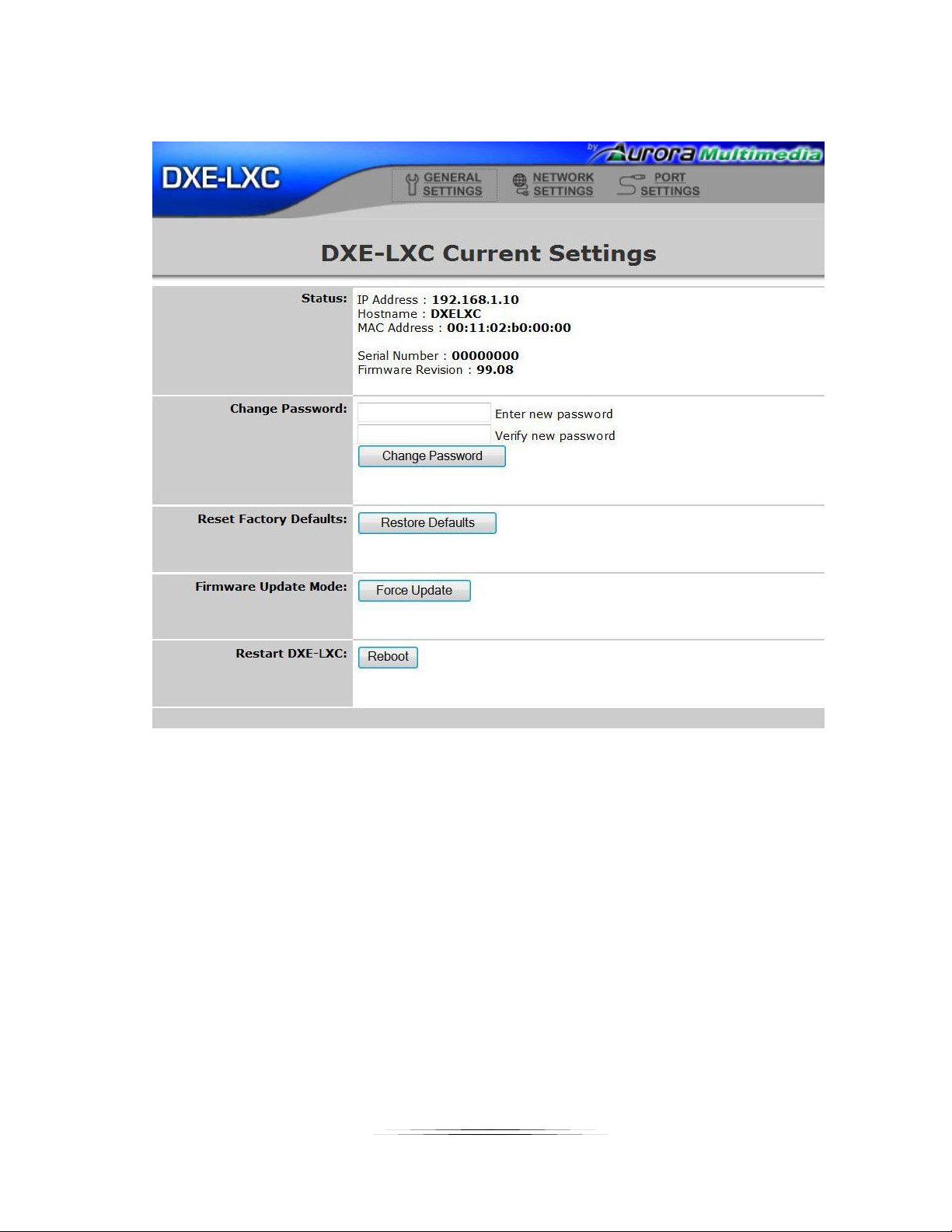

General Settings ................................................................................................................................... 8
Network Settings................................................................................................................................... 9

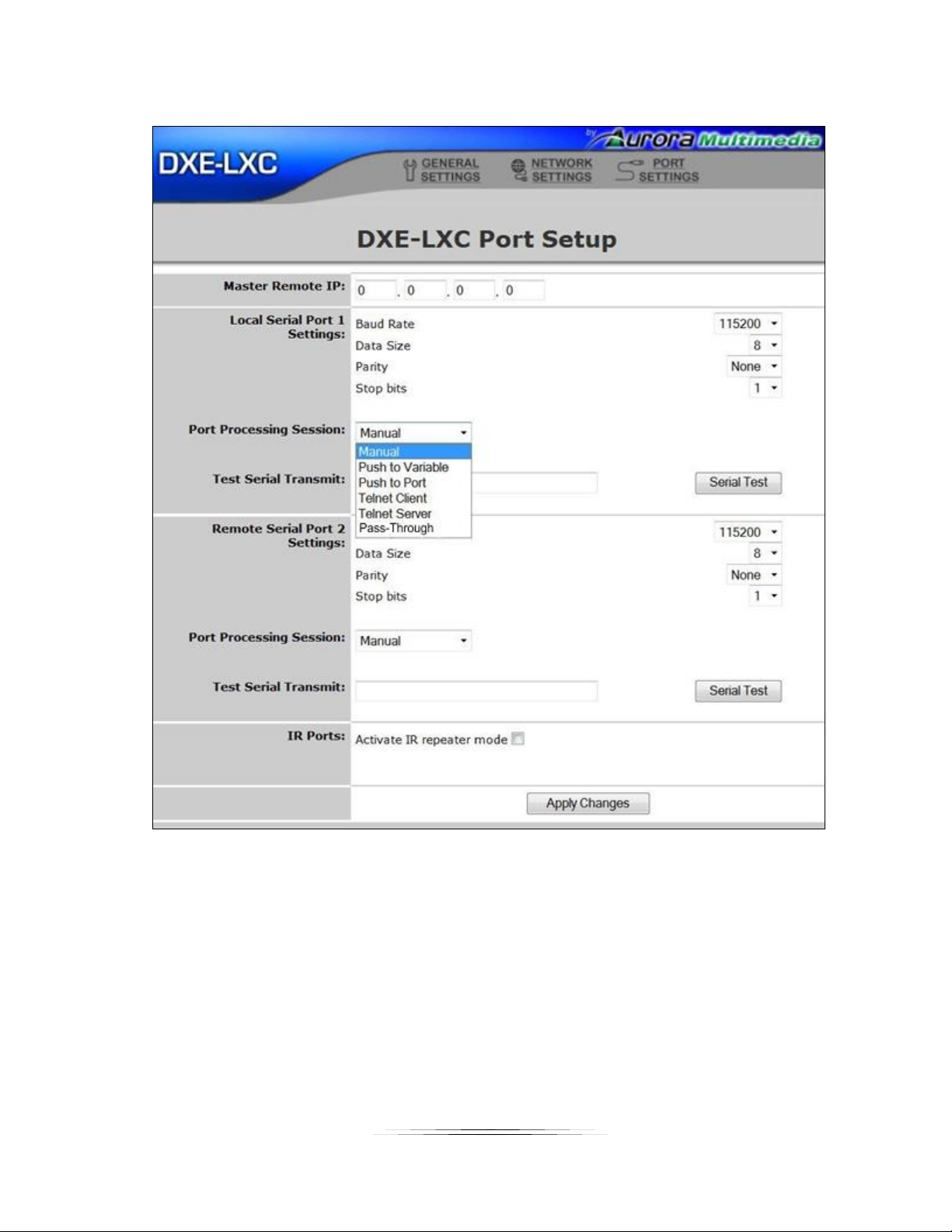

Port Settings ....................................................................................................................................... 10
Port Settings (Manual) ........................................................................................................................ 12
Port Settings (Push to Variable).......................................................................................................... 13

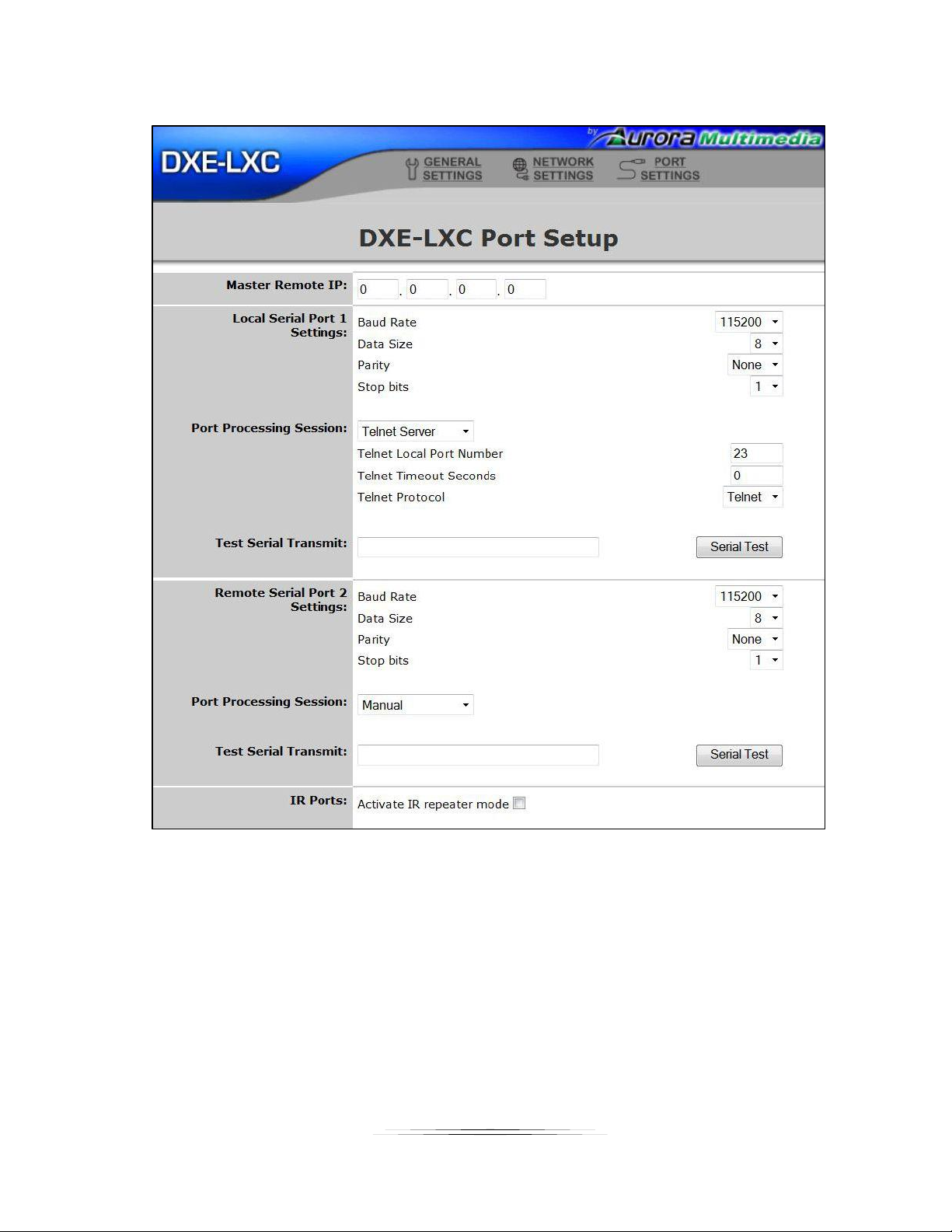

Port Settings (Telnet Server)............................................................................................................... 14
Port Settings (Telnet Client) ................................................................................................................ 15
Port Settings (Push to Port) ................................................................................................................ 16

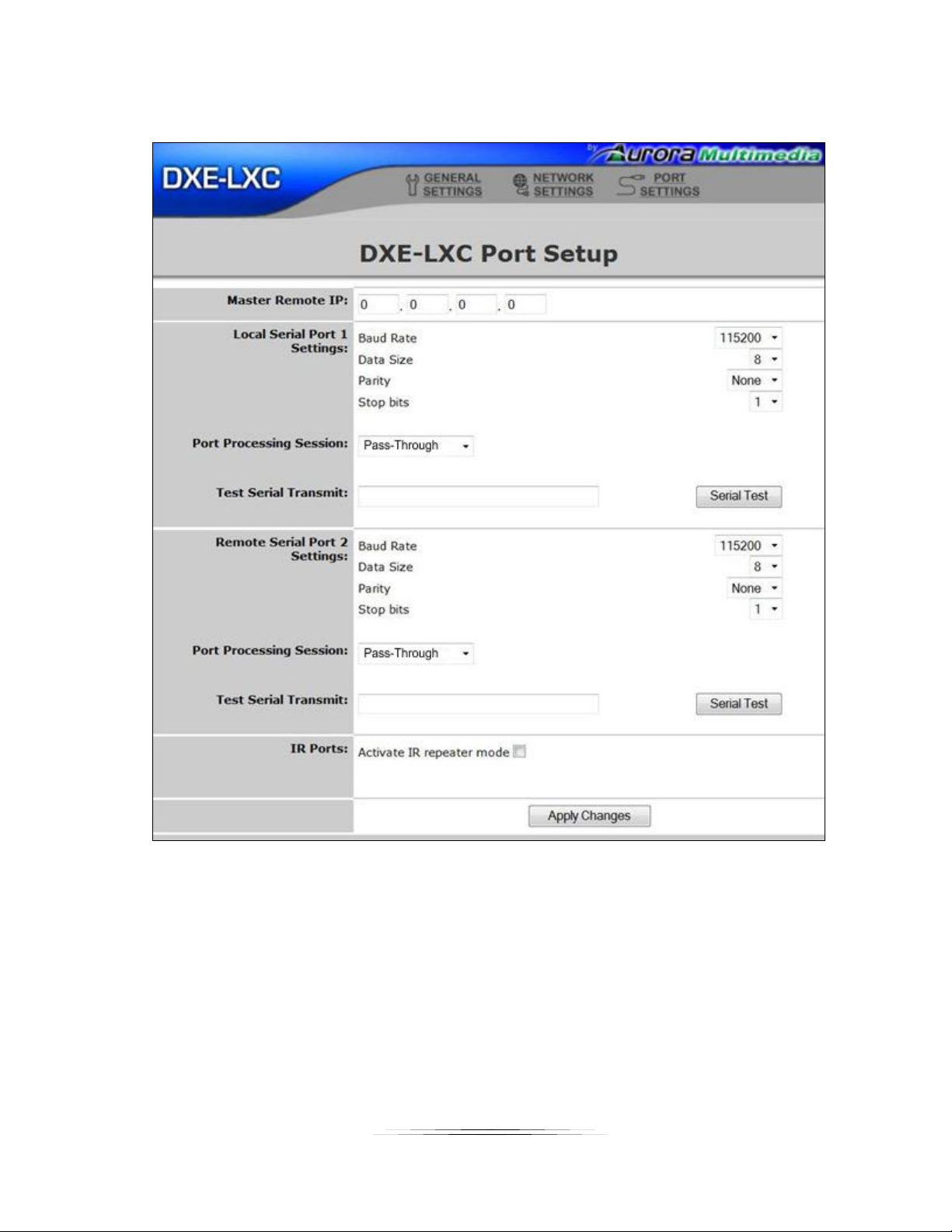

Port Settings (Pass-Through) ............................................................................................................. 17
IP Commands .........................................................................................................................18
TCP/RPC Commands......................................................................................................................... 18
TCP/RPC Command Usage ............................................................................................................... 19
Web Server .............................................................................................................................20
CONNECTOR PIN DEFINITION ..............................................................................................21
HDMI................................................................................................................................................... 21
CAT5e/6/7 ........................................................................................................................................... 21
APPENDIX 1 Troubleshooting...........................................................................................22
APPENDIX 2 Firmware Update..........................................................................................23
APPENDIX 3 Technical Specifications..............................................................................24
APPENDIX 4 Cabling .........................................................................................................26
APPENDIX 5 Warranty .......................................................................................................27

1
User Guide
PACKAGE CONTENTS
Please make sure the following items are included within your package. Contact your dealer if any items
are missing or damaged.
DXE-CAT-RX2-4K x 1
DXE-CAT-TX2C-4K x 1
DXE-CAT-E1 Wall / Desk Mount Ears with Screws x 4
PS0080-1 24V DC Power Adapter x 1

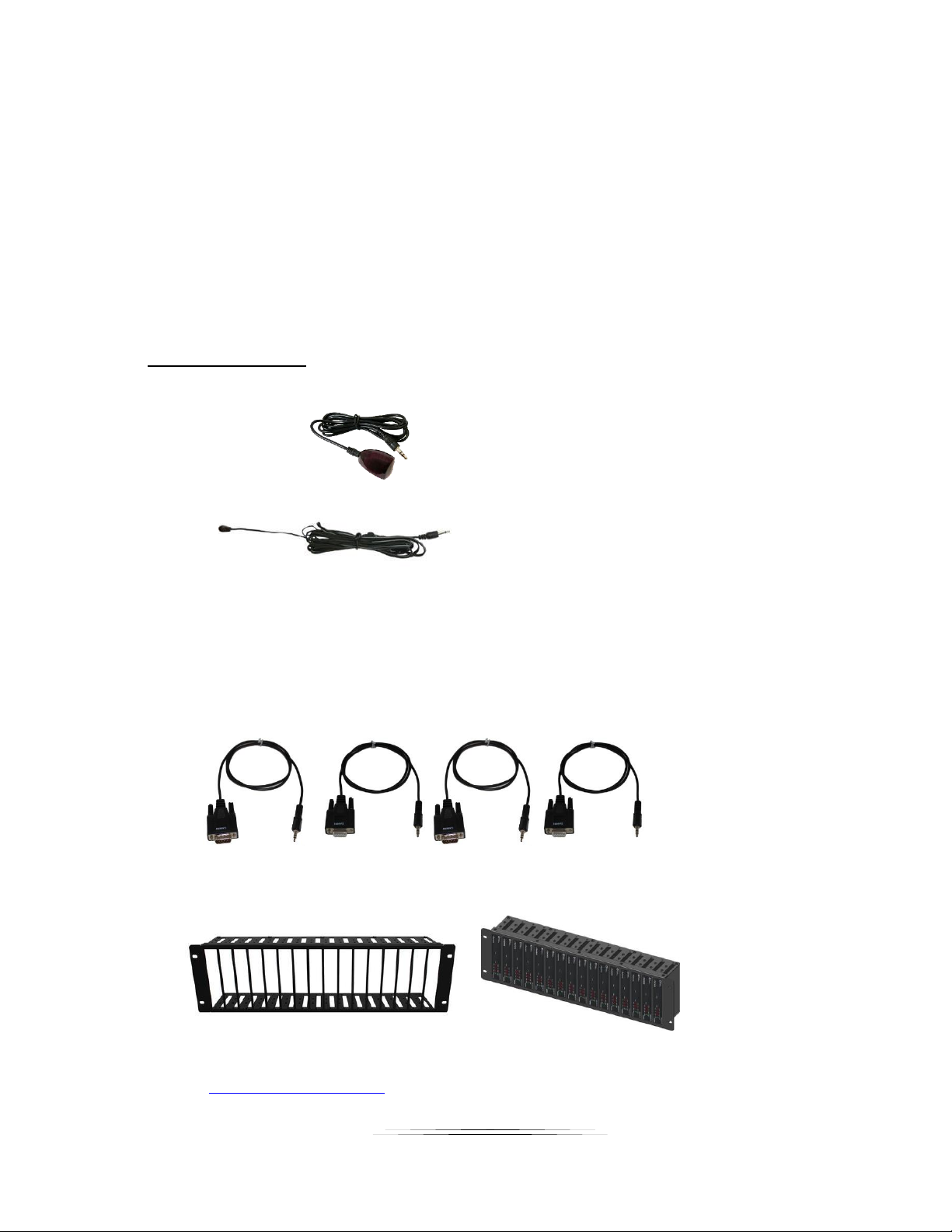

Optional Accessories
IR Receiver CA0062-1
IR Emitter CA0061-1
IR Blaster CA0049-1
RS-232 Adaptor (3.5mm TRS to FEMALE DB9 2-TX 3-RX) CA0052-F2T3R
RS-232 Adaptor (3.5mm TRS to FEMALE DB9 3-TX 2-RX) CA0052-F3T2R
RS-232 Adaptor (3.5mm TRS to MALE DB9 2-TX 3-RX) CA0052-M2T3R
RS-232 Adaptor (3.5mm TRS to MALE DB9 3-TX 2-RX) CA0052-M3T2R
Rack Mount 3RU (Holds 16 units) DXE-CAT-RK3 (Blanks available DXE-CAT-RK3B)
Note: Go to www.auroramultimm.com for latest manual and firmware

2
User Guide
INTRODUCTION
About
The DXE-CAT-S2C-4K is part of the growing Digital Xtreme Series. This product is different than
the typical CAT extender found on the market today as it not only breaks the price barrier but the
feature and usability aspects as well. All connectors are on one side to make wiring cleaner and
rack mounting easier. Having the ability to power the device with the choice of transmit or receive
reduces the installation time and keeps things neat. An industry first is Aurora’s exclusive Flex-
PowerTM Power-Over-Ethernet circuit (Patents Pending), which allows both the transmitter and
receiver to be powered without the need of any wall supplies.
The DXE-CAT-S2C-4K is also unique as it combines IP control with an extender. Normally
extenders simply pass the RS-232 and IR from one device to the other, however, the DXE-CAT-
S2C-4K can target a local or far end port via TCP, RPC, or Telnet commands from any control
system or PC on the market. It also has the ability to serve up web pages via the LAN port to any
device with a web browser.
Being able to go the distance is important too, and HDBaseT technology helps achieve that. With
a single CAT cable, the DXE-CAT can go up to 328ft 4K 30Hz or 1080p 60Hz 48bit color depth,
500ft 1080p 60Hz 24bit (CAT 6), and 600ft 1080p 60Hz 24bit (CAT 6A Shielded) depending on
model and cable. In addition, the RS-232, IR, & LAN can be sent over the same cable bi-
directionally.

3
User Guide
Features
Transmit HDMI up to 4K 30Hz/1080p 60Hz 48bit 328ft over one CAT 5e/6/7 cable*
Transmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cable*
Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6A Shielded cable (Extended
Range Firmware Required)*
Supports 4K 30Hz UHD & HDMI 3D
HDCP Compliant
IP Control System (32 bit) / Web Server with 8MB of Storage
All connectors on one side for easier installation
Bi-directional RS-232 & IR & LAN
Power both units from TX or RX side with wall power supply (HDBaseT POE)
LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies (Patents
Pending)
Status LED for all connections on front
Various mounting options
* Refer to Technical Specifications Section.
Warning: Do not plug RJ-45 HDBaseT output to non-HDBaseT complaint devices or damage may
occur to either product.

4
User Guide
Front & Rear Panel DXE-CAT-TX2C-4K
Front LED Indicators
IR Out – Blinks when emitting IR to device from IR Port. It is normal to be lit if nothing is plug
into IR port.
IR In – Blinks when receiving IR from IR port. It is normal to be lit if nothing is plug into IR
port.
TX – RS-232 Transmit. Blinking rate and intensity will vary with baud rate.
RX – RS-232 Receive. Blinking rate and intensity will vary with baud rate.
HDBT – Lights when HDBaseT RJ-45 has proper connection between an RX/TX pair. Blinks
when in sleep mode.
HDMI – Will light solid if HDMI is plugged in on both RX/TX and HDCP is present. If no
HDCP LED will blink.
POWER – Lights green when power is present.
STATUS – Will blink steady if unit is working properly.
Front Pin-hole buttons
Reset – Use paper clip or similar object to reset unit by pushing into hole.
Setup – Press and hold for 3 seconds to restore factory defaults. (refer to IP settings
section).
Rear Connections
24V DC – Power connector for 15 watt 24VDC power supply. Note only 1 supply is required
to power both units. Either side can send power to the other unit. Note if LAN POE is utilized
the 24VDC supply is not required.
IR – Plug the IR receiver or emitter into this port. It will auto detect the mode of operation
required.
RS-232 – Connect RS-232 device up to 115k baud.
HDBaseT – Connect CAT 5e/6/7 cable. Shield cable is not necessary unless the environment
has a lot of electrically noise.
HDMI Input – Plug HDMI cable from source device like a BluRay player. Note the HDMI
cable should be rated for the bandwidth you are using.
LAN1/2 – 10/100 LAN connection. LAN1 can use POE from a POE switch to power both the
RX and TX units.
Note: Some POE switch do not supply the full 15.4watts per port. Verify the total power rating of the switch. It should
be at least 15.4W x (number of ports).

5
User Guide
Front & Rear Panel DXE-CAT-RX2-4K
Front LED Indicators
IR Out – Blinks when emitting IR to device from IR Port. It is normal to be lit if nothing is plug
into IR port.
IR In – Blinks when receiving IR from IR port. It is normal to be lit if nothing is plug into IR
port.
TX – RS-232 Transmit. Blinking rate and intensity will vary with baud rate.
RX – RS-232 Receive. Blinking rate and intensity will vary with baud rate.
HDBT – Lights when HDBaseT RJ-45 has proper connection between an RX/TX pair. Blinks
when in sleep mode.
HDMI – Will light solid if HDMI is plugged in on both RX/TX and HDCP is present. If no
HDCP LED will blink.
POWER – Lights green when power is present.
STATUS – Will blink steady if unit is working properly.
Front Pin-hole buttons
Reset – Use paper clip or similar object to reset unit by pushing into hole.
Setup – For DXE-CAT-TX2C-4K model only. Not used for DXE-CAT-RX2-4K.
Rear Connections
24V DC – Power connector for 15 watt 24VDC power supply. Note only 1 supply is required
to power both units. Either side can send power to the other unit. Note if LAN POE is utilized
the 24VDC supply is not required.
IR – Plug IR receiver or emitter into this port. It will auto detect the mode of operation
required.
RS-232 – Connect RS-232 device up to 115k baud.
HDBaseT – Connect CAT 5e/6/7 cable. Shield cable is not necessary unless the environment
has a lot of electrically noise.
HDMI Output – Plug HDMI cable from destination device like an LCD display. Note the HDMI
cable should be rated for the bandwidth you are using.
LAN1/2 – 10/100 LAN connection. LAN1 can use POE from a POE switch to power both the
RX and TX units. These ports are a switch. Only 1 LAN port should be connected to another
switch.
Note: Some POE switch do not supply the full 15.4watts per port. Verify the total power rating of the switch. It should
be at least 15.4W x (number of ports).

6
User Guide
IR EXTENDERS
IR Blaster IR Receiver
IR Connections
The DXE-CAT Series has the ability to auto detect on the IR port if a receiver or a blaster / emitter is connected.
IR Blaster / Emitter: Plug in an IR blaster to emit all IR command signals received from the IR receiver to control the associated
devices with built-in IR sensor
IR Receiver: Plug in an IR receiver to receive all IR command signals from the IR remote controls of the associated devices. Note
if you are not using an approved Aurora branded receiver make certain you do not exceed the 5v signal level
limitation as some devices use 12v. Also, IR Receiver must bet 30K-60KHz inverted 5V signal. Failure to do so will
result in damage.
When the DXE-CAT-TX2C-4K is set for manual the only way to send IR commands is using IR files loaded on the ftp of the unit in
the IR directory. Aurora IR files (.wir) are available for download on the Aurora website. In addition, IR files learned from NX or QX
control devices can be utilized.

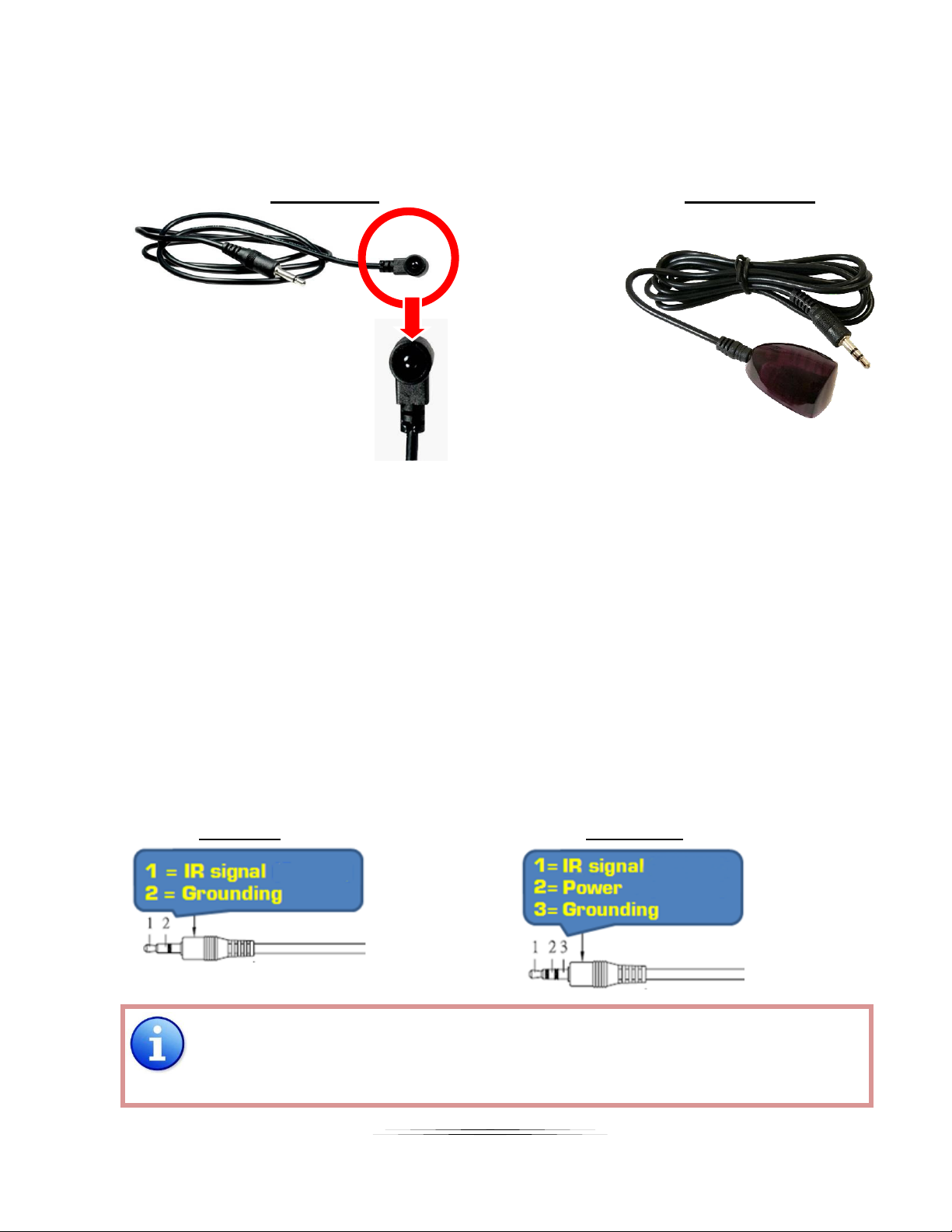

IR Jack Pinout
IR Blaster IR Receiver
Emitters must be mono plug or have ring and sleeve tied to ground.
Receivers must be stereo plug. Ring is 5v power. If using another brand receiver, note carrier
frequency must be present, IR signal inverted, and IR signal cannot exceed 5v or damage to
port may occur.

7
User Guide
IP Setup
Default IP
The default IP out of the box is 192.168.1.10 static. Make certain to change the IP on the unit at
a time or you will get collisions on the network. Each device must have a unique IP address.
DHCP can be used but it is recommended to issue IP address based on the MAC address. This
assures the DHCP does not reassign the IP address at a later time causing issues. Keep in
mind the processor is on the TX unit so only the TX needs to be connected when you are doing
the initial setup although having the RX will not affect the process and may be necessary only if
the LAN is connected at the RX side.

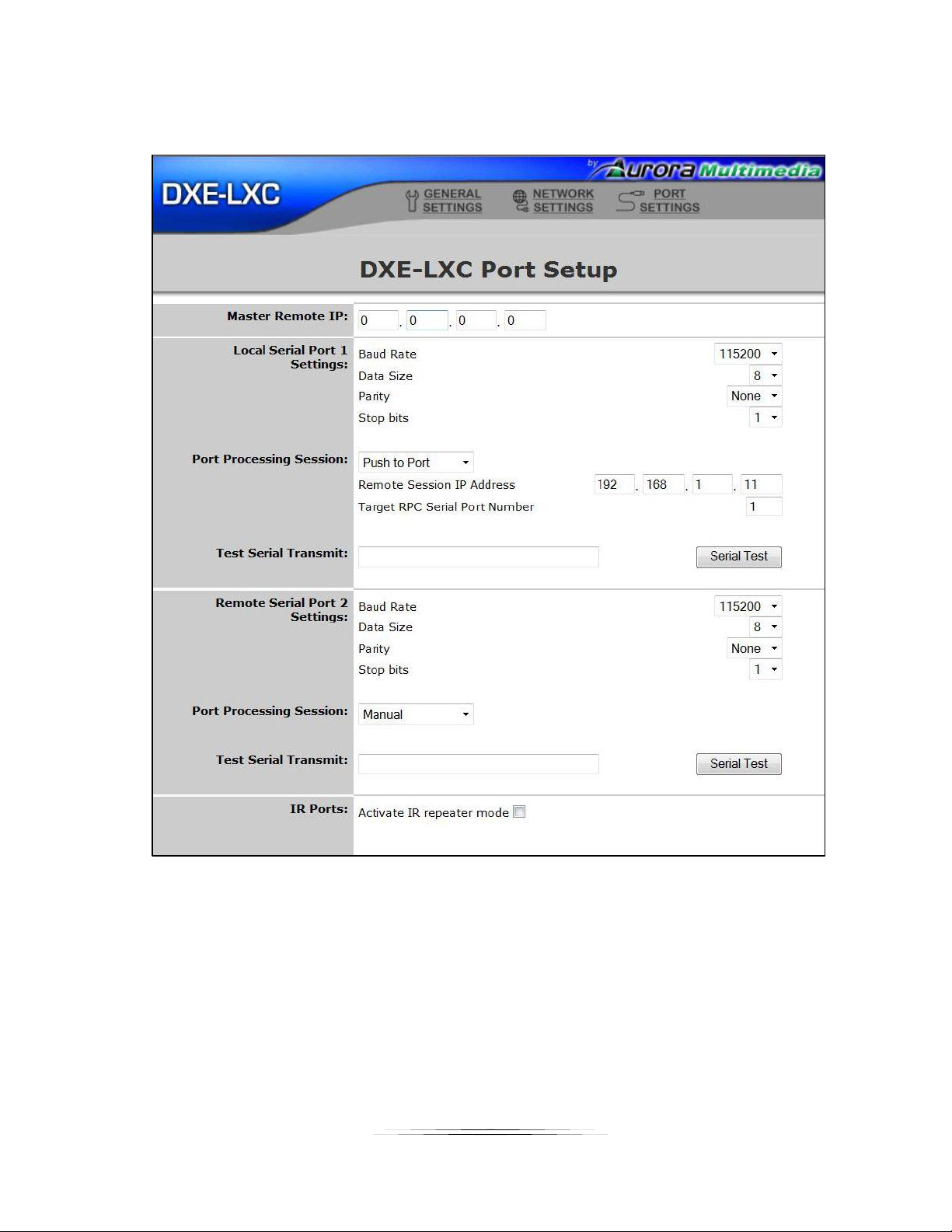

To access the settings via web browser use the units IP address/setup (ex. 192.168.1.10/setup)
The default user name is admin and the default password is admin.
In the event you lose your settings press and hold the setup button on the DXE-CAT-TX2C-4K
for 3 seconds. This will restore the unit back to factory default.
