Aurora HDBT HT Series User manual

USERS GUIDE
Manual Number: 190910 | Firmware Rev: 1.4.2
www.auroramm.com
HT Series
HDBaseT Supercharged
HDMI 4K60 4:4:4 HDBaseT CAT Extenders

USERS GUIDE
www.auroramm.com
ii
SAFETY INSTRUCTIONS
Please review the following safety precautions. If this is the first time using this model, then read this manual before
installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for
further instructions.
The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage inside the product
that may be sufficient to constitute a risk of electric shock to anyone opening the case. It is also used to indicate
improper installation or handling of the product that could damage the electrical system in the product or in other
equipment attached to the product.
The exclamation point in the triangle is used to alert you to important operating and maintenance instructions.
Failure to follow these instructions could result in injury to you or damage to the product.
Be careful with electricity:
Power Outlet:
To prevent electric shock, be sure the electrical plug used on the product power cord
matches the electrical outlet used to supply power to the Aurora product. Use the power adapter and power
connection cables designed for this unit.
Power Cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy items.
Lightning: For protection from lightning or when the product is left unattended for a long period, disconnect
it from the power source.
Also follow these precautions:
Ventilation: Do not block ventilation slots, if applicable, on the product, or place any heavy object on top of
it. Blocking airflow could cause damage. Arrange components so that air can flow freely. Ensure that there
is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly ventilated
area, away from direct sunlight or any source of heat.
Overheating: Avoid stacking the Aurora product on top of a hot component, such as a power amplifier.
Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.
Proper Connections: Be sure all cables and equipment are connected to the unit as described in this
manual.
Object Entry: To avoid electric shock, never stick anything in the slots on the case, or remove the cover.
Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.
Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
ESD: Handle this unit with proper ESC care. Failure to do so can result in failure.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two (2) conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Trademarks
All trademarks in this document are the properties of their respective owners.

USERS GUIDE
www.auroramm.com
ii
TABLE OF CONTENTS
PACKAGE CONTENTS .........................................................................................................................................................4
OPTIONAL ACCESSORIES ..................................................................................................................................................5
INTRODUCTION.....................................................................................................................................................................6
About...................................................................................................................................................................................6
Features ..............................................................................................................................................................................6
HTE-TX2 Front & Rear........................................................................................................................................................7
HTE-RX2 Front & Rear .......................................................................................................................................................9
HTW-2 Front & Rear .........................................................................................................................................................11
OPERATION.........................................................................................................................................................................13
Source Selection...............................................................................................................................................................13
Auto Sense........................................................................................................................................................................13
EDID Handling...................................................................................................................................................................13
Factory Reset....................................................................................................................................................................13
APPLICATIONS....................................................................................................................................................................14

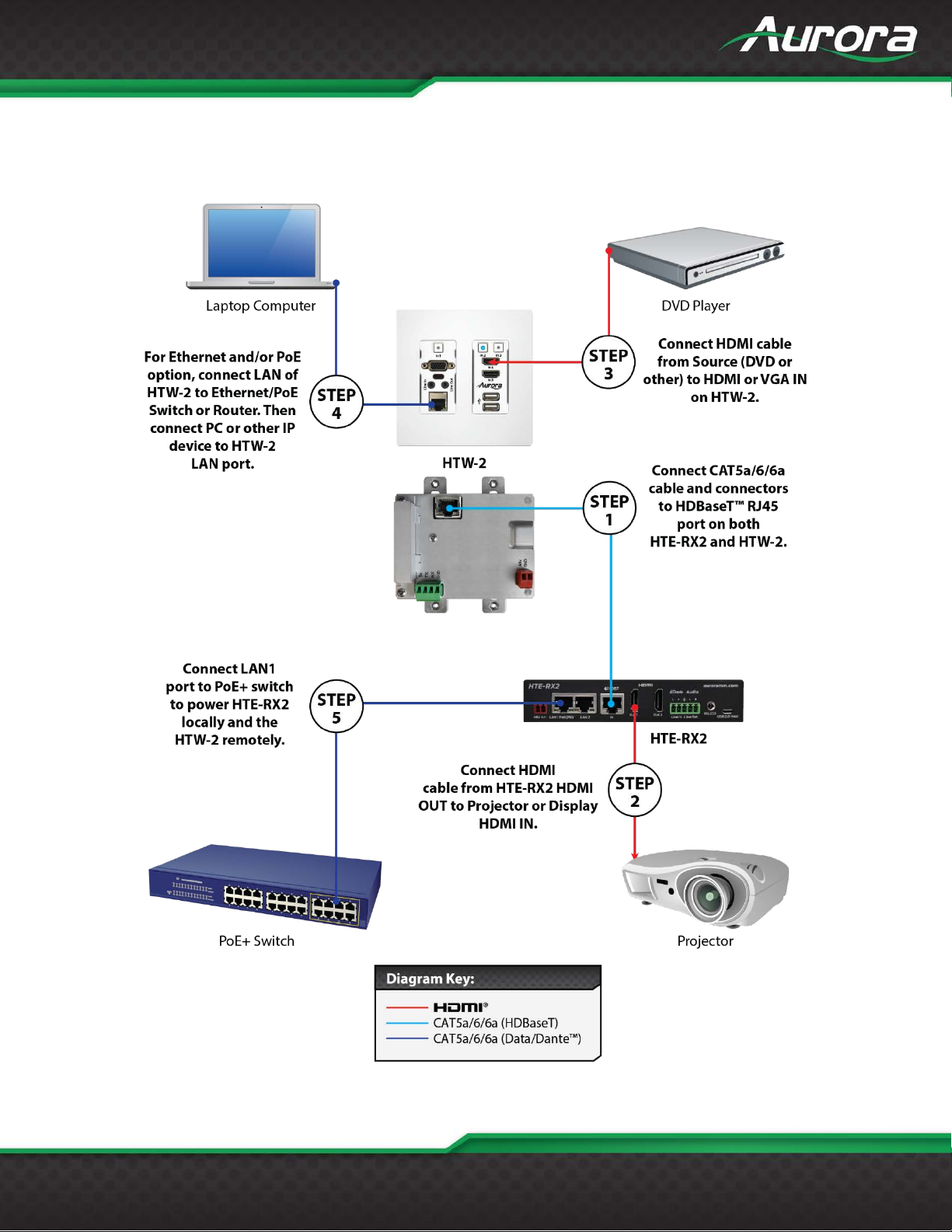

Example 1 Typical HTW-2 Transmitter to HTE-RX2 Receiver .........................................................................................14
Example 2 DXB-8 Button Wall Control to HTW-2.............................................................................................................15
Control Protocols................................................................................................................................................................16
RS-232 Commands...........................................................................................................................................................16
Audio Command Usage Detail..........................................................................................................................................20
Serial Query Commands...................................................................................................................................................24
RPC Commands ...............................................................................................................................................................26
1.1.1 GetApiVersion ...............................................................................................................................................26
1.1.2 GetFirmwareVersion .....................................................................................................................................26
1.1.3 GetSerialNumber...........................................................................................................................................26
1.1.4 Reboot...........................................................................................................................................................27
1.1.5 EnterUpdateMode.........................................................................................................................................27
1.1.6 SetDefaultConfig ...........................................................................................................................................28
1.1.7 Net_GetIPAddress ........................................................................................................................................28
1.1.8 Net_GetSubnetMask.....................................................................................................................................28
1.1.9 Net_GetMac ..................................................................................................................................................29
1.1.10 Serial_Send...................................................................................................................................................29
1.1.11 Serial_Read...................................................................................................................................................30
1.1.12 Serial_ClearReadBuffer ................................................................................................................................30
1.1.13 Serial_ReadBufferCount ...............................................................................................................................30

USERS GUIDE
www.auroramm.com
iii
1.1.14 Serial_GetSettings ........................................................................................................................................31
1.1.15 Serial_SetSettings.........................................................................................................................................31
1.1.16 Serial_SetPortCount......................................................................................................................................32
1.1.17 Serial_SetManualMode.................................................................................................................................32
1.1.18 Serial_SetExtenderMode ..............................................................................................................................33
1.1.19 Serial_SetPushPortMode..............................................................................................................................34
1.1.20 Serial_SetPushVarMode...............................................................................................................................35
1.1.21 Serial_SetTelnetClientMode .........................................................................................................................35
1.1.22 Serial_SetTelnetServerMode........................................................................................................................37
ReAX TCP Commands .....................................................................................................................................................38
IR EXTENDERS....................................................................................................................................................................44
IR Connections..................................................................................................................................................................44
IR Jack Pinout...................................................................................................................................................................44
CONNECTOR PIN DEFINITION...........................................................................................................................................45
HDMI.................................................................................................................................................................................45
VGA...................................................................................................................................................................................45
CAT5e/6/7 .........................................................................................................................................................................46
APPENDIX 1.........................................................................................................................................................................47
Troubleshooting ................................................................................................................................................................47
APPENDIX 2 Firmware Update.........................................................................................................................................48
APPENDIX 3 VGA Supported Timing..............................................................................................................................49
APPENDIX 4.........................................................................................................................................................................50
Technical Specifications....................................................................................................................................................50
APPENDIX 5.........................................................................................................................................................................54
Cabling ..............................................................................................................................................................................54
APPENDIX 6.........................................................................................................................................................................55
Warranty............................................................................................................................................................................55

USERS GUIDE
www.auroramm.com
4
PACKAGE CONTENTS
Please make sure the following items are included within your package. Contact your dealer if any items are
missing or damaged.
HTE-RX2
HTE-RX2 x 1
Wall/Desk Mount Ears with Screws x 4
HTE-TX2
HTE-TX2 x 1
Wall/Desk Mount Ears with Screws x 4
HTW-2
HTW-2 x 1 (-W for white, -B for black)
Note: Some 2 gang electrical boxes or mud rings have curved or beveled corners that may prevent the
HTW-2from properly fitting. Make certain to use a brand that fits the full dimensions listed in the
specification section.
Optional Accessories
PS0094-2 48V DC Wall Power Supply
PS0081-1 48v DC Desktop PoE+ Injector
*Note: Go to www.auroramm.com for latest manual and firmware.

USERS GUIDE
www.auroramm.com
5
OPTIONAL ACCESSORIES
IR Receiver CA0026-1
IR Emitter CA0061-1
RS-232 Adaptor CA0052-F2T3R
(3.5mm TRS to FEMALE DB89 2-TX 3-RX)
RS-232 Adaptor CA0052-F3T2R
(3.5mm TRS to FEMALE DB89 3-TX 3-RX)
RS-232 Adaptor CA0052-M2T3R
(3.5mm TRS to MALE DB9 2-TX 3-RX)
RS-232 Adaptor CA0052-M3T2R
(3.5mm TRS to MALE DB9 3-TX 2-RX)

USERS GUIDE
www.auroramm.com
6
INTRODUCTION
About
The HTW-2 transmitter wall plate, HTE-TX2 transmitter, and HTE-RX2 HDBaseT 2.0 products are part of
Aurora’s HT Series capable extending 4K60 4:4:4 & HDR (18Gbps) 100m (330′) with unshielded cable. The 2-
gang low depth Decora™ wall plate is not only stylish but extremely functional with 3 inputs (1 VGA & 2 HDMI).
All units have directional USB to allow a user to choose which side the host (PC) vs the device (peripheral) will
be located. Built in IP port expansion allows any 3rd party control system to send commands directly to the unit
for source switching, RS-232, and IR control. Aurora is the only product to allow a single PoE port power both
the TX and RX at the same time with no wall supplies required for a very clean installation. For easier
integration into an audio system, the HT Series is the only HDBaseT product to have optional Dante/AES67 up
to 8 channels for surround sound. The Aurora HT Series re-invents the capabilities of HDBaseT beyond the
typical point to point making it the ultimate HDBaseT integrator solution.
Features
•4K60 4:4:4 18Gbps
•HDR (high Dynamic Range)
•HDCP 1.4/2.2
•100m (330ft) with Unshielded Cable
•HDMI® 2.0/HDCP 2.2
•Audio DSP & Dante™/AES67 Options 2 or 8 Channel
•ARC Audio Return Channel and ARC into Dante/AES67 Industry First!
•Operate & Power both TX & RX from a single PoE Switch Port
•Auto Switching
•Two HDMI® Inputs & One VGA Input (HTW-2)
•Two HDMI® Inputs (HTE-TX2)
•Two HDMI® Outputs (HTE-RX2)
•1G Local LAN Ports, 10/100 over the HDBaseT Connection
•USB 2.0 Device/Host with Selectable Direction
•IP Port Expansion Control, RS-232 & IR Control
•ReAX Control Option
*Note: Refer to Technical Specifications section.
Warning: Do not plug RJ-45 HDBaseT output to non-HDBaseT complaint devices or damage may occur
to either product.

USERS GUIDE
www.auroramm.com
7
HTE-TX2 Front & Rear
Front LED Indicators
•POWER: Lights green when power is present.
•STATUS: Will blink steady if unit is working properly.
•HDBT: Lights when HDBaseT RJ-45 has proper connection between an RX/TX pair. Blinks when in
sleep mode.
•HDMI: Will light solid if HDMI is plugged in on both RX/TX and HDCP is present. If no HDCP, LED will
blink.
•TX: RS-232 Transmit. Blinking rate and intensity will vary with baud rate.
•RX: RS-232 Receive. Blinking rate and intensity will vary with baud rate.
•IR TX: Blinks when emitting IR to device from IR Out Port.
•IR RX: Blinks when receiving IR from IR RX port.
•USB Host: When lit the rear micro USB port should be used and connected to the PC.
•USB Device: When lit the Front Dual USB ports should be used and connected to the peripherals like
keyboard, mouse, memory stick, camera, etc.
Front Buttons
•Function:Press to scroll between various capabilities that can be modified with the select button.
•Select:Allows the changing of features based on the function mode selected.
Front Connections
•Dual USB 2.0: USB 2.0 connectors. Units USB Device LED must be lit for it to function properly with
remote end. Can also be used to charge devices.

USERS GUIDE
www.auroramm.com
8
•IR OUT: Plug the IR emitter into this port and affix onto the device where its IR window is located.
•IR IN: Plug the IR receiver into this port. The front built in IR receiver will no longer work once the
external receiver is plugged in. Note this port should be used with Aurora IR receiver model as other
brands may not follow the correct pinout or voltage.
•IR: IR receiver capable of 32KHz to 60KHz range.
Rear Connections
•48V DC: Power connector for 25-watt 48VDC power supply (PS0094-2-S).
Note: Only 1 supply is required to power both units. Either side can send power to the other unit.
Note: If LAN PoE is utilized the 48VDC supply is not required.
•RS-232: Connect RS-232 device up to 115k baud.
•LAN1/2: 1Gbps LAN connection. LAN1 can use PoE or PoE+ from a PoE switch to power both the RX
and TX units.
•HDBaseT: Connect CAT 5e/6/7 cable. Shielded cable is not necessary unless the environment has a
lot of electrically noise.
•HDMI Input 1/2:Plug HDMI cable from source device like a Blu-ray player. Source can be selected
from RS-232, Ethernet, Auto Sense Mode, or front buttons.
Note: The HDMI cable should be rated for the bandwidth you are using.
•Audio Line In/Out: Euro Style connector for stereo line in and line out.
•USB 2.0 Host: Micro USB 2.0 Connector for connection to PC. Unit must be set for Host mode for it to
properly operate.
*Note: Some POE switches do not supply the full 15.4watts per port. Verify the total power rating of the
switch. It should be at least 15.4W x (number of ports) and ideally 25.4W (PoE+) per port if USB
peripherals are to be utilized.
Option Port
Inside the unit there is an option card connector for the Dante 2ch or 8ch option or the ReAX control system
option. Only one of the cards can be installed into a unit. To access the port, power off unit and the 4 screws (2
on each side) must be removed. Take the cover off and insert the card in the proper orientation as indicated on
the circuit board. Put cover back on and apply power. Don’t forget to note the MAC address of the card to
identify which unit it is in.

USERS GUIDE
www.auroramm.com
9
HTE-RX2 Front & Rear
Front LED Indicators
•POWER: Lights green when power is present.
•STATUS: Will blink steady if unit is working properly.
•HDBT: Lights when HDBaseT RJ-45 has proper connection between an RX/TX pair. Blinks when in
sleep mode.
•HDMI: Will light solid if HDMI is plugged in on both RX/TX and HDCP is present. If no HDCP, LED will
blink.
•TX: RS-232 Transmit. Blinking rate and intensity will vary with baud rate.
•RX: RS-232 Receive. Blinking rate and intensity will vary with baud rate.
•IR TX: Blinks when emitting IR to device from IR Out Port.
•IR RX: Blinks when receiving IR from IR RX port.
•USB Host: When lit the rear micro USB port should be used and connected to the PC.
•USB Device: When lit the Front Dual USB ports should be used and connected to the peripherals like
keyboard, mouse, memory stick, camera, etc.
Front Buttons
•Function: Press to scroll between various capabilities that can be modified with the select button.
•Select: Allows the changing of features based on the function mode selected.
Front Connections
•Dual USB 2.0: USB 2.0 connectors. Units USB Device LED must be lit for it to function properly with
remote end. Can also be used to charge devices.

USERS GUIDE
www.auroramm.com
10
•IR OUT: Plug the IR emitter into this port and affix onto the device where its IR window is located.
•IR IN: Plug the IR receiver into this port. The front built in IR receiver will no longer work once the
external receiver is plugged in. Note this port should be used with Aurora IR receiver model as other
brands may not follow the correct pinout or voltage.
•IR: IR receiver capable of 32KHz to 60KHz range.
Rear Connections
•48V DC: Power connector for 25-watt 48VDC power supply (PS0094-2-S).
Note: Only 1 supply is required to power both units. Either side can send power to the other unit.
Note: If LAN PoE is utilized the 48VDC supply is not required.
•RS-232: Connect RS-232 device up to 115k baud.
•LAN1/2: 1Gbps LAN connection. LAN1 can use PoE or PoE+ from a PoE switch to power both the RX
and TX units.
•HDBaseT: Connect CAT 5e/6/7 cable. Shielded cable is not necessary unless the environment has a
lot of electrically noise.
•HDMI Output 1/2: Plug HDMI cable from device like a LCD monitor. Both outputs will show the same
signal. It is designed for loop through. Note: The HDMI cable should be rated for the bandwidth you
are using.
•Audio Line In/Out: Euro Style connector for stereo line in and line out.
•USB 2.0 Host: Micro USB 2.0 Connector for connection to PC. Unit must be set for Host mode for it to
properly operate.
*Note: Some POE switches do not supply the full 15.4watts per port. Verify the total power rating of the
switch. It should be at least 15.4W x (number of ports) and ideally 25.4W (PoE+) per port if USB
peripherals are to be utilized.
Option Port
Inside the unit there is an option card connector for the Dante/AES67 2ch or 8ch option or the ReAX control
system option. Only one of the cards can be installed into a unit. To access the port, power off unit and the 4
screws (2 on each side) must be removed. Take the cover off and insert the card in the proper orientation as
indicated on the circuit board. Put cover back on and apply power. Don’t forget to note the MAC address of the
card to identify which unit it is in.

USERS GUIDE
www.auroramm.com
11
HTW-2 Front & Rear
Front Left Side
•In1 Button:The blue backlit button will select the VGA.
•DB15 VGA Connector:VGA up to 1080p can be input. The VGA will be converted to HDMI and sent
HDBaseT to the receiver unit. Note: See appendix for pin out information.
•Line In:Audio input for the VGA connector sources to be embedded in HDMI
•Line Out:Audio output for ARC, Loop out, or Dante option.
•RJ-45 LAN Connector:1Gbps locally and 10/100 LAN via HDBaseT receiver unit.
•IR Window:Receiver for IR signals from remote ranging between 32KHz to 60KHz.
Front Right Side
•In2 and In3 Buttons: The buttons will select between HDMI In2 or HDMI In3 and will light accordingly.
•HDMI Connectors: Use with HDMI 2.0 or DVI sources like Blu-ray players, laptops, etc.
•Dual USB 2.0 Connectors: USB 2.0 480Mbps and supplies up to 1A of power between both ports.
Great for charging port of USB devices like phones and certain tablets. When in USB Host Mode the
bottom port is for PC (Type A to Type A cable is supplied) and upper port is charging only. When in
Device mode both ports work on a hub for mouse, keyboard, camera, memory stick, etc.
Rear Connections
•48V DC: Power connector for 48V DC power supply. If remote device can supply power over HDBaseT
then the local power is not required. Currently all receiver types from Aurora supply power over the

USERS GUIDE
www.auroramm.com
12
HDBaseT.
•HDBaseT: Connect CAT 5e/6/7 cable. Shielded cable is not necessary unless the environment has a lot of
electrically noise.
•RS-232:Connect RS-232 device up to 115k baud. Note there is a 5v line as it is designed to power the
DXB-8 8 button wall plate.
Note: Some 2 gang electrical boxes or mud rings have curved or beveled corners that may
prevent the HTW-2 from properly fitting. Make certain to use a brand that fits the full
dimensions listed in the specification section.
Note: Only 1 supply or PoE is required to power both units from RX which can send power to the wall
unit.
Note: If LAN POE is utilized at the RX the 48VDC supply is not required.
Option Port
On the rear of the unit there is an option card connector for the Dante/AES67 2ch or 8ch option or the ReAX
control system option. Only one of the cards can be installed into a unit. To access the port, power off unit and
the 2 screws (1 on each side) must be removed. Take the cover off and insert the card in the proper orientation
as indicated on the circuit board. Put cover back on and apply power. Don’t forget to note the MAC address of
the card to identify which unit it is in.

USERS GUIDE
www.auroramm.com
13
OPERATION
Source Selection
The HT Series can change between the various sources via front buttons, RS-232, LAN, and Auto-Sense.
Once a source is selected the display will lock within a few seconds. The time to lock depends on the display
but typical time can be from 3-5 seconds. Keep in mind the HTW-2 series does not scale so what comes in is
what will go back out for both the VGA and the HDMI. Most modern displays have scalers and the HT Series
can handle resolutions up to 4K60 4:4:4.
Auto Sense
The HT Series has Auto-Sense capability. Auto-Sense will automatically switch to the last HDMI or VGA input
connected provided a hot-plug is provided from the source device. The HTW-2 factory default is enabled but
can be disabled and saved in non-volatile memory via RS-232 command. In addition, the front button selection
or RS-232 control will allow the HT Series to switch away until another new input is detected. For example, if a
user has a laptop plugged into the VGA port and then connects a Blu-ray® player to the HDMI, the HTW-2 will
automatically switch to the HDMI input. If after that the laptop is disconnected or signal is removed with
function keys and reconnected the HTW-2 will switch back to the laptop. If an RS-232 command is received to
switch to the opposite input the unit will do so as well. Whenever a source is changed the LED on the button
will follow and the RS-232 ports will send a response string to let a remote device know that a change has
occurred.
EDID Handling
The HDMI port will retrieve the EDID from the destination device (ex. Projector, LCD, Matrix, etc.) via the
HDBaseT connection to the receiver unit. The VGA port will use an internal EDID specific to the capabilities of
the HTW-2 VGA port with 1080p being the recommended default.
Factory Reset
Holding both buttons for 5 seconds will restore factory defaults. This will be confirmed by both buttons turning
cyan. Keep in mind all stored settings into the non-volatile memory will revert to the factory defaults of each
function accordingly.

USERS GUIDE
www.auroramm.com
14
APPLICATIONS
Example 1 Typical HTW-2 Transmitter to HTE-RX2 Receiver

USERS GUIDE
www.auroramm.com
15
Example 2 DXB-8 Button Wall Control to HTW-2
DXB-8 wall controller connected to the HTW-2 Series. The DXB-8 serial port will connect and draw
power from the HTW-2 via the 4 pin RS-232 connection. Any serial command can be programmed
into the DXB-8 at any baud rate and sent through the HTW-2 to the HTE-RX receiver. This allows not
only the switching of the HTW-2 to be controlled but the remote display device as well. Make certain
the baud rates are set the same on the HTW-2 and the DXB-8. More information on the DXB-8 can
be found on the Aurora website www.auroramm.com

USERS GUIDE
www.auroramm.com
16
Control Protocols
RS-232 Commands
! - Command, ? - Query, ~ Response
<CR> = 0x0D Hex / 13 Decimal
The serial command can be issued by the user via the local serial port of the device. !** is the command
header used to specify the device. If !** is given as !20, then the command is intended for the TX/HTW
devices. If the header !** is given as !30, then the command is intended for !30.
These commands are mainly used to control/configure the device. To query the device status/ configuration,
refer Serial Query Commands.
If both TX and RX devices are connected, then the user can send serial commands from TX to RX by providing
the serial header as !30. The TX will ignore the command and send it to the remote device. The remote RX will
process the command and send the response back to the TX. The TX will output this response to the user.
Similar is the case when !20 commands are issued to RX.
Note: By default, the configuration of the local serial port is Baud = 115200, Data bits = 8, Parity = None, Stop
bits = 1.
Serial Command String Format Information
Reboot !**REBOOT
Reboots the i.mx RT processor.
Response: ~**REBOOT
Bootloader Update !**BOOTUPDATE
Enable the bootloader update.
Response: ~**BOOTUPDATE
Firmware Update. !**WSUPDATE
Enter firmware update mode.
Response: ~**WSUPDATE
Set Web Server IP Address !**IPxxx:xxx:xxx:xxx<cr>
xxx = 000 – 255
Example: !**IP192.168.001.150<cr>
Response: ~**IP192.168.001.150<cr>
Set Web Server Gateway !**GWxxx:xxx:xxx:xxx<cr>
xxx = 000 – 255
Example: !**GW192.168.001.001<cr>
Response: ~**GW192.168.001.001<cr>
Set Web Server Subnet Mask !**SMxxx:xxx:xxx:xxx<cr>
xxx = 000 – 255
Example: !**SM255.255.255.000<cr>
Response: ~**SM255.255.255.000<cr>
Debug Web Server Processor !**DEBUGWSx<cr>
X = 0 or 1
0 = Off
1 = On
Example: !**DEBUGWS1
Response: ~**DEBUGWS1<cr>
Debug Web
Video
!**DEBUGMPx<cr>
X = 0 or 1
0 = Off

USERS GUIDE
www.auroramm.com
17
Serial Command String Format Information
Processor
1 = On
Example: !**DEBUGMP1
Response: ~**DEBUGMP1<cr>
Serial Port
Settings for
external port !**SP1,b,d,p,s<cr>
b = Baud Rate 1200, 2400, 4800, 9600,
19200, 38400, 57600, 115200
d = Data Size 7 or 8
p = Parity N, E, O (None, Even, Odd)
s = Stop Bits 1 or 2
Example: !**SP1,115200,8,N,1<cr>
Response: ~**SP1,115200,8,N,1<cr>
Front Panel Lock !**LOCKx<cr>
X = 0 or 1
0 = Lock is disabled.
1 = Lock is enabled (Front buttons do
not work).
Example: !**LOCK1<cr>
Response: ~**LOCK1<cr>
IP mode change. !**DHCPx<cr>
X = 0,1 or 2.
0 - DHCP mode.
1 - Static IP mode.
2 - AutoIP mode.
Example: !**DHCP1<cr>
Response: ~**DHCP1<cr>
IR carrier removal !**IR_CARRIER_STRIPx<cr>
X = 0 or 1
1 - Removes carrier.
0 - Disabled.
Example: !**IR_CARRIER_STRIP1<cr>
Response:
~**IR_CARRIER_STRIP1<cr>
IR carrier inverse !**IR_INVERSEx<cr>
X = 0 or 1
1 - Inverts carrier.
0 - Disabled.
Example: !**IR_INVERSE1<cr>
Response: ~**IR_INVERSE1<cr>
Audio Routing
(In depth explanation at end of
command table) !**AUD<input_from>,<output_to>
Input From
Line in - 1, Dante - 2, HDMI (TX Unit) -
3, Remote Audio (RX Unit) - 4, HDBT
Extracted Video - 5, ARC (RX Unit) - 6
None - 0
Output To
Lineout - 1, Dante - 2, HDMI - 3,
Remote Audio- 4
Audio insertion will work only in HTE TX

USERS GUIDE
www.auroramm.com
18
Serial Command String Format Information
Example usages
Line in to Line out
!**AUD1,1
Line in to Dante
!**AUD1,2
Line in to HDMI(Only in TX)
!**AUD1,3
Line in to Remote Audio
!**AUD1,4
Video Routing !20VID_SRCx<cr>
X = 0 or 1 or 2
0 and 1 - HDMI.
2 - VGA (Only for HTE – wall plate).
Example: !20VID_SRC1<cr>
Response: ~20VID_SRC1<cr>
Note: Only for HTE-TX and HTW
board.
Format the File system !**FILESYS_DFLT<cr>
Defaults the file system. After defaulting,
the device will reboot with /IR and
/wwwpub directories present.
Example: !**FILESYS_DFLT<cr>
Response: ~**FILESYS_DFLT<cr>
Factory default HTE/HTW. !**WPROC_DFLT<cr>
Factory defaults the HTE/HTW to
default configuration.
The default configuration is:
IP mode = Auto-IP
Static ip = 192.168.1.10
Static netmask = 255.255.255.0
Static gw = 192.168.1.1
Serial conf = 115200-8n1
Password = admin
Button Lock = Disabled
IR Carrier removal = Disabled
IR Carrier reversal = Disabled
Port Processing mode = Extender mode
USB mode (TX/HTW) = Host
USB mode (RX) = Device
Example: !**WPROC_DFLT<cr>
Response: ~**WPROC_DFLT<cr>
USB mode change. !**USBx<cr>
Change USB mode.
X = 0 or 1.
0 - Host.
1 - Device.
Example: !**USB1<cr>
Response: ~**USB1<cr>

USERS GUIDE
www.auroramm.com
19
Serial Command String Format Information
Note:
If a video stream is in progress, then
it will be stopped for a moment.
Line in volume !**LINEIN_VOL<0-100><cr>
~**LINEIN_VOL<0-100><cr>
Eg: !**LINEIN_VOL88<cr>
Line Out volume !**LINEOUT_VOL<0-100><cr>
~**LINEOUT_VOL<0-100><cr>
Eg: !**LINEOUT_VOL88<cr>
Response:
~**LINEOUT_VOL88<cr>
Line in Mute !**LINEIN_MUTE<cr>
Mutes the Linein
Eg; !**LINEIN_MUTE<cr>
Response: ~**LINEIN_MUTE<cr>
Line out Mute !**LINEOUT_MUTE<cr>
Mutes the Line out
Eg; !**LINEOUT_MUTE<cr>
Response: ~**LINEOUT_MUTE<cr>
Button Push !**BTN_PUSH<button_num><cr>
Simulates a button push
Eg: !**BTN_PUSH1<cr>
Response: ~**BTN_PUSH1<cr>
Button release !**BTN_REL<button_num><cr>
Simulates a button release
!**BTN_REL1<cr>
Response: ~**BTN_REL1<cr>
Set button led
!**BTN_LED<button_num>,<press_m
ode>,<color><cr>
Button_num: 1,2, 3
press_mode: press, release
color: r,g,b,y,c,m,w, n
corresponding to red, green, blue,
yellow, cyan, magenta, white, none
Eg: !**BTN_LED1,p,r
Response: ~**BTN_LED1,p,r
Set button mode !**SET_BTN_MODE<button_num>,
<press_mode>,<button_mode><cr>
Button_num: 1,2, 3
press_mode: press, release
button_mode: 1,2,3 corresponding to
default, serial, tcp
Eg: !**SET_BTN_MODE1,p,1
Response:
~**SET_BTN_MODE1,p,1
Clear button mode !**CLR_BTN_MODE<button_num>, <press_mode>,<button_mode><
cr>
Button_num: 1,2, 3
press_mode : press, release
button_mode: 1,2,3 corresponding to
default, serial, tcp
Eg: !**CLR_BTN_MODE1,p,1
Response:
~**CLR_BTN_MODE1,p,1
Table 1. Serial commands
