Aurora DXE-122A User manual

i
Manual Number: 161124
USERS GUIDE
DXE-122A
DXE-142A
HDMI 4K60 HDMI 2.0A 18Gbps 1x2 & 1x4
Splitters

i
User Guide
SAFETY INSTRUCTIONS
Please review the following safety precautions. If this is the first time using this model, then read this manual
before installing or using the product. If the product is not functioning properly, please contact your local
dealer or Aurora for further instructions.
The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage
inside the product that may be sufficient to constitute a risk of electric shock to anyone opening
the case. It is also used to indicate improper installation or handling of the product that could
damage the electrical system in the product or in other equipment attached to the product.
The exclamation point in the triangle is used to alert you to important operating and maintenance
instructions. Failure to follow these instructions could result in injury to you or damage to the
product.
Be careful with electricity:
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord
matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter
and power connection cables designed for this unit.
Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy
items.
Lightning: For protection from lightning or when the product is left unattended for a long period,
disconnect it from the power source.
.
Also follow these precautions:
Ventilation: Do not block the ventilation slots if applicable on the product or place any heavy object on
top of it.
Blocking the air flow could cause damage. Arrange components so that air can flow freely. Ensure that
there is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly
ventilated area, away from direct sunlight or any source of heat.
Overheating: Avoid stacking the Aurora product on top of a hot component such as a power amplifier.
Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.
Proper Connections: Be sure all cables and equipment are connected to the unit as described in this
manual.
Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the cover.
Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.
Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
ESD: Handle this unit with proper ESD care. Failure to do so can result in failure.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interferences received, including interference that may cause undesired
operation.
Trademarks
All trademarks in this document are the properties of their respective owners.

ii
User Guide
TABLE OF CONTENTS
PACKAGE CONTENTS .............................................................................................................1
INTRODUCTION........................................................................................................................2
About..................................................................................................................................................... 2
Features................................................................................................................................................ 2
Front & Rear Panel ............................................................................................................................... 3
SYSTEM CONNECTION ...........................................................................................................4
Connection Procedures ........................................................................................................................ 4
EDID MANAGEMENT................................................................................................................5
EDID Setup ........................................................................................................................................... 5
CONNECTOR PIN DEFINITION ................................................................................................9
HDMI..................................................................................................................................................... 9
FIRMWARE UPDATING ............................................................................................................9
APPENDIX 1 Troubleshooting...........................................................................................10
APPENDIX 2 Product Dimension Drawing .......................................................................11
APPENDIX 3 Technical Specifications..............................................................................12
APPENDIX 4 Cabling .........................................................................................................13
APPENDIX 5 Warranty .......................................................................................................14

1
User Guide
PACKAGE CONTENTS
Please make sure the following items are included within your package. Contact your dealer if
any items are missing or damaged.
DXE-122A or DXE-142A x 1
Wall / Desk Mount Ears with Screws x 4
Plastic cushions x 4
5v 1A DC Power Adapter x 1
Note: Go to www.auroramm.com for latest manual and firmware

2
User Guide
INTRODUCTION
About
The DXE-122A 1x2 HDMI and DXE-142A 1x4 HDMI 2.0A 4K Splitters with Auto EDID
Management provides one of the most advanced HDMI splitter solutions by which the Ultra High
Definition video and high quality audio can be transmitted to multiple locations without losing
quality. The DXE-122A and DXE-142A support all 3D formats and true 4K2K video. EDID
management can be one of the most important capabilities to a splitter. Taking it one step further
Aurora has added the ability to customize EDID for complete EDID emulation. This allows full
control over the source and what it will be allowed to do.
The DXE splitters have firmware upgrade capability via the USB port ensures compatibility now
and in the future. With 48bit deep color video and high definition audio support, the DXE-122A
and DXE-142A are suitable for high quality HDMI broadcasting, conference room, digital signage
and education applications.
Features
Supports HDMI 2.0A Deep Color & 3D / DVI 1.0 compliant
HDCP 1.4/2.2 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Resolution up to 4K2K @ 60Hz
Auto EDID Management
EDID Emulation & Customizable EDID
Supports xvYCC, x.v.Color & Deep Color
Mini-USB port for firmware updating & EDID Setup
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
HDMI & Power Connectors on same side for easy installation
Ultra-low profile to fit behind displays
* Refer to Technical Specifications Section.

3
User Guide
Front & Rear Panel
Front
Power indicator - Illuminate red once powered on.
Input HDCP compliant Indicator - Indicates the HDCP compliant status of the input signal
Iluminate green when the input signal is HDCP
Blink green when the input signal is not HDCP
Remain off when there is no input signal
Output signal Indicators - Illuminates green when there is an HDMI output corresponding to
the HDMI Outputs
Firmware - USB port, used for firmware update.
Note: Output HDCP compliant status depends on input signal. When the input signal is with
HDCP, then output signal is with HDCP and vice versa.
Rear
IN - HDMI input port to connect with HDMI or DVI source device such as laptop or Blu-ray.
OUT – HDMI output ports, connect to HDMI displays, automatically capture the input resolution
DC 5V - Power connector for the DC 5V power adapter.

4
User Guide
SYSTEM CONNECTION
The following diagram illustrates typical input and output connections that can be utilized with 4K HDMI
Splitter.
Connection Procedures
Step1. Connect a HDMI/ DVI source device (e.g. Blue-ray DVD) to the HDMI INPUT of the 4K HDMI
Splitter with an HDMI cable.
Step2. Connect HDMI display(s) to HDMI OUTPUT(S) of the 4K HDMI Splitter with an HDMI cable.
Step3. Plug the DC 5V power adapter to the power connector of the 4K HDMI Splitter.
Note: All the ports support hot-plug. It’s important to know that hot plugging a display may result in a
quick noise shown on the display(s).
DVD
HDTV
HDTV

5
User Guide
EDID MANAGEMENT
The EDID management helps distributing and routing signals from the source at the resolution of the first
detected display. The display connected to output 1 will be the EDID that is utilized for the input to the
source. It will only do this once at power on or until input 1 is connected for the first time after power on.
If a different output device is swapped with port 1 then a power recycle may be necessary to acquire the
new EDID.
For example: when output 1 connects with a 1080p display, the Splitter will select 1080p as output
resolution and distribute 1080p signal to displays connected to output 1~2 as a result of the source using
the EDID.
Note: If the display connected to output 2 don’t support 1080p signal, there will be no output on the
display.
EDID Setup
Below are the commands available to manage the EDID capabilities. The EDID can be downloaded,
uploaded, set to a built in stored default (10 locations), and viewed.
1. Connect the splitter’s min USB to PC via USB cable
2. Execute Hercules, choose the right COM port, Baud rate is 57600.

6
User Guide
3. Send ESave + ID(01 to 10) %, to upload customized EDID.
4. Choose the customized EDID files (.bin format) and upload steps as follows

7
User Guide
5. System feed back
6. Send EInfo% to query the current stored EDID information. Null means no upload any EDID.

8
User Guide
7. Send ECall + ID(00 to 10)% to choose the EDID. When 00 was selected, means to restore factory
default without clear all the uploaded EDID information.
8. Send EState% to check which EDID was used currently
9. Send ERemove% to clear all the stored EDID and reset to manufacturer EDID manage.
10. Send ERemove EPxTxx% to store output x (1 to 4) 's EDID to xx (xx=01~10).

9
User Guide
CONNECTOR PIN DEFINITION
HDMI
Pin 1
TMDS Data2+
Pin 8
TMDS Data0 S h ield
Pin 15
SCL
Pin 2
TMDS Data2 S h ield
Pin 9
TMDS Data0–
Pin 16
SDA
Pin 3
TMDS Data2–
Pin 10
TMDS Clock+
Pin 17
DDC/CEC G r ound
Pin 4
TMDS Data1+
Pin 11
TMDS Clock S h ield
Pin 18
+5 V P o w e r
Pin 5
TMDS Data1 S h ield
Pin 12
TMDS Clock–
Pin 19
Hot Plug Detect
Pin 6
TMDS Data1–
Pin 13
CEC
Pin 7
TMDS Data0+
Pin 14
Reserved (N.C. on device)
FIRMWARE UPDATING
Step1. Copy the latest upgrade file (.hex) to PC.
Step2. Connect the USB port of the Splitter to the PC via USB cable.
Step3. Launch the firmware update utility software by double-clicking the icon of EPFlash.exe.
Step4. Select the correct port number in the dropdown list labeled PORT, and click OpenFile to load
the upgrade file. Click Start to begin firmware upgrading.

10
User Guide
APPENDIX 1 Troubleshooting
Problem
Solution
1. No Video Signal.
a. Check that the power plug is properly inserted into a functioning power
outlet.
b. Make certain source is on.
c. Make certain destination is on
d. Swap out HDMI cable
e. Make certain HDMI cable is properly rated for the resolution vs the
length of the cable.
f. Make certain the display can handle the resolution of the EDID learned
for the display on output 1.
2. No Audio
a. If the display on output 1 is Dolby capable and the display having audio
issue does not this will cause the issue. Put display with common
denominator (least capability) on output 1 and recycle power to the
splitter.
3. LED is not lit
b. Check 5v power supply is plugged in.
c. Check to see if Wall supply is plugged into wall outlet.
d. Make certain wall outlet has power.
4. EDID did not take
a. Recycle power to source device or unplug and make certain display is
connected to output 1.

11
User Guide

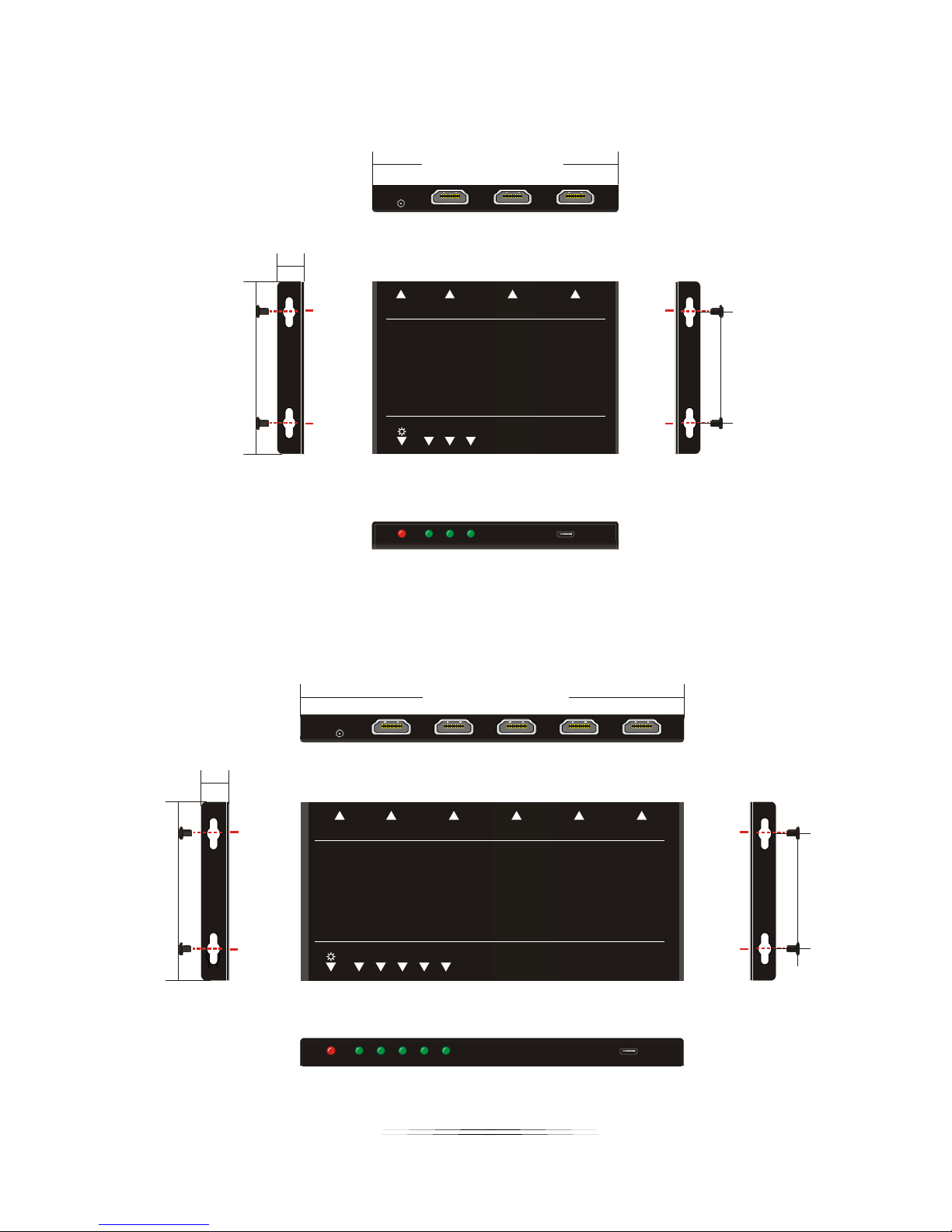

APPENDIX 2 Product Dimension Drawing
1
FIRMWARE
OUT 2 OUT 1
IN
IN
DC 5V
2
1
100.00 mm
10.96 mm
70.00 mm
45.00 mm
1
FIRMWARE
OUT 2 OUT 1
IN
OUT 3 OUT 4
IN 1 2 3 4
DC 5V
70.00 mm
45.00 mm
150.00 mm
10.96 mm

12
User Guide
APPENDIX 3 Technical Specifications
Model Name
DXE-122A/DXE-142A
Technical
HDMI/DVI compliance
HDMI 2.0A Deep Color, full 3D & 4K2K/ DVI 1.0
HDCP compliance
HDCP 1.4/2.2
Video bandwidth
Single-link 600MHz [18Gbps]
Video support
Up to 4K2K @60
HDMI Output Distance
720p 12bit up to 20m, 1080i 12bit up to 20m, 1080p 12bit up to 15m, 4K up to 7.5m
(Note: Cable quality may impact distance)
Audio support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, DVD-Audio, LPCM, SACD, MPCM
Firmware update
Mini-USB port
Input
1x HDMI
Output
2x HDMI (DXE-122A)/ 4x HDMI (DXE-142A)
EDID
Auto Management
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
DXE-12H-4K
100 x 70 x 11mm (3.94”x2.76”x0.433”)
DXE-14H-4K
150 x 70 x 11mm (5.91”x2.76”x0.433”)
Weight
DXE-12H-4K
0.08kg (2.82oz)
DXE-14H-4K
0.12kg (4.23oz)
Mounting
Attachable ears
Power supply
5V 1A DC
Power consumption
3.6 Watts [max]
Operation temperature
0~55°C
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
10~90% RH [no condensation]
Specifications subject to change without notice.

13
User Guide
APPENDIX 4 Cabling
Always make certain the quality of the HDMI cable is to specification for the distance and
bandwidth you are using. Failure to use proper HDMI cabling will result in loss of signal or
artifacts in the image. HDMI 2.0A requires cable capable of 18Gbps.
Aurora manufactures HDMI 2.0A cables in a variety of different colors which are highly flexible,
light weight and durable. These cables are also available in a variety of lengths and can be
found on the Aurora website www.auroramm.com

14
User Guide
APPENDIX 5 Warranty
Limited 3 Year Warranty
Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and
workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty
covers products purchased in the year of 2009 and after. Motorized mechanical parts (Hard Drives, DVD, etc),
mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year. Touch screen displays
are covered for 1 year; touch screen overlay components are covered for 90 days. Supplied batteries are not covered
by this warranty. During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with
same or similar model) at our option without charge for parts or labor for the specified product lifetime warranty period.
This warranty shall not apply if any of the following:
A. The product has been damaged by negligence, accident, lightning, water, act-of-God or mishandling; or,
B. The product has not been operated in accordance with procedures specified in operating instructions: or,
C. The product has been repaired and or altered by other than manufacturer or authorized service center; or,
D. The product's original serial number has been modified or removed: or,
E. External equipment other than supplied by manufacturer, in determination of manufacturer, shall have
affected the performance, safety or reliability of the product.
F. Part(s) are no longer available for product.
In the event that the product needs repair or replacement during the specified warranty period, product should be
shipped back to Manufacturer at Purchaser's expense. Repaired or replaced product shall be returned to Purchaser
by standard shipping methods at Manufacturer's discretion. Express shipping will be at the expense of the Purchaser.
If Purchaser resides outside the contiguous US, return shipping shall be at Purchaser's expense.
No other warranty, express or implied other than Manufacturer's shall apply.
Manufacturer does not assume any responsibility for consequential damages, expenses or loss of revenue
or property, inconvenience or interruption in operation experienced by the customer due to a malfunction
of the purchased equipment. No warranty service performed on any product shall extend the applicable
warranty period. This warranty does not cover damage to the equipment during shipping and
Manufacturer assumes no responsibility for such damage.

15
User Guide
This product warranty extends to the original purchaser only and will be null and void upon any
assignment or
Aurora Multimedia Corp.
205 Commercial Court
Morganville, NJ 07751
Phone: [phone] Fax: [phone]
www.auroramm.com
