This manual systematically introduces the product components, ports, specifications and other product contents, as well as installation, function
applicable to Product 110”, 138”, 165” and 220” (the 220” is not available for foot-mounting installation with frames);
The version of this manual is V2.0.0.
WARNING
The possibility of damage to the device and the inability to recover
due to ignoring the following contents of the warning is extremely
high.
1) Do not invert and throw the equipment during handling and
storage;
2) Do not tilt and collide to scratch the equipment during the
installation process;
3) Do not drench and immerse the equipment in water;
4) Do not enable the air outlet of the air conditioner close to the
display screen;
5) Do not place or use the display in an environment with volatile,
corrosive or flammable chemicals;
6) Do not use the equipment in humidity above 80% or in outdoor
rainy days;
7) Do not clean the display equipment with water and chemical
solvents;
8) Do not use electrical accessories that are not certified by the
equipment manufacturer;
9) It must be ensured that the display and its accessories are
properly and reliably grounded before use;
10) If abnormality occurs in the display, such as abnormal smell,
smoke, electric leakage or temperature happens, please cut off the
power immediately and then contact the professional;
11) This device has two input sockets that need to be disconnected
at the same time to disconnect the power supply from the device.
The AC power for the device shall be 100-240V.
02
This manual takes the Product 138" as an example to make the introduction, and the installation, maintenance and operation methods are
applications and other instructions, aiming at guiding you to start an efficient experience with Aurora I-TV

WARNING
NOTE
It is highly probable that you will not be able to get the best display effect if you ignore the content of the notice.
1) Wear anti-static gloves and anti-static bracelet during installation and maintenance;
2) Smooth air flow on the back of the display must be considered when designing the heat dissipation scheme;
3) The storage environment of the display should be ventilated and dry, and the humidity should not exceed 85%;
4) Under normal circumstances, the display must be powered on and turned on at least twice a week, and each lighting
time shall not less than 2 hours;
5) If the display is installed in the seaside, saline-alkali area, sulfur-containing gas area, places near kitchen smoke
exhaust or with large indoor and outdoor temperature difference, it may cause equipment failure and affect the service
life. If inevitable, please consult our professional and technical personnel.
03
This is a class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.

Ⅰ. Product Introduction
1.1 Product Brief
terminal product. It has built-in control system, supports HDMI
input, wireless transmission of multiple devices, and is easy to
install and maintain. It can expand functional applications such
as conference TV and indoor advertising. The products can be
widely used in large and medium-sized conference rooms,
multi-functional halls, training classrooms, exhibition halls,
monitoring and command centers, studios, airport station
passages, shopping malls, retail stores, theaters and etc.
1.2 Product Features
1) The product adopts integrated design and internal
integrated system, which can be used without external
equipment;
2) This product can be installed in a variety of ways, wall
mountable and bracket mountable. No need for large
complex steel structure support, easy to install;
3) The panel has a flash memory chip, and the calibration
data is stored in the panel, enabling the correction
parameters to be automatically read;
4) The display is fully front access, and the maintenance of
panels, power supplies and other components can be
completed from the front easily;
5) One-button start up, beginner-friendly operation for users
without any experience.
04
I-TV is Aurora's integrated commercial LED display

1.3 Product Appearance 1.4 Specifications
Size 110" 138" 165" 220"
Pixel Pitch(mm) 1.2 1.5 1.9 2.5
Brightness(nit) 100~500 100~600
Refresh Rate(Hz) 1920~3840
Resolution 1920×1080
Power Consumption
(Max/Ave) (W/display) 2500/850 3000/1020 3060/1040 5120/1740
Display Area(mm) 2440×1373 3050×1716 3660×2059 4880×2745
Overall Dimension(mm) 2453×1503×38.5 3063×1846×38.5 3673×2189×38.5 4893×2875×60
Weight(kg) 134 201 282 526.5
IP Rating IP30
Gray Scale(Bit) 14
Viewing Angle(H/V) 160°/160°
Input voltage(V) AC 100-240V
Installation Method Foot mounting/Wall mounting Wall mounting
Maintenance Front
Operating Temperature
/Humidity(℃/RH) -10~40/10%~85%
∙ All specifications are subject to change without prior notice.
050
SPECIFICATION I-TV 110" I-TV 138" I-TV 165" I-TV 220"
I-TV 138”

Ⅱ. Product Installation and Wring
2.1 Open-package Inspection
Product Package
No. Name Outer Packing Inner Packing Sum
1 Module 1 wooden case 5 cartons 216 modules
2 Cabinet 1 wooden tray 13 cartons 25 cabinets
3 Installation Components 1 wooden case
1 set of bottom frame component
1 set of foot-mounting brackets
left and right upper rims
wall-mounting strip/hook plate
tools
(note: above product package takes138” as an example, for actual project, please refer to its delivery list)
Please carefully check the package for damage. If the package is in good condition, continue to check the main components based on
the shipping list. If there is any discrepancy with the shipping list, please contact us in time.
Main components: unit cabinet, signal cable, power cable, remote control, wireless transmitter, HDMI cable, etc. The specific
components and quantities are detailed in the shipping list.
06

2.2 Installation Environment Requirements
2.2.1 For wall-mounting installation, the wall is required to be a
load-bearing wall. Special walls such as glass, marble,
porcelain, hollow walls, etc., cannot bear the weight of the
product. If such a situation requires special process installation,
additional costs may be incurred, and the specific cost is
calculated according to the actual situation.
2.2.2 Installation only provides hole-bearing wall boring,
hoisting or vertical bracket installation. If special installation
methods such as wall reinforcement and steel structure
installation are required, the corresponding expenses will be
calculated separately according to actual conditions;
2.2.3 If there are hidden risks for the installation method you
specified, after the prompts of our installation personnel, you still
insist on the installation, the responsibility shall not be borne by
supporting kits, our company shall not assume any responsibility
for damage to other items.
2.3 Structure Installation
2.3.1 Foot-mounting bracket installation
Overall Effect Diagram
Installation steps:
Step 1: Assembly bracket
① Find the corresponding parts according to the details of the
bracket assembly parts, as shown below:
07
our company; if you use non-I-TV standard Aurora

② Tighten the mounting screws with the appropriate tools and
the brackets are assembled, as shown below:assembly parts, as
shown below:
Step 2: Wall-mounting strip installation
① Match corresponding components for wall-mounting
strip assembly, as shown below:
② Attach the wall-mounting strip to the bracket as shown below:
08
M5*20 slotted grub screws
M5*16 countersunk screw
connection plate
wall-mounting strip 1
wall-mounting strip 2
M8 nut and flat
metal washer
M8*60 hex bolt
wall-mounting strip components
bracket components

③ The wall-mounting strips and bracket are assembled, as
shown below:
Step 3: Cabinet assembly
① Combine every five cabinets into one column and assemble a
total of 5 columns;
② Use the tool to hook and lock the panel up and down. The
position is shown in blue circle.
The connection position of left and right spring side locks are
shown in red circles, as shown below:
③ Install the hooks on the corresponding cabinets with two M8*25
hex head bolts and flat spring washers, as shown below:
④ The positioning pins shall be removed from the top cabinet. And
the spring positioning pins shall be removed from the leftmost
columns, and then fix the upper cover strip with a cross screwdriver,
as shown below:
09
upper cover strip
M8*16 cross recessed big flat head screws
positioning pin
spring positioning pin
M8*25 hex head bolt
and Flat metal washer hook plate

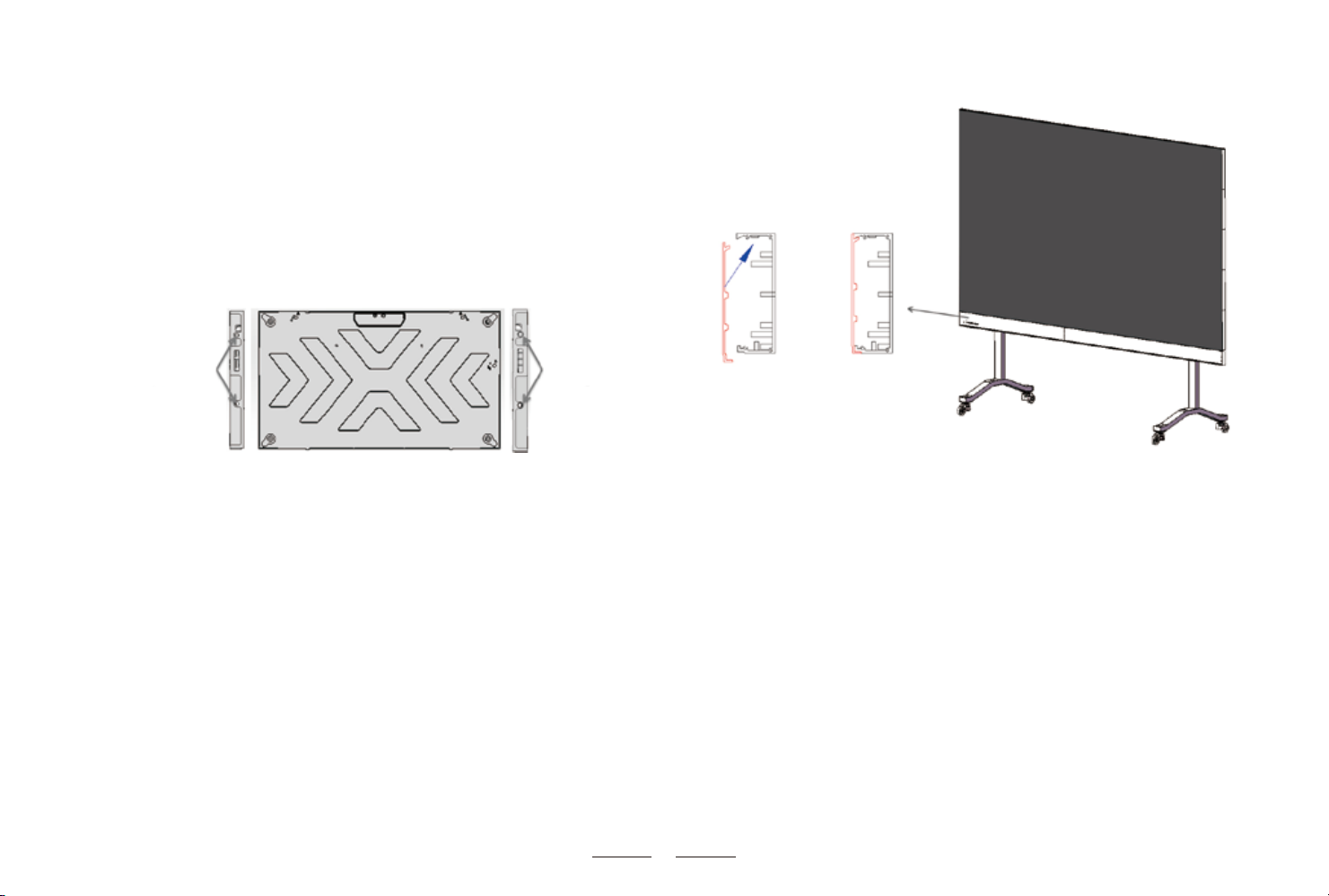

Step 4: Display assembly
* Ensure the bracket casters are locked and the wall-mounting
strips are horizontal before mounting the cabinet on the
supporting structure;
① Hang the cabinets from the middle to the sides, and hang
the wall-mounting strip on the cabinet to the wall-mounting strip
of the bracket;
② Install the adjacent second column so that the hooks are
hung on the wall-mounting strips, and the adjacent side faces
are close to each other. Pull out the side spring positioning pins
so that the positioning pins are fully inserted into the matching
positioning holes, and then rotate the side hook lock with the
corresponding inner hexagonal wrench to ensure the left and
right columns of the box are completely locked as shown below:
③ Complete the other column cabinet installations in sequence,
as shown below:
10

Step 5: Bottom frame assembly
* The lower frame component consists of the lower frame 1, 2, etc.,
and shall be connected by the connecting plate
① 1 The lower frame component shall be fixed on the bottom row
of the cabinet by rotating the hook, as shown below:
② Wiring: Red one is the 5 branch power line, blue one is the
signal line. First connect the power and signal lines between the
cabinets according to the schematic. Then connect the signal line
and the power line to the lower frame assembly. Each column of
signal lines only needs to be plugged into the corresponding column
socket according to the position. The power line only needs to be
plugged by the 3p pair of plugs according to the position. As shown
below:
11
hook lock
lower frame 1 connecting plate lower frame 2
signal line
5 branch power line

③ Button board connection: The power cable (3p paired plug) and
cable (7p, 4p, 3p) on the button board must be docked on site. Power
cable (the black ones in below picture is required to be inserted in
pair), the cable can be inserted as 7p to 7p (red ones), 3p to 3p
(black ones), 4p to 4p (black ones in pair), 4p to 4p (red ones in pair),
as shown below:
Step 6: Module installation
* Module installation sequence should be from left to right, right to left
or from bottom to top, top to bottom, depending on the on-site
installation environment.
* Repair in time when flatness is not in good condition during
assembly;
① The module connection mode is hard connection, which is
connected through the bridge board and the connector on the
module, therefore Forced insertion should be avoid during
installation. The connection example is shown below:
12

2.3.2 Wall-mounting installation
Step 7: The left, right, top and bottom cover plate Installation
① The left and right cover strips are snapped into the side spring
locating pin holes. (as mentioned that spring locating pin and the
cover strip shall be removed from the left side of the screen), as
shown below:
*The cover strip with "R" is the right one, and "L" is the left one
(based on front view)
② Install the lower frame cover from left to right according to the
position of the cover displayed in the installation diagram with
cross screwdriver and M3*8 black counter sunk head screws, as
shown below:
For wall-mounting installation, there is no need to install the seat
bracket. After assembling the wall-mounting strip according to the
above steps in foot-mounting installation, fix the hanging kits on the
wall with expansion screws, pay attention to the height positioning
of the screen body from the ground, and the subsequent
installation.
13
left cover strip buckle
mounting hole
right cover strip buckle
mounting hole

Ⅲ. Functions Introduction
3.1 Hardware Ports Instruction
Port No. Name Function
1
Red/Blue Indicator
light
Red: standby status
Blue: work status
2
Infrared indicator Receive remote control signals
3
One-button
switching button Control one-button on/off switch
4
Signal switching
button
Switching button for Android main interface, wireless screen
interface and HDMI input device interface.
5
Brightness+ button Button for screen brightness+
6
Brightness- button Button for screen brightness-
7
Standby/Awake
button Switching button for standby/awake
8
Audio 3.5 output port Audio port for external speaker
9
USB1 port Port to read a USB flash drive, wired or wireless mouse or
keyboard
10
USB2 port Port to read a USB flash drive, wired or wireless mouse or
keyboard
11
LAN Cable port
12
HDMI input port Port to receive 1080P video signal
14

Ⅳ. Remote Control Button Instruction
Button Icon Function
Standby/Awake
Up
Down
Left
Right
Confirm
Volume+
Volume-
Return
Brightness Adjustment
Channel Switch
Main Interface
Remarks:
Channel switching function: Android main
interface - wireless screen transmission interface -
external HDMI display channel interface switching
in order;
Brightness adjustment function: The brightness
of the all-in-one LED display is designed in 8 levels,
and can be adjusted by left and right buttons on the
remote control.
15

Ⅴ. Instructions for Use
5.1 Start up
5.1.1 Plug in the power supply;
5.1.2 Press the one-button start up button on the bottom of the
control unit to wait for a few seconds and then the display will
automatically enter the main interface. (Note: After the first
installation is completed, it takes 5-10 minutes for the display to
automatically load the data, and it will light up when the loading
is completed.)
5.2 Main Interface Contents
5.2.1 Main interface application
Gallery- Place picture material;
Screen Share- Enter the wireless screen sharing interface;
Explorer- access to memory management files;
As shown below:
5.2.1 More applications
The white circle icon on the bottom of the interface can lead you
to find more application interfaces, as follows:
16

5.3 Wireless Screen Share Function Instruction
Wireless screen share function
MAC or Windows system computer, mobile phone, tablet device
can realize screen share function on the all-in-one display, and
following are three methods to enter the interface:
Method 1: Click the signal switching button of the remote
controller;
Method 2: Click the signal switching button of the lower main
control box;
Method 3: Click the Screen Share icon on the bottom of start
interface with the wireless or wired mouse connected via the
USB port.
The steps are as follows:
① For the first time use, please connect the wireless screen
completed, pull out the transmitter, as shown below:
② Connect the wireless screen share transmitter to the computer as
shown below:
③ For the first time, you need to manually run the screen share
program on your PC.
Note: Please follow the prompt interface output by the wireless
screen share player. For the second use, there is no need to conduct
pairing;
17
share transmitter to I-TV for pairing. After the pairing is

5.4 Computer Screen Share
5.4.1 MAC System Device Wireless Scree Share
① Connect the all-in-one LED display Wi-Fi hotspot;
(Name: AndroidAP Password: 12345678)
② Follow the instructions and video demonstration in the MAC
User Guide of the wireless screen share interface, as shown
below:
5.4.2 Windows System Device Wireless Scree Share
① Download and install the screen assistant application
software;
② Connect the all-in-one LED display Wi-Fi hotspot;
(Name: AndroidAP Password: 12345678)
③ Open the desktop application screen assistant;
④ Enter the connection code GEKCWW9B to enter, as shown
below.
18

5.5 Mobile Phone Screen Share
5.5.1 Android system mobile phone:
Connect the all-in-one LED display Wi-Fi hotspot;
(Name: AndroidAP Password: 12345678)
① Scan the following QR code to download the mobile app
screen assistant;
(Note: This step is required for the first time. If you already have
the APP, you can skip this step);
② Open the Screen Assistant and start to share screen, as
shown below:
③ Scan QR code and then click mirroring to select AndroidAP
to start screen sharing, as shown below:
19
