AUSA C 200 H User manual

C 200 H
C 200 HI
C 200 H x4
C 250 H
C 250 HI
C 250 HI LE
C 250 H x4
C 250 H x4 LE
OPERATOR’S
MANUAL
ENGLISH
Original Manual

AUSA Forklift Truck
C 200 H
C 200 HI
C 200 H x4
C 250 H
C 250 HI
C 250 HI LE
C 250 H x4
C 250 HI x4 LE
Above chassis number 206 62866
ORIGINAL MANUAL

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE 3
Thank you for choosing this AUSA forklift truck (hereinafter forklift). The purpose of this
Operators and Safety Manual is to provide you, the user, with instructions concerning
the productive, safe and efficient use of this forklift. You should read and understand this
manual before operating the forklift. The Manual contains safety messages concerning
the use of the forklift. Remember that “you” are the key to safety.
The preservation of these qualities over a long period of time is in your hands. The
correct use of your forklift will allow you to make the most of the resultant benefits.
The Operator’s and Safety Manual also contains instructions for some adjustments
and for maintenance of this fork-lift. Follow these instructions carefully while performing
routine maintenance checks and keep a record of all maintenance. As wide variations
in operating conditions may be experienced, you are urged to contact your AUSA
Distributor to resolve any operational or service problems.
Please have all operators of this forklift read and understand this Operator’s and Safety
Manual.
Any damage resulting from the incorrect use of the forklift shall not be considered to
be the responsibility of AUSA. In the event of query, complaint or to place an order for
spares, please contact your Official AUSA Dealer.
This forklift is designed and intended for off highway use. If it is temporarily operated
on any public street or highway, the state and local laws governing speed, size, weight,
brakes and lighting must be complied with.
For further information you may write, FAX or E-mail to:
AUSA Center, S.L.U.
Apartado P.O.B. 194
08243 MANRESA (Barcelona) SPAIN
Tel. [phone]
Fax [phone]
E-mail: [email protected]
Web: http://www.ausa.com
AUSA is continuously trying to improve the efficiency, productivity and safety of its
products and reserves the right to make such improvements without incurring any
obligation to make changes to forklifts previously sold. Because of this policy of striving
for constant product improvement, the specifications and operating instructions shown
in this Operator’s and Safety Manual may be different from prior forklift models. As
such, we will not accept claims that are based on the data, illustrations or descriptions
included in these instructions.
Only original AUSA spare parts should be used. This is the only way to guarantee that
AUSA machinery has the same operational level as at the time of delivery. No alterations
should be made to the forklift without the prior authorization of the manufacturer.

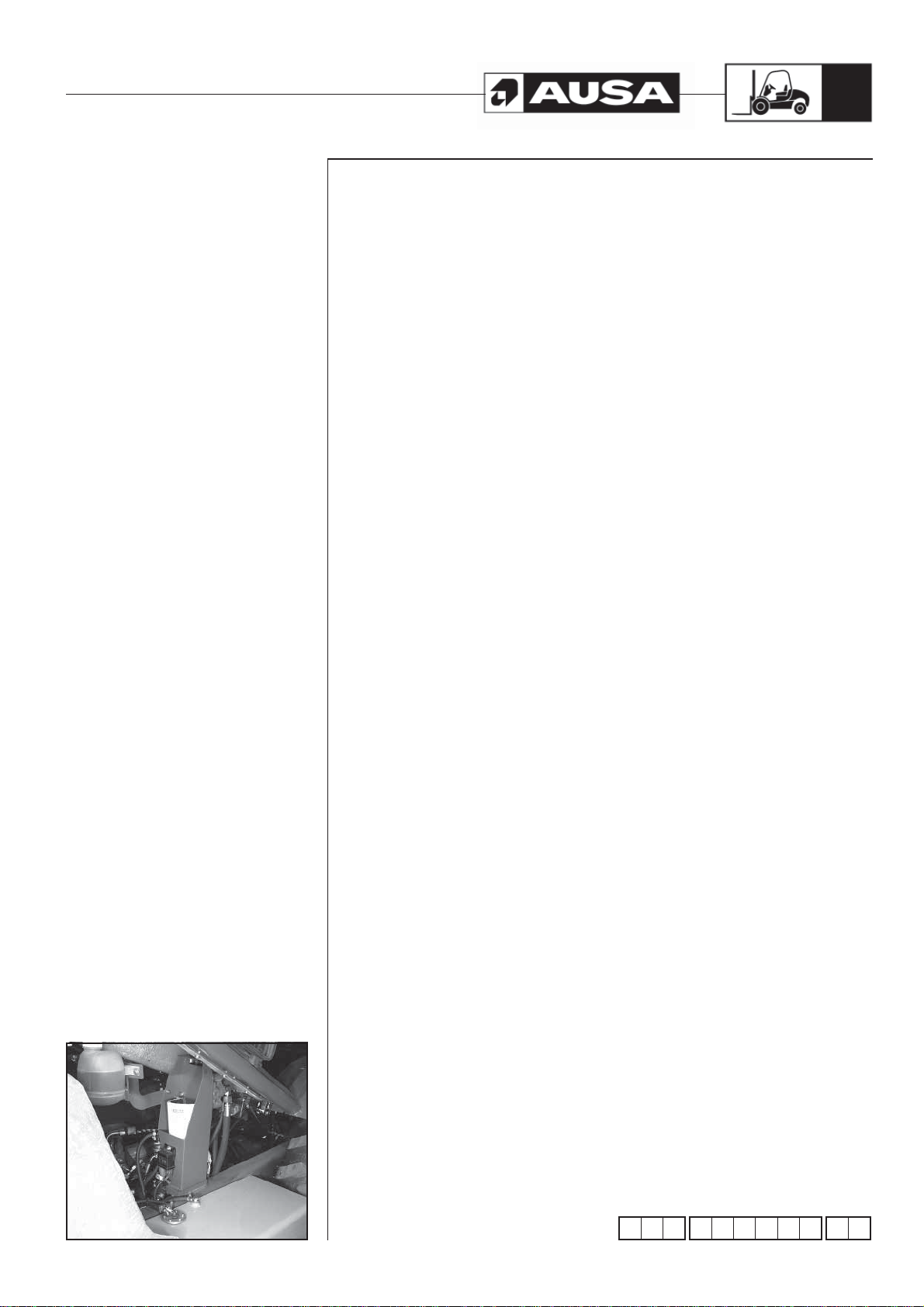

When not in use keep it stored on the forklift in the Manual holder box in the engine’s
compartment in the control valve support (fig. 1).
(fig. 1)
Foreword
MOP 100910 02

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
4
Index Uses and improper Uses of the forklift................................................................... 5
Identification of the forklift components................................................................. 6
Vehicle Identification and Serial Numbers .............................................................. 7
Technical Specifications.......................................................................................... 8

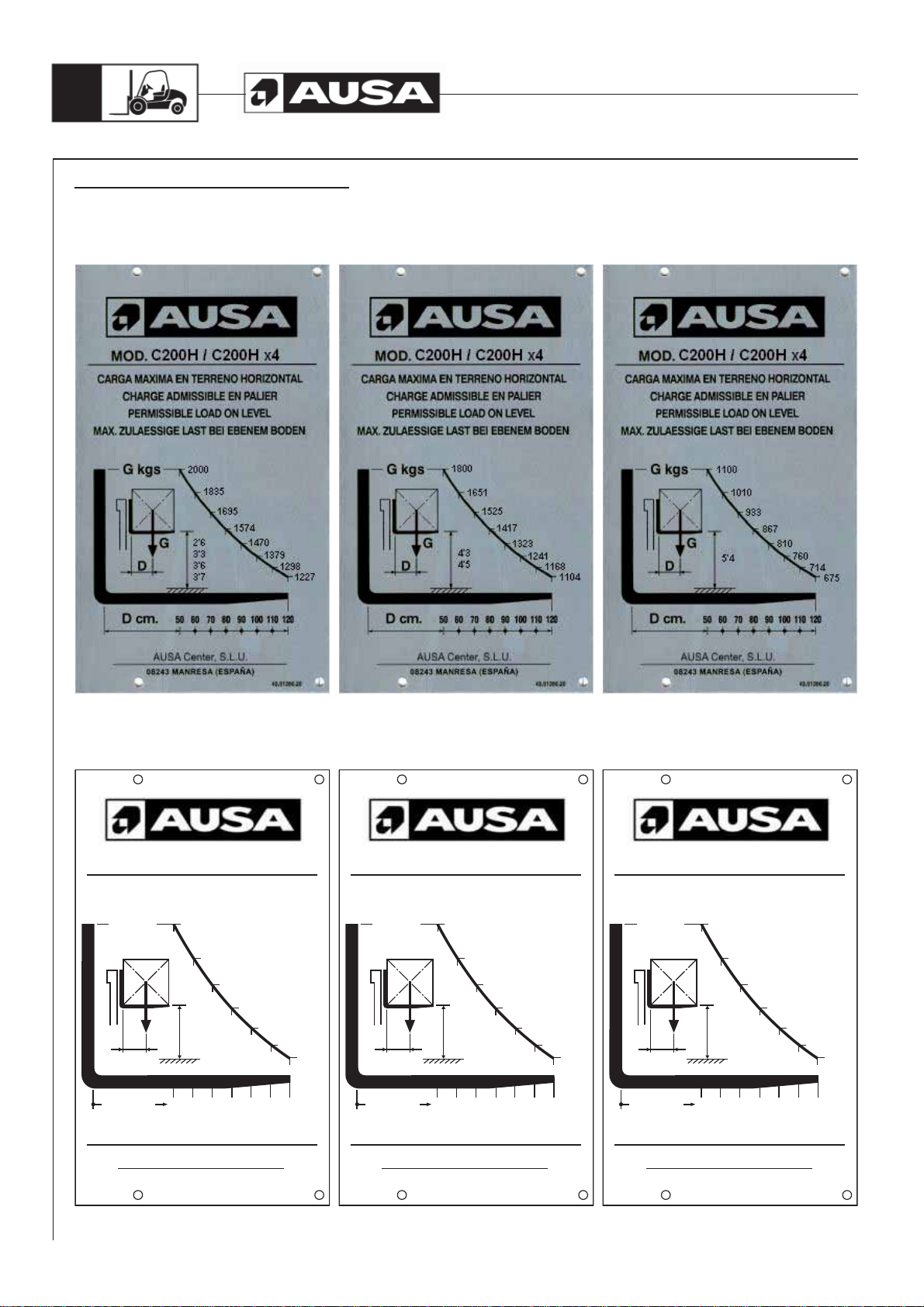

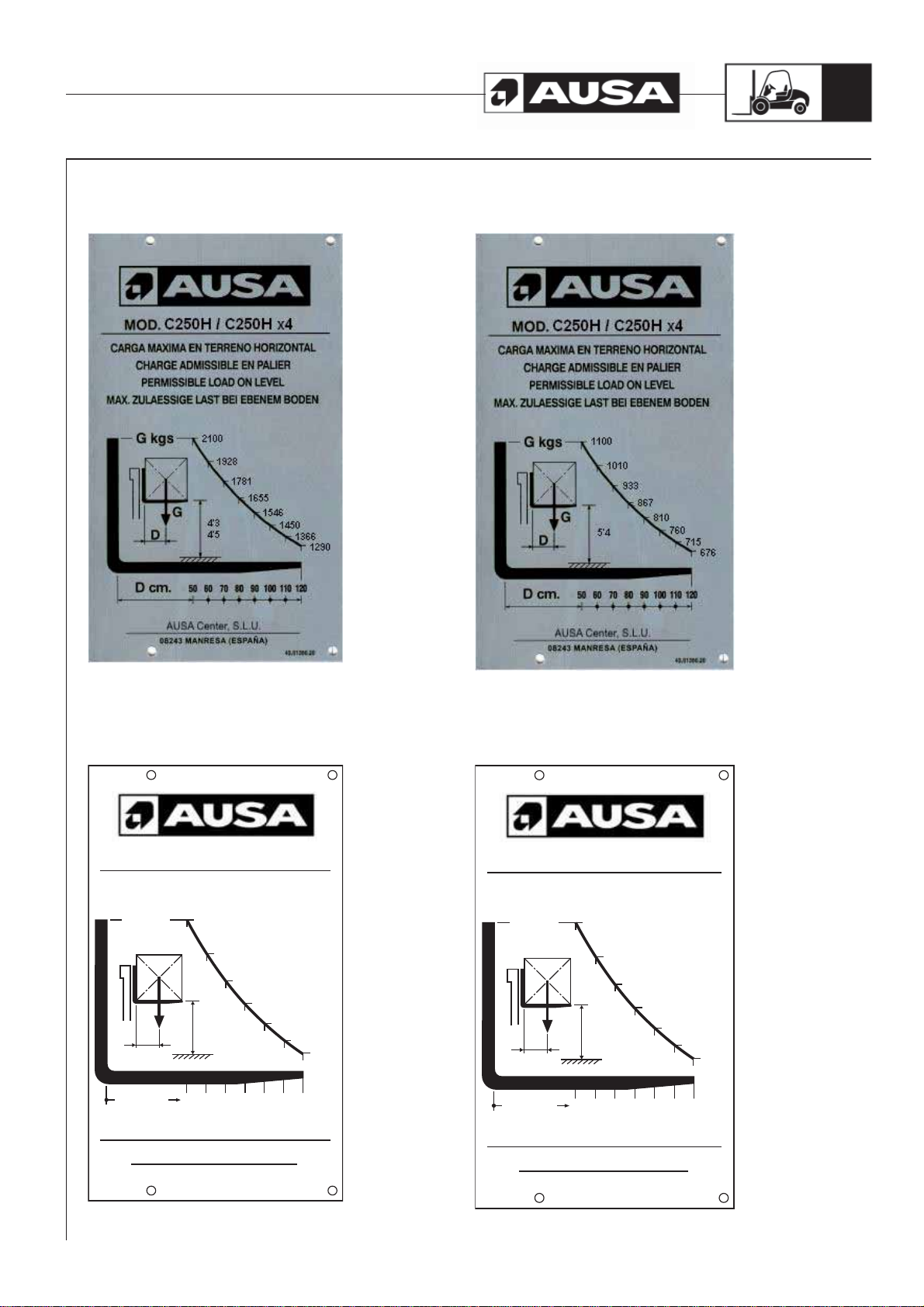

Decals / labels / identification plates all markets (except USA)............................ 22
Decals / labels / identification plates (USA Market) ............................................... 34
Controls and instruments........................................................................................ 48
Instrument Panel and controls................................................................................ 51
Operating the forklift................................................................................................ 57
Special procedures................................................................................................. 61
Special Safety Messages........................................................................................ 64
Parking the machine ............................................................................................... 72
Transporting the machine ....................................................................................... 73
Recommended fluids and lubricants...................................................................... 76
Maintenance Chart.................................................................................................. 78
Periodic Maintenance Operations........................................................................... 80
Hydrostatic transmission error conditions ............................................................. 100
Electric circuit.......................................................................................................... 102
Electric circuit
C200H / C200HI / C200H x4 / C250HI LE / C250H x4 LE ................................ 103
Electric wiring
C200H / C200HI / C200H x4 / C250HI LE / C250H x4 LE ................................ 107
Electric circuit
C250H / C250HI / C250H x4............................................................................. 108
Electric wiring
C250H / C250HI / C250H x4............................................................................. 113
Hydraulic diagram (Hydraulic appliances) ............................................................. 114
Hydraulic diagram (Transmission)
C200H / C200HI / C200H x4 / C250HI LE / C250H x4 LE ................................ 115
Hydraulic diagram (Transmission)
C250H / C250HI / C250H x4............................................................................. 116
Transmission Troubleshooting ................................................................................ 117
EC Certificate of Conformity.................................................................................... 118

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE 5
Uses for which the forklift is designed
Forklifts C200H-HI / C250H x4 / C250H-HI / C250H x4 / C250HI LE / C250HI X4 LE have
been designed and manufactured for lifting, handling and transporting loads on rough
ground and industrial use. The safety of individuals and of the loads carried must be
ensured through the use of forks or other accessories and equipment.
ROUGH TERRAIN USE (C200/250H)
This forklift truck is designed for transporting and lifting loads on grounds not in good
condition, roughly flat, not too steep slopes and small obstacles, so that the stability
conditions are not optimal.
INDUSTRIAL USE (C200/250HI)
This forklift truck is designed for transporting and lifting loads on good condition floors,
that means flat, levelled and paved ground, so that there are optimal stability conditions.
Anyuseother than thatdescribedaboveshall be consideredinappropriate andtherefore
improper.
Strict adherence to the operating, maintenance and repair conditions specified by the
manufacturer are essential in order to maintain the forklift in good working order.
Driving, maintenance and repair of the forklift should only be carried out by suitably
qualified personnel, with the necessary tools and knowledge of the control and safety
procedures relative to the forklift. When handling loads or carrying out maintenance
and/or repair work, the occupational health and safety regulations, together with those
relative to accident prevention, should be observed.
When driving with the forklift on public highways, special care should be taken to ensure
compliance with the current legislation for this type of vehicle (Highway Code).
AUSA does not assume responsibility for any damage resulting from modifications
made to the forklift without express authorization.
The texts following this symbol provide information on recycling and protecting the
environment.
Improper use
Improper use is understood to mean the use of the forklift in a manner not in keeping
with the criteria and instructions given in this Operator’s and Safety Manual and in a way
which might cause damage to persons or objects.
Some of the more common and dangerous examples of improper use are given below:
- Carrying persons other than the operator on the forklift.
- Not strictly observing the instructions for use and maintenance given in this
Operator’s and Safety Manual.
- Exceeding the limits for load and centre of gravity given in the relevant load
charts.
- Working on unstable, unshared grounds or at the edges of trenches and ditches.
- Working on excessively steep slopes.
- The use of accessories or equipment for purposes other than those for which
they have been designed.
- The use of accessories or equipment not manufactured or authorized by AUSA.
Uses and improper
Uses of the forklift

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
6
Term such as right, left, front and rear when used in this Operator’s and Safety
Manualindicatetherightandleftsidesofthemachine,thefrontandbackofthemachine,
as viewed from the operators seat looking forward.
Identification components
1- Overhead guard.
2- Driving and load control (Joystick)
3- Parking brake switch.
4- Driver seat with seat belt.
5- Diesel tank.
6- Hydraulic tank.
7- Forks.
8- Lifting mast.
9- Rotating beacon.
10- Lighting equipment ().
11- Rear-view mirror.
Identification of
the forklift
components
1
3
2
4
10
8
65
11
9 10
7

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE 7
 ¡Important! Write your machine Model number, date of sale, chassis and engine
serial number in the spaces provided below. Give this information to your AUSA dealer
when you need parts or information for your machine. Make a record of these numbers
in your files.
Model number:.....................................................................
Date of sale:.........................................................................
Chassis serial number: ........................................................
Engine serial number:..........................................................
 The Vehicle Identification Plate is located at the left of the operators seat (fig.
1). The Engine Serial Number is located on the left side of the engine (fig. 3-4). The
Chassis Serial Number is located on the right side of the chassis (fig. 2).
 Principals components of identification plates
The plates of every components not built directly by AUSA, (for example: engines,
pumps,etc.)aredirectlyappliedonthesamecomponents,inpointswheretherespective
makers put them originally.
(fig. 3 - ISUZU 4LE2)(fig. 4 – KUBOTA V2403-M) (fig. 2) (fig. 1)
Vehicle
Identification
and Serial
Numbers

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
8
Dimensions (in)
AB C D EFGIJKL
narrow
version wide version
C 200 H
COMPACT 6ft 7.1in 8.1in 11.6in 4ft 5.5in 4ft 6.1in - R 9ft 2.2in 8ft 6.4in 4in 1.6in 2ft 13ft 11in
C 200 H
C 200 HI
C 250 HI LE 6ft 8.7in 9.6in 12.2in 4ft 6.1in 4ft 9.5in 5ft 10in R 9ft 2.2in 8ft 6.4in 4in 1.6in 2ft 13ft 11in
C 200 H x4
C 250 H x4 LE 6ft 9.9in 10.6in 12.2in 4ft 6.8in 4ft 9.5in 5ft 10in R 14ft 5.2in 9ft 6.2in 4in 1.6in 2ft 13ft 11in
C 250 H
C 250 HI 7ft 0.6in 11in 15.3in 4ft 6.1in 4ft 11.5in 5ft 11.2in R 9ft 2.2in 8ft 6.4in 5.1in 1.8in 2.01ft 13ft 11.1in
C 250 H x4 6ft 11.5in 12.6in 15.3in 4ft 6.8in 4ft 11.5in 5ft 11.2in R 14ft 5.2in 9ft 6.2in 5.1in 1.8in 2.01ft 13ft 11.1in
Dimensions (mm)
AB C D EFGIJKL
narrow
version wide version
C 200 H
COMPACT 2010 205 295 1360 1375 - R 2800 2600 100 40 610 4240
C 200 H
C 200 HI
C 250 HI LE 2050 245 310 1375 1460 1782 R 2800 2600 100 40 610 4240
C 200 H x4
C 250 H x4 LE 2080 270 310 1392 1460 1782 R 4400 2900 100 40 610 4240
C 250 H
C 250 HI 2150 280 390 1375 1510 1810 R 2800 2600 130 45 615 4245
C 250 H x4 2120 320 390 1392 1510 1810 R 4400 2900 130 45 615 4245
Technical
Specifications

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE 9
Mast chart (in)
Type of
mast
Max.
lifting
height
(ft in)
Front axle Free lift
(ft in)
Machine height with mast retracted
(ft in) Machine height with mast extended (ft in) Pay Load (lb.) at maximum height. Load center at 24 in (600 mm) (USA)
C200H
COMPACT
C200H
C200HI
C200Hx4
C250HI LE
C250Hx4 LE
C250H
C250HI
C250Hx4 C200H
COMPACT
C200H
C200HI
C200Hx4
C250HI LE
C250Hx4 LE
C250H
C250HI
C250Hx4
C200H
COMPACT
(narrow
axle)
C200H
(narrow
axle)
C200H
(wide
axle)
C200HI
(narrow
axle)
C250H
(narrow
axle)
C250H
(wide
axle)
C250HI
(narrow
axle)
Duplex
(Std.) 10ft 10in Narrow / Wide (op.) 4.7in - 7ft 10.3in 8ft 0.9in - 13ft 7.4in 13ft 10in - 4040 4040 4040 5060 5060 5060
Duplex 8ft 6in Narrow /
Wide (op.) 4.7in 6ft 7.7in 6ft 8.5in 6ft 11in 7ft 11.7in 11ft 3.9in 11ft 6.4in 4040 4040 4040 4040 5060 5060 5060
Duplex 11ft 10in Narrow /
Wide (op.) 4.7in - 8ft 4.2in 8ft 6.8in - 14ft 7.2in 14ft 9.8in - 4040 4040 4040 4650 4850 5060
Duplex 14ft 9in Wide /
Narrow (HI) 4.7in - 9ft 9.9in 10ft 0.5in - 17ft 6.6in 17ft 9.2in - - 3640 3640 - 4250 5060
Triplex
(free lift) 12ft 2in Narrow / Wide (op.) 4ft 4in 6ft 7.7in 6ft 8.5in 8ft 11.5in 15ft 15ft 0.7in 15ft 3.7in 4040 3640 4040 4040 4450 4650 5060
Triplex
(free lift) 14ft 1in Wide / Narrow (HI) 4ft 4in - 7ft 4.5in 7ft 7.5in - 17ft 2in 17ft 5in - - 3640 3640 - 4250 5060
Triplex
(free lift) 17ft 8in Narrow / Wide (op.) 5ft 6in - 8ft 6.8in 8ft 9.7in - 20ft 7.8in 20ft 11in - - 2220 3440 - 2220 4430
Mast chart (mm)
Type of
mast
Max.
lifting
height
(mm)
Front axle Free lift
(mm)
Machine height with mast retracted
(mm) Machine height with mast extended (mm) Pay Load (Kg.) at maximum height
C200H
COMPACT
C200H
C200HI
C200Hx4
C250HI LE
C250Hx4 LE
C250H
C250HI
C250Hx4 C200H
COMPACT
C200H
C200HI
C200Hx4
C250HI LE
C250Hx4 LE
C250H
C250HI
C250Hx4
C200H
COMPACT
(narrow
axle)
C200H
(narrow
axle)
C200H
(wide
axle)
C200HI
(narrow
axle)
C250H
(narrow
axle)
C250H
(wide
axle)
C250HI
(narrow
axle)
Duplex
(Std.) 3300 Narrow / Wide (op.) 120 - 2395 2460 - 4150 4215 - 2000 2000 2000 2500 2500 2500
Duplex 2600 Narrow /
Wide (op.) 120 2025 2045 2110 2430 3450 3515 2000 2000 2000 2000 2500 2500 2500
Duplex 3600 Narrow /
Wide (op.) 120 - 2545 2610 - 4450 4515 - 2000 2000 2000 2300 2400 2500
Duplex 4500 Wide /
Narrow (HI) 120 - 2995 3060 - 5350 5415 - - 1800 1800 - 2100 2500
Triplex
(free lift) 3700 Narrow / Wide (op.) 1130 2025 2045 2120 4570 4590 4665 2000 1800 2000 2000 2200 2300 2500
Triplex
(free lift) 4300 Wide / Narrow (HI) 1330 - 2245 2320 - 5230 5300 - - 1800 1800 - 2100 2500
Triplex
(free lift) 5400 Narrow / Wide (op.) 1680 - 2610 2685 - 6295 6370 - - 1100 1700 - 1100 2200
Technical
Specifications

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
10
 Diesel engine
Four cylinders, four strokes, water-cooled. Electric starter. Mixed radiator (water/oil).
C 200 H-HI / C 200 H x4 / C 250 HI LE / C 250 HI x4 LE: Isuzu 4LE2- Tier II.
Power 45.92 HP (33.8 kw at 2,700 rpm in accordance with SAE J 1349 Norm).
C 250 H-HI / C 250 H x4: KUBOTA V2403-M – E3B.
Power 49.6 HP (36.5 kw at 2,600 rpm in accordance with SAE J 1995 Norm).
See the engine instructions handbook.
 Transmission
Hydrostatic system with variable flow pump and inching. Electronic control on C 250
H-HI / C 250 H x4 models.
C 200 H-HI / C 200 H x4 / C 250 HI LE / C 250 HI x4 LE: Hydrostatic motor with
two speeds selected by electrical switch.
Maximum operating pressure: 4,713 PSI (325 bar).
C 250 H-HI / C 250 H x4: Hydrostatic motor with variable flow.
Maximum operating pressure: 6,091 PSI (420 bar)
Both models with 2 wheel drive version (2WD) and 4 wheel drive version (4WD).
Permanent 4WD with COMPEN®System in Standard Machine
4x4 connectable on demand with “Full grip system®” ()
 Directional control
The selection of the drive (forwards/ backwards) is made using a switch on the lower
part of the joystick. A lamp in the shape of an arrow lights up on the top of it when a
movement mode is selected.
 Steering
Hydraulic powered with one double acting hydraulic cylinder on the rear axle.
Working pressure (all models): 2320 PSI (160 bar).
 Wheels
Dimensions:
Dimensions
Front wheels Rear wheels
C 200 H COMPACT 10.0 / 75 - 15,3 (14 PR) 6.50 - 10 (10 PR)
C 200 H 11.5 / 80 - 15,3 (14 PR) 7.00 - 12 (12 PR)
C 200 HI 11.5 / 80 - 15,3 (14 PR) 7.00 - 12 (12 PR)
C 200 H x4 11.5 / 80 - 15,3 (14 PR) 27 x 10 - 12 (14 PR)
C 250 H 12.5 / 80 - 18 (12 PR) 7.00 - 12 (12 PR)
C 250 HI 12.5 / 80 - 18 (12 PR) 7.00 - 12 (12 PR)
C 250 H x4 12.5 / 80 - 18 (12 PR) 10.0 / 75 - 15,3 (10 PR)
C 250 HI LE 12.5 / 80 - 18 (12 PR) 7.00 - 12 (12 PR)
C 250 H x4 LE 12.5 / 80 - 18 (12 PR) 10.0 / 75 - 15,3 (10 PR)
Technical
Specifications

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE 11
Pressures:
Pressures
Front wheels Rear wheels
C 200 H COMPACT 96 psi (6.5 bar) 65 psi (4.5 bar)
C 200 H 65 psi (4.5 bar) 123 psi (8.5 bar)
C 200 HI 65 psi (4.5 bar) 123 psi (8.5 bar)
C 200 H x4 65 psi (4.5 bar) 123 psi (8.5 bar)
C 250 H 65 psi (4.5 bar) 123 psi (8.5 bar)
C 250 HI 65 psi (4.5 bar) 123 psi (8.5 bar)
C 250 H x4 65 psi (4.5 bar) 51 psi (3.5 bar)
C 250 HI LE 65 psi (4.5 bar) 123 psi (8.5 bar)
C 250 H x4 LE 65 psi (4.5 bar) 123 psi (8.5 bar)
 Brakes
Service brake. Multidisc sealed hydraulic brake.
Parking brake. Multidisc sealed brake spring applied, hydraulically released.
 Hydraulic circuit
One double gear pump driven by the hydrostatic pump of the transmission; one body
for the mast operations and one for the hydraulic steering,.
Pump flows:
7.1 - 3.2 US gal/min (27 - 12 l/min) at 1500 rpm.
Monoblock control valve with two spools and selectable solenoid for side-shift.
Restrictor valve to control the speed of the mast lowering with load.
Oil tank capacity: 12 US Gal (45 l.)
Service pressure:
C 200 H / C200HI / C 200 H x4: 2610 PSI (180 bar).
C 250 H / C250HI / C 250 H x4 / C 250 HI LE / C 250 HI x4 LE: 3190 PSI (220 bar).
 Working temperature
From -15ºC to 40ºC.
Vibration and noise levels
Sound power level:
Warrantee sound power (according to 2000/14/EC sound emissions in the environment
by machinery for outdoor use):
• C200H / HI – C200H x4 / C250HI LE / C250Hi LE x4: Lwa = 103 dB (A)
• C250H / HI – C250H x4: Lwa = 104 dB (A)
Sound pressure level on the operator’s site:
A weighted sound pressure in the operator’s ear measured (following norms EN 12053
and ISO 4871):
All models: Lpa = 85 dB (A)
Measurement uncertainty: 2,5 dB (A)
Vibration level produced by the machine:
Root-mean-square frequency-weighted, hand-arm vibration acceleration value:
< 2,5 m/s2
Root-mean-square frequency-weighted, whole body vibration acceleration value:
< 0,5 m/s2
Technical
Specifications

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
12
 Electrical equipment
Electrical starter 2,0 Kw. Pre-heating spark plugs. Alternator of 35A (Isuzu Engine) and
480W (Kubota Engine). Battery 12V- 70 AH. Horn. Rotating beacon. Back-up alarm.
Engine oil pressure alarm. Hydraulic oil level alarm. Coolant temperature alarm.
 Weights
Unladen weight (with full tanks):
C 200 H-HI: 4200 kg (9,259 lbs). C 200 H x4: 4200 kg (9,259 lbs).
C 250 H-HI: 4400 kg (9,700 lbs). C 250 H x4: 4400 kg (9,700 lbs)
C 250 H x4 LE: 4400 kg (9,700 lbs). C 250 HI x4 LE: 4400 kg (9,700 lbs).
(The Compact machine has the same weight than the C 200 H-HI).
Unladen weight (with full tanks):
C 200 H-HI: 6200 kg (13,668 lbs). C 200 H x4: 6200 kg (13,668 lbs).
C 250 H-HI: 6900 kg (15,211 lbs). C 250 H x4: 6900 kg (15,211 lbs)
C 250 H x4 LE: 6900 kg (15,211 lbs). C 250 HI x4 LE: 6900 kg (15,211 lbs).
(The Compact machine has the same weight than the C 200 H-HI).
 Load Capacity
With the load center of the load at 500 mm. (see LOAD CHARTS In this manual)
C 200 H-HI / C 200 H x4: 2.000 Kg;
C 250 H-HI / C 250 H x4 / C 250 H x4 LE / C 250 HI x4 LE: 2.500 Kg.
With the load center at 24 inches (600 mm) (see LOAD CHARTS In this manual)
C 200 H-HI / C 200 H x4: 4040 lbs (1835 Kg).
C 250 H-HI / C 250 H x4 / C 250 H x4 LE / C 250 HI x4 LE: 5060 lbs (2294 Kg).
 Fork carriage
Class: FEM/ISO 2.
 Standard mast
Side-shift 47 in. (1200 mm ) width
Lifting height: 10ft. 10in. (3,30 m).
Free litf: 6 inches (150 mm).
Forks length: 47 inches (1200 mm).
 Lifting speed
Without load: 103 ft/min (0,526 m./sec). with load: 101 ft/min (0,513 m./sec).
 Lowering speed
Without load: 81 ft/min. (0,412 m./sec). With load: 125 ft/min (0,637 m./sec).
WARNING
This forklift is not designed to travel with elevated load or with the mast tilted
forward.
Do not tilt forward the mast with the forks elevated except to pick up or deposit
the load.
Technical
Specifications

C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE 13
 Control panel
The controls, switches and warning lights are integrated in the steering column and
below the joystick.
 Lighting ()
Work lighting equipment, steering indicators, parking lights and warning.
 Overhead guard
Manufactured according with ISO 3449 and ISO 3471 / ASME B56.6.
WARNING
The operator is protected by an overhead guard which complies with the ISO
3449 and ISO 3471 / ASME B56.6 standards. It provides protection against
falling objects and together with the mast, provides protection should the
forklift overturn. The seat belt is an important part of the safety system and
should always be fastened before starting to operate the forklift. In the event of
the forklift overturning, if the seat belt is not fastened the operator may suffer
serious injury or even loss of life as a result of crushing from the forklift or even
the overhead guard itself.
 Aisle widths
See graph.
Technical
Specifications

14 C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
ROUGH TERRAIN USE (C200H / C250H)
This forklift truck is designed for transporting and lifting loads on grounds not in good condition, roughly flat, not too steep slopes
and small obstacles, so that the stability conditions are not optimal.
Load charts for C200H / C200H x4 with wide axle (500 mm. load centre)
Load charts for C200H / C200H x4 with wide axle (24 in. load centre)
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C200H / C200H x4
4040
3740
3470
3240
3040
2861
2700
8ft 6in
10ft 10in
11ft 10in
12ft 2in
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C200H / C200H x4
3640
3360
3120
2920
2740
2570
2430
14ft 1in
14ft 9in
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C200H / C200H x4
2220
2050
1910
1780
1670
1565
1490
17ft 8in

15
C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
Load charts for C200H / C200H x4 with narrow axle (500 mm. load centre)
Load charts for C200H / C200H x4 with narrow axle (24 in. load centre)
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C200H / C200H x4
4040
3740
3470
3240
3040
2861
2700
8ft 6in
10ft 10in
11ft 10in
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C200H / C200H x4
3640
3362
3120
2920
2740
2570
2430
12ft 2in

16 C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
Load charts for C250H / C250H x4 / C250H x4 LE with wide axle (500 mm. load centre)
Load charts for C250H / C250H x4 / C250H x4 LE with wide axle (24 in. load centre)
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C250H / C250H x4
5060
4670
4340
4060
3800
3580
3390
8ft 6in
10ft 10in
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C250H / C250H x4
4850
4400
4170
3890
3650
3440
3250
11ft 10in
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C250H / C250H x4
4650
4300
3990
3730
3500
3300
3110
12ft 2in

17
C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
Load charts for C250H / C250H x4 / C250H x4 LE with wide axle (500 mm. load centre)
Load charts for C250H / C250H x4 / C250H x4 LE with wide axle (24 in. load centre)
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C250H / C250H x4
14ft 1in
14ft 9in
4250
3930
3650
3410
3200
3000
2840
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
C250H / C250H x4
17ft 8in
2220
2050
1910
1780
1670
1575
1490

18 C200H-HI / C200H x4 / C250H-HI
C250HI LE / C250H x4 / C250H x4 LE
Load charts for C250H / C250H x4 / C250H x4 LE with narrow axle (500 mm. load centre)
Load charts for C250H / C250H x4 / C250H x4 LE with narrow axle (24 in. load centre)
