AUSTRALIAN MONITOR XR POWERED SERIES User manual

o e ed Spea e s
XR Powered Speaker Series
XR Powered Speaker Series

Expanding on the very popular XR series
of injection molded passive speaker boxes,
the Australian Monitor Pro Series XRP range
of powered speakers deliver high
quality audio from a compact & well
designed range of enclosures. All of the
XRP series of full range enclosures feature
highly efficient bi amp power
amplification, XLR inputs (switchable
between mic & line level) rotatable
compression drivers, foldback kits as well
as inbuilt pole mount (adaptor required for
the XR8P) & fly points. Available as an 8”
woofer & 1” comp driver, 10” woofer
& 1” comp driver, 12” woofer & 2” comp
driver, 15” woofer & 2” comp driver & also
as a single 15” sub with variable X over,
phase reverse & full range, thru output.
The XRP series offers contractors a great
sounding and cost effective range
of powered enclosures suitable for
any application.
Pro Series XR Powered Speakers
Model: XR8P
• Two-way active speaker with one 8” woofer and one 1” driver.
• Cabinet is made from polypropylene and a special high-tech material. It is durable,
shock resistant and has good damping characteristics.
• Voice coil in the 8” woofer is made from 35mm copper cladded aluminium
ribbon wire.
• Heavy duty protective grille.
• Rotatable 90° x 60° (HxV) dispersion horn makes it suitable for any performance
purpose.
• Multiple fly points

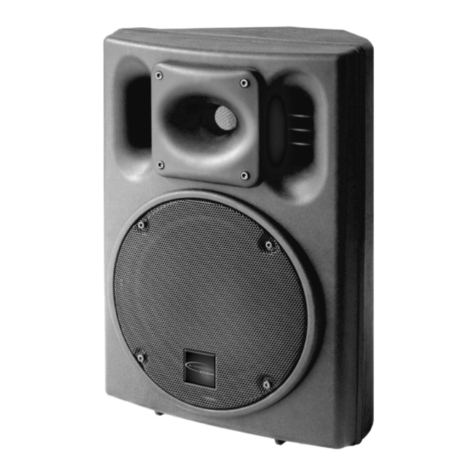

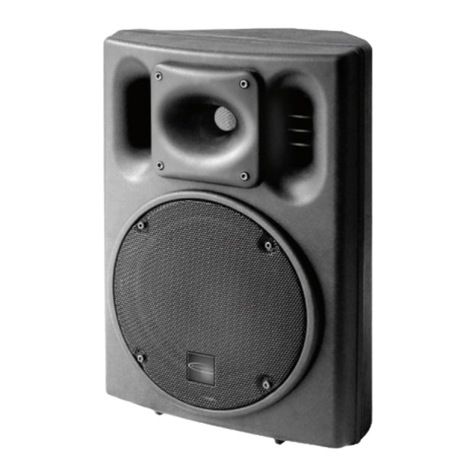

Model: XR10P
• Two-way active speaker with one 10” woofer and one 1” driver.
• Cabinet is made from polypropylene and a special high-tech material.
It is durable, shock resistant and has good damping characteristics.
• Voice coil in the 10” woofer is made from 50mm copper cladded aluminium
ribbon wire.
• Heavy duty protective grille.
• Rotatable 90° x 60° (HxV) dispersion horn makes it suitable for any
performance purposes.
• Molded-in pole mount.
• Multiple fly points.

Model: XR12P

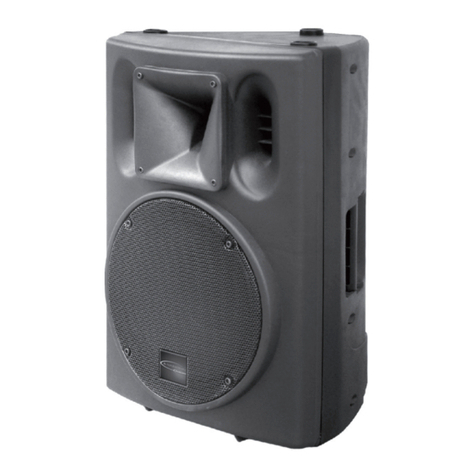

Model: XR15P
• Two-way active speaker with one 15” woofer and one 2” driver.
• Cabinet is made from polypropylene and a special high-tech material. It is durable,
shock resistant and has good damping characteristics.
• Voice coil in the 15” woofer is made from 75mm copper cladded aluminium
ribbon wire.
• Heavy duty protective grille.
• Rotatable 100° x 55° (HxV) dispersion horn makes it suitable for any
performance purpose.
• Molded-in pole mount, easily suspended.
• Vertical or horizontal layout, can be used as a monitor or in any flying systems.
• Multiple fly points.

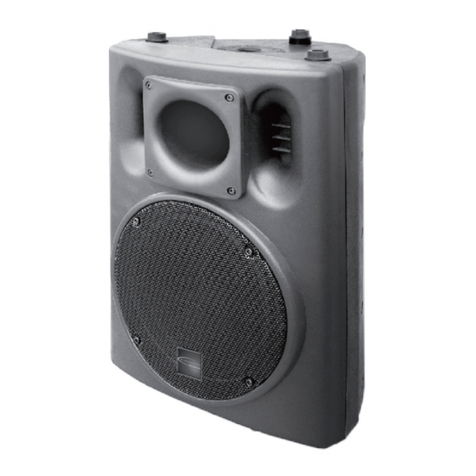

Model: XR15SUBP
• Active, low frequency speaker with one 15” woofer.
• Cabinet is made from polypropylene and a special
high-tech material.
• It is durable, shock resistant and has good damping
characteristics.
• Voice coil in the 15” woofer is made from 75mm
copper cladded aluminium ribbon wire.
• Heavy duty protective grille.
• Top positioned pole mount
• Multiple fly points.
• Two-way active speaker with one 12” woofer and one 2” driver.
• Cabinet is made from polypropylene and a special high-tech material. It is durable,
shock resistant and has good damping characteristics.
• Voice coil in the 12” woofer is made from 75mm copper cladded aluminium
ribbon wire.
• Heavy duty protective grille.
• Rotatable 100° x 55° (HxV) dispersion horn makes it suitable for any
performance purpose.
• Molded-in pole mount.
• Vertical or horizontal layout, can be used as a monitor or in any flying systems.
• Multiple fly points.

XR8P XR10P XR12P XR15P XR15SUBP
Driver Quantity
8”x1 (Bass) 1xØ 34mm Driver 10”x1 (Bass) 1xØ 34mm Driver 12”x1 (Bass) 1xØ 44mm Driver 15”x1 (Low) 1xØ 44mm Driver 1x15” (Bass)
Freq., Response (-3dB) 65Hz-18KHz 55Hz-18KHz 50Hz-20kHz 40Hz-18kHz
Freq., Response (-10dB) 55Hz-18KHz 50Hz-18KHz 40Hz-20KHz 35Hz-20KHz 80Hz-250Hz
Max Sound Level (dB/1M) 110dB 117dB 118dB 120dB 120dB
Level Adjust Range ±12dB(100Hz)-Bass ±12dB(100Hz)-Bass ±12dB(100Hz)-Bass ±12dB(100Hz)-Bass
±10dB(10KHz)-Treb ±10dB(10KHz)-Treb ±10dB(10KHz)-Treb ±10dB(10KHz)-Treb
Output Power 100W(Bass)+50W(Treb) 100W(Bass)+50W(Treb) 300W(Bass)+100W(Treb) 300W(Bass)+100W(Treb) 400W
Distortion Line-0.02%, Mic-0.04% Line-0.02%, Mic-0.04% Line-0.02%, Mic-0.04% Line-0.02%, Mic-0.04% 0.02%
Tweeter Dispersion (HxV) 90º x 60º 90º x 60º 100º x 55º 100º x 55º
Load Impedance Treb-8Ohm, Bass-8 Ohm Treb-80hm, Bass-8 Ohm Treb-80hm, Bass-8 Ohm Treb-80hm, Bass-8 Ohm 4 Ohm
Input Impedance Line-20KOhm, Mic-10KOhm Line-20KOhm, Mic-10KOhm Line-20KOhm, Mic-10KOhm Line-20KOhm, Mic-10KOhm 20 KOhm
Connectors XLR K3P XLR K3P XLR K3P XLR K3P XLR K3P
Power Supply 240V, 50/60Hz 240V, 50/60Hz 240V, 50/60Hz 240V, 50/60Hz 240V, 50/60Hz
Dimensions
(WxDxH mm/pcs) 277x265x407 325x308x478 415x391x600 485x460x700 485x460x700
Packing Dimensions
(WxDxH mm/pcs) 355x325x470 375x355x535 465x435x680 545x515x800 545x515x800
Net Weight (kg/pcs) 8.6 10.5 23 30.5 30.5
Gross Weight (kg/pcs) 10.1 11.8 25.2 33.7 33.7
High Cut
Adjustable
Specifications
