AUTEC Dynamic Series User manual

Original instructions
DYNAMIC SERIES
Part C: FJL transmitting unit
INDEX
1 Description .............................................................................................................. 2
2 Technical data ......................................................................................................... 2
3 Technical data sheet ............................................................................................... 3
4 Plates....................................................................................................................... 3
5 Light signals............................................................................................................ 4
6 Malfunction signalled by the transmitting unit ..................................................... 5
AUTEC LIFJLE00-03

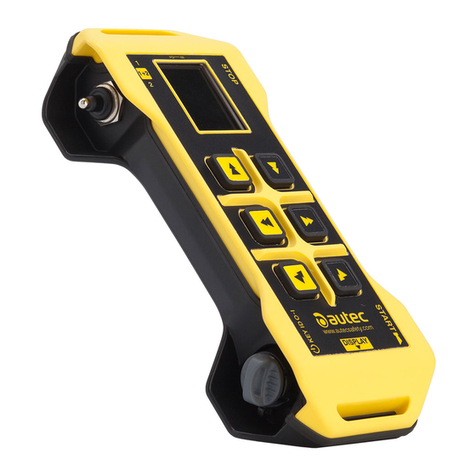

1 Description
Aconnector for cable control
(if present)
Bactuators (joysticks,
selectors, pushbuttons)
CSTOP pushbutton
Ddisplay or LED (if present)
ELEDs
FSTART pushbutton
GS-KEY (electronic starting
key)
2 Technical data
Power supply (battery MBM06MH) ................................................................. NiMH 7.2V
Power supply (battery LPM02) .......................................................................Li-Ion 7.4V
Antenna....................................................................................................................internal
Housing material .............................................................................................PA 6 (20%fg)
Protection degree.........................................................................................IP65 (NEMA 4)
Dimensions ...................................................................... 221x170x134mm (8.7x6.7x5.3In)
Weight............................................................................................................... 1.4kg (3Lb)
Run time at 20°C (68°F):
- with battery MBM06MH ................................................................................................11h
- with battery LPM02 .................................................................................................. 18.5h
- with battery MBM06MH and Data Feedback function ................................................. 9.5h
- with battery LPM02 and Data Feedback function......................................................... 16h
- with battery MBM06MH and Low Power function......................................................... 14h
- with battery LPM02 and Low Power function ............................................................... 24h
- with battery MBM06MH and Data Feedback and Low Power functions..................... 12.5h
- with battery LPM02 and Data Feedback and Low Power functions.............................. 21h
2
LIFJLE00-03
Description
AUTEC - DYNAMIC SERIES

3 Technical data sheet
The technical data sheet contains the transmitting unit conguration and shows the matching
between commands sent and machine functions/movements. It also contains the wiring
diagram showing the connection between the receiving unit and the machine.
Each technical data sheet must be lled in, checked and signed by the installer, who is
responsible for a correct wiring.
A copy of the technical data sheet must always be kept together with this manual (always
keep a copy of this data sheet for administrative purposes).
The wiring of the receiving unit outputs must always reect the wiring
indicated in the technical data sheet.
4 Plates
The transmitting unit has the following plates:
Plate Position Content
radio remote control
identication plate
On the S-KEY: remove the S-KEY to
read the plate.
Radio remote control
serial number (S/N)
transmitting unit
identication plate
In the battery housing: remove the
battery to read the plate.
Manufacturing year, bar
code and transmitting
unit identication number
(TU ID).
technical data plate In the battery housing: remove the
battery to read the plate.
MODEL, TYPE and
main transmitting unit
technical data, marking
and possible radio remote
control marks.
AUTEC - DYNAMIC SERIES
Technical data sheet 3
LIFJLE00-03

5 Light signals
FJL transmitting units have four LEDs on the left of the STOP pushbutton:
-a green LED and a red LED providing information about the radio remote control.
-two red LEDs (the two lower ones) that may provide information coming from the machine
(Data Feedback function).
ARed LED
BGreen LED
The green LED … Meaning
… is off. The transmitting unit is switched off.
… blinks fast The transmitting unit is switched on and there is no radio
link.
… blinks slowly The radio remote control is started and the radio link is
present.
The red LED a… Meaning
… is off. The transmitting unit works correctly.
… blinks The battery is nearly at.
... illuminates for 2 secondsbThe transmitting unit does not work correctly.
... blinks oncebAt power on, the transmitting unit detects that the STOP
pushbutton is activated or damaged.
... blinks twiceb
At power on, the transmitting unit detects that one of the
commands D2-D20 or SAFETY is activated or damaged
(see technical data sheet).
... blinks three timesbAt power on, the transmitting unit detects that the battery
is at.
... blinks four timesb
At power on, the transmitting unit detects that one of
the commands A1-A8, L1-L8 and H1-H8 is activated or
damaged (see technical data sheet).
a. An acoustic signal is also heard when the red LED is illuminated.
b. After this signal, the transmitting unit switches off.
4
LIFJLE00-03
Light signals
AUTEC - DYNAMIC SERIES

6 Malfunction signalled by the transmitting unit
Use the light signals on the transmitting unit to identify the radio remote control malfunction.
If the problem persists after the suggested solution has been carried out, contact the support
service of the machine manufacturer.
Signals Possible reason Solutions
The green LED does not
switch on when the START
pushbutton is pressed, even
though both the battery and
the S-KEY are inserted.
The battery is at. Replace the battery with a
charged one.
The green LED blinks fast. No radio link. Bring the transmitting unit
close to the receiving unit.
The red LED switches on for
2 seconds and then the unit
switches off.
The transmitting unit does not
work correctly.
Perform the procedure to save
the addressc.
Contact the support service of
the machine manufacturer.
The red LED blinks once
during start up.
The STOP pushbutton is
locked or damaged.
Unlock the STOP pushbutton.
If this signal persists, contact
the support service of the
machine manufacturer.
The red LED blinks twice
during start up.
At least one of the actuators
corresponding to commands
D2-D20 and SAFETY is
activated or damaged.
Bring the actuators to the rest
position. If this signal persists,
contact the support service of
the machine manufacturer.
The red LED blinks three
times during start up. The battery is at. Replace the battery with a
charged one.
The red LED blinks four
times during start up.
At least one of the actuators
corresponding to commands
A1-A8, L1-L8, H1-H8 and
SAFETY is activated or
damaged.
Bring the actuators to the rest
position. If this signal persists,
contact the support service of
the machine manufacturer.
c. Procedure to save the address
-press the STOP pushbutton
-press the START pushbutton and do not release it until the green LED switches off
-unlock the STOP pushbutton
