RS-720LCD
PROFESSIONAL REMOTE CAR STARTER
WITH ALARM SYSTEM
&
2-WAY LCD COMMUNICATION
OPERATION MANUAL
THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY

2
TABLE OF CONTENTS:
A. REMOTE TRANSMITTER OPERATION 5
BLCD DISPLAY TRANSMITTER OPERATION 6
CLED DISPLAY 6
DCHIRP INDICATOR 6
EPARKING LIGHT 6
FALARM OPERATION CONDITION 6
GACTIVE ARMING –ARM & LOCK
Defective Sensor Reminder
Silent Arming / Disarming
Shock Sensor By-Pass
Hidden Alarm Function
7
HPASSIVE ARMING
Passive Arming with Passive Door Locking
Passive Arming By-Pass
7
IACTIVE DISARMING –UNLOCK & DISARM
Tamper Disarming
Pathway Illumination
Two Steps Door Unlock
Automatic Re-Arm
8
JDISARMING WITHOUT A TRANSMITTER
Overrides the Alarm without Password Pin Code
Overrides the Alarm With Password Pin Code
8
KVALET MODE
Enter Valet Mode
Exit Valet Mode
9
LCAR LOCATOR 9
MPANIC FUNCTION 10
NTRIGGER THE SYSTEM
Clear The Trigger Icons and Melody Sound
Stop The Melody Sound Only
Noise Abatement Circuit
10
OANTI CAR-JACKING
Active Anti Car Jacking
Passive Anti Car Jacking
Trigger The Anti Car Jacking Mode
Override The System To Turn Off Anti Car Jacking
11
PSYSTEM’S TRIGGER CHECK 11
QSYSTEM’S STATUS CHECK 11
RDRIVER PAGING (OPTION) 12
SDOME LIGHT CONVENIENCE DELAY & SUPERVISION 12
TIGNITION CONTROL THE DOOR LOCK/UNLOCK 12
UTRUNK RELEASE (CHANNEL 3) OUTPUT 12
VCHANNEL 4 TIMER CONTROL OUTPUT 13
WPOWER ON MEMORY 13
XSECOND VEHICLE SECURITY SYSTEM OPERATION
Programming 2nd car transmitter
For Standard Remote Transmitter
For 2-Way LCD Display Transmitter
13

3
REMOTE START OPERATION:
ATO REMOTE START THE VEHICLE
Safe Start (Child safety mode) 14
BTO OPERATE VEHICLE WHILE RUNNING ON REMOTE START 14
CTEMPORARY STOP FEATURE 14
DTURBO CHARGE MODE 15
ETIMER / TEMPERATURE START
3(2)Hours Timer Start With Temperature-Control Off
3(2)Hours Timer Start With Temperature-Control
Daily Timer Start
Exit the Timer Start
15
FTEMPERATURE CHECK 16
GTO TURN OFF THE REMOTE START 16
HSHUT-DOWN INPUT FOR REMOTE STARTER 16
IDISABLING THE REMOTESTART SYSTEM 16
LCD REMOTE TRANSMITTER:
ABATTERY REPLACEMENT 17
BTHE REMOTE LCD ICONS WITH FUNCTION 18
CPROGRAMMING OF THE LCD REMOTE TRANSMITTER
1. Screen Lamp ON
2. Power Save Mode
3. Clear The Flash Icon and Melody Sound
4. Stop The Melody Sound.
5. Button Lock
6. Vibration / Melody Mode
7. Enable / Disable Bi Sound While Pressing Button:
8. Low Battery Indication.
9. Set Up Fixed Count Down Timer
10. Out Of The Range Check
19
DTIMER SETTING
1. Timer Setting.
2. Alert Alarm Timer Setting
3. Count Down Timer Setting
4. Time Set-Up For “Daily Timer Start”
21

4
Congratulations on your purchase of the RS720LCD remote start vehicle security
system. We sincerely hope the purchase of the RS720 remote start security system
gives peace of mind to you.
The RS720 LCD is a state-of-the-art two-way communication system. Please take the
time to read over this manual to thoroughly familiarize your self with the many features
and options of the RS720.
Auto Page, Inc. has over 25 years of experience in the vehicle security industry in the
United States and is a wholly owned subsidiary of Iwata Electric Co., of Tokyo, Japan.
Iwata has been an industry leader for over 50 years, establishing a reputation for
ingenuity in its engineering capability and innovative communication products. Auto
Page and Iwata maintain a long tradition of providing the best value to their customers.
TRANSMITTERS
The RS720 comes with two transmitters. The XT72LCD is a 2-way transmitter and
receiver, also referred to as a transceiver. The XT72s is a mini-size 1-way transmitter.
Both operate on the AM band with a code-rolling feature that will prevent any illegal use
of a code-grabber attempting to record and steal the codes of your transmitter.
CHANGING THE BATTERY IN YOUR TRANSMITTERS
XT72LCD: This transmitter uses a standard 1.5-volt AAA battery. Information on
changing the battery can be found on page 12 of this manual.
XT72S: This transmitter uses two (2) 3-volt lithium ion batteries (#CR2016) that are
sandwiched together with the (+) side facing upward. To replace the battery, you will
need to use a small flat blade screwdriver. Locate the small notch on the lower right
side of the transmitter case next to the key ring. Using the flat blade screwdriver,
carefully pry the top case from the bottom case. It should snap apart after breaking
the seal. Before removing the batteries note the direction of the positive (+) terminal.
Place the new batteries in exactly the same manner, being careful not to bend or
damage the contact terminal. Snap the cases back together and then test the
transmitter to insure it arms and disarms the alarm.
(2) CR2016
3-Volt Batteries
XT-72S

5
WARNINGS:
As with any product that performs automatic functions, there are certain safety
precautions that you must
practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle byremote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on
public streets.
10.Do not start the vehicle by remote while the standard transmission vehicle is
parked at a steep place.
OPERATION:
A. REMOTE TRANSMITTER OPERATION:
Transmitter
Button SystemFunction Remark
Lock Doors & Arm System
Panic function Press and Hold for 3 seconds
Car Locator Under armed mode
-Arm and Delete The 2 Stage ShockSensor Press twice within 3 seconds
-Arm System and Hidden Alarm Function Press within 3 seconds and Hold
button for 2 seconds
+ Silent Arming / Disarming Ignition in "off" position.
+ Active Anti Car-Jacking Mode Ignition in "on" position press and
hold for 2 seconds
Unlock Doors & Disarm System
-Two Steps Door Unlock & Disarm System Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
-Passive Arming By-pass While the system Disarmed.
Activate or Turn Off The Remote Start Press twice within 3 seconds.
+Channel # 4 Timer Output (4)Optional

6
II Switching code For 2nd Car Operation.For regular remote transmitter
Only
B. LCD DISPLAY TRANSMITTER OPERATION ONLY:
Transmitter Button System Function Remark
-(C) System’s Trigger Record
Check Press within 3 seconds
--(C) System’s Status Check Press within 3 seconds
-( ) Optional Driving Pager Press within 3 seconds
-( ) Monitor Indoor Temperature Press within 3 seconds
-( ) Daily Timer Start Press within 3 seconds
LCD screen lamp turns on
for 5 seconds. Press and hold for 1 second
--Clear the Flash Icon and
Melody Sound on the LCD
Screen Transmitter Press within 3 seconds

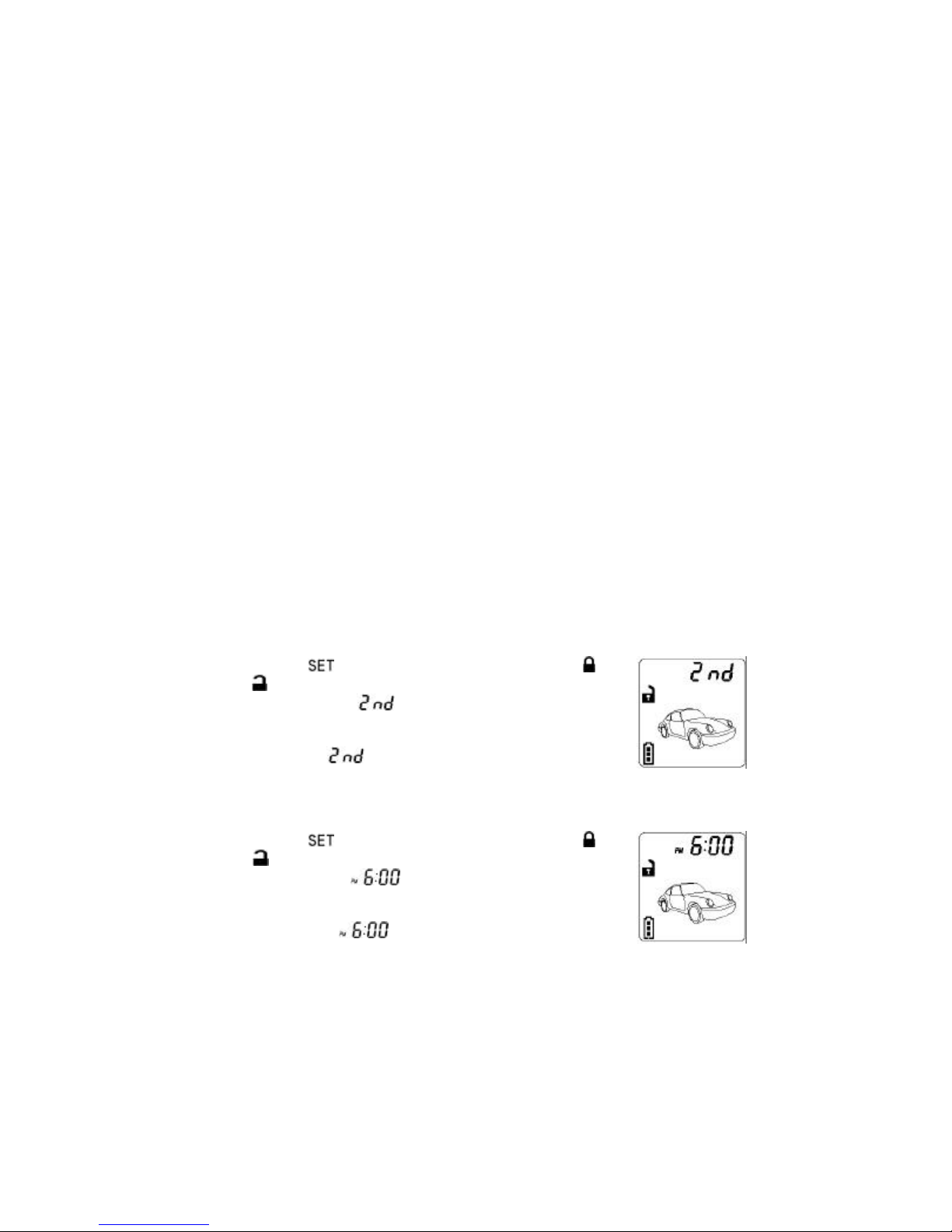

-+ Switching code for2nd / 1st
Car Operation Press within 3 seconds and Hold
and buttons together for 2
seconds
C. LED display:
LED Function LED Function
Off Disarmed Zone 1 / Warn-Away Trigger
Slow
Flash Armed 2 flashes... pause Zone 2 / Trigger on Trunk/Hood
On (Solid) Valet Mode
5 flashes...
pause Zone 5 / Trigger on Ignition Switch
Pause On Password Lock-out
D. CHIRP INDICATORS: E. PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
F. ALARM OPERATING CONDITION:
Siren / Horn Parking Light LED Doors StarterDome Light
1.Arming 1 or 3 Chirps 1 Flash SlowFlash Locking Disable

7
2.Disarming 2 or 4 Chirps 2 or 3 Flashes Unlocking
Turns on for 30
-second
3.Trigger Alarming Flashes SlowFlash Disable Flashes
4.Passive
Starter
Disable FastFlash Disable
5.Panic Alarming Flashes Flashes
6.Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12Flashes Locking

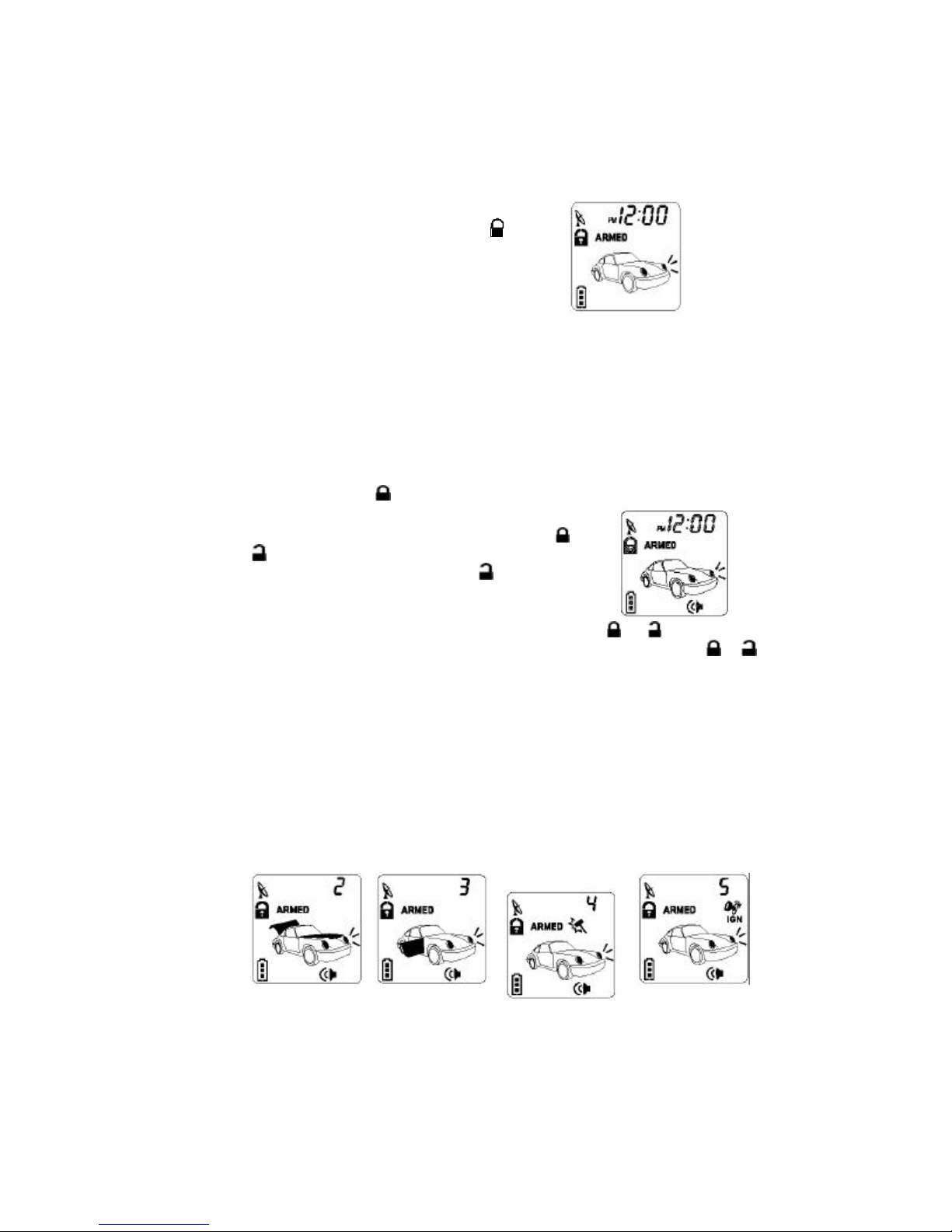

G. ACTIVE ARMING –LOCK & ARM:
1.Press button on the transmitter.
2.The siren will chirp once and parking light will flash once indicating that the
system is now armed. The vehicle’s doors will lock upon arming if interfaced with
the security system.
System Arm
Door Ajar Trunk / Hood Ajar
Clear The Flash Icon:
Press the button 3
times within 3 seconds
will clear the flash icon
on
the LCD screen
transmitter.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have left a
door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons at the same
time will arm or disarm your security system, No chirp sound will be heard, arm /
disarm confirmation will be through the vehicles parking lights only.
SHOCK SENSOR BY-PASS: Pressing the button on the transmitter two times
within 3 seconds will arm the security system and by-pass the shock sensor. The
system will chirp one additional time to confirm the sensor bypass mode was
activated. The sensor bypass feature is programmed to activate for one arming
cycle only. The security system will return to normal operation during the next arming
cycle.
HIDDEN ALARM FUNCTION: Press the button first; within 3 seconds press the
button to activate the hidden alarm function. The security system will arm and with
“Hidden Alarm Function”. The siren / horn will be silenced even if the sensor is
triggered in the armed status. Alarm indication will only appear on the LCD.
H. PASSIVE ARMING
Active arming / disarming is controlled by your security system via the remote
transmitter. This security system is equipped with an optional Passive Arming
feature, which allows the security system to arm 30 seconds after the last door is
closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30
seconds. If you reopen any door / hood / trunk, the security system LED will stop
flashing. It will begin flashing again once all vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”.
The siren will chirp [1] time and the parking lights will flash [1] time.

8
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle has been
completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, Press the button
twice, the system will respond with [1] chirp and LED will turn “ON”. The security
system will remain in this temporary state for as long as you wish. To exit passive
by-pass, press the transmitter or buttonsand the system will return to
normal status.

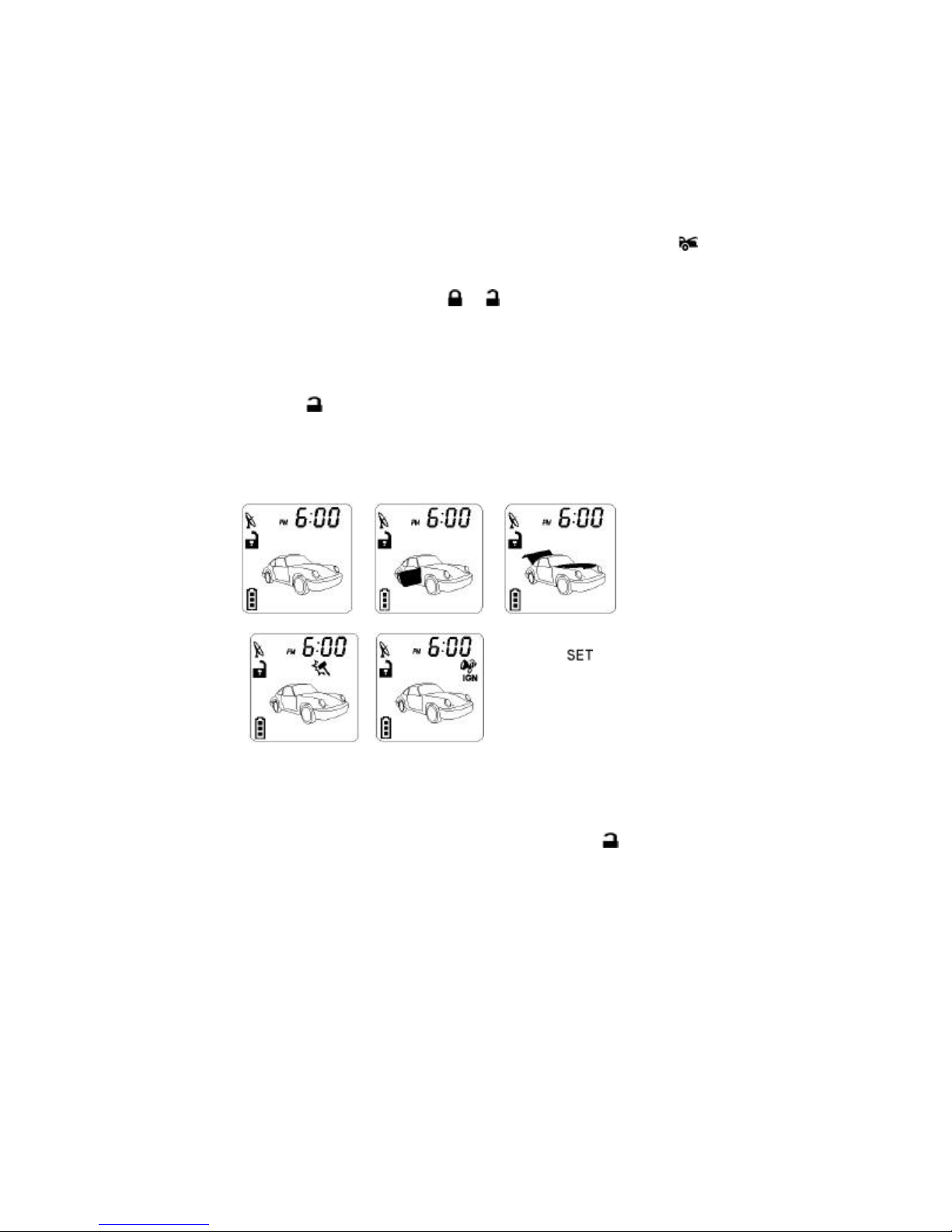

I. ACTIVE DISARMING–UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and the parking lights will flash twice indicating that
the security system is now disarmed. The vehicle’s doors will unlock and the
dome light will turn on for 30 seconds upon disarming. (Note: Power door locks
and dome light must be installed with the security system.)
System Disarm Doors Trigger Trunk/Hood Trigger
Shock Sensor Trgr Ignition Trigger
ClearThe Flash Icon:
Press the button 3 times within 3
seconds to clear the flash icon on the LCD
screen transmitter.
TAMPER DISARMING: If the alarm is triggered upon disarm, the system’s siren will
chirp 4 times, and the parking lights will flash 3 times.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this feature will
turn the parking lights “ON” for 30 seconds and for 10 seconds upon the lock signal.
TWO STEPS DOOR UNLOCK: This feature will independently unlock the driver’s door
only when disarming the security system. Pushing the button a second time
within 3 seconds will unlock the other doors.
AUTOMATIC RE-ARM: If this feature is selected, the security system will
automatically re-arm itself in 60 seconds after disarming with remote transmitter.
Automatic rearm will cancel if any door is opened before the 60 seconds timer has
elapsed.
J. DISARMING WITHOUT A TRANSMITTER
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE:
(Factory Default Setting)
The Override function may be used if theremote transmitter is lost or inoperative.
1. Enter the vehicle andturn the ignition switch to 'ON’ position.

9
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop
sounding and enter the disarm mode. You can now start and operate the vehicle
normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
Unlike valet switch easily found, and defeated, this security system allows the
consumer to program a password pin code. Offering a higher level of security.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 5 seconds, enter your chosen first digit code by pressing and releasing the
Valet Switch. (When finished above procedures, system's siren will stop alarming,
lights will stop flashing,but the vehicle can’t be started.)
3. Within 15 seconds of the last digit code enter (the 1st code), then turn the Ignition
Switch “OFF” and then “ON”.
4. Within 15 seconds, enter your chosen second digit code by pressing and
releasing the Valet Switch.
5. Turn the ignition switch “OFF” position. 4 Chirps from siren/horn and 3 flashes
from the parking lights will indicate the system has disarmed.
Note 1: You must override the alarm within 60 seconds. If not, the system will
automatically re-arm.
EXAMPLE:ToOverride The System With The Password Code 83,
1.Enter the vehicle and turn the ignition switch to the 'ON’ position.
(Alarm will sound.)
2.Within 5 seconds, Press and Release the Valet Switch 8 times, (When finished the
system's siren will stop alarming, lights stop flashing, but the vehicle can not be
started or driven away.)
3.Within 15 seconds of entering the last digit code enter (the 1st code), turn the Ignition
Switch “Off” and then “ON”.
4.Within 15 seconds, Press and Release the Valet Switch 3 times.
5.Turn theIgnition Switch to the “Off” position. 4 Chirps form siren/horn and 3 flashes
from the parking lights will indicate the system has disarmed.
K. VALET MODE: (System in Disarm or Valet mode)
The valet switch allows you to temporarily bypass all alarm function, eliminating the
need to hand your transmitter to parking attendants or garage mechanics. When the
system is in valet mode, all alarm functions and remote start functions are bypassed,
however, the remote panic feature and remote door locks will remain operational. To
use the valet mode, the system must first be disarmed either by using your remote
transmitter, or by operating the Manual Override sequence.
EnterValetMode:
1.
From the disarmed condition, turn
the ignition to the “ON” position.
2. Push
and hold the valet switch for 2
seconds until the LED turns on. The
LED will remain “on” as long as the
system is in 'valet mode'.
Remote Door Lock Remote Door Unlock
Exit Valet Mode:
1.Return to normal operation, turn ignition 'on'.
2.Push and hold the valet switch for 2 seconds, The LED will turn off, indicating the
system has exited the valet mode.

10
L. CAR LOCATOR
Under the armed mode, press the
button to
activate the car locator function. The siren will chirp
6 times. T
he parking lights will flash 12 times
making it easier to locate your car.
M. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm
in case of emergency.
1. Press and hold the button for 3 second.The alarm will immediately sound.
2. During panic mode, the normal function of this
transmitter button will be disabled. The transmitter and
buttons can be used to lock and unlock the door (if the
option is installed), however once the button is
pressed, the vehicle’s starter disable device, (where
installed) will be disengaged allowing the vehicle to start.
3. To stop the alarm, press and hold the transmitter or button on the
transmitter again for 3 seconds. Also, if any transmitter buttonsother than or
button is pressed and released, the panic mode will be turned off immediately.
4. If the button is not pressed, the alarm will automatically stop after 30 seconds.
N. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1.Light impact will trigger the warn-away signal.
2.Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open /
Turning on the ignition key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking.
The siren, horn, parking lights, and dome light will turn on alerting of an intrusion for
30 seconds. Then it will stop and automatic reset and re-arm. If the any one of the
sensors or detectors is still active, the alarm system will sound a maximum of 3
times of 30 seconds cycles.
Trunk/HoodTrigger. Door Trigger
Shock Sensor
Trigger
Ignition Trigger

11
Warn-away Trigger
CLEAR THE FLASH ICON AND MELODY SOUND: When the
alarm is triggered, the LCD screen will alert the user
through a melody sound and by flashing a trigger icon.
Press the button 3 times within 3 seconds to clear
the flash icon and stop the melody sound on the LCD
screen transmitter.
STOP THE MELODY SOUND ONLY: When the alarm is
triggered the LCD screen will alert the user through a
melody sound and a flashing trigger icon. Press any
button on the LCD remote transmitter to stop the melody
sound.
NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It
prevents annoying repetitive trigger sequences due to faulty door pin switches or
environmental conditions such as thunder, jackhammers airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The alarm triggers five times. Each
time, the same sensor or switch has triggered the alarm; the “Noise Abatement
Circuit” will interpret this pattern of triggers as a false alarm. After the third trigger,
the “Noise Abatement Circuit” ignores, or bypasses, that sensor or switch until a
different sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is
triggered by an open door for six full cycles, the doors will be bypassed until the
trigger ceases.
O. ANTI CAR-JACKING
Warning: If you don't need the car jacking function in this alarm system, be sure to
set car jacking feature “OFF”. This system is default setting all car jacking “OFF”.
ACTIVE ANTI CAR JACKING:
1.Press and hold the transmitter and buttonsat the same time for 2 seconds
while the vehicle’s ignition is ON. The parking lights will turn on for 1.5 seconds to
indicate entry.
2.Once the system is armed, if you are forced from the vehicle, the system will
trigger when the door is opened and closed while the ignition is “ON”.
PASSIVE ANTI CAR-JACKING:
It will operate asnoted below:
1.Turn the ignition switch to the “ON” position and the system will arm.
2.Once the system is armed, if you are forced from the vehicle, the system will
trigger when the door is opened and closed while the ignition is “ON”.
TRIGGER THE ANTI CAR -JACKING MODE:
a). 50 seconds after the system has beer triggered. The siren will start chirping for
15 seconds.
b). During this 15 second period of chirping, you will be alerted to push the valet
switch once to turn off the car-jacking feature. If not, it will enter a second timer for
carjacking.

12
c). 65 seconds after the system has been triggered, the siren will start sounding
and the parking lights will start flashing.
d). 90 seconds after the system has been triggered,
1. The siren will sound and the parking lights will flash, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle's battery power is exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR-JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch,
the siren will stop and the system disarmed
Note: If you use password pin code to double protect the vehicle security, you will
need to use it to completely disarm the system.
P. SYSTEM’S TRIGGER CHECK
Press the transmitter first, within 3 seconds press
(C) button. It will respond with one melody sound and
all trigger records will be immediately displayed on the
LCD screen.
Note: If it has no response,then you are out of range.
Q. SYSTEM’S STATUS CHECK
When you want to check the system’s present status
through the LCD screen, Press the transmitter
button twice. Within 3 seconds press the (C)button.
It will respond with one melody sound.
Note: If it has no response then you are out of range.
R. DRIVER PAGING
In the event that someone wants to page the driver of the parked vehicle.
In Car Driver Paging
With the ignition in the switched “off” condition, press and hold the valet switch for 2
seconds to page the driver. One chirp sound will be emitted from the vehicle and the
paging melody sound will continue sounding from your Remote LCD Transmitter
and the “ ” icon will flash on the LCD screen.
Out of Car Driver Paging (Optional Feature)
If someone tries to page you by tapping the paging (knock) sensor (OPTIONAL)
which is usually mounted on the bottom part of front window, the paging melody
sound continues sounding from you Remote LCD Transmitter and the “ ” icon
will flash on the LCD screen.
1. Press the transmitter button first, within 3 seconds
press ( )button to activate the out-of-car driver
pagingfunction. It will respond with chirps from the
vehicle, plus a melody will sound and the " " icon will
flash on the LCD screen to confirm the function is on.

13
2. When tapping the paging (knock) sensor, one chirp sound shall be emitted from
the siren/horn and the paging melody sound will continue sounding you’re your
Remote LCD Transmitter and the “ ” icon will flash on the LCD screen.
3. Turn on the ignition switch; OR press the button to arm the system; OR
press the button to disarm the system, the out-of-car driver paging function will
exit.
S. DOME LIGHT CONVENIENCE SUPERVISION (Optional Feature)
The alarm has a unique feature that will turn on your vehicle dome light as follows:
1.Upon disarming, the interior light will remain on for 30 seconds.
2.If the vehicle is intruded, the interior light will flash for the same duration as the
siren.
Note: Turning on the ignition switch or arming the alarm will turn off the dome light.
T. IGNITION CONTROL DOOR LOCK/UNLOCK. (Programmable Feature)
If the vehicles door locks have been interfaced to the security system, the system
will automatically lock the vehicle's doors when the ignition is turned “ON” and /or
unlock the vehicle’s doors when the ignition is turned “OFF”. (Default is “OFF”)
U. CHANNEL 3 (TRUNK RELEASE) OUTPUT.
Press and hold
button on the transmitter for two seconds
to remote control the trunk release or other electric devices.
(If Installed as an Available Option)
V. CHANNEL 4 TIMER CONTROL OUTPUT
Press the transmitter (4)and (4)buttonsat the
same time to active Channel 4 function.Channel 4 is
user-programmable timer output. You may program the
built-in timer to send a ground signal for any time duration
from 1 second to 120 seconds. For instance, this timer
output may be used to turn on the headlight, power
window or sunroof. (Factory defaults setting at momentary
output.)
W. POWER ON MEMORY:
This security system is equipped with circuitry thatwill allow the unit to remember its
alarm state if the power is lost and then reconnected.
X. SECOND VEHICLE SECURITY OPERATION:

14
Your 5-button remote transmitter can be utilized to control a second vehicle security
system, To program the remote control transmitter to a second vehicle, follow the
instructionsfor Transmitter programming.
Programming the Transmitter to 2nd Car
Enter:
1. Turn the ignition key ON 3 times. (Finishing in the ON position)
2. Press valet switch2 times, holding in on the2nd push,youwill hear a long siren
chirp. (Release the valet switch)
3. Press the shift button of the Car 2 transmitter.
* The standard transmitter (II) is shift button.
** LCD transmitter must be put in 2nd car mode to program for 2nd car. (See below)
4. Press the lock button on the transmitter; you will hear 1 siren chirp.
Turn OFF the ignition switch; you will hear 3 long siren chirps to confirm
programming and exit transmitter programming
*ForStandardRemoteTransmitter:
1. Prior to pushing any button on the transmitter. Press the Select II button first on
thetransmitter.
2. Once II button is pressed the LED on the transmitter will illuminate for 3.5
seconds to indicate the second transmitter pin code has built-in.
3. While the LED is illuminated, press any button on the remote control transmitter to
control a second vehicle security system.
** For 2-way LCD Display Transmitter:
2ndCar Operation:
1. Press first, within 3 seconds press and hold
and
buttons at the same time for 2 seconds.
Two beeping
sound and the “ ” icon will be displayed
on the LCD
screen to indicate the second transceiver pin code is
programmed.
2. While the “ ”icon is displayed on the LCD screen,
you
can remote control
and communicate with a second vehicle
security system. It has two short “bi” sounds
while pressing
the button of the LCD screen transceiver.
Back to 1st Car Operation:
1. Press first, within 3 seconds press and hold
and
buttons at the same time for 2 seconds.One long
beeping
soundand the “ ” timer icon will be displayed
on the
LCD screen indicating the system is back to the
first
transceiver pin code.
2. While the “ ”timer icon is displayed
on the LCD
screen, youcanremote control
and communicate with the first
vehicle security system. It has one short “bi” sound while
pressing the button of the LCD screen transceiver.

15
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE:
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking light will activate to indicate the remote start
received the signal.
3. The engine will start in approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking
lights will turn on and the climate controls will activate and adjust
the vehicle’s interior temperature to your preset setting. (While the
vehicle is running, the “minutes” digit on the LCD screen will flash
and the will indicate count down timer based on the 5, 10, 20 or
30 minute run time set up by your installation center.)
5. The vehicle will run for a programmable 5 to 30 minute cycle
before shutting down. (When the unit shuts off the count down
timer will turn off and the transmitter will play a melody.)
NOT E: The Remote Start Unit will not start the vehicle if any one of the
following conditions exists:
1.The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle is switched to the “OFF”
position. (If installed)
4. The gear selector is in any gear other then “PARK” or
“NEUTRAL”
Activate Remote
Start
Engine Running
SAFE START (Child safety mode)
Factory default is set to press the button once on the transmitter to start the
vehicle. You can program this feature to eliminate an accidental remote start:
1. The user presses the transmitter buttons twice within 3 seconds to start the
vehicle. or
2. The user presses the transmitter and buttons at the same time to start the
vehicle.
NOTE: Contact your installing dealer to activate this feature.
B. OPERATE THE VEHICLE WHILE RUNNING FROM THE REMOTE START:
To operate the vehicle while engine running from the remote start,
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the engine will
shut down.
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been removed
from the ignition. This feature is useful for occasions when you wish to exit and lock
the vehicle for short periods of time, but would like to leave the motor running and
the climate control on.
1.Before turning off the engine, press the button once on the transmitter and the
LED indicator will flash 3 times to confirm enter.
2.Turn the ignition key to OFF position. (The engine will stay running.)
3.The engine will run until the pre-programmed time elapsed or shutdown input is
received.
D. TURBO CHARGE MODE:

16
Turbo charge mode keeps the engine running after arriving at you destination for a
programmable period of 1, 3 or 5 minutes, This allows the vehicle’s engine time to
conveniently cool down the turbo after you have left the vehicle. To activate:
1. While the engine is running, pull up the hand brake and place the transmission
gear in the park position.
2. Before turning off the engine, press and release and buttons at the same
time.
-- The LED will flash indicating the remote start has entered the turbo charge
mode.
3. Take the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
NOTE: This feature only applies to vehicles with Turbo Engines.
E. TIMER START:
This unit can be programmed to start and run the engine every 3 hours or punctually
at the same time next morning,the engine will run for the programmed running time
and then shut down.
IMPORTANT: Timer Start should be used only in open areas, never start and run the
vehicle in on enclosed space as a garage or carport.
Daily Timer Start: The feature is very useful for the driver who wants to run the
vehicle punctually at the same time next morning. Before set-up of the “Daily Timer
Start”, you should set you time for engine start.( see Timer Setting / Timer set-up for
“Daily Timer Start, page 21)
ENTER:
1. Press the button once to remote start the vehicle. As soon as the vehicle is
running and the parking lights have turned on or are flashing.
2. Immediately depress the button once, within 2 seconds
3-a. 3Hours Timer Start: Rapidly depresses the button (or depresses +
buttons, if you program +buttons = Start / Stop button.) The parking light will
flash (3) times. The siren or horn chirps (3) times. The vehicle is now programmed
to start every 3 hours.
3-b. Daily Timer Start: Depress the transmitter button
first, within 3 seconds press ( ) button. The parking
light will flash (6) times. The siren chirps (6) times. The
vehicle is now programmed to start at the real time of the
next day. Your set time for the next day engine start flashes
for approx. 3 seconds on the LCD screen. After 3 seconds
the icon stays displayed on the LCD screen.
4. Press the brake pedal to stop the vehicle running.
Exitthetimerstart: Timer start can be exited manually as follows:
1. Make sure the remote start system is not operating the engine.
2. Turn the ignition on. The LED and parking light will flash (4) times. The horn chirps
(4) times. Or
1. Press the button twice to remote start the vehicle. As soon as the vehicle is
running and the parking light have turned on or flashing.
2. Immediately depress the button then press and hold the button for 2 seconds.
(or depresses +buttons, if you program +buttons = Start / Stop

17
button.) The parking light will flash (4) times. The siren or horn chirps (4) times. The
vehicle is no longer programmed to start automatically.
F. TEMPERATURE CHECK (OPTIONAL)
If you installed the optional temperature sensor, you can
monitor, Through the LCD screen, the present indoor
temperature of the passenger compartment before cooling
or heating your vehicle.
Press the transmitter buttons first, within 3 seconds
press ( )button; the in-door temperature will be shown
on the LCD screen. This reading may be higher than actual
ambient temperature due to the greenhouse and is relative
only the inside vehicle temperature.
G. TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to
stop it,
1. Press
button once on the remote transmitter under
remote start mode.
2. Move the optional remote start enable toggle switch
to OFF
position. (If installed)
3. Press the brake pedal
The vehicle will shut down and turn off the parking light to
indicate engine stopped.
H. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the engine will
not start or will shut down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. Engine is over-revved. {“Tachometer checking type” only}
4. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
5. Press button once onthe remote transmitter under remote start mode.
6. Move the optional remote start enable toggle switch to OFF position.
(If installed)
7. The vehicle refused to start running after {3} unsuccessful attempts.
I. DISABLING THE REMOTE START SYSTEM: (If installed)
This feature allows your system’s remote start unit to be temporarily disabled to
prevent the vehicle from being remote started accidentally. This feature is useful if
the vehicle is being serviced or stored in an enclosed area. To disable the remote
start, move the optional remote start enable toggle switch to the OFF position.
LCD REMOTE CONTROL TRANSMITTER:

18
Note: If the system is interfered by stronger radio
frequency around, sources of high voltage electric
power or such Obstacles like tall buildings and so
on, the transmission range may get shorter as the
system uses low out put powered frequency.
A. BATTERY REPLACEMENT:
A 1.5V type AAA Alkaline battery powers
the Remote Transmitter. When the power of
the battery weakens a icon shall be
displayed on the LCD screen. When the old
battery is replaced to new one, there will be
beep sounds indicate the power is up and
the clock on the LCD screen returns to
AM12:00 after displaying all the icons.
Correct the time by pressing for 3
seconds before using (See Timer Setting).
Note : Press the button two times when the battery compartment is
empty, then insert the new battery
B. THE REMOTE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are
locked
Door Unlock
Your vehicle doors are
unlocked and the system is
Disarmed

19
ArmedMode
Your vehicle is in armed
mode ValetMode
All the function shall be
temporarily on hold.
Remote Transmission
You are transmitting the
signal to control unit In –Range Indicator
Your are within range of
the remote control
Door Open Warning
Doors are illegally opened
(Zone 3)
Trunk/Hood Trigger
Trunk or Hood is illegally
opened (Zone 2)
Shock Sensor Trigger
Trigger on Shock Sensor
(Zone 4)
WarnAwaytrigger
Trigger on Shock Sensor
(Zone1)
EngineStarting
Your vehicle engine
starting by remote control
Engine Running
Your vehicle's engine is
running
Timer Control Start
Start the Engine
automatically at the same
time next day or every
3-hour.
Temperature Monitor
Indoor temperature of your
vehicle
Time Monitor
AlertAlarm You have set morning call
alarm
Count Down Timer
Reminder when time is up
for parking
Power Save Mode
Save the battery power
Vibration Mode
Remote Control vibrates
when the system is
triggered
Button Lock
Disable the transmission
function temporarily
Driver paging
Someone is paging you in
front of your vehicle
Low Battery
You have to replace the
battery of remote control.
C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER:
Transmitter Button Description Operation

20
(1 second) LCD screen lamp turns on for
5 seconds. Press and hold for 1 second 1 melody sound to confirm enters.
(3 seconds) Timer Programming Mode. Press and hold for 3 seconds
2-melody sounds to confirm enter.
(5 seconds) Power Save Mode Press and hold for 5 seconds
1 melody sound to confirm enters
--Clear the Flash Icon and Melody Sound on the LCD
ScreenTransmitter Press within 3 seconds
-(2-second) Button Lock ( )enable /
disable
Press within 3 seconds and Hold
button for 2 seconds
-(2-second) Melody / Vibration ( )
Mode
Press within 3 seconds and Hold
button for 2 seconds
-(2-second)
Program Count Down Timer
( )(10-Minute / 20M / 30 M
/1Hour /1.5H / 2.0H)
Press within 3 seconds cycling
*leave the buttons starting count
down then flashes
-(2-second)
Enable / Disable Bi Sound (Bi)
While Pressing Button Press within 3 seconds and Hold
button for 2 seconds
1. Screen Lamp ON: Press and hold the button one second, one melody will
sound and the LCD screen lamp will turn on for 5 seconds.
2. Power Save Mode:While in the power save mode, the
LCD remote transmitter uses “0” current to save the battery
power.
Entry: Press & hold the button for 5 seconds, one
melody will sound and the icon on the LCD
screen indicates entry of the “power save mode”.
Exit: Press any button of the LCD remote transmitter to
exit the “Power Save Mode”.
3. Clear the Flash Icon and Melody Sound:Pressing the button 3 times
within 3 seconds will clear the flash icon and the melody sound on the LCD screen
transmitter.
4. Stop The Trigger Melody Sound: While triggering the alarm the LCD screen
will alert the user through a melody sound and a flashing trigger icon. Press any
button on the LCD remote transmitter to stop melody soundonly.
5. Button Lock:This is useful if you want to disable the
transmission function of the remote control temporarily to
prevent from any inadvertent pressing of buttons by others.
Pressthe button first, within 3 seconds press and hold
()button for 2 secondsto activateor cancel the button
lock function, the icon will displayed on the LCD screen to
show the LCD remote transmitter is on “Button Lock”
