Congratulations on your purchase of the RF-505 vehicle security system.
AutoPage, Inc. is one of the companies with the longest history and
experience in vehicle security in the United States, and a wholly owned
subsidiary of Iwata Electric Co., Tokyo, Japan. Iwata has been an industry
leader for over 45 years, establishing a reputation for ingenuity in its
engineering capability and innovative communication products. AutoPage
and Iwata maintain the long tradition of providing the best value to their
customers.
We sincerely hope the purchase of the RF-505 vehicle security system
provides peace of mind to you.
Please take the time to read over this operation manual to thoroughly
familiarize yourself with the many features and options of the RF-505.
NOTICE!!
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FEDERAL COMMUNICATION COMMISSION RULES AND REGULATIONS
PROHIBIT THE ADJUSTMENT OF THE TRANSMITTER PORTION OF THIS
SYSTEM BY UNLICENSED PERSONNEL.

3
RF-505 OPERATION INSTRUCTIONS
Remote Transmitter Operation—
Your Autopage Security comes with two 5-button Remote Control
Transmitters. The transmitters feature a sophisticated code hopping system
that will prevent illegal use of a code-grabbing device that may be used to
record and steal your transmitter codes.
ARM & LOCK—
To arm your security system, press the LOCK/UNLOCK button once. The
siren will chirp (1) time and the vehicle parking lights will flash (1) time
indicating that the security system is now armed. The vehicles doors will
lock upon arming when interfaced with the security system.
DISARM & UNLOCK—
To disarm your security system, press the LOCK/UNLOCK button once.
The siren will chirp (2) times and the vehicle parking lights flash (2) times
indicating that the security system is now disarmed. The vehicles door locks
will unlock upon disarming when interfaced with the security system.
DELETING THE ARM/DISARM CHIRP—
When attempting to arm or disarm your security system, you have the option
of temporarily muting the siren chirp sound. To perform this function,
simply press both the LOCK/UNLOCK & CAR buttons together on the
remote transmitter. No sound will be heard, arm / disarm confirmation will
be visual via the vehicle’s parking lights only.
CAR LOCATOR—
Your Autopage Vehicle Security System is equipped with a vehicle locator
function which chirps the siren (6) times and flashes the vehicles parking
lights (12) times to easily locate your vehicle. To access this function,
simply press the CAR button firmly twice on the remote transmitter.
REMOTE PANIC FUNCTION—
The remote transmitter may be used as a remote panic switch that will
activate the security system’s siren and vehicle parking lights in case of an
emergency. To activate the panic function, press and hold the
LOCK/UNLOCK button for 3 seconds. To cancel the panic function, press
the LOCK/UNLOCK button on the remote transmitter.

4
2ND CHANNEL AUXILIARY FUNCTION (OPTIONAL)—
You may use the CAR button on your remote transmitter for a separate
function. For example, if your vehicle is equipped with a factory electronic
trunk release. The security system can be interfaced with the factory switch
and electronically open your trunk by pressing the CAR button for 2 seconds
on the remote transmitter.
3RD CHANNEL AUXILIARY FUNCTION (OPTIONAL)—
You may use the AUX button on the remote transmitter for a separate
function. For example, if your vehicle is equipped with power windows or a
sunroof. The security system can be interfaced with an optional window
control module (Autopage AC68). To operate the 3rd channel function, press
the AUX button on the remote transmitter.
4TH CHANNEL AUXILIARY FUNCTION (OPTIONAL)—
You may use the 4th channel button on the remote transmitter to operate a
separate function. For example, if your wish to add a remote start to your
vehicle controlled by the security system. The security system can be
interfaced with an optional remote start module (Autopage RST2050KE). To
operate the 4th channel function, press the AUX & CAR buttons together on
the remote transmitter.
SENSOR BY-PASS—
The RF-505 can by-pass the SIS-5P shock sensor and the 2nd sensor port
from the transmitter. When arming the alarm with the “Lock/Unlock”
button, within 3 seconds press the “Lock/Unlock” button again. The siren
will give a long chirp confirming the shock sensors are turned off. The
sensors will reset the next time the alarm is armed.
PRIOITY DOOR UNLOCK (OPTIONAL)—
Your RF-505 security system is equipped with a priority door unlock feature
which will independently unlock the drivers door first when disarming the
security system. Pressing the LOCK/UNLOCK button a second time within
3seconds of disarming will unlock the rest of the vehicle.
This feature requires additional installation and is not a standard feature of
the security system.

5
PASSIVE ARMING BY-PASS—
The RF-505 security system can temporarily by-pass the passive arming
function via the remote transmitter. To temporarily by-pass passive arming,
exit the vehicle and close all doors. The LED will begin to fast flash the 30-
second timer for passive arming. Within the 30-second timing window press
the CAR button on the remote transmitter firmly twice, the security system
will respond with (1) chirp and the LED will turn ON. The security system
will remain in this temporary mode for as long as you wish. To exit passive
arming by-pass, press the LOCK/UNLOCK button and the system will
return to its normal status.
This feature is only available when the Passive Arming feature is
programmed ON in feature programming.

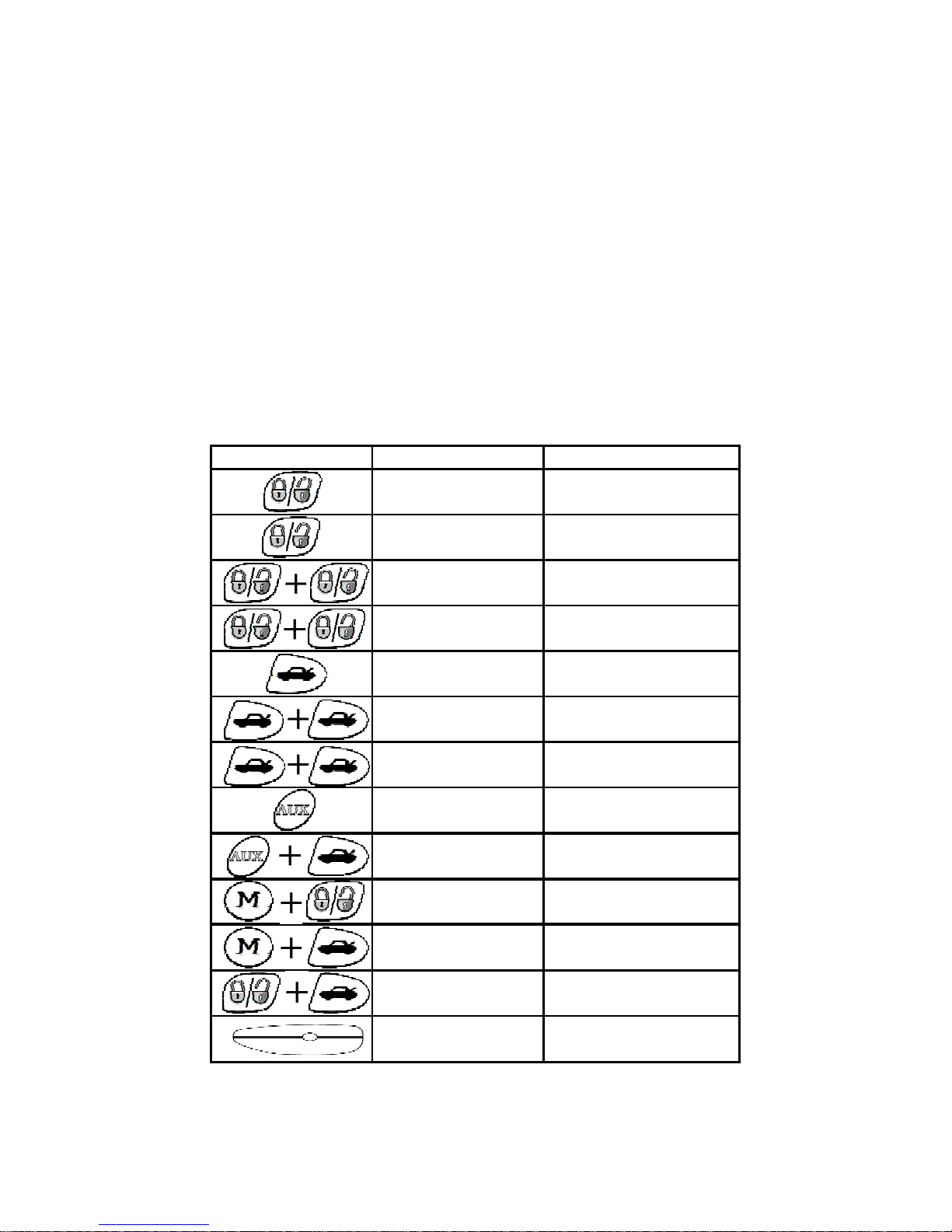

Transmitter Button Actions System Function
Press Lock Doors/Unlock Doors
Once Arm/Disarm System
Press & Hold Panic
3 Seconds Function
Press Twice Arm & Delete
When Arming Optional Sensor
Press Twice Disarm & Unlock
When Disarming 2 Step Door Locks
Press & Hold Channel Two
2 Seconds Trunk Control
Press Twice - Only Passive Arming
During Passive Arming By-Pass
Press Car
Twice Locator
Press Channel Three
Once AUX Control
Press Both Channel Four
Together AUX Control
Press Both SIS-5 Sensor Adjust Mode
Together 3 Seconds See Mode Operation
Press Both Passive/Manual Arming
Together 3 Seconds See Mode Operation
Press Both Together Silent
Ignition in OFF Position Arm /Disarm
2nd Car Operation Side Button
Garage Door Opener Switching Code

6
PASSIVE ARMING OPERATION—
The RF-505 provides a choice of arming capabilities. The alarm can be set
to automatically arm, or be manually armed. This selection can be done
using the remote transmitter. Follow these steps to turn ON or OFF passive
(automatic) arming and manual arming:
Press the “M” and “Car” buttons together for 5 seconds. The siren will chirp
3 times. Press the “Lock/Unlock” button, the siren will chirp 4 times to and
exit the program mode. To change back to Manual arming, press the “M”
and “Car” buttons together for 5 seconds. The siren will chirp 3 times. Press
the “Car” button, the siren will chirp 4 times and exit the program mode.
SHOCK SENSOR ADJUSTMENT FROM REMOTE TRANSMITTER
ADJUSTING THE SIS-5P SHOCK SENSOR
There are 15 sensor adjustment settings. To adjust the SIS-5P press the “M”
& “Lock/Unlock” buttons together for 5 seconds. The siren or horn will
respond with 3 chirps. Pressing the “Lock/Unlock” button will increase the
sensitivity and pressing the “Car” button will decrease the sensitivity. You
will hear a chirp from the siren after each setting adjustment and a double
chirp from the siren when you have reached setting No.1 or setting No.15.
While setting the sensitivity for the SIS-5P, you can test the shock sensor for
proper adjustment by applying impact to the vehicle during the adjustment
mode.
Actions System Function
+Press & Hold 3 sec. Passive / Manual Mode
Press 1 Time Passive ON
Press 1 Time Passive OFF
Transmitter Button

7
To Exit the SIS-5P adjustment mode, press the “M” & “Lock/Unlock”
buttons together. The siren or horn will sound 4 chirps confirming exit.
The sensor adjust mode will automatically exit in 30 seconds if no signal is
received.
REMOTE TRANSMITTER PROGRAMMING
Programming Transmitter—
The RF-505 can program up to 4 transmitters in memory. To enter
programming, follow these steps:
1. Turn the Ignition to the ON position.
2. Within 15 seconds push the valet switch 3 times the siren and/or horn
will sound 1 long chirp.
3. Press the “Lock/Unlock” button on the transmitter #1; there will be 1
short chirp. Repeat for transmitter #2, there will be 2 short chirps.
NOTE: If you are programming transmitters #3 & #4, repeat step 3
for both transmitters.
4. Turn the ignition OFF, there will be 3 long chirps to confirm exit of
transmitter programming mode.
Transmitter Button Actions System Function
+Press & Hold 5 sec. SIS - 5P Sensor Adjustment Mode
Press 1 Time Increase Sensor Sensitivity
Press 1 Time Decrease Sensor Sensitivity
+Press 1 Time Exit Sensor Adjustment Mode

8
Second Car Operation—
The transmitter for RF-505 has the capability to operate a second RF-505
alarm system. To program the transmitter to a second RF-505 follow these
steps:
1. Repeat steps 1 & 2 from transmitter programming.
2. Press the side Shift button on the transmitter of the 2nd car.
3. While the LED light on the transmitter is ON, press the
“Lock/Unlock” button on the transmitter, there will be 1 short chirp.
4. Turn the ignition OFF, there will be 3 long chirps to confirm exit of
transmitter programming mode.
ALARM FEATURES
Override Function—
The override function may be used if the remote transmitter is lost or
inoperative. To operate, enter the vehicle (alarm will sound), turn the
vehicles ignition to the ON position and push the valet/override switch until
the security system stops sounding. The security system is disarmed & reset.
Have your remote transmitter serviced or replaced.
Valet Function—
The Security System has a valet or stand-by mode that can be used when the
vehicle is being serviced or valet parked. To activate the valet, turn the
vehicles ignition to the “ON” position, then push and hold the valet/override
switch for 2 seconds or until the Security Systems LED turns ON solid. Turn
the vehicles ignition to the “OFF” position; your vehicle is now in valet
mode. To reactivate, repeat the above procedure noting the Security Systems
LED will now turn OFF.

9
Note: If your vehicle has the Keyless Entry option installed, you can still
lock and unlock the vehicles doors with Remote Control Transmitter while in
the Valet Mode.
Automatic Rearm (Programmable)—
If this feature is selected, the Security System will automatically re-arm
itself 60 seconds after disarming with the Remote Control Transmitter.
Automatic rearm will restart if any door is opened before the 60-second
timer has elapsed.
Ignition Control Door Locks (Programmable)—
If the vehicles door locks have been interfaced to the Security System and
the ignition control door lock feature has been programmed ON. The
security System will automatically lock the doors 3 seconds after the ignition
is turned ON and unlock the doors when the ignition is turned OFF.
Note: If a door is open when the key is turned on, the doors will not lock.
Dome light Illuminated Entry (Optional)—
Your Autopage Vehicle Security System is equipped with a dome light
illuminated entry feature which will turn on the vehicles interior lights for 30
seconds after the Security System is disarmed / unlocked. This feature will
reset once the vehicles ignition is turned “ON” or if the Security System is
re-armed.
Pathway Illumination (Programmable)—
When disarming the security system, the vehicles parking lights will stay on
illuminating a pathway to the vehicle. The vehicles parking lights will stay
on for 30 seconds or until the vehicles ignition is turned to the ON position.
Headlight Illumination (Optional)—
When arming and disarming the Security System, the vehicles headlights
will stay on illuminating your pathway to the vehicle. The vehicles
headlights will stay on for 30 seconds when the system is armed and for 30
seconds after the system is disarmed.
Starter Disable—
The on-board starter disable relay operates when the alarm is active. The
relay will open when the alarm is triggered, to prevent a thief from starting
the vehicle.

10
LIMITED LIFETIME WARRANTY PROVISIONS
(U.S. and Continental U.S. Only)
1. AutoPage, Inc. WARRANTS that this new unit has been thoroughly inspected and tested at the factory
prior to delivery. Your AutoPage equipment is guaranteed for “life” to the original purchaser/user of the
equipment under the following conditions: If the product proves defective (according to AutoPage’s
testing) within the first year, the defective unit may be exchanged or repaired free of charge. “Proof of
Purchase” (dated sales receipt) must accompany all warranty returns; otherwise, your return will be
rejected and sent back. After one (1) year, the purchaser should ship the unit prepaid to AutoPage
with a money order in the amount of $20.00 to cover shipping and handling charges. Note: The
enclosed Warranty Card may be required to receive warranty services.
2. This WARRANTY will be considered void if the equipment has been misused, neglected, improperly
serviced, altered, dropped or damaged by water, contrary to the AutoPage OPERATIONS MANUAL.
Or, if used with accessories not approved by AutoPage, which may have contributed to the defect.
3. The purchaser’s remedies under this WARRANTY shall be limited to the repair or replacement of
electronic components only. THE FOLLOWING IS NOT COVERED: Damages or deterioration to
cases, batteries, covers and cabinets; the cost of repairs, replacement and labor of which shall be borne
by the purchaser even if occurring during the WARRANTY period.
4. Any equipment or parts which are claimed to be defective under this WARRANTY must be sent to the
AutoPage Service center with “proof of purchase” at the purchaser’s expense prior to such return, a
Return Authorization Number should be obtained. AutoPage will return the equipment, charges
prepaid. Warranty Service can be provided through the dealer where the equipment is originally
purchased.
5. Any unexpired WARRANTY shall be applicable to equipment and parts in the possession of the original
purchaser only.
6. THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
7. AutoPage shall not be liable, under the foregoing WARRANTIES or otherwise, for:
Any personal injury of any kind to the purchaser, its employees or agents or anyone
else whomsoever resulting directly or indirectly from the use or presence of the
equipment or parts; Consequential damages of any kind; Any inability of the
purchaser to use the equipment.

11
This WARRANTY CARD is for your record. However, AutoPage reserves the right to
request you to submit this WARRANTY CARD which must have complete information
to receive warranty service. Please keep this card in a secured place.
AUTOPAGE WARRANTY SERVICE CARD
Model RF-505
Serial #
CUSTOMER TO COMPLETE DEALER TO COMPLETE
Mr/Mrs/Ms
Your Name (Piease print)
Address
City , State , Zip
Company Name
Dealer’s Address
City , State , Zip
Telephon Number
Dealer’s Telephon Number
Year / Make / Model of Vehicle Date of Installation / Purches
Dealer Signature
“Proof of purchase" which includes the store name and date of purchase must
accompany allwarrantyd returns.
It is your responsibility to keep this card for any future warranty service.
-------------------------------- For You Records --------------------------------
DATE SERVICE COMPLETED

12
1815 West 205th Street
Suite 101
Torrance, California
Main Office: 310-618-2002
