Auto Page RS-900LCD User manual

1
RS-900LCD
PROFESSIONAL 915 MHz. 2-WAY LCD REMOTE
CAR STARTER & ALARM SYSTEM
With
Built in Temperature sensor
And Serial Port Data Link
OPERATION MANUAL
Please register your product at:
www.autopageusa.com
THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

2
TABLE OF CONTENTS:
LCD REMOTE TRANSMITTER:
ABATTERY REPLACEMENT 4
BTHE REMOTE LCD ICONS WITH FUNCTION 5
CPROGRAMMING OF THE LCD REMOTE TRANSMITTER
1. Screen Lamp ON
2. Power Save Mode
3. Clear The Flash Icon and Melody Sound
4. Stop The Melody Sound.
5. Button Lock
6. Vibration / Melody Mode
7. Enable / Disable Bi Sound While Pressing Button:
8. Low Battery Indication.
9. Set Up Fixed Count Down Timer
10. Out Of The Range Check
7
7
7
7
7
8
8
8
8
8
DCLOCK & TIMER SETTING
1. Clock Setting.
2. Alert Alarm Timer Setting
3. Count Down Timer Setting
4. Time Set-Up For “Daily Timer Start”
9
9
9
10
11
REMOTE TRANSMITTER OPERATION
A. REMOTE TRANSMITTER OPERATION 11
BLCD DISPLAY TRANSMITTER OPERATION 12
CLED DISPLAY 13
DCHIRP INDICATOR 13
EPARKING LIGHT 13
FALARM OPERATION CONDITION 13
GACTIVE ARMING –ARM & LOCK
Defective Sensor Reminder
Silent Arming / Disarming
Shock Sensor By-Pass
Hidden Alarm Function
13
13
13
13
13
HPASSIVE ARMING
Passive Arming with Passive Door Locking
Passive Arming By-Pass
13
13
13
IACTIVE DISARMING –UNLOCK & DISARM
Tamper Disarming
Pathway Illumination
Two Steps Door Unlock
Automatic Re-Arm
14
15
15
15
15
JDISARMING WITHOUT A TRANSMITTER
Overrides the Alarm without Password Pin Code
Overrides the Alarm With Password Pin Code
16
16
16
KVALET MODE
Enter Valet Mode
Exit Valet Mode
16
16
17
LCAR LOCATOR 17
MPANIC FUNCTION 17

3
NTRIGGER THE SYSTEM
Clear The Trigger Icons and Melody Sound
Stop The Melody Sound Only
Noise Abatement Circuit
17
18
18
18
OANTI CAR-JACKING
Active Anti Car Jacking
Passive Anti Car Jacking
Trigger The Anti Car Jacking Mode
Override The System To Turn Off Anti Car Jacking
18
18
18
18
19
PSYSTEM’S TRIGGER CHECK 19
QSYSTEM’S STATUS CHECK 19
RDRIVER PAGING (OPTION) 19
SDOME LIGHT CONVENIENCE DELAY & SUPERVISION 20
TIGNITION CONTROL THE DOOR LOCK/UNLOCK 20
UTRUNK RELEASE (CHANNEL 3) OUTPUT 20
VCHANNEL 4 TIMER CONTROL OUTPUT 21
WCHANNEL 5 TIMER CONTROL OUTPUT 21
XCHANNEL 6 TIMER CONTROL OUTPUT 21
YSECOND VEHICLE SECURITY SYSTEM OPERATION
Programming 2nd car transmitter
For Standard Remote Transmitter
For 2-Way LCD Display Transmitter
21
21
21
21
ZPOWER ON MEMORY 22
ATO REMOTE START THE VEHICLE
Safe Start (Child safety mode) 22
BTO OPERATE VEHICLE WHILE RUNNING ON REMOTE START 23
CTEMPORARY STOP FEATURE 23
DTURBO CHARGE MODE 23
ETIMER / TEMPERATURE START
3 (2) Hours Timer Start With Temperature-Control Off
3 (2) Hours Timer Start With Temperature-Control
Daily Timer Start
Exit the Timer Start
24
24
24
24
24
FTEMPERATURE CHECK 25
GTO TURN OFF THE REMOTE START 25
HSHUT-DOWN INPUT FOR REMOTE STARTER 25
IDISABLING THE REMOTE START SYSTEM 25
Warranty Information 26
Congratulations on your purchase of the RS900 LCD remote start vehicle
security system. We sincerely hope the purchase of the RS900 remote start
security system gives you peace of mind.
The RS900 LCD is a state-of-the-art two-way communication system. Please
take the time to read over this manual to thoroughly familiarize yourself with the
many features and options of the RS900.

4
Auto Page, Inc. has over 25 years of experience in the vehicle security industry
in the United States and is a wholly owned subsidiary of Iwata Electric Co., of
Tokyo, Japan. Iwata has been an industry leader for over 50 years, establishing
a reputation for ingenuity in its engineering capability and innovative
communication products. Auto Page and Iwata maintain a long tradition of
providing the best value to their customers.
TRANSMITTERS
The RS900 comes with two transmitters. The XT-90LCD is a 2-way transmitter
and receiver, also referred to as a transceiver. The XT-90S is a mini-size 1-way
transmitter. Both operate on the 915 MHz. with a code-rolling feature that will
prevent any illegal use of a code-grabber attempting to record and steal the
codes of your transmitter.
CHANGING THE BATTERY IN YOUR TRANSMITTERS
XT-90 LCD: This transmitter uses a standard 1.5-volt AAA battery.
Information on changing the battery can be found on page 5 of this manual.

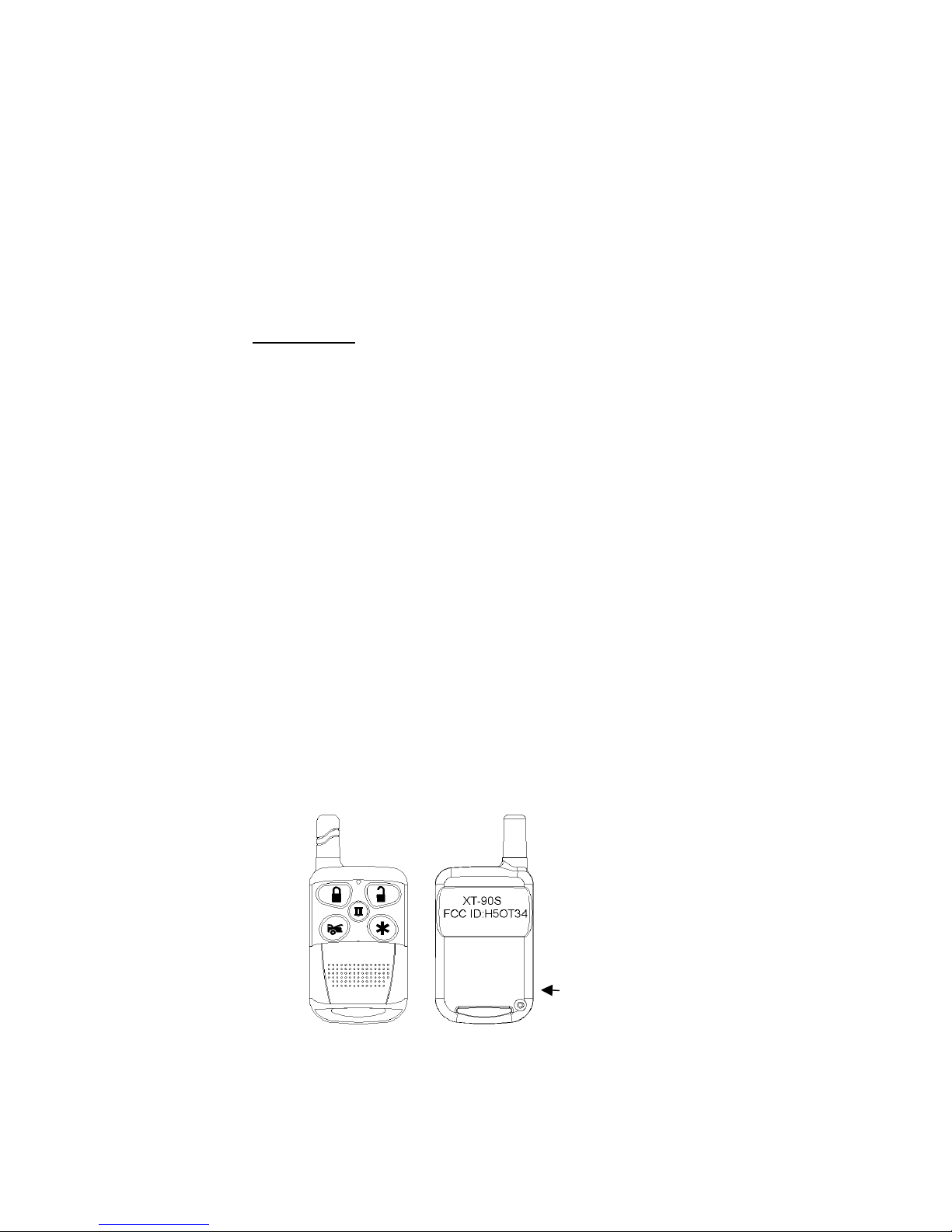

XT-90S: This transmitter uses one (1) 3-volt lithium ion battery (#CR2032) that
is placed with the (+) side facing upward. To replace the battery, you will need
to use a small flat blade screwdriver and a small Philips screwdriver. Remove
the small Philips head screw. Then locate the small notch on the lower right side
of the transmitter case next to the key ring. Using the flat blade screwdriver,
carefully pry the top case from the bottom case. It should snap apart after
breaking the seal. Before removing the battery note the direction of the positive
(+) terminal. Place the new battery in exactly the same manner, being careful
not to bend or damage the contact terminal. Snap the cases back together and
then test the transmitter to insure it arms and disarms the alarm. Reinstall the
Philips screw to finalize the battery replacement.
XT-90S Extended Range Sliding Cover remote
CR2032 3-Volt Battery

5
WARNINGS:
As with any product that performs automatic functions, there are certain safety
precautions that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is
corrected.
8. The use and operations of this system is the sole responsibility of the
operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running
on public streets.
10. It is not safe to remote start the vehicle if the vehicle is parked on a steep
incline.
LCD REMOTE CONTROL TRANSMITTER:
Note: If the system is interfered by stronger radio
frequency around, sources of high voltage electric
power or such obstacles like tall buildings and so
on, the transmission range may get shorter as the
system uses low output powered frequency.

6

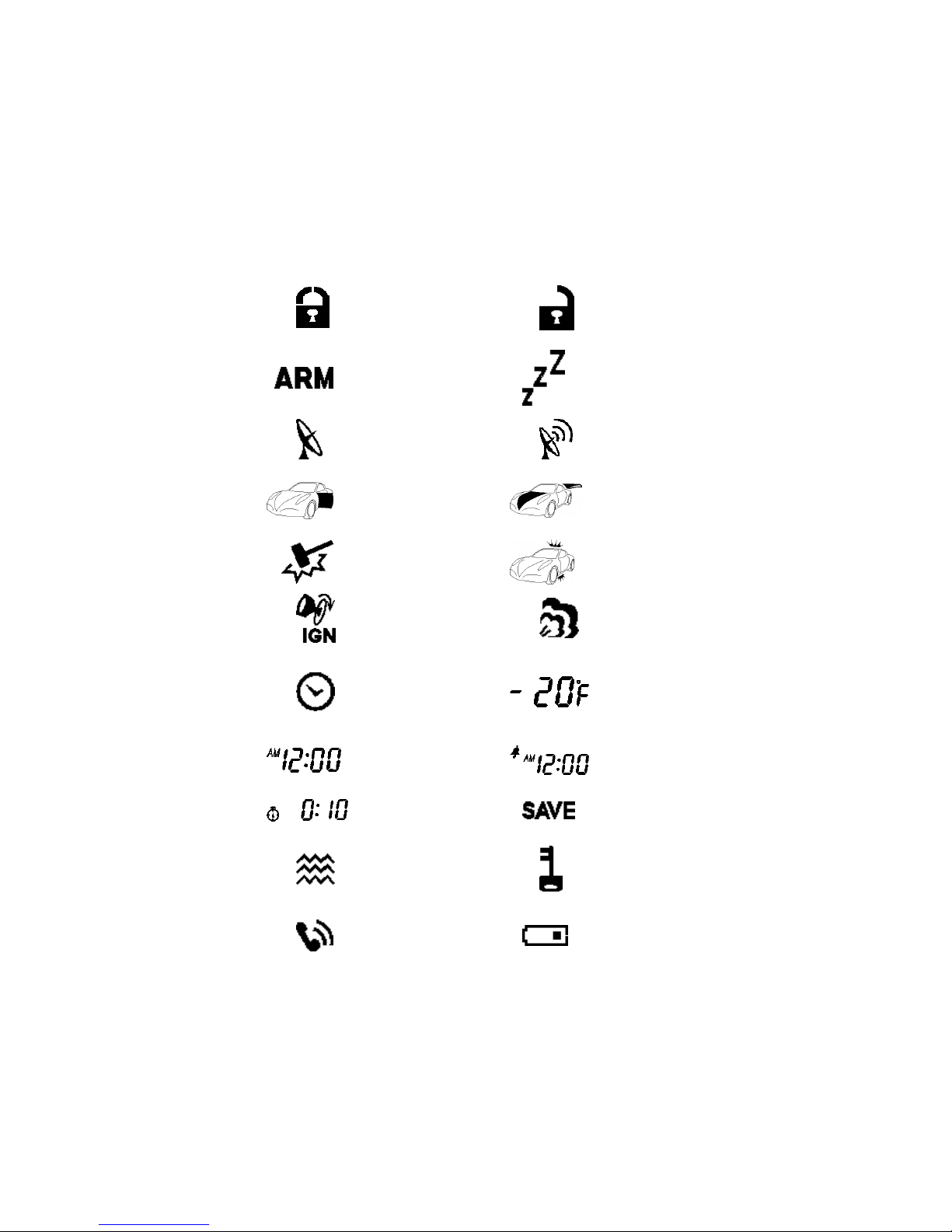

B. THE REMOTE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are
locked
Door Unlock
Your vehicle doors are
unlocked and the system is
disarmed
Armed Mode
Your vehicle is in armed
mode
Valet Mode
All the function are
temporarily on hold.
Remote Transmission
You are transmitting a
signal to the control unit
In –Range Indicator
Your are within the remote
control range.
Door Open Warning
Doors are illegally
opened (Zone 3)
Trunk/Hood Trigger
Trunk or Hood is illegally
opened (Zone 2)
Shock Sensor Trigger
Trigger on Shock
Sensor (Zone 4)
Warn Away trigger
Trigger on Shock Sensor
(Zone 1)
Engine Starting
Your vehicle engine
starting by remote
control
Engine Running
Your vehicle's engine is
running
Timer Control Start
Start the Engine
automatically at the
same time next day or
every 3-hours.
Temperature Monitor
Indoor temperature of your
vehicle
Time Monitor
Clock
Alert Alarm
You have set morning call
alarm
Count Down Timer
Reminder when time is
up for parking
Power Save Mode
Save the battery power
Vibration Mode
Remote Control vibrates
when the system is
triggered
Button Lock
Disable the transmission
function temporarily
Driver paging
Someone is paging you
in front of your vehicle
Low Battery
You have to replace the
battery of the remote
control.

7
C: PROGRAMMING OF THE LCD REMOTE TRANSMITTER:
Transmitter Button Description Operation
(1 second) LCD screen lamp turns on
for
5 seconds.
Press and hold for 1 second
1 melody sound to confirm
enters.
(3 seconds) Time set mode. This is
used to set the clock and
timers on the remote
Press and hold for 3
seconds
2-melody sounds to confirm
enter.
(5 seconds) Power Save Mode.
Press and hold for 5
seconds
1 melody sound to confirm
enters.
--Clear the Flash Icon and
Melody Sound on the LCD
Screen Transmitter
Press within 3 seconds
-(2-second) Button Lock () enable /
disable
Press within 3 seconds
-(2-second) Melody / Vibration ( )
Mode
Press within 3 seconds
-(2-second) Program Count Down Timer
( ) (10-Minute / 20M / 30
M /1Hour /1.5H / 2.0H)
Within 3 seconds press the
button until desired
time is set, then flashes
-(
2-second) Enable / Disable Bi Sound
(Bi) While Pressing Button
1. Screen Lamp ON: Press and hold the button for one second. One
melody sound will be heard and the LCD screen lamp will turns on for 5
seconds

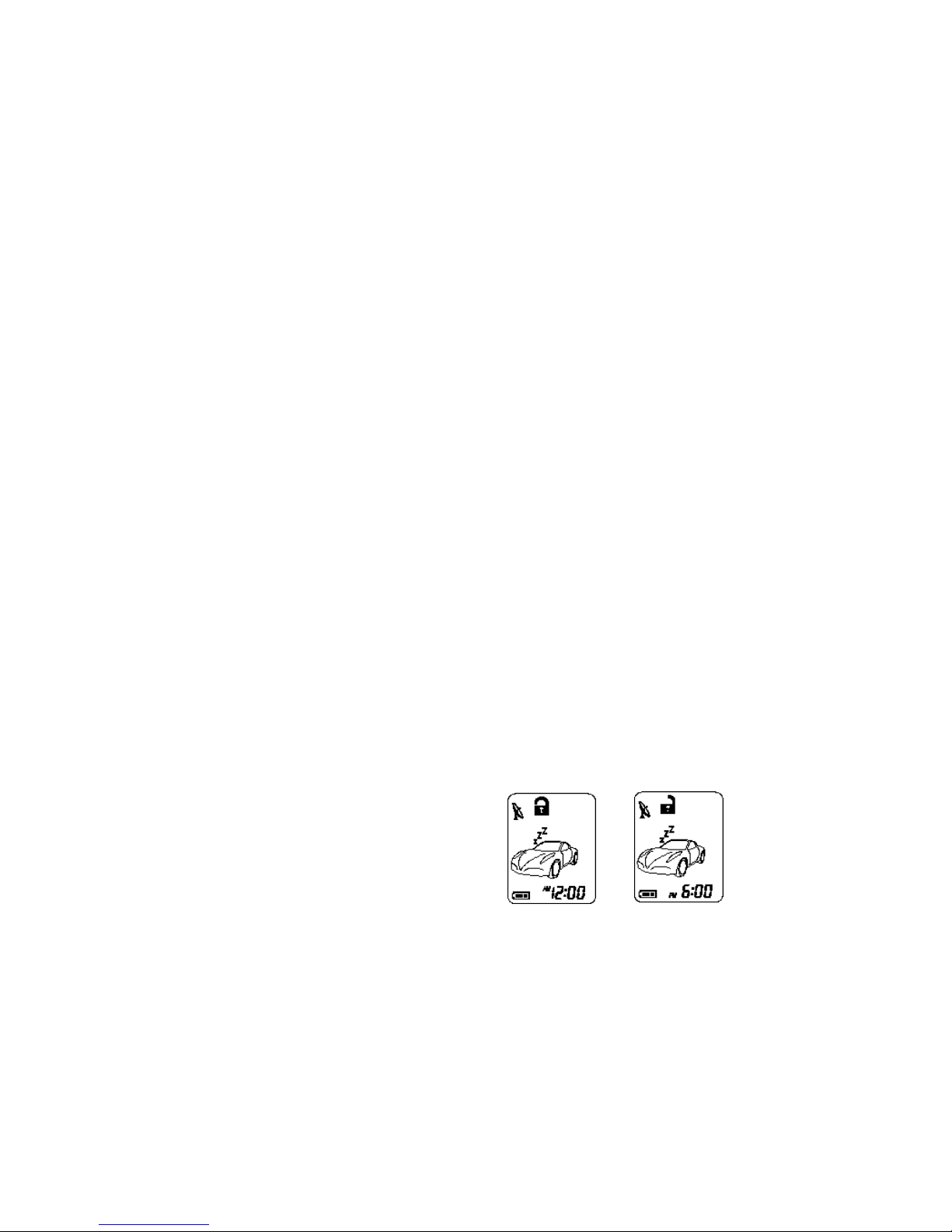

2. Power Save Mode: While the power save mode, the LCD remote
transmitter uses “0” current to save the battery power.
Entry: 1. Press & hold the button for 5 seconds, with one
melody sound and icon on the LCD screen to indicate
entry in the “power save mode”.
2. Under the “Active Arming Mode” and Disarm mode. Turn the
ignition switch to ON, the LCD remote transmitter will automatically
enter the “Power Save Mode”
Exit: Press any button of the LCD remote transmitter to exit the
“Power Save Mode”.
3. Clear the Flash Icon and Melody Sound: Pressing the button 3
times within 3 seconds will clear the flashing icons and melody sounds on the
LCD screen transmitter

8
4. Stop The Trigger Melody Sound: While triggering the alarm the LCD
screen will alert user through melody sound and flashing trigger icon. Press
any button on the LCD remote transmitter to stop melody sound only.
5. Button Lock: This may be useful if you want to disable
the transmission function of the remote control temporarily to
prevent the inadvertent pressing of the buttons. Press the
button first, within 3 seconds press and hold the ()
button for 2 seconds to activate or cancel the button lock
function The icon will displayed on the LCD screen to show
the LCD remote transmitter is on “Button Lock”.
6. Vibration / Melody Mode:
This feature is useful when you are in a noisy place and it is
difficult to hear the beep sound from the remote control. The
remote control in this mode will vibrate when your security
system is triggered.
Press the
button first, within 3 seconds press and hold
the ( ) button for 2 seconds to select the mode of
vibration or melody. The icon will be displayed
on the LCD screen to showing that the LCD remote
transmitter is in vibration mode.
7. Enable / Disable Bi Sound While Pressing Button:
The remote has a short “bi” sound while pressing the button of the LCD screen
transmitter.
If you want to mute the “bi” sound while pressing the buttons. Press the
button first, within 3 seconds press and hold the (Bi) button for 2 seconds
to disable the “bi” sound.
8. Low Battery Indication:
When the power of the battery weakens, the remote has two short “bi” sounds
and will flash the icon while pressing the button of the LCD screen
transmitter.
9. Set Up Fixed Count Down Timer:
1. Press the button first, within 3 seconds press and hold the ()
button for 2 seconds, the LCD screen will shows an icon and timer (i.e.
0:10),
2. Press the () button again showing next order time on the screen
(ie.0: 20), press them again (ie.0: 30)…and so on.
3. Leave the buttons alone and unit will start counting down. The icon will
start flashing
Note: 1.The count down period is fixed to 10 minutes, 20 minutes, 30
minutes, 1 hour, 1.5 hours and 2 hours maximum.
a. When the count down timer shows 0:00 the time has elapsed.

9
b. Press button for real time indication of when the timer is counting
down.
10. Out Of Range and Temperature Indication:
If this feature is selected, the system will automatically check if you are
within transmitting range and check the temperature every 30
minutes.
1. If within the range, the icon will display on the LCD screen.
2. If you are out of range, the icon will disappear on the LCD screen.

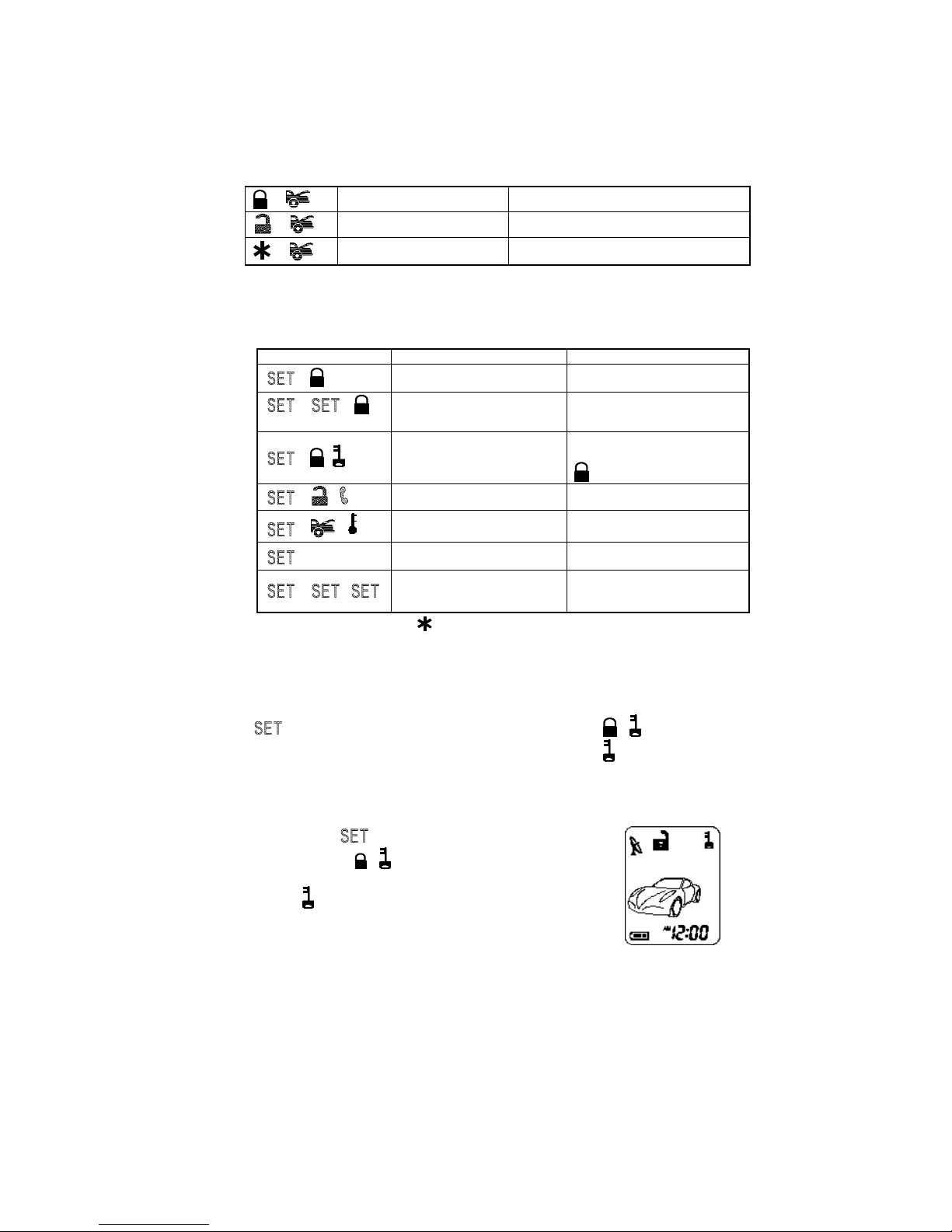

D. CLOCK & TIMER SETTING:
Transmitter Button Description Press Transmitter
Button
1Press & Hold the
button until hour flashes Clock Setting (Hour)
*Flash digit for adjusting for –and for
+
Press the button
once Time setting (Minute)
*Flash digit for adjusting for –and for
+
2Press the button
once.
Alert Alarm Time Setting
(Hour)
*Flash digit for adjusting for –and for
+
Press the button
once
Alert Alarm Time Setting
(Minute)
*Flash digit for adjusting for –and for
+
Press the button
once Alert Alarm Setting ON / OFF for OFF and
for ON
3Press the button
once
Count Down Timer Setting
(Hour)
*Flash digit for adjusting
(Max.19 hours 59 minutes)
for –and for
+
Press the button
once
Count down Timer Setting
(Minute)
*Flash digit for adjusting for –and for
+
Press the button
once Count down Timer Setting
ON / OFF for OFF and
for ON
4Press & hold the
button for 2 seconds.
Daily Timer Start Timer
Setting Flash /
icon and “Hours” for
adjusting
for –and for
+
EXIT: Press and hold the button for 2 seconds or leave it for 10seconds,
the system will exit the
programming mode.

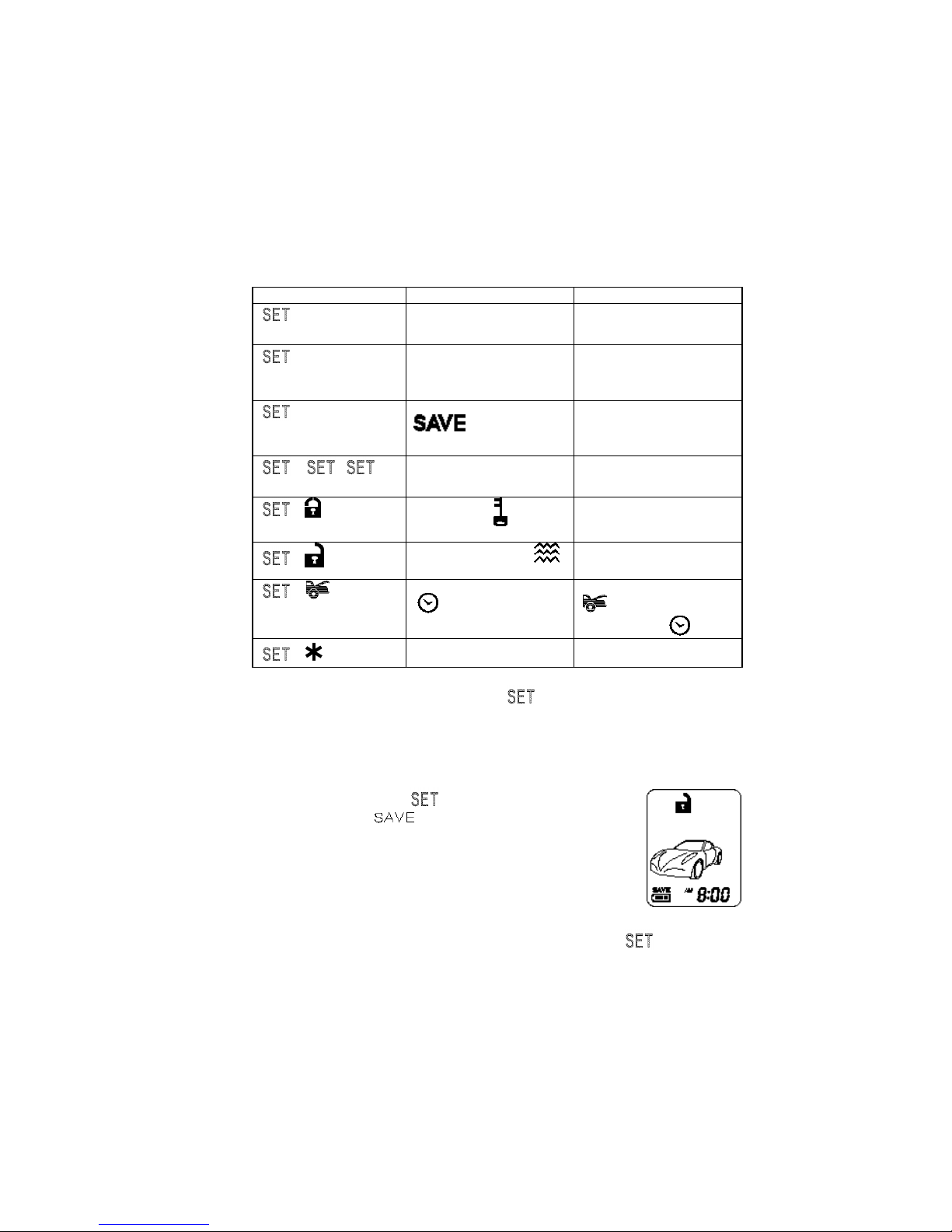

1. Clock Setting: Example to 10:30 AM
1. Press & hold the button for 3 seconds, with two-melody sounds and
the “Hours” digit flashes for adjusting.
2. Press the or button to decrease or increase the “Hour” digit until
AM10:xx

10
3. Press the button once again, the “Minute” digit flashes for adjusting.
4. Press the or button to decrease or increase the “Minutes” digit
until AM 10:30
5. Press the button for 2 seconds with one-melody sound to confirm
exiting the timer program mode.
2. Alert Alarm Timer Setting: Example to PM 6:30
1. Press & hold the button for 3 seconds, with two-melody sounds and the
“Hours” digit flashes for adjusting.
2. Press the button twice, the LCD screen will show the icon and the
“Hours” digit will flash for adjustment.
3. Press the or button to decrease or increase the “Hour” digit until
PM 6:xx
4. Press the button once again, the “Minutes” digit flashes for adjusting.
5. Press the or button to decrease or increase the “Minutes” digit until
PM 6:30
6. Press the button once again, the icon flashes for alert alarm “ON /
OFF” setting
7. Press the button to start the “Alert Alarm Timer”, and the “ON” icon will
show on the LCD screen. Press the button to stop the “Alert Alarm Timer”,
and the “OFF” icon will show on the LCD screen.
8. Press button for 2 seconds with one-melody sound to confirm exiting the
timer program mode.
3. Count Down Timer Setting: Example Set count down timer at 2:30
1. Press & hold the button for 3 seconds, with two-melody sounds
and the “Hours” digit flashes for
adjusting.
2. Press the button 5 times, the LCD screen will show the icon
and “Hours” digit flashes for adjusting.
3.Press the or button to decrease or increase the “Hour” digit
until 2:xx
4.Press the button once again, the “Minutes” digit flashes for
adjusting.
5. Press the or button to decrease or increase the “Minute” digit
until 2:30
6. Press the button once again, the icon flashes for alert alarm
“ON / OFF” setting
7. Press the button to start the count down timer, and the “ON” icon

11
will show on the LCD screen.
Press the button to stop the count down timer, and the “OFF” icon
will show on the LCD screen.
8. Press the button for 2 seconds with one-melody sound to confirm
exit of the timer program mode.
Note: Maximum is 19 hours.
4. Time Set-Up For “Daily Timer Start”: Example to AM 6:30
1. Press & hold the button for 3 seconds, with two-melody sound
and the “Hours” digit flashes for
adjusting.
2. Press & hold the button for 2 seconds, the LCD screen will flash
the /icons and the “Hours” digit for Hour set-up.
3. Press the or button to decrease or increase the hour digit
until AM 6:00
4. Press the button once again, the “minutes” digit flashes.
5. Press the or button to decrease or increase the minutes
digit until AM 6:30
6. Press the button for 2 seconds with one-melody sound to
confirm exit the timer program mode.
OPERATION:
A. REMOTE TRANSMITTER OPERATION:
Transmitter
Button System Function Remark
Lock Doors & Arm System
Panic function Press and Hold for 3 seconds.
Press the button to stop.
Car Locator Under armed mode
-Arm and Delete The 2 Stage
Shock Sensor. Press twice within 3 seconds
+ Silent Arming / Disarming Ignition in "off" position.
+ Active Anti Car-Jacking
Mode Ignition in "on" position, press and hold for 2 seconds
Unlock Doors & Disarm
System
-Two Steps Door Unlock &
Disarm System Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
-Passive Arming By-pass While the system Disarmed.
-Arm System and Hidden
Alarm Function Under disarm mode, press within 3
seconds and Hold button
Activate or Turn Off The
Remote Start Press twice within 3 seconds if programmed for safety start

12
+ Channel # 4 Timer Output (4)
+ Channel # 5 Timer Output (5)
+ Channel # 6 Timer Output (6)
LCD DISPLAY TRANSMITTER OPERATION ONLY:
Transmitter Button System Function Remark
-(C) System’s Trigger Record
Check Press within 3 seconds
--
(C) System’s Status Check Press within 3 seconds
-( ) Button Lock Press within 3 seconds and
Hold
button for 2 seconds
-( ) Optional Driving Pager Press within 3 seconds
-( ) Monitor Indoor Temperature Press within 3 seconds
LCD screen lamp turns on for
5 seconds. Press and hold for 1 second
--Clear the Flash Icon and
Melody Sound on the LCD
Screen Transmitter Press within 3 seconds
Warning: Press the button two times when the battery
compartment is empty, and then insert the new battery.
B. BUTTON LOCK:
This may be useful if you want to disable the transmission function of the remote
control temporarily to prevent the inadvertent pressing of the buttons. Press the
button first, within 3 seconds press and hold the ()button for 2
seconds to activate or cancel the button lock function. The icon will displayed
on the LCD screen to show the LCD remote transmitter is on “Button Lock”.
The 2-way LCD transmitter:
Press the button first, within 3 seconds press
and hold the ()button for 2 seconds to activate
or cancel the button lock function.
The icon will be displayed on the LCD screen to
confirm that the LCD remote transmitter is in the
“Button Lock” mode.

13
C. LED display:
LED Function LED Function
Off Disarmed Zone 1 / Warn-Away Trigger
Slow Flash Armed 2 flashes...
pause Zone 2 / Trigger on Trunk/Hood
Flash Passive Starter Disable 3 flashes...
pause Zone 3 / Trigger on Door Switch
Fast Flash Passive Arming 4 flashes...
pause Zone 4 / Trigger on Shock Sensor
On (Solid) Valet Mode
5 flashes...
pause Zone 5 / Trigger on Ignition Switch
D. CHIRP INDICATORS: E. PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote
Start
F. ALARM OPERATING CONDITION:
Siren / Horn Parking
Light LED Doors Starter Dome Light
1. Arming 1 or 3 Chirps 1 Flash Slow
Flash Locking Disable
2. Disarming 2 or 4 Chirps
2 or 3
Flashes Unlocking
Turns on for 30
-second
3. Trigger Alarming Flashes Slow
Flash Disable Flashes
4. Passive
Starter
Disable Fast
Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12 Flashes Locking

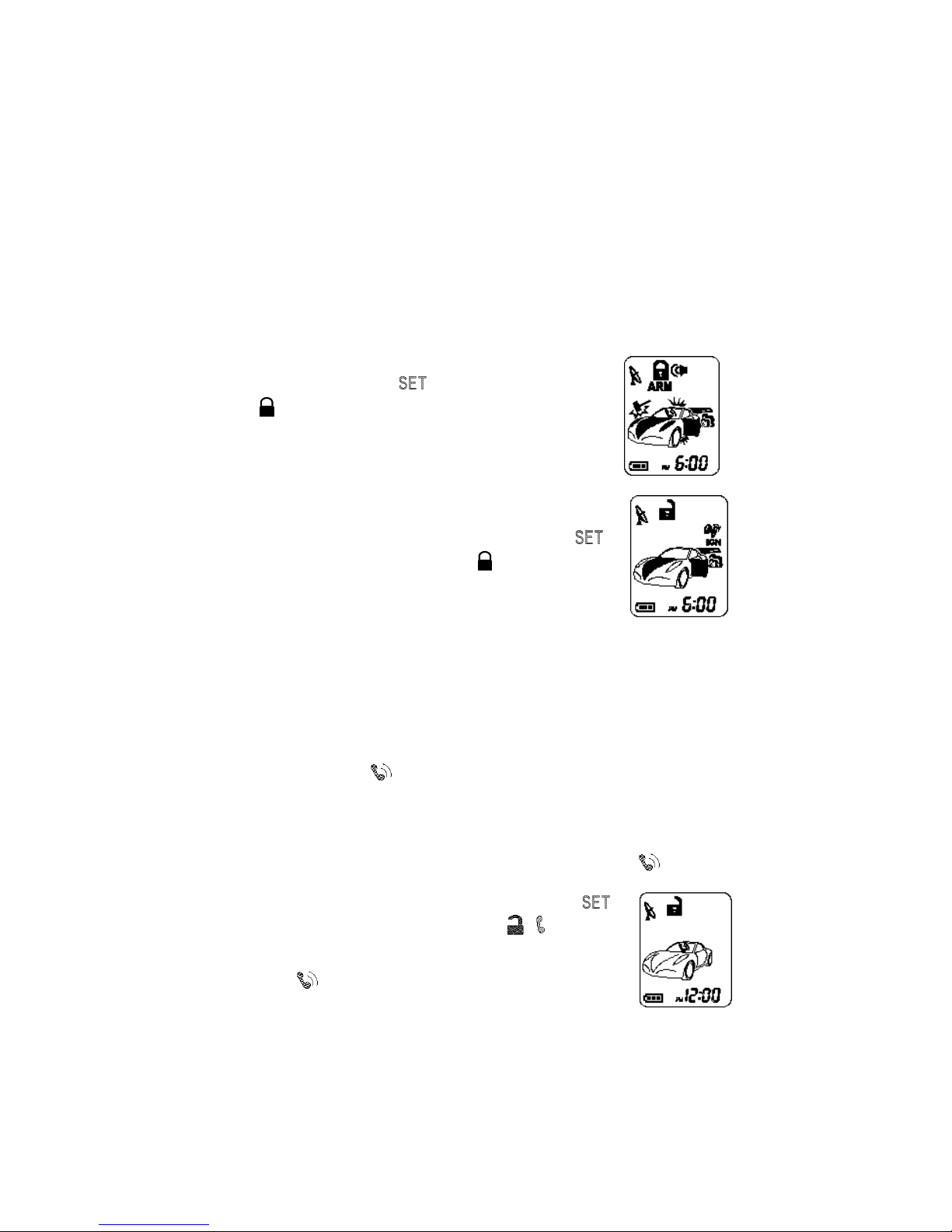

G. ACTIVE ARMING –LOCK & ARM:
1.Press the button on the transmitter.
2. The siren will chirp once and parking lights will flash once indicating that the
system is now armed. The vehicle door will lock upon arming when
interfaced with the security system.

14

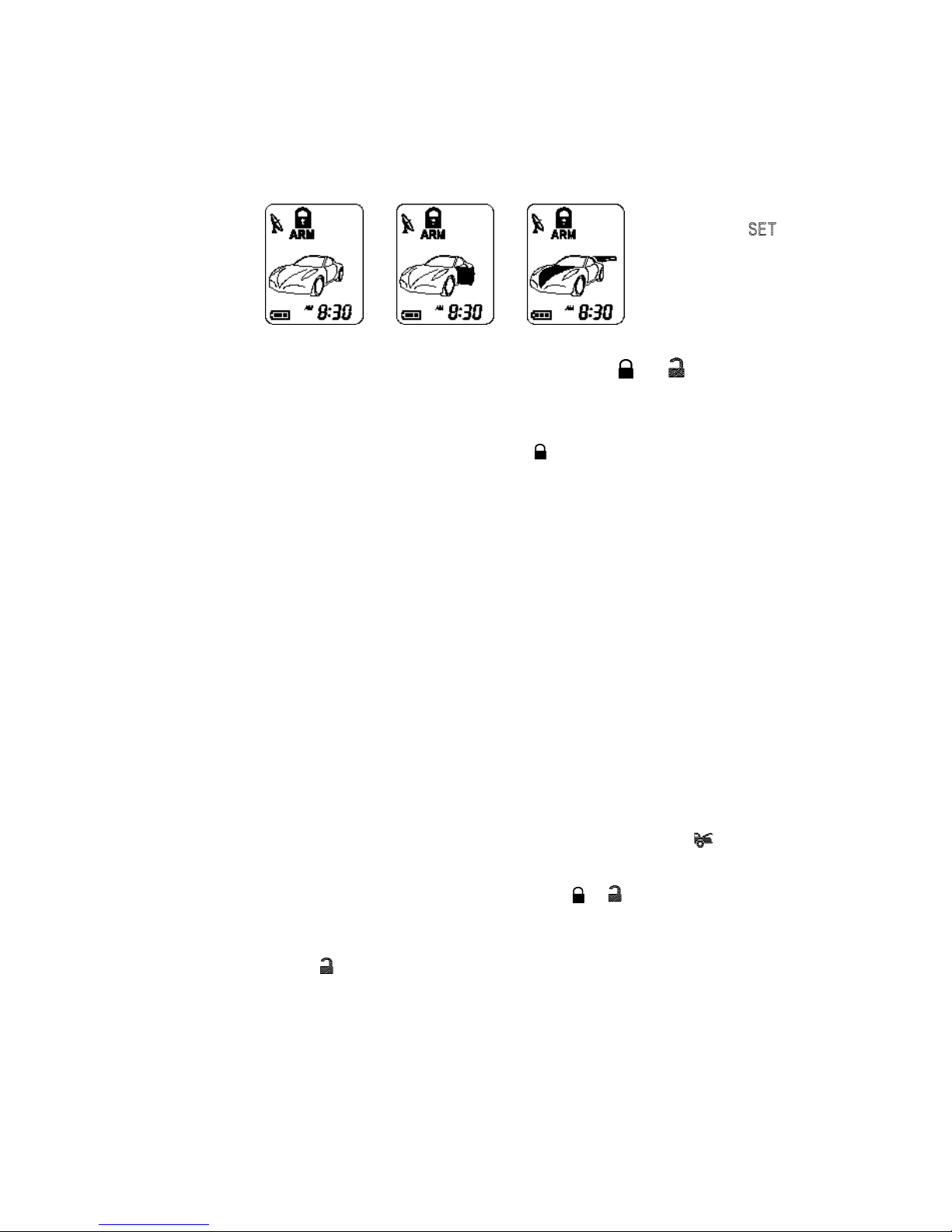

System Arm Door Ajar
Trunk / Hood Ajar
Clear The Flash Icon:
Pressing the
button 3 times wit
hin 3
seconds will clear the
flash icon on the LCD
screen transmitter.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you
have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Pressing the transmitter and button
at the same time will arm or disarm your security system, No chirp sound will
be heard, arm / disarm confirmation will be through the vehicles parking lights
only.
SHOCK SENSOR BY-PASS: Pressing the button on the transmitter two
times within 3 seconds will arm the security system and by-pass the shock
sensor. The system will chirp one additional time to confirm the sensor bypass
mode was activated. The sensor bypass feature is programmed to activate for
one arming cycle only. The security system will return to normal operation
during the next arming cycle.
H. PASSIVE ARMING (programmable)
Active arming / disarming is controlling your security system via the remote
transmitter. This security system is equipped with an optional Passive Arming
feature which allows the security system to arm 30 seconds after the last door
is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30
seconds. If you reopen any door / hood / trunk, the security system LED will
stop flashing. It will begin flashing again once all vehicle entrances are
closed.
3. After 30-second timer has elapsed, the security system will automatically
“ARM”. The siren will chirp [1] time and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING: (programmable)
The vehicle doors will automatically lock after passive arming cycle has been
completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, press the
buttons twice, the system will respond with [1] chirp and LED will turn “ON”.
The security system will remain in this temporary state for as long as you
wish. To exit passive by-pass, press the transmitter or button and the
system will return to normal status.
I. ACTIVE DISARMING –UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and parking lights will flash twice to indicating
that the security system is now disarmed. The vehicle’s door will unlock

15
and dome light will turn on for 30 seconds upon disarming when interfaced
with the security system.
System Disarm Doors Trigger Trunk/Hood Warn away Trigger
Shock Sensor
Trigger
Ignition
Trigger
Trigger
Clear The Flash Icon:
Pressing the
button 3
times within 3 seconds will
clear the flash icon on the
LCD screen transmitter.
TAMPER DISARMING: If the alarm is triggered upon disarm, the systems
siren will chirp 4 times, and parking light flash 3 times.
PATHWAY ILLUMINATION: This feature turns the parking light “ON” for 30
seconds upon an unlock signal and for 10 seconds upon the lock signal.
(Programmable)
TWO STEPS DOOR UNLOCK: (programmable) (optional)
This feature will independently unlock the driver’s door only when disarming
the security system. Pushing the button a second time within 3 seconds
will unlock the other doors.
AUTOMATIC RE-ARM: (programmable)
If this feature is selected, the security system will automatically re-arm itself in
60 seconds after disarming with remote transmitter. Automatic rearm will
cancel if any door is opened before the 60 seconds timer has elapsed.
J. DISARMING WITHOUT A TRANSMITTER
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE:
(Factory Default Setting)
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop
sounding and enter the disarm mode. You can now start and operate the
vehicle normally.

16
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
Because the valet switch can be easily found, and defeated. This security
system allows the consumer to program a password pin code offering a higher
level of security.
1. Enter the vehicle and turn the ignition switch to the 'ON’ position. (Alarm will
sound.)
2. Within 5 seconds, enter your chosen the first digit code by pressing and
releasing the Valet Switch. (When you are finished with the above
procedures, system's siren stop alarming, lights stop flashing, but the
vehicle cannot be started.)
3. Within 15 seconds of entering the first code, turn the Ignition Switch “OFF”
and then “ON”.
4. Within 15 seconds, enter your chosen second digit code by pressing and
releasing the Valet Switch the number of times for your code.
5. Turn the ignition switch to the “OFF” position. 4 Chirps form siren/horn and
3 flash from parking light will indicate the system has been disarmed.
Note 1: You must override the alarm within 60 seconds. If not, the system will
automatically re-arm.
EXAMPLE: To Override The System With The Password Code 83,
1. Enter the vehicle and turn the ignition switch to 'ON’ position.
(Alarm will sound.)
2. Within 5 seconds, Press and Release the Valet Switch 8 times, (When you are
finished with the above procedure the system's siren stops alarming, lights stop
flashing, and sensor stops triggering, but the vehicle can not be started or driven
away.)
3. Within 15 seconds of entering the first digit of the code, (the 1st code), turn the
Ignition Switch “Off” and then “ON”.
4. Press and Release the Valet Switch 3 times (2nd digit of the code , # 3)
5.Turn the Ignition Switch to the “Off” position. [4] Chirps form siren/horn and [3]
flash from the parking lights will indicate the system was disarmed.
K. VALET MODE: (System in Disarm or Valet mode)
The valet switch allows you to temporarily bypass all alarm functions,
eliminating the need to hand your transmitter to parking attendants or garage
mechanics. When the system is in valet mode, all alarm functions and remote
start functions are bypassed, however the remote panic feature and remote
door locks will remain operational. To use the valet mode, the system must
first be disarmed either by using your remote transmitter, or by operating the
Manual override sequence.
Enter Valet Mode:
1.
From the disarmed condition, turn
the ignition to “ON” position.
2.
Push and hold valet switch for 2
seconds until the LED turns on.
The LED will remain on as l
ong
as the system is in 'valet mode'.
Remote Door Lock Remote Door Un-lock
Exit Valet Mode:
1.Return to normal operation, turn ignition 'on'.
2. Push and hold valet switch for 2 seconds, The LED will turn off indicating
the system is exiting the valet mode.

17
L. CAR LOCATOR
Under armed mode, press the
button to
activate the car locator function. The siren will chirp
6 times. The parking light will flash 12 times, for
you to easily locate your car.
M. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the
alarm in case of an emergency.
1. Press and hold the button for 3 second. The alarm
will immediately sound.
2. During panic mode, the normal function of this
transmitter button will be disabled. The transmitter
and buttons can be used to lock and unlock the
door (if the option is installed), however once the
button is pressed, the vehicle’s starter disable device,
(where installed) will be disengaged allowing the
vehicle to start.
3. To stop the alarm, press and hold the transmitter or button on the
transmitter again for 3 seconds. If the button is not pressed, the alarm will
automatically stop after 30 seconds.
N. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1.Light impact will trigger the warn-away signal.
2.Heavy impacts / Doors open / Hood open / Trunk open / Turning on the
ignition key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from
cranking. The siren, horn, parking lights, and dome light will turn on to alert the
user of an intrusion for 30 seconds. Then it will stop and automatic reset and
re-arm. If the one of sensors or detectors still active, the alarm system will
sound a maximum of 3 times of 30 seconds cycles.
Door Trigger Trunk/Hood Trigger Warn-away Trigger Shock Sensor Trigger

18
Ignition Trigger
CLEAR THE FLASH ICON AND MELODY SOUND: While
triggering the alarm the LCD screen will alert user through
melody sounds and flashing trigger icons. Pressing the
button 3 times within 3 seconds will clear the flashing
icons and stop melody sound on the LCD screen
transmitter.
STOP THE MELODY SOUND ONLY: While triggering the
alarm the LCD screen will alert user through melody sound
and flashing trigger icon, press any button on the LCD
remote transmitter to stop melody sound only.
NOISE ABATEMENT CIRCUIT: You system has “Noise Abatement Circuit”. It
prevents annoying repetitive trigger sequences due to faulty door pin switches
or environmental condition such as thunder, jackhammers airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The alarm triggers 5 times. Each
time, the same sensor or switch is triggering the alarm. “Noise Abatement
Circuit” will interpret this pattern of triggers as false alarm. After the third
trigger, “Noise Abatement Circuit” ignores, or bypasses, that sensor or switch
until another sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is
triggered by an open door for three full cycles, the doors will be bypassed until
the trigger ceases.
O. ANTI CAR-JACKING (programmable)
Warning: If you don't need the car jacking function in this alarm system, be
sure to set car jacking feature “OFF” in unit programming. This system has a
default setting of car-jacking feature “OFF”.
ACTIVE ANTI CAR JACKING:
1.Press and hold the transmitter and button at the same time for 2
seconds while the vehicle’s ignition is in the ON position. The parking lights
will turn on for 1.5 seconds to indicate that car jacking mode has been
entered.
2.Once the system is armed and you are forced from the vehicle, the system
will trigger when the door is opened and closed while the ignition is in the
“ON” position.
PASSIVE ANTI CAR-JACKING:
It operate as follows:
1.Turn the ignition switch to the “ON” position; the system will arm.
2.Once the system is armed and you are forced from the vehicle, the system
will trigger when the door is opened and closed while the ignition is in the
“ON” position.
TRIGGER THE ANTI CAR -JACKING MODE:
3-timer circuits will function as follows:
First timer:
a. 50 seconds after the system has been triggered. The siren will start
chirping for 15 seconds.
b. During this 15 seconds period of chirping, you will be alerted to push the
valet switch once to turn off the car-jacking feature.
c. If not, it will enter second timer of the car-jacking mode.
Second timer: 65 seconds after the system has been triggered.
The siren will start sounding and the parking light will start flashing.
Third timer: 90 seconds after the system has been triggered

19
a. The siren still be sounding and the parking lights remain flashing.
b. The starter disable will activate to prevent the vehicle from starting.
c. It will remain active until the vehicle's battery power exhausted or until the
valet switch has been pushed with the ignition ON.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR-JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet
switch, the siren will stop and the system will be disarmed
Note: If you use password pin code to double protect the vehicle security, you
will need to use it to completely disarm the system.
P. SYSTEM’S TRIGGER CHECK
Press the transmitter first, within 3 seconds press
(C) button. It responds with one melody sound and all
trigger’s records will immediately be displayed on the LCD
screen.
Q. SYSTEM’S STATUS CHECK
When you want to check the system’s present status
through the LCD screen, press the transmitter
button twice, within 3 seconds press (C) button.
It responds with one melody sound.
R. DRIVER PAGING
This feature can be used in the event that someone wants to page the driver
of the parked vehicle.
In Car Driver Paging
If the ignition switch is in the “OFF” position, press and hold the valet switch for
2 seconds to page the driver, one chirp sound shall be emitted from the
vehicle. A paging melody sound continues sounding from your Remote LCD
Transmitter and “ ” indication flashes on the LCD screen.
Out of Car Driver Paging
If someone tries to page you by tapping the paging (knock) sensor which is
usually mounted on the bottom part of front window, the paging melody sound
continues sounding from your Remote LCD Transmitter and “” indication
flashes on the LCD screen.
1. To activate driver paging Press the transmitter
button first, within 3 seconds press () button to
activate the outdoor driver paging function, It responds
with a chirp from the vehicle, and a melody sound and
"" indication flashes on the LCD screen to confirm
the function is on.
2.
When tapping the paging (knock) sensor, one chirp

20
sound shall be emitted from the vehicle. The paging
melody sound continues sounding from your Remote
LCD Transmitter and the“ ” indication flashes on the
LCD screen.
3.Turn ON the ignition switch; OR press the button to
arm the system; OR press the button to
disarm the system. The outdoor driver paging function will
exit.
S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION
(programmable)
The alarm has a unique feature, which will turn on your vehicle dome light as
following:
1.Upon disarming, the interior light will remain on for 30 seconds.
2.If the vehicle is intruded, the interior light will flash for the same duration as
the siren.
Note: Turning on the ignition switch or arming the alarm will turn off the dome
light.
T. IGNITION CONTROL DOOR LOCK/UNLOCK. (Programmable)
If the vehicle’s door locks have been interfaced to the security system, the
system will automatically lock the vehicle's doors when the ignition is turned
“ON” and /or unlock the vehicle’s doors when the ignition is turned “OFF”.
U. TRUNK RELEASE (CHANNEL 3) OUTPUT.
Press and hold button on the transmitter for two
seconds to remotely release the trunk or other electric
devices.
V. CHANNEL 4 TIMER CONTROL OUTPUT
Pressing the transmitter (4) and (4) button at the
same time will activate the Channel 4 function. Channel 4 is
user-programmable timer output. You may program the
built-in timer to send a ground signal for any time duration
from 1 second to 120 seconds. For instance, this timer
output may be used to turn on the headlight, power window
or sunroof. (Factory defaults setting at momentary output.)
