AUTOMOBILI LAMBORGHINI Ital E-Bike CROSSER User manual

USER MANUAL
Edition 01-2020
Designed, Engineered, and manufactured in Italy

Ital E-Bike User manual - Edition 01-2020
2
Warnings...........................................................................................................................................4
What is assisted pedalling?...............................................................................................................5
Basic information ..............................................................................................................................6
Description of the contents........................................................................................................................6
Legal requirements ........................................................................................................................................6
For your safety ................................................................................................................................................6
10 rules for riding safely...............................................................................................................................6
Warranty terms................................................................................................................................................7
Travelling range of a pedal assisted cycle.............................................................................................8
Who can ride your e-bike?..........................................................................................................................8
Electric assisted pedalling...........................................................................................................................9
Physical and mental fitness ........................................................................................................................9
residual risks ..................................................................................................................................10
Fire .....................................................................................................................................................................10
Electrical Risks...............................................................................................................................................10
Never use the battery charger and pull out the plug immediately if:......................................10
technical data .................................................................................................................................. 11
components....................................................................................................................................................
11
main components ............................................................................................................................ 12
removing and installing the support ............................................................................................... 15
Before setting off With your Bicycle .............................................................................................. 15
Before each use............................................................................................................................................. 15
checklist of controls to perform Before each use ......................................................................... 16
Checking the wheel units .......................................................................................................................... 16
Checking the seat and the seat post .................................................................................................... 17
Checking the handlebars and handlebar stem ................................................................................. 17
Checking the brakes.................................................................................................................................... 18
Checking the side stand ............................................................................................................................ 18
general use .................................................................................................................................... 20
General summary of Federal and local regulations governing e-bikes, and warnings
regarding adjusting the speed limiter.................................................................................................. 21
Ital E-Bike speed limit.................................................................................................................................. 21
adjustments .....................................................................................................................................22

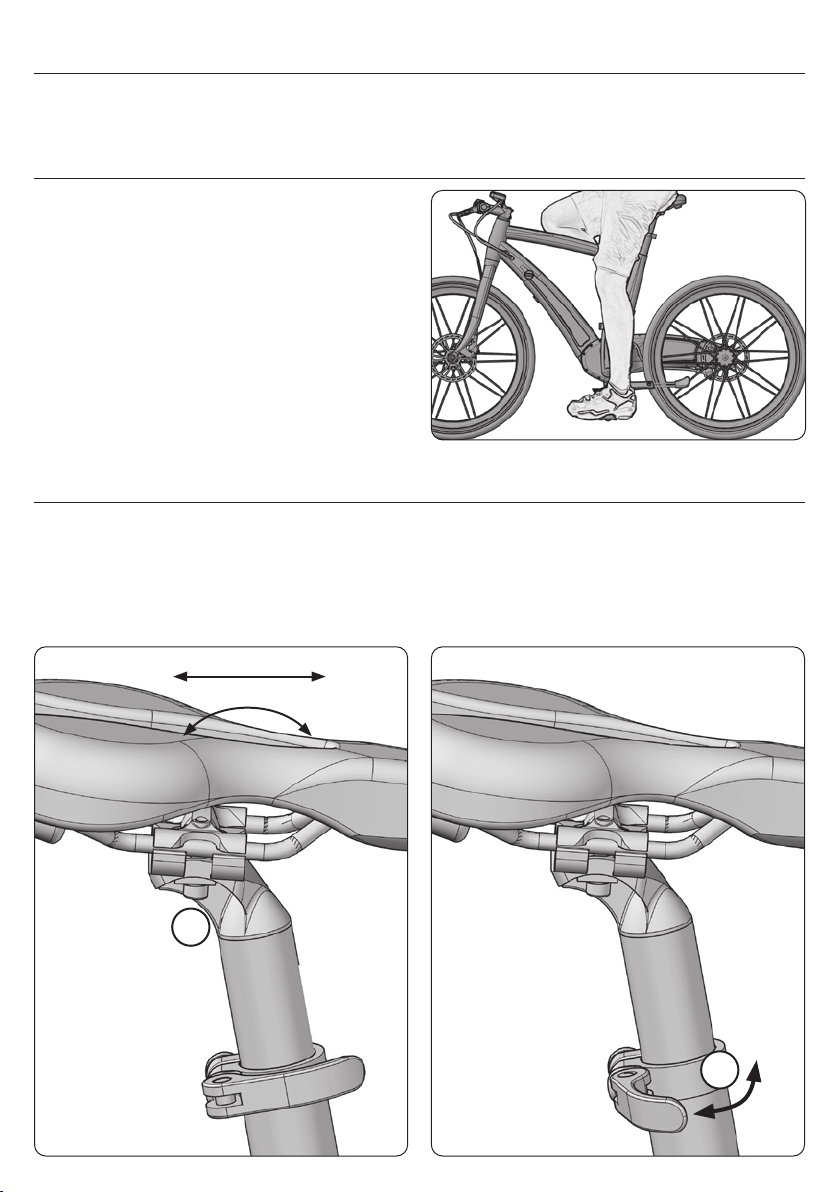

Ideal height of the saddle......................................................................................................................... 22
Adjusting the horizontal position of the saddle .............................................................................. 22
Adjusting the saddle height .................................................................................................................................23
Adjusting the suspension forks (if equippped)............................................................................... 23
Handlebar adjustment ............................................................................................................................... 24
Adjusting the brake levers. ...................................................................................................................... 25
controls on the side right of the handleBar ................................................................................. 26

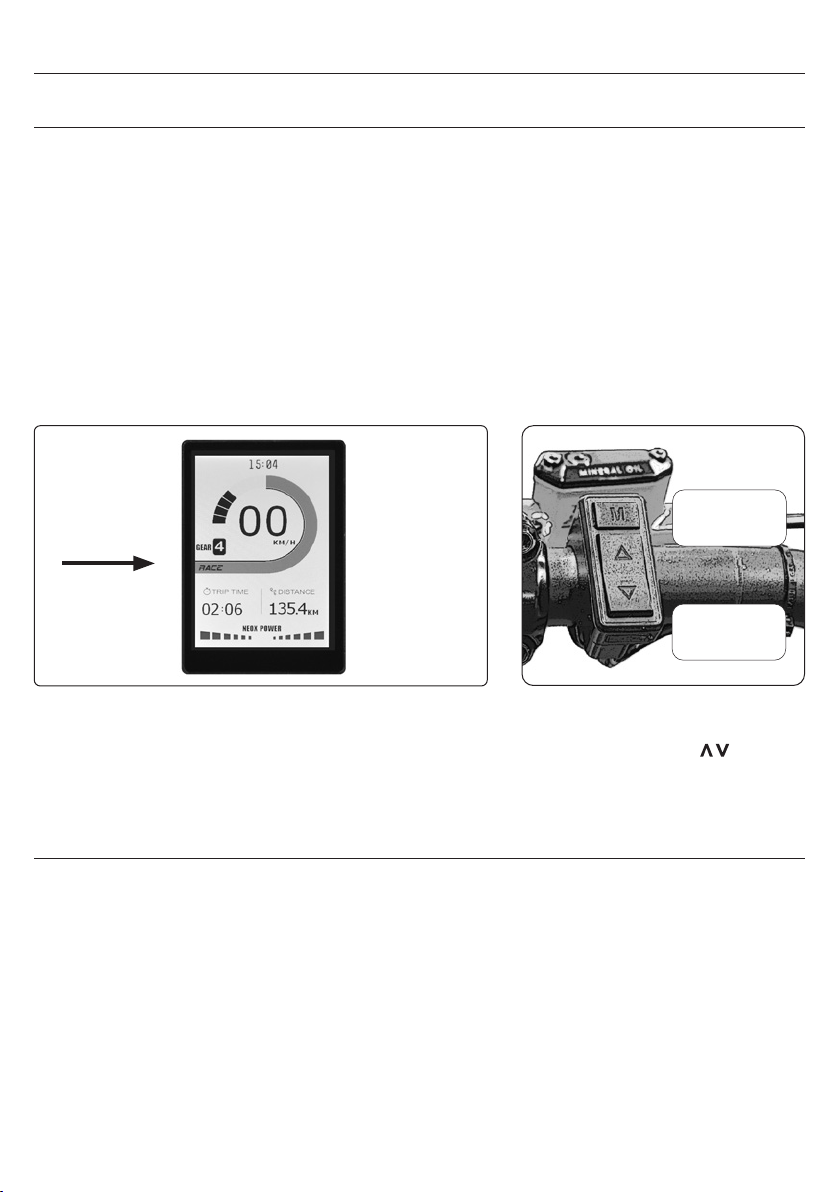

using the display ............................................................................................................................27
Functional overview ................................................................................................................................... 27
Start screen.................................................................................................................................................... 27
Home screen................................................................................................................................................. 28
Settings screen............................................................................................................................................. 29
definition of Buttons ..................................................................................................................... 29
operation ....................................................................................................................................... 29

Ital E-Bike user manual - Edition 01 - 2020 3
How to turn your Ital E-Bike on and off .............................................................................................. 29
Password to turn on ...................................................................................................................................30
Selecting assist modes...............................................................................................................................30
Speed, mileage, trip data............................................................................................................................. 31
Walk assist mode.......................................................................................................................................... 31
Headlight on/o(day and night mode switch) ................................................................................ 32
Battery level....... ............................................................................................................................................ 32
current power usage ..................................................................................................................................... 33
user settings ...................................................................................................................................33
Settings screen ............................................................................................................................................... 33
Exit item .......................................................................................................................................................... 33
Setting the units ......................................................................................................................................... 34
Setting the display backlighting............................................................................................................ 34
Setting the clock........................................................................................................................................... 34
Setting the password................................................................................................................................. 35
Setting the automatic shutdown time .............................................................................................. 36
Setting the wheel diameter .............................................................................................................................. 37
System information review ...................................................................................................................... 37
Resetting factory settings........................................................................................................................ 38
data clearance............................................................................................................................... 39
error information .......................................................................................................................... 40
hoW to activate the Ital E-Bike anti theft system.................................................................................. 41
Locking the rear wheel............................................................................................................................... 41
the Battery ..................................................................................................................................... 42
Useful information about the battery................................................................................................. 42
The Ital-Ebike battery.................................................................................................................................. 43
Battery technical data ...............................................................................................................................44
Removing and installing the battery....................................................................................................44
Lock for assembly and taking apart of the battery........................................................................ 45
Removing the battery................................................................................................................................ 45
Installing the battery ..................................................................................................................................46
How does the Ital E-Bike battery perform during use ................................................................ 47
Battery life...................................................................................................................................................... 48
Charging the battery..................................................................................................................................49
Instructions for recharging ......................................................................................................................49
Caution ..................................................................................................................................... 49
How to use the battery charger ............................................................................................................. 51
Warnings ......................................................................................................................................................... 51
Characteristics of the battery charger ................................................................................................ 51
gearBox f8.11..................................................................................................................................52
Introduction .................................................................................................................................................. 52
Upshifting ......................................................................................................................................................... 53
Downshifting............................. .................................................................................................................... 53
motor ............................................................................................................................................. 54
Caution ............................................................................................................................................................ 54
Adjusting assistanceLevel............................................................................................................... 54
maintenance and care .....................................................................................................................55
Washing.......................................................................................................................................... 56
putting the Bicycle in storage .........................................................................................................57
Preparation of the bicycle for a long period of storage ..............................................................57
Recycling .........................................................................................................................................................57
Caution: ...........................................................................................................................................................57
disposal of your Ital E-Bike .........................................................................................................57
Questions and ansWers....................................................................................................................58

Ital E-Bike user manual - Edition 01 - 2020
4
Congratulations on choosing Ital E-Bike
Warning, Read this manual carefully and follow the instructions below.
•This is a pedal assisted cycle.
•It is not a toy, do not allow it to be used by children.
•Keep the user and maintenance manual in a safe place.
•Ride safely.
•Do not use in the event of snow.
•Never ride standing.
•Never ride with only one hand.
•Observe road and traffic regulations.
•Avoid riding up or down very steep hills.
•Do not brake and pedal at the same time.
•Only use the battery supplied.
•Only use the battery for its intended purpose.
•To charge the battery, only use the supplied battery charger.
•Charge the battery in a well ventilated area.
•Do not attempt to repair the battery or battery charger.
•Do not insert objects into the battery charger and do not expose the battery
charger, the battery or the electrical components, to water or other liquids.
•Do not throw away used batteries: they can seriously damage the environment.
•When replacing batteries, contact your dealer.
•Avoid using accessories sold by unauthorized dealers, they could cause harm to
people and the structure of the bicycle itself.
•Consult qualified staff regarding all routine maintenance and repairs.
•Do not wash the bicycle with a high-pressure jet. A powerful water jet can
damage the electrical components of the bicycle. In which case the warranty
will be rendered null and void.
•Inappropriate use represents a danger to the user and others. Moreover, in
the case of inappropriate use, the warranty will be rendered null and void.

Ital E-Bike user manual - Edition 01 - 2020 5
WHAT IS ASSISTED PEDALING?
This bicycle is equipped with an electric assisted pedaling system. An electric
motor assists the effort made by the cyclist. To activate the assiist it is necessary
to begin pedaling and impart force on the pedals, and consequently the torque
sensor. Conversely, if the rider does not pedal, the motor remains inactive. Four
different levels of assist are available. The assist modes are selected using a control
on the left handlebar.
When the assisted pedaling is activated, starting from standstill is much easier and
more immediate. Therefore, before using this bicycle in traffic, it is necessary to learn
how to use it so as to avoid any surprises when setting off.
When the bicycle is stopped, it is recommended to use the "ECO" assist mode
when setting off in order to avoid accidental falls.
When the assisted pedaling is switched off, the bicycle will require additional pedaling
force. The Ital E-Bike is equipped with an electronic gear change system. Reserve
power is stored in the battery to allow this system to function provided the bike is
turned on.
By law, class one e-bikes can not assist pedaling after 20mph, therefore, once 18 mph
has been reached, the assisted pedaling decreases gradually before completely
turning off at 20 mph
The range of the bicycle depends on the user, the circumstances and the type
of route. Main factors affecting the operating range are: weight of the rider,
cruising speed, slope of the route, tire pressure, wind direction, number of gear
changes and braking (in the city) and outside temperature. Very low temperatures
adversely affect the operating range. It is important to take this into account.

Ital E-Bike user manual - Edition 01 - 2020
6
BASIC INFORMATION
description of the contents
• E-bike complete with pedals and wheels
• Support for transport, which can be used in a vehicle
• Battery charger
• Instruction manual.
legal reQuirements
Every road user must follow the trac regulations in force in their country. To ride an
e-bike, make sure that permits or a driver’s license are not required by the authorities.
In many countries it is possible to travel on public streets and roads provided that ad-
ditional equipment is used as prescribed by law, such as signalling lights, clothing with
reflective strips and a helmet.
for your safety
Make sure that your dealer has completed the necessary sections of the warranty, and
that you have received all the documents supplied with the bike, in this manual.
• Contact your dealer if you detect omissions or oversights.
• Use your Ital E-Bike only after you have carefully read the following user manual,
inside you will find important information.
• If you choose to sell or give away your e-bike, also give this manual to the new
owner.
10 rules for riding safely
1 - Do not turn the key while riding.
2 - Inspect the bicycle if you hear abnormal noises while riding. If necessary, contact
an authorized Ital E-Bike Service Centre.
3 - To ensure proper operation of the bicycle, and for added safety, we recommend that
the bicycle be used by a single person.
4 - Do not overload the bicycle or carry objects that may obscure vision.
5 - Do not drink while riding.
6 - Make sure that the bicycle is upright before starting to pedal, so as to avoid falls.
7 - To avoid personal injury or accidents do not pedal with only one foot
8 - Do not pedal hard on a downhill road when the motor power is decreasing.
9 - If it is raining, do not ride with an open umbrella.
10 - Do not touch the motor after using the bicycle, as it could cause burns.

Ital E-Bike user manual - Edition 01 - 2020 7
Warranty terms
The durability and reliability of the bicycle, as well as the warranty coverage, are valid
only if the customer complies with some basic rules:
• The use of the e-bike for anything other than the intended design may result in
dangerous situations, falls and accidents. Short circuiting may also occur inside the
battery pack causing damage or injuries to the user.
• Always use your e-bike as described in this instruction manual and in any supplemen-
tary documentation.
•Improper maintenance or repairs can cause damage and compromise the safe
operation of the e-bike. This can give rise to dangerous riding situations, falls and
accidents.
•The user can only perform work on the e-bike that is described in this instruction
manual, as these operations can be performed by the user provided suitable tools are
available.
• It is not permitted to change the characteristics of the individual components of the
e-bike.
• All other work, including preparation for use, can only be performed by an Authorized
Ital E-Bike dealer.
• Never add equipment or try to make alterations to to your e-bike by yourself.
•You can request additional accessories through your Ital E-Bike dealer
•You should only ride and use an e-bike if you are in perfect physical and mental shape.
XX
X
X
X
X
X
X
X
X
X
01
06
02
07
03
08
04
09
05
10

Ital E-Bike user manual - Edition 01 - 2020
8
travelling RANGE of apedal assisted cycle
The Range of an e-bike is dependent on several factors. The electric motor will absorb
more power with increased weight and when climbing hills, riding against the wind,
stopping and starting repeatedly and changing gear, thereby reducing the distances
that can be traveled.
A light rider could travel 50 - 60 miles over flat terrain, if using a low level of assist.
However a heavier rider traveling up a 7% grade in race mode may only have a 15 mile
range.
It is important to note that the motor works at peak efficiency and will consume less
battery power for the same torque output when the rider pedals with a smooth and
consistent cadence of 70 - 80 rpm. By optimizing pedaling and gear position, a
skilled rider can learn to optimize range
Instantaneous power consumption is shown as a bar graph at the bottom of the
display screen (fig 1)
Who can ride your e-Bike?
• The rider must be able to ride a bicycle, i.e. they must have a basic knowledge of using
bicycles with the necessary sense of balance to ride and control a bicycle.
• The rider, from a stationary position, should be able to get on and off safely and must
be able to touch the ground with their feet. Children are not permitted to ride the
Ital E-Bike
1


Ital E-Bike user manual - Edition 01 - 2020 9
electric assisted pedalling
Ital E-Bike is equipped with an electric assisted pedaling system. Assistance may be
set to one of 5modes (Fig. 1):
OFF (No assist)
ECO
LOW
HIGH
RACE
buttons
The modes can be selected any time the bike is turned on by pressing the
on the left side of the handlebars.
physical and mental fitness
If the rider wishes to ride a bicycle along public streets and thoroughfares, they must be
physically and mentally able to circulate with the trac on the roads.
The e-bike is not designed to compensate weakness or a lack of fitness.
-
Increase
assistance
+
Decrease
assistance
01 02



Ital E-Bike user manual - Edition 01 - 2020
10
RESIDUAL RISKS
fire
Only keep the e-bike in rooms with ambient temperatures between 15°fand +100°f.
KEEP THE E-BIKE AWAY FROM HEAT SOURCES SUCH AS RADIATORS, HEATERS,
STOVES, ETC.
IN THE EVENT FLAMES OR SMOKE EMERGE FROM THE BATTERY PACK, IM-
MEDIATELY STOP THE BIKE. PROCEED TO PUT OUT THE FIRE WITH A FIRE
EXTINGUISHER, IF AVAILABLE.
electrical risks
As a result of faulty, damaged or defective battery chargers and power cables, you
may suffer potentially lethal electrical shocks.
Anincorrectly charged or stored battery can catch fire.
To recharge the Ital E-Bike’s battery pack, only use the battery charger supplied.
Keep the battery charger away from people and animals.
Do not allow the battery charger to come into contact with water or other liquids.
Do not charge the battery pack in direct sunlight.
Keep the battery pack and battery charger away from sources of heat (such as
radiators).
Only charge the battery while present and in a ventilated place (garage).
Unplug the Battery charger immediately if:
If the battery charger has any kind of damage.
If the cable insulation or one or more plug connections are damaged. In this case,
only hold the plug at an insulated point. If necessary, disable the corresponding fuse
in the electrical distribution box.
If the battery charger heats up in an unusual way. However it is normal for the
battery charger and the accumulator to heat up slightly.

Ital E-Bike user manual - Edition 01 - 2020 11
TECHNICAL DATA
Ital E-Bike 8 speed electric with rotary gear selection
Electrical with a microswitch on the handlebars
8 sequential
Ital E-Bike FL80S 48 V 500 Watts
Ital E-Bike technology for detection load
Ital E-Bike 48Volt 10.5 Ah (504 W/H) lithium-ion battery
Ital E-Bike 3.5” LCD with backlight and multifunction
Mechanical key for total locking of the rear
hub
Electromechanical with movement deactivation via
PIN code
50/60 m(depending on the assistance and the type of route)
Maximum of 20mph
Gearbox
Gear shifters
Gears
Motor
Torque sensor
Battery
Display
Anti-theft
Anti-theft
Range
Assisted speed
Components
Frame
Seatpost
Brakes
Rims
Handlebars
Handlebar stem
Front fork
Tires
Weight
Ital E-Bike in hydroformed aluminium
Ital E-Bike L.300 Matt Black
Hydraulic
Ital E-Bike in aluminium 26”, 27.5” or 28” (depending on
model)
Ital E-Bike in Matt Black aluminium
Ital E-Bike fixed or adjustable Matt Black
Ital E-Bike fixed or suspension (depending on model)
Schwalbe or Vittoria (depending on model)
46/55 lb (depending on model)
maximum load capacity of 250 lb

Ital E-Bike user manual - Edition 01 - 2020
12
MAIN COMPONENTS
1. Display
2. Battery closing
3. Battery
4. Battery charger socket
5. Electronic control unit box
6. Gears and motor
7. Single arm fork
8. Kickstand
9. Saddle
10. Seatpost
11. Saddle lock
12. Crank
13. Pedal
14. Wheels
15. Frame
16. Braking system
17. Fork
18. Lights, if provided

Ital E-Bike user manual - Edition 01 - 2020 15
REMOVING AND INSTALLING
THE SUPPORT
This special support for your Ital E-Bike is provided with each bike and can be
used for easy transport of your Ital E-Bike by vehicle
BEFORE SETTING OFF
WITH YOUR BICYCLE
Be careful whenever you are riding a bicycle, there is a danger of serious falls and
accidents, especially if road surface or weather conditions are not ideal.
Your e-bike is delivered to your dealer assembled. For safety purposes, some
important components are not completely assembled. Your dealer should perform
the final assembly of your Ital E-Bike, making it safe.
• Only use your e-bike in a suitable sitting position.
• Ask your dealer to adjust the saddle height so that it is in the correct position for you.
• Ask your dealer to instruct you about the technical features of your Ital E-Bike.
•Treat your e-bike with spray wax.
•FULLY CHARGE THE Battery - THE FIRST 5 TIMES OF USE ENSURE THE
BATTERY IS COMPLETELY FLAT BEFORE RECHARGING.
Before each use
A bicycle that is not safe can give rise to dangerous riding situations, falls and accidents.
• Before every ride, check that it is able to operate safely.




Ital E-Bike user manual - Edition 01 - 2020
16
• Stop and inspect the proper set up of your newly purchased bike, so as to more easily
recognize any anomalies at a later time
• If any defects are detected during these inspections, immediately contact your dealer.
• You can use your bike again only when it is safe.
Before each check, make sure that your bike is switched o and is not connected to
the power supply, so that you do not inadvertently start it.
CHECKLIST OF CONTROLS
TO PERFORM BEFORE EACH USE
checking the Wheel units
• Check that all the parts are properly mounted.
•The hub of the wheel assembly should not move on the front fork or rear monoarm.
• The quick release lever on the front wheel must be closed and the closing knob on
the rear wheel must be fixed and with the security lock closed.
• check the fixing of the security bolt (A) on the closing knob.
• Check the tire pressure.
• Check the position of the valve which must be perpendicular with respect to the rim
and not tilted.
• Verify the absence of external damage, foreign bodies and wear on the tires:
• The entire surface of the tire must still have the original tread pattern.
• It should not be possible to see the section of the tire that is located under the layer
of rubber.
• There should be no dents, cracks, cuts or damage.
• Remove any foreign bodies (thorns, small stones, bits of glass, etc.) by hand or using
a small tool without spikes or blades.
CLOSE
CLOSE
A

Ital E-Bike user manual - Edition 01 - 2020 17
With greater load on the bike, tire pressure should be increased, however do not
exceed the maximum pressure marked on the tire.
checking the seat and the seat post
If the seat post is not inserted deep enough into the frame, it could separate from the
frame while riding and lead to dangerous riding conditions, falls and accidents.
• Make sure the seat post is inserted at the correct depth.
• Hold the saddle firmly with your hands and try to turn both the saddle and the seat
post inside the frame.
• The saddle and the seat post must not move.
• If the saddle and/or seat post move they must be suitably fixed
checking the handleBars and handleBar stem
If the handlebars and handlebar stem are not fitted properly or are damaged this can
lead to dangerous riding conditions, falls and accidents.
• If you detect defects in these parts, or if you have doubts about them, immediately
stop using your Ital E-Bike.
•Perform a visual inspection of the handlebars and handlebar stem.
• The stem must be parallel to the front wheel rim and the handlebars must be in a
perpendicular position.
• Clamp the front wheel between your legs.
• Grip the handlebars at both ends.
• Firmly try to turn the handlebars in both directions.
• Again with force, push down with your hands and try to turn the handlebars in the
stem.
• No part must move or shift.
•You should not hear squeaks or creaks.
• Tighten according to the torque marked on the parts (Nm).

Ital E-Bike user manual - Edition 01 - 2020
18
checking the Brakes
Faulty brakes can cause hazardous riding conditions, falls and accidents. Mal-
functioning brakes could be life threatening.
• Check your braking system with particular attention.
• During everyday use the discs and the brake pads wear out diminishing their braking
power. They must be replaced periodically.
• Apply the brakes and try to move the bike, both wheels must stay locked.
• Dirty brake discs must be cleaned immediately.
• The presence of oil and grease on the brake discs can reduce the braking power and
lead to dangerous riding conditions, falls and accidents.
• Check that the brake disc is not damaged. It must be free of nicks, cracks, deep
scratches and any other mechanical damage.
checking the side stand
Riding with the stand down can cause serious falls. The same applies if the stand opens
by itself during travel.
A side stand which is bent, too short or too long can not guarantee the stability of your
bike which could later fall, injuring you or other people.
• Repair or replace the stand at anItal E-Bike Service Centre, if it
is bent.
•Side stands with adjustable length should be adjust to the right
length so that your e-bike is stable.
•Perform a visual inspection of the screws connecting the stand.

Ital E-Bike user manual - Edition 01 - 2020 19
• Before setting o, always raise the stand. The stand will not lower by itself.
• Apply gentle force with your hands, making sure that the extractable part does not
shift.
• Make sure the stand is firmly secured to the frame and does not move when you move
it with your hands
CHECK FOR ANY DAMAGE ON ALL THE COMPONENTS.
DO NOT MOUNT THE E-BIKE WITH THE STAND DOWN

Ital E-Bike user manual - Edition 01 - 2020
20
GENERAL USE
With your Ital E-Bike it is possible to reach unusually high speeds.
• Only use your Ital E-Bike if you are able to safely control it while riding and braking at
high speeds.
• Wear a helmet when riding a bicycle.
• Ride cautiously and prudently.
• Ride in such a way that you are always ready to brake.
• Do not ride under the influence of alcohol.
• Ride in such a way that you are always in full control of your Ital E-Bike.
• In the wet conditions the effectiveness of the brakes may be reduced and braking
distance will increase.
• When riding you should only wear suitable clothing that does not restrict riding and
does not obstruct your view.
• In the dark, and in conditions of poor visibility, wear clothing with reflective stripes
and switch on the lights if equipped .
• Attention: some layers of clothing and/or the use of a backpack could restrict move-
ment.
• Put your foot on the pedal only when you are actually setting off.
• Release the brakes only when you are actually setting off.
• Ride with caution, respect the recomended maintenance intervals and immediately
seek your Authorized Ital E-Bike Service Centre if defects are detected.

Ital E-Bike user manual - Edition 01 - 2020 21
General summary of The United States Code of Federal Regulations
The CFR 16 part 1512 defines a bicycle as:
(1) A two wheeled vehicle having a rear drive wheel that is solely human powered
(2) A two or three wheeled vehicle with fully operable pedals and an electric motor
of less than 750 watts (1) hp, whose maximum speed on a paved level surface, when
powered solely by such a motor while ridden by an operator who weighs 170
pounds, is less thn 20 mph.
Disabling or adjusting the speed limiter of your Ital E-Bike could violate State and
Federal laws that govern public roads, highways and other public lands.
Ital E-Bike speed limit
Your Ital E-Bike has a device fitted to limit the maximum assisted traveling speed.
It ensures that the maximum assisted speed (eco-standard-high-race)is kept below
20 mph as per the United States code of federal regulations. The user can exceed this
limit but there will be NO electric assistance from your Ital E-Bike.
The Ital E-Bike is considered a class 1 ebike
•Class 1: Ebikes that are pedal assist only, with no throttle, and have a maximum
assisted speed of 20 mph.
Most states treat class 1 E-bikes like a traditional mountain or pavement bicycle,
legally allowed to ride where bicycles are permitted, including bike lanes, roads,
multiuse trails and bike only paths. It is the riders responsibility to make sure they are
compliant with all state and local codes when riding their ItalE-Bike.

Ital E-Bike user manual - Edition 01 - 2020
22
A
B
ADJUSTMENTS
ideal height of the saddle
The ideal height of the saddle is when,
with your foot resting on the pedal in
the lowest position and the knee is
slightly bent, almost fully extended.
adjusting the horizontal position of the saddle - fig. 01
The saddle is secured with two screws (A) which allow forward/backward (A1)
adjust-ments to be made and the inclination (A2) to be adjusted. You will need a
5mm Allen socket and torque wrench to perform this adjustment.
01 02
A1
A2
It is important that a minimum of one
inch of clearance be maintained
between the top tube of the bicycle and
the riders crotch, when the rider's feet
are flat footed on the ground
