AutoWatch WAB 100 User manual

SYSTEM OVERVIEW
Disposable
Mouthpiece
WAB Serial Number
The Serial Number is located here
and will need to be quoted when
contacting your Service Centre.
Mouthpiece
Holder
Small Button
On/Off
Large Button
Once off
Emergency Override
WAB
Graphics Display
Displays procedural prompts, error
messages and shows the result of
the subject’s breath test, “PASS” or
“FAIL”. Abattery icon, bottom right,
shows the power level and indicates
ongoing charging when appropriate.
Charging & Data
Download
Socket
DisposableMouthpiece
The mouthpiece must be fitted into the mouthpiece holder before use
oftheinstrumentforbreathtesting
Please note that the mouthpiece will only fit into the instrument if
orientatedcorrectly.Unwrapmouthpiecefromitsprotectivepackaging
and,withthelocationkeyfacingdownwards, slidethe mouthpieceinto
the opening on the right of the mouthpiece holder (with instrument
display facing you and buttons to the top). The location key must fit
into the corresponding guide slot in the holder and the mouthpiece
pushed in until it will move no further. Failure to correctly locate the
mouthpiece may result in the instrument refusing to take a breath
sampleandthereforeyoubeingunabletostartyourvehicle.
The mouthpieces are disposable, manufactured under hygienic
conditionsandsuppliedinindividualwrappers.
Werecommendthatanewmouthpieceisusedforeachtest
Disposable MouthpieceDisposable Mouthpiece
Location KeyLocation Key
Lip GuardLip Guard
Guide
Slot
Guide
Slot
Mouthpiece HolderMouthpiece Holder
1
CONGRATULATIONS!
Your vehicle is protected by an AIBBS,Alcohol Immobiliser Breathalyzer Blocking System
designed to give years of trouble free operation, made with only the highest quality
componentsandusingstateofthearttechnologyyoucanbeassuredthatyourvehiclehas
thebestelectronicprotectionagainstdrinkinganddrivingavailable.
®
The Autowatch WAB 100 provides protection from a vehicle being started and driven by
anindividualwhoseblood/alcoholcontentishigherthanapre-determinedlevel.
Ensure that comprehensive instructions and demonstration on the functions and
useofthissystemisprovidedbyyourService/InstallationCentre.
SYSTEMCOMPONENTS:
VEHICLEBLOCKINGSYSTEM(VBS)
Thisunitcontainsabuzzerandiswiredintothevehicle’s
startingcircuit.TheVBSisnotuseraccessible.
DRIVERCHANGE/RESETBUTTONWITHLED
Mountedwithinconvenientreachofdriver.
WIRELESSALCOHOLBREATHALYSER.(WAB)
Handheld
The LED starts to flash at a faster
rate while the vehicle is being driven thus
indicating that the driver must now
present a valid breath sample
RED
The blocking
LED stops flashing
RED
If no valid breath sample is
given in the period of
XX minutes the buzzer
stops sounding
If the ignition is turned off then the vehicle
will not be able to be re-started until
such time as a valid breath sample is given
*With No sample the LED flashes all the time.
*With a valid breath sample the LED turns OFF.
The sample results will be
recorded on the VBS non
volatile memory together
with date and time
The sample results will be
recorded on the VBS non
volatile memory together
with date and time
Should the driver
still want to start the engine
he will need to re-submit
a new breath sample
into the WAB
When the random sequence is activated
(internally by Software)
The buzzer will sound for “XX” minutes
(if a valid breath sample is given
the buzzer will be silenced)
While in drive mode the
VBS random retest timer
starts running thus at
random requests the
driver to present a
valid breath sample
Random
Retest
selected
This feature is
programmed
in or out
at installation as
per customer
request
}
Valid
breath
sample
Yes
No
DRIVER CHANGE
BUTTON
RANDOM
TEST
PROCEDURE
Yes
No
RED
LED
RED
LED
DRIVER CHANGE
BUTTON
Failure to provide a breath sample for analysis during random
testing or providing a sample that exceeds the predetermined
level, will not cause the vehicle to stop, however, failure to
provide a breath sample or providing a sample that exceeds the
predetermined level will cause a non event to be presented at
the GSM Output to be sent if the GSM Module is connected.
This non event will be recorded by the VBS as well.
When the vehicle ignition is
turned off the VBS will remain
unblocked allowing the vehicle
to be restarted within preset
time period of “XX” minutes.
This time period is set at
installation.
WAB 100
If a Driver Change is required, follow
the Driver Changing sequence
as described on page 4.
Lion Laboratories

Lion Laboratories
Lion Laboratories Lion Laboratories
BreathTestProcedure
Beforeprovidingasample
®
1. YourAutowatch WAB 100 reacts very specifically to the presence of alcohol in the breath.
However,itcanbeaffectedby,forexample,useofmouthwashortheapplicationofperfume
andaftershaveimmediatelybeforetakingyoursample.Alloftheseproductscontainalcohol
andtheirpresencemayelevatetheresultsdeterminedbytheinstrument.
2. Similarly, elevated results can occur if you have consumed alcohol up to 20 minutes before
providing a sample. This is because your mouth may still contain residual alcohol from the
lastdrink.
3. Smoking within up to two minutes of providing a sample may also produce erroneous
results.

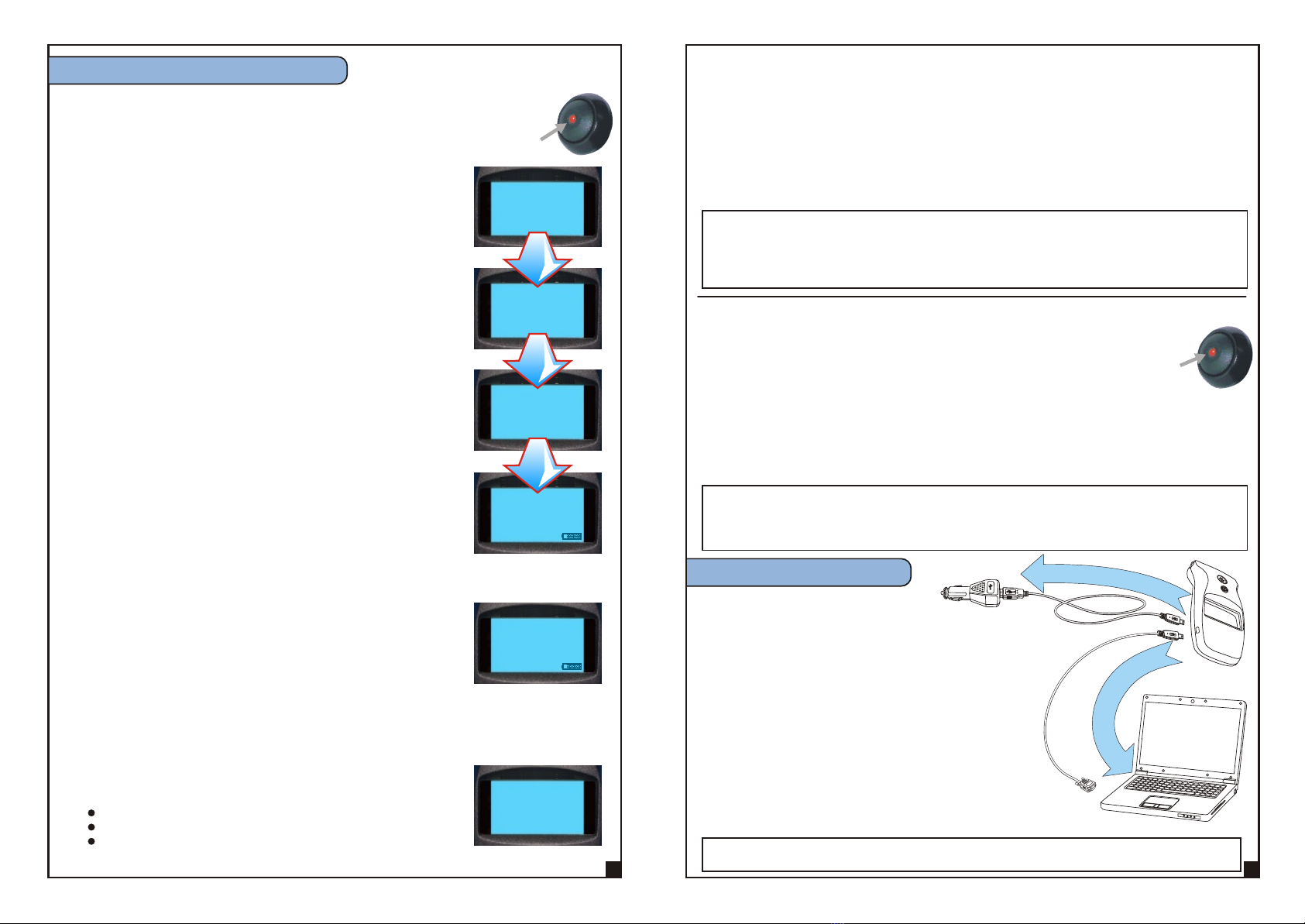

WAB Switch-on
To switch on, press and release the Small Button.A confirming beep will sound, followed by a
seriesofscreensshowing:
Autowatch InstrumentSerialNumber
Instrumenttemperature Time
Date Nextscheduledservicedate
PleaseWait
2
Fit Mouthpiece
Take Sample
Meanwhile, the WAB automatically checks its operating parameters.
When the WAB is ready to take a sample a further single beep will
sound,followedbythemessage:
We strongly recommend that you take the WAB with you when you leave the
vehicle. This will then not only act as an additional security system for your
vehicle, but will also help to prevent the WAB from being exposed to temperature
extremes.
PROVIDING A BREATH SAMPLE
Take a deep breath , seal your lips around the
wide end of the mouthpiece and blow into it with
moderate force. The instrument will detect your
breath flow and will emit a continuous tone as
long as you are blowing correctly. Once sufficient
breath has been blown the tone will stop and a
double click will be heard followed by two rapid
beeps. Once you have heard the two beeps then
stopblowing.
Ensure that your Service/Fitment Centre fully
demonstrates the correct blowing technique
oftheWAB.
NOTE The WAB is equipped with highly sophisticated methods of detecting
sample tampering. Any attempt to start your vehicle without providing an
unadulteratedhumanbreath sample willbeloggedwithinthesystemandyoumay
berequiredtoexplainyouractionsatalaterdate.
With the ignition switched off the
LED will be flashing.RED

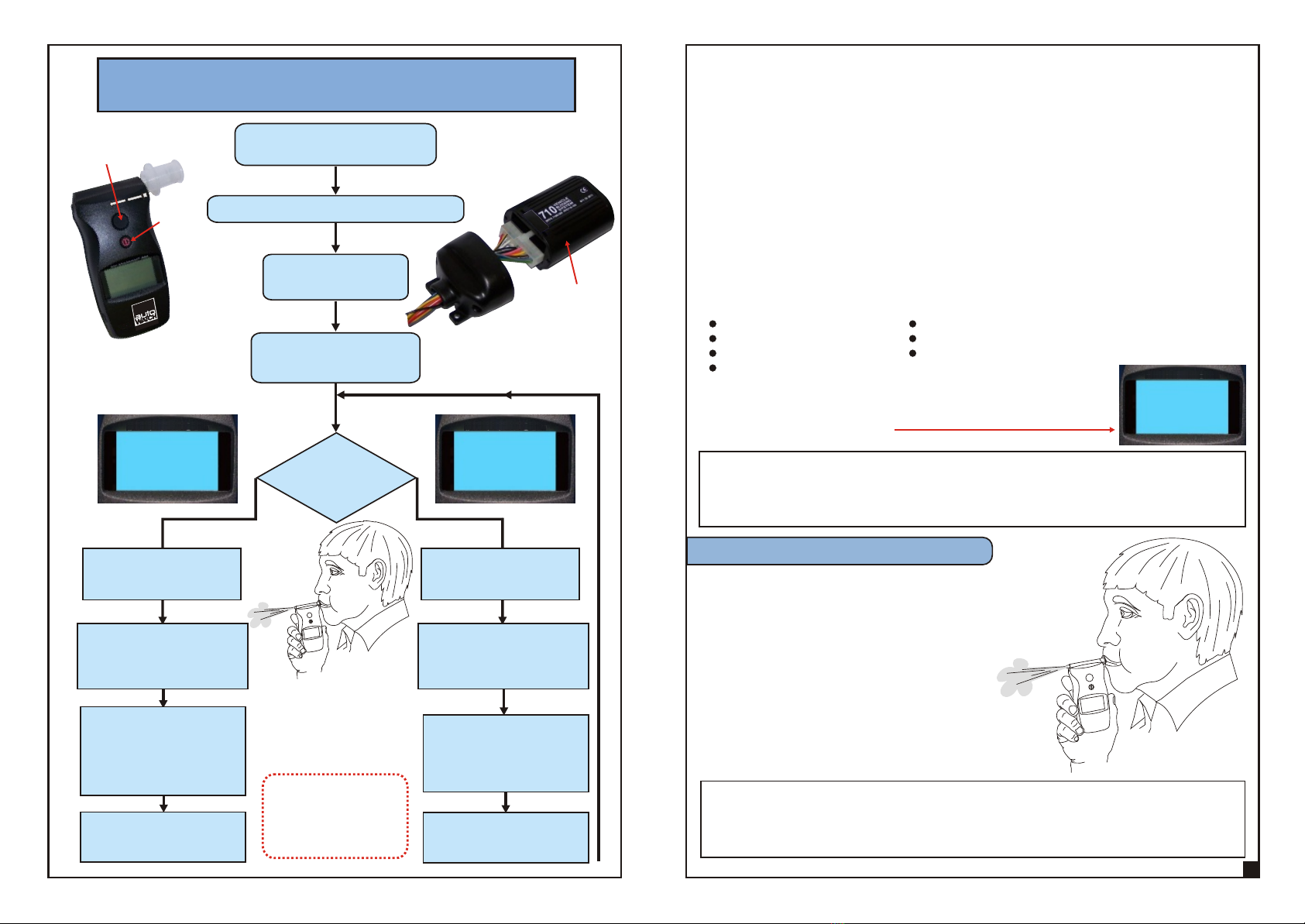

ALCOHOL INTERLOCK
OPERATING PROCEDURE FLOW CHART
Breath sample taken
is above accepted
alcohol level
Breath sample taken
is below accepted
alcohol level
On/Off
Switch
PASS FAIL
The breath sample result
together with date and time
will be recorded on the WAB’s
non volatile memory
The breath sample result
together with date and time
will be recorded on the WAB’s
non volatile memory
The LED will now flash
rapidly for 2 Secs then
extinguish and remain off
to indicate that the VBS has
received the unblocking
signal from the WAB
RED The LED will
continue to Flash
indicating that the VBS
has received the blocking
signal from the WAB
RED
This now causes the VBS
to unblock and therefore the
vehicle can be started
Failure to start
the vehicle within
the preset time period
will cause the VBS
to block the vehicle.
The VBS remains blocked
and the vehicle
cannot be started
PASS FAIL
Turn on the WAB by pressing the Red button
Override
Button
Internal
Buzzer
WAB VBS
Once the WAB has settled
it will be ready to
accept a breath sample
The WAB will go through
its start up routine
Blow into
WAB following the
operators manual
procedure
WAB100

3 4
The WAB display will then show "Sample Taken"
followedby"Analysing"
After a few seconds your breath sample will have been
analysed and, if the breath alcohol level is below the pre-set limit,
then "Pass" will appear on the WAB display and a coded signal will
be sent immediately to the VBS in order to unblock the Blocking
System. The RED LED will flash rapidly and extinguish confirming
that the Blocking System has been unblocked *This status will be
recordedbytheVBS&theWABwithdateandtime.
You may now start your vehicle.(*The specific time period in which
youhavetostartyourvehicle isprogrammed bythe service/fitment
centreandcanbesetto5,10,20or30minutes.)
Beforedrivingoff,youmaywish toswitch offyour WABby pressing
and holding the small button until the WAB shuts down.
Alternatively, the WAB will automatically shut down after a short
periodoftimeifnofurthersamplesareprovided. PASS
FAIL
16:34:09 26°
16:34:09 26°
Sample Taken
Analysing
Inadequate
Sample
IFTHEVBSFAILSTOUN-BLOCK (Invalidbreathsample)
1. If the WAB displays "Fail" then it has detected alcohol in
the breath at a level in excess of the preset limit. If you have
observed the points shown in the "Before Providing a Sample"
section of these instructions, then you have a breath alcohol
level above the pre-set limit. The RED LED will flash rapidly,
andthe Blocking System will remain blocked, the RED LED will
continue flashing and the vehicle will not start. This status will
berecordedbytheVBS&theWABwithdateandtime.
You should wait for 30 minutes and then provide a further
sample, by which time your body may have metabolised the
alcoholandreducedthelevelbelowthepresetlimit.
2. If the WAB displays "Inadequate Sample" then one or more of
thefollowingcouldbethecauseoftheproblem.
Incorrectlypositionedmouthpiece
Insufficientlengthofblow(Volume)
Incorrectforceofblow(Toohardortoosoft)
SwitchtheWABON,whenthedisplayshows“FitMouthpiece,Take
Sample”provideabreathsampleasdescribedonpage2.
1. Switch the WAB ON, when the display shows “Fit Mouthpiece, Take Sample” follow the
sameproceduretoprovideabreathsampleasdescribedonpage2.
2. TheWABanalysesthebreathsampleasbeforeandtheVBSrecordstheresult.
Before starting the vehicle the RED LED on the Driver Change
Button will be flashing indicating that the vehicle is blocked by the
VBS(VehicleBlockingSystem).
It is recommended that the VBS immobiliser is unblocked prior to
turningonthevehicleignition.
Toachievethis,followtheprocedurebelow:
DRIVER CHANGE
BUTTON
DRIVER CHANGE
BUTTON
RED
LED
Fit Mouthpiece
Take Sample
Shouldthe“RandomTesting”optionbeselectedatinstallation,whilethevehicleisonroute,
the VBS buzzer will sound as a request for a new breath sample. (This will be randomly
repeatedatanystageofthejourney)
RANDOM“ONTHEROAD”TESTING
Should no breath sample be supplied within a preset period, the buzzer will stop and the
REDLEDwillstarttoflashatafasterratecontinuouslyuntilavalidsampleispresented.
NOTE : Failure to provide a breath sample for analysis during random testing or
providinga samplethatexceedsthepredeterminedlevel,willnotcausethevehicle
to stop, however, failure to provide a breath sample or providing a sample that
exceedsthepredetermined level willcause a noneventto be presentedatthe GSM
outputtobesentiftheGSMmoduleisconnected.
DRIVERCHANGING
Should no breath sample be supplied within a preset time period, the buzzer will stop and
theREDLEDwillstarttoflashatafasterratecontinuouslyuntilavalidsampleispresented.
Shouldanew driverbe requiredtotakeoverdrivingresponsibilities,
thefollowingprocedureneedstobefollowed:
1. Asthenewdrivertakesover,theresetbuttonmustbepressed.
2. TheVBSbuzzerwillsoundtorequestanewbreathsample.
3. Switch the WAB ON, when the display shows “Fit Mouthpiece, Take Sample” follow the
sameproceduretoprovideabreathsampleasdescribedonpage2.
4. The WAB analyses the breath sample as usual, the VBS records the result and the
randomtesttimerisreset.
NOTE : Failure to provide a breath sample for analysis during driver changing or
providing a sample that exceeds the predetermined level will cause the vehicle to
remain blocked, moreover, will result in a non event being presented at the GSM
outputtobesentiftheGSMmoduleisconnected.
OPERATING INSTRUCTIONS
BASIC MAINTENANCE
CleaningtheWAB
Ifandwhenrequired,simplywipeoverwithalightlydampenedcloth.
NOTE: Please do not use chemical solvents, abrasives or excess water as these
coulddamagethecasematerial,andpossiblytheinternalsensors.
Thebatteryisre-chargedviathesocketonthe leftside
of the instrument. When necessary, insert the
connector from your 12V charger into the socket and
insert the other end into the cigarette lighter in your
vehicle. If switched on while charging the battery
condition indicator will cycle from full to empty whilst
thebatteryisstillbeingactivelycharged.
12/24V
Battery Charging
Downloading Recorded Results
TheWAB keepsa backup ofall recorded resultswhich
can be accessed by using Download software and the
USB cable direct to a PC. This facility will need to be
requestedfromyourService/InstallationCentre.
RED
LED
D
A
O
L
N
W
O
D
A
T
A
D
TT
E
B
A
R
Y
C
H
A
R
G
I
N
G
