Sealey TST22 User manual

INSTRUCTIONS FOR:
13 PIN TOWING SOCKET TESTER 12V -
FOR VOSA MOT TEST
MODEL No: TST22
Thank you for purchasing this product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE, FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are strictly
adhered to when using tools and equipment.
DO NOT use this tester if it, or any attachment, is damaged.
Maintain tester in a good, clean condition for best and safest performance.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
Keep children and unauthorised persons away from the work area.
DO NOT use the tester for any purpose other than for which it is designed.
DO NOT get tester wet or use in damp or wet locations, or areas where there is condensation. Keep tester clean and dry,
using a dry cotton cloth only.
DO NOT dip or submerge the tester in any type of liquid.
DO NOT expose tester to bright sunlight or dust.
DO NOT dis-assemble tester. The tester must be checked by qualified service personnel only.
DO NOT connect or disconnect any test equipment with ignition on or engine running.
The tester is a precision instrument, treat with care, avoid using force and do not subject to knocks or shocks.
Account for all tools and parts being used and do not leave any in the engine bay.
Keep tester dry, clean and free from oil, water and grease. Use a clean cloth to clean the outside of the tester.
When not in use, store tester in a safe, dry, childproof location.
WARNING! The warnings and instructions discussed in this manual cannot cover all possible conditions and
situations that may occur. It must be understood that common sense and caution are factors which cannot be built
into this product, but must be applied by the operator.
1. SAFETY INSTRUCTIONS
2. INTRODUCTION
VOSA approved for use in MOT testing stations on vehicle classes 4, 5 and 7. Quick and simple test of 12Volt 13-pin Euro-type
sockets fitted to the rear of the vehicle. Supplied with 4.9mtr cable to enable the operator to use the tool whilst sitting in the
vehicle. Features a self test facility to ensure the serviceability of the tool. Powered by 12Volt vehicle supply. Also features the
testing of the 12Volt continuous live feed, 12Volt ignition live feed and the reversing lights - which are not part of the current MOT
test, but are very useful when diagnosing electrical faults. Can also be used in conjunction with a 13-7 pin towing adaptor.
NOTE: The self-test facility is not available when using the 13-7 pin towing adaptor, because there is no continuous feed via the 7
pin socket, from the vehicle.
TST22 Issue No: 2 - 09/12/11
Original Language Version

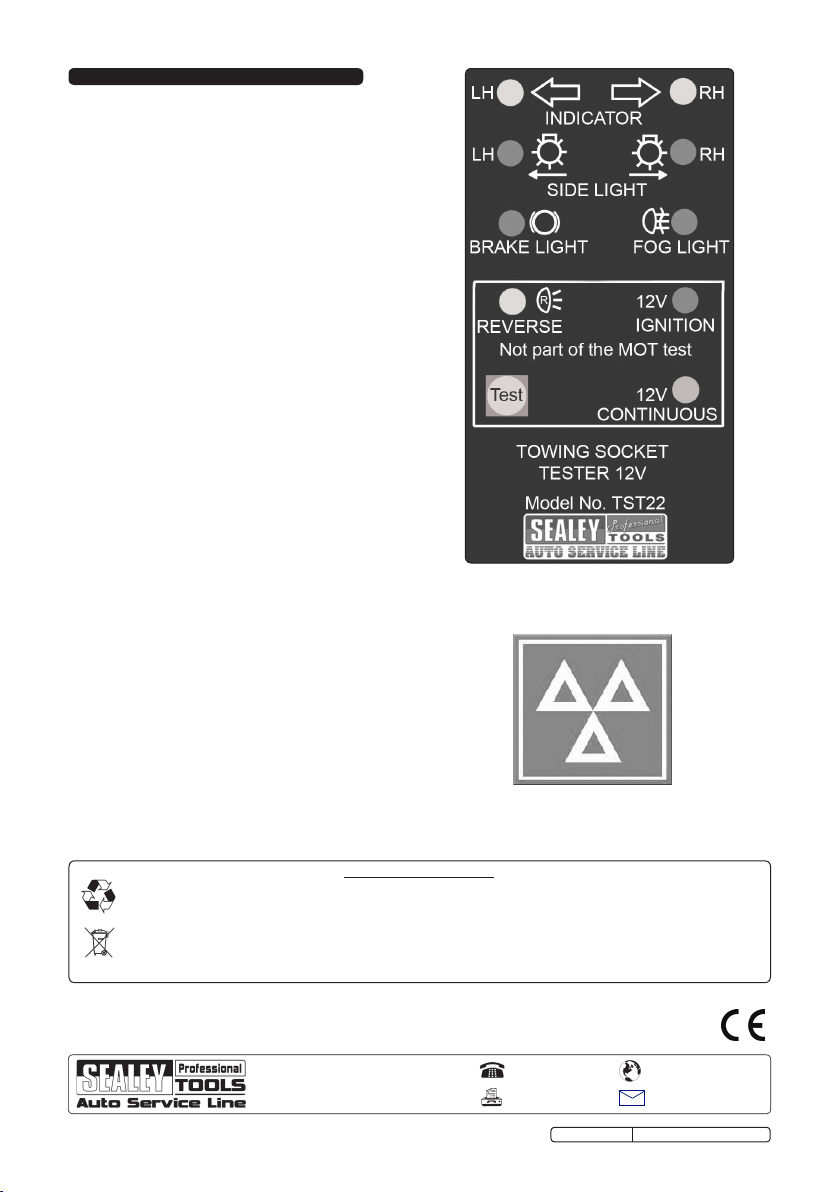

3. OPERATION
3.1. Lift the vehicle's towing socket cover and insert the
tester's plug into the socket, take care to line up with
the socket before insertion. Twist the outer plug ring
clockwise to lock plug into place.
3.2. If the socket is wired for continuous 12V supply, the
12V CONTINUOUS LED should illuminate
immediately - note this is not a condition of the VOSA
MOT Test.
3.3. Sit in the vehicle with the tester unit. Press 'Test' to
ensure that the tester's control circuitry and the LED's
are in working order.
3.4. Turn the vehicle's ignition switch to the 'ON' position,
but do not start the vehicle's engine. The 12V
IGNITION LED should illuminate.
3.5. Required VOSA MOT Test checks.
Operate in turn:
- the Left and Right Hand Indicators
- the Side Lights
- the Fog Lights
- Depress the vehicle's foot brake pedal.
In each case, check to ensure the appropriate LED
illuminates on the tester.
3.6. In addition to the above VOSA MOT required checks,
also select reverse gear, and check that the LED
illuminates.
3.7. When all checks are completed, remove the tester
from the vehicle's towing socket, twisting the plug ring
anti-clockwise and ease the plug assembly out of the
socket. Replace the towing socket cover.
NOTE: When testing vehicles that include a tow-bar electrics
self test facility, all of the tester's LED's apart from the
12v feed, may flicker. This is a function of the vehicle's
self test and is normal. However, when testing the
vehicle, the LEDs will light fully if and when voltage is
being applied to each of the 13-pins on the socket, so
therefore the tester can be used as normal.
NOTE: The self-test facility is not available when using the
13-7 pin towing adaptor, because there is no
continuous feed via the 7 pin socket, from the vehicle.
