GW Instek GDS-2000 Series User manual

Digital Storage Oscilloscope
GDS-2000 Series
USER MANUAL
GW INSTEK PART NO. 82DS-22040ME1
ISO-9001 CERTIFIED MANUFACTURER

December 2010
This manual contains proprietary information, which is protected by
copyrights. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.

TABLE OF CONTENTS
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 5
GETTING STARTED......................................................... 10
GDS-2000 Series Overview................... 11
Appearance.......................................... 14
Set Up.................................................. 22
QUICK REFERENCE......................................................... 26
Menu Tree / Operation Shortcuts ........ 27
Default Settings ................................... 45
Built-in Help ........................................ 46
MEASUREMENT.............................................................. 47
Basic Measurement ............................. 48
Automatic Measurement...................... 55
Cursor Measurement ........................... 60
Math Operation ................................... 64
Go-NoGo Test ...................................... 69
Program............................................... 78
CONFIGURATION........................................................... 83
Acquisition .......................................... 85
Display................................................. 91
Horizontal View ................................... 95
Vertical View (Channel)...................... 102
Trigger ............................................... 106
System Info / Language / Clock ......... 116
SAVE/RECALL ................................................................119
File Format/Utility ............................. 120
Quick Save (HardCopy)...................... 126

GDS-2000 Series User Manual
Save ................................................... 128
Recall................................................. 137
PRINT OUT....................................................................146
REMOTE CONTROL CONFIG .........................................149
Interface Configuration ...................... 150
BATTERY OPERATION....................................................156
MAINTENANCE .............................................................158
Vertical Resolution Calibration ........... 158
Probe Compensation.......................... 159
FAQ ...............................................................................161
APPENDIX .....................................................................164
Fuse Replacement .............................. 164
GPIB Module Installation................... 165
GDS-2000 Specifications.................... 166
Probe Specifications .......................... 169
INDEX............................................................................171

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow when operating
GDS-2000 and when keeping it in storage. Read
the following before any operation to insure your
safety and to keep the best condition for GDS-
2000.
Safety Symbols
These safety symbols may appear in this manual or on GDS-2000.
WARNING Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION Caution: Identifies conditions or practices that
could result in damage to GDS-2000 or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

GDS-2000 Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Make sure the BNC input voltage does not
exceed 300V peak.
Never connect a hazardous live voltage to the
ground side of the BNC connectors. It might
lead to fire and electric shock.
Do not place any heavy object on GDS-2000.
Avoid severe impacts or rough handling that
leads to damaging GDS-2000.
Do not discharge static electricity to GDS-2000.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not perform measurement at power source
and building installation site (Note below).
Do not disassemble GDS-2000 unless you are
qualified.
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. GDS-
2000 falls under category II.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.

SAFETY INSTRUCTIONS
7
Power Supply
WARNING
AC Input voltage: 100 ~ 240V AC, 48 ~ 63Hz
The power supply voltage should not fluctuate
more than 10%.
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.
Fuse
WARNING
Fuse type: T2A/250V
Make sure the correct type of fuse is installed
before power up.
To ensure fire protection, replace the fuse only
with the specified type and rating.
Disconnect the power cord before fuse
replacement.
Make sure the cause of fuse blowout is fixed
before fuse replacement.
Cleaning GDS-
2000
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemical containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: ≤80%, 40°C or below
≤45%, 41°C~50°C
Altitude: < 2000m
Temperature: 0°C to 50°C

GDS-2000 Series User Manual
8
(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees
and their requirements as follows. GDS-2000 falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Storage Temperature: -10°C~60°C, no
condensation-
Relative Humidity: 93% @ 40°C
65% @ 41°C ~60°C
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

SAFETY INSTRUCTIONS
9
Power cord for the United Kingdom
When using GDS-2000 in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow: Earth
Blue: Neutral
Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with the
colours marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth
terminal marked with the letter E or by the earth symbol or coloured
Green or Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is
marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact
the supplier.
This cable/appliance should be protected by a suitably rated and approved
HBC mains fuse: refer to the rating information on the equipment and/or
user instructions for details. As a guide, cable of 0.75mm2 should be
protected by a 3A or 5A fuse. Larger conductors would normally require 13A
types, depending on the connection method used.
Any moulded mains connector that requires removal /replacement must be
destroyed by removal of any fuse & fuse carrier and disposed of
immediately, as a plug with bared wires is hazardous if a engaged in live
socket. Any re-wiring must be carried out in accordance with the
information detailed on this label.

GDS-2000 Series User Manual
10

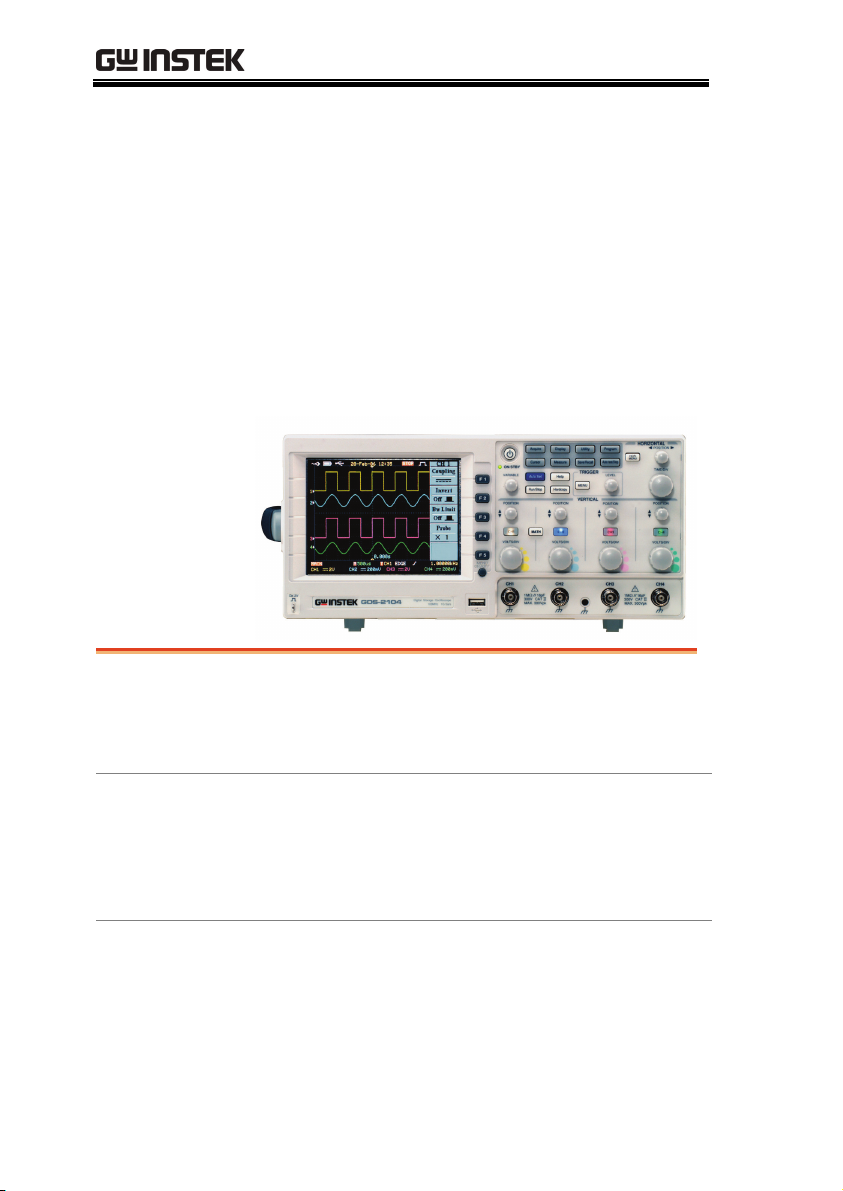

GETTING STARTED
This chapter describes GDS-2000 in a nutshell,
including its main features and front / rear panel
introduction. After going through the overview,
follow the Set Up section to properly set up
operation environment.
GDS-2000 series
overview
Series lineup ...................................................11
Main Features..................................................12
Package Contents ............................................13
Appearance GDS-2064/2104/2204 Front Panel....................14
GDS-2062/2102/2202 Front Panel....................14
Rear Panel .......................................................18
Display ............................................................20
Set Up Tilt stand.........................................................22
Power up .........................................................23
First Time Use.................................................24

GETTING STARTED
11
GDS-2000 Series Overview
Series lineup
GDS-2000 series consists of 6 models, divided into 2-channel and 4-
channel versions.
Model name Frequency
bandwidth
Input
channels
Ext. trigger
input
Advanced
delay trigger
GDS-2062 60MHz 2 Yes Yes
GDS-2102 100MHz 2 Yes Yes
GDS-2202 200MHz 2 Yes Yes
GDS-2064 60MHz 4 No No
GDS-2104 100MHz 4 No No
GDS-2204 200MHz 4 No No

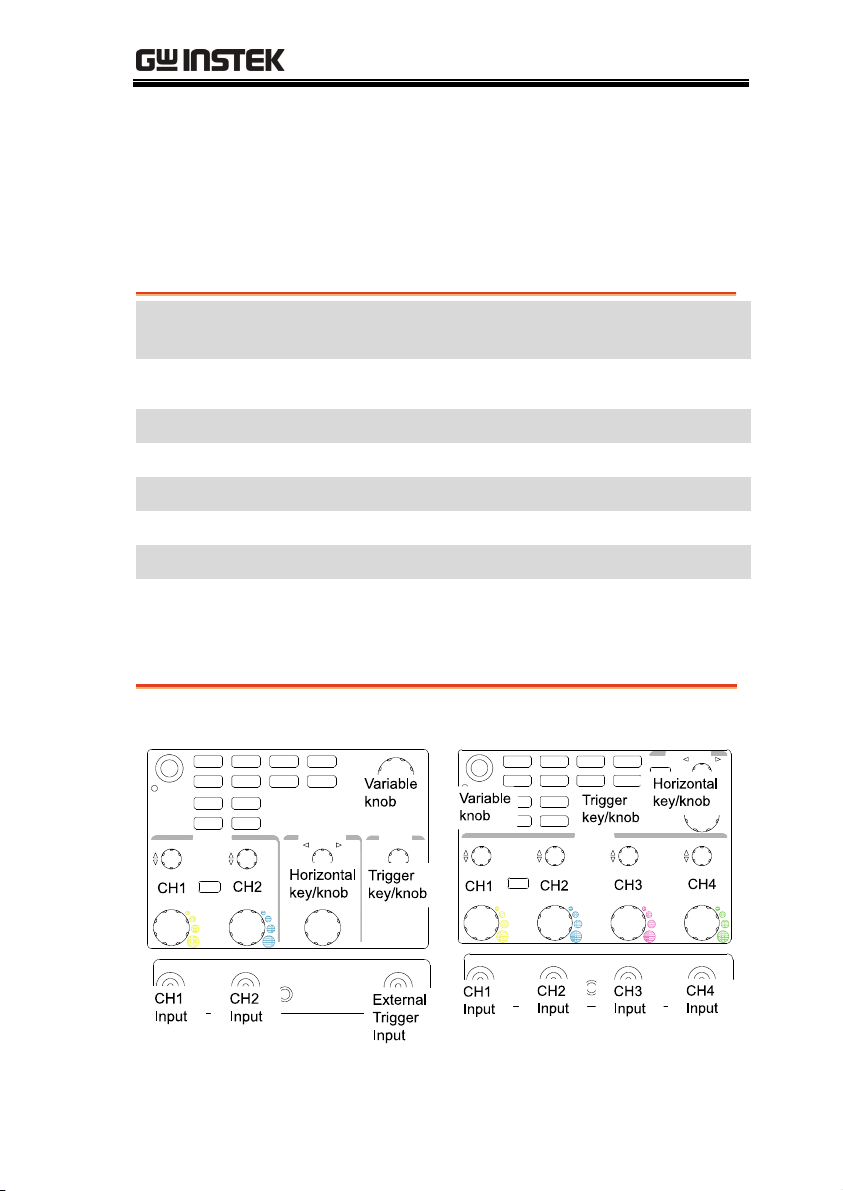

The differences between 2 and 4 channel model appearance are in
the horizontal key, trigger key, variable knob, and external trigger
input layout.
2-Channel model 4-Channel model

GDS-2000 Series User Manual
12
Main Features
Performance High sampling rate: up to 1GS/S real-time,
25GS/s equivalent-time
Deep memory: 25k points record length
Minimum 10ns peak detection
Feature Wide selection range: 60MHz to 200MHz
bandwidth, 2 or 4 channels
Powerful display: 5.6 in. color TFT, wide
viewing angle, 8x12 divisions waveform
support
Battery operation
Automatic measurements: maximum 27 types
FFT analysis
Triggers: Edge, Video, Pulse Width
Advanced Delay trigger (for 2CH model only)
Program and play mode
Color printout of display contents
Go-No Go test
Built-in Help
Interface USB host port: front and rear panel, to printers
and storage devices
USB slave port, RS-232C port, GPIB port
(option): for remote control
USB slave port for PC software connection
Calibration output
Go-No Go output
External trigger input (for 2CH model only)

GETTING STARTED
13
Package Contents
Check the contents before using GDS-2000.
Opening the box
Contents Main unit
Probe set
GDS-2062: GTP-060A x 2
GDS-2064: GTP-060A x 4
GDS-2102: GTP-100A x 2
GDS-2104: GTP-100A x 4
GDS-2202: GTP-250A x 2
GDS-2204: GTP-250A x 4
Power cord
User manual (this document)
Note For detailed specification of probe, see page169.
Program manual, PC software, and USB driver
are downloadable from GWInstek website. Visit
www.gwinstek.com , GDS-2000 corner.

GDS-2000 Series User Manual
14
Appearance
GDS-2064/2104/2204 Front Panel
GDS-2062/2102/2202 Front Panel

GETTING STARTED
15
LCD display TFT color, 320 x 234 resolution, wide angle view
LCD display.
F1 ~ F5 function
keys Activates the functions which
appear on the left side of the LCD
display.
Variable knob
Increases/decreases value or
moves to the next/previous
parameter.
On/Standby key
Switches between the power On
state (green indicator) and standby
state (red indicator). For power up
sequence, see page23.
Acquire key Configures acquisition mode
(page85).
Display key Configures display settings
(page91).
Utility key Configures or shows hardcopy
(page126), printer configuration
(page146), interface (page150),
system info (page116), date/time
(page117), menu language
(page116), Go-No Go (page69),
calibration (page158), and probe
compensation (page159).
Hardcopy key Prints out display image (page146)
or transfers data to USB flash
drive (page126).
Program key +
Auto test key
Edits, runs, and stops program
operation (page78).

GDS-2000 Series User Manual
16
Cursor key Configures and runs cursor
measurements (page60).
Measure key Configures and runs automatic
measurements (page55).
Help key Shows Help contents on the LCD
display (page46).
Save/Recall key Saves and recalls waveform,
image, and panel setup (page119).
Auto Set key Finds signals and sets the
appropriate horizontal / vertical /
trigger settings (page49).
Run/Stop key Freezes (Stop) or continues (Run)
signal acquisition (page50).
Trigger menu key Configures trigger settings
(page106).
Trigger knob
Sets trigger level (page106).
Horizontal menu
key Configures horizontal view
(page95).
Horizontal
position knob
Sets the horizontal position of
waveforms (page95).
Time/Div knob
Selects the horizontal scale
(page96).

GETTING STARTED
17

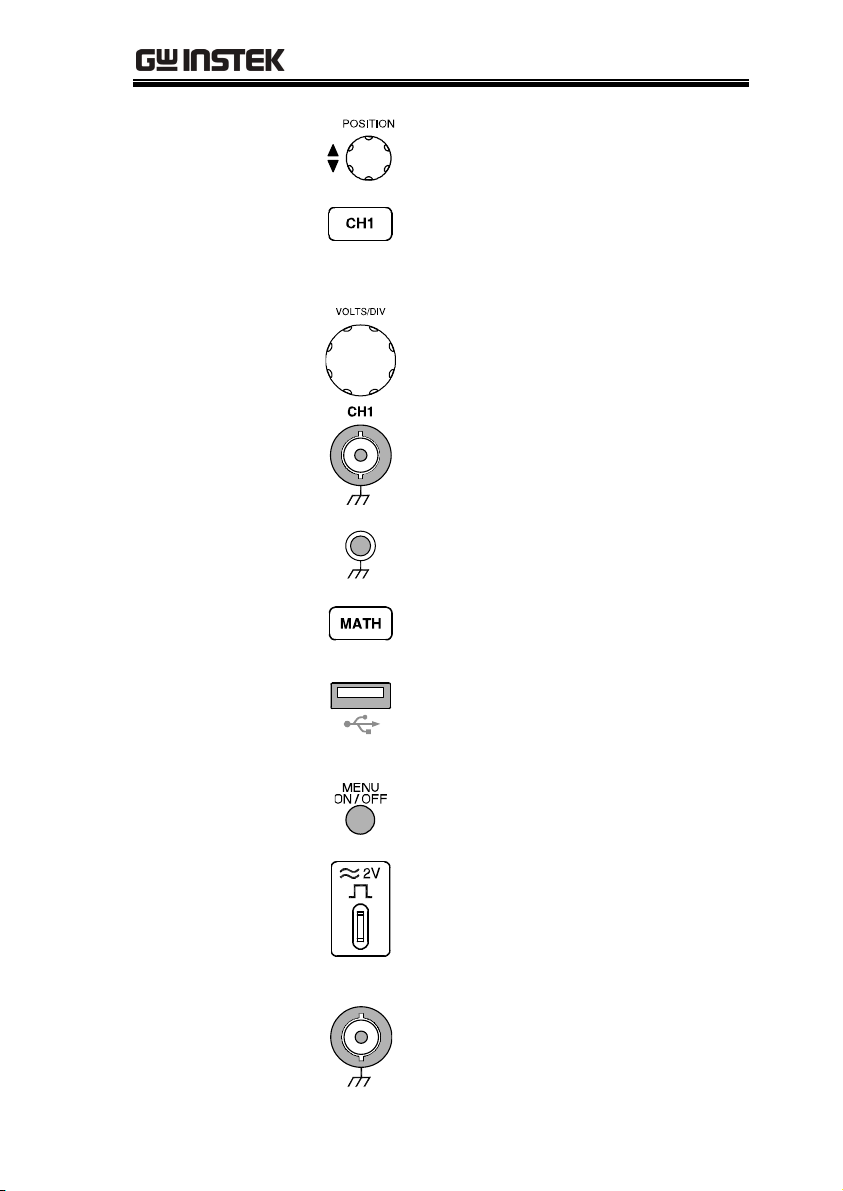

Vertical position
knob
Sets the vertical position of
waveforms (page102).
Channel menu
key Configures the vertical scale and
coupling mode for each channel
(page102).
Volts/Div knob
Selects the vertical scale (page102).
Input terminal
Accepts input signals. Input
impedance: 1MΩ±2%.
Ground terminal
Accepts the DUT ground lead for
common ground.
Math key Configures and runs math
operation (page64).
USB host port
TypeA, 1.1/2.0 compatible. Prints
out display image (page146) or
transfers data (page119).
Menu On/Off key
Shows or hides menu in the LCD
display (page94).
Probe
compensation
output
Outputs 2Vp-p, square signal for
probe compensation (page159) or
demonstration. Can be used for
generic purpose (page53) as well.
External trigger
input
EXT TRIG
For 2ch model only. Accepts
external trigger signal (page106).
Input impedance: 1MΩ±2%.

GDS-2000 Series User Manual
18
Rear Panel
Power switch
Power cord
socket
Fuse socket
Power switch turns the main power
On ( ) / Off ( ).
Power cord socket accepts AC
mains, 100 ~ 240V, 50/60Hz.
Fuse socket holds AC main fuse,
T2A/250V.
For power up sequence, see page23.
For fuse replacement procedure, see
page164.
RS232C port
Accepts DB-9 RS-232C connector
for remote control (page151).

GETTING STARTED
19
GPIB port
(optional) Accepts 24 pin male GPIB connector
for remote control (page153).
Battery packs
(optional)
Holds 2 packs of Li-Ion battery for portable usage
(page156).
USB slave port
Accepts typeB connector for remote
control (page150) or PC software
connection. USB 1.1/2.0 full speed
compatible.
USB host port
Accepts typeA connector for
display image printout (page146) or
data transfer (page119).
Simultaneous use with the front
panel host port is not allowed.
TypeA, 1.1/2.0 full speed
compatible.
Go-No Go output
Outputs Go-No Go test result
(page69) as 10us pulse signal.
Calibration
output
Outputs the signal for vertical scale
accuracy calibration (page158).

GDS-2000 Series User Manual
20

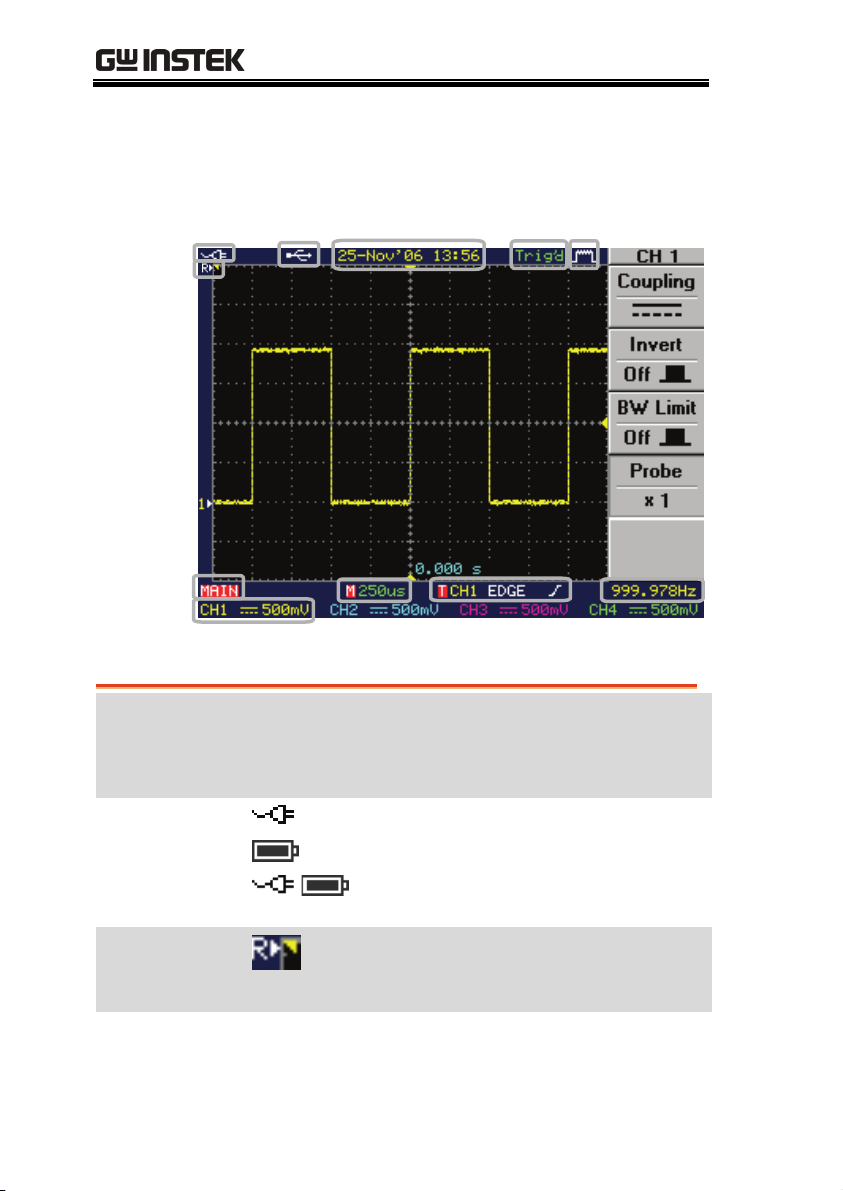

Display
Power
source
Display
mode
Waveform
Interface Date/Time o
r
Memory Bar
Trigger
status
Acquisition
mode
Channel
status
Timebase Trigger
configuration
Waveform
frequency
Recall
Waveforms Shows input signal waveforms.
Channel 1: Yellow Channel 2: Blue
Channel 3: Pink Channel 4: Green
Power source AC main is the source.
Battery (page156) is the source.
AC main is the source: battery is
installed as well.
Image recall The “R” indicator shows that the
display shows pre-recorded image,
not signal waveform.
Interface Shows the active interface for remote connection
(page149) and PC software connection.
