Part1 General Information
1.Features..................................................................................................1
1.1 Energy Saving Technology................................................................................................................ 1
1.2 Convenience And Comfort................................................................................................................. 2
1.3 Reliable & Stable ............................................................................................................................... 4
1.4 Intelligent Control............................................................................................................................... 5
2.External Appearance .............................................................................6
2.1 Outdoor unit.................................................................................................................................... 6
2.2 Indoor units..................................................................................................................................... 6
3.Nomenclatures.......................................................................................7
3.1 Outdoor Unit....................................................................................................................................... 7
3.2 Indoor unit.......................................................................................................................................... 7

AUX DC inverter ARV individual series
3

AUX DC inverter ARV individual series
1
1. Features
1.1 Energy Saving Technology
Innovation technique for full DC inverter compressor
High-performance, low-sound DC inverter compressor operates at a faster frequency, reducing start-up
time. This helps the unit to bring the room temperature up to the set level quickly.
Large capacity DC inverter compressor
The products adopts larger capacity DC compressor, so the piping system can be simple, the wielding
points can be less, and the possibility of leakage can below.

AUX DC inverter ARV individual series
2
Optimized designed heat exchanger.
Double C-shape heat exchanger combined, large heat exchange area
and high performance, enhance the efficiency of the system.
Compact structure and space saving.
1.2 Convenience And Comfort
Wide operation range
No matter the ambient temperature is as high as 52℃in hot summer or -20℃in cold winter, the system
can operate perfectly and supply comfortable environment for users.
Wide operation voltage range
Normally the voltage divination of the power supply is around ±10%, ARV Individual Series can operate
within ±15%. Especially in the place with unstable power supply, it is useful and effective.
Auto addressing
The outdoor units can send address to all the indoor units in the system
automatically, more convenient and saving the installation time.
The outdoor unit can monitor connected indoor unit quantity in real time
and stop for protection automatically when an error occurs.

AUX DC inverter ARV individual series
3
Non-polarity communication
2-core shielded signal wire and non-polarity communication between outdoor and indoor unit, easy
installation and make the system more reliable.
Extend pipe length and height
Thanks to DC inverter control technology, it is possible to design a system
with longer piping length and higher level difference, makes the system more
flexible and suitable for most types of buildings.
Max. total piping length----------------------------------------1000m
Max. actual piping length---------------------------------------190m
Max. level difference between IDU~IDU---------------------30m
Max. level difference between ODU~IDU--------------------90m
Max. piping length from 1st branch to the farthest IDU---90m
Different operation modes
Differentoperation mode for various applications. Users can change the mode through the switch on the
outdoor PCB, which is easy operation.
Heating priority: System will work in heating mode only.Other mode demand will no response
Cooling priority: System will work in cooling mode only.Other mode demand will no response
First on priority: The first start indoor unit operation mode will decide system operation, others different
demand will no response.
Majority priority: System operation mode is decided by majoritydemand.
Silent operation
By using optimized fan blades and the computational
Fluid Dynamics technology, the product is equipped with
the night low-noise operation function. Provide more
quiet operation during the night. Minimum operation
noise only 45dB(A)

AUX DC inverter ARV individual series
4
Night silent operation ( Compare with normal operation, silent operation noise reduce 12dB(A)）
VIP design
Special VIP control function, the VIP room will
decide the whole system operation mode, prior to
the other mode or economic locking function, ensure
the priority of the important room.
Intelligent defrosting
AUX intelligent defrosting technique extend the
heating operation and decrease the frequency of
defrosting. Result in stable room temperature,
offer comfort life.
1.3 Reliable & Stable
Black box function
The E-rom of the controller can memorize the
operation information 30 minutes before the
malfunction happening. It is useful for engineer on
job site, it can be used as instruction for trouble
shooting.

AUX DC inverter ARV individual series
5
All-around Black box function
The product have some safety protection design as following.
Discharge temperature protection
High/low pressure protection
Drive module protection
Phase sequence protection
Refrigerant lack protection
Four-way valve protection
Indoor unit quantity decreasing alarm function
Compressor over-current protection
1.4 Intelligent Control
Self-diagnosis software
Self-diagnosis software canmonitor the running state of the outdoor and indoor units real time, and
display the malfunction, which is convenient for commissioning and troubleshooting.
Network control
AUX has the independent central control software which can control up to 99 outdoor unit and 1024
indoor unit.
The central control software can be combined with the BMS adapter ,such asBACnet and Modbus
adapter.
1
2
3
4
5
67
Central control software

AUX-DC inverter ARV outdoor unit individual series technical manual
6
2.External Appearance
2.1 Outdoor unit
Capacity（HP）
Model
22
ARV-H615/5R1B
24
ARV-H670/5R1B
26
ARV-H730/5R1B
28
ARV-H780/5R1B
30
ARV-H850/5R1B
32
ARV-H900/5R1B
2.2 Indoor unit
Type
Appearance
Capacity :kW
4-way cassette
compact
2.8
3.6
4.5
5.6
4-way cassette
7.1
8.0
9.0
10.0
11.2
12.5
14.0
Ceiling & Floor
2.8
3.6
4.5
5.6
7.1
8.0
9.0
10.0
11.2
12.5
14.0
Wall mounted
(LH/LI)
2.2
2.8
3.6
4.5
5.6
7.1
Slim Duct
(10/30Pa)
2.2
2.8
3.6
4.5
5.6
7.1
Low ESP Duct
(12/30Pa)
2.2
2.8
3.6
4.5
5.6
7.1
Mid ESP Duct
(50/80 Pa)
4.5
5.6
7.1
8.0
9.0
10.0
11.2
12.5
14.0
15.0
High ESP Duct
(196Pa)
11.2
12.5
14
15
22
28
Fresh Air Unit
22
28
Heat Recovery
Ventilator
Air Volume (m³/h) : 200~5000

AUX-DC inverter ARV outdoor unit individual series technical manual
7

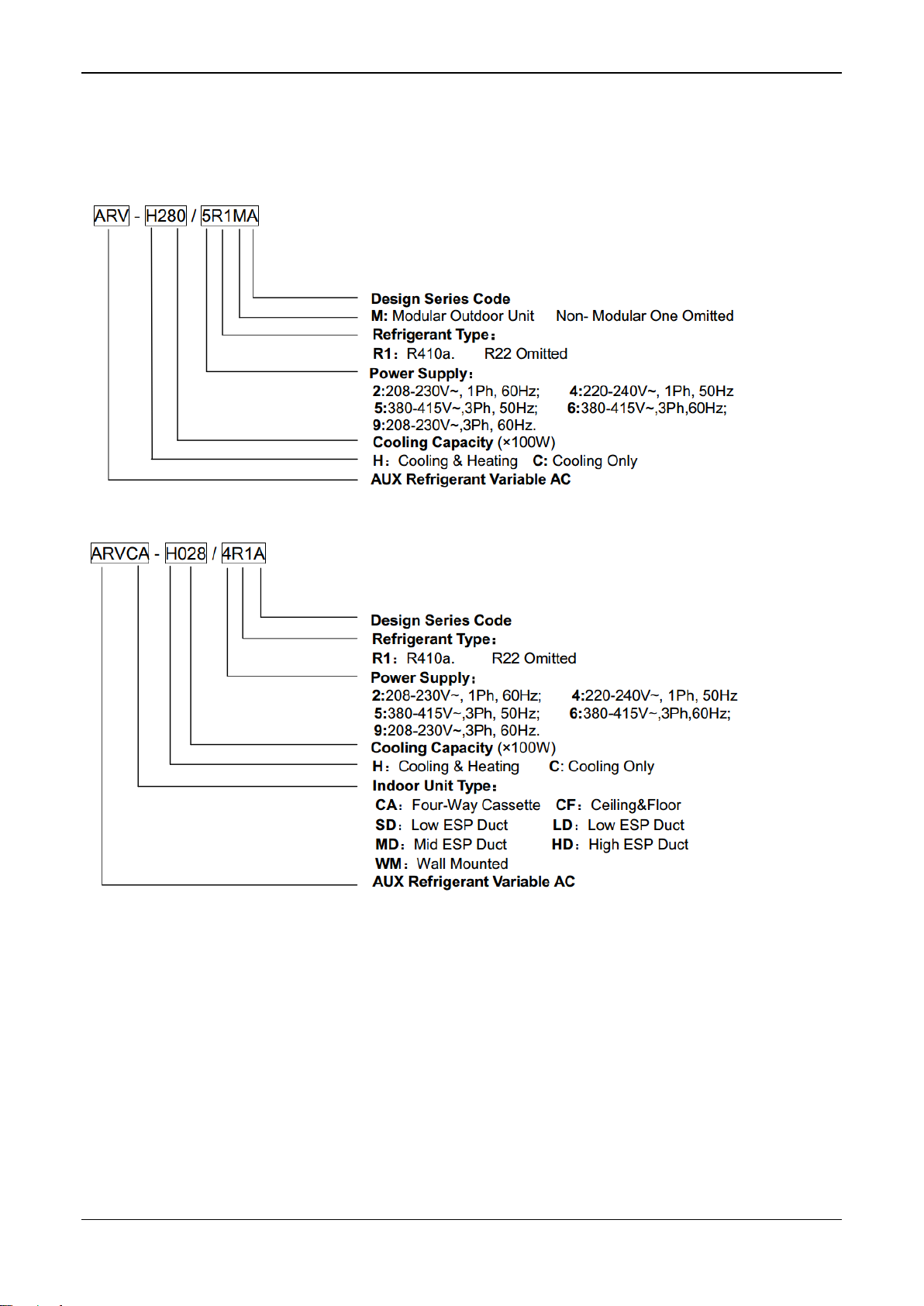

3.Nomenclatures
3.1 Outdoor Unit
3.2 Indoor unit

AUX-DC inverter ARV outdoor unit individual series technical manual
8
Part2 Specification & Performance
1.Specifications ........................................................................................9
2. Dimensions .........................................................................................13
3. Refrigeration cycle diagram............................................................... 15
3.1 Piping diagrams................................................................................................................................15
3.2 Refrigerant circuit..............................................................................................................................19
3.3 Wire Diagrams..................................................................................................................................21
3.4 Operation limits.................................................................................................................................24
3.5 Capacity Table...................................................................................................................................25
3.6 Correction of capacity.......................................................................................................................79
3.7 Control discipline...............................................................................................................................82
3.8 Electric Characteristic.......................................................................................................................87
3.9 Sound level .......................................................................................................................................88
3.10 Explode View ..................................................................................................................................89

AUX-DC inverter ARV outdoor unit individual series technical manual
9
1. Specifications
Model
ARV-H620/5R1IB
ARV-H670/5R1IB
ARV-H730/5R1IB
Factory Model
AL-H220A5/MuR1D
IU（A）
AL-H240A5/MuR1D
IU（A）
AL-H260A5/MuR1D
IU（A）
Factory Code
16105022000091
16105022000091
16105022000090
Power Supply
V~,Hz,
Ph
380~415,50,3
380~415,50,3
380~415,50,3
Cooling
Capacity
kW
61.5
67.0
73.0
Input
kW
18.7
20.1
21.9
EER
W/W
3.3
3.3
3.3
Heating
Capacity
kW
69.0
75.0
81.5
Input
kW
17.8
19.3
20.2
COP
W/W
3.9
3.9
4.0
Max. Input Consumption
W
22.6
26.2
36.2
Max. Current
A
36.2
41.9
57.9
Connected
indoor units
Total capacity
50-130% of outdoor
unit capacity
50-130% of outdoor
unit capacity
50-130% of outdoor
unit capacity
Maximum quantity
36
39
43
DC
Inv.Compressor
Model
ANB66FVAMT
ANB66FVAMT
ANB66FVAMT
Quantity
2
2
2
Type
DC Inv
DC Inv
DC Inv
Brand
Mitsubishi
Mitsubishi
Mitsubishi
Capacity
W
21,500
21,500
21,500
Input
W
6,500
6,500
6,500
Power Supply
Ph-V-
Hz
380~415,50,3
380~415,50,3
380~415,50,3
Operating Frequency
Hz
45~360
45~360
45~360
Crankcase
W
40～80
40～80
40～80
Refrigerant Oil
ml
2300(FVC68D)
2300(FVC68D)
2300(FVC68D)
Outdoor Fan
Motor
Model
YDK750-6A
YDK750-6A
YDK750-6A
Type
AC FAN MOTOR
AC FAN MOTOR
AC FAN MOTOR
Brand
CHANGBA
CHANGBA
CHANGBA
Quantities
2
2
3
Insulation Class
B
B
B
Safe Class
IP44
IP44
IP44
Input Power
W
760
760
760
Output Power
W
450
450
450
Rated Current
A
3.5
3.5
3.5
Capacitor
uF
15
15
15
Speed
r/min
810
810
810
Outdoor Fan
Material
Plastic
Plastic
Plastic
Type
Axial
Axial
Axial

AUX-DC inverter ARV outdoor unit individual series technical manual
10
Fan Quantity
2
2
3
Outdoor Coil
a.Number Of Row
3
3
2
b.Tube Pitch(a)x Row
Pitch(b)
mm
22×19.05
22×19.05
22×19.05
c.Fin Pitch
mm
1.5
1.5
1.5
d.Fin Material
Hydrophilic
aluminum fin
Hydrophilic
aluminum fin
Hydrophilic
aluminum fin
e.Tube Outside
Dia.And Material
mm
φ7，Inner grooved
φ7，Inner grooved
φ7，Inner grooved
f.Coil Length x Height x
Width
mm
2600×1232×57.1
2600×1232×57.1
4128×1232×38.1
g.Heat Exchanging
Area
m2
217.88
217.88
230.62
Air Flow Volume
CFM
12353
12353
16471
m3/h
21000
21000
28000
Noise Level
dB(A)
≤63
≤63
≤65
Dimension(W×D
×H)
Net
mm
1590×765×1600
1590×765×1600
2350×765×1600
Packing
mm
1650×815×1770
1650×815×1770
2410×815×1770
Weight
Net
kg
400
400
500
Gross
kg
420
420
515
Refrigerant
type/Quantity
Type
R410A
R410A
R410a
Charged Volume
kg
18
18
25
Design Pressure
MPa
4.2
4.2
4.2
Refrigerant
Piping
Liquid Side
mm
φ15.88
φ15.88
φ19.05
Gas Side
mm
φ28.6
φ28.6
φ34.9
Max. Length
m
1000
1000
1000
Max. Height
m
≤90m
≤90m
≤90m
Ambient Temp (Cooling/Heating)
℃
-5~52/-20~27
-5~52/-20~27
-5~52/-20~27
Stuffing Quantity
20/40/40H
Unit
7/14/14
7/14/14
4/8/8
Notes:
1. Cooling Capacity: Indoor temperature 27℃DB / 19℃WB; Outdoor temperature:35℃DB / 24℃WB;
2. Heating Capacity: Indoor temperature 20℃DB; Outdoor temperature:7℃DB / 6℃WB;
3. Piping Length:Equivalent piping length:5m,level difference:0m;
4. Anechoic chamber conversion value,measured in test room.During actual operation.These values
are normally somewhat higher as a result of ambient conditions ;
5. The above designs and specifications are subject to change of product improvement without prior
notice.

AUX-DC inverter ARV outdoor unit individual series technical manual
11
Model
ARV-H780/5R1IB
ARV-H850/5R1IB
ARV-H900/5R1IB
Factory Model
AL-H280A5/MuR1D
IU（A）
AL-H300A5/MuR1D
IU（A）
AL-H320A5/MuR1D
IU（A）
Factory Code
16105022000090
16105022000089
16105022000089
Power Supply
V~,Hz,
Ph
380~415,50,3
380~415,50,3
380~415,50,3
Cooling
Capacity
kW
78.5
85.0
90.0
Input
kW
23.7
25.8
27.5
EER
W/W
3.3
3.3
3.3
Heating
Capacity
kW
87.5
95.0
100.0
Input
kW
22.0
24.4
26.3
COP
W/W
4.0
3.9
3.8
Max. Input Consumption
W
36.8
40.1
40.8
Max. Current
A
58.9
64.1
65.3
Connected
indoor units
Total capacity
50-130% of outdoor
unit capacity
50-130% of outdoor
unit capacity
50-130% of outdoor
unit capacity
Maximum quantity
46
50
53
DC
Inv.Compressor
Model
ANB66FVAMT
ANB78FVAMT
ANB78FVAMT
Quantity
2
2
2
Type
DC Inv
DC Inv
DC Inv
Brand
Mitsubishi
Mitsubishi
Mitsubishi
Capacity
W
21,500
25,400
25,400
Input
W
6,500
7,640
7,640
Power Supply
Ph-V-
Hz
380~415,50,3
380~415,50,3
380~415,50,3
Operating Frequency
Hz
45~360
45~360
45~360
Crankcase
W
40～80
40～80
40～80
Refrigerant Oil
ml
2300(FVC68D)
2300(FVC68D)
2300(FVC68D)
Outdoor Fan
Motor
Model
YDK750-6A
YDK750-6A
YDK750-6A
Type
AC FAN MOTOR
AC FAN MOTOR
AC FAN MOTOR
Brand
CHANGBA
CHANGBA
CHANGBA
Quantities
3
3
3
Insulation Class
B
B
B
Safe Class
IP44
IP44
IP44
Input Power
W
760
760
760
Output Power
W
450
450
450
Rated Current
A
3.5
3.5
3.5
Capacitor
uF
15
15
15
Speed
r/min
810
810
810
Outdoor Fan
Material
Plastic
Plastic
Plastic
Type
Axial
Axial
Axial
Fan Quantity
3
3
3
Outdoor Coil
a.Number Of Row
2
2
2

AUX-DC inverter ARV outdoor unit individual series technical manual
12
b.Tube Pitch(a)x Row
Pitch(b)
mm
22×19.05
22×19.05
22×19.05
c.Fin Pitch
mm
1.5
1.5
1.5
d.Fin Material
Hydrophilic
aluminum fin
Hydrophilic
aluminum fin
Hydrophilic
aluminum fin
e.Tube Outside
Dia.And Material
mm
φ7，Inner grooved
φ7，Inner grooved
φ7，Inner grooved
f.Coil Length x Height x
Width
mm
4128×1232×38.1
4128×1232×38.1
4128×1232×38.1
g.Heat Exchanging
Area
m2
230.62
230.62
230.62
Air Flow Volume
CFM
16471
17647
17647
m3/h
28000
30000
30000
Noise Level
dB(A)
≤65
≤65
≤65
Dimension(W×D
×H)
Net
mm
2350×765×1600
2350×765×1600
2350×765×1600
Packing
mm
2410×815×1770
2410×815×1770
2410×815×1770
Weight
Net
kg
500
500
500
Gross
kg
515
515
515
Refrigerant
type/Quantity
Type
R410a
R410a
R410a
Charged Volume
kg
25
25
25
Design Pressure
MPa
4.2
4.2
4.2
Refrigerant
Piping
Liquid Side
mm
φ19.05
φ19.05
φ19.05
Gas Side
mm
φ34.9
φ34.9
φ34.9
Max. Length
m
1000
1000
1000
Max. Height
m
≤90m
≤90m
≤90m
Ambient Temp (Cooling/Heating)
℃
-5~52/-20~27
-5~52/-20~27
-5~52/-20~27
Stuffing Quantity
20/40/40H
Unit
4/8/8
4/8/8
4/8/8
Notes:
1. Cooling Capacity: Indoor temperature 27℃DB / 19℃WB; Outdoor temperature:35℃DB / 24℃WB;
2. Heating Capacity: Indoor temperature 20℃DB; Outdoor temperature:7℃DB / 6℃WB;
3. Piping Length:Equivalent piping length:5m,level difference:0m;
4. Anechoic chamber conversion value,measured in test room.During actual operation.These values
are normally somewhat higher as a result of ambient conditions ;
5. The above designs and specifications are subject to change of product improvement without prior
notice.

AUX-DC inverter ARV outdoor unit individual series technical manual
13
2.Dimensions
ARV-H615/5R1B, ARV-H670/5R1B (Unit: mm)

AUX-DC inverter ARV outdoor unit individual series technical manual
14
ARV-H730/5R1B,ARV-H785/5R1B, ARV-H850/5R1B,ARV-H900/5R1B (Unit: mm)
Notes:
1. Ensure necessary installation and maintenance space.
2. If two rows of outdoor units, we suggest face to face, because easy to maintenance; no air short
circuit.

AUX-DC inverter ARV outdoor unit individual series technical manual
15
3. Refrigeration cycle diagram
3.1 Piping diagrams
ARV-H615/5R1B, ARV-H670/5R1B

AUX-DC inverter ARV outdoor unit individual series technical manual
16

AUX-DC inverter ARV outdoor unit individual series technical manual
17
ARV-H730/5R1B, ARV-H780/5R1B, ARV-H850/5R1B,ARV-H900/5R1B
