AUX Q Series User manual

Q SERIES
ASW-NQ
CL80029
www.auxspain.es

This manual is for professional
maintenance personnel only

CONTENTS
Part I : Technical Information ................................................................................... 1
1. Summary ...................................................................................................................... 1
1-1 Appearance ...............................................................................................................................1
1-2 Model List..................................................................................................................................2
2. Outline Dimension Diagram ........................................................................................ 3
The following data is for reference only and the actual size may vary. ......................... 3
. Specification sheet ........................................................................................................ 4
4. Function and Control .................................................................................................. 5
4-6 Q-Style .......................................................................................................................................5
5. Refrigerant System Diagram .................................................................................... 10
5-1 Cooling Only ........................................................................................................................... 10
5-2 Cooling Heating .................................................................................................................. 11
6. Electrical Part ........................................................................................................... 13
Part II : Installation and Maintenance ................................................................... 14

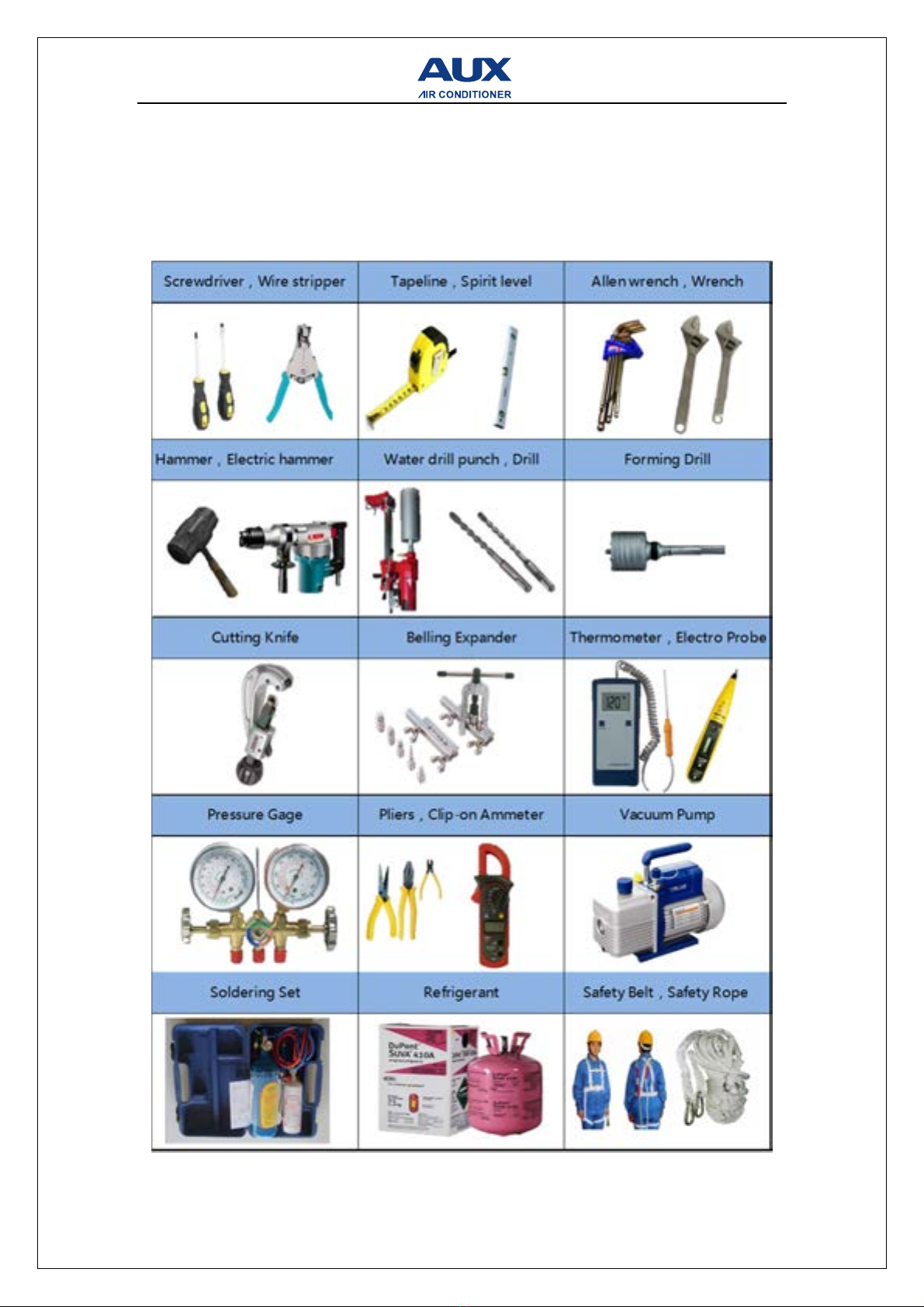

7. Main Tools for Installation and Maintenance .......................................................... 14
8. Installation ................................................................................................................ 15
8-1 Notes for Installation ............................................................................................................. 15
8-2 Installation of Indoor Unit ...................................................................................................... 16
8-3 Installation of outdoor Unit ................................................................................................... 19
8-4 Check after installation and test operation ......................................................................... 22
9. Maintenance .............................................................................................................. 24
9-1 Troubleshooting Guide .......................................................................................................... 24
9-2 Display error code of outdoor unit's indicator lights ............................................................ 56
9-3 Troubleshooting for Normal Malfunction .............................................................................. 58
10. Exploded Views and Parts List ............................................................................... 65
10-1 Indoor Unit ............................................................................................................................ 65
10-2 Outdoor Unit ......................................................................................................................... 66
11. Removal Procedure ................................................................................................. 67
11-1 Indoor Unit ........................................................................................................................... 67
11-2 Outdoor Unit ......................................................................................................................... 72
Appendix ....................................................................................................................... 81
AUX Common Sensor R-T Analysis Table ..................................................................................... 81

1
Part I : Technical Information
1. Summary

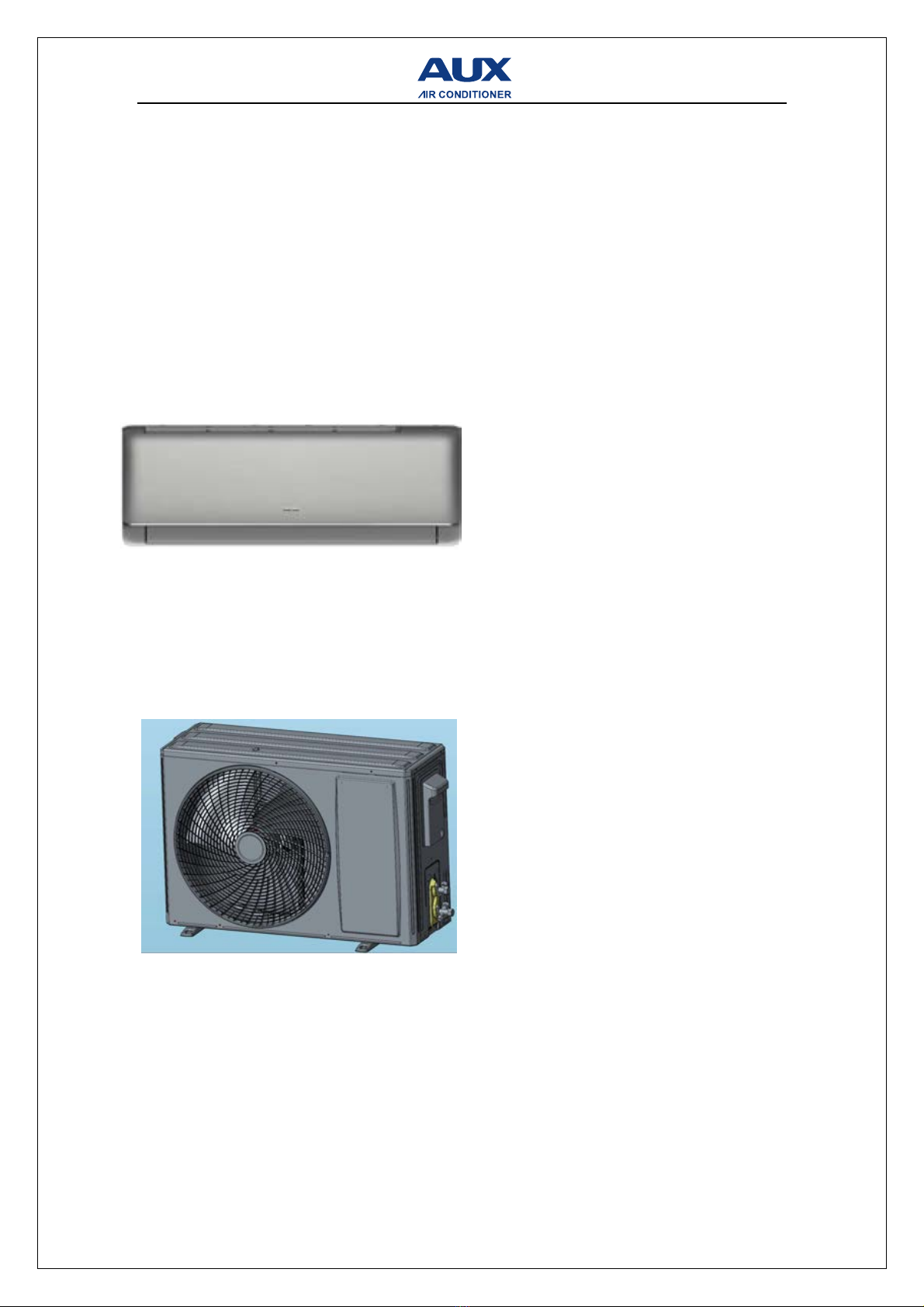

1-1 Appearance
Indoor Unit
QF
Outdoor Unit
12K
Note: The outdoor grille can be replaced.

2
1-2 Model List
NO. MODEL NO. MODEL
1ASW-12-NQ 8
29

3

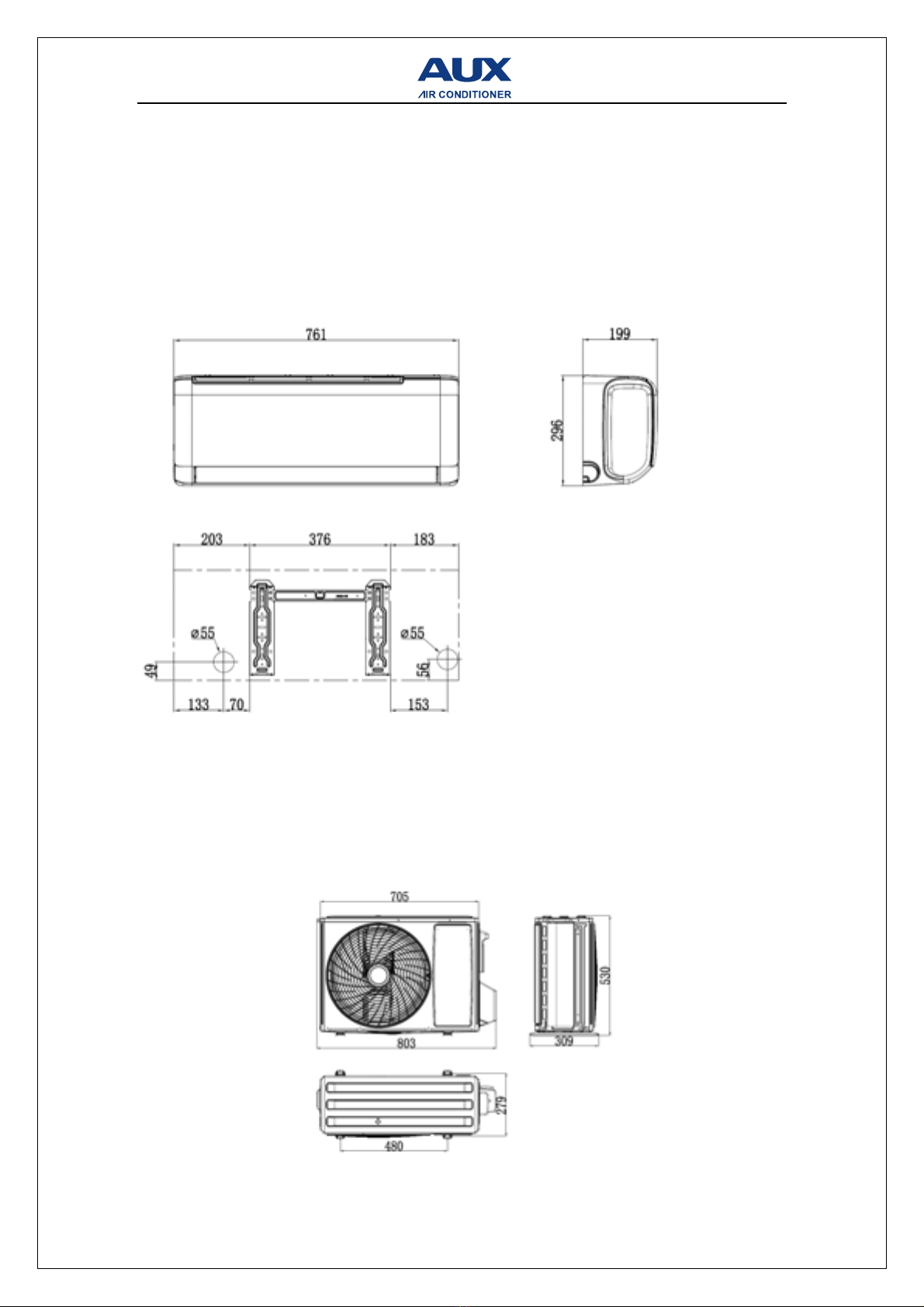

2. Outline Dimension Diagram
The following data is for reference only and the actual size may vary.
2-1 Indoor Unit（Unit: mm）
26Q
2-1 Outdoor Unit（Unit: mm）
1.3PA

4
. Specification sheet
Product Model ASW-12-NQ
Nameplate
Parameter
Rated Capacity
Cooling W 3500
Heating W 3800
Dehumidifying Kg/h /
Rated Power Consumption Cooling W 1180
Heating W 1100
Rated Running Current Cooling A 5.6
Heating A 4.9
Electric heating power W /
Max. Input Power W 1900
Max. Input Current A 9.5
EER Cooling W/W /
COPHeating W/W /
Power supply source V/Ph/Hz 220-240V~/50Hz
Refrigerant
R32
Refrigerant Charged g 560
Max. Discharge Pressure Mpa 4.3
Max. Suction Pressure Mpa 2.5
Air Flow Volume m3/h 600
Noise level dB（A) 56
Noise level dB（A) 64
Indoor unit weight （Net ) Kg 7.5
Outdoor unit weight (Net ) Kg 22.5

5
4. Function and Control
4-6 Q-Style
1) Remote Controller Introductions
● Carefully read this “instructions” for safe and correct use of the
air-conditioner.
● Carefully keep the “instructions” manual as it can be referred to at any time.
● There is a certain model of buttons that are not colored
Buttons description
1. ON/OFF Button

6
* Press this button to turn on/o the unit.
* This will clear the existing timer and SLEEP settings.
2. MODE Button
* Press this button, you can select the running mode as ollows:
Note: HEAT mode is not available or cool only units.
. TIMER Button
* With the unit on, press this button to set o timer or with it o to set on timer.
* Press this button once, the “ON(OFF)” will lash. Press “ + ” or “ - ” to set the
number o hours in which the unit will be turned on/o , with an interval o 0.5 hour,
and a range o 0.5-24 hours.
* Press it again to con irm the setting, the “ON (OFF)” will stop lashing.
* I the “TIMER” button is not pressed within 10 seconds a ter the “ON (OFF)” start
lashing, the timer setting will be exited.
* I a timer setting is con irmed, press this button again will cancel it.
4. HEAT Button
* Press this button to enter HEAT mode.
5. COOL Button
* Press this button to enter COOL mode.
6. SPEED Button
* Press this button, you can select the motor speed as ollows:
Note: Auto air speed is not available in an mode.
Turbo air speed is not available in auto mode.
This button is invalid in dry mode.
7. + & - Button
* Each time the “ + ” is pressed, the temperature setting will increase by 1℃(1℉)
and each time the “ - ” is pressed, it will decrease by 1℃(1℉) .
* The temperature setting ranges rom 16℃ (60℉)～32℃(90℉).
Note: The temperature cannot be set in AUTO or Fan mode.
8. MENU & OK Button
* Press MENU button to enter the unction selection mode. Then press , ,
and to choose the unction which you want. A ter, press OK button, turn on this
unction.
* In unction selection mode, press , , and , the character in LCD will be
lashing i the unction can be selected.
9. L/R SWING Button
* Press this button to activate le t/right swing and press it again to ix the swing

7
position.
10. U/D SWING Button
* Press this button to activate up/down swing and press it again to ix the swing
position.
11. HEALTH
* When the unit is on, press MENU button ,then press , , and to choose
“HEALTH” character, when the “HEALTH” character will blink, and press the “OK”
button to highlight (not highlight) the “HEALTH” character, which will activate
(deactivate) the health unction.
12. SLEEP
* When the unit is on, press MENU button ,then press , , and to choose
the “SLEEP” character, when the “SLEEP” character will blink, and press the “OK”
button to highlight (not highlight ) the “SLEEP” character , which will activate
(deactivate) the unction o sleep mode.
* The unit will exit SLEEP mode a ter 10 hours o continuous operation and restore to
the previous status.
Note: The SLEEP unction cannot be activated in FAN and AUTO mode.
In the sleep mode, the screen o the air-conditioner is o .
1 .DISPLAY
* Press the “MENU” button, then press , , and to choose the “DISPLAY”
character, when the character “DISPLAY” will blink, and press the “OK” button to
activate (deactivate) the unction o screen display.
14.Iclean
* The unit will clean automatically the dusts on the evaporator and dry or blow-dry
the moisture.
* When the air-conditioner is o , press the “MENU” button, then press , ,
and to choose the “iCLEAN” character , when the “iCLEAN” character will
blink, and press the “OK” button to highlight ( not highlight) the character “iCLEAN”,
which will activate (deactivate) the unction o cleaning.
* The cleaning unction will close automatically a ter 30 minutes.
15.Child-lock
* Press the “HEAT” and “MODE” buttons at the same time and hold or at least 3
seconds to activate or deactivate the child-lock unction.
* When the child-lock unction is activated, the remote control will indicate “ ”.
16.Anti-F
* Anti-F unction: When the unit is closed under the modes o cooling, dry or auto
(cooling), it will continue to operate or about 3 minutes to dry the moisture on the
evaporator, so as to prevent the accumulation o bacteria on the evaporator, which

8
causes ungus and strange smell and is harm ul to the health.
* When the unit is o , press the “MENU” button, then , , and to choose
the “Anti-F” character , when the “Anti-F” character will blink, and press the “OK”
button to highlight (not highlight) the “Anti-F” character , which will activate
(deactivate) the Anti-F unction.
17. ℃/℉
* The temperature is displayed by de ault in Celsius
* Press the “COOL” and “HEAT” buttons at the same time above 3 seconds, you can
set the “ ℃” or “ ℉”
Note: Temperature display in Fahrenheit is not available or some models. When
temperature is displayed in Fahrenheit on the remote controller, it might be in Celsius
on the unit, the unction and operation o which will not be a ected.
18. 8°C heating function
* 8°C heating unction is only available or YKR-Q/001E remote control.
* Only in the heating mode in the power-on state, press the “MODE” and “+” buttons
at the same time above 3 seconds to turn on or o the 8°C heating unction.
* A ter turning on the 8°Cheating unction:
a. Press the “HEAT” button, or switch to mode, or select the sleep unction, all can
exit 8°C heating unction.
b. Press the “SPEED”, “+”, “-” button is all non-e ective.
c. Fahrenheit/Celsius switching unction is non-e ective.
d. Turn o and on the unit again, 8°C heating unction is still retained.
2) Usage
★Fix batteries
1. Slide to open the cover according to the direction indicated by the arrowhead.
2. Insert two brand new batteries (7#), and position the batteries to the right electric
poles (+＆-).
3. Put back the cover.
★ Auto operation mode
1. Press the “MODE” button, select the auto operation mode.
2. By pressing the “SPEED” button, you can select the motor speed rom LOW, MID,
HIGH, AUTO.
3. Press the “ON/OFF” button, the air-conditioner starts to operate.
4. Press the “ON/OFF” button again, the air-conditioner stops.

9
Cooling/Heating operation mode
1. Press the “MODE” button, select the Cooling or Heating operation mode.
2. By pressing the “ + ”or “ - ”button, you can set the temperature range rom
16℃ (60℉)～32℃(90℉), the display changes as you touch the button.
3. By pressing the “SPEED” button, you can select the motor speed rom LOW, MID,
HIGH, TURBO ,AUTO.
4. Press the “ON/OFF” button, the air-conditioner starts to operate.
5. Press the “ON/OFF” button again, the air-conditioner stops.
Note: The cold wind type has no heating function.
★ Fan operation mode
1. Press the “MODE” button, select the Fan operation mode.
2. By pressing the “SPEED” button, you can select the motor speed rom LOW, MID,
HIGH.
3. Press the “ON/OFF” button, the air-conditioner starts to operate.
4. Press the “ON/OFF” buttn again, the air-conditioner stops.
Note: In the an mode, the temperature settings is non-e ective.
★ Drying operation mode
1. Press the “MODE” button, select the drying operation mode.
2. By pressing the “ + ”or “ - ”button, you can set the temperature range rom
16℃ (60℉)～32℃(90℉), the display changes as you touch the button.
4. Press the “ON/OFF” button, the air-conditioner starts to operate.
5. Press the “ON/OFF” button again, the air-conditioner stops.
Note: In the dry mode, the speed settings is non-effective.
3) Precautions
● Be ore irst time use o the remote controller, install the batteries and ensure the
“+”and “-” poles are correctly positioned.
● Ensure the remote controller is pointed to the signal receiving window, and that
there is no obstruction in between and the distance is 8m at the maximum.
● Do not let the remote controller drop or ling it at will.
Do not let any liquid in the remote controller.
Do not expose the remote controller directly to the sunlight or excessive heat.
● I the remote controller does not unction normally, remove the batteries or 30
second be ore reinstall them. I that doesn't work, replace the batteries.
● When replacing the batteries, do not mix the new batteries with old ones or mix
batteries o di erent types, which could cause ailure o the remote controller.
● I the remote controller is not to be used or a long period o time, remove the
batteries irst, lest the leakage rom them may damage the remote controller.
● Properly dispose the discarded batteries.
Note:
1. This is a universal remote controller which provide all the unction buttons. Please
understand that some o the buttons may not unction, depending on the speci ic air
conditioner you have purchased. (I a speci ic unction is not available on the air
conditioner, pressing the corresponding button will simply have no respond.)

10
2. HEAT and ELE.H unctions are not available or cool only models, thus these two
buttons do not work correspondingly.

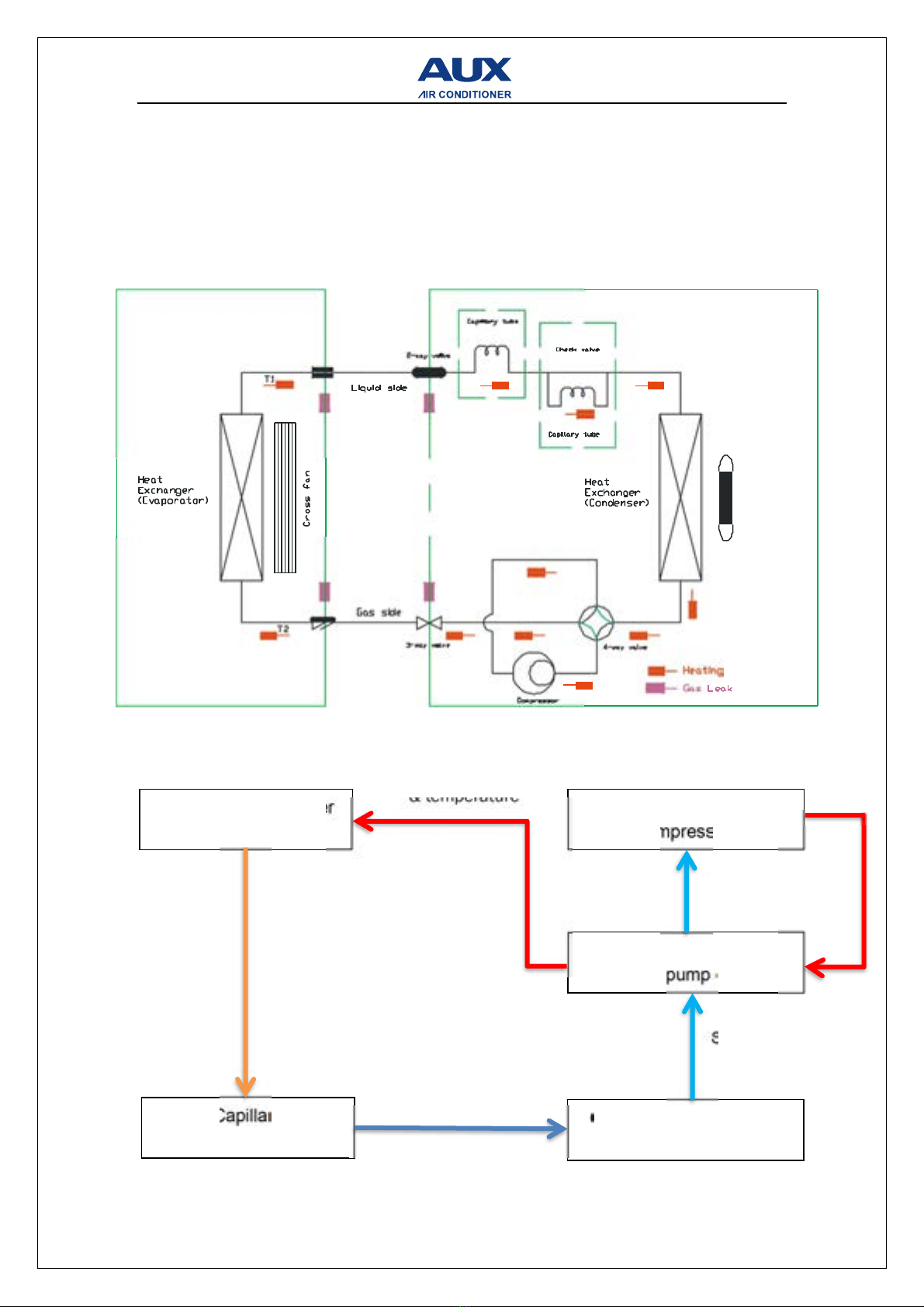

5. Refrigerant System Diagram
5-1 Cooling Only
2Cooling Mode
3 Cooling Cycle
Indoor heat exchanger
(Evaporation)
Compressor
(Compression)
Steam-gas of low pressure
Super cooled liquid of ig
pressure
Liquid of low
pressure
(also a little gas)
Gas of high pressure
temperature
Indoor Unit Outdoor Unit
Outdoor heat exchanger
(Condensation)
Capillary
(Throttling)

11
5-2 Cooling & Heating
4 Cooling Mode
5 Cooling Cycle
Indoor Unit Outdoor Unit
Indoor heat exchanger
(Evaporation)
Compressor
(Compression)
Outdoor heat exchanger
(Condensation)
Capillary
(Throttling)
Steam-gas of low pressure
Super cooled liquid of ig
pressure
Liquid of low
pressure
(also a little gas) Gas of high pressure
temperature
4-way valve
(Heat pump only)

12
6Heating Mode
7 Heating Cycle
Indoor Unit Outdoor Unit
Indoor heat exchanger
(Evaporation)
Compressor
(Compression)
Outdoor heat exchanger
(Condensation)
Capillary
(Throttling)
Steam-gas of low
pressure
Super cooled liquid of ig
pressure
Super cooled liquid of
low pressure
Gas of high pressure
temperature
4-way valve
(Heat pump only)

13
6. Electrical Part

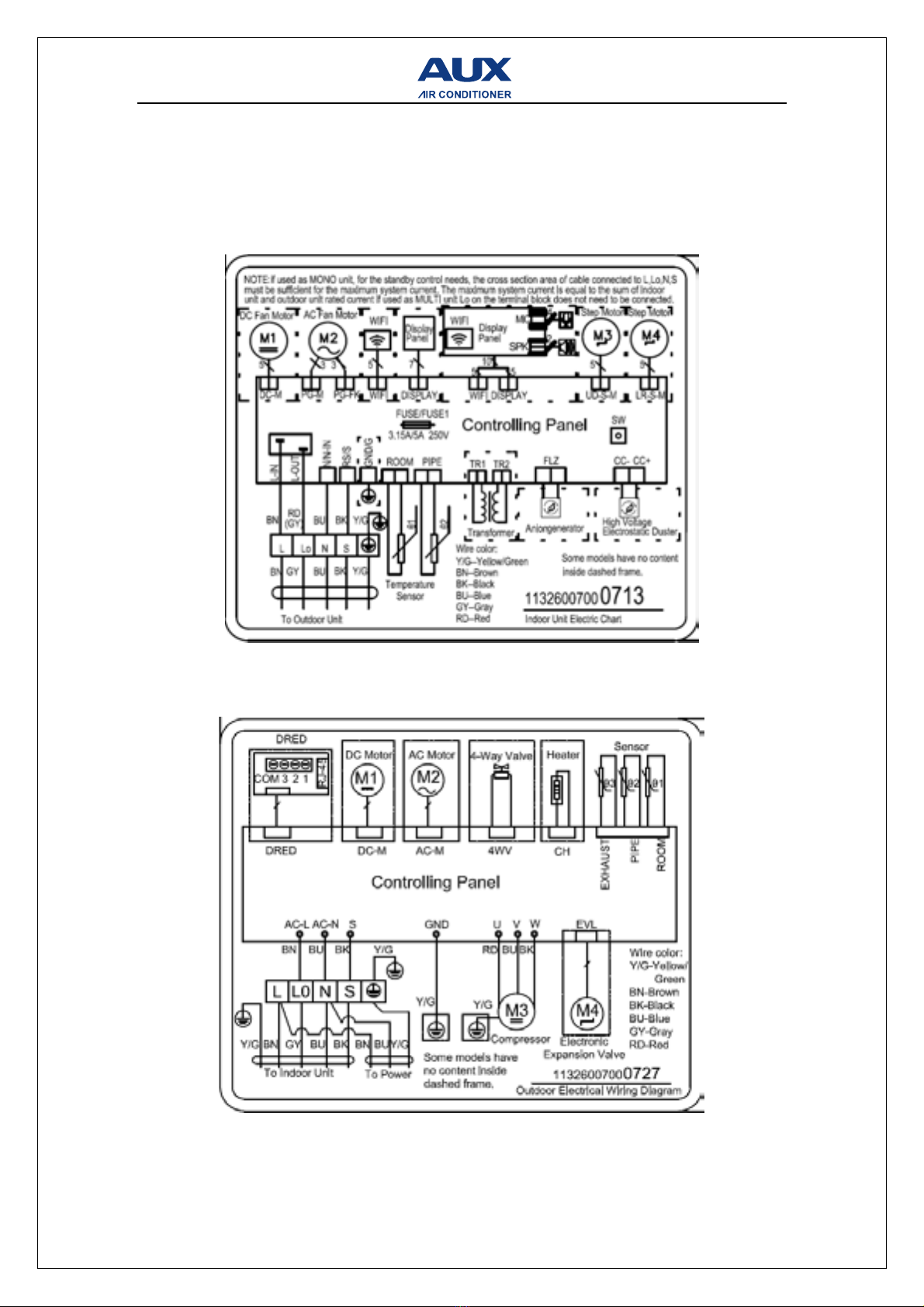

6.1 Wiring Diagram
Indoor Unit
Outdoor Unit

14
Part II : Installation and Maintenance
7. Main Tools for Installation and Maintenance

15
8. Installation
8-1 Notes for Installation
Important Notices
Before installation, please contact with local authorized maintenance center, if
unit is not installed by the authorized maintenance center, the malfunction may
not solved, due to discommodious contact.
The air conditioner must be installed by professionals according to the national
wiring rules and this manual.
To move and install air conditioner to another place, please contact our local
special service center.
Requirements For Installation Position
Avoid places of inflammable or explosive gas leakage or where there are strongly
aggressive gases.
Avoid places subject to strong artificial electric/magnetic fields.
Avoid places subject to noise and resonance.
Avoid severe natural conditions (e.g. heavy lampblack, strong sandy wind, direct
sunshine or high temperature heat sources).
Avoid places within the reach of children.
Shorten the connection between the indoor and outdoor units.
Select where it is easy to perform service and repair and where the ventilation
good.
The outdoor unit shall not be installed in any way that could occupy an aisle,
stairway, exit, fire escape, catwalk or any other public area.
The outdoor unit shall be installed as far as possible from the doors and windows
of the neighbors as well as the green plants.
Requirements for operations at raised height
When carrying out installation at 2m or higher above the base level, safety belts
must be worn and ropes of sufficient strength be securely fasten to the outdoor
unit, to prevent falling that could cause personal injury or death as well as
property loss.
Requirements of the mounting structure
The mounting rack must meet the relevant national or industrial standards in
terms of strength with welding and connection areas rustproofed.
The mounting rack and its load carry surface shall be able to withstand 4 times or
above the weight of the unit, or 200kg, whichever is heavier.
The mounting rack of the outdoor unit shall be fastened with expansion bolt.
Ensure the secure installation regardless of what type of wall on which it is
installed, to prevent potential dropping that could hurt people.
Electrical Safety Requirements
Be sure to use the rated voltage and air conditioners dedicated circuit for the
power supply, and the power cord diameter must meet the national requirements.
Be sure to use the rated voltage and air conditioners dedicated
When the maximum current of air conditioner is ≥16A, it must use the air switch
or leakage protection switch equipped with protection devices.
The normal operating range is 90%-110% of the local rated voltage.

16
The minimum clearance between the air conditioner and the combustibles is 1.5
m.
The power cable enables communication between the indoor and outdoor units.
You must first choose the right cable size before preparing it for connection.
Grounding Requirements
The air conditioner is the type I electrical appliance and must ensure a reliable
grounding.
Do not connect the grounding wire to a gas pipe, water pipe, lightning rod,
telephone line, or a circuit poorly grounded to the earth.
The grounding wire is specially designed and shall not be used for other purpose,
nor shall it be fastened with a common tapping screw.
Others
The connection method of the air conditioner and the power cord and the
interconnection method of each independent element shall be subject to the
wiring diagram affixed to the machine.
The model and rating value of the fuse shall be subject to the silkscreen on
corresponding controller or fuse sleeve.
8-2 Installation of Indoor Unit
8Installation Parts-checking
Packing list o the indoor unit
NO. Name Quantity Unit
1Indoor Unit 1Set
2Remote Controller 1PC
3Batteries(7#) 2PC
4Instructions 1Set
5Drain pipe 1PC
NOTE:
※All accessories shall be subject to actual packaging material, and if there is any
difference, please understand.
9Selection of Installation location

17

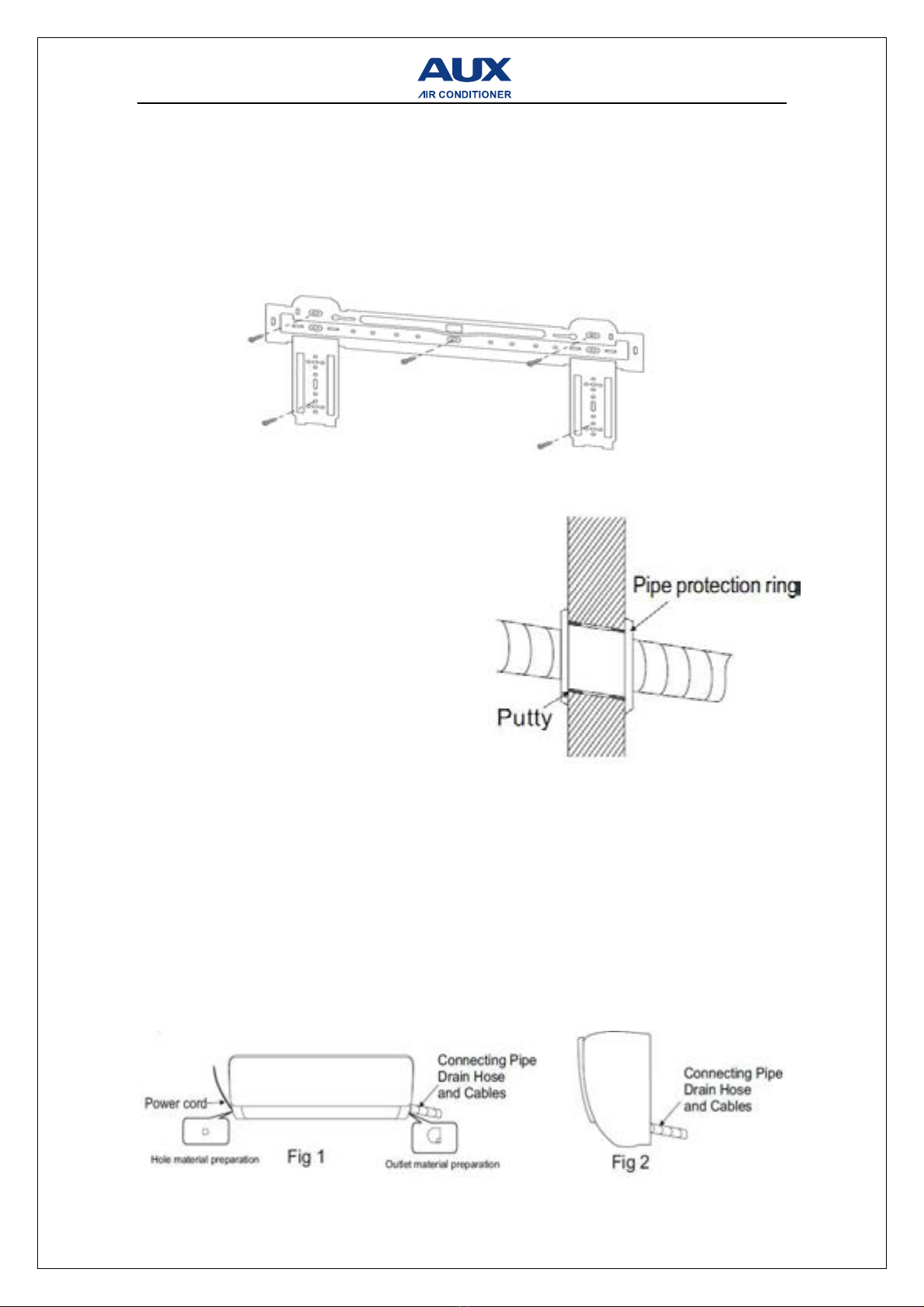

10 Mounting plate
1. The wall for installation of the indoor unit shall be hard and firm, so as to prevent
vibration.
2. Use the "+" type screw to fasten the peg board, horizontally mount the peg board
on the wall, and ensure the lateral horizontal and longitudinal vertical.
3. Pull the peg board by hand after the installation, to confirm whether it is solid.
11 Wall-through Hole
1. Make a hole with an electric hammer or a
water drill at the predetermined position on
the wall for piping, which shall slant
outwardly by 5°-10°.
2. To protect the piping and the cables from
being damaged running through the wall,
and from the rodents that may inhabit in
the hollow wall, a pipe protecting ring shall
be installed and sealed with putty.
Note: Usually, the wall hole is Φ60mm~
Φ80mm. Avoid pre-buried power wire
and hard wall when making the hole.
12 Route of Pipeline
1. Depending on the position of the unit, the piping may be routed sideway from the
left or the right ( Fig 1 ), or vertically from the back( Fig 2 )(depending on the pipe
length of the indoor unit). In the case of sideway routing, cut off the outlet cutting
stock of the opposite side.
2. The power cord may be routed separately from the piping. Cut off the outlet cutting
stock and then run the power cord through the hole, keeping the remaining part as
a protection from rodents.
