AUX EA Series User manual

AUX

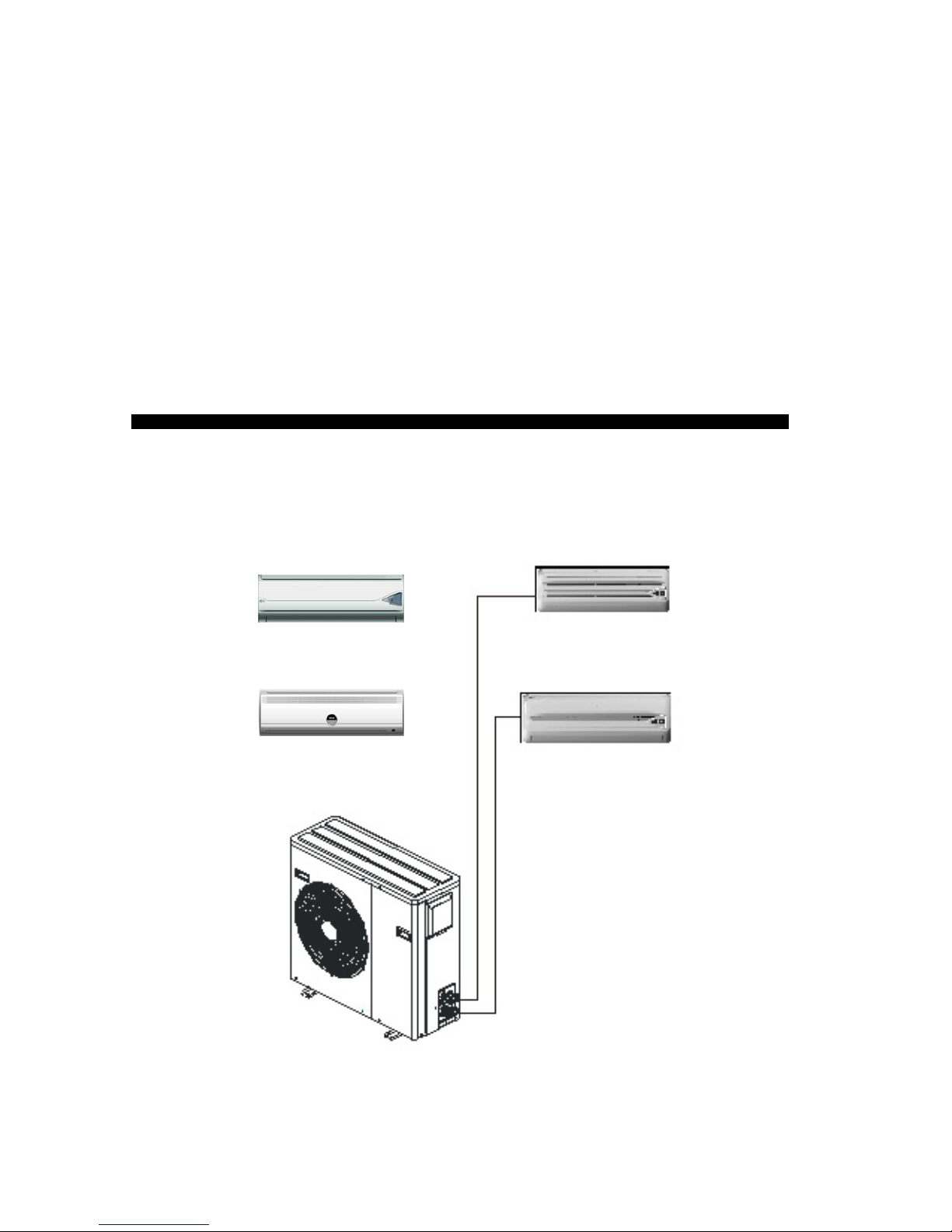

One to Two Split Air Conditioner
Service Manual
EA、EL&HS Series

CONTENTS
Section 1 Important Notice………………………………………………………………..………1
Section 2 Technical Specifications…………………………………………………………..……2

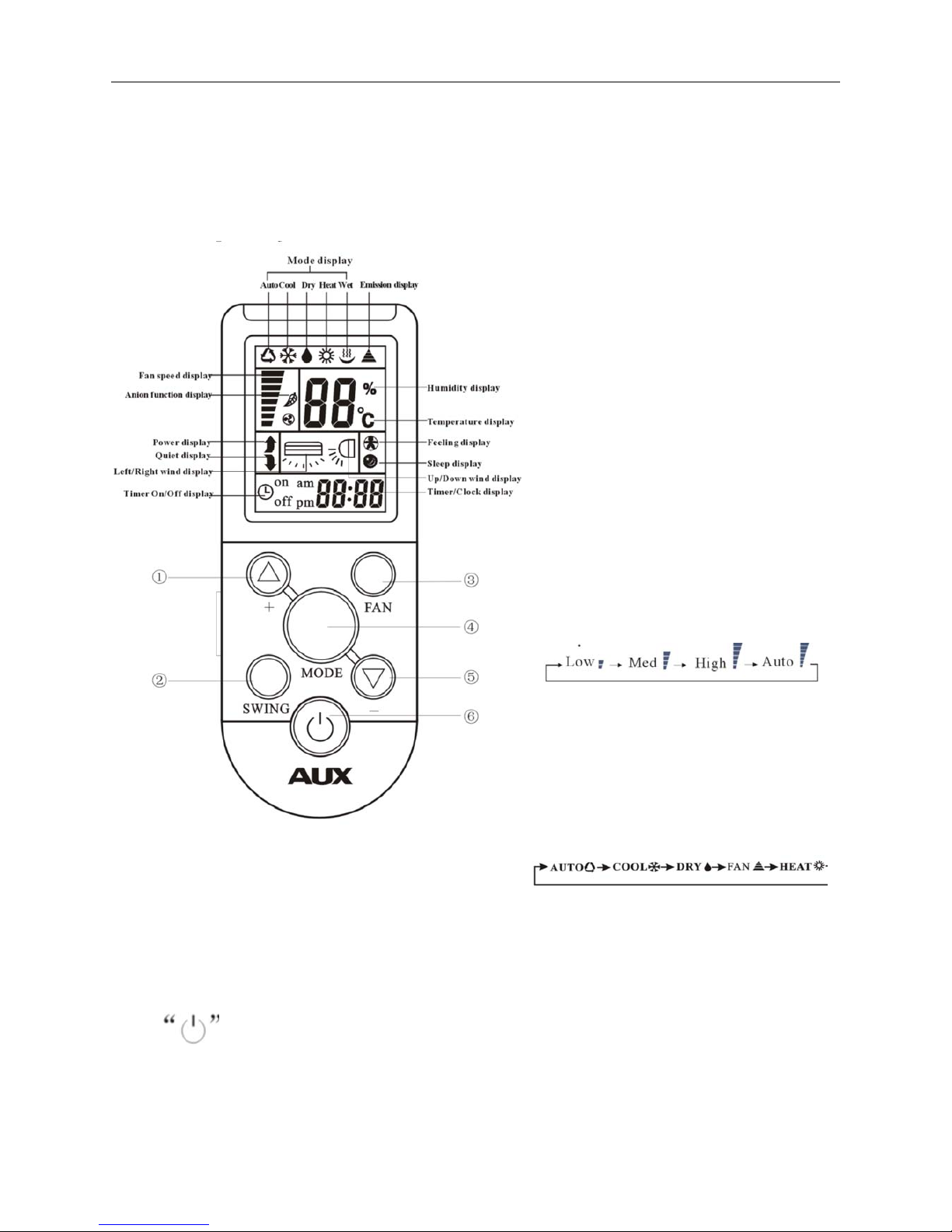

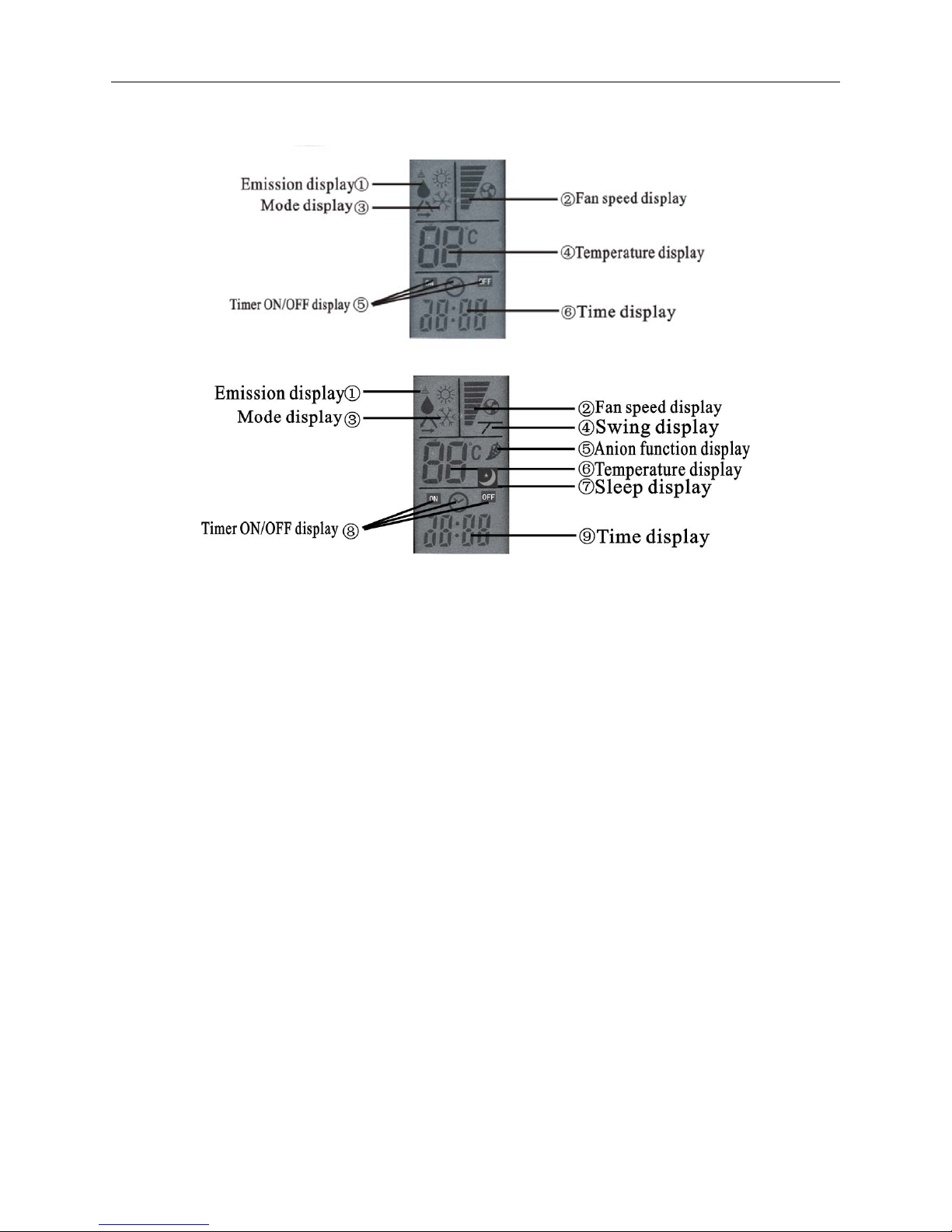

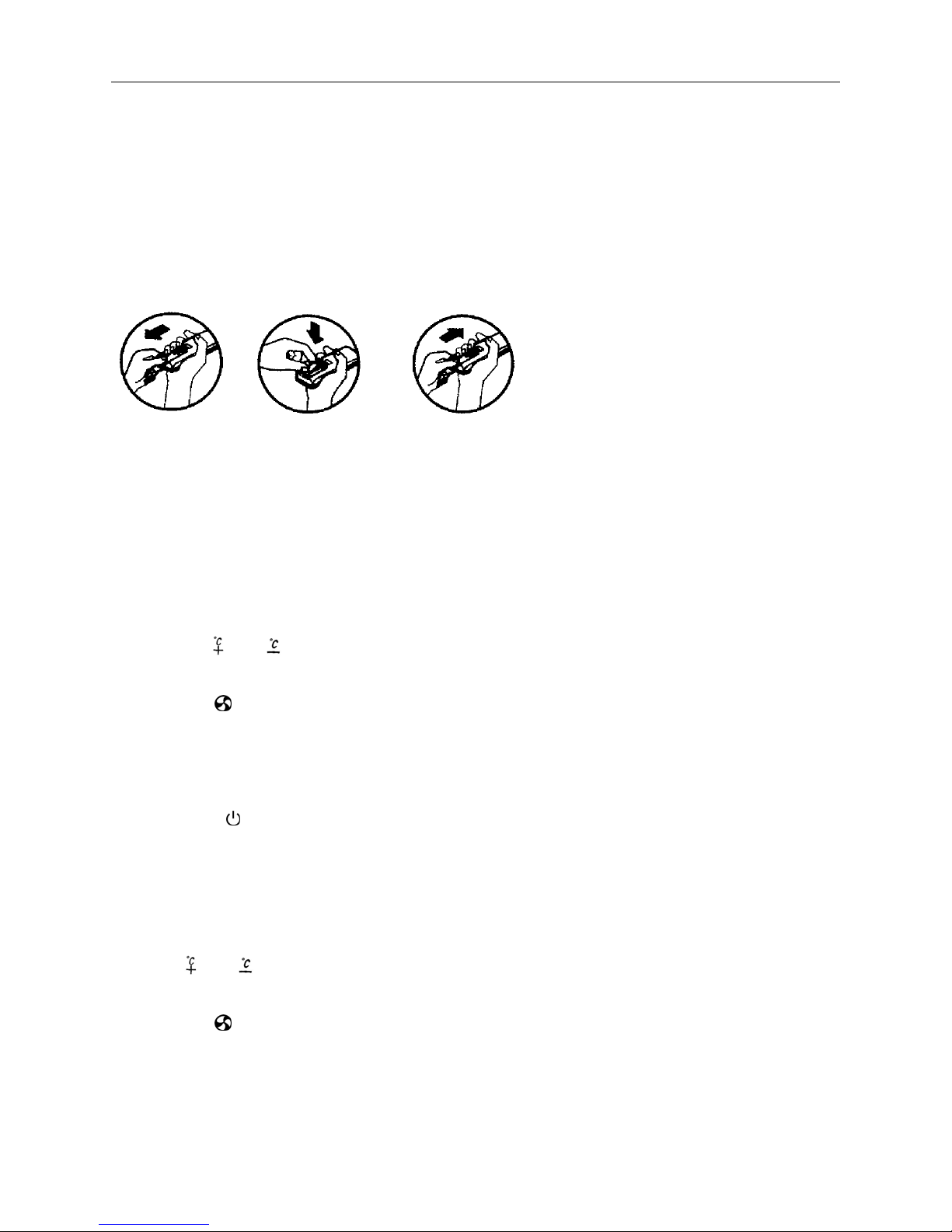

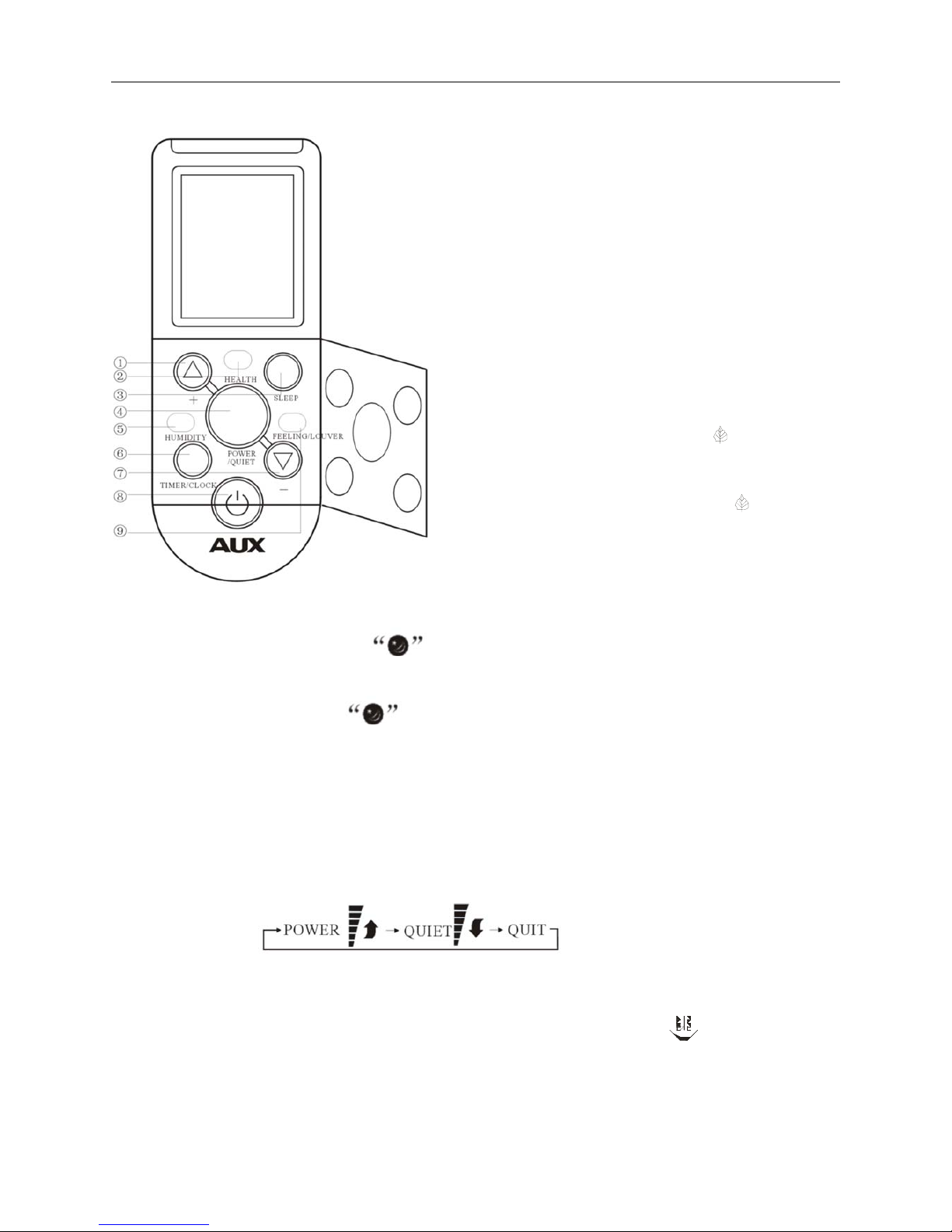

Section 3 remote controller introductions…………………………………………………..……. 9
Section 4 Electronic Controller introductions…………………………………………….……....23
Section 5 The disassembly and the relating attention issues to the part of AUX product……......32
Part 1. Indoor unit……………………………………………………………………………..…....32
Part 2. Outdoor unit……………………………………………….………………….………..........34
Section 6 Trouble shooting Guide……………………………………………………….…….….37
Section 7 Explosion View…………………………………………………………………….…..47
Part 1. Indoor Unit……………………….…………………………………………………….……47
Part 2. Outdoor Unit………………………………………………………………..…………….….51
Section 8 Cooling Cycle Diagram……………………………………………………………..….54
Section 9 Wiring Diagram…………………………………………………………………..…….55
Section 10 Service Record……………………………………………………………………..….57
.

AUX Air Conditioner Service manual
1
Section 1 Important Notice
This service manual is intended for use by individuals possessing adequate backgrounds
of electrical. Electronic and mechanical experience. Any attempt to repair the appliance
may result in personal injury and property damage. The manufacturer or seller cannot
be responsible for the interpretation of this information. Nor can it assume any liability
in connection with its use.
The information. Specifications and parameter are subject to change due to technical
modification or improvement without any prior notice. The accurate specifications are
presented on the nameplate label.
How to order spare parts
To have your order filled promptly and correctly. Please furnish the following
information:
1. Model No. with Indoor or outdoor
2. No. in the Explosion View
3. Part Name
4. The quantity you ordered

AUX Air Conditioner Service manual
2
Section 2 Technical Specifications
ASW-H09A+09A4/HS2R-IV
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 2.5 2.5 /
Dehumidify kg/h 1.0 1.0 /
Heating kw 2.75 2.75 /
Noise level dB(A) 40 40 62
Cooling 2.3 2.3 /
Performance
EER Heating W/W 2.4 2.4 /
Power supply φ-V-Hz 1 / 220-240V~/ 50Hz
Cooling 1060 1050 2030
Rated input Heating W 1070 1060 2000
Cooling 4.60 4.56 8.83
Rated current Heating A 4.65 4.60 8.7
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 21.7 21.7 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R407c/700 R407c/730 /
Type / Rotary Rotary /
Model / PG165X1C-4DFDE2 PG165X1C-4DFDE2 /
Rated input W 955/980 955/980 /
Compressor
Overload
Protector
/ MRA13430-9087
B160-135-241E
MRA13430-9087
B160-135-241E
/
Heat exchanger Row*Hole 2*10 2*10 1*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ2.6*400+φ2.6*450 φ2.6*350+φ2.6*400 /
Air Volume m3/h 420 420 /
Cooling r/min 1080/950/900/800 1080/950/900/800 860Fan Speed
H/M/L/Q Heating r/min 1080/950/900/850 1080/950/900/850 860
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 19 19 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-17 12-17 /
Net dimensions
(W x H x D)
mm 80.2*26.2*16.5 80.2*26.2*16.5 331*846*901
Others
Net weight kg 9.5 9.5 65

AUX Air Conditioner Service manual
3
ASW-H09A+12A4/HS2R-V
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 3.2 2.5 /
Dehumidify kg/h 1.2 1.0 /
Heating kw 3.6 2.75 /
Noise level dB(A) 43 40 62
Cooling 2.3 2.3 /
Performance
EER Heating W/W 2.4 2.4 /
Power supply φ-V-Hz 1 / 220-240V~/ 50Hz
Cooling 1320 970 2150
Rated input Heating W 1360 1070 2300
Cooling 5.74 4.22 9.35
Rated current Heating A 5.91 4.65 10
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 30.5 21.7 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R407c/1100 R407c/980 /
Type / Rotary Rotary /
Model / 4KS225EBB 4PS164EAC /
Rated input W 1300/1325 920/945 /
Compressor
Overload
Protector
/ Inner B165-150-241H /
Heat exchanger Row*Hole 2*12 2*10 2*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ3.0*500+φ3.0*500 φ2.6*350+φ2.6*300 /
Air Volume m3/h 620 420 /
Cooling r/min 1180/1050/950/800 1080/950/900/800 860Fan Speed
H/M/L/Q Heating r/min 1180/1050/950/850 1080/950/900/850 860
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 19 19 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-21 12-17 /
Net dimensions
(W x H x D)
mm 89.2*29.6*17.6 80.2*26.2*16.5 331*846*901
Others
Net weight kg 10.5 9.5 70

AUX Air Conditioner Service manual
4
ASW-H12A+12A4/HS2R-VI
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 3.2 3.2 /
Dehumidify kg/h 1.2 1.2 /
Heating kw 3.6 3.6 /
Noise level dB(A) 43 43 62
Cooling 2.3 2.3 /
Performance
EER Heating W/W 2.4 2.4 /
Power supply φ-V-Hz 1 / 220-240V~/ 50Hz
Cooling 1270 1270 2530
Rated input Heating W 1360 1360 2500
Cooling 5.52 5.52 11
Rated current Heating A 5.91 5.91 10.87
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 30.5 30.5 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R407c/1100 R407c/1100 /
Type / Rotary Rotary /
Model / 4KS225EBB 4KS225EBB /
Rated input W 1300/1325 1300/1325 /
Compressor
Overload
Protector
/ Inner Inner /
Heat exchanger Row*Hole 2*12 2*12 2*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ3.0*500+φ3.0*500 φ3.0*500+φ3.0*500 /
Air Volume m3/h 620 620 /
Cooling r/min 1180/1050/950/800 1180/1050/950/800 860Fan Speed
H/M/L/Q Heating r/min 1180/1050/950/850 1180/1050/950/850 860
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 19 19 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-21 12-21 /
Net dimensions
(W x H x D)
mm 89.2*29.6*17.6 89.2*29.6*17.6 331*846*901
Others
Net weight kg 10.5 10.5 75

AUX Air Conditioner Service manual
5
ASW-H09A+09A4/EA(L)2R1-I
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 2.5 2.5 /
Dehumidify kg/h 1.0 1.0 /
Heating kw 2.75 2.75 /
Noise level dB(A) 38 38 62
Cooling 2.6 2.6 /
Performance
EER Heating W/W 2.6 2.6 /
Power supply φ-V-Hz 1 / 220-240V~/ 50Hz
Cooling 960 960 1820
Rated input Heating W 950 950 1780
Cooling 4.17 4.17 7.91
Rated current Heating A 4.13 4.13 7.74
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 21.7 21.7 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R410a/750 R410a/800 /
Type / Rotary Rotary /
Model / PA108X1C-4FZDE PA108X1C-4FZDE /
Rated input W 885/915 885/915 /
Compressor
Overload
Protector
/ B160-135-241E
MRA13430-9087
B160-135-241E
MRA13430-9087
/
Heat exchanger Row*Hole 2*11 2*11 1*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ2.6*500+φ2.6*800 φ2.6*700+φ2.6*700 /
Air Volume m3/h 420 420 /
Cooling r/min 980/900/850/800 980/900/850/800 860Fan Speed
H/M/L/Q Heating r/min 980/900/850/850 980/900/850/850 860
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 13 13 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-17 12-17 /
Net dimensions
(W x H x D)
mm 745*250*210 745*250*210 331*846*901
Others
Net weight kg 9.5 9.5 65

AUX Air Conditioner Service manual
6
ASW-H09A+12A4/EA（L）2R1-II
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 3.2 2.5 /
Dehumidify kg/h 1.2 1.0 /
Heating kw 3.55 2.75 /
Noise level dB(A) 41 38 62
Cooling 2.6 2.6 /
Performance
EER Heating W/W 2.6 2.6 /
Power supply φ-V-Hz 1 / 220-240V~/ 50Hz
Cooling 1150 900 2010
Rated input Heating W 1220 980 2050
Cooling 5.0 3.91 8.74
Rated current Heating A 5.3 4.26 8.91
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 30.5 21.7 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R410a/1100 R410a /950 /
Type / Rotary Rotary /
Model / PA140X2C-4FT
PA108X1C-4FZDE /
Rated input W 1160/1200 885/915 /
Compressor
Overload
Protector
/ Inner B160-135-241E
MRA13430-9087
/
Heat exchanger Row*Hole 2*13 2*11 2*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ3.0*900+φ3.0*1000 φ2.6*500+φ2.6*800 /
Air Volume m3/h 550 550 /
Cooling r/min 1180/1050/900/800 980/900/850/800 860Fan Speed
H/M/L/Q Heating r/min 1180/1050/900/850 980/900/850/850 860
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 19 13 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-21 12-17 /
Net dimensions
(W x H x D)
mm 745*250*210 745*250*210 331*846*901
Others
Net weight kg 10.5 9.5 70

AUX Air Conditioner Service manual
7
ASW-H12A+12A4/EA（L）2R1-III
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 3.2 3.2 /
Dehumidify kg/h 1.2 1.2 /
Heating kw 3.55 3.55 /
Noise level dB(A) 41 41 62
Cooling 2.6 2.6 /
Performance
EER Heating W/W 2.6 2.6 /
Power supply φ-V-Hz 1 / 220-240V~/ 50Hz
Cooling 1130 1130 2230
Rated input Heating W 1180 1180 2200
Cooling 4.91 4.91 9.7
Rated current Heating A 5.13 5.13 9.57
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 30.5 30.5 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R410a/1150 R410a/1150 /
Type / Rotary Rotary /
Model / ASL135SV-C7LU ASL135SV-C7LU /
Rated input W 1120 1120 /
Compressor
Overload
Protector
/ Inner Inner /
Heat exchanger Row*Hole 2*13 2*13 2*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ3.0*900+φ3.0*1000 φ3.0*900+φ3.0*1000 /
Air Volume m3/h 550 550 /
Cooling r/min 1180/1050/900/800 1180/1050/900/800 860Fan Speed
H/M/L/Q Heating r/min 1180/1050/900/850 1180/1050/900/850 860
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 19 19 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-21 12-21 /
Net dimensions
(W x H x D)
mm 745*250*210 745*250*210 331*846*901
Others
Net weight kg 10.5 10.5 75

AUX Air Conditioner Service manual
8
ASW-12A+12A2/EA（L）2-III
Model No
Items Indoor Unit A
(System A)
Indoor Unit B
(System B)
Outdoor Unit
Type Wall mounted model Heating pump
Cooling kw 3.2 3.2 /
Dehumidify kg/h 1.11.1 /
Heating kw / / /
Noise level dB(A) 41 41 62
Cooling 2.56 2.56 /
Performance
EER Heating W/W 2.56 2.56 /
Power supply φ-V-Hz 1 / 208-230V~/ 60Hz
Cooling 1250 1250 2500
Rated input Heating W / / /
Cooling 5.7 5.7 11.4
Rated current Heating A / / /
Length m 2 2 4.8
Supply cord Class / 250V 10A 250V 10A 400V 25A
Starting Current A 30.5 30.5 /
Electrical Data
Fuse capacity A 3.15 3.15 3.15
Refrigerant/Charge g R22/1280 R22/1280 /
Type / Rotary Rotary /
Model / 2P20S236A1G 2P20S236A1G /
Rated input W 1235 1235 /
Compressor
Overload
Protector
/ Outer Outer /
Heat exchanger Row*Hole 2*13 2*13 2*31
Type Capillary tube
Refrigerating System
Expansion device Specification(mm) φ3.0*1000 φ3.0*1000 /
Air Volume m3/h 520 520 /
Cooling r/min 1180/1050/900/800 1180/1050/900/800 860Fan Speed
H/M/L/Q Heating r/min / / /
Fan type / Cross flow Cross flow Propeller fan
Fan System
Fan motor output W 19 19 68
Connecting
Pipe Gas /Liquid OD(mm)*L(mm) Φ9.52×5000/Φ6.35×5000
Connection
Drainage Pipe OD(mm)*L(mm) Φ14×780
Suitable area m2 12-21 12-21 /
Net dimensions
(W x H x D)
mm 745*250*210 745*250*210 331*846*901
Others
Net weight kg 10.5 10.5 75

AUX Air Conditioner Service manual
9
Section 3 Remote Controller Introductions
Part 1. Model eg: ASW-H09A+09A4/HS2R-IV ASW-H09A+12A4/HS2R-V
ASW-H12A+12A4/HS2R-VI ASW-12A+12A2/EA（L）2-III
a. Names and functions of the button
YK(R)-C/01E YK(R)-C/02JE
Following function description is according to model of YK（R）-C/01E.The number in the bracket is to the
model of YK（R）-C/02JE accordingly
①Sleeping button （⑧）
Used to set or cancel (press it again) sleep mode operation.
②Wind direction adjusting button （①）
Press the button , the horizontal airflow direction plate can adjust automatically . When you
have the desired wind direction . please press it again , the airflow direction plate will stop at the
situation .
③Fan speed selection button （③）
Use to select the indoor fan motor speed :
“Power” , “High” , “Low” , “Mute”（H、M series）
“Auto”、“High”、“Mid”、“Low”（E series）
④Temp reducing button （④）
Press the button once , the setting temperature drops 1℃.
Press the button continuously for more than 1 second . the setting temperature drops at the
speed of 4℃/s . the lowest setting temperature is 16℃.

AUX Air Conditioner Service manual
10
⑤Temp increasing button （⑤）
Press the button once , the setting temperature increases 1℃.
Press the button continuously for more than 1 second . the setting temperature increases at the
speed of 4℃/s . the highest setting temperature is 32℃.
⑥Select button for operation mode （⑥）
Which enables you to select different operation modes . after each pressing , the operation
mode will be changed . It shows in the following display .
Remark: Cold wind type has no heating function
⑦Cancel button （function conformity,⑦accordingly）
YK(R)-C/01E
This button have the function of canceling the timer time .
⑧Set button （function conformity,⑦accordingly）
When press the SET button . the function of adjusting clock time or affirming the timer time can
be set .
⑨Time setting button ⑨
YK(R)-C/01E
These two buttons can adjust clock time and timer time . Press it for 1 to 5 seconds , time display
will change at the change at the speed of three times per second (Unit : 10 minute) . After 5
seconds , it will change at the speed of ten times per second (Unit : 10 minute) .
YK(R)-C/02JE
These two buttons can adjust clock time and timer time . Press it for 1 to 5 seconds , time display
will change at the change at the speed of two times per second. For 5 to 10 seconds , it will
change at the speed of ten times per sec .(Unit : 1 minute). For more than 10 seconds , it will
change at the speed of ten times per second too . (Unit : 10 minute) .
⑩Timing ON/OFF button （⑩）
Set the Timing mode . After each pressing , the mode will be changed . It shows in the following
display .
○
11 ON/OFF button （○ 11 ）
You can start the air-conditioner by pressing this button and stop its operation by pressing it
again .
Model of YK（R）-C/02JE Particular function description as follows
②Health button
Pressing this button , the LCD shows the “ ” symbol , the anion emission function of the ai
r
conditioner is started .
Press the button once again , The “ ” symbol disappears , the function is cancelled at the same
time.
⑦Health button
This button have the function of adjusting the time.

AUX Air Conditioner Service manual
11
b. Display
YK(R)-C/01E
YK(R)-C/02JE
Following function description is according to model of YK（R）-C/01E.The number in the
bracket is to the model of YK（R）-C/02JE accordingly
①Emission display
When the remote controller sends correct and effective signal each time, the sign will glitter once.
②Fan speed display
Press the Fan speed selection button ,the fan speed will display. You can select fan speed from “Feel” ,
“High” , “Low” , “Mute” （H、M series）or“Auto”、“High”、“Mid”、“Low”（E series）.
③Mode display
Press the MODE button, it shows the current operation mode. You can select “Feel” , “Cool” , “Dry” ,
“Fan” , “Heat” operation mode .(Cold wind type has no heating display).
④Temperature display （⑥）
Which displays the setting temperature . In the circulation operation mode ( “FEEL” and “FAN” ) , the
temperature number don’t display.
⑤Timer ON/OFF display （⑧）
Which displays the timer states , “the timer ON” and “the timer OFF” don’t set at the same time.
⑥Time display （⑨）
Show the current clock time .
New adding display programs of YK（R）-C/02JE as follows:
④Swing display
Pressing the SWING button to change the swing angle of louver .
Remarks : it is readable to list all of items in the picture , when the mode operates , only most of items
display on the remote controller.
⑤Anion function display

AUX Air Conditioner Service manual
12
Press the HEALTH button , can choose anions to emit or stop .
⑥Sleep display
This indicate whether the air conditioner is in sleep mode or not.
Remarks : it is readable to list all of items in the picture , when the mode operates , only most of items
c. Application method
Model: YK(R)-C/01E
★Fix batteries
1. Slide open the cover according the direction indicated by arrowhead.
2. Put into two brand new batteries (7#). position the batteries to right electric poles (+&-).
3. Put back the cover.
Make sure to connect the wire to independent power source socket before you use the remote
controller.
Note: the waste battery shall be disposed properly.
★Automatic operation mode
1. Press the MODE button. select the automatic operation mode.
2. Press the “ ” or “ ” button. set the temperature. temperature can be set at 1℃difference range
from 16-32℃.
3. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “Power”. “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “Auto”. “High”. “Mid”. “Low”.
4. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the
Automatic mode.
Press the button again. the air-conditioner stops.
★ Cooling / Heating operation mode (Cold wind type has no heating function)
1. Press the MODE button. select the Cooling or Heating operation mode.
2. Press “ ” or “ ” the button. set the temperature. temperature can be set at 1℃difference range
from 16-32℃.
3. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “Power”. “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “Auto”. “High”. “Mid”. “Low”.

AUX Air Conditioner Service manual
13
4. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the
Cooling or Heating mode.
Press the button again. the air-conditioner stops.
★ Circulation operation mode
1. Press the MODE button. select the Circulation operation mode.
2. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “High”. “Mid”. “Low”.
3. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the
Circulation mode.
Press the button again. the air-conditioner stops.
Remark: In the circulation operation mode. to set the temperature is noneffective.
★ Drying operation mode
1. Press the MODE button. select the dry mode operation.
2. Press “ ” or “ ” the button. set the temperature. temperature can be set at 1℃difference range
from 16-32℃.
3. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the Dry
mode.
Press the button again. the air-conditioner stops.
Remark:
The type of H、M series:
In the dry operation mode. the fan speed goes into “MUTE” automatically.
The type of E series:
In the dry operation mode. the fan speed goes into “LOW” automatically.
★ Clock time setting
1. Pressing the SET button for 3 seconds. the time indicator at present begins to glimmer.
2. Adjust present time through pressing the or button.
3. Pressing the SET button once again. the time setting is finished.
Remark: Time can be regulated only after the timing mode is cancelled.
★ Timer setting
☆Set the “ Timer ON ” ( It is effective only when the air conditioner is shut off ).
1. Press the TIMER button. select the “Timer ON”. the remote controller display “ ” ; “ ON ”
displays intermittently.
2. Adjust time through pressing the or button.
3. Press the SET button then. the setting is finished.
☆Set the “ Timer OFF ” ( It is effective only when the air conditioner is running ).

AUX Air Conditioner Service manual
14
1. Press the TIMER button. select the “Timer OFF”. the remote controller display “ ” ; “ OFF ”
displays intermittently.
2. Adjust time through pressing the or button.
3. Press the SET button then. the setting is finished.
Remark: The remote controller can be set 24 hours.
★ Sleeping operation mode
1. Press the “ ” button. the sleeping indicator light of indoor unit flashes on.
2. After the setting of sleeping mode. the cooling operation enables the set temperature to increase 1℃
after 1 hour and another 1℃automatically after 1 hour.
3. After the setting of sleeping mode. the heating operation enables the set temperature to drop 2℃
after 1 hour and another 2℃automatically after 1 hour.
4. The air-conditioner runs in sleeping mode for 7 hours and stops automatically.
Remark: Press the MODE button or ON/OFF button. the remote controller clears sleeping mode away.
Model: YK(R)-C/01E
★Fix batteries
1. Slide open the cover according the direction indicated by arrowhead.
2. Put into two brand new batteries (7#). position the batteries to right electric poles (+&-).
3. Put back the cover.
Make sure to connect the wire to independent power source socket before you use the remote
controller.
Note: the waste battery shall be disposed properly.
★Automatic operation mode
1. Press the MODE button. select the automatic operation mode.
2. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “Power”. “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “Auto”. “High”. “Mid”. “Low”.
3. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the
Automatic mode.
Press the button again. the air-conditioner stops.
★ Cooling / Heating operation mode (Cold wind type has no heating function)
1. Press the MODE button. select the Cooling or Heating operation mode.
2. Press “ ” or “ ” the button. set the temperature. temperature can be set at 1℃difference range

AUX Air Conditioner Service manual
15
from 16-32℃.
3. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “Power”. “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “Auto”. “High”. “Mid”. “Low”.
4. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the
Cooling or Heating mode.
Press the button again. the air-conditioner stops.
★ Circulation operation mode
1. Press the MODE button. select the Circulation operation mode.
2. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “High”. “Mid”. “Low”.
3. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the
Circulation mode.
Press the button again. the air-conditioner stops.
Remark: In the circulation operation mode. to set the temperature is noneffective.
★ Drying operation mode
1. Press the MODE button. select the dry mode operation.
2. Press “ ” or “ ” the button. set the temperature. temperature can be set at 1℃difference range
from 16-32℃.
3. Press the “ ” button. you can select fan speed.
The type of H、M series:
You can select fan speed from “Power”. “High”. “Low”. “Mute”.
The type of E series:
You can select fan speed from “Auto”. “High”. “Mid”. “Low”.
4. Press the “ ” button. the operation indicator is on. the air-conditioner starts to operate the Dry
mode.
Press the button again. the air-conditioner stops.
★ Clock time setting
1. Pressing the CLOCK button for 5 seconds. the time indicator at present begins to glimmer.
2. Adjust present time through pressing the or button.
3. Pressing the CLOCK button once again. the time setting is finished.
Remark: Time can be regulated only after the timing mode is cancelled.
★ Timer setting
☆Set the “ Timer ON ” ( It is effective only when the air conditioner is shut off ).

AUX Air Conditioner Service manual
16
1. Press the TIMER button. select the “Timer ON”. the remote controller display “ ” ; “ ON ”
displays intermittently.
2. Adjust time through pressing the or button.
3. Press the TIMER button once again. the “ Timer ON ” setting is finished.
☆Set the “ Timer OFF ” ( It is effective only when the air conditioner is running ).
1. Press the TIMER button. select the “Timer OFF”. the remote controller display “ ” ; “ OFF ”
displays intermittently.
2. Adjust time through pressing the or button.
3. Press the TIMER button once again. the “ Timer OFF ” setting is finished.
Remark: The remote controller can only be set 12 hours.
★ Sleeping operation mode
1. Press the “ ” button. the sleeping indicator light of indoor unit flashes on.
2. After the setting of sleeping mode. the cooling operation enables the set temperature to increase 1℃
after 1 hour and another 1℃automatically after 1 hour.
3. After the setting of sleeping mode. the heating operation enables the set temperature to drop 2℃
after 1 hour and another 2℃automatically after 1 hour.
4. The air-conditioner runs in sleeping mode for 7 hours and stops automatically.
Remark: Press the MODE button or ON/OFF button. the remote controller clears sleeping mode away.

AUX Air Conditioner Service manual
17
Part 2. Model eg : ASW-H09A+09A4/EA(L)2R1-I ASW-H09A+12A4/EA(L)2R1-II
ASW-H12A+12A4/EA(L)2R1-III
a. Names and functions of the button
The closing state of remote controller:
①“+” button
This button can set room temperature.
Press it once ,the temperature increases 1
℃.Press it continuously, the temperature
increases at the speed of 4℃/s.
This function is invalid when the
appliance at the Fan and Auto mode.
②“SWING” button
Press the button , the horizontal airflow
direction plate can adjust automatically. When
you have the desired wind direction, please
p
ress it again, the airflow direction plate will
stop at the situation .
③“FAN” button
Use to select the indoor fan motor speed :
“Power” , “High” , “Low” , “Mute”
Remark : The floor standing type select fan
speed only from “Low” to “High” .
④“MODE” button
Which enables you to select different
operation modes . after each pressing , the
operation mode will be changed . It shows in
the following display .
⑤“-” button
This button can set room temperature.
Press it once ,the temperature decreases 1℃.Press it continuously, the temperature decreases at the speed of 4℃
/s.
This function is invalid when the appliance at the Fan and Auto mode.
⑥button
You can start the air-conditioner by pressing this button and stop its operation by pressing it again .

AUX Air Conditioner Service manual
18
The opening state of remote controller:
①“+” button
This button not only can adjust clock time and the time
r
time but also can set room humidity.
Adjusting clock time and timer time
Press it once ,the time increases one minute. Press it for 1 to
3 seconds, time display will increase at the speed of 2min/s.
For 3 to 5 seconds, it will increase at the speed of 10min/s.
For more than 5 seconds, it will increase at the speed o
f
10min/s.
Setting room temperature and room humidity
Press it once ,the humidity increases 5%.
②“HEALTH” button
Press this button ,the LCD shows the
“”
symbol, the
anion emission function of the air conditioner is started.
Press the button once again, The
“”
symbol
disappears, the function is cancelled at the same time.
③“SLEEP” button
Press this button ,the LCD shows the symbol, the sleeping function of the air conditioner is started.
After 7 hours of setting this function ,the air conditioner will be off automatically.
Press the button once again, The symbol disappears, the function is cancelled at the same time.
This function is invalid when the appliance under the Fan mode.
④“POWER” button or “POWER/QUIET” button
★ When it displays “POWER” button :
Press this button, the fan speed reach the highest , press it again it resume the foregoing fan speed.
★ When it displays “POWER/QUIET” button :
Which enables you to select different operation mode , after each pressing , the operation mode will be
changed . It shows in the following display .
This function is only suitable for frequency variable appliance .
⑤“HUMIDITY” button
Only under the mode of Heat and Fan, Press this button once , the LCD shows the symbol, the wetting
function of the air conditioner is started. The initial humidity is 60%. Press the ”+” or “-“ button once , the
humidity increases or decreases 5%. The setting range is 30%~60%.
