Auxx Lift One User manual

AUXXLIFT One
Design and Quality
AUXXLIFT of the USA
All rights reserved
US Patent
Release 9/2021/SW

easy
advanced tough
difficult
easy
advanced tough
difficult
Before YOU start
1. Have you read through the instructions?
2. Do you have all the recommended tools?
3. Do you have somebody assisting you?
4. Have you allocated enough time?
For a professional it takes about 3 hours to install.
What is most important is to follow the instructions
and read everything carefully before you start.
5. You need a good, stable ladder.
6. Don’t use an impact driver.
7. Clean the area before you start.
8. Wear safety glasses!
9. Keep work area clear!
Check measurements during construction.
Make sure that nothing is in the way e.g. windows, doors etc.
10. Does your garage ceiling have or has had termites?
11. Are the joists strong and big enough? (2" x 4" at least)
12. Mounting to a concrete ceiling requires anchors!
13. Has your home been built according to valid standards and guidelines?
14. If you have doubts about the ceiling construction, please ask a specialist!
If you have any problems understanding the instructions or you feel uncomfortable
handling the installation, please ask a handyman or work with a contractor. Call/
write us if you need help or have concerns or questions.
www.auxx-lift.com/installation-help
Help phone: PST 10 am -3 pm 1 805 862 8271
2
!Watch the Video on
www.auxx-lift.com/
installation-help
Watch the videos on
www.auxx-lift.com/
installation-help
Stop

23/32"-18mm
7/16"-11mm
13/32"-10mm
3/16" / 5mm
0.04"X0.1"
1X3mm
#1
3/16" / 5mm

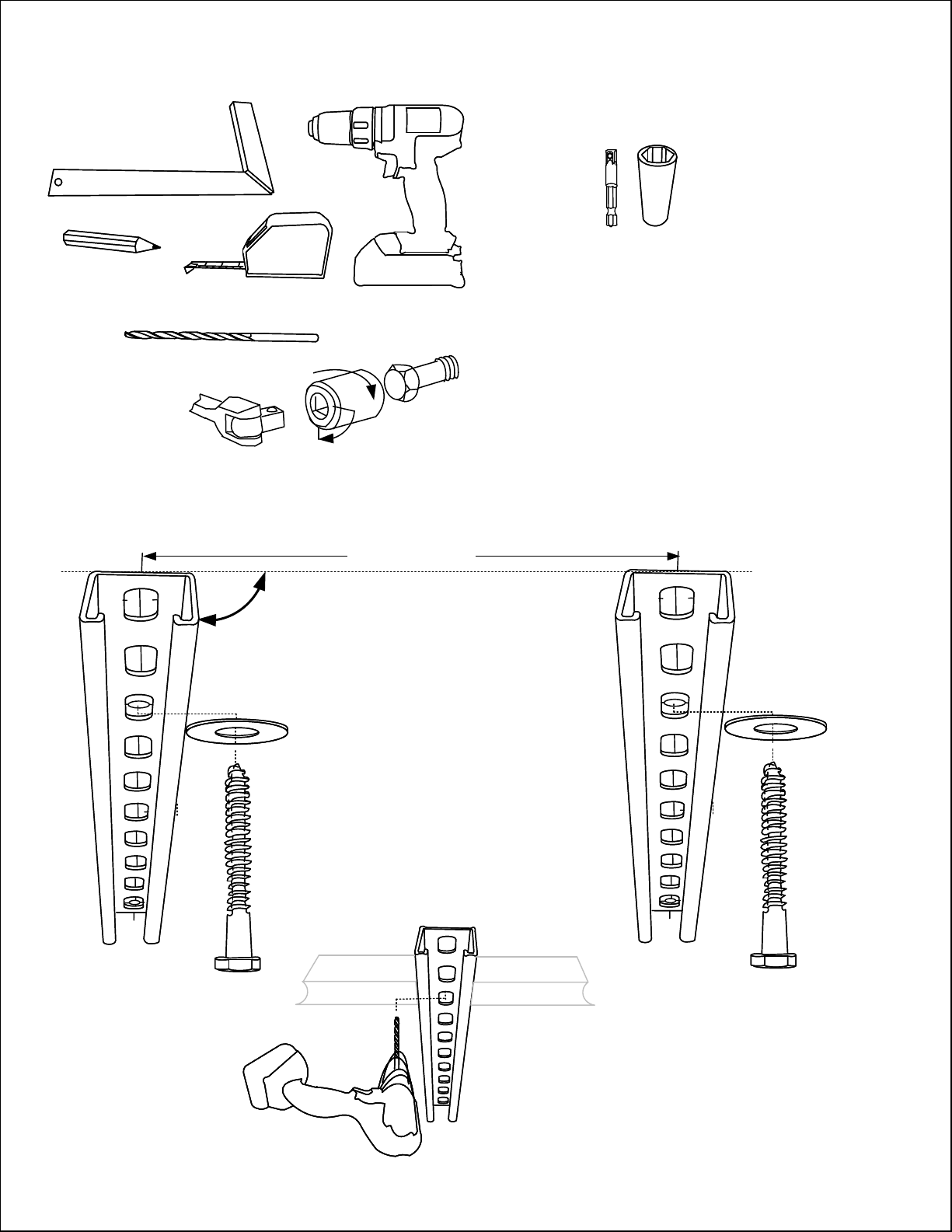

7/16"
11mm
3
1/8" / 3mm
9/32" / 7mm
3/32" / 2.5mm

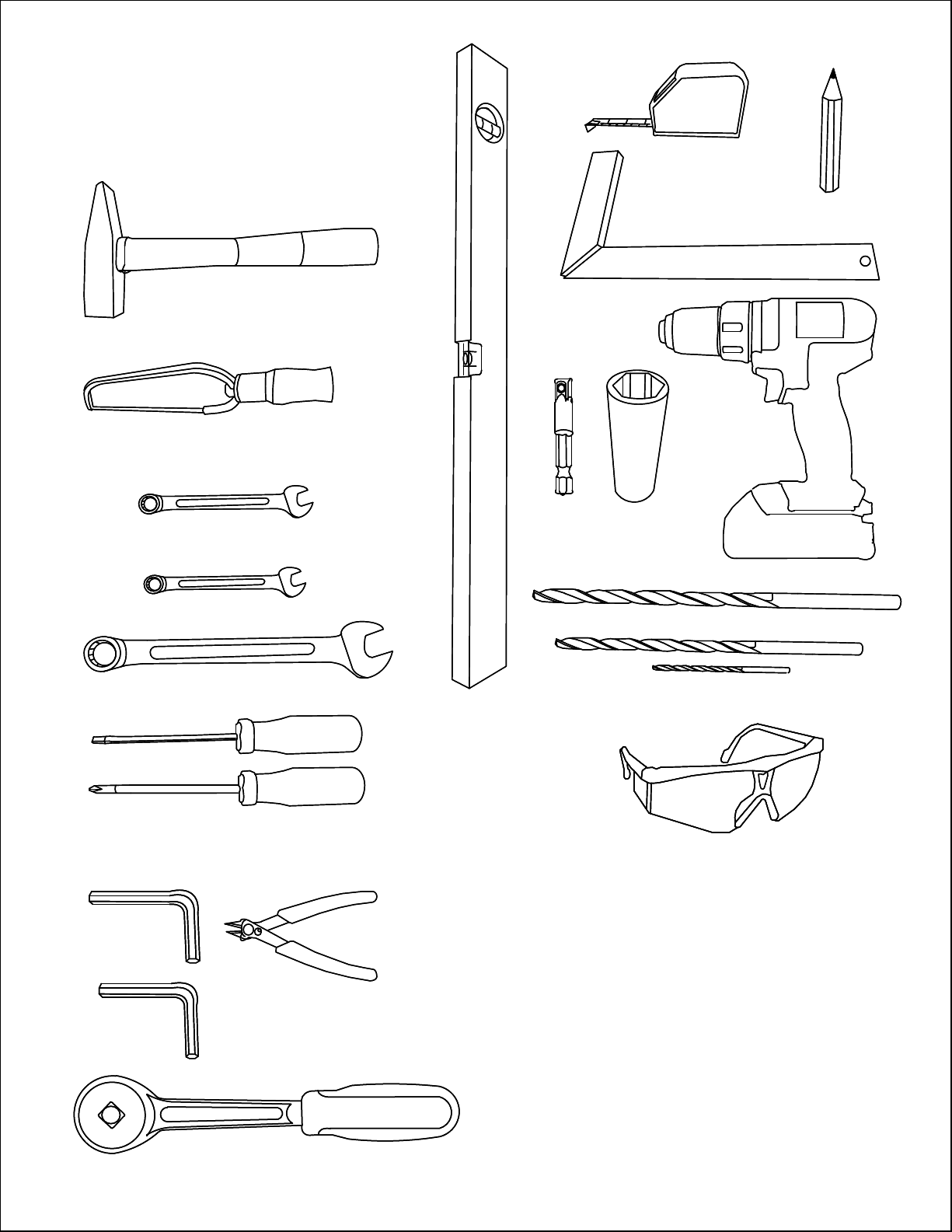

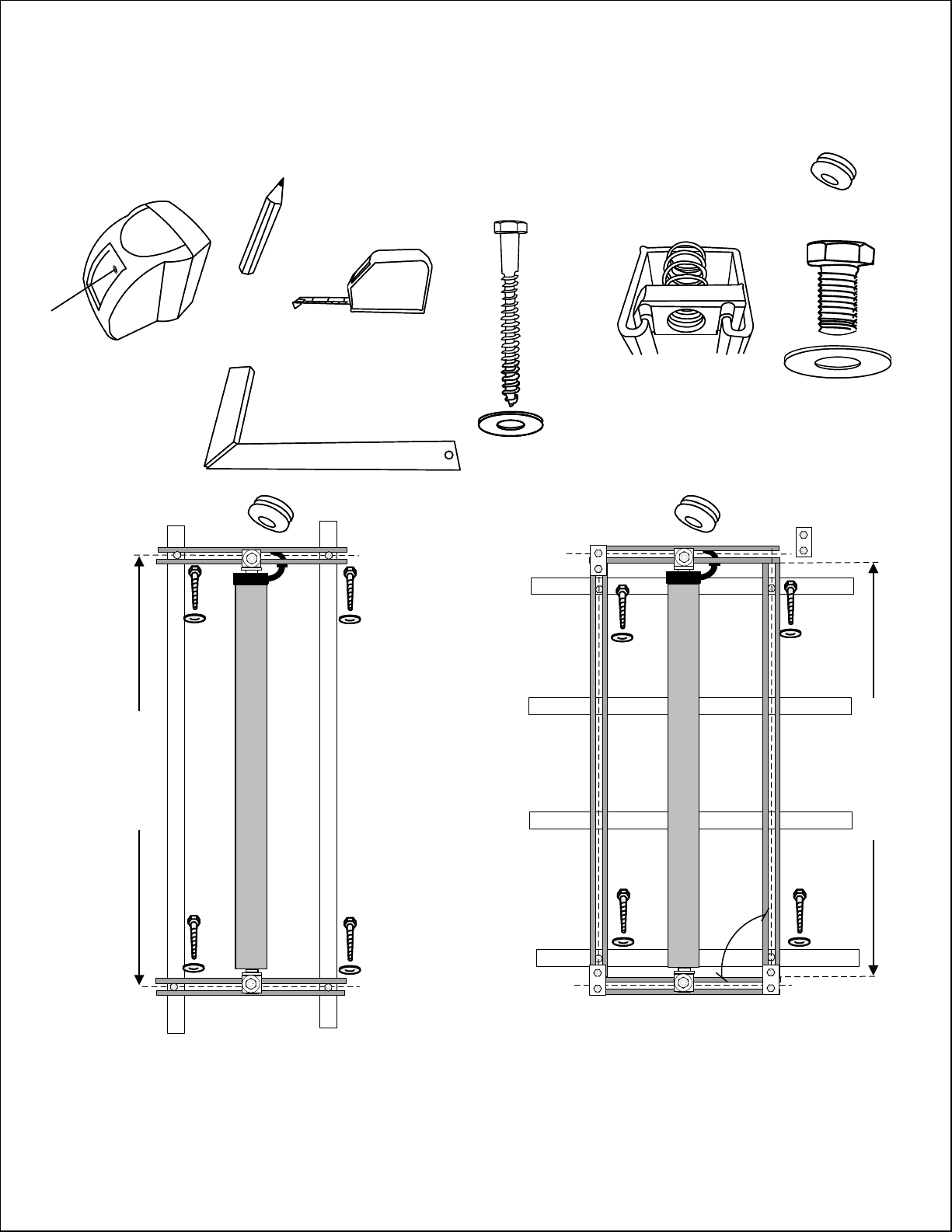

RECOMMENDED TOOLS

4

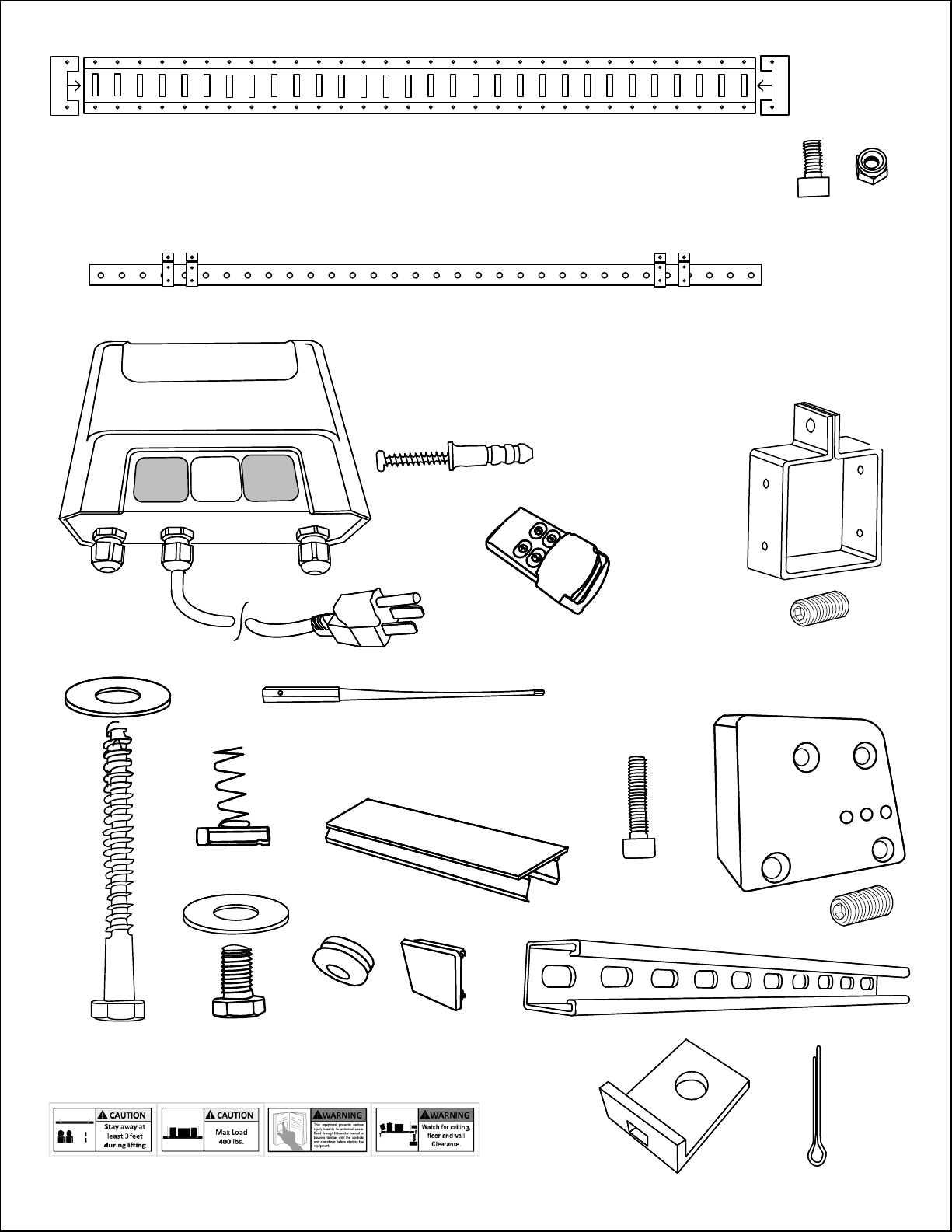

4X
2x
2X
2X
M12
2X
1X 2X
1x 4X
0201C
0802A
0602A
0507A 0505A
1207A
1206A
2001A
0400A
0302A
0400A
5/16" / 8 mm x 4.0" / 100mm
2X
2X
1X
4X
1X
Down
UP STOP Down UP STOP
1X
1107A
1102A 1 channel
1105A 2 channel
1106A 6 channel
0002A
0509A 0803A
1 ⅛” x ⅛”
8X
12X M5x12
2x
0504A
M6x20
1X
1X
Version 1
Version 2
Only Version 2
4X
8X
M6x14
0503A 0301A
12X
M5x3

5
L
.
Motors should be
mounted such that
the wires spooling off
the motors are plumb
and perpendicular to
the floor. i
t
Information
Troubleshooting
i

NTH

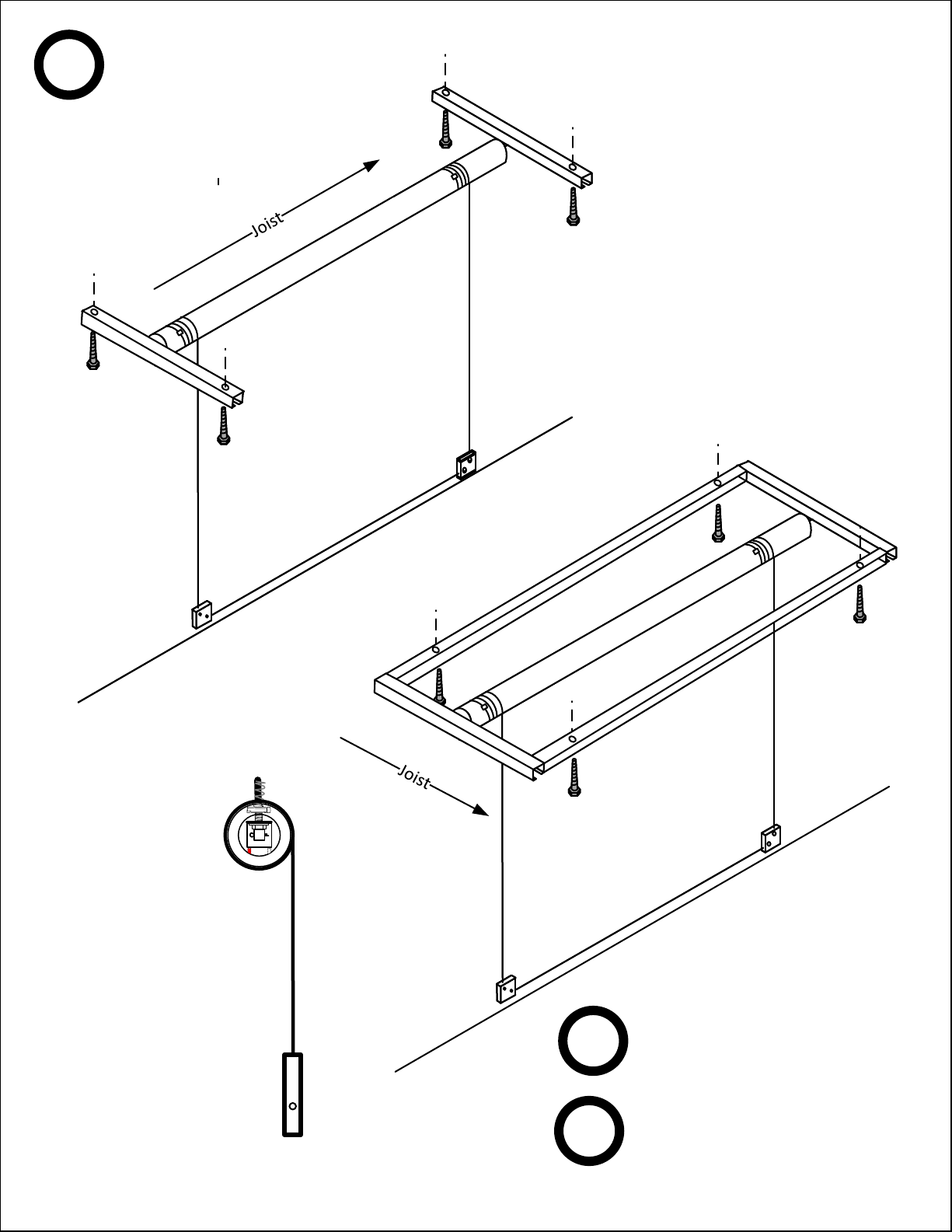

6
59"/ 150cm
57 ½"/ 146cm
90º
Joist
Joist
Joist
Extra material for this configuration is not included.
You will find the below materials at any big-box
hardware store or order it from us (contact us).

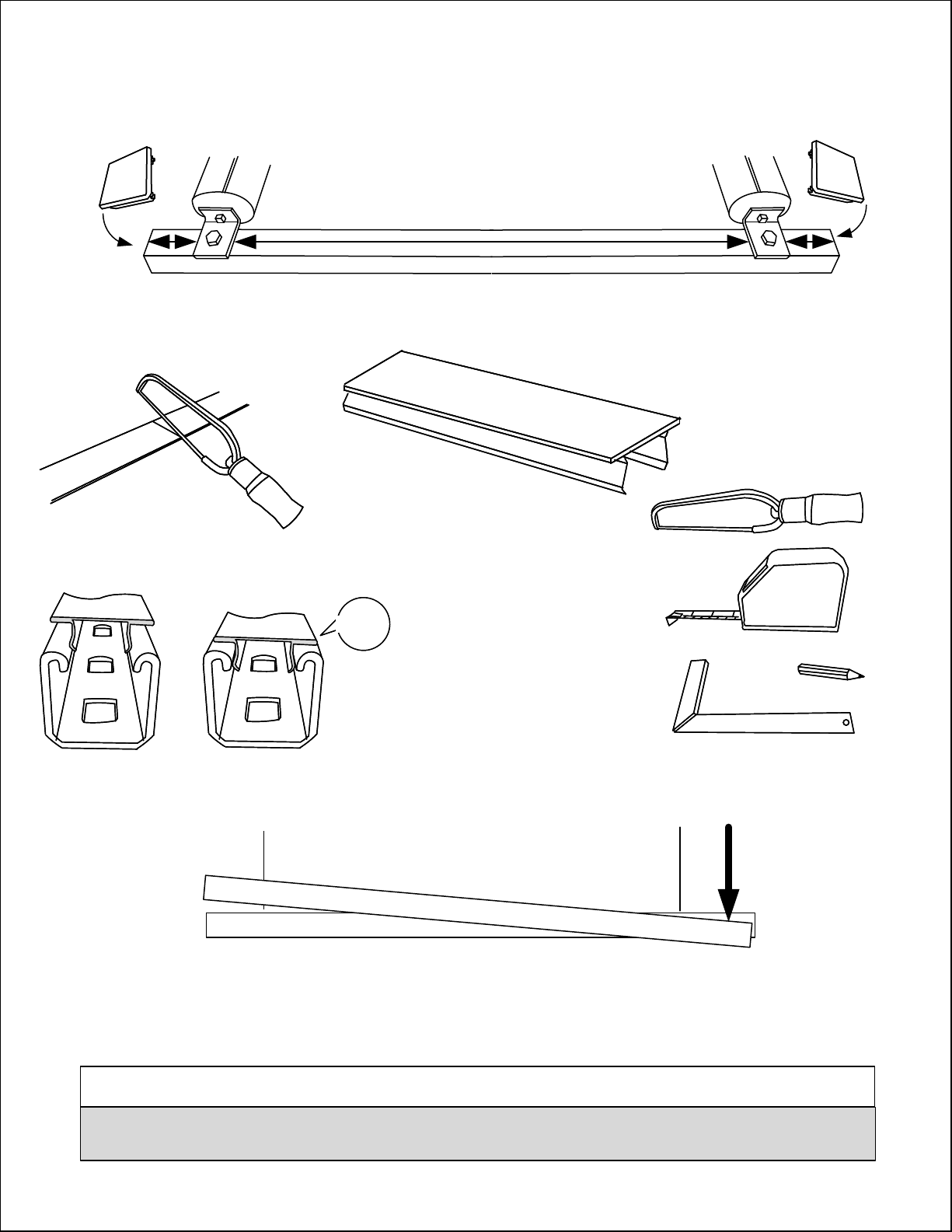

2x Strut Channel 57.5" or 146cm
8x Strut Spring Nuts ½or M12
8x Strut Screws Hex-Head ½or M12
4x Strut Brackets
2x Strut cover 57.5" or 146cm
2x 2x
4x
5/16" / 8 mm x 4.0" / 100mm
1
Strut
Channels 1x

7
7/16"
11mm
1/8" 3mm for pre-drill
10ᵒ= (200 pound/
inch=20Nm)
Warning!
DO NOT use an Impact Driver
to tighten the Lag screws!
Tighten screw until the washer no
longer rotates. Then tighten screw
another 10ᵒ in same direction.
!
!
59"/150cm
4X
90ᵒ
5/16" / 8 mm
x 4.0" / 100mm
SPAX®
4X
2
Strut
Channels

STOP DOWN
UP
Controller
Strut Strut Strut
Controller
End cap
End cap
Outlet PG
Grommet
1 ⅛” x ⅛”4X
E.g. drywall
3/16"
3
Controller
If Drywall/Concrete Ceiling:
#1
STOP DOWN
UP
Controller
1"/2.5cm
3/16"
1"/2.5cm
CONTROLLER MOUNTING OPTIONS
8

9
Joist
STOP DOWN
E
N
˃ ˂
N
L
E
UP
rd bl
wt
gn
bl
wt
gn
1X
2x
2x
2x
2X
Before connecting to
the outlet, make sure
that all wires are
tightly connected
Wires are connected by
tightening binding
screws on the top of the
green motor connector
blocks
WARNING
S h o c k H a z a r d
Disconnect power before
working on wiring
!
Use Grommets
on wire paths
into struts to
avoid damage
and shocks.
WARNING
135º
90º
Tighten screw until the
washer no longer rotates.
Then tighten screw
another 135° in the same
direction.
18mm - 23/32"
Note the use of
grommets and the
wire path into the
strut
˂
N
˃
E
E
N
˃
˂
Down
UP
Neutral
Earth
Down
UP
Neutral
Earth
Earth
Neutral
Hot
N
L
E
BLACK bl
RED rd
WHITE wt
GREEN gn
RED rd
BLACK bl
WHITE wt
GREEN gn
GREEN gn
WHITE wt
BLACK bl
4
Wiring

Motor
10
The black cables that come out of
the motors needs to come straight
down towards floor.
green
Cable in direction ceiling
After cutting the middle cable tie,
the wire rope must be unrolled
from the tube until it stops due to
the other remaining cable ties.
2 94 5 15 16 22 26 27 29
8x M6x20
12x M6x14
12x Lock nut M6
6.5" 8x M6x20
16x Set screws
M5 x 3mm
5'
47"
Version 1
Version 2
5
Rope

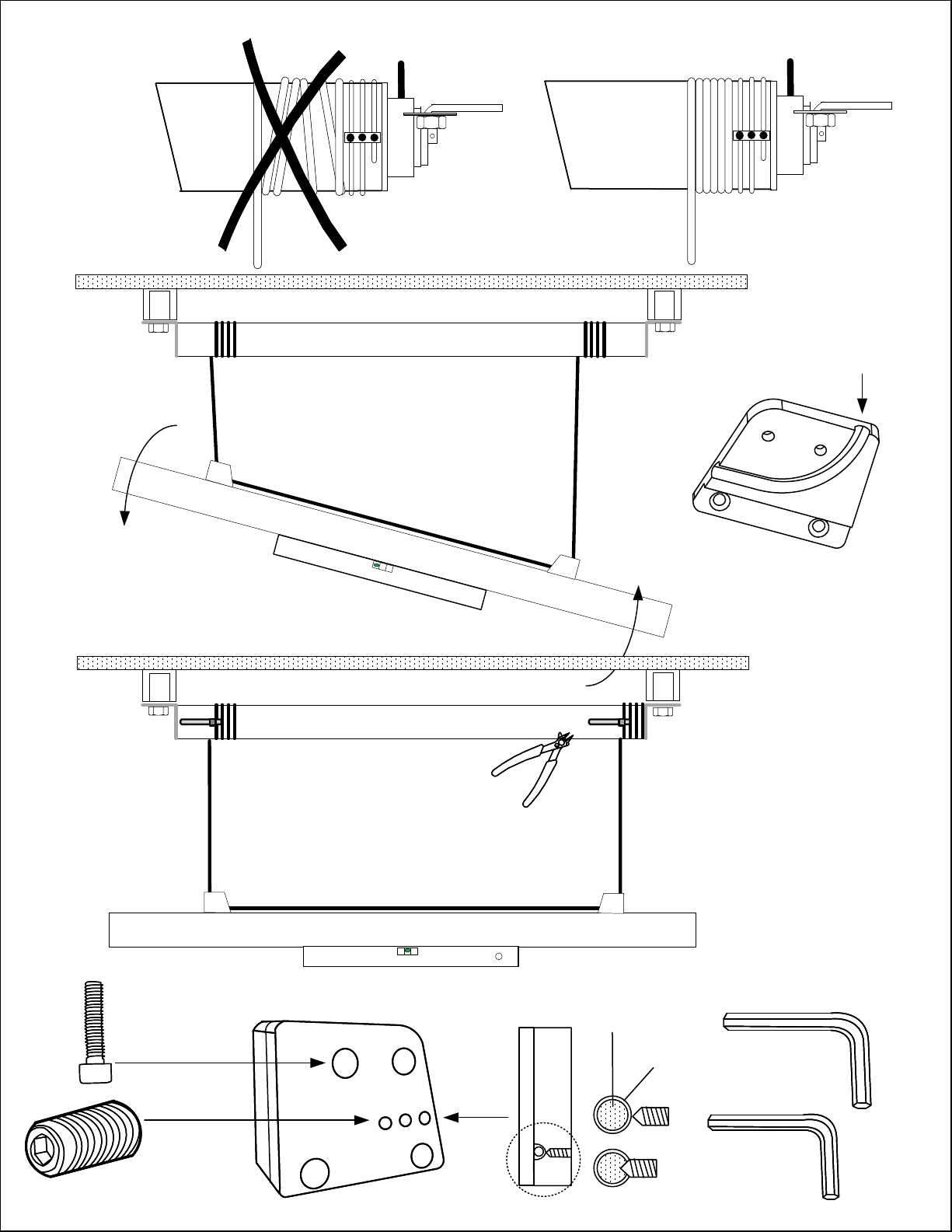

unwind

Remove all 2 cable ties
carefully.
11
Tighten the screws
evenly by hand.
Do not use an
Impact driver.
3/32" / 2.5mm
12x
M6x20
8X 3/16" / 5mm
2X
Wire rope
groove
M5x16 2-3 revolution
Vinyl
Steel
rope
6
Beam
adjustment
Set screws
Do not tighten yet!

O

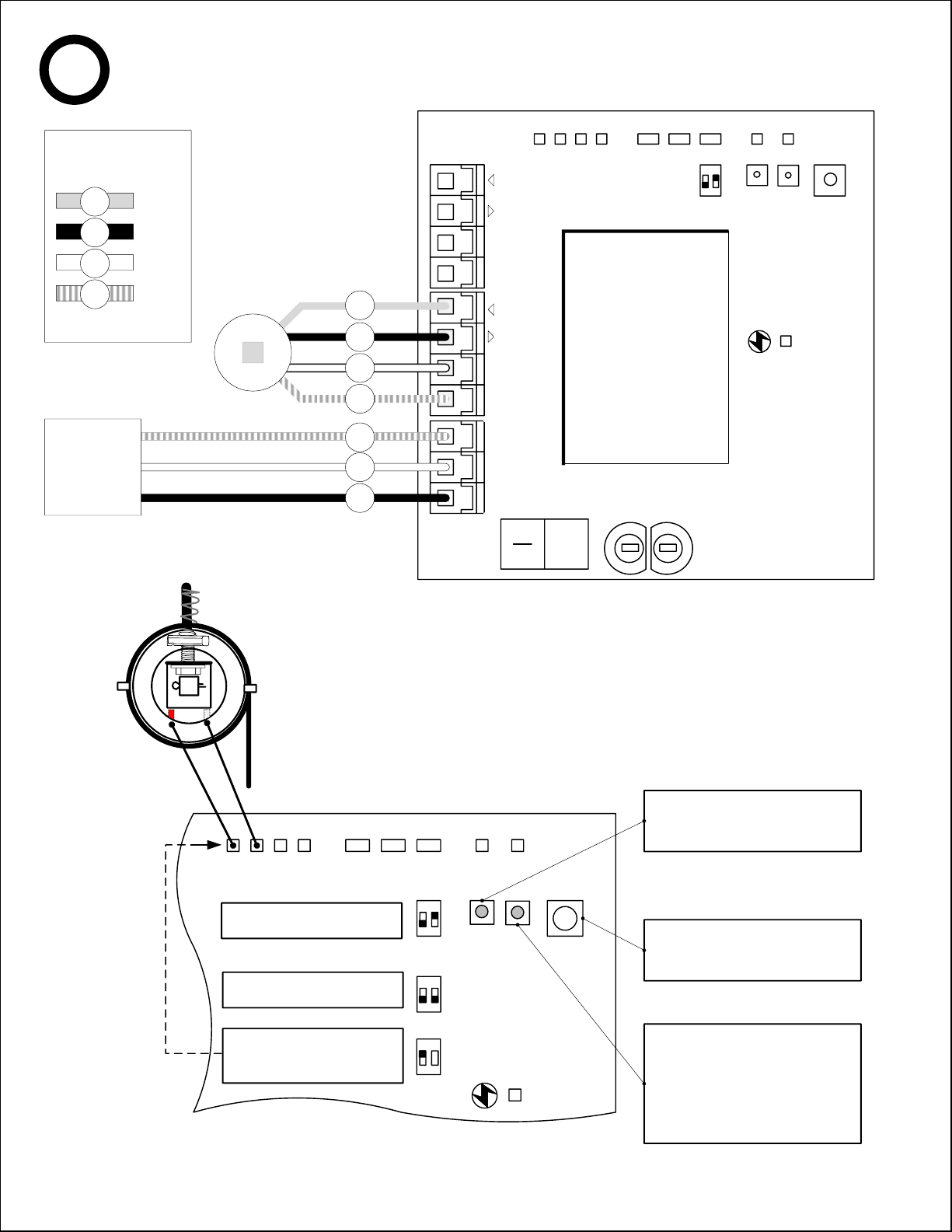

MOTOR1 Power
N E N E EN L
120V/
60Hz
INPUT
Gn
Wt
BK
Rd
Bk
Wt
Gn
RED
BLACK
WHITE
GREEN
COLOR KEY
Rd
Bk
Wt
Gn
Power switch
Fuses
10A / 1A
DL1
(Power)
Green light on,
both Fuses okay
SW1 S2 S3 PT1
ADJ DM Learn Max Time Delay Time
ON
1 2
LC LF RF RC
LED intern Motor switch
LC Left Ceiling
LF Left Floor
RF Right Floor
RC Right Ceiling
Controller Power
DL1 Power on
Controller Functions
SW1.1 Ind. LED, ADJ
SW1.2 DeadMan
S2 Remote Learn
S3 Max time ADJ
PT1 Delaytime ADJ
DL1
(Power)
SW1 S2 S3 PT1
ON
1 2
DL4 DL5 DL7 DL6
LED3 LED2 LED1 DL2 DL3

ON
1 2
Indicator LED
ON
1 2
*
Wire and Motor switch test
*No impact
Motor adjustment mode,
Deadman off
S2
Remote learn button
S3
Controller running
time learn button
10sec-1.5min
PT1
Delay time Default 5
Lift mode, DEADMAN active
ADJ DM
Lift activity Indicator LED
red green green red
Lift doesn t
work in this
mode, only
control and
pre
adjustment!
i
IMPORTANT
MOTOR ARRANGEMENT
If you change something
the manual doesn’t fit anymore!

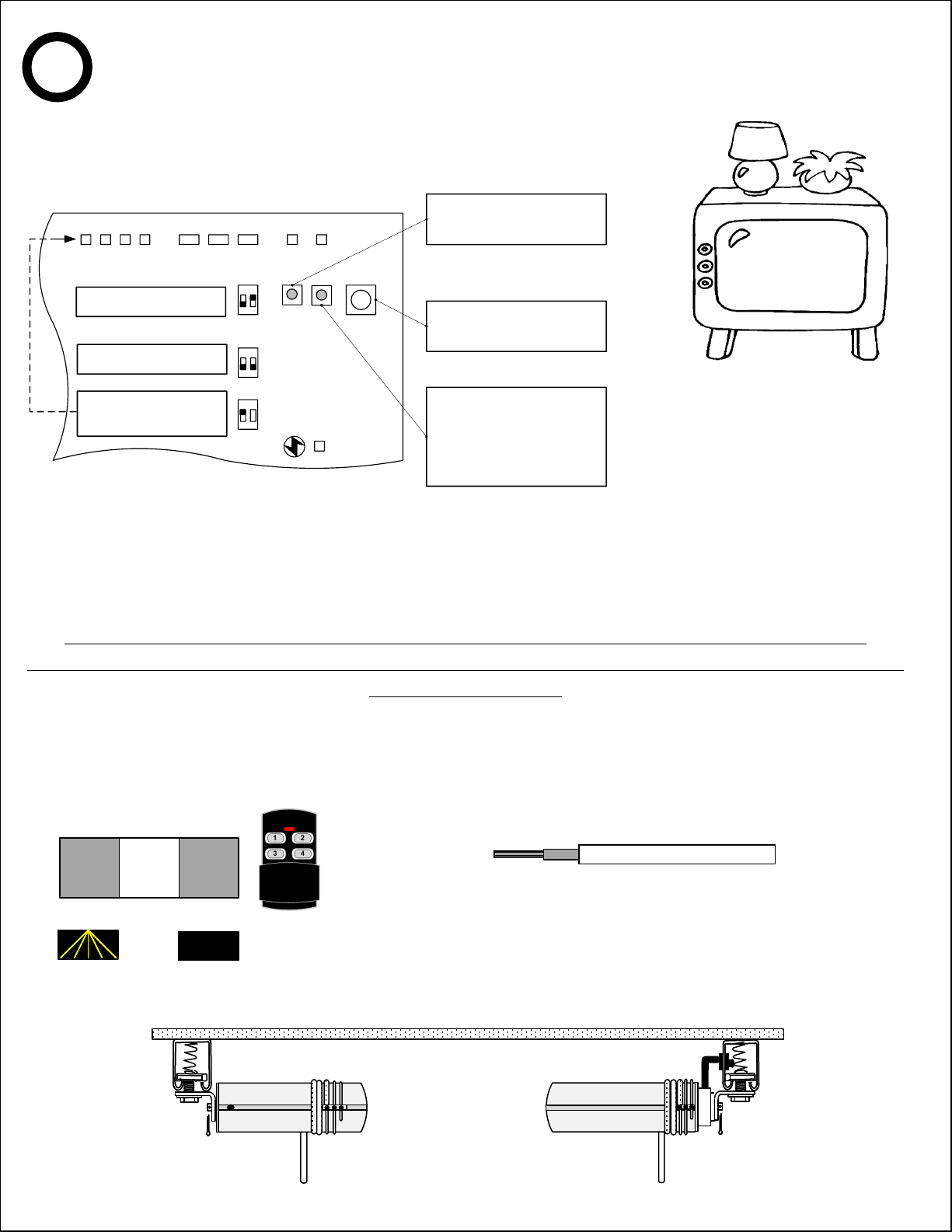

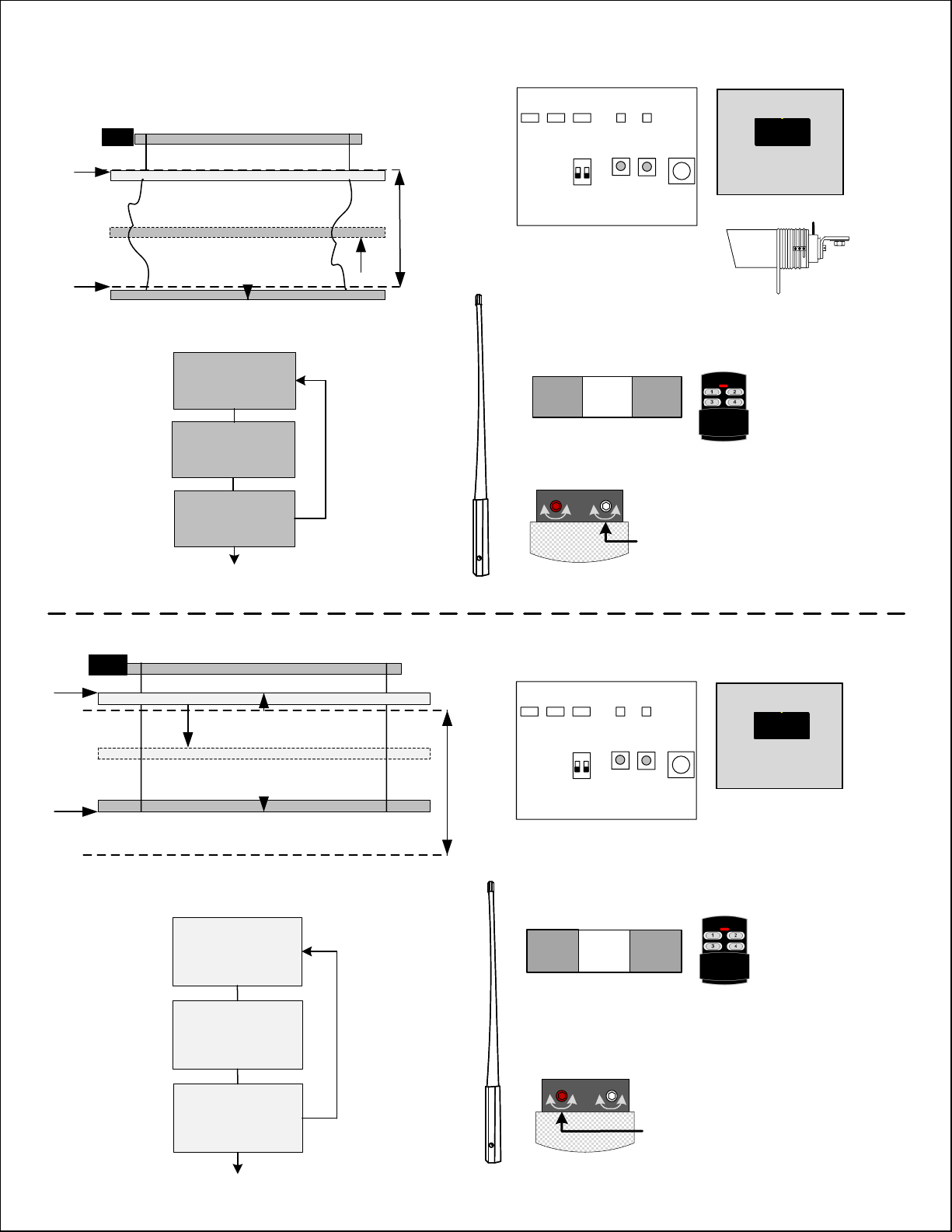

Overview Controller
12

Motor Adjustment (leveling), Preparation
Lift active
Lift off
Watch the Video on
www.auxx-lift.com/
installation-help
Stop
Do not use PT1
S2 and S3 for
adjustment!
Most important! All switches work the same way, even though their labeling is different.
Before you start to turn the stop (motor limit) switches, please be sure that you are turning them
in the right direction!
STOP DOWN
UP
1 UP
2 Stop
3 Down
4 Learn
STOP DOWN
UP
DeadMan off- press key
(up/down) once and the lift
runs. Press STOP 2
This function for
adjustment only!
!Max running Time 1.5min
DL1
(Power)
SW1 S2 S3 PT1
ON
1 2
DL4 DL5 DL7 DL6
LED3 LED2 LED1 DL2 DL3

ON
1 2
Indicator LED
ON
1 2
*
Wire and Motor switch test
*No impact
Motor adjustment mode,
Deadman off
S2
Remote learn button
S3
Controller running
time learn button
10sec-1.5min
PT1
Delay time Default 5
Lift mode, DEADMAN active
ADJ DM
Lift activity Indicator LED
red green green red
Controller Keys
i
Extension stick 3', 1mExtension stick 3', 1m
With an extension stick you can easy adjust the
motors from the floor!
Maximum Uncoil
13

14
After adjustment you
MUST switch the
DeadMan back on.
It’s for your safety!
Motor Adjustment (leveling), Preparation
DeadMan Function: You use only the UP and DOWN buttons. You have
to hold the button to make the lift move. When you release the button the
equipment will stop immediately. If a key gets jammed you can stop the
equipment with the stop button.
Adjustment is only possible with the DeadMan
switch OFF, and after a motor limit has been
reached or lift is stopped manually (white LED
lights on controller are lit and stay on).
Technical information for 400 lbs lift
Max travel is 15.4 feet/ 4.70m & storage
1 tube rotation 12 turns on the stop switches
1 tube rotation 9" / 22cm
1 turn on stop switch 3/4"/ 2cm
Smallest movement 1/16" / 1mm
Movement Rack 14'*4"/10cm
Switch turns 250
Travel speed 8'/min
Only turn the switches by hand with the tool provided
Stop turning immediately if you feel a mechanical click in the
switch when turning.
Technical information for 600 lbs lift
Max travel is 21.8 feet/ 6.40m & storage
1 tube rotation 12 turns on the stop switches
1 tube rotation 11" / 28cm
1 turn on stop switch 1"/ 2.5cm
Smallest movement 1/16" / 1mm
Movement Rack 14'*4"/10cm
Switch turns 300
Travel speed 10'/min
*Movement Rack
DL1
(Power)
SW1 S2 S3 PT1
DL4 DL5 DL7 DL6
LED3 LED2 LED1 DL2 DL3

Indicator LED ADJ DM
Lift activity Indicator LED
red green green red
ON
1 2
Rack Travel
16' 400lbs
22' 600lbs
Storage room, min 8"
i

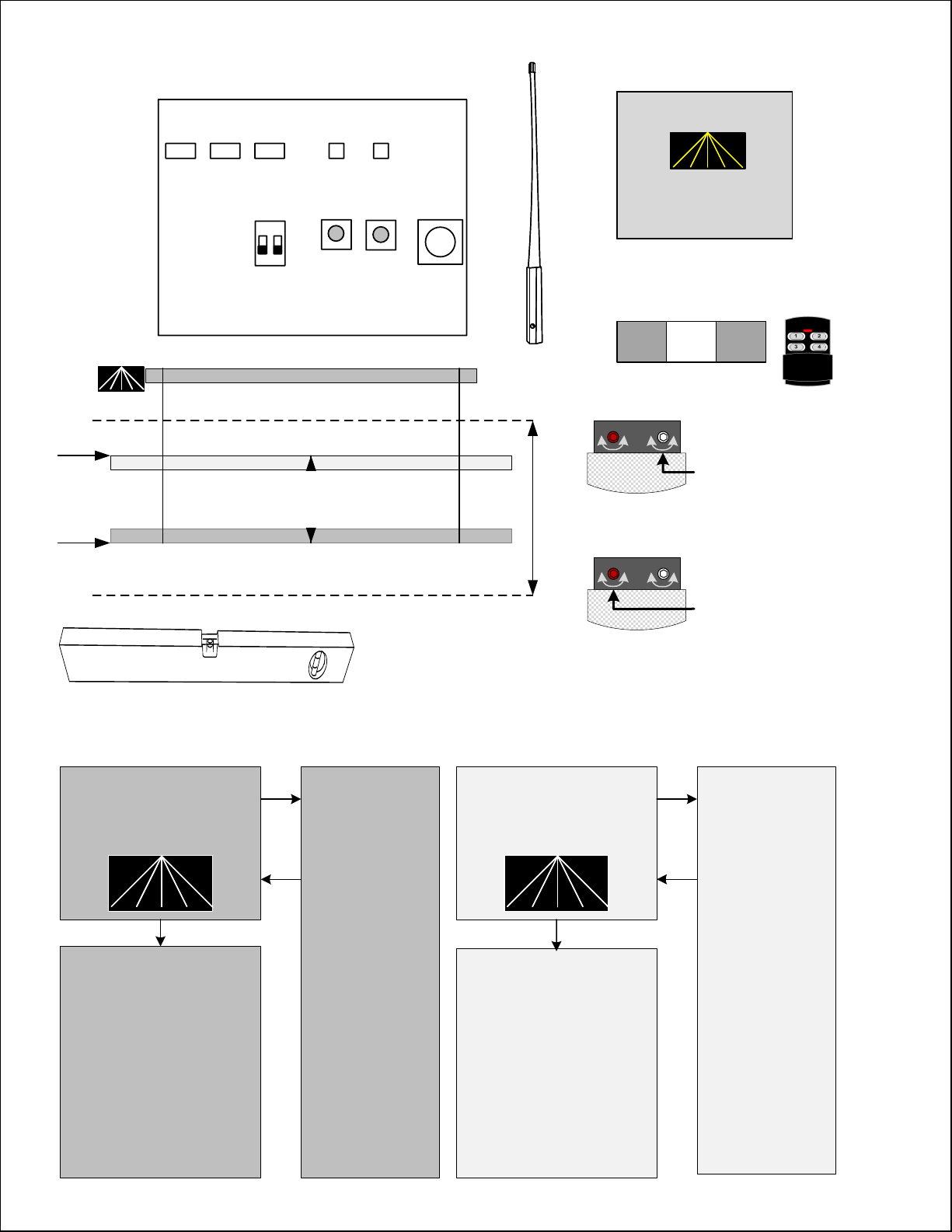

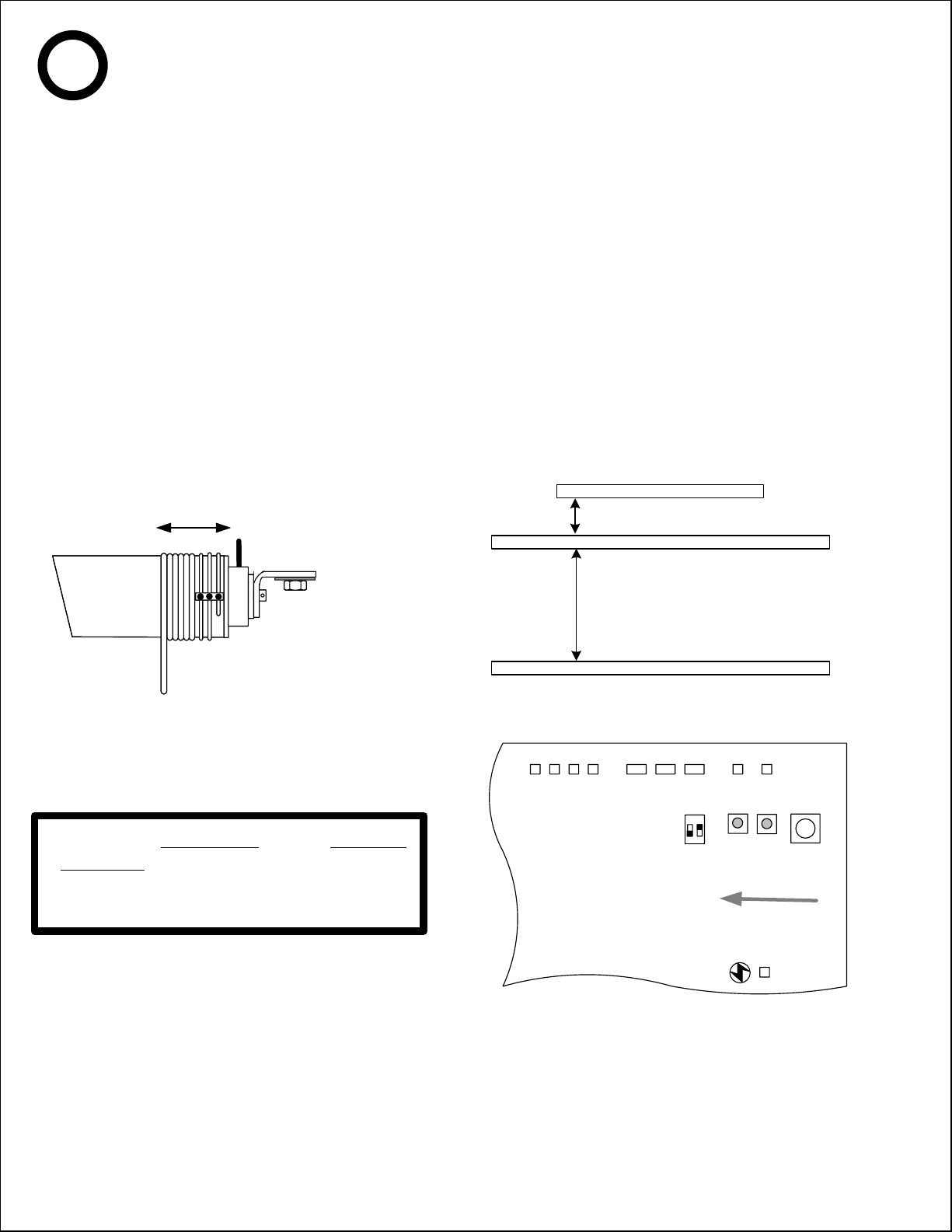

7Prepare Adjustment
Adjustment hints
(-) (+)
Rigthy tighty Lefty loosey
Controller
Left
Motor
Inside Switches Floor
adjustment
Outside Switches Ceiling
adjustment
One Motor lift
15

Motor
Press Down 3, lift stops here by itself
Desired adjustment
Press Up 1, lift stops here by itself
Turn outside switches
(+)
Bring motor to the
desired height
and levelness
Motor stopped?
White LEDs on? Activated the
Controller
Press Down 3
Stop after 2"
Press Stop 2
Press Up 1
Let lift run until
Lift stop by itself
(max running
time 1.5min!)
Turn inside switches
(+)
Bring motor to the
desired height
and levelness, stop
Dont loose tension in
the rope
Motor stopped?
White LEDs on? Activated the
Controller
Press Up 1
Stop after 2"
Press Stop 2
Press Down 3
Let lift run until
Lift stops by
itself
(max running
time 1.5min!)
Floor Adjustment Ceiling Adjustment
yes yes
no no
Ceiling Stop point
Floor Stop point
STOP DOWN
UP
1 UP
2 Stop
3 Down
4 Learn
STOP DOWN
UP
Lift activity
White LED
Lift activity
White LED
Max running
Time 1.5min
Overheated? Not running just clicking?
Motors were running more than 4min?
Allow motors to cool for 20min
16
Adjustment Stop
Switch for ...
+
-+ -
+
-+ -+
-
+
-
Left Motor
Ceiling Floor
(+)
extends travel
Adjustment Stop
Switch for ...
+
-+ -
+
-+ -+
-
+
-
Left Motor
Ceiling Floor
(+)
extends travel
SW1 S2 S3 PT1
LED3 LED2 LED1 DL2 DL3

ON
1 2
ADJ DM
Lift activity Indicator LED
8Level Adjustment
Put a level on
the 5" beam
and control the
levelness of the
beam
Turn lefty loosey
Turn lefty loosey

Motor
Press Down 3, lift stops here by
itself or press Stop 2before touch
the floor
Desired adjustment
Floor Adjustment Preparation (too low)
yes
Ceiling Stop point
Floor Stop point
Push UP 1 and lift the
rack 3' from the floor
and Stop 2
3'
Turn Floor switch
20 times (-)
Press Down 3 and let
lift run until Lift stops
by itself
Touch floor?
no
Floor Adjustment (Page 25)
17
STOP DOWN
UP
1 UP
2 Stop
3 Down
4 Learn
STOP DOWN
UP
Overheated? No running only clicking?
Motors were running more than 4min?
Allow motors to cool for 20min
Adjustment Stop
Switch for ...
+
-+ -
+
-+ -+
-
+
-
Left Motor
Ceiling Floor
(-)
reduces travel
Proper coiled wire
rope
Lift off
White LED
Lift off
White LED
Max running
Time 1.5min
SW1 S2 S3 PT1
LED3 LED2 LED1 DL2 DL3

ON
1 2
ADJ DM
Lift activity Indicator LED
Motor
Press Down 3, lift stops here by itself
Desired adjustment
Press Up 1, lift stops here by itself or press stop
Ceiling Adjustment Preparation (too high)
no
Ceiling Stop point
Floor Stop point
Push Down 3 and
lower the rack 2' from
desired high and Stop 2
2'
Turn Ceiling switch
20 times
(-)
Press Up 1 and let lift
run until Lift stops by
itself
Low enough?
yes
Ceiling Adjustment (Page25)
STOP DOWN
UP
Overheated? No running only clicking?
Motors were running more than 4min?
Allow motors to cool for 20min
Adjustment Stop
Switch for ...
+
-+ -
+
-+ -+
-
+
-
Left Motor
Ceiling Floor
(-)
reduces travel
Lift off
White LED
Lift off
White LED
Max running
Time 1.5min
SW1 S2 S3 PT1
LED3 LED2 LED1 DL2 DL3

ON
1 2
ADJ DM
Lift activity Indicator LED
9Level Adjustment
STOP DOWN
UP
1 UP
2 Stop
3 Down
4 Learn
Turn righty tighty
Turn righty tighty

18
ClickClick
2X
5'/150cm
Rail Cover with caps
(Cable side)
4X
Important! The Lift has to run to the ceiling end points (stopped automatically) in order to be
leveled properly.
If you are done with the adjustment, please switch the DeadMan function back on
10
Strut
cover
F
!Load evently!

Gap not more than 1/16"/1mm
2X
18mm - 23/32"18mm - 23/32"
Inspect and tighten all screws, wire clips, grommets and cotter pins. Make an
alignment mark on each part that might be able to shift over time (like the motor
mounts) using a Sharpie pen. Inspect all items, especially movement on the
alignment marks, once a year.
tighten
19
11
Inspection

20
Check list (after installing, and than ones the year!
1. Lag screws tighten 4X ░2. Cotter Pins installed and curved up 2X ░3. 12mm Bracket screws tighten 2X ░
4. All set screws tighten 12X ░5. All 6mm screws tighten 8X ░
6. E-Wire in the right order installed 7X░7. E-Wire is not laying on sharp corners ░8. Controller is switch on ░
9. All set screws tighten 12x
Please inspect all items and make a check mark!
After adjustment you MUST
switch back on the other
position!
(DeadMan = ON)
It’s for your safety!
DL1
(Power)
SW1 S2 S3 PT1
ON
1 2
DL4 DL5 DL7 DL6
LED3 LED2 LED1 DL2 DL3

Lift mode, DEADMAN active
ADJ DM
Lift activity Indicator LED
red green green red
3/32" / 2.5mm
17Check
Important! The Lift has to run to the ceiling end points (stopped automatically) in order to be
leveled properly.

9
5
4
3
2
2-3 revolution
Vinyl
Steel
rope
