AV-Box TPUH503 User manual

AV-BOX TPUH503
18G HDMI Extender over HDBaseT with USB 2.0
All Rights Reserved
AV-BOX.RU
Version: TPUH640_2021V1.1
User Manual

2
Product Introduction
Thanks for choosing the 18G HDMI Extender, which consists of a transmitter and a
receiver. It can extend 4K or 1080p video to distance up to 262 feet (80 meters) over a
single CAT6A cable without compression. It supports audio de-embedding and ARC. It
also supports bi-directional IR, USB and RS232 pass-through control and Ethernet
extension. 24V PoC feature allows the transmitter and the receiver can be powered
from each other and only one power adapter is needed in system.
Features
⚫18Gbps high bandwidth, HDMI V2.0.
⚫HDMI video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
⚫Supports HDCP bypass and HDCP 2.2 compliant.
⚫HDBaseT 3.0 solution which supports extending signal without compression.
⚫Extends 4K or 1080p video signals to distances up to 262 feet (80 meters) over a
single CAT6A cable.
⚫Bi-directional IR, USB and RS232 pass-through control and Ethernet extension.
⚫Supports bi-directional 24V PoC.
⚫Supports audio de-embedding and ARC (Audio Return Channel).
⚫Provides HDMI loop out on transmitter.
Packing List
⚫1x TPUH503T Transmitter
⚫2x TX Mounting Ears with 2 Screws
⚫4x Plastic Cushion
⚫1x Power Adapter (24V DC 1.25A)
⚫1x TPUH503R Receiver
⚫2x RX Mounting Ears with 2 Screws
⚫4x Plastic Cushion
⚫1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

3
Panel Description

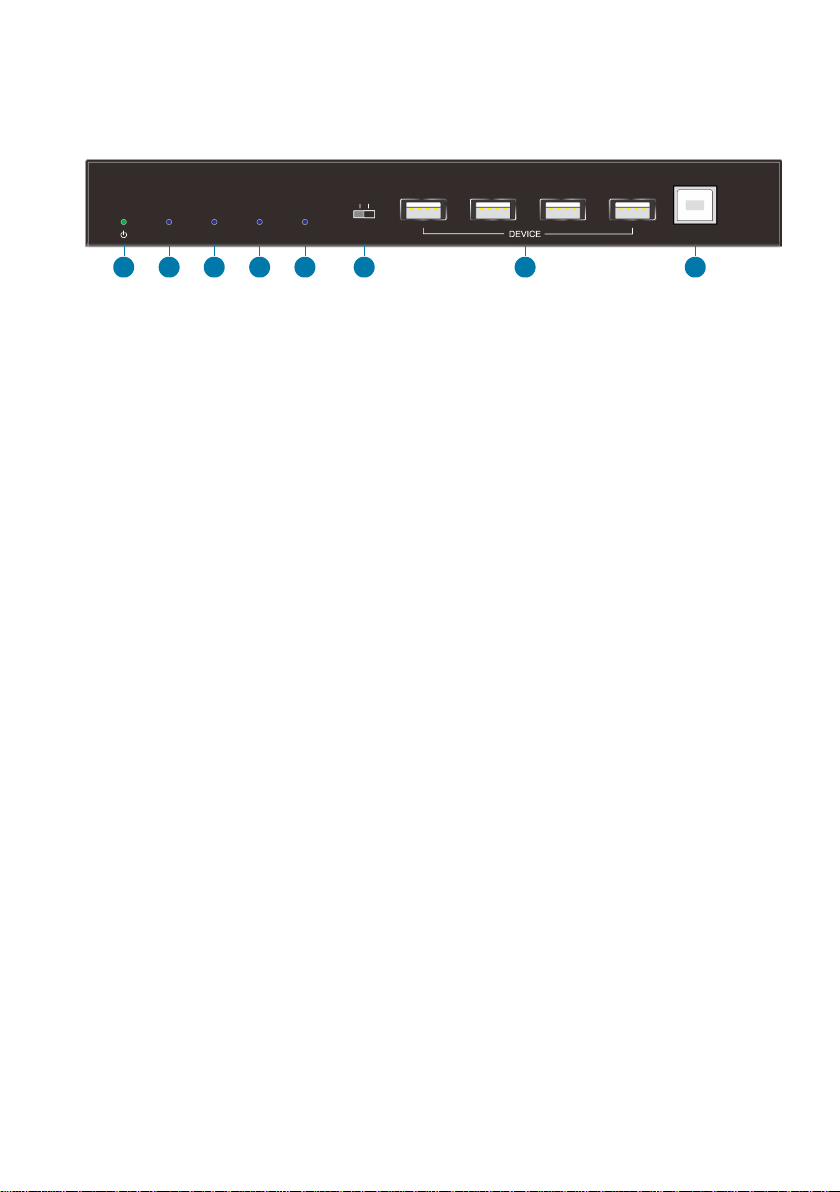

Transmitter Front Panel
①POWER LED: Illuminates green when power is applied, or blinks when in firmware
upgrade mode.
②LINK LED: Illuminates when there is a valid HDBaseT link between the transmitter
and the receiver.
③HDCP LED: Illuminates when the video contains HDCP content, or blinks when
the video has no HDCP content.
④SOURCE LED: Illuminates when there is an HDMI source device is connected to
HDMI input port.
⑤LOOPOUT LED: Illuminates when both HDMI source device and HDMI display
device (HDMI loop out port) are connected.
⑥USB: DIP switch for DEVICE or HOST mode selection.
⚫DEVICE: The USB devices at transmitter position are used to control the HOST
PC at receiver position.
⚫HOST: The HOST PC at transmitter position is controlled by the USB devices
at receiver position.
⑦DEVICE: Four type-A USB 2.0 ports for USB devices (e.g. Mouse, Keyboard and
Camera) connection to control the PC which is connected to the HOST port of
receiver.
⑧HOST: Type-B USB 2.0 port for PC connection. The PC can be controlled by the
USB devices which are connected to type-A USB 2.0 ports of receiver.
HOSTSOURCE LOOPOUTHDCPLINK
DEVICE
USB
HOST
1 2 34586 7

4
Transmitter Rear Panel
①ETHERNET: Used for Ethernet extension together with the ETHERNET port of
receiver.
②HDBT OUT: RJ45 port to connect the HDBT input port of receiver by CAT6A
Ethernet cable. The LINK LED illuminates when there is a valid HDBaseT link
between the transmitter and the receiver. The HDCP LED illuminates when the
video contains HDCP content.
③SOURCE: Connects to HDMI source device.
④LOOPOUT: Connects to HDMI display device.
⑤ARC OUT: Connects to audio player (e.g. amplifier) for ARC audio output.
⑥AUDIO OUT: Connects to audio player (e.g. amplifier) for audio de-embedding
from HDMI input.
⑦IR IN: Connects to the IR receiver for IR pass-through.
⑧IR OUT: Connects to the IR emitter for IR pass-through.
⑨RS232: Connects to RS232 control device (e.g. PC) or a third-party device for
RS232 control.
⑩FIRMWARE UPGRADE BUTTON: Press the button with paper clip or other sharp
tool for 3s to enter firmware upgrade mode. Press the button for 3s again can exit
the mode.
⑪DC 24V: DC connector for the power adapter connection.

5

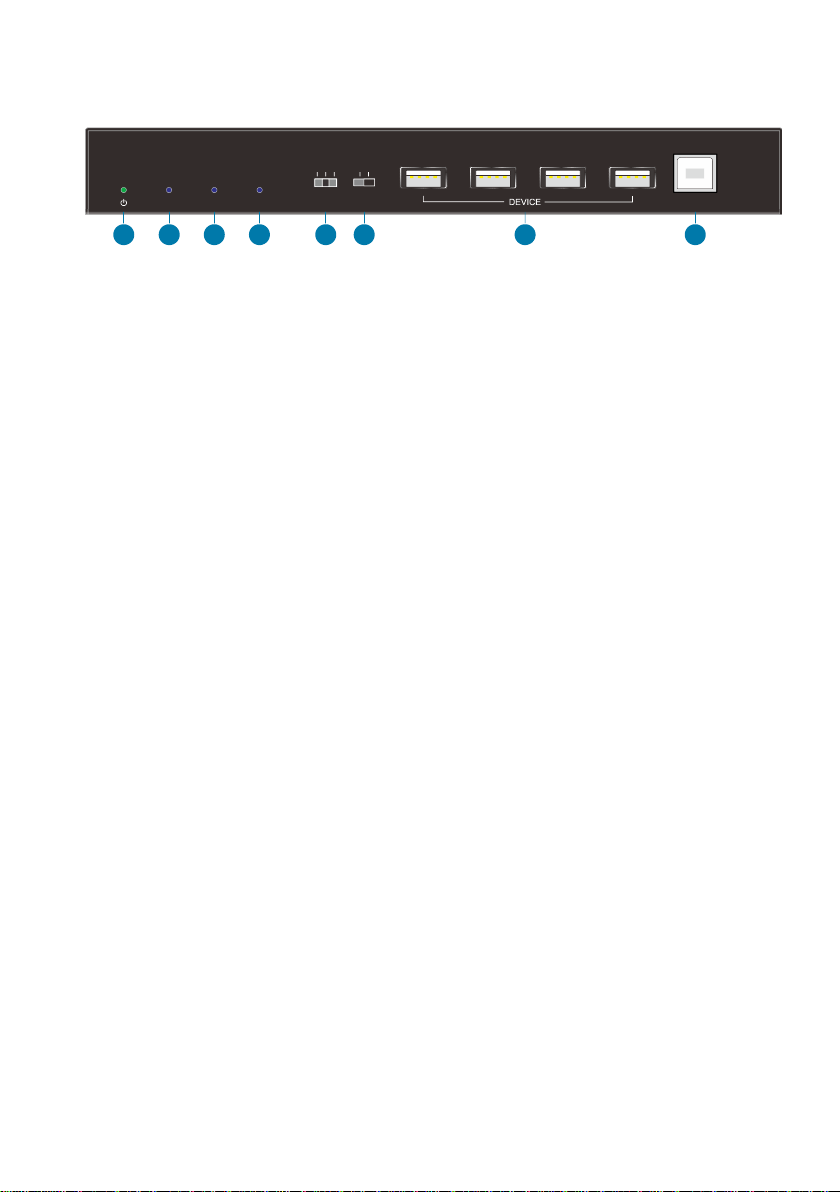

Receiver Front Panel
①POWER LED: Illuminates green when power is applied, or blinks when in firmware
upgrade mode.
②LINK LED: Illuminates when there is a valid HDBaseT link between the transmitter
and the receiver.
③HDCP LED: Illuminates when the video contains HDCP content, or blinks when
the video has no HDCP content.
④DISPLAY LED: Illuminates when there is a HDMI display device is connected to
HDMI output port and when input source is detected.
⑤ARC: DIP switch for ARC mode selection.
⚫HDMI: The ARC input via HDMI output port of receiver.
⚫PASS: Supports CEC & ARC pass-through.
⚫SPDIF: The ARC input via SPDIF input port of receiver.
⑥USB: DIP switch for DEVICE or HOST mode selection.
⚫DEVICE: The USB devices at receiver position are used to control the HOST
PC at transmitter position.
⚫HOST: The HOST PC at receiver position is controlled by the USB devices at
transmitter position.
⑦DEVICE: Four type-A USB 2.0 port for USB devices (e.g. Mouse, Keyboard and
Camera) connection to control the PC which is connected to the HOST port of
transmitter.
⑧HOST: Type-B USB 2.0 ports for PC connection. The PC can be controlled by the
USB devices which are connected to type-A USB 2.0 ports of transmitter.
HDCPLINK
DEVICE
USBDISPLAY ARC
SPDIF
HDMI
PASS
HOST
HOST
6
48
1 2 357

6
Receiver Rear Panel
①ETHERNET: Used for Ethernet extension together with the ETHERNET port of
transmitter.
②HDBT IN: RJ45 port to connect the HDBT output port of transmitter by CAT6A
Ethernet cable. The LINK LED illuminates when there is a valid HDBaseT link
between the transmitter and the receiver. The HDCP LED illuminates when the
video contains HDCP content.
③DISPLAY: Connects to HDMI display device.
④ARC IN: Connects to ARC audio source device (e.g.TV).
⑤IR IN: Connects to the IR receiver for IR pass-through.
⑥IR OUT: Connects to the IR emitter for IR pass-through.
⑦RS232: Connects to RS232 control device (e.g. PC) or a third-party device which
is to be controlled.
⑧FIRMWARE UPGRADE BUTTON: Press the button with paper clip or other sharp
tool for 3s to enter firmware upgrade mode. Press the button for 3s again can exit
the mode.
⑨DC 24V: DC connector for the power adapter connection.

7

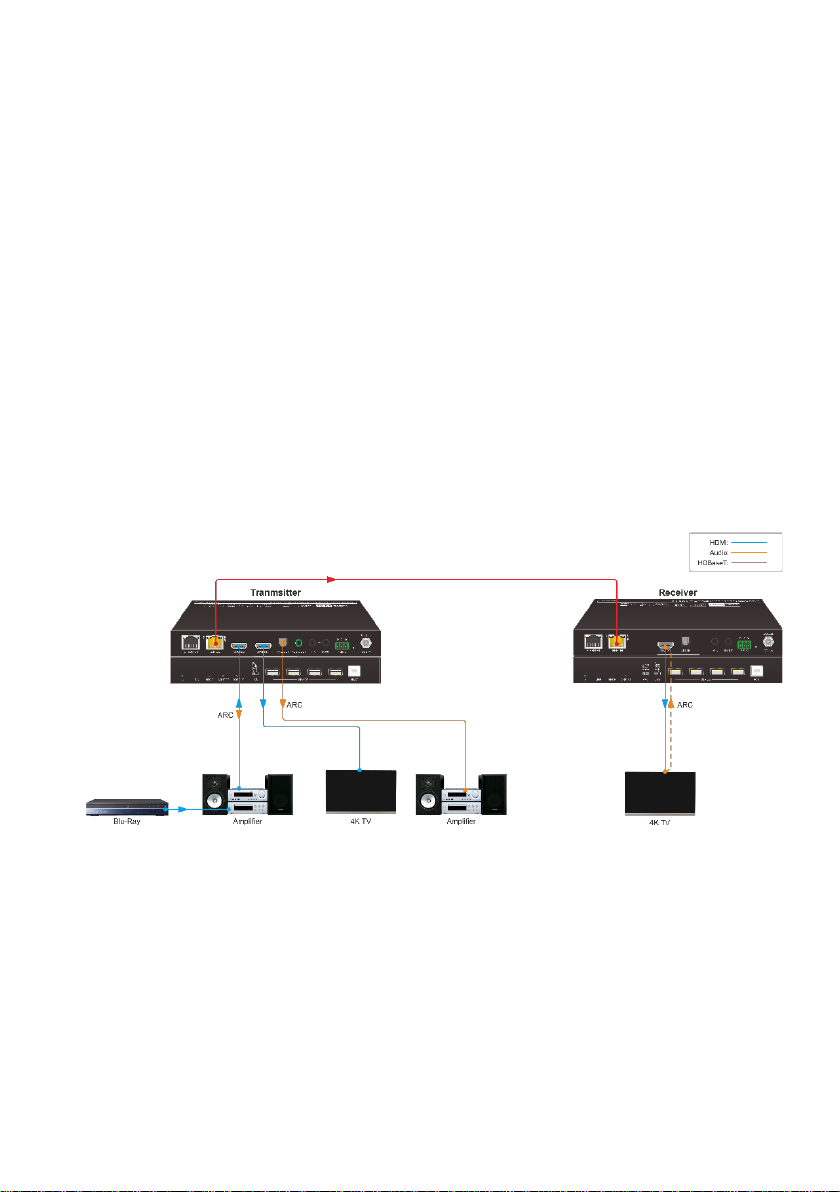

System Connection
1) When ARC switch is selected to HDMI, and the TV supports ARC, the TV audio
can be transmitted back to the transmitter via HDMI output port of receiver, and
then it will be output by the ARC OUT & HDMI Source port of transmitter. CEC
pass-through is not supported in this mode.
2) When ARC switch is selected to SPDIF, the audio can be transmitted back to the
transmitter via ARC IN port of receiver, and then it will be output by the ARC OUT
& HDMI Source port of transmitter. Besides, it also supports CEC pass-through in
this mode.
3) When ARC switch is selected to PASS, the extender can pass the ARC signal and
support CEC pass-through. If the amplifier can work with the TV for ARC function,
the ARC audio can be transmitted back to the transmitter via HDMI output port of
receiver, and then it will be output by the ARC OUT & HDMI Source port of
transmitter.
Note: Please try to restart the extender if ARC function works abnormally.

8
Technical Specification
Transmitter
Receiver
Video
Input
(1) SOURCE
(1) HDBT IN
Input Connector
(1) Type-A female HDMI
(1) RJ45
Input Resolution
Up to 4K@60Hz 4:4:4
Up to 4K@60Hz 4:4:4
Output
(1) HDBT OUT, (1) LOOP OUT
(1) DISPLAY
Output Connector
(1) RJ45, (1) Type-A female HDMI
(1) Type-A female HDMI
Output Resolution
Up to 4K@60Hz 4:4:4
Up to 4K@60Hz 4:4:4
Audio
Input
-
(1) ARC IN
Input Connector
-
(1) Toslink Connector
Output
(1) ARC OUT, (1) AUDIO OUT
-
Output Connector
(1) Toslink connector
(1) 3.5mm jack
-
Audio Format
Toslink (ARC): PCM, Dolby Digital, DTS 5.1CH
3.5mm Audio: PCM 2CH
Frequency Response
20Hz ~ 20KHz, ±3dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV)
nominal consumer line level signal
THD+N
< 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFS level
(or max level)
SNR
> 85dB, 20Hz-20kHz bandwidth
Crosstalk Isolation
> 70dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation
< 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
Frequency Response
Deviation
< ± 0.5dB, 20Hz –20kHz
Output Load Capability
1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Stereo Channel
Separation
>70dB@1KHz
Control
Control Part
(4) DEVICE, (1) HOST, (1) USB
Switch, (1) IR IN,
(1) IR OUT, (1) RS232,
(1) ETHERNET
(4) DEVICE, (1) HOST, (1) ARC
Switch, (1) USB Switch, (1) IR
IN,
(1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector
(4) Type-A USB 2.0,
(1) Type-B USB 2.0,
(1) 2-pin DIP Switch,
(2) 3.5mm Jacks,
(4) Type-A USB 2.0,
(1) Type-B USB 2.0,
(2) 3-pin DIP Switch,
(2) 3.5mm Jacks,

9
(1) 3-pin Terminal Block,
(1) RJ45
(1) 3-pin Terminal Block,
(1) RJ45
General
Bandwidth
18Gbps
HDMI Standard
2.0
HDCP Version
Input: HDCP 2.2, HDCP 1.4 compliant
Loopout: Follows the display’s HDCP version.
RX Output: Follows the source’s HDCP version.
CEC
Pass-through (when ARC switch is selected to PASS or SPDIF)
Bi-directional PoC
Supported
HDMI V2.0 Cable Length
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m
Transmission Standard
HDBaseT
Transmission Distance
4K/1080p ≤ 262 feet (80 meters)
Operation Temperature
-5 to +55℃(+23° to +131°F)
Storage Temperature
-25 to +70℃(-13° to +158°F)
Relative Humidity
10% to 90%, Non-condensing
Power Supply
Input:100V~240V AC; Output:24V DC 1.25A
Power Consumption
16.1W (Max)
Dimension (W*H*D)
200mm x 25mm x 100mm
Net Weight
290g
Note: Please use high-qualified HDMI cable fully compliant with HDMI V2.0 for reliable
transmission and connection.
