Cypress CA-USBHUT User manual

CA-USBHUT &
CA-USBHU100R
Multi-functioning HDMI/USB/
RS-232 & IR over single CAT5e/6
Transmitter and Receiver
Extender Box
Operation Manual
CA-USBHUT & CA-USBHU100R

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.0 March 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
 To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
VR0 20110330 Preliminary Release
VR1 20110609 Add EDID Function
VR2 20110913 WUXGA @ RB
VR3 20120204 Power adaptor, Dimensions &
Weight

Table of Contents
1
1
1
2
2
3
4
4
4
5
6
6
7
8
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Transmitter’s Front Panel ........................................................
7.2 Transmitter’s Rear Panel .……………………..….......…...….…
7.3 Receiver’s Front Panel ............................................................
7.4 Receiver’s Rear Panel .………………...…..…….......…...….…
8. D-Sub 9Pin Denitions ….………………….........….............…..…......
9. Connection and Installation ….………………….........…..…..…......
10. Acronyms …......................................................................................

1
1. Introduction
With HDMI & USB over CAT5e/6 connectivity are becoming popular
nowadays. The growing need for their flexibility has likewise risen in demand.
The HDMI & USB over a CAT5e/6 transmitter and receiver box solution is
developed for any household and/or commercial environment. This pair of
devices allows HDMI and or USB host device to send data within a 100-meters
distance while offering expandability for up to 4 USB outputs to perform
tasks. In addition, this pair of devices can also save data from the output
port devices or allow remote control through the display side even when
there's 100 meters apart separating the devices. Furthermore, this pair of
devices includes extra functions like IR, line-out and microphone features that
allows user to enjoy control over distance and audio sound over favor audio
equipments. Moreover, the device allowing user with cascade with the same
family type of device to extend the transmission distance up to as long as it
demand and without signal loss or delay, or with multi pairs of the extender
box up to 16 for matrix usage from a IP for data sharing within the connected
device of sources and displays. The HDMI & USB over a CAT5e/6 transmitter
and receiver box are the ideal choices to your HDMI & USB extension and
data sharing needs.
2. Applications
 HDMI, USB, RS-232 & IR Extender
 Broadcasting system over single CAT5e/6
 Multimedia display and multi-data sharing
 Long distance data sending with cascade
 Matrix network system
 System control over RS-232 and equipment control over IR
 KVM control
3. Package Contents
 HDMI & USB over single CAT5e/6 Transmitter
 HDMI & USB over single CAT5e/6 Receiver
 5V / 3A DC power supply x 2
 IR Blaster x 1
 Operation manual

2
4. System Requirements
 Input HDMI and or USB source equipment such as DVD, Blu-Ray player
and or PC/Notebook with connection cables.
 Output display such as HD TV, monitor and active speaker or amplifier
with connection cables.
 CAT5e/6 cable up to 100Ms in between of transmitter and receiver.
5. Features
 HDMI v1.2 and HDCP v1.1 compliant
 Support USB 2.0 high-speed devices
 Operate with USB 2.0 high speed host controllers
 True plug and play without any driver installation required
 Display and control of the host device and source equipment
 Save and share data into a separate room
 Tested CAT5 cable distance of up to 100 meters or cascade up to as
long it require or link up to 16 pairs for matrix system
 Supports digital display output resolution up to 1920 x 1080@60Hz &
WUXGA@RB
 Automatic display mode detection and DDC synchronization
 Simple set up with easy to use
 LED indicators for easy viewing
 Data transmission rate 1G bit/s
 Can cascade over Giga Ethernet hub base on TCP/IP

3
6. Specications
Transmitter
Input Port 1 x USB (B type)
1 x HDMI
1 x IR Blaster
1 x RS-232
Output Port 1 x RJ45
Receiver
Input Port 1 x RJ45
1 x 3.5Ø Audio In
Output Ports 4 x USB (A type)
1 x HDMI
1 x RS-232
1 x IR Receiver
1 x 3.5Ø Audio Out
ESD Protection Human body model: ±10kV (air-gap discharge)
±6kV (contact discharge)
Power Supply 5V / 3A (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 180 (W) x 110 (D) x 25 (H) / each
Weight(g) 382 / Transmitter, 384 / Receiver
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Power Consumption 5W / Transmitter, 12W / Receiver
Relative Humidity 20~90% RH (non condensing)

4
7. Operation Controls and Functions
7.1 Transmitter’s Front Panel
① ② ③
USBLINK
HDMI/USB/IR/RS232 to CAT5e/6 Transmitter
LINK PAIR SEL
① This LED will illuminate when the transmitter is linked with receiver's signal.
② USB LED: This LED will illuminate when the transmitter has linked with
receiver's USB signal. User are only able to control the USB in (the source
device) when this LED is not illuminated.
③LINK PAIR SELECT: This dip switch allows user with matrix setting for link up
to 16 pairs of the devices with single IP router. Each pair must have
the same dip switch setting in order to pair to the right device setting. The
factory default setting is at 0000.
7.2 Transmitter’s Rear Panel
① ② ③ ④ ⑤ ⑥ ⑦
① DC 5V: Plug the DC power supply into the unit and connect the adaptor
to AC wall outlet. Power LED will illuminate when the power is on.
② Power LED: The red LED will illuminate when the device is connected with
power.
③ USB IN: This slot is to connect with PC/Notebook for input source signal
with USB B type cable.
④CAT5e/6 OUT: This slot is to connect with CAT5e/6 cable with receiver
side’s CAT5e/6 input.
⑤HDMI IN: This slot is to connect with input source such as DVD or Blu-Ray
player with connection cable.
⑥RS 232 IN: This slot is to connect with D-Sub 9pin female null moden cable
from PC’s system for controlling both the input source and output display
over RS-232.
⑦IR BLASTER: This slot is to connect with IR blaster cable included in the
package for IR signal sending and controlling the HDMI input source
equipment.

5
7.3 Receiver’s Front Panel
① ② ③ ⑤④ ⑥
LINK
CAT5e/6 to HDMI/USB/IR/RS232 Receiver
IR
LINK PAIR SEL USB
12
34
① Link LED: The LED red will illuminate when the device has received output
display’s single and input source’s data.
②IR: receiver: This IR reciever can accept IR signal of the HDMI input source
device with frequency between 20~60Hz and can send the signal over
CAT5e/6 to transmitter side to control the input source equipment.
③LINK PAIR SELECT: This dip switch allows user with matrix setting for link up
to 16 pairs of the devices with single IP router. Each pair must have
the same dip switch setting in order to pair to the right device setting. The
factory default setting is at 0000.
④VIDEO MODE: Press this button to switch in between the video and
graphic mode. The OSD will display your selection every time when the
button is pressed.
For EDID update: Connect both transmitter and receiver box together
with CAT5e/6 cable and power on the transmitter side, then press this
button constantly before powering on the receiver side. The LINK LED
will light up instantly and go disappear, when the LED is light up again
with blinking this button may be released. Under multiple link of receivers
the EDID update will always be stored with the last update setting.
⑤LINK button: Press this button once or twice to allow the receiver to be link
up or unlink with the transmitter and the OSD will show "Starting USB" or
"Stopping USB" on the HDMI output display.
Under multiple link of receivers on a single transmitter, press it for 3sec to
get the host control of USB on the receiver. When the LED illuminate it
means the device has obtain the USB authority.
⑥USB 1~4: These slots are for users to connect with keyboard, mouse, HDD,
USB flash drive and…etc. for USB hub function and KVM usage.

6

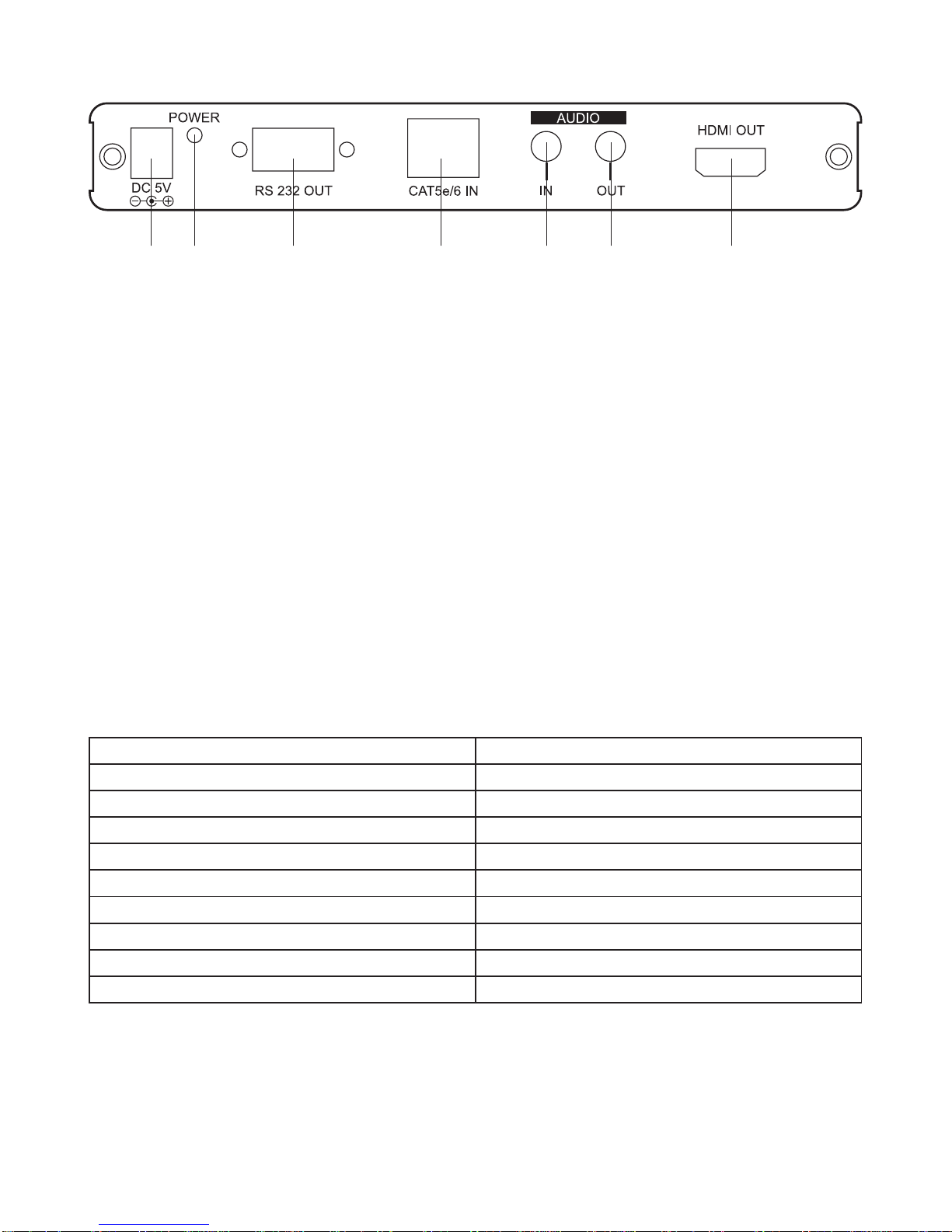

7.4 Receiver’s Rear Panel
① ② ③ ④ ⑤ ⑥ ⑦
① DC 5V: Plug the DC power supply into the unit and connect the adaptor
to AC wall outlet. Power LED will illuminate when the power is on.
② Power LED: The red LED will illuminate when the device is connected with
power.
③ RS 232 OUT: This slot is to connect with D-Sub 9pin female null moden
cable from PC’s system for controlling both the input source and output
display over RS-232.
④CAT5e/6 IN: This slot is to connect with CAT5e/6 cable with transmitter
side’s CAT5e/6 output
⑤AUDIO IN: This slot is for extra audio input source signal to be connected
with 3.5Ø phone jack cable.
⑥AUDIO OUT: This slot is for external audio output equipment to be
connected with active speaker and connection cable.
⑦HDMI OUT: This slot is to connect with output display such as HD TV or
monitor with connection cable.
8. D-Sub 9 Pin Denitions
Pin Dene
1 N/C
2 RX
3 TX
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
* RS-232 transmission format:
Baud Rate: 115200bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1 bit
Flow Control: None

7
9. Connection and Installation
Blu-ray
DVD
NotebookNotebook
HDMI
HDMI
HDMI
HDMI
PC or
or
or
100m
100m
B
B
IP Router
TV/MonitorMicrophone Active
Speaker
HDMI
HDMI
HDMI
HDMI
30° 30°
3M 3M7M
Keybord Mouse HDD Flash
100m
PC
Transmitter's Rear Panel
Receiver's Rear Panel
Receiver's Front Panel

8
Acronyms A
Acronym Complete Term
CAT6 Catergory 6 Cable
HDCP High-bandwidth Digital Content Protection
HDMI High-Definition Television
USB Universal Serial Bus

A

20100706 MPM-CAUSBHUT
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
