Avanti EWC28 User manual

INSTRUCTIONMANUAL
MANUAL DE INSTRUCCIONES
Model Number/ No. de Modelo: EWC28
THERMOELECTRIC WINE CHILLER
VINERA TERMOELECTRICA
SEEWARNING ON KEY.
ATTENTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página15.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604-Miami, Florida 33152
www.avantiproducts.com

2
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti products. Please fill out this card and return it within 100
days of purchase and receive theseimportant benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604-Miami, Florida 33152 USA
?Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
?Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
----------------------------------------------------------(detachhere)----------------------------------------------------------
Avanti Registration Card
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
DidYou Purchase An Additional Warranty: Your Age:
?Extended ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Products Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other______________________________
?Friend/Relative Recommendation Comments____________________________
?Warranty _____________________________________
?Other_______________________ _____________________________________

3

4
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your newWine Chillerproperly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
SerialNumber
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the WineChiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephonenumber, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION:
THIS WINE CHILLERIS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICALPRODUCTS.

5
TABLE OF CONTENTS
Registration Information 2
Help Us Help You … 4
Parts And Features 6
Important Safety Instructions 7
Installation Instructions 7
Before Using Your Wine Chiller 7
Installing Your Wine Chiller 7
Electrical Connection 8
Reversing The Door Swing Of Your Appliance 8
OperatingYour Wine Chiller 8
Temperature Control And Light Switch 8
Setting The Temperature Control 9
Interior Light 9
Door Lock 9
Care And Maintenance 9
Cleaning Your Wine Chiller 9
Power Failure 10
Vacation Time 10
Moving Your Wine Chiller 10
Energy Saving Tips 10
Troubleshooting Guide 11
Service For Your Wine Chiller 12
Your Avanti Products Warranty 13
Wiring Diagram 14
INSTRUCCIONES EN ESPAÑOL 15~17

6

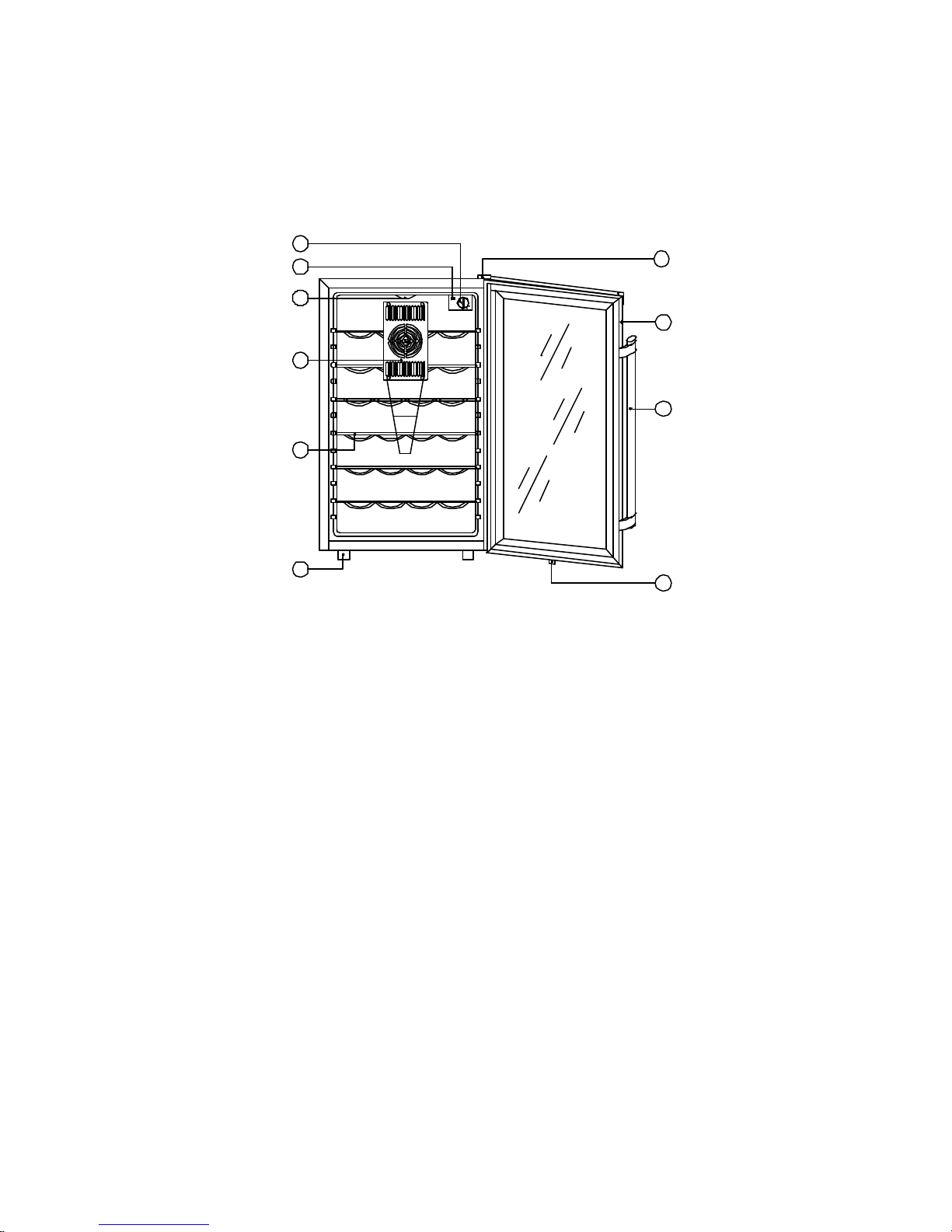

PARTS & FEATURES
6
5
4
3
2
1
10
9
8
7
1.
Temperature Control Knob
2. Light Switch
3. Interior Light
4. Cold Sink Fan Cover
5. Shelves
6. Legs
7. Upper Hinge Cover
8. Tempered Glass Door
9. Door Handle
10. Security Lock

7
IMPORTANT SAFETY INSTRUCTIONS
?WARNING? To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
?Read all instructions before using the Wine Chiller.
?DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
?Before you throw away your old Wine Chiller: Takeoff the door. Leave the
shelves in place so that children may not easily climb inside.
?Never allow children to operate, play with, or crawl inside the appliance.
?Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
?Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
?Do not repair or replace any part of the refrigerator or attempt any servicingunless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions. Replace the fuse with the same type.
-Save these instructions-
INSTALLATION INSTRUCTIONS
?Before Using Your Wine Chiller
?Remove the exterior and interior packing.
?Check to be sure you have all of the following parts:
?6 Shelves
?2 Keys
?1 Handle Assembly (Including 1 handle, 2 screws and 2 screw covers)
?1 Instruction Manual
?Clean the interior surface with lukewarm water using a soft cloth.
?Install the handle on the left side of the door with 2 screws.
?Installation of Your Wine Chiller
?This appliance is designed to be free standing installation only, and should not be recessed or
built-in (Fully recessed).
?Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded.
?Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper
air circulation to cool the heat sink.
?Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
?This refrigerator uses thermoelectric refrigeration technology (no compressor) and is not designed
for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a
maximum of 30 degrees below the ambient temperature.
?Avoid locating the unit in moist areas.

8
?Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
?After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before
placing any items in the compartment.
?Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning
power and/or grounding should be directed toward a certified electrician or an authorized Avanti
Products service center.
This appliance requires a standard 115/120 Volts A.C. ~/60Hz electrical outlet with three-prong
ground.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
Do not use an adapter plug with this appliance.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance.
?Reversing the Door Swing of Your Appliance
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please callservicefor reversal instructions.
OPERATING YOUR WINE CHILLER

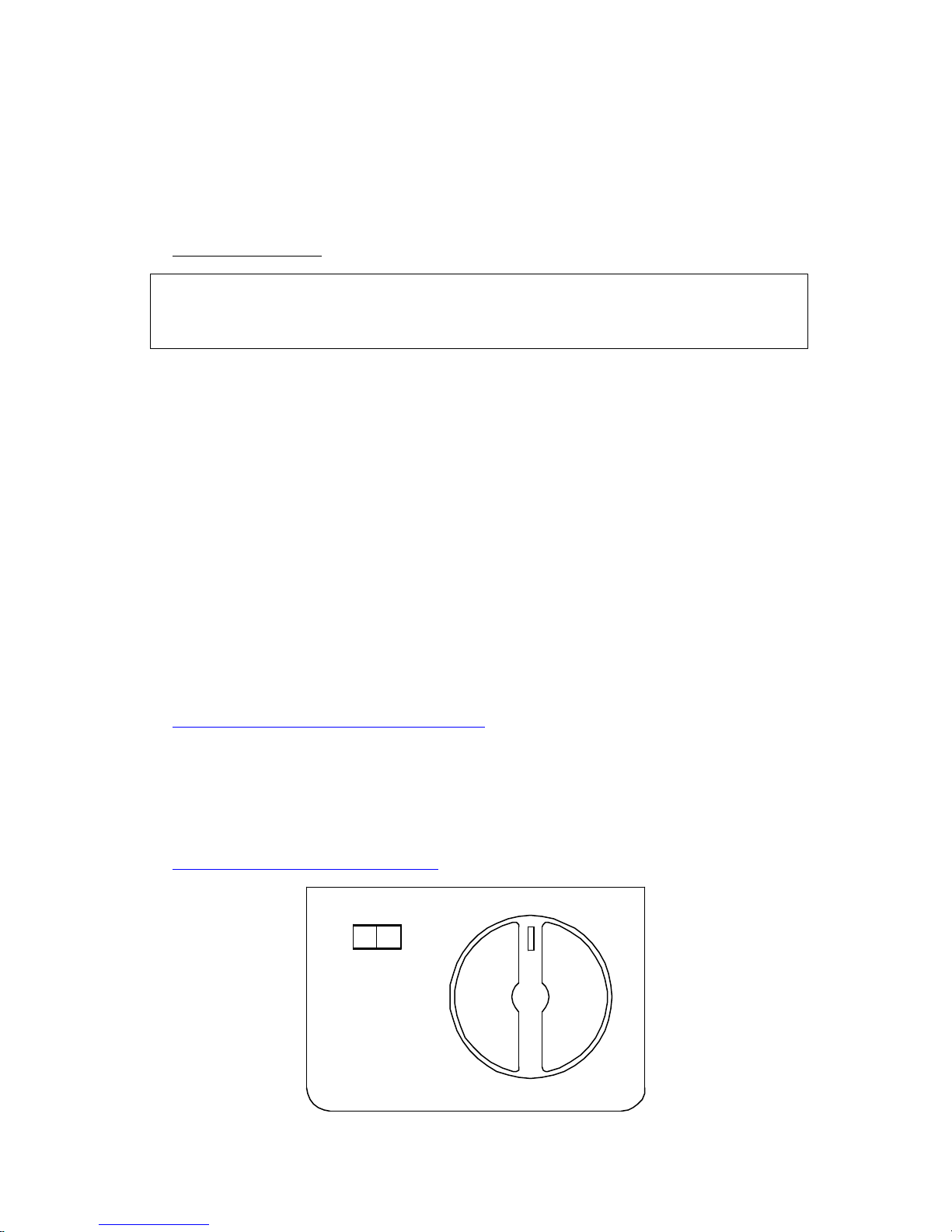

?Temperature Control and Light Switch
OFFON
OFF
HI
MED
LO
?
Warning
?
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

9
?Setting the Temperature Control
?Your Wine Chiller has only one control for regulating the temperature. The temperature control is
located on the upper right hand corner of the compartment.
?To control the internal temperature, adjust the controlknob according to the ambient temperature
or purpose of use.
?The first time you turn the unit on, set the temperature control to “MAX”position.
?The settings of temperature control are from “MIN” to “MAX”. After 2 hours, adjust the
temperature control setting to “MED”. The setting of “MED” should be appropriate for home or
office Wine Chiller use.
NOTE:
?The range between “MAX” and “MIN” is from 51?F to 62?F, which is ideal for the storage of
most wines. The medium(MED) position on this unit is set at 55ºF.
?Turning the temperature control to "OFF" position stops the cooling cycle but does not shut
off the power to the appliance.
You must install your electronic Wine Chiller in a place where the ambient temperature is between 72-
78 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures,
the performance of the unit may be affected. For example, placing your unit in extremecold or hot
conditions may cause interior temperatures to fluctuate. The range of 51-62 degrees Fahrenheitmay
not be reached.
You can place four bottles on each shelf plus four on the bottom compartment.
Recommended temperatures for chilling wine:
Degrees Control Position
Red Wines: 57-62?F (14-17ºC) MIN
Dry/White Wines 54-57?F (12-14ºC) MED
Rose Wines 51-53?F (11-12ºC)MAX
?Interior Light
The light switch is located on the upper right hand corner of the compartment. You can turn the
interior light ON or OFF by pressingthe lightswitch.
?Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making
sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
CARE AND MAINTENANCE
?Cleaning Your Wine Chiller
?UNPLUG the Wine Chiller, and remove all items including shelves.
?Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
?Wash the shelves with a mild detergent solution.
?Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
?Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
CAUTION
Failure to unplug the Wine Chiller could result in electrical shock or personal injury.

10
?Power Failure
?Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
?Vacation Time
?Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
?Long vacations: If the appliance will not be used for several months, remove all items and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odorand mold growth,
leave the door open slightly: blocking it open if necessary.
?Moving Your Wine Chiller
?Remove all bottles.
?Securely tape down all loose items (shelves) inside your appliance.
?Tape the door shut.
?Protect outside of appliance with a blanket, or similar item.
?Energy Saving Tips
?The Wine Chiller should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
?One characteristic of thermoelectric units is the length of time it requires to recover from
having the door opened and shut frequently. It may be necessary to wait longer for the
temperature to return to its former level once the door has been opened for too long. This is
normal for the type of unit.
?Thermoelectric technology costs just pennies to operate. It is environmentally friendly due to
the lack of CFC’s.

11
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Wine Chiller does not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
The appliance temperature controlis set at “OFF”
position.
Wine Chiller is not cold enough. Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The Wine Chiller does not have the correct
clearances.
Abnormal voltage.
The light does not work. Not plugged in.
The circuit breaker tripped or a blown fuse.
The switch is in the “OFF” position.
Vibrations. Check to assure that the Wine Chiller is level.
The door will not close properly. The Wine Chiller is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

12
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Cus tomer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029 Whatever your questions are about our products, help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.

13
YOUR Avanti Products WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual. In
rental or commercial use, the warranty
period is 90 days. All Avanti
Appliances of 3.5 cubic feet capacity
or less must be brought/sent to the
appliance service shop for repair.
?Content losses of food or other, due to
spoilage.
?Incidental or consequential damages.
?Parts and labor costs for the following will
not be considered as warranty:
?Door springs, and/or frames.
?Inner door panels, door rails and/or door
supports.
?Light bulbs and/or plastic housing.
?Plastic cabinet liners.
?Punctured evaporator that voids the
warranty on the complete sealed system.
?Repairs performed by unauthorized
servicers.
?Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
?Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
?Replacement of house fuses or resetting
circuit breakers.
?Failure of the product if it is used for other
than its intended purpose.
?This warranty does not apply outside the
Continental USA.
WHAT IS NOT COVERED

14
WIRING DIAGRAM
MODULE
HEAT SINK FAN
TEMP. NTC
THERMOELECTRIC
LIGHT & COLD SINK FAN
POWER INPUT
E
N
L
POWER SOURCE/
TEMP. CONTROL BOARD

15
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA –El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE
PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación eléctrica
o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Deje una pulgada de espacio entre la parte posterior de la vinera y toda pared contigua.
3. Las bodegas termoelétricas necesitan cierto tiempo de recuperación cuando la puerta se
abre y se deja abierta por mucho tiempo. Esto es normal para este tipo de unidad.
4. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
5. Para un mejor desempeño, nivele la vinera utilizando las patas ajustables o tornillos
niveladores. Para verificar el nivel, abra la puerta hasta la mitad, debe regresar sola.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. Para encender la vinera,
gire el control de temperatura a la posición que corresponda a la temperatura deseada. La
temperatura variará dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se
abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.

16
DISCO DEL TERMOSTATO: (Instalado en la parte superior) Para controlar la temperatura dentro del
refrigerador para vinos.
·La primera vez que encienda la unidad, gire el control a la posición "MAX".
·Después de 2horas, mueva el control a la posición "MED".
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23-25 grados centígrados.
Si la temperatura ambiental oscila afuera de esos límites, pueda afectar la temperatura de la caja.
Por ejemplo, si su unidad estásituada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperaturade la caja y no alcanzar los límites.
Silabombilla interior estásiempre encendida, la temperaturade la caja estarámáselevada.
Ud puede colocar 28 botellas dentro de la bodega (4 por rejilla) incluyendo 4 en la base.
Temperaturas recomendadas para enfriar vinos:
GRADOS POSICION DEL CONTROL
Vinos secos: 12-14º C MED
Vinos rosados: 11-12º C MAX
Vinos tintos: 14-17º C MIN
NOTA: En la guía marcada “MAX” la tempertura marca 11ºC. EN la guía marcada
“MIN” la temperature marca 17ºC. La guía marcada “MED” estáregulada para 13ºC.
Luzinterior
La luz interior se controla manualmente y no funciona al abrir ni cerrar la puerta. Para prender la
luz, presione el interruptor manual de la luz, ubicadocerca del compartimiento de control de
temperaturas.
Cerradura de la puerta
Su unidad viene equipada con una combinación de cerradura y llave.
Las llaves (2) están dentro de la bolsa plástica junto al manual de instrucciones.
Introduzca la llave en la cerradura y gírela hacia la izquierda para abrir la puerta.
Para cerrarla, gire la llave hacia la derecha.
Quite la llave y colóquela en un lugar seguro para evitar que se pierda.
Descongelación
Su refrigerador para vinos ha sido diseñado con un sistema de descongelación de “ciclo
automático”.
Las superficies refrigeradas del compartimiento para vinos se descongela automáticamente,
durante el ciclo “apagado” del control de enfriamiento (termostato). El agua descongelada del
compartimiento es eliminada automáticamente.

17
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Período de vacaciones
Para períodos cortos de vacaciones, deje los controles en la posición “MED”. Durante ausencias
más largas;
(a) saque todas las botellas,
(b) desconecte la vinera del tomacorriente,
(c) limpie bien la vinera,
(d) deje la puerta abierta para evitar la formación de condensación, moho u olores.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera para vinos. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta
cuando la corriente esté apagada. Durante los cortes de corriente de larga duración, tome medidas
para proteger sus botellas de vino.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
Algunas reglas importantes para el uso correcto de la vinera.
?Las bebidas se deben guardar en botellas cerradas.
?No sobrecargue el compartimiento interior.
?No abra la puerta a menos que sea necesario.
?Si la vinera se guardara sin uso por períodos largos, se sugiere que, luego de una limpieza
cuidadosa, se deje la puerta entreabierta para permitir que el aire circule dentro de la caja y evitar
una posible formación de condensación, moho u olores.
?Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier otro
material para cubrir estantes que puedan obstruir la circulación del aire.
PRINTED IN CHINA
