Avanti WCR5450DZ User manual

BUILT-IN WINE CHILLER / VINERA PARA EMPOTRAR
CELLIER ENCASTRABLE
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Model Number / No. de Modelo / Modelé: WCR5450DZ
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products LLC
P.O. Box 520604 -Miami, Florida 33152
www.avantiproducts.com

2
TABLE OF CONTENTS
Appliance Safety
3
Important Safeguides
4
Help Us Help You …
5
Parts and Features
6
Important Safety Instructions
7
Installation Instructions
7
Before Using Your Wine Chiller
7
Installation of Your Wine Chiller
7
Built-In Cabinet Instructions
7
Electrical Connection / Extension Cord / Surge Protector
8
Installing Stainless Steel Handle
9
Operating Your Wine Chiller
10
ON/OFF Power & Control Panel Unlock Function
10
Setting the Temperature Control
10
Storage
11
Interior Light
11
Door Lock
11
Shelves
12
Care and Maintenance
13
Reversing the Door Swing of Your Wine Appliance
13
Cleaning Your Wine Chiller
13
Power Failure
13
Moving Your Wine Chiller
13
Charcoal Filtration System
13
Troubleshooting Guide
14
Service for Your Appliance
15
Wiring Diagram
15
Your Avanti Products Warranty
16
Instrucciones en Español
17 - 20
Instructions en Français
21 - 33
Registration Information and Registration Card
Last Page

3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.

4
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
•Replace all panels before operating.
•It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
•Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
•Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
•Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
•To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
•The appliance should not be located next to ovens, grills or other sources of high heat.
•The appliance must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with
the National Electrical Code and local codes and ordinances is required.
•Do not kink or pinch the power supply cord of appliance.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
•Never allow children to operate, play with or crawl inside the appliance.
•Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
•Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
•Do not use this apparatus for other than its intended purpose.

5
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new Wine Chiller properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the Wine Chiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION:
THIS WINE CHILLER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.

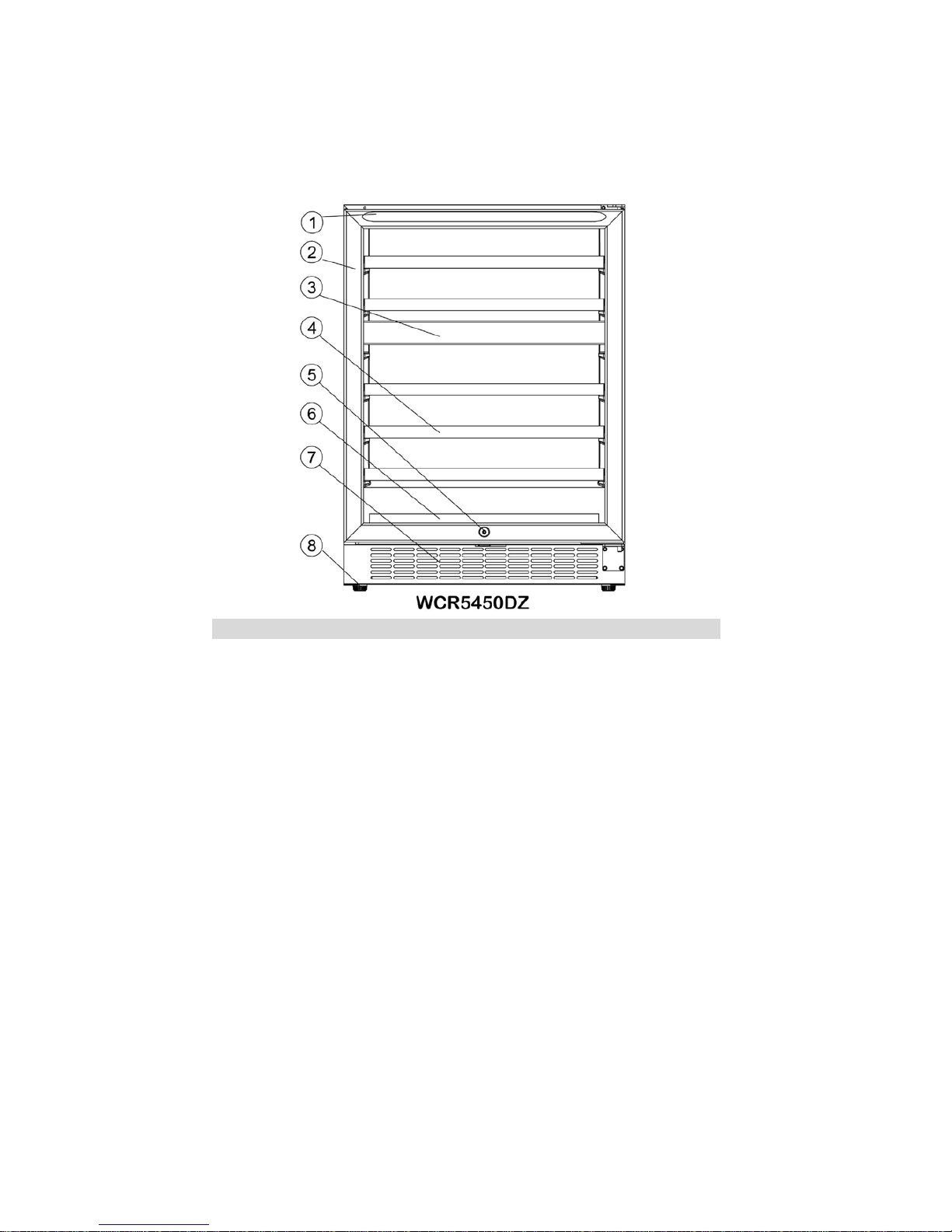

PARTS & FEATURES
1. STAINLESS STEEL HANDLE
2. GLASS DOOR WITH STAINLESS
STEEL FRAME
3. TEMPERATURE CONTROL PANEL
4. ROLL-OUT SHELVES (TOTAL 5)
5. SECURITY LOCK
6. SMALL BOTTOM SHELF (TOTAL 1)
7. FRONT GRILLE
8. LEVELING LEGS
9. CABINET

7
IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
•Read all instructions before using the Wine Chiller.
•DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
•Before you throw away your old Wine Chiller: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the appliance.
•Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR WINE CHILLER
•Remove the exterior and interior packing.
•Check to be sure you have all of the following parts:
•5 Roll-out Shelves
•1 Small Bottom Shelf
•1 Instruction Manual
•Before connecting the Wine Chiller to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
INSTALLATION OF YOUR WINE CHILLER
•This appliance is designed to be for built-in, recessed or free standing installation.
•Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded. To
level your Wine Chiller, adjust the front leveling legs at the bottom of the Wine Chiller.
•Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the protective coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
•Avoid locating the unit in moist areas.
•Do not let anything cover or obstruct the ventilation grilles.
•Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from
the power cord. Any questions concerning power and/or
grounding should be directed toward a certified electrician or
an authorized Avanti Products service center.

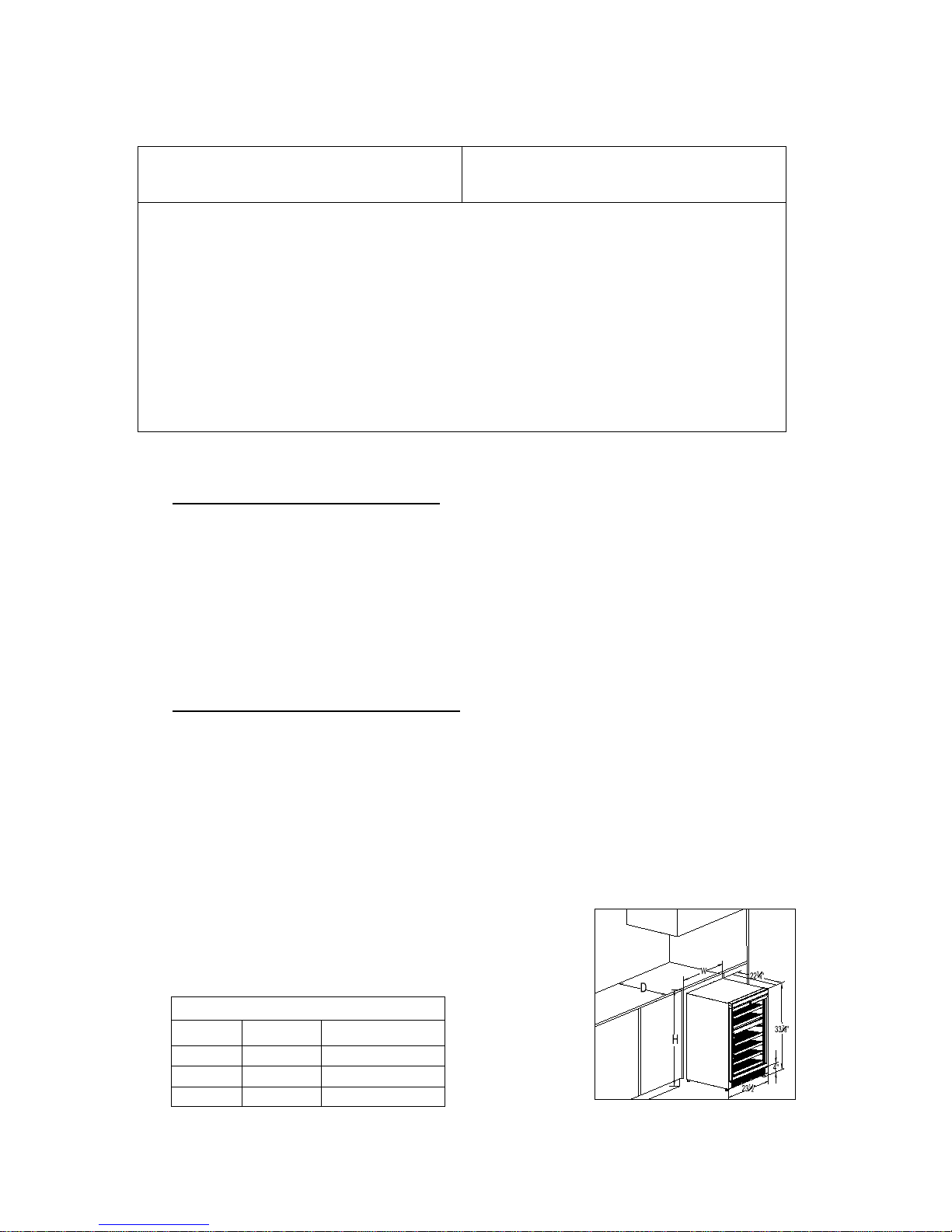

Cabinet Opening Dimensions
Inches
Centimetres
Width
23⅝”
60 cm
Depth
23¼”
59 cm
Height
34”
86.5 cm

8
ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize
the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-
prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is
properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility
and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or
at either end. When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you
do not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are
very susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge
protector needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void
your product warranty.
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

9
INSTALLING STAINLESS STEEL HANDLE
This wine chiller includes a stainless steel handle that is not required to operate this unit. To install
the handle please follow the below instructions:

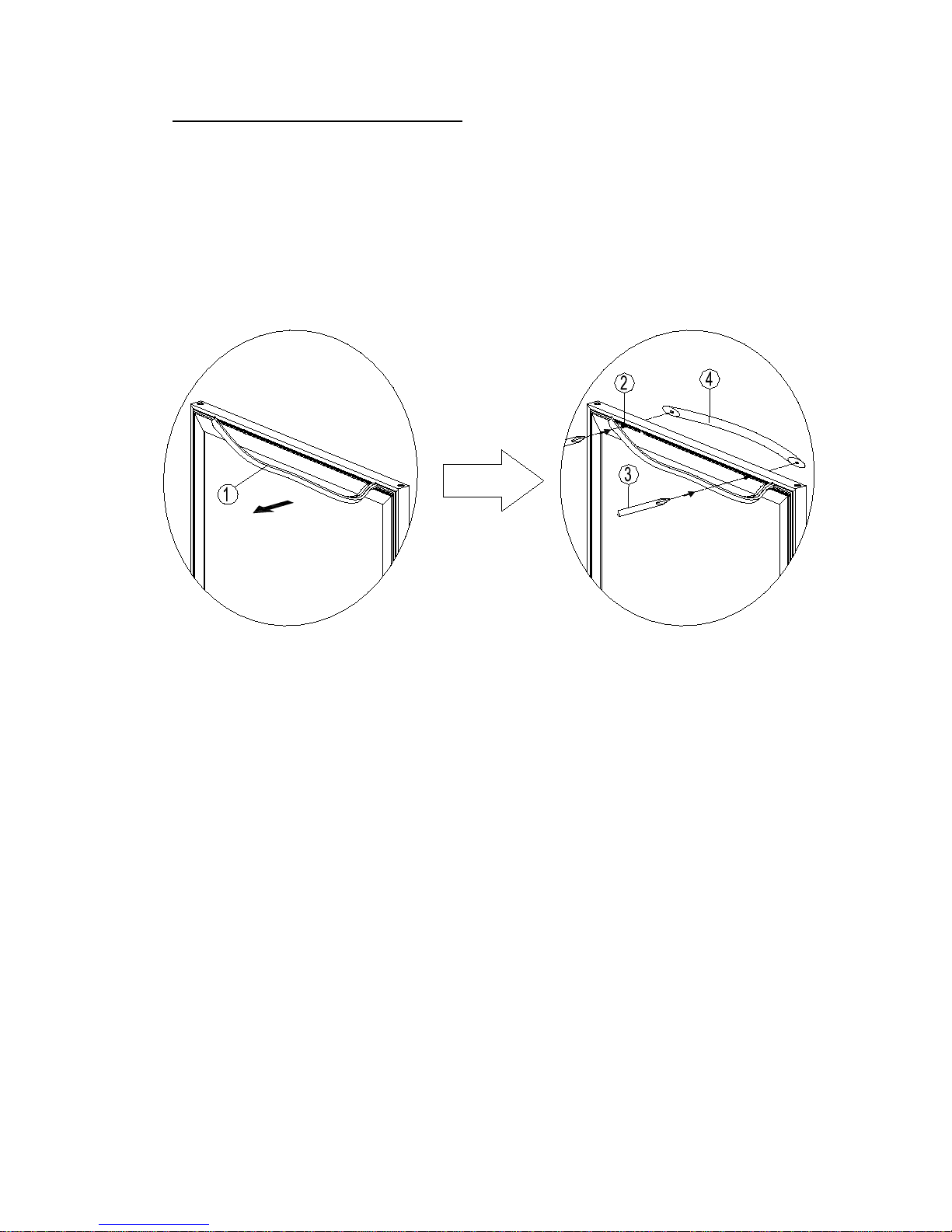

1. Pull away the door gasket in the area where the handle is to be installed as shown below
in Illustration # 1. The gasket is easily displaced by hand, no tools are necessary.
2. Align the handle with the screws pre-installed on the backside of the door. Tighten the
screws using a Phillips head screwdriver until the handle sets both flush and secured
tightly against the door frame. (DO NOT overtighten as this will cause damage to the
handle assembly).
3. Replace the door gasket to its original position.
1 2
aGasket ② Screw ③ Screwdriver ④ S/S Handle

10
OPERATING YOUR WINE CHILLER
It is recommended you install the Wine Chiller in a place where the ambient temperature is
between 72-78 degrees Fahrenheit. If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in
extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65
degrees Fahrenheit may not be reached.
Recommended Temperatures for Chilling Wine.
Red Wines
59 - 65 ºF
15 - 18 ºC
Dry / White Wines
50 - 55 ºF
10 - 13 ºC
Rose Wines
49 - 51 ºF
9 – 11 ºC
Sparkling Wines
40 - 47 ºF
5 - 8 ºC
ON/OFF POWER
To turn ON or OFF the appliance, press the ON/OFF button .
SETTING THE TEMPERATURE CONTROL
You can press UP or DOWN buttons to get the desired temperature in each zone.
Before setting temperature, you need to press SET button to select the desired temperature
zone first. The degrees indicators will appear in the display windows marked TOP ZONE and
BOTTOM ZONE.
•Top Zone.
Then press the UP or DOWN buttons to get the desired temperature in the top zone.
The LED indicator on the TOP ZONE display will flash
•Bottom Zone.
Then press the UP or DOWN buttons to get the desired temperature in the top zone.
The LED indicator on the BOTTOM ZONE display will flash
•The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button
once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN
button once.
The LED readout will show the original temperature set previously (the preset temperature at the
factory for TOP ZONE is 50ºF/10ºC and for BOTTOM ZONE is 60ºF/16ºC).
You can select temperature display setting from Fahrenheit to Celsius degree by pushing the ºF/ºC
button. Fahrenheit or Celsius degrees indicators will appear in blue color in the temperature
display windows for each zone.

11
The temperature range of TOP ZONE is 40 ~ 55ºF/ 5 ~ 13ºC which is suitable for storing sparkling
and white wines. The temperature range of BOTTOM ZONE is 55 ~ 65 ºF/13 ~ 18ºC which is
suitable for storing white and red wines.
•When you store mostly red wines, you should store them in the BOTTOM ZONE, the
temperature which you control needs to be set at between 58 to 65°F/15ºC to 18ºC and the red
LED lamp marked “RED” will be lit
•When you store mostly white wines, you can store them in the TOP ZONE or BOTTOM ZONE.
When you use the BOTTOM ZONE, the temperature can be set at between 55 to 57°F/13º to
14ºC and the green LED lamp marked “WHITE” will be lit. When you use the TOP ZONE, the
temperature can be set at between 48 to 55°F/9 to 13ºC and the green LED lamp marked
“WHITE” will be lit.
•When you store mostly sparkling wines, you should store them in the UPPER ZONE, the
temperature needs to be set at between 40 to 47°F/5 to 8ºC and the amber LED lamp marked
“SPARKL” will be lit.
NOTE:
•If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the Wine Chiller will not start.
•When you use the wine chiller for the first time or restart the wine chiller after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine chiller is running for a few hours everything will be back to
normal.
STORAGE
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be
able to store may vary.
NOTE: You can place 16 standard bottles in the top zone and 30 standard bottles in the bottom
zone.
INTERIOR LIGHT
If you would like the light ON press the button and the interior light will be turned ON.
The light will automatically turn OFF after 10 minutes.
DOOR LOCK
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the
lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation
making sure metal pin is engaged completely. Remove the key and place it in a secure place for
safekeeping.

12
SHELVES
This appliance is equipped with a pull-out roller assembly (except for the bottom shelf) and you can
move the wooden shelves out and in smoothly.
Pull-out Roller Shelves (Total 5)
•To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment.
•For easy access to the bottles, you must pull the shelves approximately 60% out of the rail
compartment.
•To remove the shelves out of the rail pull each shelf approximately 60% out. Use a long flat
screwdriver to press down the right plastic notch as shown in Figure A and at the same time lift
the left plastic notch as shown in Figure B. Then proceed to pull out the shelf slowly. Contact
our service department if assistance is needed.
Figure A
Figure B

13
CARE AND MAINTENANCE
REVERSING THE DOOR SWING OF YOUR APPLIANCE
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
CLEANING YOUR WINE CHILLER
•Turn off the power, unplug the appliance, and remove all items including shelves.
•Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent or furniture polish.
•Rinse well and wipe dry with a clean soft cloth.
•Do not use steel wool or steel brush on the wooden outside cabinet. These will destroy the
surface.
POWER FAILURE
•Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to
be off for a longer period of time, you need to take the proper steps to protect your contents.
VACATION TIME
•Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
•Long vacations: If the appliance will not be used for several months, remove all items and
turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold
growth, leave the door open slightly: blocking it open if necessary.
MOVING YOUR WINE CHILLER
•Remove all items.
•Securely tape down all loose items (shelves) inside your appliance.
•Turn the adjustable legs up to the base to avoid damage.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
CHARCOAL FILTRATION SYSTEM
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the
quality and taste of your fine wines, they must be stored at the ideal temperature and ambient
conditions. Your cellar is equipped with an active charcoal filtration system to ensure air purity,
cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. The filter
assembly is located at the rear panel inside your cellar. Keep in mind, that this filter must be
changed every 12 months.
To replace your filter:
1
Remove the bottles of wine stored on the top shelf
in front of the filter.
2
Remove the shelf and set aside to be replaced
once you have changed the filter
3
Hold the filter and turn it at 90 degrees in the anti-
clockwise direction and then pull it out.
4
Remove the existing filter and replace with a new
one.
5
Put the new filter into the hole and then turn the
filter at 90 degrees in clockwise direction..

14
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling the
servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Chiller does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Chiller is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the wine chiller.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Vibrations.
Check to assure that the Wine Chiller is level.
The Wine Chiller seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine Chiller.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine Chiller is not level.
The door will not close properly.
The Wine Chiller is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

15
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance,
the Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Whatever your questions are about our products,
help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.

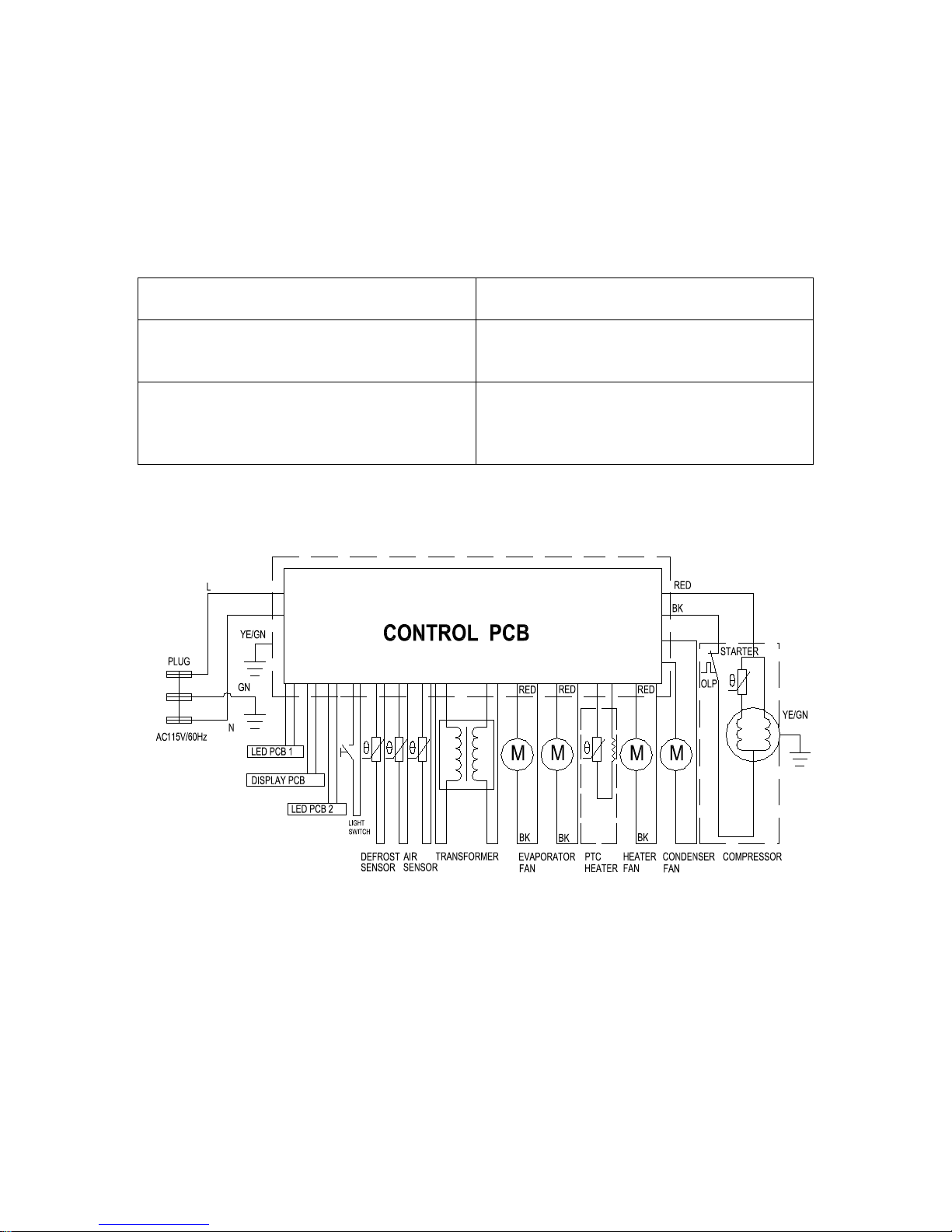

WIRING DIAGRAM

16
YOUR AVANTI PRODUCTS
WARRANTY
Staple your sales receipt here. Proof of original
purchase date is needed to obtain service
under warranty.
WHAT IS COVERED – LIMITED ONE-YEAR WARRANTY
Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of
twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run
upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason
whatsoever unless described in detail in the warranty document. For one year from the date of purchase by
the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to
be defective in material or workmanship under normal use. Avanti Products will provide you with a
reasonably similar product that is either new or factory refurbished. During this period Avanti Products will
provide all parts and labor necessary to correct such defects free of charge, so long as the product has been
installed and operated in accordance with the written instructions in this manual. In rental or commercial use,
the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent
to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTY
For the second through the fifth year from the date of original purchase, Avanti Products will provide a
replacement compressor free of charge due to a failure. You are responsible for the service labor and freight
charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs
involved to move the product to the service center and back to the user’s home, as maybe required, are the
user’s responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:
The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti
Products, including without limitation, one or more of the following:
•
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes,
regulations, or laws, including failure to install the product in strict conformity with local fire and building
codes and regulations.
•Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind,
sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to
humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
•
Content losses of food or other content due to
spoilage.
•Incidental or consequential damages
•Parts and labor costs for the following will not be
considered as warranty:
•Evaporator doors, door springs, and/or frames.
•Inner door panels, door shelves, door rails,
and/or door supports.
•Light bulbs and/or plastic housing.
•Plastic cabinet liners.
•Punctured evaporator that voids the warranty
on the complete sealed system.
•Shipping and handling costs associated with the
replacement of the unit.
•Repairs performed by unauthorized servicers.
•Service calls that are related to external problems,
such as abuse, misuse, inadequate electrical
power, accidents, fire, floods, or any other acts of
God.
•Failure of the product if it is used for other than it
intended purpose.
•The warranty does not apply outside the
Continental USA.
•Surcharges including but not limited to, any after
hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls
to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding
property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also
excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external
surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed;
service visits for customer education, or visits where there is nothing wrong with the product; correction of
installation problems (you are solely responsible for any structure and setting for the product, including all
electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations
including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCT
Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including
repairs, pro-rates, or product replacement, once this warranty has expired.
WARRANTY – REFRIGERATION - COMPRESSOR

17
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito
eléctrico, la conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra
con una enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente
instalado correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo
de choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE
PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación
eléctrica o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o
lugar húmedo.
UBICACION
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta
entreabierta.
Nota: Espere entre 3 a 5 minutos antes de volver a encender si el funcionamiento ha sido
interrumpido.
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se
mantenga entre 23-25 grados centígrados.
Si la temperatura ambiental oscila afuera de esos límites, pueda afectar la temperatura de la caja.
Por ejemplo, si su unidad está situada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperatura de la caja.

18
Temperaturas recomendadas para enfriar vinos:
Vinos tintos
58 - 65 ºF
15 – 18 ºC
Vinos blancos / secos
48 - 57 ºF
10 – 13 ºC
Vinos rosé / Zinfandel
49 - 51 ºF
9 – 11 ºC
Vinos blanco / espumante
40 - 47 ºF
5 - 8 ºC
Para encender el electrodoméstico, oprima el botón marcado .
OPERACION
Oprima el botón marcado SET para seleccionar la zona que desea programar.
Oprima los botones marcado y localizados en el lado derecho del panel de controles
para programar la temperatura interna de la zona superior. Repita esa operación pero con los
botones localizados en el lado derecho para programar la temperatura interna de la zona inferior.
La pantalla mostrará los grados respectivamente para cada zona en color rojo. La temperatura en
la zona inferior varia entre 55~65ºF (13~18ºC) y es la indicada para los vinos rojos o blancos.
La temperatura en la zona superior varia entre 40~55ºF (5~13ºC) y es la indicada para los vinos
blancos o espumosos.
Al presionar los botones marcados o por primera vez, el indicador en la pantalla
mostrará la temperatura programada de fábrica o la más reciente.
Oprima el botón marcado una vez y la temperatura aumentará un grado. Si Ud oprime el
botón
marcado una vez la temperatura bajará un grado.
Si en su mayoría Usted solamente guarda vinos rojos, debe colocarlos en la zona inferior.
El indicador marcado (RED) se alumbrará en color rojo. Ud necesita programar esa temperatura
entre los 58~65ºF (15~18ºC).
Si Ud solamente guarda vinos blancos, usted puede colocarlos en cualquier zona pero tendrá que
mantener una temperatura entre 55~57ºF (13~14ºC) en la zona inferior y una temperatura de
48~55ºF (9~13ºC) en la zona superior.
El indicador marcado “WHITE” se alumbrará en color verde.
Cuando Ud guarda vinos espumosos, deberá colocar las botellas en la zona superior y marcar la
temperatura entre los 40~47ºF (5~8ºC).
El indicador marcado “SPARKL” se alumbrará en color ámbar.
LUZ INTERIOR
La luz interior para cada zona se controla automáticamente al abrir y cerrar la puerta. Si desea la
luz interior encendida aun con la puerta cerrada, oprima el botón macado ( ) la luz interior
encenderá y se apagará automáticamente después de 10 minutos.
En la fábrica se programa la zona superior a los 50ºF (10ºC).
La zona inferior se programa a los 60ºF (16ºC).
Ud puede cambiar de grados Centígrados a Fahrenheit o viceversa, oprimiendo el botón marcado
ºF/C . En la pantalla digital para cada zona aparecerán los grados en color azul.

19
DESCONGELACION
Su refrigerador para vinos ha sido diseñado con un sistema de descongelación de “ciclo
automático”.
Las superficies refrigeradas del compartimiento para vinos se descongela automáticamente,
durante el ciclo “apagado” del control de enfriamiento (termostato). El agua descongelada del
compartimiento es eliminada automáticamente, encauzándola hacia una bandeja de goteo
ubicado en el compresor. La transferencia de calor del compresor evapora el agua.
ADVERTENCIA
Asegúrese de tener la puerta abierta completamente si Ud desea remover los estantes de madera
o moverlos hacia adelante para extraer una botella.
NOTA:
Para remover los estantes de madera corredizos, mueva cada uno de ellos aproximadamente una
tercera parte fuera de los raíles.
Presione el lado plástico derecho usando un destornillador plano (siga la flecha) como se muestra
en el dibujo “A” de la página 11 y a la misma vez haga lo mismo con el plástico del lado izquierdo
como se muestra en el dibujo “B” de la página 11.
Saque el estante corredizo suavemente.
CUIDADO Y MANTENIMIENTO
LIMPIEZA
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente
suave; luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un
poco de detergente suave o productos de limpieza para electrodomésticos.
PERIODO DE VACACIONES
Para períodos cortos de vacaciones, deje los controles en la posición normal. Durante ausencias
más largas;
(a) saque todas las botellas,
(b) desconecte la vinera del tomacorriente,
(c) limpie bien el refrigerador para vinos,
(d) deje la puerta abierta para evitar la formación de condensación, moho u olores.
CORTE DE CORRIENTE
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las
temperaturas de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la
puerta cuando la corriente esté apagada.
SI UD. SE MUDA
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
Algunas reglas importantes para el uso correcto de la vinera.
•Las bebidas se deben guardar en botellas cerradas.
•No sobrecargue el compartimiento interior.
•No abra la puerta a menos que sea necesario.
•Si la vinera se guardara sin uso por períodos largos, se sugiere que, luego de una limpieza
cuidadosa, se deje la puerta entreabierta para permitir que el aire circule dentro de la caja y
evitar una posible formación de condensación, moho u olores.
•Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier
otro material para cubrir estantes que puedan obstruir la circulación del aire.

20
SISTEMA DE FILTRACION DE CARBON
El vino es un objeto viviente y respira a través del corcho de la botella. Para conservar el sabor y
calidad de sus vinos, deben ser almacenados en la temperatura y las condiciones ambientales
ideales. Su vinera está equipada con un sistema de filtración de carbón para asegurar la pureza
del aire, la eficiencia del enfriamiento, y mantener el interior de la unidad libre de olores. El filtro
está localizado en el panel trasero del interior de la unidad.
Recuerde que el filtro necesita cambiarse cada 12 meses.
Como reemplazar el filtro de su vinera.
1
Remueva las botellas de las (2) repisas que
cubren el filtro.
Figura / Imagen para referencia
solamente.
2
Remueva las repisas y guárdelas hacia un lado
para reponerlas después de reemplazar el filtro.
3
Sujete el filtro y gírelo aproximadamente 90
grados hacia la izquierda. Retire el filtro hacia
fuera.
4
Remueva el filtro existente y reemplácelo con uno
nuevo.
5
Coloque el filtro en posición y gírelo
aproximadamente 90 grados hacia la derecha.
