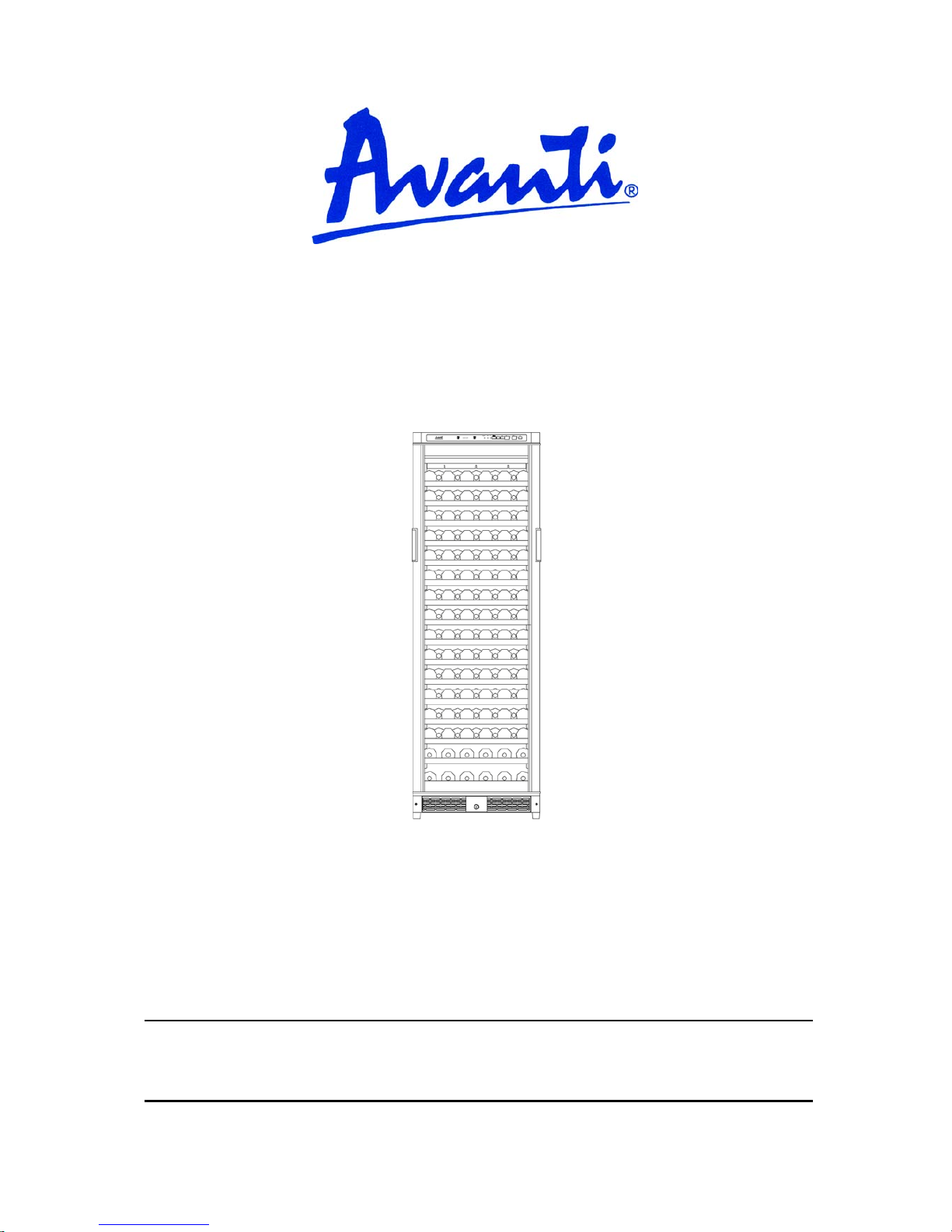

Avanti WC681BG-2 User manual

WINE CHILLER / VINERA
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers / No. de Modelos: WC681BG-2
WC681BG-2
(Picture May Vary)
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 19.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152
www.avantiproducts.com

2
THIS PAGE LEFT BLANK INTENTIONALLY

3
TABLE OF CONTENTS
Appliance Safety
4
Important Safeguides
5
Help us Help You
6
Parts and Features
7
Important Safety Instructions
8
Installation Instructions
8
Before using Your Wine Chiller
8
Installation of Your Wine Chiller
8
Electrical Connection / Extension Cord / Surge Protector
9
Operating Your Wine Chiller
10
Turning the unit ON / OFF
10
Setting the Temperature
10
Storage
10
Interior Light
11
Door Lock
11
Shelves
11
Care and Maintenance
12 – 13
Problems with Your Wine Chiller
14
Troubleshooting Guide
14
Service for Your Wine Chiller
15
Wiring Diagram
15
Your Avanti Products Warranty
16
Instrucciones en Español
17 – 20
Registration Information / Registration Card
23

4
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety messages will alert you to know what the potential hazard is, tell you how to reduce the
chance of injury, and let you know what can happen if the instructions are not followed.

5
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
•Replace all panels before operating.
•It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
•Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
•Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
•Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
•To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
•The appliance should not be located next to ovens, grills or other sources of high heat.
•The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
•Do not kink or pinch the power supply cord of appliance.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
•All installation must be in accordance with local plumbing code requirements.
•Make certain that the pipes are not pinched or kinked or damaged during installations.
•Check for leaks after connection.
•Never allow children to operate, play with or crawl inside the appliance.
•If you use the drainage container, you must set the drain select switch to OFF or the water can
overflow from the drainage container
•Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
•Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
•Do not use this apparatus for other than its intended purpose.

6
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new Wine Chiller properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the Wine Chiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION:
THIS WINE CHILLER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.

7
PARTS & FEATURES
1. DIGITAL CONTROL PANEL
2. TOP INSERT
3. GLASS DOOR
4. RECESSED HANDLE
5. LARGE WOODEN SHELVES (TOTAL 14)
6. SMALL WOODEN SHELVES (TOTAL 2)
7. LEVELING LEGS
8. SECURITY LOCK
9. BOTTOM GRILLE
10. CABINET

8
IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
•Read all instructions before using the Wine Chiller.
•DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
•Before you throw away your old Wine Chiller: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the appliance.
•Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS

•Remove the exterior and interior packing. Read installer’s directions.
Before Using Your Wine Chiller
•Check to be sure you have all of the following parts:
•14 Large Wooden Shelves
•2 Small Wooden Shelves
•2 Keys
•1 Door Lower Hinge for Door Opening from the Right Side
•1 Instruction Manual
•Before connecting the Wine Chiller to the power source, let it stand upright for approximately
2 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.

•This appliance is designed to be free standing or recessed with a minimum clearance of ¼
inch on each side and at the back.
Installation of Your Wine Chiller
•This appliance is not designed for built-in installation (zero clearances).
•Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded. To
level your Wine Chiller, adjust the front leveling leg at the bottom of the Wine Chiller.
•Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
•Avoid locating the unit in moist areas.
•Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

9
ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge protector
needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

10
OPERATING YOUR WINE CHILLER
It is recommended you install the Wine Chiller in a place where the ambient temperature is between
72-78 degrees Fahrenheit. If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in extreme
cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees
Fahrenheit may not be reached.
ON/OFF Power
To turn the appliance ON or OFF, Press and hold the ON/OFF button for approximately 2 seconds..

•You can set the temperature as you desire by pushing the UP or DOWN button. When you push
the two buttons for the first time, the LED readout will show the original temperature set at
previous time (the temperature preset at the factory is 54ºF) in the “display” window.
Setting the Temperature Control
•The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button once, on
the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN button once.
•When you store mostly red wines, the temperature which you control by pushing the above two
buttons need to be set at between 58 to 65°F and the LED lamp under “RED” will be lit red.
•When you store mostly white wines, the temperature needs to be set at between 48 to 57°F and
the LED lamp under “WHITE” will be lit green.
•When you store mostly sparkling wines, the temperature needs to be set at between 40 to 47°F
and the LED lamp under “SPARKL” will be lit amber.
•You can select temperature display setting from Fahrenheit to Celsius degree by pushing the UP
and DOWN button at the same time for 5 seconds. Fahrenheit and Celsius degrees indicator will
appear in green color in the “SET” window.
•The temperature inside the unit will appear in blue color in the “DISPLAY” window.
NOTE:
•If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the Wine Chiller will not start.
•When you use the wine chiller for the first time or restart the wine chiller after having been shut off
for a long time, there could be a few degrees variance between the temperature you select and
the one indicated on the LED readout. This is normal and it is due to the length of the activation
time. Once the wine chiller is running for a few hours everything will be back to normal.
Storage
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary.
NOTE: You can place 166 standard bottles in this wine chiller with 11 bottles on each large shelf and
6 bottles on each small shelf.
Recommended Temperatures for Chilling Wines
Red Wines
58 – 65º F
14 – 18º C
Dry / White Wines
48 – 57º F
8 – 13º C
Rose Wines
49 – 51º F
9 – 10º C
Sparkling Wines
40 – 47º F
4 –8º C
WINE CHILLER
R
FF
C C
DOWN
UP DISPLAY
SET ON/OFF
SPARKL RED
WHITE

11
Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “bulb” symbol .
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button
marked with the “bulb” symbol again and the light will turn back on.
Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making
sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
Shelves
Appliance WC681BG-2 is equipped with the normal wooden shelves and appliance WCR682SS is
equipped with a pull-out roller assembly (except for the bottom shelf). You can move the wooden
shelves out and in smoothly.
Normal Wooden Shelves
•To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling the bottom shelf out of the rail compartment.
•For easy access to the storage content, you must pull the shelf approximately 1/3 out of the rail
compartment, however this unit was designed with a plastic post on each sides of the shelf track
to prevent bottles from falling.
•When removing the wooden shelf out of the inner rail, make sure to remove all items first. Then
move the shelf to the position where the notch of wooden shelf is exactly under the plastic post
and lift the wooden shelf. In order to replace the shelf, repeat steps described above in reverse.

12
CARE AND MAINTENANCE

•Turn off the power, unplug the appliance, and remove all items including shelves and rack.
Cleaning Your Wine Chiller
•Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.

•Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Power Failure

•Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
Vacation Time
•Long vacations: If the appliance will not be used for several months, remove all items and turn
off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary.

•Remove all items.
Moving Your Wine Chiller
•Securely tape down all loose items (shelves) inside your appliance.
•Turn the adjustable leg up to the base to avoid damage.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
Energy Saving Tips
•The Wine Chiller should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.

This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
Reversing the Door Swing of Your Appliance

13
CHARCOAL FILTRATION SYSTEM
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality
and taste of your fine wines, they must be stored at the ideal temperature and ambient
conditions.Your cellar is equipped with an active charcoal filtration system to ensure air purity, cooling
efficiency, and to maintain an odor free cabinet for the storage of your fine wines. The filter assembly
is located at the rear panel inside your cellar.
Keep in mind, that this filter must be changed every 12 months.
To replace your filter:
1
Remove the bottles of wine stored on the
two (2) shelves in front of the filter.
Figure / Image for reference only.
2
Remove the shelves and set aside to be
replaced once you have changed the filter
3 Hold the filter and turn it at 90 degrees in
the anti-clockwise direction and then pull it
out.
4 Remove the existing filter and replace
with a new one.
5
Put the new filter into the hole and then
turn the filter at 90 degrees in clockwise
direction..

14
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Chiller does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Chiller is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the wine chiller.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Vibrations.
Check to assure that the Wine Chiller is level.
The Wine Chiller seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine Chiller.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine Chiller is not level.
The door will not close properly.
The Wine Chiller is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

15
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Whatever your questions are about our products,
help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.
WIRING DIAGRAM

16
YOUR Avanti Products WARRANTY
Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
For one year from the date of purchase by
the original owner, Avanti Products will, at
its option, repair or replace any part of the
unit, which proves to be defective in
material or workmanship under normal
use. During this period Avanti Products
will provide all parts and labor necessary
to correct such defects free of charge, so
long as the unit has been installed and
operated in accordance with the written
instructions in this manual. Avanti
Products will provide you with a
reasonably similar replacement product
that is either new or factory refurbished.
In rental or commercial use, the warranty
period is 90 days. All Avanti Appliances of
3.5 cubic feet capacity or less must be
brought/sent to the appliance service shop
for repair.
WHAT IS COVERED LIMITED
ONE-YEAR WARRANTY
•Content losses of food or other, due to
spoilage.
•Incidental or consequential damages.
•Parts and labor costs for the following will
not be considered as warranty:
•Door springs, and/or frames.
•Inner door panels, door rails and/or door
supports.
•Light bulbs and/or plastic housing.
•Plastic cabinet liners.
•Punctured evaporator that voids the
warranty on the complete sealed system.
•Shipping and Handling costs associated
with the replacement of the unit.
•Repairs performed by unauthorized
servicers.
LIMITED SECOND THROUGH
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the appliance to the
servicers’ shop and back to the user's home,
as may be required, are the user's
responsibility.
FIFTH YEAR WARRANTY
•Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
•Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
•Surcharges including, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service calls to
remote areas, including the State of
Alaska.
•Replacement of house fuses or resetting
circuit breakers.
•Failure of the product if it is used for other
than its intended purpose.
•This warranty does not apply outside the
Continental USA.
WHAT IS NOT COVERED

17
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE CABLES PARA
EXTENDER EL CORDON ELECTRICO DE LA UNIDAD
Use un tomacorriente de pared exclusivo. No conecte su vinera a cables para extender el cordon
eléctrico o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.
Nota: Espere entre 3 a 5 minutos antes de volver a encender si el funcionamiento ha sido
interrumpido.
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23-25 grados centígrados.
Si la temperatura ambiental oscila afuera de esos límites, pueda afectar la temperatura de la unidad.
Por ejemplo, si su unidad está situada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperatura de la unidad.

18
WINE CHILLER
R
FF
CC
DOWN
UP DISPLAY
SET ON/OFF
SPARKL RED
WHITE
Encender / Apagar
•Para Encender / Apagar el enfriador, oprima el botón ON / OFF y mantenga oprimido por
aproximadamente 2 segundos.
Operación
•El enfriador de vino viene programado de fábrica. Si en su mayoría Usted solamente guarda
vinos blancos, presione el botón designado “white” o blanco y la vinera mantendrá una
temperatura entre 9º y 14º C (48ºF y 52ºF). La pantalla digital se alumbra en color verde.
•Al presionar el botón marcado “red” o rojo, la vinera mantendrá una temperatura entre 14° y 18º
C (58ºF y 65ºF). La pantalla digital se alumbrara en color rojo. Presione el botón marcado
“sparkl” o espumoso y la vinera mantendrá una temperatura entre 4º y 8º C(40ºF y 47ºF). El
indicador (pantalla digital) se alumbrara en color amarillo.
•Al conectar su vinera por primera vez, puede haber una variante de varios grados entre la
temperatura seleccionada y la indicada en la pantalla digital. Esto es normal y es debido al largo
período de activación y desactivación. También hay una variante de 6º a 8º F (3º a 4ºC) entre los
estantes superiores e inferiores de la vinera, de forma que si usted quiere combinar una mezcla
de vinos rojos (tintos) y blancos, deberá colocar las botellas de vino blanco en el estante inferior y
las de vino tinto en el estante superior. Si usted ha programado el enfriador de vino a 15º por
ejemplo, podría aumentarlo oprimiendo el botón marcado UP sucesivamente o podría bajarlo
oprimiendo el botón marcado DOWN.
•También puede cambiar de grados centígrados a Fahrenheit, oprimiendo los botones marcados
UP y DOWN sucesivamente y aparecerán en la pantalla marcada “SET” en color verde.
•La temperatura dentro de la unidad aparecerá en la ventana marcada “display”.
Luz interior
La luz interior se controla manualmente y no funciona al abrir ni cerrar la puerta. Para prender o
apagar la luz, presione el boton marcado ( ) de la luz ubicado en el panel de control. Si la luz
esta prendida, por mas de 10 minutos, se apagara automáticamente.
Cerradura de la puerta
Su unidad viene equipada con una combinación de cerradura y llave.
Las llaves (2) están dentro de la bolsa plástica junto al manual de instrucciones.
Introduzca la llave en la cerradura y gírela hacia la izquierda para abrir la puerta.
Para cerrarla, gire la llave hacia la derecha.
Quite la llave y colóquela en un lugar seguro para evitar que se pierda.
Descongelación
Su refrigerador para vinos ha sido diseñado con un sistema de descongelación de “ciclo automático”.
Las superficies refrigeradas del compartimiento para vinos se descongela automáticamente, durante
el ciclo “apagado” del control de enfriamiento (termostato). El agua descongelada del compartimiento
es eliminada automáticamente, encauzándola hacia una bandeja de goteo ubicada cera del
compresor. La transferencia de calor del compresor hacia la bandeja de goteo evapora el agua.
Temperaturas recomendadas para enfriar vinos
Vinos Tinto
58 – 65º F
14 – 18º C
Vinos Blanco / Seco
48 – 57º F
8 – 13º C
Vinos Rosé / Zinfandel
49 – 51º F
9 – 10º C
Vinos Blanco / Espumante
40 – 47º F
4 –8º C
ADVERTENCIA
Asegúrese de tener la puerta abierta completamente se Ud desea remover los estantes de
madera o moverlos hacia adelante para extraer una botella.

19
NOTA:
Para remover los estantes de madera corredizos, mueva cada uno de ellos aproximadamente una
tercera parte fuera de los raíles.
Presione el lado plástico derecho usando un destornillador plano (siga la flecha) como se muestra en
el dibujo “A” de la página 13 y a la misma vez haga lo mismo con el plástico del lado izquierdo como
se muestra en el dibujo “B” de la página 13.
Saque el estante corredizo suavemente.
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Período de vacaciones
Para períodos cortos de vacaciones, deje los controles en la posición normal. Durante ausencias
más largas;
(a) saque todas las botellas,
(b) desconecte la vinera del tomacorriente,
(c) limpie bien el refrigerador para vinos,
(d) deje la puerta abierta para evitar la formación de condensación, moho u olores.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada.
Si Ud. se muda
Saque y asegure todos los artículos de su unidad. Para evitar que los tornillos nivelantes se averíen,
gírelos completamente hacia la base.
Algunas reglas importantes para el uso correcto de la vinera.
•Las bebidas se deben guardar en botellas cerradas.
•No sobrecargue el compartimiento interior.
•No abra la puerta a menos que sea necesario.
•Si la vinera se guardara sin uso por períodos largos, se sugiere que, luego de una limpieza
cuidadosa, se deje la puerta entreabierta para permitir que el aire circule dentro de la unidad y
evitar una posible formación de condensación, moho u olores.
•Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier otro
material para cubrir estantes que puedan obstruir la circulación del aire.

20
SISTEMA DE FILTRACION DE CARBON
El vino es un objeto viviente y respira a través del corcho de la botella. Para conservar el sabor y
calidad de sus vinos, deben ser almacenados en la temperatura y las condiciones ambientales
ideales. Su vinera está equipada con un sistema de filtración de carbón para asegurar la pureza del
aire, la eficiencia del enfriamiento, y mantener el interior de la unidad libre de olores. El filtro está
localizado en el panel trasero del interior de la unidad.
Recuerde que el filtro necesita cambiarse cada 12 meses.
Como reemplazar el filtro de su vinera.
1
Remueva las botellas de las (2) repisas
que cubren el filtro.
Figura / Imagen para referencia solamente.
2
Remueva las repisas y guárdelas hacia
un lado para reponerlas después de
reemplazar el filtro.
3
Sujete el filtro y gírelo aproximadamente
90 grados hacia la izquierda. Retire el
filtro hacia fuera.
4
Remueva el filtro existente y reemplácelo
con uno nuevo.
5
Coloque el filtro en posición y gírelo
aproximadamente 90 grados hacia la
derecha.
