Avanti EWC1601B User manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Number/ No. de Modelo: EWC1601B
THERMOELECTRIC WINE CHILLER
VINERA TERMOELECTRICA
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 13.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

2
TABLE OF CONTENTS
Appliance Safety 2
Important Safeguides 3
Help Us Help You 5
Parts and Features 6
Important Safety Instructions 7
Installation Instructions 7
Before Using Your Wine Chiller 7
Installation of Your Wine Chiller 7
Electrical Connection 8
Operating Your Wine Chiller 9
Temperature Control 9
Interior Light 9
Care and Maintenance 10
Troubleshooting Guide 11
Service for Your Wine Chiller 11
Your Avanti Products Warranty 12
Instrucciones en Español 13 - 14
Re
g
istration Information and Re
g
istration Card 15

3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words ” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, property or
equipment damage.
All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.

4
IMPORTANT SAFEGUIDES
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precaution,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
It is recommended that a separate circuit, serving only your refrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install refrigerator. Failure to do so can result in back or
other injury.
To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
The refrigerator should not be located next to ovens, grills or other sources of high heat.
The refrigerator must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with
the National Electrical Code and local codes and ordinances is required.
Do not kink or pinch the power supply cord of refrigerator.
The fuse (or circuit breaker) size should be 2.5 amperes.
It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the refrigerator.
Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.

5
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new Wine Chiller properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the Wine Chiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION:
THIS WINE CHILLER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.

6
PARTS & FEATURES
1 Temperature Control Knob 7 Light ON / OFF Switch
2 Interior Light 8 Upper Hinge Cover
3 Cold Sink Fan Cover 9 Glass Door
4 Shelves (4) 10 Door Gasket
5 Cold Sink Fan 11 Door Handle
6 Legs 12 Bottom Hinge

7
IMPORTANT SAFETY INSTRUCTIONS
WARNINGTo reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
Read all instructions before using the Wine Chiller.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
Before you throw away your old Wine Chiller: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
Do not repair or replace any part of the refrigerator or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions. Replace the fuse with the same type.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Wine Chiller
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
4 Shelves
1 Instruction Manual
Clean the interior surface with lukewarm water using a soft cloth.
Installation of Your Wine Chiller
This appliance is designed to be free standing installation only, and should NOT be recessed or
built-in (Fully recessed).
Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded.
Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper
air circulation to cool the heat sink.
Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
This refrigerator uses thermoelectric refrigeration technology (no compressor) and is not designed
for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a
maximum of 30 degrees below the ambient temperature.
Avoid locating the unit in moist areas.
Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before
placing any items in the compartment.

8
ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 300 volts and at
least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge protector
needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

9
OPERATING YOUR WINE CHILLER
Temperature Control and Light Switch
Setting the Temperature Control

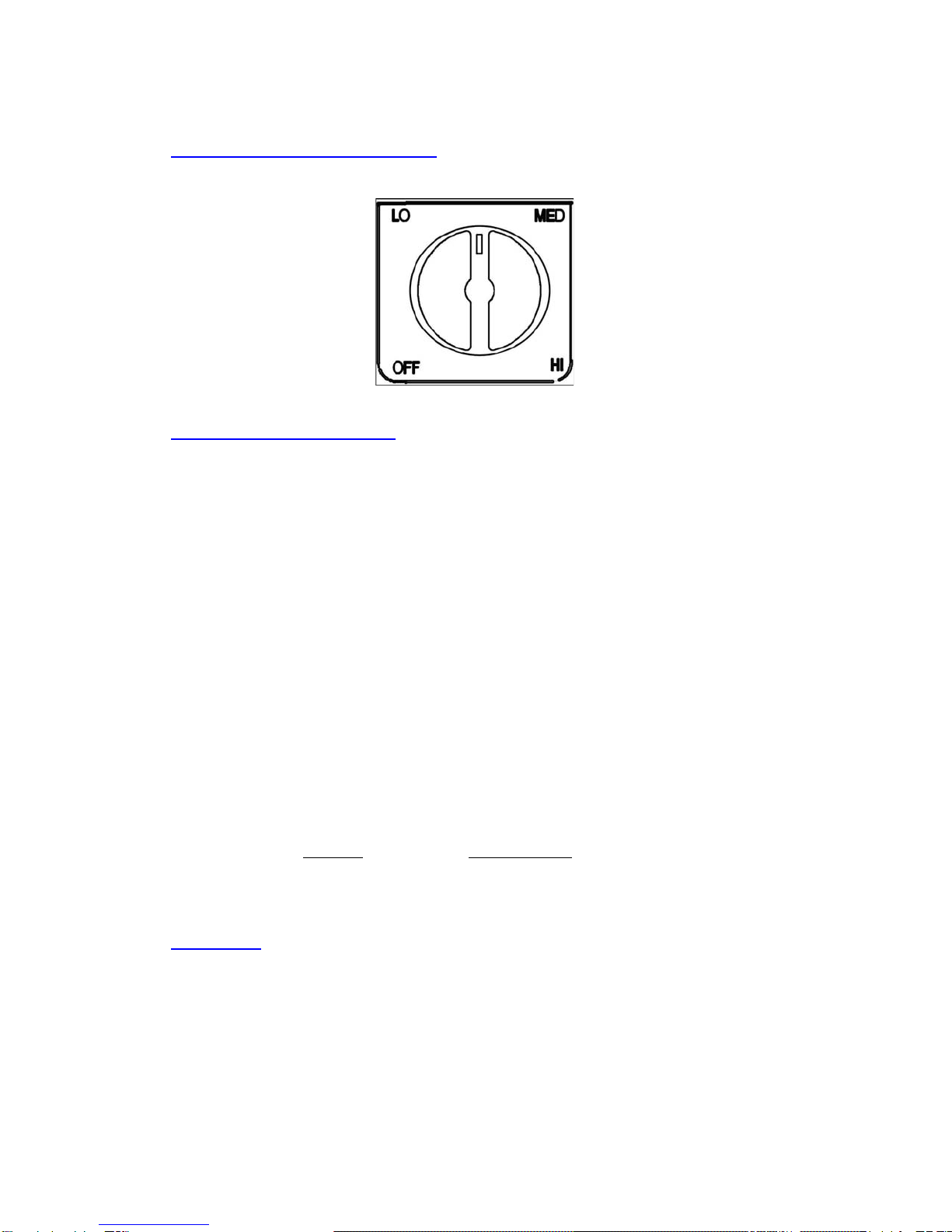

Your Wine Chiller has only one control for regulating the temperature. The temperature control is
located on the upper right hand corner of the compartment.
To control the internal temperature, adjust the control knob according to the ambient temperature
or purpose of use.
The first time you turn the unit on, set the temperature control to “HI” position.
After 2 hours, adjust the control setting to the appropriate position depending on the selection of
wine bottles placed in the wine chiller.
NOTE:
The range between “HI” and “LO” is from 51F to 62F, which is ideal for the storage of most
wines. The medium (MED) position on this unit is set at 55ºF.
Turning the temperature control to "OFF" position stops the cooling cycle but does not shut
off the power to the appliance.
You must install your electronic Wine Chiller in a place where the ambient temperature is between 72-
78 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures,
the performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 51-62 degrees Fahrenheit may
not be reached.
You can place four bottles (STANDARD 750 ML BOTTLES) on each shelf (total 16).
Recommended temperatures for chilling wine:
Degrees Control Position
Red Wines: 57-62F (14-17ºC) LO
Dry/White Wines 54-57F (12-14ºC) MED
Rose Wines 51-53F (11-12ºC) HI
Interior Light
The light switch is located on the upper right hand corner of the compartment. The LED interior light is
located on the top of the compartment. You can turn the interior light ON or OFF by pressing the light
switch.

10
CARE AND MAINTENANCE
Cleaning Your Wine Chiller
UNPLUG the Wine Chiller, and remove all items including shelves.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
CAUTION
Failure to unplug the Wine Chiller could result in electrical shock or personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Vacation Time
Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly: blocking it open if necessary.
Moving Your Wine Chiller
Remove all bottles.
Securely tape down all loose items (shelves) inside your appliance.
Tape the door shut.
Protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
The Wine Chiller should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
One characteristic of thermoelectric units is the length of time it requires to recover from having
the door opened and shut frequently. It may be necessary to wait longer for the temperature to
return to its former level once the door has been opened for too long. This is normal for the type
of unit.
Thermoelectric technology costs just pennies to operate. It is environmentally friendly due to the
lack of CFC’s.
Reversing the Door Swing of Your Appliance
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.

11
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Wine Chiller does not operate or chill properly Not plugged in.
The circuit breaker tripped or a blown fuse.
The appliance temperature control is set at “OFF”
position.
Wine Chiller is not cold enough. Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The Wine Chiller does not have the correct
clearances.
Abnormal voltage.
The light does not work. Not plugged in.
The circuit breaker tripped or a blown fuse.
The switch is in the “OFF” position.
Vibrations. Check to assure that the Wine Chiller is level.
The door will not close properly. The Wine Chiller is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029 Whatever your questions are about our products, help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.

12
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the refrigerator -
freezer which proves to be defective in
material or workmanship under normal
use.
Avanti Products will provide you with a
reasonably similar product that is
either new or factory refurbished.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the refrigerator - freezer
has been installed and operated in
accordance with the written
instructions in this manual. In rental or
commercial use, the warranty period is
90 days. All Avanti appliances of 3.5
cubic feet capacity or less must be
brought/sent to the appliance service
shop for repair.
Content losses of food due to spoilage.
Incidental or consequential damages.
Parts and labor costs for the following will
not be considered as warranty:
Evaporator doors, door springs, and/or
frames.
Inner door panels, door shelves, door
rails, and/or door supports.
Chest freezer lid liners.
Vegetable crispers.
Light bulbs and/or plastic housing.
Plastic cabinet liners.
Punctured evaporator that voids the
warranty on the complete sealed system.
Shipping and handling costs associated
with the replacement of the unit.
Repairs performed by unauthorized
servicers.
Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
Surcharges including but limited to, any
after hour, weekend, or holiday service
calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas,
including the state of Alaska.
Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
Replacement of house fuses or resetting
circuit breakers.
Failure of the product if it is used for other
than its intended purpose.
This warranty does not apply outside the
Continental U.S.A.
YOUR Avanti Products
WARRANTY
Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS NOT COVERED

13
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación eléctrica
o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Deje cinco pulgadas de espacio entre la parte posterior de la vinera y toda pared contigua.
3. Las bodegas termoeléctricas necesitan cierto tiempo de recuperación cuando la puerta se
abre y se deja abierta por mucho tiempo. Esto es normal para este tipo de unidad.
4. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
5. Para un mejor desempeño, nivele la vinera utilizando las patas ajustables o tornillos
niveladores.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. Para encender la vinera,
gire el control de temperatura a la posición que corresponda a la temperatura deseada. La
temperatura variará dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se
abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.
CONTROL DE TEMPERATURA E INTERRUPTOR DE LUZ: (Instalado en la parte superior derecha)
Para controlar la temperatura dentro del refrigerador para vinos.
·La primera vez que encienda la unidad, gire el control a la posición "HI".
·Después de 2 horas, mueva el control a la posición apropiada dependiendo en la selección de
botellas de vino colocadas dentro de la vinera.

14
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23-25 grados centígrados.
Si la temperatura ambiental oscila afuera de esos límites, pueda afectar la temperatura de la caja.
Por ejemplo, si su unidad está situada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperatura de la caja y no alcanzar los límites.
Ud puede colocar 16 botellas dentro del compartimiento de su unidad (4 por rejilla).
Temperaturas recomendadas para enfriar vinos:
GRADOS POSICION DEL CONTROL
Vinos blancos: 12 - 14º C MED
Vinos rosados: 11 - 12º C HI
Vinos tintos: 14 - 17º C LO
NOTA: En la guía marcada “HI” la temperatura marca 11ºC. EN la guía marcada
“LO” la temperatura marca 17ºC. La guía marcada “MED” está regulada para 13ºC.
Luz interior
La luz interior se controla manualmente y no funciona al abrir ni cerrar la puerta. Para prender o
apagar la luz, presione el interruptor manual de la luz. La luz está ubicada en la parte superior del
compartimiento.
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Período de vacaciones
Para períodos cortos de vacaciones, deje los controles en la posición “MED”. Durante ausencias
más largas;
(a) saque todas las botellas,
(b) desconecte la vinera del tomacorriente,
(c) limpie bien la vinera,
(d) deje la puerta abierta para evitar la formación de condensación, moho u olores.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada. Durante los cortes de corriente de larga duración, tome medidas para
proteger sus botellas de vino.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.

15
Registration Information
Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the
following address within 100 days from the date of purchase and receive these important benefits:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604 – Miami, Florida 33152
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
-------------------------------------------------------(detach here)--------------------------------------------------------------
Avanti Registration Card
Name Model # Serial #
Address Date Purchased Store / Dealer Name
City State Zip E-mail Address
Area Code Phone Number Occupation
Did You Purchase An Additional Warranty As your Primary Residence, Do You:
Extended Own Rent
None
Your Age:
Reason for Choosing This Avanti Product:
Please indicate the most important factors
That influenced your decision to purchase
this product:
under 18 18-25 26-30
31-35 36-50 over 50
Marital Status:
Married Single
Price
Product Features
Avanti Reputation
Product Quality
Salesperson Recommendation
Other: ___________________
Friend / Relative Recommendation
Warranty
Other: ___________________
Is This Product Used In The:
Home Business
How Did You Learn About This Product:
Advertising
In-Store Demo
Personal Demo
Comments:

16
PRINTED IN CHINA
