AVARRO 0E-HDMIEX4KR User manual

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
MANUAL
HDMI EXTENDER
BI-DIRECTIONAL POE
0E-HDMIEX4KR

1
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Table of Contents
Introduction ....................................................................................... 3
Overview .................................................................................... 3
Features ..................................................................................... 3
Package Contents ..................................................................... 4
Panel .......................................................................................... 4
Transmitter.......................................................................... 4
Receiver.............................................................................. 5
Specification .............................................................................. 6
Installation and Wiring....................................................................... 8
Brackets Installation .................................................................. 8
Wiring ......................................................................................... 8
RS232 Operation............................................................................. 10
Limited Warranty ............................................................................. 12
Introduction ..................................................................................... 16
Aperçu...................................................................................... 16
Caractéristiques....................................................................... 16
Contenu.................................................................................... 17
Panneau ................................................................................... 17
Transmetteur..................................................................... 17
Récepteur ......................................................................... 19
Spécifications .......................................................................... 20
Installation et câblage ..................................................................... 21
Installation des supports ......................................................... 21
Câblage.................................................................................... 22
Commande RS232.......................................................................... 23
Garantie limitée ............................................................................... 26
Introducción .................................................................................... 30
Descripción .............................................................................. 30
Características ......................................................................... 30
Contenido del paquete ............................................................ 31

2
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Panel ........................................................................................ 31
Transmisor ........................................................................ 31
Receptor ........................................................................... 32
Especificaciones ...................................................................... 34
Instalación y cableado .................................................................... 35
Instalación de los soportes...................................................... 35
Cableado.................................................................................. 35
Control RS232................................................................................. 37
Garantía limitada ............................................................................. 39

3
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Introduction
Overview
This product is an HDBaseT extender, and it is designed to extend 4K HDMI
signals up to 70m/230ft via a single Cat 5e/6 cable and 100m/330ft via a single
Cat 6a/7 cable. The transmitter and receiver just need a single power supply to
power both devices via its bi-directional PoC function. The extender also
supports bi-directional IR pass-through and RS232 pass-through. With bi-
directional ethernet pass-through supported, connect a PC to the Ethernet port
of transmitter/receiver, and connect ethernet port of receiver/transmitter to the
local area network, the PC can access to the local area network.
The extender is easy to install and space saving, offering solutions for home,
office, digital entertainment centers, control centers, conference rooms, school
and corporate training environments.
Features
Slim profile, space saving and easy-to-install.
4K/UHD capability @60Hz with 4:2:0 8bit Chroma sampling.
HDCP 2.2 compliant.
Supports signal transmission up to 100 meters (4K and 1080P) via a single
Cat 6a/7 cable.
Supports signal transmission up to 70 meters (4K) and up to 100 meters
(1080P) via a single Cat 5e/6 cable.
Supports RS232, IR and Ethernet signals pass-through over HDBT.
Bi-directional PoC, one power adapter at either transmitter or receiver side
can power both units.

4
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Package Contents
Before you start the installation of the product, please check the package
contents:
1 x 0E-HDMIEX4KR Transmitter
1 x 0E-HDMIEX4KR Receiver
1 x DC 18V Power Adapter with US Pins
1 x IR Emitter
1 x Broadband IR Receiver (30-50KHz)
2 x Phoenix Male Connecter (3.5mm 3-Pin)
4 x Mounting Brackets (with Screws)
1 x User Manual

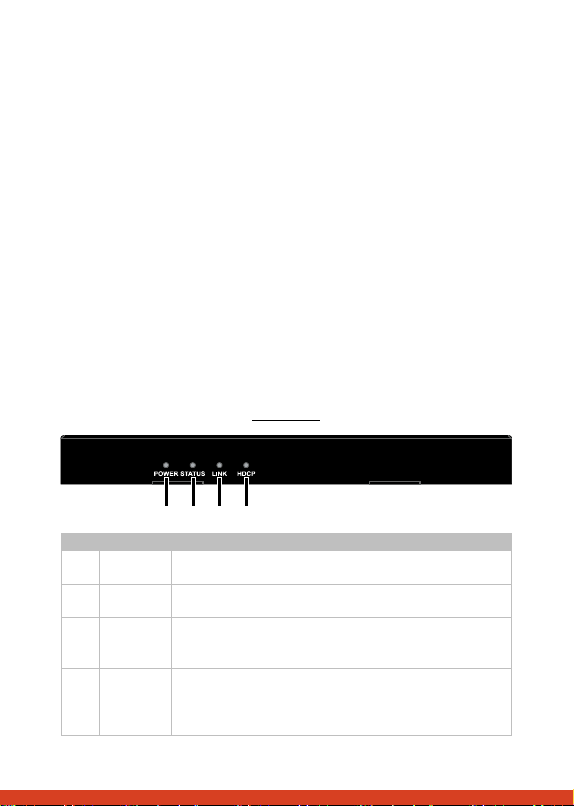

Panel
Transmitter
Front Panel
No.
Name
Description
1 POWER
LED
ON:
The transmitter is powered on.
OFF:
The transmitter is powered off.
2 STATUS
LED
FLASHING SLOWLY:
The transmitter is working properly.
OFF:The transmitter is not working properly.
3 LINK LED
ON:
Transmitter and Receiver are linked.
BLINKING:
Connection exception.
OFF:
No link.
4 HDCP
LED
ON:
HDCP protected content is being transmitted.
BLINKING:
Non-HDCP protected content
is being
transmitted.
OFF:No content is being transmitted.
1 2 3 4

5
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

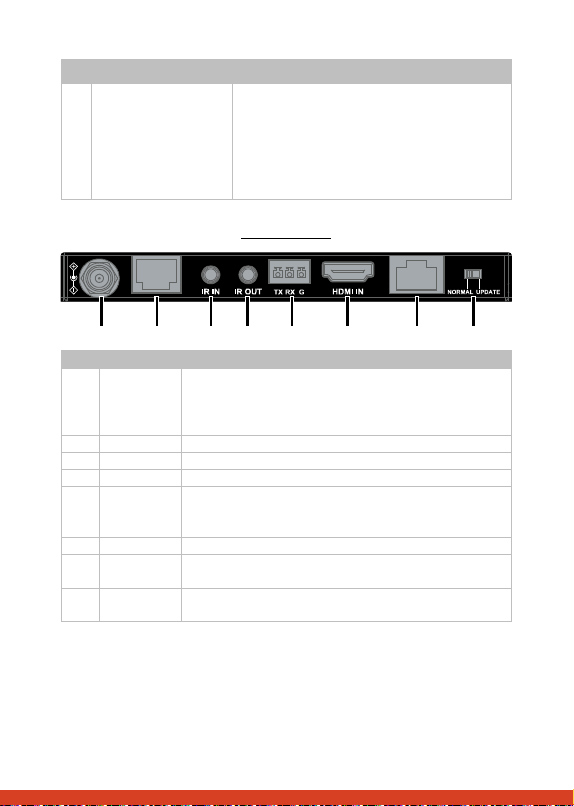

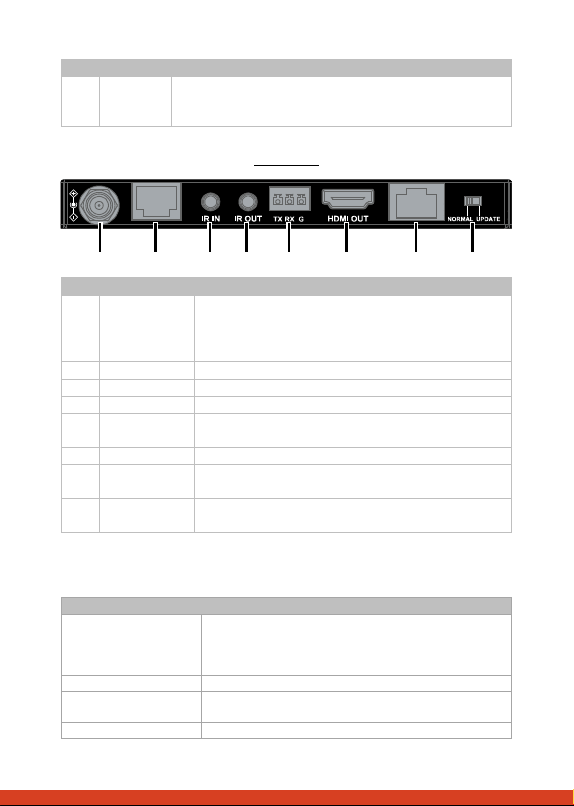

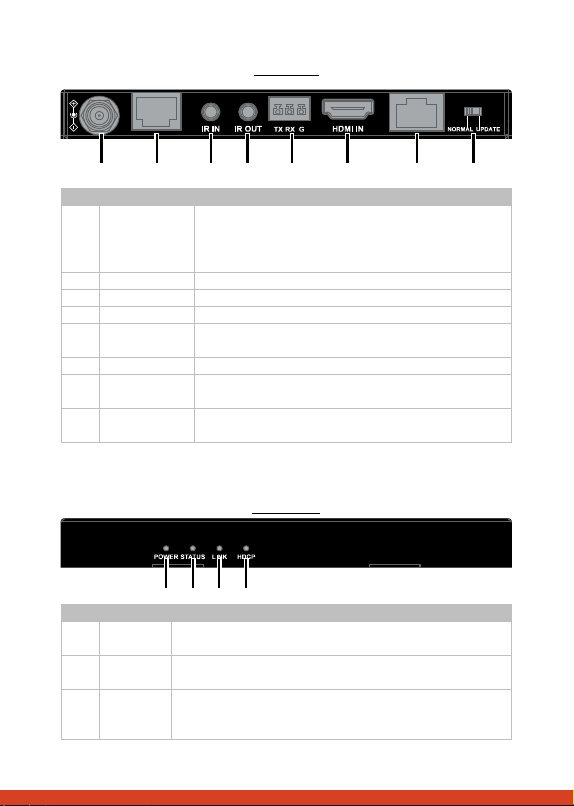

Rear Panel
No.
Name
Description
1 DC 18V
Connect to the power adapter provided.
With bi-directional PoC supported, one power
adapter is needed to be connected to transmitter or
receiver to power both units.
2
HDBT OUT
Connect to the HDBT IN port of the receiver.
3
IR IN
Connect to the IR receiver.
4
IR OUT
Connect to the IR emitter.
5 RS232 Connect to a RS232 device for pass-through or
connect to a PC for firmware upgrading.
6
HDMI IN
Connect to an HDMI source.
7 ETHERNET
Connect to a network access point or a network
terminal device.
8 MODE
NORMAL:
For RS232 pass-through.
UPDATE: For firmware upgrade.
Receiver
Front Panel
No.
Name
Description
1 POWER
LED
ON:
The receiver is powered on.
OFF:
The receiver is powered off.
2 STATUS
LED
FLASHING SLOWLY:
The Receiver is working properly.
OFF: The Receiver is not working properly.
3 LINK LED
ON:
Transmitter and Receiver are linked.
BLINKING:
Connection exception.
OFF:
No link.
1 2 3 4 5 6 7 8
1 2 3 4

6
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
No.
Name
Description
4 HDCP
LED
ON:
HDCP video is being transmitted.
BLINKING:
Non-HDCP video is being transmitted.
OFF: No HDMI signal.
Rear Panel
No.
Name
Description
1 DC 18V
Connect to the power adapter provided.
With bi-directional PoC supported, one power
adapter is needed to be connected to transmitter or
receiver to power both units.
2
HDBT IN
Connect to the HDBT OUT port of the transmitter.
3 IR IN Connect to the IR receiver.
4
IR OUT
Connect to the IR emitter.
5 RS232 Connect to a RS232 device for pass-through or
connect to a PC for firmware upgrading.
6
HDMI OUT
Connect to an HDMI display.
7 ETHERNET Connect to a network access point or a network
terminal device.
8 MODE
NORMAL:
For RS232 pass-through.
UPDATE: For firmware upgrade.
Specification
Technical
Input/Output Port
Transmitter: 1 x HDMI IN, 1 x HDBT OUT, 1 x IR IN,
1 x IR OUT, 1 x RS232, 1 x ETHERNET, 1 x DC 18V IN
Receiver: 1 x HDMI OUT, 1 x HDBT IN, 1 x IR IN,
1 x I R OUT, 1 x RS232, 1 x ETHERNET, 1 x DC 18V IN
Video Signal Type HDMI 1.4 with 4K@60Hz 4:2:0 8bit, HDCP 2.2
Input/Output Resolution
Support
4K@60 4:2:0 8bit
/1080P/1080i/720P/576P/480P/576i/480i
Audio Format Supports multichannel audio up to PCM 7.1, Dolby True
1 2 3 4 5 6 78

7
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Technical
Supported
HD, DTS HD Master Audio, Dolby Atmos and DTS:X
Maximum Data Rate 10.2Gbps
Maximum Pixel Clock
340MHz
General
Operating Temperature
0°C to + 45°C (32 to + 113 °F)
Storage Temperature
-20 to +70°C (-4 to + 158 °F)
Humidity
20% to 90%, non-condensing
ESD Protection
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Surge Protection
Voltage: ±1 kV
Power Supply
DC 18V 1A
Power Consumption
(Maximum)
RX is powered by TX: 13W
TX is powered by RX: 12.2W
TX and RX are powered separately:
TX: 5.5W, RX: 7.6W
Device Dimensions
(W x H x D)
Transmitter/Receiver:
13.5 cm × 1.49 cm ×7.42 cm/5.31” x 0.59” x 2.92”
Product Weight
Transmitter/Receiver: 0.24kg/0.53lb
Transmission Distance
Note:
We recommend the use of T568B straight-through category cables.
Cable Type
Range
Supported Video
Cat 5e/6
100m/330ft
1080P@60Hz
70m/230ft
1080P@60 Hz
1080P@60 Hz 3D
4K2K@30Hz 4:4:4
4K@60Hz 4:2:0
Cat 6a/7 100m/330ft
HDMI Input/Output: 10m/33ft
4K2K@30Hz 4:4:4
4K@60Hz 4:2:0

8
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Installation and Wiring
Brackets Installation
Note:
Before installation, please ensure the device is disconnected from the
power source.
Steps to install the device in a suitable location:
1. Attach the installation bracket to the enclosure using the screws that
were provided in the package separately.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps from 1 to 2 for the other side of the transmitter.
4. Attach the brackets to the surface you want to hold the transmitter
against using the screws (provided by others).
5. Repeat steps from 1 to 4 to install the receiver.
Wiring
Warnings:
Before wiring, disconnect the power from the device.
During wiring, connect and disconnect the cables gently.
Steps for device wiring:
1. Connect an HDMI source (such as Blu-ray player) to HDMI IN port of the
transmitter.

9
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
2. Connect HDBT OUT port of transmitter to HDBT IN port of receiver using
a Cat 5e/6/6a/7 cable.
3. Connect an HDMI display (such as TV) to HDMI OUT port of the receiver.
4. Connect the provided IR emitter cable to IR OUT port of the
transmitter/receiver, and connect the provided IR receiver cable to IR IN
port of the receiver/transmitter. The source remote can control the source
at receiver side or the display remote can control the display at the
transmitter side.
5. Connect the provided power adapter to the transmitter or receiver. With
bi-directional PoC function supported, only one power adapter is needed
to power both units.
6. Power on all attached devices.
Blu-rayPlayer
Display
Remote
PowerSupply
Transmitter
Cat5e/6/6a/7
Receiver
HDMIIN
HDMI OUT
IR IN
IR OUT

10
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

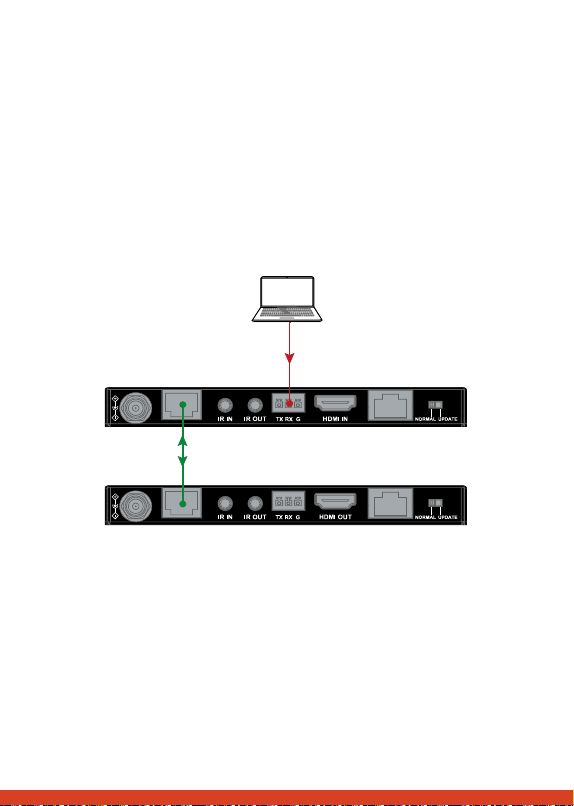

RS232 Operation
You can use a RS232 port on Transmitter and Receiver to connect to a computer
to update firmware or connect a RS232 device to communicate with another
RS232 device on the other extender's side via a Cat 5e/6/6a/7 cable.
Scenario 1
Slide “MODE” switch of TX/RX to “UPDATE” side, connect a PC to RS232 port
of TX/RX to upgrade it.
Transmitter
Receiver
PC
RS232
Cat 5e/6/6a/7

11
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Scenario 2
Slide “MODE” switches of TX/RX to “NORMAL” side, connect RS232 devices
to RS232 ports of TX/RX.
Receiver
RS232
RS232
Cat5e/6/6a/7
RS232Device
RS232Device
Transmitter

12
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Limited Warranty
1. Limited Warranty
a. General
Subject to the terms and conditions of this Limited Warranty, from the date
of sale through the period of time for product categories specified in Section
1(b), ADI warrants AVARRO branded products to be free from defects in
materials and workmanship under normal use and service, normal wear and
tear excepted. Except as required by law, this Limited Warranty is only
made to Buyer and may not be transferred to any third party.
ADI shall have no obligation under this Limited Warranty or otherwise if:
(i) The product is improperly installed, applied or maintained;
(ii) The product is installed outside of stated operating parameters, altered, or
improperly services or repaired;
(iii) Damage is caused by outside natural occurrences, such as lightning, power
surges, fire, floods, acts of nature, or the like.
(iv) Defects resulting from unauthorized modification, misuse, vandalism, or
other causes unrelated to defective materials or workmanship, or failures
related to batteries of any type used in connection with the products sold
hereunder.
ADI only warrants those products branded AVARRO and sold by ADI. Any
other products branded by third parties are warranted by the third party
manufacturer for a period as defined by the third party manufacturer, and ADI
assigns to Buyer those warranties and only those warranties extended by such
third party manufacturers or vendors for non-ADI branded products. ADI does
not itself warrant any non-ADI branded product and sells only on an as is basis
in accordance with ADI’s terms and conditions of sale.
b. Specific Warranties for product categories are as follows:
Product Categories
Warranty Period
HDMI Distribution 2 years

13
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
2. EXCLUSION OF WARRANTIES, LIMITATION OF LIABILITY
THERE ARE NO WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, OF
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR
OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. TO THE FULLEST EXTENT PERMITTED BY LAW, IN NO CASE
SHALL ADI BE LIABLE TO ANYONE FOR ANY (I) CONSEQUENTIAL,
INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES ARISING OUT OF
OR RELATING IN ANY WAY TO THE PRODUCT AND.OR FOR BREACH OF
THIS OR ANY OTHER WARRANTY OR CONDITION, EXPRESS OR IMPLIED,
OR UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE
LOSS OR DAMAGE IS CAUSED BY ADI’S OWN NEGLIGENCE OR FAULT AND
EVEN IF ADI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES OR
DAMAGES. Any product description (whether in writing or made orally by ADI
or ADI’s agents), specifications, samples, models, bulletin, drawings, diagrams,
engineering sheets, or similar materials used in connection with the Buyer’s
order are for the sole purpose of identifying ADI’s products and shall not be
construed as an express warranty or condition. Any suggestions by ADI or
ADI’s agents regarding use, applications or suitability of the products shall not
be construed as an express warranty or condition unless confirmed to be such
in writing by ADI. ADI does not represent that the products it sells may not be
compromised or circumvented; that the products will prevent any personal injury
or property loss by burglary, robbery, fire or otherwise, or that the products will
in all cases provide adequate warning or protection. Buyer understands and
will cause its customer to understand that a properly installed and maintained
product is not insurance or guarantee that such will not cause or lead to personal
injury or property loss. CONSEQUENTLY, ADI SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON
ANY CLAIM AT ALL INCLUDING A CLAIM THAT THE PRODUCT FAILED TO
GIVE WARNING. However, if ADI is held liable whether directly or indirectly for
any loss or damage with respect to the products it sells, regardless of cause or
origin, its maximum liability shall not in any case exceed the purchase price of
the product, which shall be fixed as liquidated damages and not as a penalty

14
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
and shall be the complete and exclusive remedy against ADI.
3. Limitation on Liability to Buyer’s Customers.
Buyer agrees to limit liability to its customers to the fullest extent permitted by
law. Buyer acknowledges that ADI shall only be deemed to give consumers of
its products such statutory warranties as may be required by law and at no time
shall Buyer represent to its customers and/or users of ADI products that ADI
provides any additional warranties. By accepting the products, to the fullest
extent permitted by law, Buyer assumes all liability for, and agrees to indemnity
and hold ADI harmless against and defend ADI from, any and all suits, claims,
demands, causes of action and judgments relating to damages, whether for
personal injury or to personal property, suffered by any person, firm, corporation
or business association, including but not limited to, Buyer’s customers and/or
users of the products because of any failure of the products to detect and/or
warn of the danger for which the goods were designed or any other failure of
the products whether or not such damages are caused or contributed to by the
sold or joint concurring negligence or fault of ADI.
4. Returns
Subject to the terms and conditions listed below, during the applicable warranty
period, ADI will replace Product or provide a credit at purchase at its sole option
free of charge any defective products returned prepaid. Any obligations of ADI
to replace Limited Lifetime warranty products pursuant to this warranty which
result from defect are limited to the availability of replacement product. ADI
reserves the right to replace any such products with the then currently available
products, or provide a credit in its sole discretion. In the event Buyer has a
problem with any ADI product, please call your local ADI branch for return
instructions:
For US call 1-800-233-6261
For Canada call 877-234-7378
For Puerto Rico call 787-793-8830

15
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Be sure to have the model number and the nature of the problem available. In
the event of replacement, the return product will be credited to Buyer’s account
and a new invoice issued for the replacement item. ADI reserves the right to
issue a credit only in lieu of replacement.
If any AVARRO branded products are found to be in good working order or such
product’s inability to function properly is a result of user damage or abuse, the
product will be returned to Buyer in the same condition as received and Buyer
shall be responsible for any return freight changes.
5. Governing Law
The laws of State of New York apply to this Limited Warranty.
6. Miscellaneous
Where any term of this Limited Warranty is prohibited by such laws, it shall be
null and void, but the remainder of the Limited Warranty shall remain in full force
an effect.

16
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Introduction
Aperçu
Ce produit est un amplificateur HDBaseT. Il est conçu pour augmenter la portée
du signal 4K HDMI jusqu’à 70 m/230 pi à partir d’un seul câble Cat 5e/6 et
jusqu’à 100 m/330 pi à partir d’un seul câble Cat 6a/7. Le transmetteur et le
récepteur n’ont besoin que d’une source d’alimentation pour alimenter les deux
appareils grâce à la fonction PoC bidirectionnelle. Il prend également en charge
la transmission IR bidirectionnelle et la transmission RS232. Avec la
transmission Ethernet bidirectionnelle prise en charge, connecter un ordinateur
au port Ethernet du transmetteur/récepteur et connecter le port du récepteur/du
transmetteur au réseau local puis l’ordinateur aura accès au réseau local.
Il est peu encombrant, facile à installer et constitue la solution idéale pour la
maison, les bureaux, les solutions multimédias numériques, les centres de
contrôle, les salles de conférence, les établissements scolaires et les
environnements de formation en entreprise.
Caractéristiques
Profil bas, facile à installer et peu encombrant.
Capacité 4K/UHD à 60 Hz avec échantillonnage de la chrominance 4:2:0 8
bits.
Compatible HDCP 2.2.
Capacité de transmission du signal 4K et 1080p jusqu’à 100 m/330 pi à
partir d’un câble Cat6a/7.
Capacité de transmission du signal 4K jusqu’à 70 m/230 pi à partir d’un
câble Cat5e/6.
Capacité de transmission des signaux RS232, IR et Ethernet par HDTB.
Alimentation PoC bidirectionnelle; un adaptateur d’alimentation au
récepteur ou au transmetteur suffit à alimenter les deux unités.

17
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Contenu
Before you start the installation of the product, please check the package
contents:
1 x transmetteur 0E-HDMIEX4KR
1 x récepteur 0E-HDMIEX4KR
1 x Adaptateur électrique 18 VCC avec broches américaines
1 x émetteur IR
1 x récepteur IR large bande (30-50 kHz)
2 x connecteurs mâles Phoenix (3 broches 3,5 mm)
4 x supports de montage (avec vis)
1 x manuel d’utilisation
Panneau
Transmetteur
Panneau avant
N°
Nom
La description
1 VOYANT « POWER »
(ALIMENTATION)
Allumé : Le transmetteur est en marche.
Éteint : Le transmetteur est hors tension.
2 VOYANT D’ÉTAT
Clignotement lent : Le transmetteur fonctionne
correctement.
É
teint : Le transmetteur ne fonctionne pas
correctement.
3 VOYANT « LINK »
(LIAISON)
Allumé : Le transmetteur et le récepteur sont
connectés.
CLIGNOTEMENT : Exception de connexion
Éteint : Aucune connexion.
1 2 3 4

18
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
N°
Nom
La description
4 VOYANT HDCP
Allumé : Du contenu à protection HDCP est
en cours de transmission.
CLIGNOTEMENT : Du contenu qui n’est pas à
protection HDCP est en cours de
transmission.
Éteint : Aucun contenu n’est en cours de
transmission.
Panneau arrière
N°
Nom
La description
1 DC 18V
Se connecter à l’adaptateur d’alimentation fourni. Avec
le PoC bidirectionnel pris en charge, un adaptateur
électrique doit être connecté au transmetteur ou au
récepteur pour alimenter les deux unités.
2
HDBT OUT
Connecter au port d’entrée HDBT du récepteur.
3 IR IN Connecter au récepteur IR.
4
IR OUT
Connecter à l’émetteur IR.
5 RS232
Connecter à un appareil RS232 pour transmission ou
connecter à un ordinateur pour mise à niveau du
micrologiciel.
6
HDMI IN
Connecter à une source HDMI.
7 ETHERNET Connecter à un point d’accès réseau ou à un terminal
réseau.
8 MODE NORMAL : Pour transmission RS232.
MISE À JOUR : Pour la mise à niveau du micrologiciel.
1 2 3 4 5 6 7 8

19
For more information please call 1-833-574-9124 or email [e-mail] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Récepteur
Panneau avant
N°
Nom
La description
1 VOYANT « POWER »
(ALIMENTATION)
Allumé : Le récepteur est en marche.
Éteint : Le récepteur est hors tension.
2 VOYANT D’ÉTAT
Clignotement lent : Le récepteur fonctionne
correctement.
Éteint : Le récepteur ne fonctionne pas
correctement.
3 VOYANT « LINK »
(LIAISON)
Allumé : Le transmetteur et le récepteur sont
connectés.
CLIGNOTEMENT : Exception de connexion
Éteint : Aucune connexion.
4 VOYANT HDCP
Allumé : Vidéo HDCP en cours de
transmission.
CLIGNOTEMENT : Vidéo non HDCP est en
cours de transmission.
Éteint : Aucun signal HDMI.
Panneau arrière
N°
Nom
La description
1 18 VCC
Se connecter à l’adaptateur d’alimentation fourni.
Avec la fonction PoC bidirectionnelle prise en
charge, un seul adaptateur électrique doit être
connecté au carillon du transmetteur ou au
récepteur pour alimenter les deux unités.
1 2 3 4
1 2 3 4 5 67 8
