Introduction

Overview

0E-HDMIEXT4K is a slim transmitter receiver pair which is designed to extend

HDMI 1080P@60Hz signals up to 70 m and 4K@60Hz (4:2:0) signals up to 40m

via a single Cat 6a/7 cable. The transmitter can supply the power for the receiver.

You can control the source from the display's location or control the display from

source's location via IR pass-through function. The transmitter and receiver are

easy to install. They are space saving and offer solutions for home, office, digital

entertainment centers, control centers, conference rooms, school, and

corporate training environments.

Features

Slim appearance and space saving

Bi-directional PoE, only one power adapter is needed.

Via Cat 6a/7 cables, 4Kx2K@60Hz (4:2:0) output up to 130 feet (40m),

1080P@60Hz up to 230feet (70m).

Via Cat 5e/6 cable, 4Kx2K@60Hz (4:2:0) output up to 115 feet (35m),

1080P@60Hz up to 198feet (60m).

HDMI 1.4 with 4K and HDCP 2.2 compliant.

Transfers bi-directional infrared control signal together with the HDMI

signal.

Use the transmitter and receiver pair to extend HDMI signals without

additional settings.

All connectors in one side for easy cabling.

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Package Contents

Before you start the installation of the product, please check the package

contents:

1 x 0E-HDMIEXT4K

1 x Power Adapter (DC 18V 1A)

2 x IR Emitter

2 x IR Receiver (30-50KHz)

4 x Mounting Brackets

1 x User Manual

Panel

Transmitter

Front Panel

No.

Name

Description

1 POWER

LED

STREADY RED:

Transmitter is powered on.

2 LINK LED

STEADY GREEN:

Link to receiver has been established.

BLINKING/OFF:

Connection exceptions exist between

the transmitter and the receiver.

1 2

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

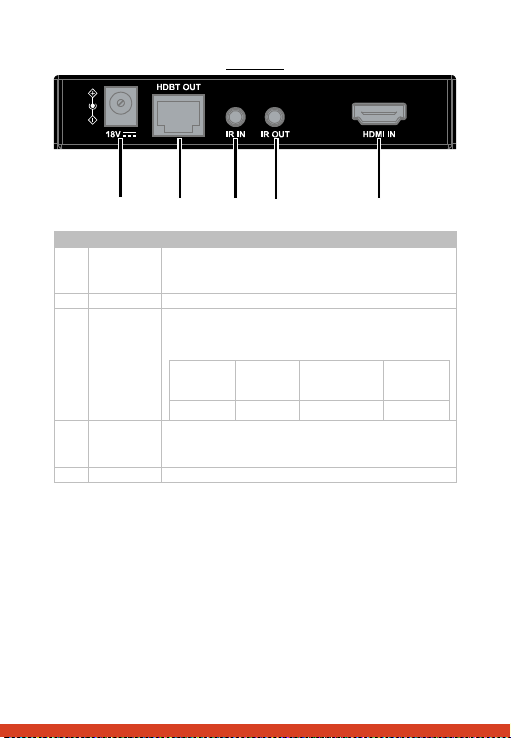

Rear Panel

No.

Name

Description

1 DC 18V

Connect to the power adapter provided.

Note:

Only one power adapter is needed at transmitter

or receiver side.

2 HDBT OUT Connect to the HDBT IN port of the receiver.

3 IR IN

Connect to an IR receiver cable. Secure the IR receiver

with adhesive.

Note:

The IR receiver enabled angle and distance:

Enabled

Angel

0° 30°

(Horizontal)

15°

(Vertical)

Distance 8m(Max) 4.5m(Max) 3m(Max)

4 IR OUT

Connect to an IR emitter cable. Secure the IR emitter

on the IR receiving sensor of display device with

adhesive.

5 HDMI IN Connect to an HDMI source.

3 4

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

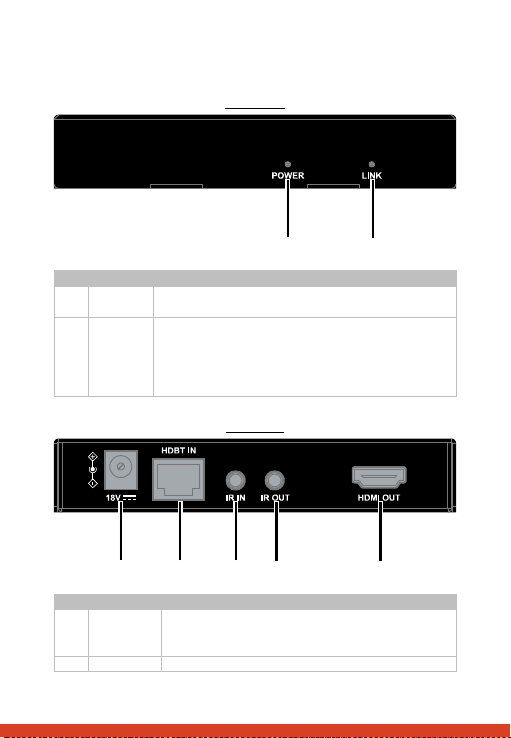

Receiver

Front Panel

No.

Name

Description

POWER

LED

STREADY RED:

Receiver is powered on.

2 LINK LED

STREAD GREEN:

Link to transmitter has been

established.

BLINKING/OFF:

Connection exceptions exist between

the transmitter and the receiver.

Rear Panel

No.

Name

Description

1 DC 18V

Connect to the power adapter provided.

Note:

Only one power adapter is needed at transmitter

or receiver side.

HDBT IN

Connect to the HDBT OUT port of the transmitter.

1 2

3 4

1 5

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

No.

Name

Description

3 IR IN

Connect to an IR receiver cable. Secure the IR receiver

with adhesive.

Note:

The IR receiver enabled angle and distance:

Enabled

Angel

0° 30°

(Horizontal)

15°

(Vertical)

Distance 8m(Max) 4.5m(Max) 3m(Max)

4 IR OUT Connect to an IR emitter cable. Secure the IR emitter on

the IR receiving sensor of display device with adhesive.

HDMI OUT

Connect to an HDMI display.

Specification

Technical

Video Signal Type

HDMI 1.4 with HDCP 2.2

Audio Format Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through

Input/Output Resolution

Support

SMPTE:

1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8,

1920x1080P1,2,3,4,5,6,7,8, 3840x21602,3,5, 4096x21602,3,5

VESA:

800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608,

1280x10248, 1360x7688, 1366x7688, 1400x10508,

1440x9008, 1600x9008, 1600x12008, 1680x10508,

1920x12008

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97

Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz,

8 = at 60 Hz

Maximum Data Rate 10.2Gbps

Maximum Pixel Clock

340MHz

General

Operating Temperature

0°C to + 45°C (32 to + 113 °F)

Storage Temperature

-20 to +70°C (-4 to + 158 °F)

Humidity

20% to 90%, non-condensing

ESD Protection ±8kV (Air-gap discharge)/

±4kV (Contact discharge)

Surge Protection

Voltage: ±1 kV

Power Supply

DC 18V 1A

Power Consumption

(Maximum)

8.8W (Pair)

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

General

Device Dimensions

(W x H x D)

Transmitter/Receiver:

11.5cm ×2.1cm × 6.45cm/4.53” × 0.83” × 2.54”

Product Weight

Transmitter/Receiver: 0.22kg/0.48lb

Transmission Distance

Note: We recommend the use of T568B straight-through category cables.

Cable Type

Range

Supported Video

Cat 5e/6

60m/197ft

1080P@60Hz 36bpp

35m/115ft

1080p 60 Hz 48 bpp

1080p 60 Hz 3D

3840 x 2160@60Hz 4:2:0 8bit

Cat 6a/7 40m/131ft

70m/230ft

1080P@60Hz 36bpp

Wiring

The product packaging includes two pairs of IR cables, please refer to the

following two applied installations with different remote handsets.

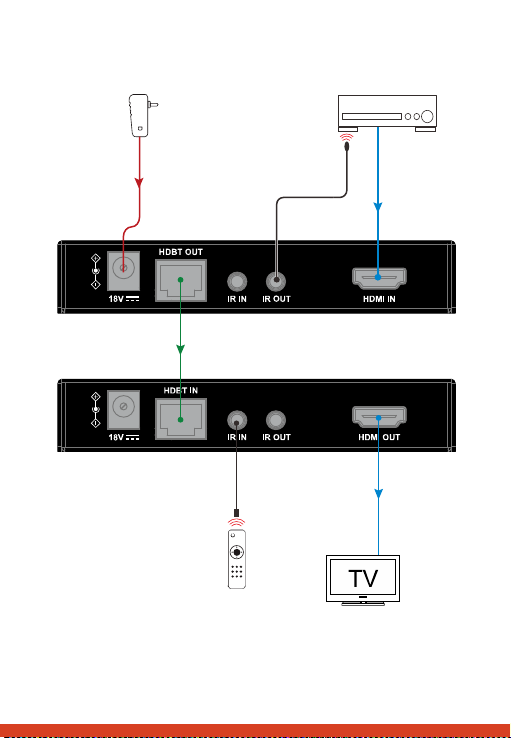

Applied installation 1

Control the DVD at TV side by DVD remote:

1. Control the DVD at TV side by DVD remote:

2. Connect an HDMI source (such as a DVD) to the transmitter.

3. Connect transmitter and receiver with a Cat5e/6/6a/7 cable.

4. Note: make sure Cat X cable is less than 230ft for 1080p. 130ft for 4K

resolution.

5. Connect an HDMI display (such as a TV) to the receiver.

6. Connect the IR receiver cable to IR IN port of the receiver.

7. Connect the IR emitter cable to the IR OUT port of the transmitter, the IR

emitter head should be secured over the center of the DVD IR window.

8. Connect the power adapter to DC 18V port.

9. Power on all the devices. Now you can enjoy the audio and video

experience.

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Cat 5e/6/6a/7/

Câble Cat 5e/6/6a/7/

cable de categoría 5e/6/6a/7

Transmitter/

Transmetteur/

Transmisor

Receiver/Récepteur/

Receptor

Power Supply/Alimentation

/Fuente de alimentación

DVD Player/

Lecteur DVD/

Reproductor de DVD

HDMI IN

HDMI OUT

IR Emitter/

émetteur IR/

emisor IR

IR Receiver/

récepteur IR/

receptor IR

Source Remote/Télécommande

infrarouge source/Fuente remota

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

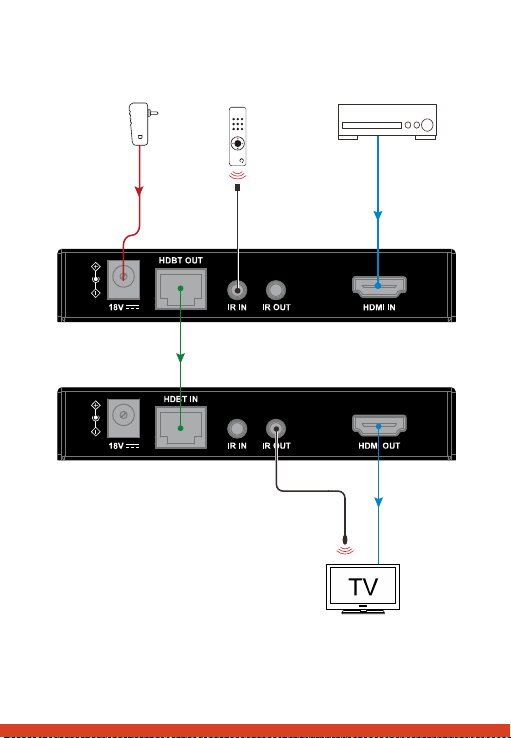

Applied installation 2

Control the TV at DVD side by TV remote:

1. Connect an HDMI source (such as a DVD) to the transmitter.

2. Connect transmitter and receiver with a Cat5e/6/6a/7 cable.

Note: make sure Cat X cable is less than 230ft for 1080p. 130ft for 4K

resolution. As show number 2 in figure.

3. Connect an HDMI display (such as a TV) to the receiver.

4. Connect the IR receiver cable to IR IN port of the transmitter.

5. Connect the IR emitter cable to the IR OUT port of the receiver, the IR

emitter head should be secured over the center of the TV IR window.

6. Connect the power adapter to DC 18V port.

7. Power on all the devices. Now you can enjoy the audio and video

experience.

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Cat 5e/6/6a/7/

Câble Cat 5e/6/6a/7/

cable de categoría 5e/6/6a/7

Transmitter/

Transmetteur/

Transmisor

Receiver/Récepteur/

Receptor

Power Supply/Alimentation

/Fuente de alimentación

TV Remote/

Télécommande TV/

Control remoto de televisión

DVD Player/

Lecteur DVD/

Reproductor de DVD

HDMI IN

HDMI OUTIR Emitter

émetteur IR/

emisor IR

IR Receiver/

récepteur IR/

receptor IR

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Troubleshooting

Most problems that occur are due to simple issues. If you have trouble, please

check the list of simple fixes below.

Six Steps of Regular Troubleshooting Routine.

1. Power: Make sure all devices are powered on. (source, extender, display

device)

2. Indicator: Make sure LED indicators of extender are normal according to user

manual.

3. Devices: Please make sure picture can be shown normally when connecting

source to display devices directly.

4. Cable: Plug in and out HDMI/Cat X cable or try another HDMI/Cat X cable.

Cat 5e/6/6a/7 cable is recommended, do not use Cat 5 cable.

Please make sure Cat X cable is less than 230ft for 1080p, 130ft for 4K

resolution.

Please make sure the two connectors of one Cat X cable are same

standard (EIA/TIA 568B).

5. Compatibility:

Please test the source and display devices to determine whether there is

compatibility issues.

HDMI extender supports 3G speed (4K@60Hz 4:2:0 8bit) maximum,

when both HDMI source and display devices support 6G speed

(4K@60Hz 4:4:4 8bit), display device will not output signal. (Even though

all the LEDs of extender are normal.) Please set HDMI source resolution

to 4K@60Hz 4:2:0 8bit or ask help from Source Device Supplier.

For Vizio TV, when every device is well connected and all the LEDs are

normal. but Vizio TV cannot display well, please ask help from Vizio TV

and update the TV setting.

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Typical questions

1. How to deal with video flash or cut off during the installation?

Power indicator should be solid on. If not, please check if the power

adapter is well connected.

Link indicator should be solid on, if it is blinking or off, it is likely a problem

with your Ethernet cable, please change to a qualified cable (Cat

5e/6/6a/7, EIA/TIA 568B) and make sure the cable length is within the

maximum distance (230ft for 1080p, 130ft for 4K).

2. How to deal with a weak or not working IR signal?

Make sure the IR cables are correctly installed according to the diagram

above.

Check if the IR emitter head is secured over the center of the device IR

receiver window. The best position may vary depending on the device,

please refer to the device user manual. If the signal is weak, please try

adjusting the position.

Pay attention to the control angle and distance as below: The control

signal will be better when your controller is pointed at the IR receiver

head directly.

Enabled Angle 0° 30°(Horizontal) 15°(Vertical)

Distance 8m(Max) 4.5m(Max) 3m(Max)

3. How can I make the IR work with third party control devices?

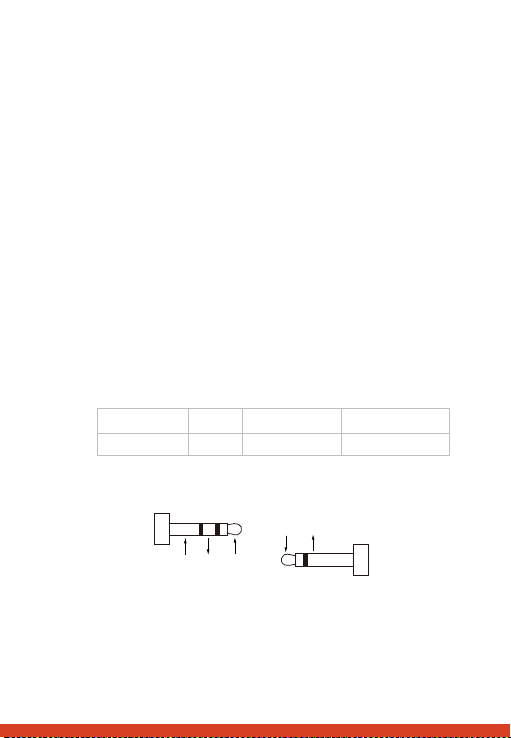

Please make sure the third-party device follows our pin definition as below:

Gnd

IR Receiver

IR Signal

IR Emitter

IR Signal

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Limited Warranty

1. Limited Warranty

a. General

Subject to the terms and conditions of this Limited Warranty, from the date of

sale through the period of time for product categories specified in Section 1(b),

ADI warrants AVARRO branded products to be free from defects in materials

and workmanship under normal use and service, normal wear and tear excepted.

Except as required by law, this Limited Warranty is only made to Buyer and may

not be transferred to any third party.

ADI shall have no obligation under this Limited Warranty or otherwise if:

(i) The product is improperly installed, applied or maintained;

(ii) The product is installed outside of stated operating parameters, altered, or

improperly services or repaired;

(iii) Damage is caused by outside natural occurrences, such as lightning, power

surges, fire, floods, acts of nature, or the like.

(iv) Defects resulting from unauthorized modification, misuse, vandalism, or

other causes unrelated to defective materials or workmanship, or failures

related to batteries of any type used in connection with the products sold

hereunder.

ADI only warrants those products branded AVARRO and sold by ADI. Any

other products branded by third parties are warranted by the third-party

manufacturer for a period as defined by the third-party manufacturer, and ADI

assigns to Buyer those warranties and only those warranties extended by such

third party manufacturers or vendors for non-ADI branded products. ADI does

not itself warrant any non-ADI branded product and sells only on an as is basis

in accordance with ADI’s terms and conditions of sale.

b. Specific Warranties for product categories are as follows:

Product Categories

Warranty Period

HDMI Distribution 2 years

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

2. EXCLUSION OF WARRANTIES, LIMITATION OF LIABILITY

THERE ARE NO WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, OF

MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR

OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE

HEREOF. TO THE FULLEST EXTENT PERMITTED BY LAW, IN NO CASE

SHALL ADI BE LIABLE TO ANYONE FOR ANY (I) CONSEQUENTIAL,

INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES ARISING OUT OF

OR RELATING IN ANY WAY TO THE PRODUCT AND.OR FOR BREACH OF

THIS OR ANY OTHER WARRANTY OR CONDITION, EXPRESS OR IMPLIED,

OR UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE

LOSS OR DAMAGE IS CAUSED BY ADI’S OWN NEGLIGENCE OR FAULT AND

EVEN IF ADI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES OR

DAMAGES. Any product description (whether in writing or made orally by ADI

or ADI’s agents), specifications, samples, models, bulletin, drawings, diagrams,

engineering sheets, or similar materials used in connection with the Buyer’s

order are for the sole purpose of identifying ADI’s products and shall not be

construed as an express warranty or condition. Any suggestions by ADI or

ADI’s agents regarding use, applications or suitability of the products shall not

be construed as an express warranty or condition unless confirmed to be such

in writing by ADI. ADI does not represent that the products it sells may not be

compromised or circumvented; that the products will prevent any personal injury

or property loss by burglary, robbery, fire or otherwise, or that the products will

in all cases provide adequate warning or protection. Buyer understands and

will cause its customer to understand that a properly installed and maintained

product is not insurance or guarantee that such will not cause or lead to personal

injury or property loss. CONSEQUENTLY, ADI SHALL HAVE NO LIABILITY FOR

ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON

ANY CLAIM AT ALL INCLUDING A CLAIM THAT THE PRODUCT FAILED TO

GIVE WARNING. However, if ADI is held liable whether directly or indirectly for

any loss or damage with respect to the products it sells, regardless of cause or

origin, its maximum liability shall not in any case exceed the purchase price of

the product, which shall be fixed as liquidated damages and not as a penalty

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

and shall be the complete and exclusive remedy against ADI.

3. Limitation on Liability to Buyer’s Customers.

Buyer agrees to limit liability to its customers to the fullest extent permitted by

law. Buyer acknowledges that ADI shall only be deemed to give consumers of

its products such statutory warranties as may be required by law and at no time

shall Buyer represent to its customers and/or users of ADI products that ADI

provides any additional warranties. By accepting the products, to the fullest

extent permitted by law, Buyer assumes all liability for, and agrees to indemnity

and hold ADI harmless against and defend ADI from, any and all suits, claims,

demands, causes of action and judgments relating to damages, whether for

personal injury or to personal property, suffered by any person, firm, corporation

or business association, including but not limited to, Buyer’s customers and/or

users of the products because of any failure of the products to detect and/or

warn of the danger for which the goods were designed or any other failure of

the products whether or not such damages are caused or contributed to by the

sold or joint concurring negligence or fault of ADI.

4. Returns

Subject to the terms and conditions listed below, during the applicable warranty

period, ADI will replace Product or provide a credit at purchase at its sole option

free of charge any defective products returned prepaid. Any obligations of ADI

to replace Limited Lifetime warranty products pursuant to this warranty which

result from defect are limited to the availability of replacement product. ADI

reserves the right to replace any such products with the then currently available

products, or provide a credit in its sole discretion. In the event Buyer has a

problem with any ADI product, please call your local ADI branch for return

instructions:

For US call 1-800-233-6261

For Canada call 877-234-7378

For Puerto Rico call 787-793-8830

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Be sure to have the model number and the nature of the problem available. In

the event of replacement, the return product will be credited to Buyer’s account

and a new invoice issued for the replacement item. ADI reserves the right to

issue a credit only in lieu of replacement.

If any AVARRO branded products are found to be in good working order or such

product’s inability to function properly is a result of user damage or abuse, the

product will be returned to Buyer in the same condition as received and Buyer

shall be responsible for any return freight changes.

5. Governing Law

The laws of State of New York apply to this Limited Warranty.

6. Miscellaneous

Where any term of this Limited Warranty is prohibited by such laws, it shall be

null and void, but the remainder of the Limited Warranty shall remain in full force

an effect.

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Introduction

Aperçu

L’0E-HDMIEXT4K est un ensemble transmetteur / récepteur conçu pour étendre

les signaux HDMI 1080P à 60 Hz jusqu’à 70 m et les signaux 4K à 60 Hz (4:2:0)

jusqu’à 40 m, par l’intermédiaire d’un câble de catégorie 6a/7. Le transmetteur

peut alimenter le récepteur. Vous pouvez contrôler la source à partir de l’écran

d’affichage ou contrôler l’écran d’affichage à partir de la source, grâce à la

fonction de transfert IR. Le transmetteur et le récepteur sont faciles à installer.

Ils sont peu encombrants et constituent la solution idéale pour la maison, les

bureaux, les solutions multimédias numériques, les centres de contrôle, les

salles de conférence, les établissements scolaires et les environnements de

formation en entreprise.

Caractéristiques

Modèle fin et gain de place

PoE bidirectionnel, un seul adaptateur d’alimentation requis.

Via câbles de cat. 6a/7, sortie 4Kx2K à 60 Hz (4:2:0) jusqu’à 130 pi. (40 m),

1080P à 60 Hz jusqu’à 230 pi. (70 m).

Via câble de cat. 5a/6, sortie 4Kx2K à 60 Hz (4:2:0) jusqu’à 115 pi. (35 m),

1080P à 60 Hz jusqu’à 198 pi. (60 m).

HDMI 1.4 conforme HDCP 2.2 et 4K.

Transfert du signal de commande infrarouge bidirectionnel en même temps

que le signal HDMI.

L’ensemble transmetteur / récepteur peut être utilisé pour étendre les

signaux HDMI sans autre réglage.

Tous les connecteurs sont installés du même côté pour faciliter le câblage.

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Contenu

Avant de commencer l’installation du produit, veuillez vérifier le contenu de la

boîte :

1 x appareil 0E-HDMIEXT4K

1 x adaptateur de puissance (18 VCC, 1 A)

2 x émetteurs IR

2 x récepteurs IR (30 à 50 kHz)

4 x supports de montage

1 x manuel d’utilisation

Panneau

Transmetteur

Panneau avant

Réf.

Nom

Description

1 VOYANT « POWER

» (ALIMENTATION) Rouge fixe : le transmetteur est sous tension.

2 VOYANT

« LINK » (LIAISON)

Vert fixe : la liaison avec le récepteur a bien

été établie.

Clignotant ou éteint : il existe des exceptions

de connexion entre le transmetteur et le

récepteur.

1 2

For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

Panneau arrière

Réf.

Nom

Description

1 Alimentation

Connexion à l’adaptateur d’alimentation CC de 18 V.

Remarque : un seul adaptateur d’alimentation est

requis au niveau du transmetteur ou du récepteur.

HDBT OUT

(SORTIE

HDBT)

Connexion au récepteur via un câble de cat.
