Avery Dennison Pathfinder 6057 Instruction Manual

Accelerate Performance: Price Management
Accelerate performance in price and item identification in the store, reducing
complexity while improving speed, efficiency and accuracy.
An Intelligent One-Piece Price Management Solution

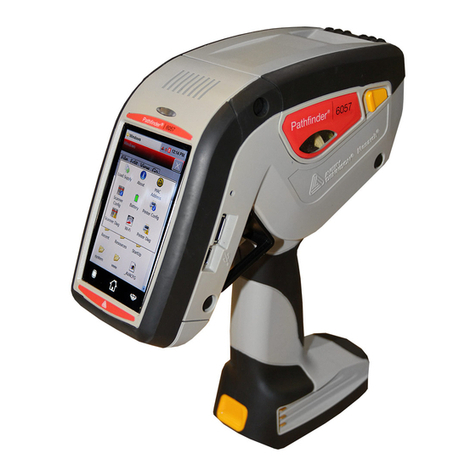

The Avery Dennison Pathfinder 6057 allows retailers to quickly and accurately
price and mark down items while reducing labor costs.
Compared to traditional “red pen” manual marking methods, the Avery Dennison
Pathfinder 6057 offers:
• Reduced Labor Costs Through Increased Speed and Productivity. In internal tests,
the Pathfinder 6057 performed over 50% faster than traditional “red pen” manual marking methods.*
• Improved Pricing Accuracy and Margins. The data collection, real time communication
and storage ability of the Pathfinder 6057 eliminate error-prone manual data-matching processes.t
Improved accuracy and the ability to complete markdowns on time, the first time, drive improved margins.
• Improved Customer Service. Training needs are minimal. Sales associates can perform labeling
tasks in less time and on the sales floor, ensuring associates are constantly available to customers.
• Elevated Brand and Profitability. Visual consistency of pricing labels protects and further elevates brand
while minimizing fraud and shrinkage.
Faster, More Accurate Than Two-Piece Price Marking Solutions
The unique one-piece scan, print and apply feature of the Avery Dennison Pathfinder 6057 also outperforms competitor
two-piece printer and data collection solutions:
• Bar code scanning, label printing and label application are performed with just one hand. Less associate item handling and
maneuvering streamline item marking and markdowns and increase speed by 42%.
• Less integration and IT support needed.
Scan, Print and Apply – It’s That Simple!
Compared to previous models in the Avery Dennison Pathfinder series, the Pathfinder 6057 is faster, easier-to-load, smaller,
lighter and has additional storage capacity.
Start Your Price Management Pilot Now – With Minimal IT Involvement
Prove the concept and verify benefits and user acceptance quickly, in one or more stores. Our Quick Pilot Price Management
Program allows you to prove the benefits of Avery Dennison’s Price Management solution with little or no investment of time
from your IT department. Avery Dennison provides everything you need to get started.
Call or e-mail today for more information on the Avery Dennison Quick Pilot for Price Management Program.
Elevating Brands. Accelerating Performance.
Experience this and many other supply chain solutions at our worldwide Customer Design and Innovation Centers.
For more information on the Avery Dennison Pathfinder 6057 or to schedule a tour of our Customer Design and Innovation
Centers, Please call 800.543.6650, prompt 5, or e-mail [e-mail]
For more information or complete warranty and other terms and conditions, please contact your Avery Dennison representative
or visit our website at www.rbis.averydennison.com.
*Internal time studies of marking down prices of 500 apparel pieces manually and with competitor two-piece solutions.
Price Management
Avery Dennison® Pathfinder® 6057

1207SNG.ENGV01.0812LT.GRIS
Avery Dennison® Pathfinder® 6057 - An Intelligent One-Piece Price Management Solution
Standard Features
Dimensions:
Height - 9.84” (250 mm)
Width - 8.25” (209 mm)
Depth - 3.00” (76 mm)
Weight - 1.94 lbs (.88 kg)
Shipping Wt. - 5.5 lbs (2.52 kg)
Printing Method:
Thermal Direct
Keypad/Display:
Virtual keyboard on display. Three
software controlled contextual
keys, off/on, trigger, 1/2VGA (320x480
pixel) VGA color graphics LCD with
touchscreen
Memory:
128 MB RAM, 256 MB Flash
Optional Micro SD memory card
Communications:
• USB port
• Optional Summit 802.11 b/g
radio cards
• Optional Bluetooth (Class 1) Line of
sight range is 3280.9 feet (1000m)
Bar code Types:
UPCA +2/+5, UPCE +2/+5, EAN8 +2/+5,
EAN13 +2/+5, Interleaved 2
of 5, Code 16k, Codabar (NW7), Code
128, Code 39, MSI, PDF417, Code
93, Postnet, Maxicode, QR Code, GS1
databar, Datamatrix and RSS
Standard Fonts:
TrueType® and International
Font Magnification:
4 to 200 pt. for scalable/TrueType fonts
Printer Warranty:
One (1) year parts and labor (ship-in).
Full written warranty statement is available
on request.
Printhead Warranty:
Six (6) months, or one million inches
(1,000,000”), whichever occurs first.
Supplies
The printer supports butt cut, die cut and
continuous supplies.
Supply Types:
Tags, labels and receipt paper
Supply Sizes:
Width - 1.1” up to 2.0” (28 mm to 51 mm)
Length - .55” to 8.0” (14 mm to 203 mm)
Supply Roll Lengths - 420” to 580” (10.7 to
14.7 meters)
Custom lengths are available.
Minimum apply is .785” (19mm)
Supply Thickness:
Tags - 7 mils (0.18mm)
Labels - 2.4 mils (0.061mm)
Maximum Print Area:
1.89” x 7.94” (48 mm x 201.7 mm)
Sensing:
Black mark only
Environmental Ranges
Operating Temperature:
41° to 104° F (5° to 40° C)
Storage:
-4° to 122° F (-20° to 50° C)
Humidity/Operating and Storage:
5% to 90% non-condensing
Electrostatic Discharge and Air Quality:
Some issues with electronic equipment
may occur in environments prone to static
discharge or extreme dust conditions.
Avery Dennison suggests that you take
precautions to minimize these issues.
Performance
Power Source:
7.4V Lithium Ion battery pack
Print Speed:
Up to 5 ips (127 mm/sec)
Print Ratio:
30% black maximum per square inch
Inches Per Charge:
Up to 3,000” (76 meters) of 30% black
printing on the supply.
Factors such as scanning, use of LAN
radios and duty cycle can reduce inches
printed per charge.
Battery Cycle Life:
Approximately 300 full discharge cycles.
Many factors affect individual battery
performance.
Recommended Duty Cycle:
33% duty cycle for continuous printing
(5 minutes out of 15-minute time intervals).
On demand or intermittent printing has
no restrictions.
Options
• 802.11 b/g radio cards
• Micro SD Memory Cards
• Integrated 2D or 1D scanner
Accessories
• Battery (part#12009502)
9465™ four-station battery charger
• 9462™ single station battery charger
• Deluxe hand strap (part#124053)
• USB cable
• 6055/6054 communication/charging/
docking station
• Shoulder strap (part#127333)
• Deluxe padded wrist strap
(part#126791)
In our ongoing effort to deliver the best
technology, specifications are subject to
change without notice.
Price Management
Avery Dennison® Pathfinder® 6057
The information contained herein is believed to be reliable but Avery Dennison makes no representations concerning the accuracy or correctness of the data. This product, like any other should be tested by the customer/user thoroughly
under end user conditions to ensure the product meets the particular requirements. Independent results may vary.
Avery Dennison and the logo are registered trademarks of Avery Dennison Corp.Third party trademarks and/or trade names used herein are the property of their respective owner(s).
© 2012 Avery Dennison Corporation, All Rights Reserved.
