INTRODUCTION
Angel is our new jet trainer. It is fully composite, delivered assembled and painted.
It is designed for jet beginner with following objective :
- Very easy to fly.
- Short take off and landing due to big airfoil thickness (13%), large flaps and low wing loading
- Very fast assembly
- Easy access to engine (top engine, no hatch, no exhaust pipe)
- Easy access to fuel tank , ECU and radio with a large fuselage hatch
- Easy radio installation with big fuselage hatch and servo cover supplied
The Angfel
AngfelAngfel
Angfel is fully molded in composite material.
The model comes to you finished, fully molded in composite material and painted in mold. All
bulkeads are glued. All control surfaces are hinged. No gluing are required. This model has plug in
wings, stabs and fin booms for an easier transport.
All necessary hardware are included in the parcel
Assembly require only few hours to fit engine and radio.
Angel ARF
Angel ARFAngel ARF
Angel ARF model includes :
- High quality epoxy-glass fuselage painted.
- All plywood and wood parts premounted.
- Fully molded wings with winglets, stabs and fin booms painted
- High tensile aluminum wing joining tube.
- Access hatch requiring no additional framework.
- All hardware (screws, servo cover, ...)
- Instructions in English with pics.

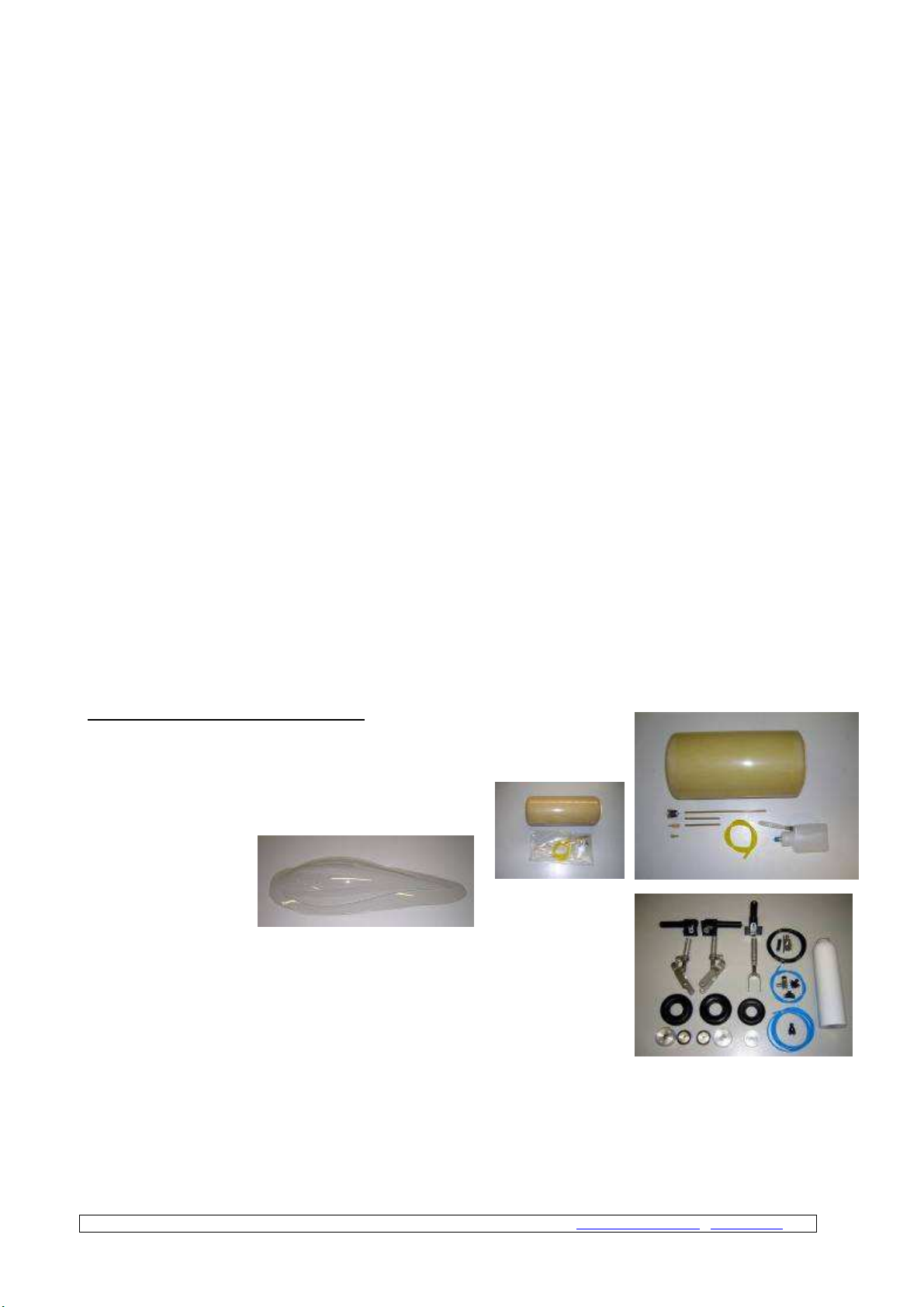

Parts required to complete the kit :
- 3.2 liters kevlar fuel cell
- 1 liters kevlar smoker cell
- Clear canopy
- Deluxe retractable landing gear with special CNC oleo legs and
wheels set on bearing + brakes
DISCLAIMER
AVIATION Design assumes no liability for the operation and use of these products.
The owner and operator of these products should have the necessary experience and exercise
common sense. Said owner and operator must have a valid Model Airplane licence and insurance as
required.

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
3
Assembly Instructions
Assembly InstructionsAssembly Instructions
Assembly Instructions
Installation of the radio equipment
Components need:
Elevator: 2 servo 8 kg torque
Rudder: 2 servos 5 kg torque
Ailerons: 2 servos 8 kg torque
Flaps: 2 servos 8 kg torque
Steering nose wheel: 1 servo 3 kg torque
Receiver and switch
2 batteries 1600 mah
Fuselage hatch:
Make a 6 mm hole in front of the fuselage hatch for the wood pin.
Glue the wood pin with CA in the hatch
Drill the corresponding hole in the front fuselage
Cut a slot and make a 3 mm hole in the back of the hatch for the hatch
latch
Glue the hatch latch with CA. Take care to not
glue the metalic part
Fit the hatch on the fuselage and draw the corresponding hole

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
4
Drill the 3 mm hole in the fuselage

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
5
Gear :
Please, use only the oleo legs supply by Aviation Design.
If you use standard oleo, you will have to modify the gear position and gear door position
Fit the main gear on the plywood mount a drill four 2 mm hole
Screw each gear with four 3x20 mm parker screws
Fit the front gear on the plywood mount a drill 4 x 2 mm
hole
Screw the front gear with four 3x20 mm parker screws
Screw the steering servo on the plywood frame
Connect servo to steering arm with 2 mm link + steel wire

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
6
Stab servos :
Increase the hole for the servo location in the stab with a permagrit rotating tool
Screw the servo in the servo cover (you can also glue it with silicon glue for more security)
Put in place the servo cover on the stab
Drill 4 x 1 mm hole in the stab for the screws
Make a 10 mm hole in on side of the stab for the servo connector
Cut a slot in the control
surface for the fiber control
horn
Glue with fast epoxy the
control horn
Connect two 3 mm link with M3 threaded rod
Screw the servo cover with the 4 parker screws
Connect the servo with the control horn
Apply thread lock.

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
7
Aileron and flaps servos :
Process as the stab servo :
Increase the hole for the servo location in the wings with a
permagrit rotating tool for the aileron and flaps
Screw the servo in the servo cover (you can also glue it
with silicon glue for more security)
Put in place the
servo cover on the
wings
Drill 4 x 1 mm hole
in the wings for the
screws
Cut a slot in the control surface for the fiber control horn
Glue with fast epoxy the control horn
Connect two 3 mm link with M3 threaded rod
Screw the servo cover with the 4 parker screws
Connect the servo with the control horn
Apply thread
lock.
Make a 5 mm hole in the wing root for the servo electric wire
Don’t make the hole too big so that the conector can’t fall in the
wing
Sold electric wire for the flaps and aileron
Flaps control
horn
Aileron control
horn

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - aviation.desig[email protected]r – www.adjets.com
8
Rudder servos :
Process as the stab servo :
Increase the hole for the servo location in
the booms with a permagrit rotating tool
for the rudder
Screw the servo in the servo cover (you
can also glue it with silicon glue for more
security)
Put in place the servo cover on the boom
Drill 4 x 1 mm hole in the wings for the
screws
Cut a slot in the control surface for the
fiber control horn
Glue with fast epoxy the control horn
Connect two 3 mm link with M3 threaded
rod
Screw the servo cover with the 4 parker
screws
Connect the servo with the control horn
Apply thread lock.
Make a 20 mm hole in the boom in front
of the hole of the wing root for the servo
electric wire.
Drill this hole on both side of each boom.
Sold electric wire for the rudder
Make a 5 mm hole in the boom in front of
stab root for the elevator electric wire
Don’t make the hole too big so that the conector can’t fall in the boom.
Sold electric wire for the elevator.

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - aviation.desig[email protected]r – www.adjets.com
9
Secure the wings :
Fit the wing joiner tube through the fuselage.
Install the left and right booms .
Take care to put it at the center (same lenght left and
right ).
Install the left and right wings.
A plywood reinforcement is located between the fiber
tube and the wing skin to drill the hole to secure the
wings.
You can see it from the flap servo hole or from the
wing root (if it is open). It is located at 23 cm from the
wing root under the wing

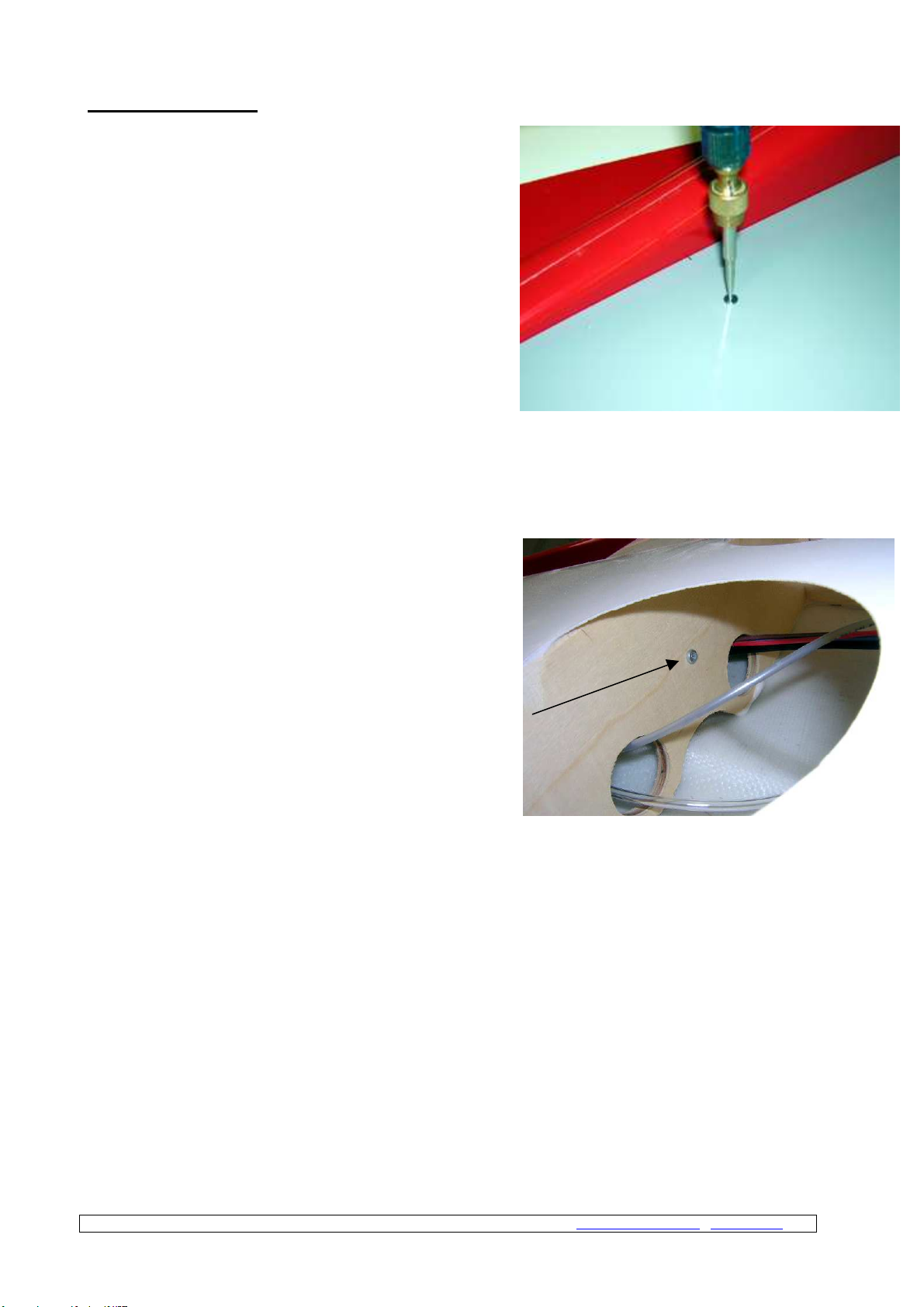

Make a 2.5 mm hole at 230 mm from the wing root throught the wing and aluminium tube to secure
the wings
Threated the wing tube and wing at M3 mm and secure wings with a M3x30 screw
You can also secure the tube in the fuselage.
Make a 2.8 mm hole in the center of the fuselage from
the gear door. Drill the hole throught the plywood frame
and aluminium tube to secure the tube.
Screw a 3 x 16 mm parker screw through the plywood
and aluminium tube, so the tube will not move during
assembling and desassembling.
If you don’t secure the tube in fuslage, write with a pen
on the tube the fuselage location for an easier
assembling and to find the hole to secure the wings
Secure the horizontal stabilisator :
Install the stab between the 2 booms.
Secure the stab with 4 x M6x40 nylon screws

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - aviation.desig[email protected]r – www.adjets.com
10
Fuel tank
Connect the fuel tank to the clunk as the photo.
Check that there is no leak before to fit it in
fuselage.
Drill a 3 mm hole in the bottom of the fuselage for
the fuel vent
The fuel tank is connected to UAT catch tank
(optionnal) to be sure that there is no bubble in the
fuel line.
The tubing from the main tank to the catch tank and to the catch
tank to the fuel pump must be gasoline tubing (no silicone
tubing). Also for the air vent tube.
The catch tank is glue with double face tape on the bottom of
the fuselage close to the main tank or with rubber band to the
main tank.
Hold the fuel tank with rubber bands or silicon glue
Filling the fuel tanks :
You have to disconnect the tubing between the fuel pump and
the catch tank.
Connect your pump and fill the system in direction of the tank. It will
first fill the catch tank and
after the main tank. The main
tank will be full when fuel
come from the air vent tube.
Do not close the air vent tube
after.
Connect back the fuel pump
with the catch tank. The
system is ready for starting.
Fuel vent

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - aviation.desig[email protected]r – www.adjets.com
11
Engine installation :
The engine must be screw with 4 times 3x20 mm parker screw to the rear position.
A plywood reinforcement is already glued inside the fuselage
Make all necessary hole in the fuselage for electric wire and fuel tubing in front of the engine
ECU installation :
Fit the ECU in one side of the plane.
Fit the fuel pump and valves just rear to the ECU and hold them with T rap.

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - aviation.desig[email protected]r – www.adjets.com
12
Radio installation :

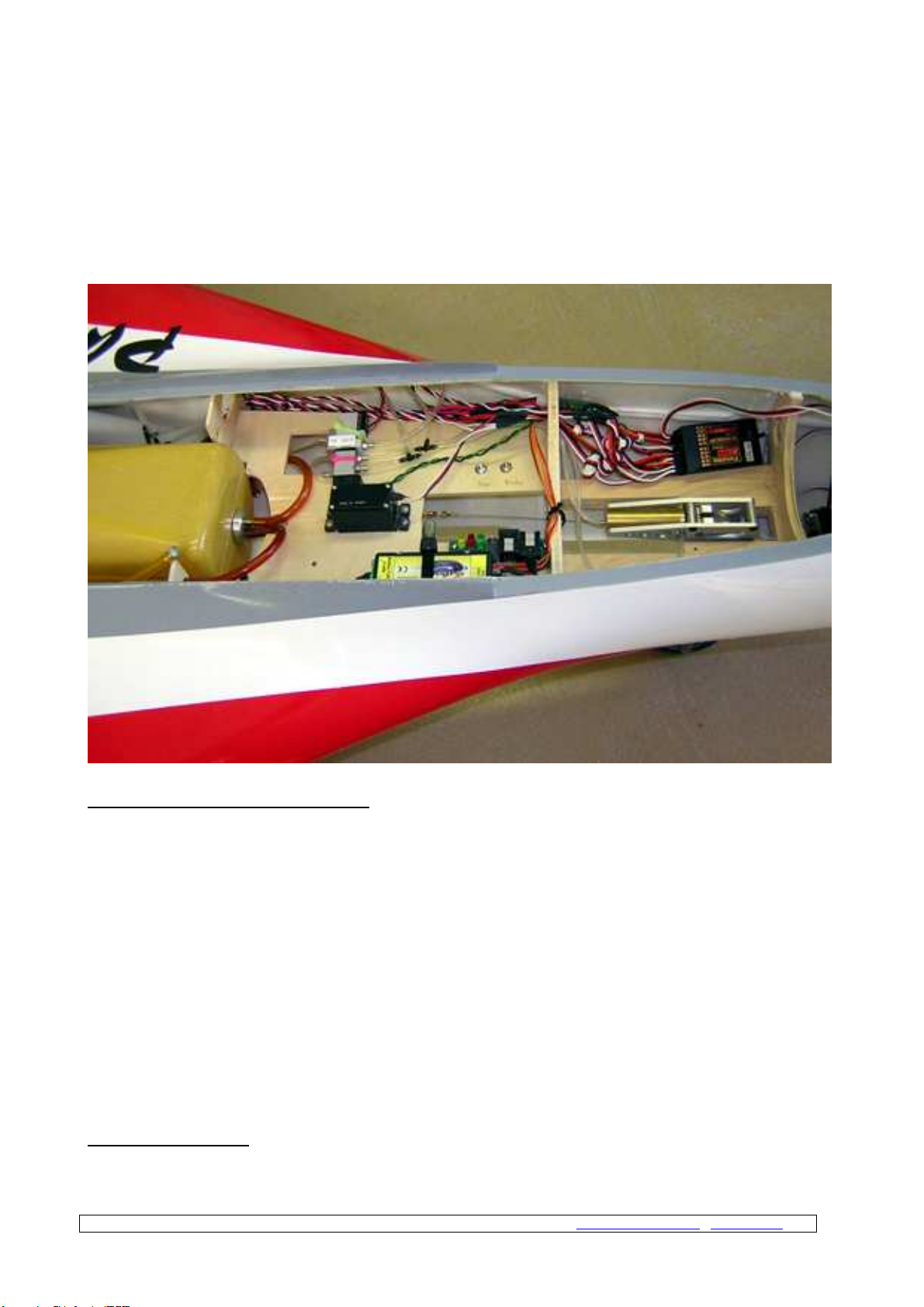

Fit the radio in the nose section with batterie.
Adjust batterie position to have to correct CG position.
Don’t put the received and aerial antenae too close the the ECU
Retract valve and brake valve can be fitted as the pics
Recommended surface throws
Elevators Ailerons
Up 25mm Up 20mm
Down 20mm Down 20mm
Exponential: 10 Exponential: 10
Rudder Flaps
30 mm left and 30 mm right 110 mm down with also mix 10 mm up elevator for pitch down
moment
All measured in the widest part of the surface
Exponential is not mandatory but improves the flight
Center of gravity
You normally need 2 x 1700 Mah battery + ECU battery to have a correct Centre of Gravity.
For heavy engine like AMT Pegasus, about 500 grammes of lead will be necessary in the nose.

AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - aviation.desig[email protected]r – www.adjets.com
13
Note : balance the model with the gear down and the tanks empty.
The center of gravity (CG) must be located at 156mm rear of the wing leading edge (wing root)
You must check it before the first flight, to do this with the aircraft in flight condition but without
fuel lift the aircraft in this point, the aircraft must adopt a slightly nose down attitude. If it is
horizontal or the tail drops move the baterie forward or add weight in the nose.
In other hand if the nose drops considerably add weight in the tail.
Total weight
The total weight of the Angel is 14 kg tanks empty.
Important note : Pay very careful attention to structural integrity. This jet can reach speeds of
over 400 KPH - 250 MPH. It is your responsibility to operate it safely.
Specifications may change without notice.
