INTRODUCTION


 is our new jet trainer. It is fully composite, delivered assembled and painted.
It is designed for jet beginner with following objective :
-Easy to fly.
-Very fast assembly
-Easy access to engine
-Easy access to fuel tank , ECU and radio with a large fuselage hatch
-Easy radio installation with big fuselage hatch
The 

 is fully molded in composite material.
The model comes to you finished, fully molded in composite material and painted in mold. All
bulkeads are glued. All control surfaces are hinged. No gluing are required. This model has plug in
wings and fin for an easier transport.
All necessary hardware are included in the parcel
Assembly require only few hours to fit engine and radio.


 

 model includes :
- High quality epoxy-glass fuselage painted.
- All plywood and wood parts premounted.
- Fully molded wings with winglets and fin painted
- High tensile aluminum wing joining tube.
- Access hatch pre-cutted and canopy requiring no additional framework.
- All hardware (screws, servo cover, ...)
- Instructions in English.
Parts required to complete the kit :
-2 liters kevlar fuel cell
-or 2 liters tank + UBT
-Deluxe retractable landing gear
with special CNC oleo legs and
wheels set on bearing + brakes
-Or Deluxe gear + electovalve fro
gear and brakes
DISCLAIMER
 assumes no liability for the operation and use of these products.
The owner and operator of these products should have the necessary experience and exercise common
sense. Said owner and operator must have a valid Model Airplane licence and insurance as required.

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com



Installation of the radio equipment
Components need:
Elevons: 2 servos 8 kg torque
Rudder: 1 servo 3 kg torque
Steering nose wheels: 1 servo 3 kg torque
Air brake: 1 servo 8 kg torque
Receiver and switch

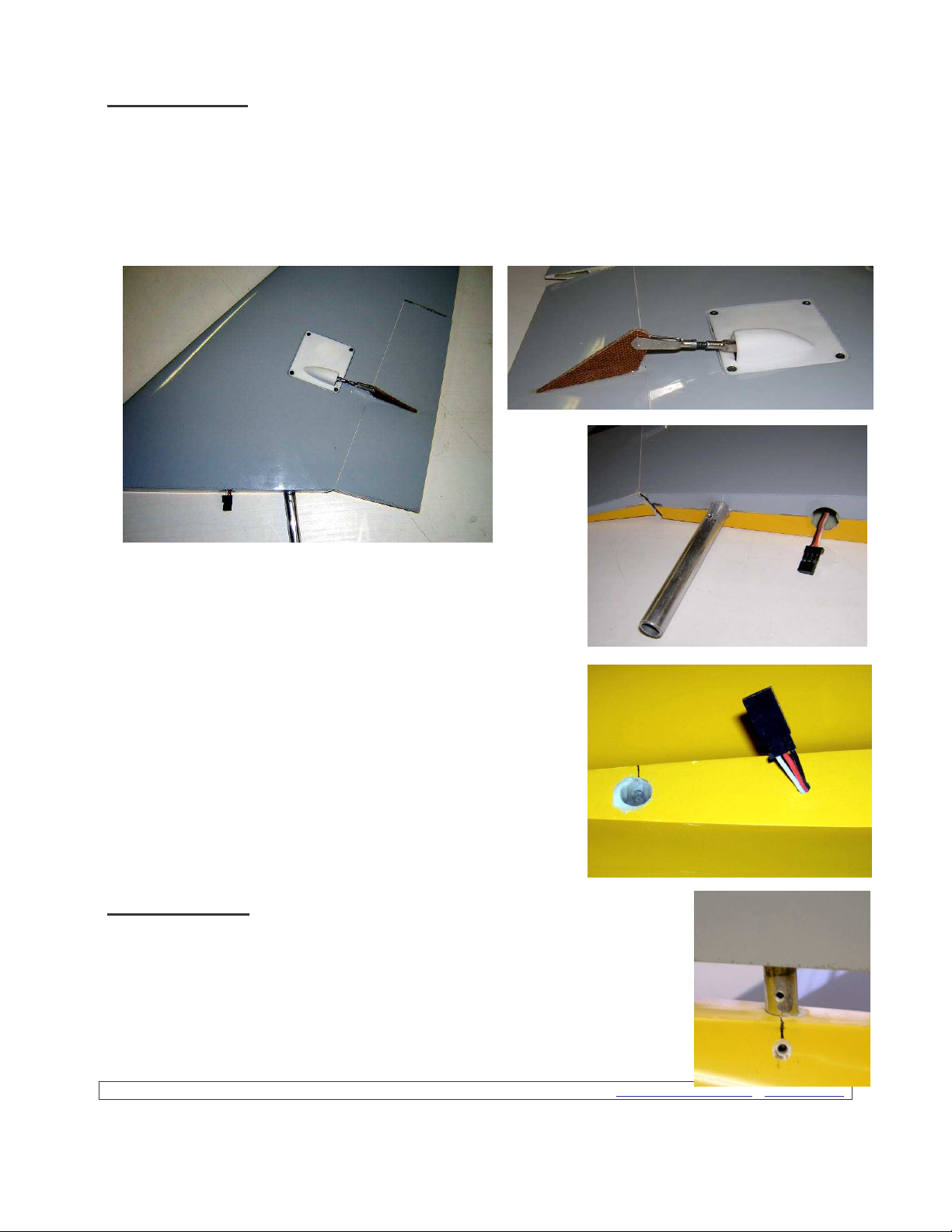

Ailevon servos :
If necessary increase the hole for the servo location in the wings with a permagrit rotating tool for the
aileron and flaps
Screw the servo in the servo cover (we recommand to glue it with silicon glue for more security)
Put in position the servo cover on the wings
Drill 4 x 1 mm hole in the wings for the screws
Cut a slot in the control surface for the fiber control horn
Glue with fast epoxy the control horn
Connect two 3 mm link with M3 threaded rod
Screw the servo cover with the 4 parker screws
Connect the servo with the control horn
Apply thread lock.
Aileron control
horn

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
Make a 15 mm hole in the wing root for the servo electric wire
Sold electric wire for the ailevon servo
Make a 5 mm corresponding hole in the fuselage for the
electric wire
Don’t make the hole too big so that the conector can’t
fall in the fuselage
Secure the wings :
Fit the wing joiner tube through the fuselage.
Take care to put it at the center (same lenght left and right .
Install the left and right wings.
Make a 2.5 mm hole at 50 mm from the wing root throught the wing and aluminium tube to secure the
wings
Threated the wing tube and wing at M3 mm and secure wings with a M3x25
screw
Secure also the tube in the fuselage.
Make a 2.5 mm hole in the center of the fuselage from the engine hatch. Drill
the hole throught the plywood frame and aluminium tube to secure the tube.
Screw a 3 x 16 mm parker screw through the plywood and aluminium tube, so
the tube will not move during assembling and desassembling.

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
Rudder servos :
Process as the wing servo :
Increase the hole for the servo location in the booms with a permagrit rotating tool for the rudder
Screw the servo in the servo cover (we recommand to glue it with silicon glue for more security)
Put in place the servo cover on the fin
Drill 4 x 1 mm hole in the wings for the screws
Cut a slot in the control surface for the fiber control horn
Glue with fast epoxy the control horn
Connect two 2 mm link with M2 threaded rod
Screw the servo cover with the 4 parker screws
Connect the servo with the control horn
Apply thread lock.
Make a 20 mm hole in the fin root for the servo electric wire.
Make a 5 mm corresponding hole in the fuselage for the electric
wire.
Don’t make the hole too big so that the conector can’t fall in the
fuselage.
Secure the fins :
Fit the fin on the fuselage.
Make a 2.5 mm hole at 15 mm from the fin root throught the fuselage and
aluminium tube to secure the fins
Threated the tube and fuselage at M3 mm and secure fin with a M3x15 screw

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com

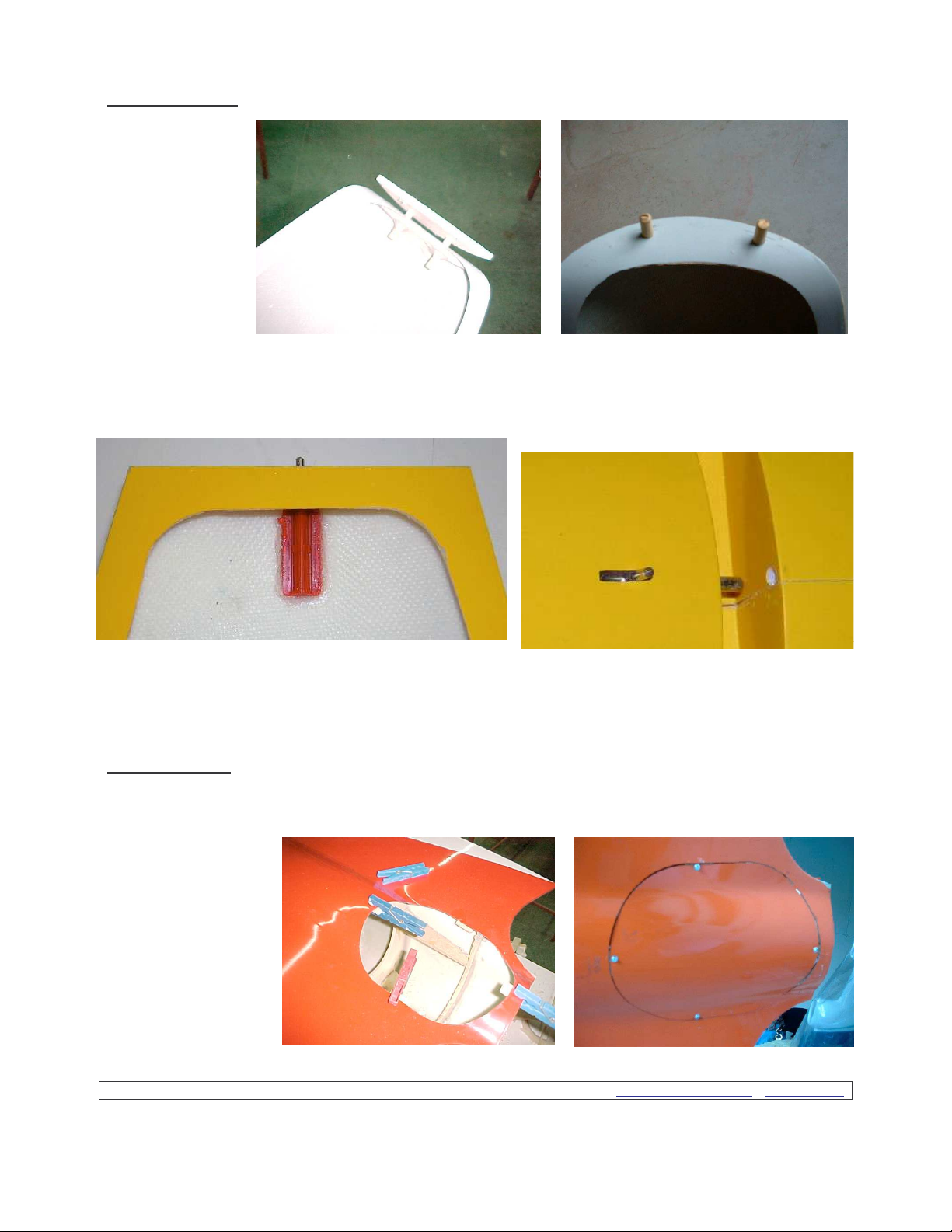

Canopy hatch:
Make 2 X 6 mm
hole in the back of
the canopy for the
wood pin
following the
plywood template.
Glue the wood pin
with CA in the
canopy
Drill the
corresponding hole in the front fuselage
Cut a slot and make a 3 mm hole in the front of the canopy for the hatch latch
Glue the hatch latch with CA. Take care to not glue the metalic part
Fit the hatch on the fuselage and draw the corresponding hole
Drill the 3 mm hole in the fuselage
Engine hatch:
Finish to cut the engine hatch.
Glue 4 plywood reinforcements in the fuselage to fit the engine hatch
Screw the hatch with
4 parker screw

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com

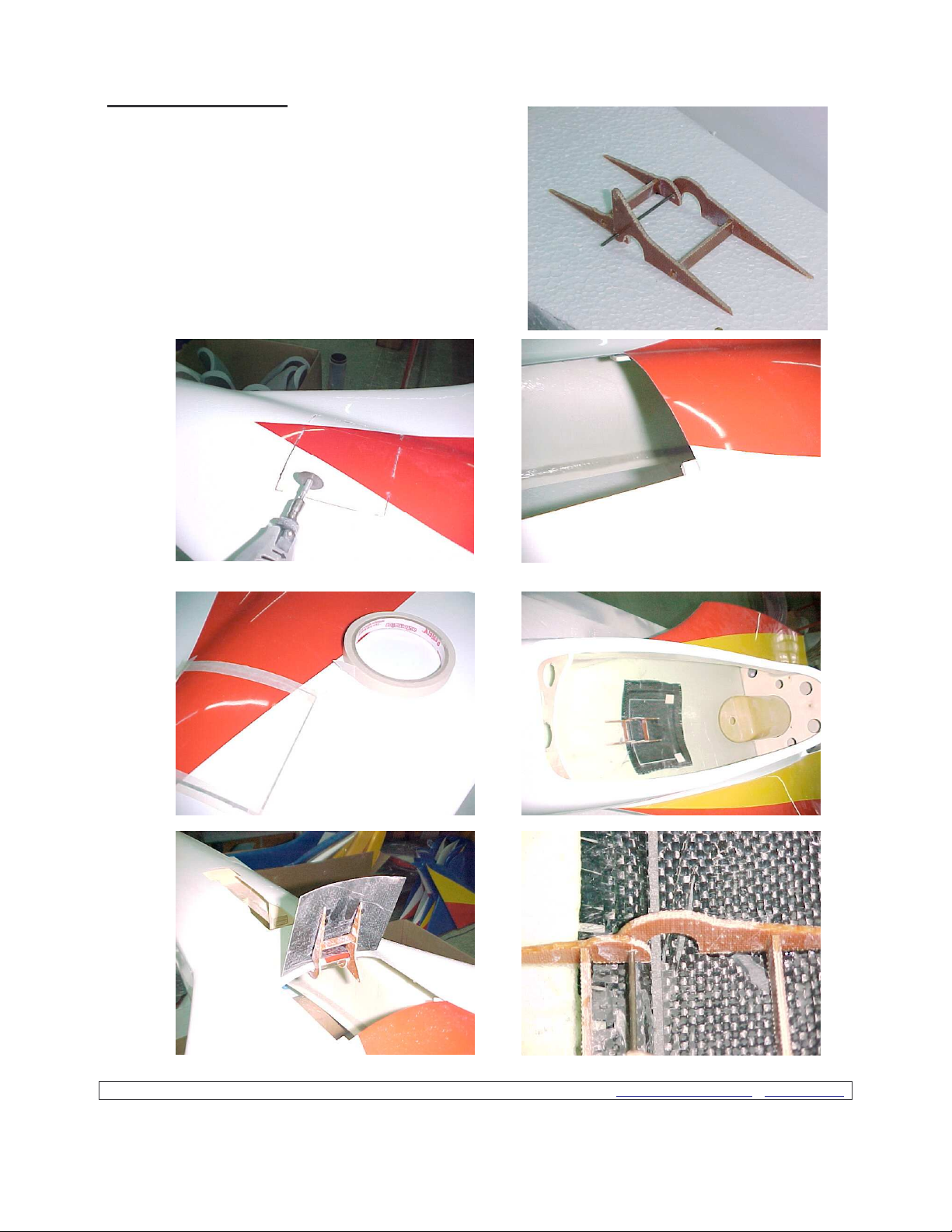

Fitting the air brake
Finish to cut the air brake
Assemble the fiber hinges as the photos
Glue 2 plywood reinforcements in the fuselage for the air
brake end
Put the air brake in position and hold it with tape
Glue the fiber hinges on position with CA.
Verify that the airbrake can move without problem
Secure the gluing with epoxy. You can use a strong
servo to move the airbrake or use a air cylinder.

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com

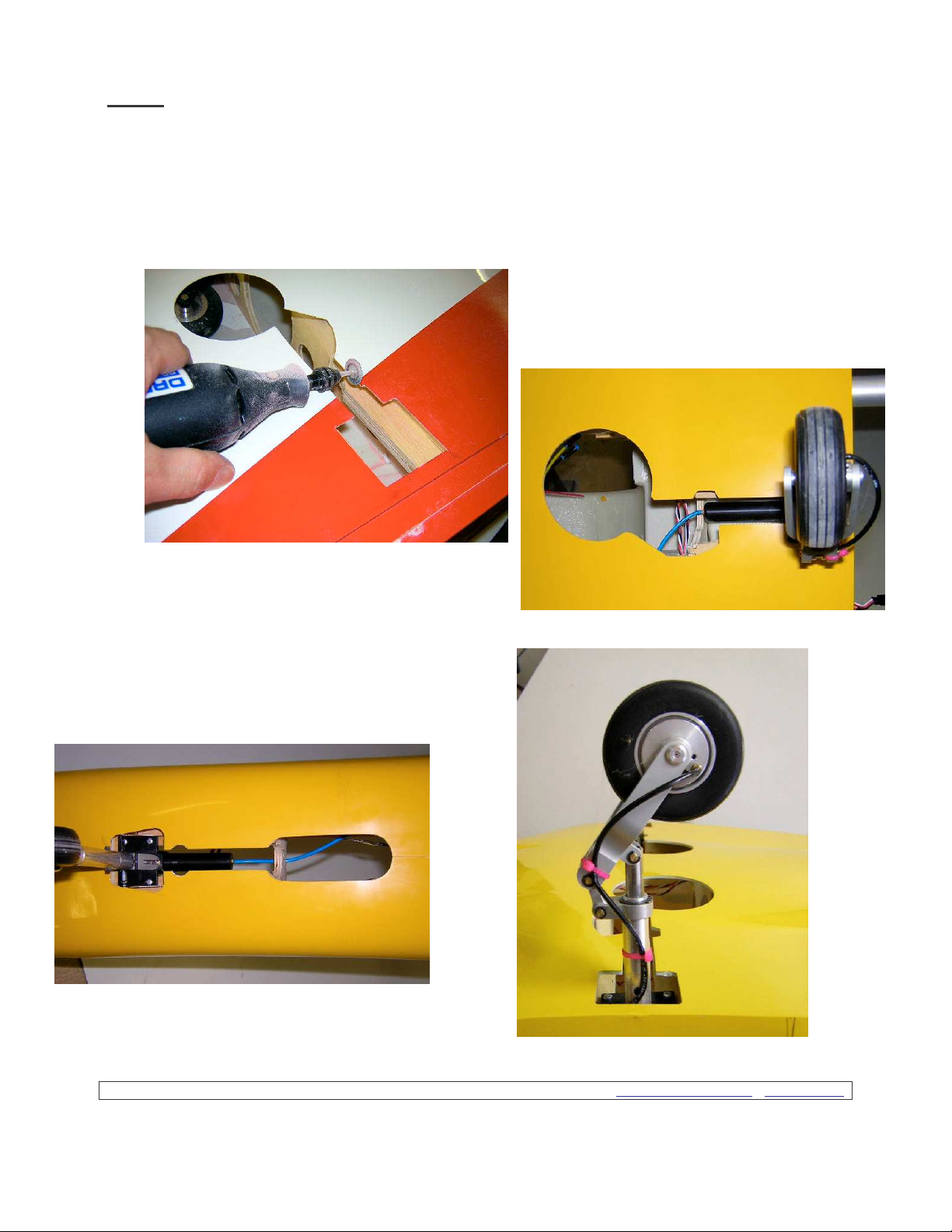

Gear :
Please, use only the oleo legs supply by Aviation Design.
If you use standard oleo, you will have to modify the gear position and gear door position
Draw the fuselage axis under the fuselage with a ruler
Draw the front gear door location and main gear door location according to the drawing and template
Cut all gear doors using a fine diamond disc
and dremel tool
380 mm
15 Inhes

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com

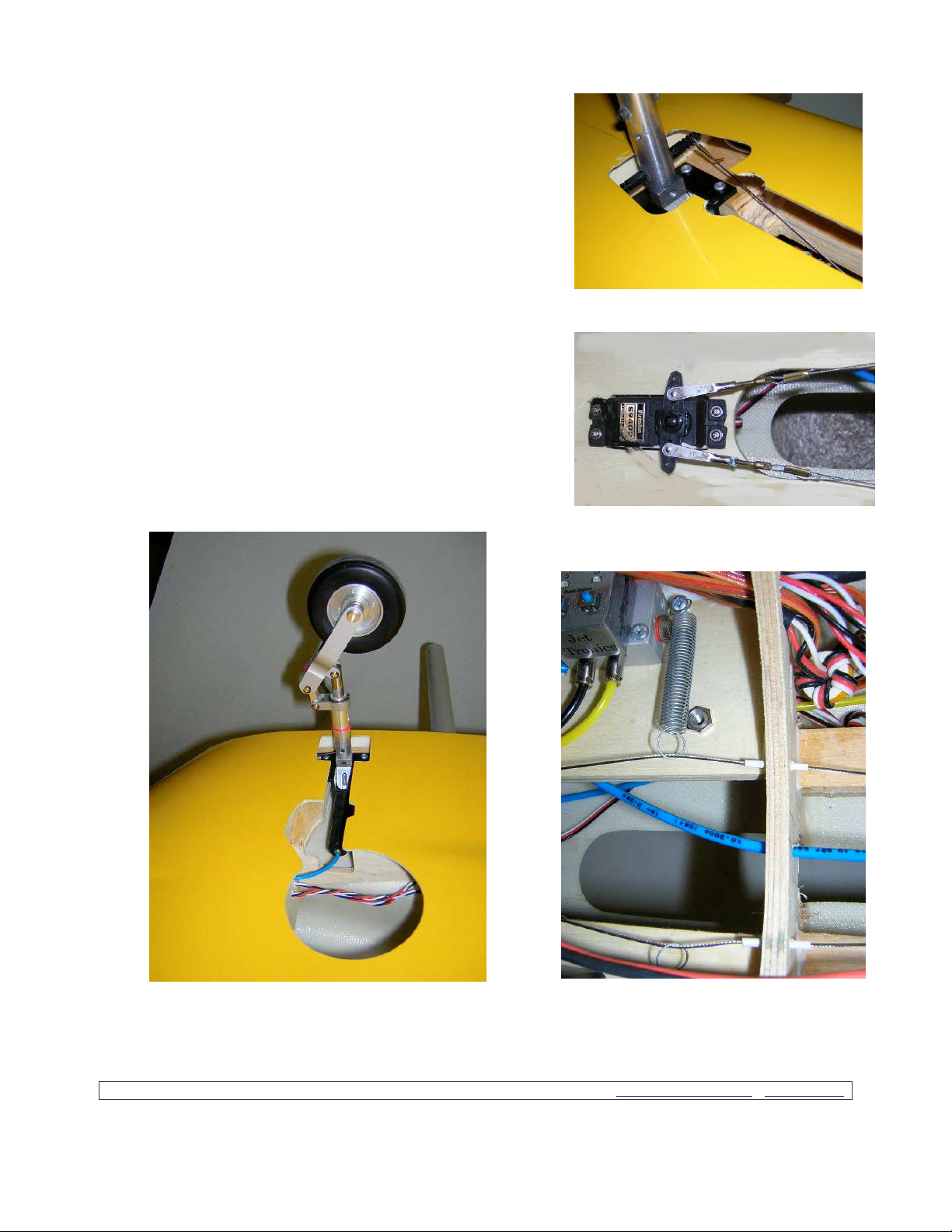

Fit the main gear on the plywood mount a drill four 2 mm hole
Screw each gear with four 3x20 mm parker screws
Connect all gear tubing as described in the gear manual
Fit the brake tubings and attach them with T rap
Fit the front gear on the plywood mount
Drill 4 x 2 mm hole
Screw the front gear with four 3x20 mm parker screws
Screw the steering servo on the plywood frame
Make a hole in the plywood frame for the steering steel wire.
Connect servo to steering arm with 2 mm link + steel wire .
Check that the nose gear retract and extand without problem
witht he steering wire.
If necessary, add 2 soft springs or rubber bands to extand the
wire when the front gear retract

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com

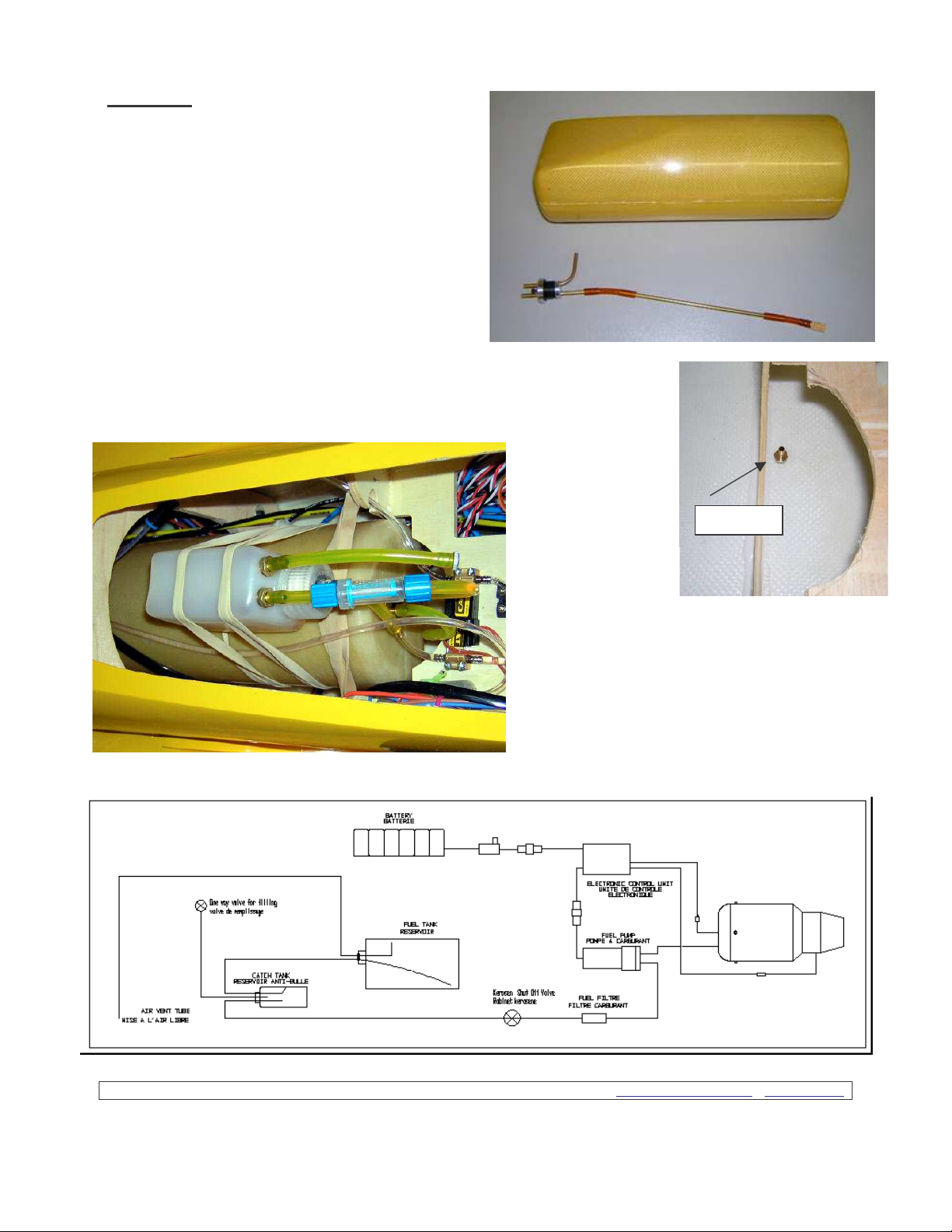

Fuel tank
Connect the fuel tank to the clunk as the photo.
Check that there is no leak before to fit it in
fuselage.
Drill a 3 mm hole in the bottom of the fuselage for
the fuel vent
The fuel tank is connected to the small catch tank
(200 cc) or UAT catch tank to be sure that there is
no bubble in the fuel line.
The tubing from the main tank to the catch tank and
to the catch tank to the fuel pump must be gasoline
tubing (no silicone tubing). Also for the air vent tube.
The catch tank is glue with double face tape or with rubber band on the top of
the main tank.
Hold the fuel tank with rubber bands or silicon glue
Filling the fuel
tanks :
Connect your pump
and fill the system
in direction of the
tank. It will first fill
the catch tank and after the main tank. The
main tank will be full when fuel come from
the air vent tube.
When tanks are ful, close the filling tubing.
Do not close the air vent tube after.
The system is ready for starting.
Fuel vent

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
Engine installation :
The engine must be screw with 4 times 3x20 mm parker screw
on the plywood spare.
Secure all electric wire and fuel tubing in front of the engine in
the fuselage
ECU installation :
Fit the ECU in one side of the plane.
Fit the fuel pump and valves just rear to the ECU and
hold them with T rap.
Gear valves, air tank, batterie, antenae
Radio installation :
Fit the radio in the nose section with batterie.
Adjust batterie position to have to correct CG
position.
Don’t put the received and aerial antenae too close the
the ECU
Retract valve and brake valve can be fitted as the pics
Recommended surface throws

Up : 20mm Down : 20mm

12 mm left and 12 mm right

 - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : int+ 33 1 64 98 93 93 - [e-mail] – www.adjets.com
Center of gravity
You normally need a 1700 Mah battery + ECU battery in the nose to have a correct Centre of Gravity.
Note : balance the model with the gear down and the tanks empty.
The center of gravity (CG) must be located at 130mm rear of the wing leading edge (wing root)
You must check it before the first flight, to do this with the aircraft in flight condition but without fuel
lift the aircraft in this point, the aircraft must adopt a slightly nose down attitude. If it is horizontal or
the tail drops move the baterie forward or add weight in the nose.
In other hand if the nose drops considerably add weight in the tail.
Total weight
The total weight of the 

 is 7.5 kg tanks empty.
Important note : Pay very careful attention to structural integrity. This jet can reach speeds of over
400 KPH - 250 MPH. It is your responsibility to operate it safely.
Specifications may change without notice.
130 mm
5 ’’
172 mm
6 ¾ ’’
