MC Transport User Guide

Legal Notices
This guide is copyrighted ©2011 by Avid Technology, Inc., (hereafter “Avid”), with
all rights reserved. Under copyright laws, this guide may not be duplicated in
whole or in part without the written consent of Avid.
003, 96 I/O, 96i I/O, 192 Digital I/O, 192 I/O, 888|24 I/O, 882|20 I/O,
1622 I/O, 24-Bit ADAT Bridge I/O, AudioSuite, Avid, Avid DNA, Avid Mojo,
Avid Unity, Avid Unity ISIS, Avid Xpress, AVoption, Axiom, Beat Detective,
Bomb Factory, Bruno, C|24, Command|8, Control|24, D-Command, D-Control,
D-Fi, D-fx, D-Show, D-Verb, DAE, Digi 002, DigiBase, DigiDelivery, Digidesign,
Digidesign Audio Engine, Digidesign Intelligent Noise Reduction, Digidesign
TDM Bus, DigiDrive, DigiRack, DigiTest, DigiTranslator, DINR, DV Toolkit,
EditPack, Eleven, EUCON, HD Core, HD Process, Hybrid, Impact, Interplay, LoFi,
M-Audio, MachineControl, Maxim, Mbox, MC Color, MC Mix, MC Control,
MC Transport, MC Pro, MediaComposer, MIDI I/O, MIX, MultiShell, Nitris, OMF,
OMF Interchange, PRE, ProControl, Pro Tools M-Powered, Pro Tools,
Pro Tools|HD, Pro Tools LE, QuickPunch, Recti-Fi, Reel Tape, Reso, Reverb One,
ReVibe, RTAS, Sibelius, Smack!, SoundReplacer, Sound Designer II, Strike,
Structure, SYNC HD, SYNC I/O, Synchronic, System 5-MC, TL Aggro,
TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune,
TL MasterMeter, TL Metro, TL Space, TL Utilities, Transfuser, Trillium Lane Labs,
Vari-Fi, Velvet, X-Form, and XMON are trademarks or registered trademarks of
Avid Technology, Inc. Xpand! is Registered in the U.S. Patent and Trademark
Office. All other trademarks are the property of their respective owners.
Bonjour, the Bonjour logo, and the Bonjour symbol are trademarks of Apple
Computer, Inc.
Product features, specifications, system requirements, and availability are
subject to change without notice.
Guide Part Number 9329-65075-00 REV A 1/11
Documentation Feedback
At Avid, we are always looking for ways to improve our documentation. If you have
comments, corrections, or suggestions regarding our documentation, email us
at [email protected].

Contents iii
Contents
Chapter 1. Introduction: Artist Series Media Controllers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Requirements and Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About www.avid.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 2. Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking and Elevating the MC Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing Software and Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 3. MC Transport Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operational Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SHOW Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Transport Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Jog Wheel and Shuttle Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Application/Workstation Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SHIFT Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Common Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 4. Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Command Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chapter 5. EuControl. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Surfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Assign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Chapter 6. Setting IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Appendix A. Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Environmental Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
EMC (Electromagnetic Compliance). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

MC Transport User Guideiv

Chapter 1: Introduction: Artist Series Media Controllers 1
Chapter 1: Introduction: Artist Series Media
Controllers
The MC Control, MC Mix, and MC Transport comprise the Artist Series family of media controllers. They use a 100 Mbs Ethernet
EUCON™ connection to control audio and video applications running on a workstation computer. EUCON is a high-speed com-
munication protocol and enables control of virtually every application feature.
Each Artist Series media controller can run as a standalone device. Up to four MC Mixes can be used with an optional MC Control
and/or MC Transport to create a larger control surface. Artist Series media controllers borrow many features from the MC Pro and
System 5-MC.
The MC Transport supports two types of applications:
• EUCON-aware applications (such as Pro Tools™ 9 and higher, Cubase, Nuendo, and Final Cut Pro) are written to directly
support the EUCON protocol. They provide the highest level of integration, high-resolution controls, and high-speed con-
nectivity.
• Non-EUCON-aware applications that support Mackie Control or HUI (such as Live, Reason, and Pro Tools 8.x and lower) can
control many functions but are less integrated than EUCON-aware applications.
The MC Transport can provide some functionality over non-EUCON-aware applications that do not support HUI or Mackie Con-
trol by sending out keystroke commands over EUCON.
EuControl Software

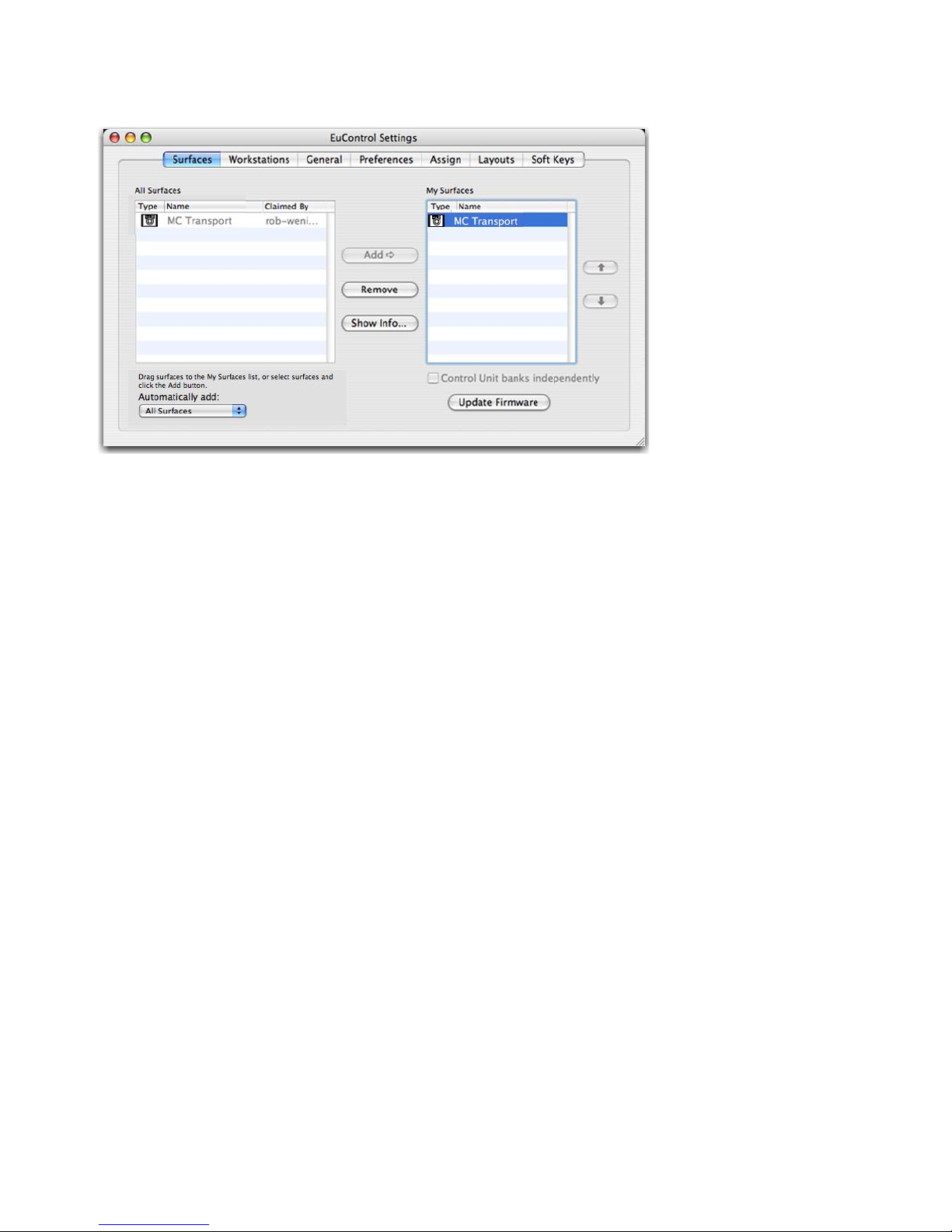

The EuControl software application is responsible for finding, linking, and communicating with all Artist Series media controllers
on the network. EuControl must be installed on the computer that runs the applications you want to control before using Artist
Series controllers.
What’s Included
• MC Transport, with riser brackets
• EuControl software installer disc
• 1 Ethernet Crossover cable
• Power supply
• MC Transport Quick Setup
• Registration Information Card
Artist Series Media Controllers

MC Transport User Guide2
System Requirements and Compatibility
Avid can only assure compatibility and provide support for hardware and software it has tested and approved.
For downloads and other Artist Series resources, visit:
www.avid.com/artistsupport
Registration
Review the enclosed Registration Information Card and follow the instructions on it to quickly register your purchase online. By
registering, you become eligible to receive the following:
• Technical support information
• Software update and upgrade notices
• Hardware warranty information
About This Guide
Conventions Used in This Guide
All of our guides use the following conventions to indicate menu choices and key commands:
:
The names of Commands, Options, and Settings that appear on-screen are in a different font.
The following symbols are used to highlight important information:
Convention Action
File > Save Choose Save from the File menu
Control+N Hold down the Control key and press the N key
Control-click Hold down the Control key and click the mouse button
Right-click Click with the right mouse button
User Tips are helpful hints for getting the most from your system.
Important Notices include information that could affect your data or the performance of your system.
Shortcuts show you useful keyboard or mouse shortcuts.
Cross References point to related sections in this guide and other Avid guides.

Chapter 1: Introduction: Artist Series Media Controllers 3
Hardware Keys on Artist Series Units
The names of keys on Artist Series hardware are in bold (such as SEL).
The SHIFT key on Artist Series hardware is indicated by bold text, in all-caps (SHIFT) to distinguish it from references to the Shift
key on your QWERTY keyboard.
SHIFT and SHIFT Lock
The SHIFT key on Artist Series units is used in conjunction with other keys to access secondary functions that are labeled in blue
above the primary function. MC Transport provides a single SHIFT key at the bottom-right. Two SHIFT keys are located at the bot-
tom-left and -right on both MC Control and MC Mix.
The following terminology is used to describe SHIFT functions.
Example:
• Press and hold the SHIFT key then press the AUX key.
is written as
•PressSHIFT+AUX/GROUP.
How to Use this PDF Guide
This PDF guide can be a valuable online resource. These are some useful features of the PDF:
• The Bookmarks on the left serve as a continuously visible table of contents. Click on a subject heading to jump to that page.
Click a +symbol to expand that heading to show subheadings. Click the –symbol to collapse a subheading.
• The manual’s table of contents provides active links to their pages. Select the hand cursor, allow it to hover over the heading
until it turns into a finger. Then click to locate to that subject and page.
• All cross references are active links. Allow the hand cursor to hover over the reference until it turns into a finger and click
to follow the reference.
• Use the left and right arrow keys on the bottom bar to go back and forth between views. This is a great way to follow a cross
reference and return to the page from which you were reading.
• Select the Find item from the Edit menu to search for a subject. This can be used as an “index on the fly.”
• Use the magnifying glass tool or the zoom edit box on the top bar to zoom in or out. This is helpful when examining a com-
plex graphic or setting the text size for easy reading online.
About www.avid.com
The Avid website (www.avid.com) is your best online source for information to help you get the most out of your Artist Series
controllers. The following are just a few of the services and features available.
Product Registration Register your purchase online.
Support and Downloads Contact Avid Customer Success (technical support); download software updates and the latest online
manuals; browse the Compatibility documents for system requirements; search the online Knowledge Base or join the worldwide
Avid community on the User Conference.
Training and Education Study on your own using courses available online or find out how you can learn in a classroom setting at
a certified Avid training center.
Products and Developers Learn about Avid products; download demo software or learn about our Development Partners and their
plug-ins, applications, and hardware.
News and Events Get the latest news from Avid or sign up for a demo.

MC Transport User Guide4

Chapter 2: Installation and Setup 5
Chapter 2: Installation and Setup
Unpacking and Elevating the MC Transport
Unpack MC Transport, its power supply, Installer disc, Ethernet crossover cable, and riser brackets.
MC Transport can be elevated or angled using small foldout legs on the bottom of the unit, or elevated and angled by attaching
the larger riser brackets. Since both methods require turning MC Transport upside down, do this before attaching any cables.
Turn the unit over and place it on a soft surface. Pull out all four of the small foldout legs to moderately elevate the unit; pull out
only the back two to angle the unit towards you. Pull out the metal clips from the same area as the legs and move them until they
snap into the legs.
The two larger, detached riser brackets elevate and angle the unit more than the foldout legs. Use moderate force to snap them
into the bottom panel.

MC Transport User Guide6
Installing Software and Hardware
EuControl software must be installed before using any Artist Series media controller.
To install EuControl software for Artist Series media controllers:
1 Do one of the following:
• Download the EuControl installer for your computer platform from www.avid.com/artistsupport. After downloading, make
sure the installer is uncompressed (.dmg on Mac or .ZIP on Windows).
– or –
• Insert the Installer disc into your computer.
2 Double-click the EuControl installer application.
3 Follow the on-screen instructions to complete the installation.
4 When installation is complete, click Quit (Mac) or Finish (Windows). EuControl will launch automatically and is running when
the EuControl icon appears as follows:
• On Mac, the icon is shown in your menu bar.
• On Windows, the icon appears in the System tray (or alongside other Hidden Icons in the lower tool bar if you do not have
your system configured to always show icons in the System tray).
5 Shut down your computer.
6 Connect the DC output cable from the power supply to DC In on the left side of the MC Transport’s back panel.
If prompted to download the most current version of EuControl, follow the onscreen instructions.
EuControl icon in Menu bar (Mac)
Connecting the power supply
DC In 15 V

Chapter 2: Installation and Setup 7
7 Plug one end of the Ethernet crossover cable into the Ethernet jack on the back panel of the MC Transport.
8 Plug the other end of the Ethernet crossover cable into an available Ethernet jack on your computer, router, or Ethernet switch.
• Note that connecting directly to the computer may require removing your Internet cable. If you have a computer with two
Ethernet ports, use Ethernet 1, rather than Ethernet 2.
• An Ethernet router or switch is required to connect additional Artist Series media controllers, or to connect units to a local
area network.
9 Turn on your router (if applicable), then turn on your computer and wait until it finishes starting up.
Ethernet cable and rear panel jack
MC Transport connected directly to a computer
MC Mix and one MC Transport connected to a computer through an Ethernet router (or switch)

MC Transport User Guide8
10 Press and release the POWER switch on MC Transport. Do the following, as appropriate for your operating system:
Mac Wait up to 60 seconds. A green icon in the menu bar indicates correct installation.
Windows Wait up to 60 seconds. A green icon appears in the System tray (or, in Hidden Icons if your system is not configured to
show all icons in the System tray).
11 If the green icon does not appear, do any of the following:
• Shut down MC Transport and the computer and wait 10 seconds, then turn on your router/switch (if any) and then your
computer and wait until it finishes starting up. Then turn on MC Transport.
• If you are using a pre-2002 Mac and you are using an Ethernet router or switch, you need to purchase a standard
straight-through Ethernet cable (instead of the crossover Ethernet cable supplied) from a computer store.
• Refer to www.avid.com/artistsupport for the most current troubleshooting information.
12 Launch your application (such as Pro Tools) and open a session.
13 Set up your application to work with the MC Transport according to the instructions in the EUCON Application Setup Guide.
Updating Firmware
If you downloaded the latest EuControl software from the web, you may need to update the firmware on your Artist Series con-
trollers.
1 Click the green icon in the menu bar and select EuControl Settings (Mac), or double-click the green icon in the System tray or
Hidden Icons (Windows).
2 Select the Surfaces tab in EuControl.
3 Select each Artist Series media controller in the My Surfaces list (Shift-click to select multiple devices).
EUCON icon on Mac
EUCON icon on Windows

Chapter 2: Installation and Setup 9
4 Click Update Firmware to update their firmware. If a dialog displays a message that the firmware is up to date, no further action
is necessary.
5 Follow the instructions in the EuControl dialog.
Surfaces tab

MC Transport User Guide10

Chapter 3: MC Transport Operation 11
Chapter 3: MC Transport Operation
MC Transport can control many different applications. Most controls can be programmed to suit your needs. Many applications
already have functions assigned to MC Transport controls.
1 Display
2 Soft Keys
3 Transport keys
4 Jog wheel
5 Application/Workstation key
6 Power switch
7 Numeric keypad
8 Shuttle Ring
9 SHIFT key
MC Transport display and controls
7
8
4
2
9
6
5
1
3

MC Transport User Guide12
Operational Basics
The most important controls on MC Transport are the Jog Wheel and Shuttle Ring. They typically jog and shuttle through a
session or project timeline but can also be assigned different functions.
In addition to the six dedicated, assignable Soft Keys, the Numeric Pad and Transport Controls serve as additional Soft Keys and
can also be reassigned.
All wheel, ring, and key assignments are stored in an Application Set for each application you use. Most applications have a de-
fault Application Set to support common tasks. You can use these as a starting point to modify and store your own Application
Sets. You can restore the default Application Set at any time.
The top-most application (also called foreground and in-focus):
• Receives mouse commands and keystrokes
• Is controlled by MC Transport
• Determines MC Transport surface assignments
POWER
Press and release the POWER key to turn the device on and off.
SHOW Key
Various functions can be assigned to MC Transport keys. The SHOW key lets you browse the key assignments:
To use the SHOW key:
1 Press and hold the SHOW key.
2 Press another key.
The key’s function name is shown on the MC Transport display and above the image of that key in EuControl.
Locking the SHOW Key
The SHOW key can be locked to let you browse multiple key functions without holding the SHOW key down.
To lock the SHOW key:
1 Press and release the SHOW key quickly and then press another key to display its assignments. Continue browsing in this
manner until finished.
2 Press and release the SHOW key quickly again when finished to restore normal operation.
SHOW key

Chapter 3: MC Transport Operation 13
Soft Keys
The Soft Keys are factory programmed for each application. The six Soft Keys also let you access six additional functions by
holding down the SHIFT key before pressing a Soft Key.
The Soft Keys can be reassigned within each application. See Chapter 4, “Soft Keys” to learn how to program them.
The Soft Keys light with a yellow LED when active.
Transpor t Keys
The Transport Keys are factory programmed for each application. The top-most application determines the current Transport Key
assignments. The top-most (focussed) application is defined as the one in use before switching to EuControl. The seven Transport
Keys can also access additional functions by holding down the SHIFT key before pressing a Transport Key.
Transport keys can be reassigned within each application. See Chapter 4, “Soft Keys” to learn how to program them.
Each Transport Key lights with two LED colors to signify different functions. The left- and right-most two keys can be yellow or
red. The middle three can be yellow or green. The factory default assignments are application-specific and follow industry con-
ventions.
Soft keys
Transpor t key

MC Transport User Guide14
Numeric Keypad
The Numeric Keypad allows numeric entry into an application. Press a key on the pad to enter that character. Holding the SHIFT
key down accesses alternate functions on the keypad. The Numeric Keypad can be programmed to provide other functions but
then numerical entry will be overridden. See Chapter 4, “Soft Keys” to learn how to program the keys.
Jog Wheel and Shuttle Ring
The Jog Wheel and Shuttle Ring are similar controls with an important difference:
• Turning the Jog Wheel changes the parameter it controls by an amount proportional to how far the wheel is turned. When
the Jog Wheel stops moving, the parameter stops changing.
• Turning the Shuttle Ring changes the parameter it controls at a rate determined by its position. The further the Shuttle Ring
rotates, the faster the parameter changes. When held in position, the parameter continues to change at a fixed rate. When
the Shuttle Ring is released, it automatically returns to its center position and the parameter stops changing.
Both the Jog Wheel and Shuttle Ring can be rotated in either direction.
Jog Wheel
The Jog Wheel is typically used to do any or all of the following:
• Positioning the cursor in the timeline
• Zooming horizontally or vertically
• Editing a clip or region
Numeric keypad
Jog Wheel (1) and Shuttle Ring (2)
1
2

Chapter 3: MC Transport Operation 15
In some applications, the Jog Wheel can act as an Assignable Knob. This lets you use the Jog Wheel to adjust the values of any
control the cursor hovers over in Cubase or Nuendo, such as faders, pan knobs and plug-in controls. Other applications require
a mouse-click on the control to allow adjustment (such as Logic Pro).
The Jog Wheel can also be used to adjust control room volume for certain applications (such as Studio Monitor Express, Cubase,
and Nuendo).
The Jog Wheel can be programmed to generate a Custom Command to send keystrokes into the application. See “Custom Jog
Command” on page 23.
All Wheel functions (including positioning, zooming, trimming, Assignable Knob, Control Room Volume, and Custom) are ini-
tiated by pressing an assignable key.
Shuttle Ring
The Shuttle Ring lets you shuttle through the session or project timeline. The farther it is turned, the faster it shuttles. The Shuttle
Ring can also have different functions assigned. See see Chapter 4, “Soft Keys” for more information.
Application/Workstation Key
The Application/Workstation key lets you quickly toggle MC Transport focus between the two most recently used applications, or
cycle through all open applications. This key also lets you use the MC Transport to control applications running on a second
computer (referred to in this guide as a workstation).
To toggle between the two most recently used open applications:
Press the Application/Workstation key.
To cycle through all open applications:
Hold down the Application/Workstation key and turn the Jog wheel in either direction.
To control an application on a different computer:
1 Use EuControl software to create a list of “workstations” to switch between.
2 Press and hold the SHIFT key and press the Application/Workstation key to attach MC Transport to another workstation. While
attached to a second workstation, your keyboard and mouse can be configured to control the additional workstation and not
your primary workstation.
For more information on how to set up these programmable functions in EuControl and which applications allow them, see Chapter 4, “Soft
Keys.”
Application/Workstation key
See “Workstations” on page 32 for more information.
See “Redirect Keyboard and Mouse Control to Attached External Workstation” on page 33 for more information.

MC Transport User Guide16
SHIFT Key
The SHIFT key lets you access a secondary function for each key, if one has been assigned. Press and hold the SHIFT key and press
another key to access the secondary function.
The SHIFT key can be used in conjunction with the SHOW key to display the alternate function. Since this may require holding
down three keys, it is useful to lock the SHOW key (see “Locking the SHOW Key” on page 12) or the SHIFT key (see “Locking the
Shift Key” on page 16).
Locking the Shift Key
The SHIFT key can be locked to access multiple alternate key functions without holding the key down.
1 Press and release the SHIFT key quickly and then press another key to access its alternate function. Continue in this manner
until finished.
2 Press and release the SHIFT key quickly again to restore normal operation.
If you have another Artist Series media controller connected to the same instance of EuControl as your MC Transport, you can
also lock the SHIFT key by pressing two SHIFT keys down simultaneously. These keys can be on different devices. Unlock the SHIFT
key by pressing and releasing one quickly on any device. See “My Surfaces” on page 30 for more information.
Common Tasks
The following examples demonstrate some common tasks you can perform with MC Transport.
Show Key
Various functions can be assigned to MC Transport keys. The Show key lets you browse the key assignments:
1 Press and hold the SHOW key.
2 Press another key, such as one of the six Soft Keys just to the left of the SHOW key. That key’s function is shown on the
MC Transport display and in EuControl.
Jog Wheel
1 Press and hold the SHOW key and then press the left-most Soft Key.
2 Jog is shown on the display. If not, the application does not support the jog function.
3 Release the SHOW key and the left-most Soft Key.
4 Press the left-most Soft Key, and turn the Jog wheel to move through the timeline.
5 The left-most Soft Key lights up to show that the Jog wheel is controlling the Jog function.
Soft keys and SHOW key
See Chapter 4, “Soft Keys” to learn how to assign functions to keys.
