Miditech Pianobox Mini User manual

miditech Pianobox mini
MINI Soundmodul mit 128 GM Sounds
Dreistelliges Display
Volume-, Program und Rever Taster
DATA Input Drehregler
USB Host Anschluss für USB Key oards
Integrierter Akku mit 2500mAh
Micro USB Anschluss zum Aufladen
MIDI Input ü er Adapter
Kopfhörer/LINE-Ausgang 3,5mm
Power Switch
eMail: [email protected] Internet: www.miditech.de
1

Bedienungsanleitung
Vielen Dank, das Sie sich für die Miditech Pianobox MIni entschieden haben. Die Pianobox Mini
stellt Ihnen zum günstigen Preis ein M Soundmodul zur Verfügung. Angeschlossen an ein
Masterkeyboard können Sie mit der Pianobox Mini direkt spielen! Die 3 Funktionstaster und das
DATA Input Drehrad ermöglichen eine leichte Sound- und Lautstärke- Auswahl.
Über MIDI angeschlossen, verbessert die Pianobox Mini den Klang eines älteren Keyboards oder
Synthesizers. An einen Computer angeschlossen kann die Pianobox II ein Software-Wavetable
ersetzen und so MIDIfiles „zum Leben erwecken“! Und das in echter Hifi-Qualität!
Im Verlauf dieser Bedienungsanleitung werden wir einige Hinweise zur Bedienung und Funktionen
der Pianobox Mini geben.
Technische Daten der Pianobox Mini:
●Einfacher Anschluss an Keyboards, Masterkeyboards oder den Computer über den DIN
MIDI Adapter
●Direkter Anschluss eines USB Masterkeyboards über ein USB Kabel.
●USB Host Anschluss, powered Midikeyboards
●Integrierter Akku mit Ladefunktion für Handys
●Ladekabel für normale USB DC Netzteile oder PC iom Lieferumfang
●16 Bit/48 kHz DA Wandler
●regelbarerKopfhörer-Ausgang und LINE Out
Anschluss und Bedienelemente
Das ehäuse der Pianobox Mini ist eindeutig beschriftet!
Sie finden auf der Frontseite das Display, die 3 Taster Volume, Program und Reverb sowie das
grosse DATA Entry Rad.
2

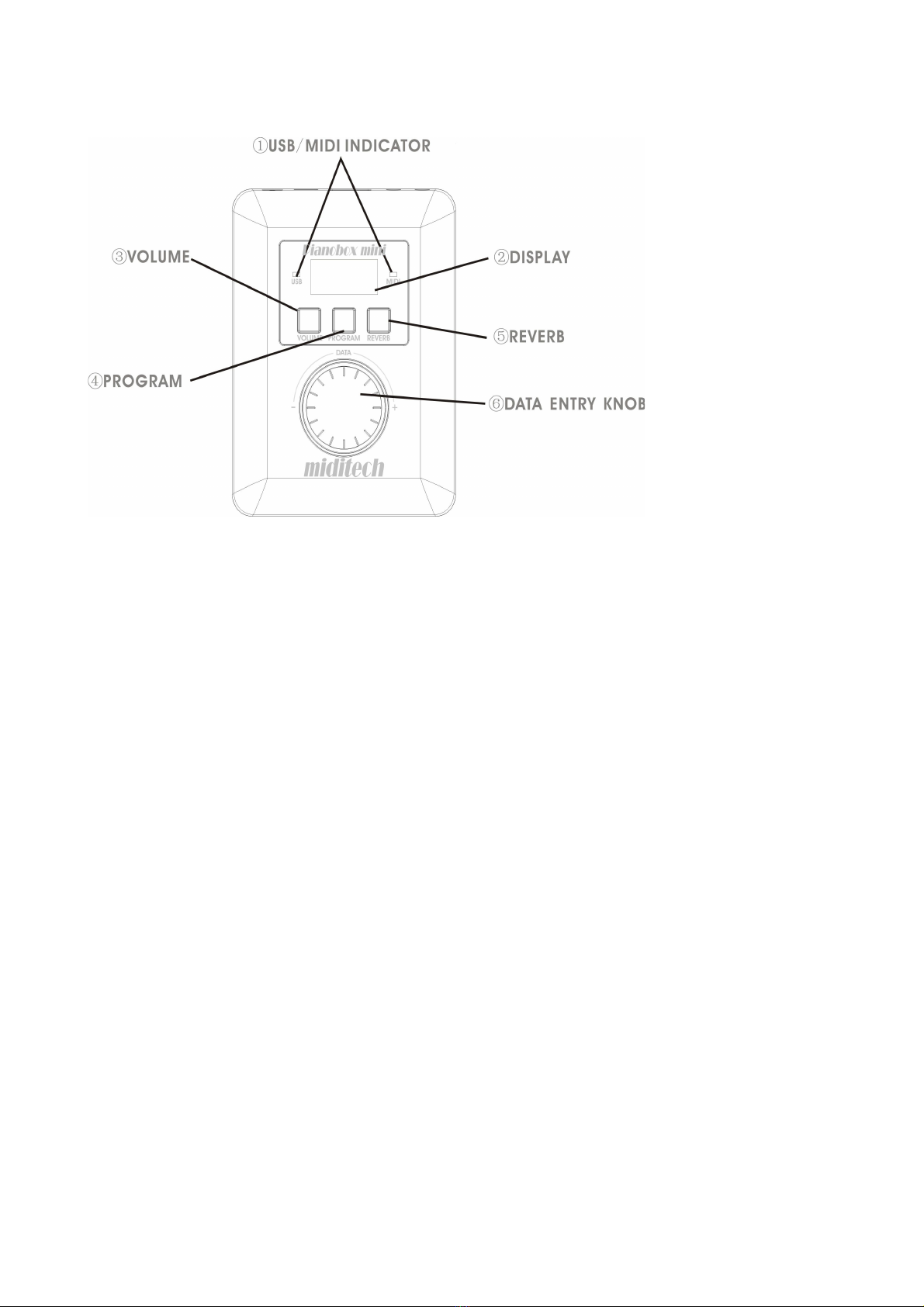

Die Bedien-Elemente der Piano ox mini
1. USB/MIDI LED Anzeige
2. Display
3. Volume Knopf
4. Program Knopf
5. Reverb Knopf
6. DATA Entry Drehrad
Bedienung der Piano ox mini
Die 3 Funktionstaster der Pianobox mini sind mit ihrer Funktion beschriftet.
Hier die Funktionen:
1) Volume: Drücken Sie „Volume“, der Taster leuchtet rot. Jetzt können Sie mit dem DATA
Input Drehregler die Lautstärke einstellen, die im Display zur Kontrolle angezeigt wird.
2) Program: Drücken Sie „Program“, der Taster leuchtet rot. Jetzt können Sie mit dem DATA
Input Drehregler das Soundprogramm einstellen, dessen Nummer im Display zur Kontrolle
angezeigt wird.
3) Reverb: Drücken Sie „Reverb“, der Taster leuchtet rot. Jetzt können Sie mit dem DATA
Input Drehregler den Hall-Anteil des Soundprogramms einstellen, dessen Stärke wird im
Display zur Kontrolle angezeigt wird.

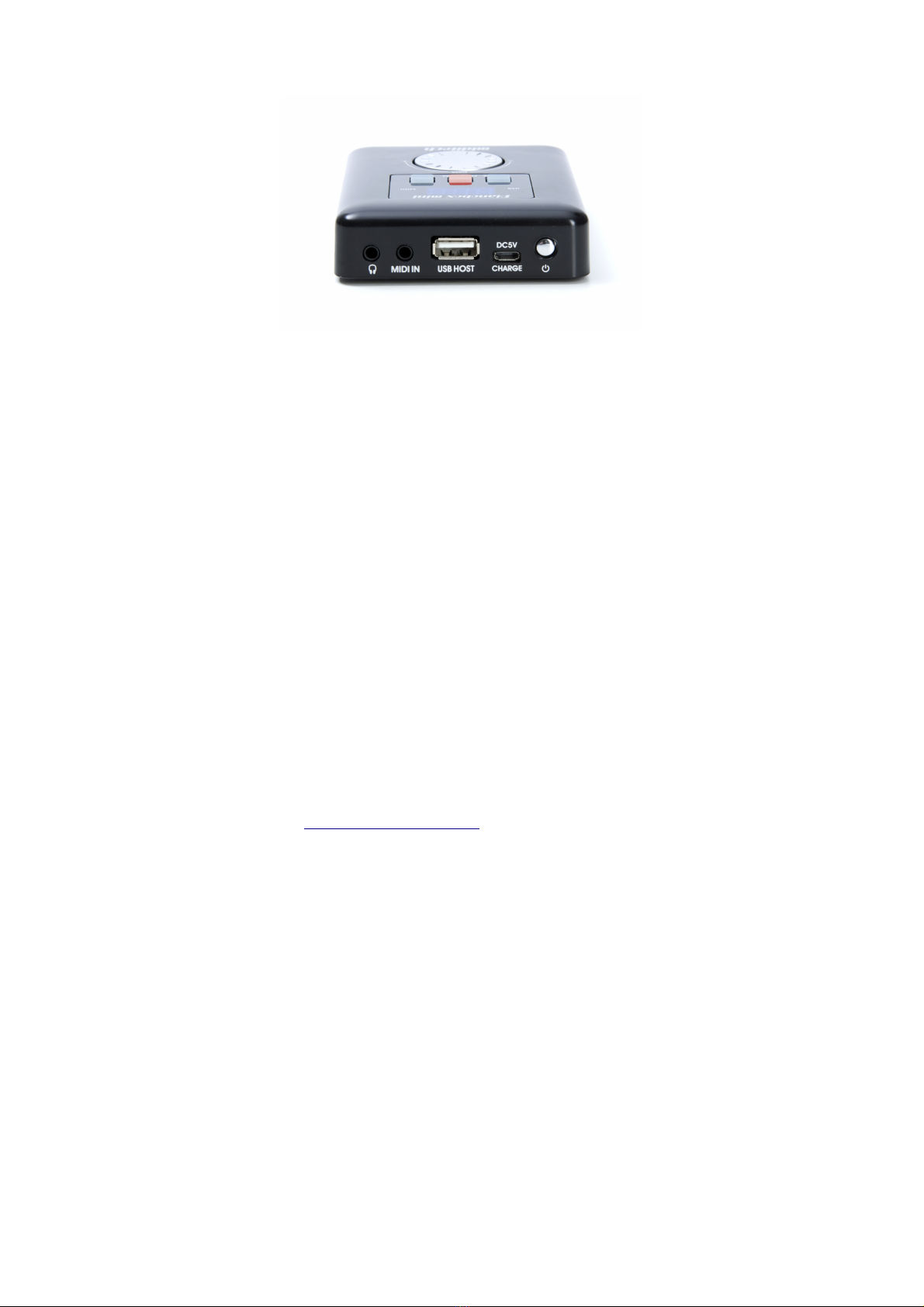

Auf der Rückseite sind der Ein-/Aus-Schalter sowie die Anschlüsse für das USB Ladekabel, der
USB Hostanschluss, der MIDI Input Port sowie der Kopfhörer-Ausgang deutlich beschriftet.
3

Diese Anschlüsse im Einzelnen:
1) Der Kopfhörer/LINE Anschluss: Hier schliessen Sie direkt einen Kopfhörer mit einer
3,5mm Klinke an, oder verbinden Sie die Pianobox mini über ein Stereo-LINE Kabel an
Ihre Stereoanlage oder Verstärker.
2) Verbinden Sie den mitgelieferten MIDI Input Adaptor mit dem „MIDI IN“ Anschluss der
Pianobox mini. Danach können Sie Ihr Keyboard oder MIDI Interface über ein
handelsübliches DIN MIDI Kabel verbinden.
3) Der USB HOST Port der Pianobox mini dient zum direkten Anschluss per USB Kabel von
handelsüblichen USB Masterkeyboards. Diese werden über den USB Host Port mit Strom
versorgt. Diesen Port können Sie auch „zweckentfremden“, um z.B. den Akku der Pianobox
mini dazu zu verwenden, ein anderes USB erät, zum Beispiel Ihr Mobiltelefon mit Strom
zu versorgen oder aufzuladen.
4) Micro USB Port zum Anschluss des USB Ladekabels. Hier wird der Akku der Pianobox
mini über das mitgelieferte USB Ladekabel aufgeladen. Dies kann mit einem
handelsüblichen USB DC Netzteil oder an einem PC erfolgen.
5) Ein-/Ausschalter der Pianobox mini. Halten Sie den Knopf mehrere Sekunden lang gedrückt
für Ein- oder Ausschalten.
Weitere Informationen zu Erweiterungen, Updates und anderen Produkten der Firma Miditech
finden Sie im Internet unter: http://www.miditech.de !
4

General MIDI Soundliste
0 Acoustic Grand Piano 43 Contrabass 86 Lead 7(fifths)
1 Bright Piano 44 remolo Strings 87 Lead 8(Bass+Lead)
2 Electric Grand Piano 45 Pizzicato Strings 88 Pad 1(new age)
3 Honky- onk Piano 46 Orchestral Harp 89 Pad 2(warm)
4 Electric Piano 1 47 impani 90 Pad 3(polysynth)
5 Electric Piano 2 48 String Ensemble 1 91 Pad 4(choir)
6 Harpsichord 49 String Ensemble 2 92 Pad 5(bowed)
7 Clavi 50 Synth Strings 1 93 Pad 6(metallic)
8 Celesta 51 Synth Strings 2 94 Pad 7(halo)
9 Glockenspiel 52 Choir Aahs 95 Pad 8(sweep)
10 Music Box 53 Voice Oohs 96 Fx 1(rain)
11 Vibraphone 54 Synth Voice 97 Fx 2(sound track)
12 Marimba 55 Orchestra Hit 98 Fx 3(crystal)
13 Xylophone 56 rumpet 99 Fx 4(atmosphere)
14 ubular Bells 57 rombone 100 Fx 5(brightness)
15 Dulcimer 58 uba 101 Fx 6(goblins)
16 Drawbar Organ 59 Muted rumpet 102 Fx 7(echoes)
17 Percussive Organ 60 French Horn 103 Fx 8(sci-fi)
18 Rock Organ 61 Brass Section 104 Sitar
19 Church Organ 62 Synth Brass 1 105 Banjo
20 Reed Organ 63 Synth Brass 2 106 Shamisen
21 Accordion 64 Soprano Sax 107 Koto
22 Harmonica 65 Alto Sax 108 Kalimba
23 ango Accordion 66 enor Sax 109 Bag Pipe
24 Acoustic Guitar(Nylon) 67 Baritone Sax 110 Fiddle
25 Acoustic Guitar(Steel) 68 Oboe 111 Shanai
26 Electric Guitar(Jazz) 69 English Horn 112 inkle Bell
27 Electric Guitar(Clean) 70 Bassoon 113 Agogo
28 Electric Guitar(Muted) 71 Clarinet 114 Steel Drums
29 Overdriven Guitar 72 Piccolo 115 Woodblock
30 Distortion Guitar 73 Flute 116 aiko Drum
31 Guitar Harmonics 74 Recorder 117 Melodic om
32 Acoustic Bass 75 Pan Flute 118 Synth Drum
33 Electric Bass(Finger) 76 Blown Whistle 119 Reverse Cymbal
34 Electric Bass(Pick) 77 Shakuhachi 120 Guitar Fret Noise
35 Fretless Bass 78 Whistle 121 Breath Noise
36 Slap Bass 1 79 Ocarina 122 Seashore
37 Slap Bass 2 80 Lead 1(Square) 123 Bird weet
38 Synth Bass 1 81 Lead 2(Sawtooth) 124 elephone Ring
39 Synth Bass 2 82 Lead 3(Calliope) 125 Helicopter
40 Violin 83 Lead 4(Chiff) 126 Applause
41 Viola 84 Lead 5(Charang) 127 Gunshot
42 Cello 85 Lead 6(Voice)
Specifikationen
PRODUCT SPECIFICATIONS
MODEL NAME Pianobox mini
MODULE Built-in Sound
MAXIMUM POLYPHONY 64 notes
INS RUMEN S 128GM List Sound
JACK Headphone (LINE) OU 、MIDI IN、USB host、Micro-
USB
Power source Micro-USB (≥500mA)
BA ERY CAPACI Y 2500mAh
DISPLAY 3 Digital LED
A ACHMEN Owner’s manual、3.5mm S to MIDI cable、Micro-USB
cable
INPUT / OUTPUT
HEADPHONE (LINE)
OU
3.5mm stereo headphone jack
MIDI IN MIDI input jack
USB HOS USB output jack (to MIDI equipment)
Micro-USB Charging / Power jack
Änderungen der technischen Daten und des Designs sind möglich
Für Druckfehler wird keine Haftung ü ernommen
5

miditech Pianobox mini
Owner´s manual
Mini GM soundmodule with 128 GM sounds
and full GM implementation
LED display
Volume, program and rever utton
Big data input wheel
Integrated chargea le attery with 2500mAh
USB HOST port
Micro USB port to charge the Piano ox mini
MIDI Input adaptor
LINE OUT/headphone output TRS jack 3,5 mm
eMail: [email protected] Internet: www.miditech.de
6

PREFACE
Thanks for purchasing the Piano ox mini. Its compact design won’t cost any space in your
working desk or ag, you can ring it easily simply put in your pocket. The Piano ox mini
provides 128 GM sounds and uilt in modulate rever 、chorus for you to make sound richer
while you composing or playing. The Piano oox mini also comes with a 2500mAh lithium
attery which allowing you to continue playing in the a sence of external power supply situation;
It can e worked with all MIDI devices with USB output function. Now, all you need to do is
connecting your MIDI equipment to your new Piano ox mini, then you can start your musical
journey.
This manual is written to help you ecome familiar with the features of the Miditech Piano ox
mini. Please read the manual carefully to discover all the features of your Piano ox mini.
What’s in the Box:
Your Pianobox mini package contains the following:
● The Pianobox mini
● 3.5mm TS to MIDI cable
● Owner’s manual
● Micro-USB cable
Features:
● The Pianobox mini provides 128 standard M tones, up to 64 polyphony output.
● 16bit sampling accuracy of the data, 48KHz sampling frequency, 24dB sound digital filtering
● Supports all MIDI devices MIDI OUT or USB output.
● With digital display, ready to display the value of the current Program, Volume and Reverb.
● Either MIDI or USB connection, can be manifested no delay.
● The Pianobox mini has a USB HOST unique design, you can discard tedious MIDI cable to
connect directly using a USB cable to the Pianobox mini connection with your MIDI devices,
MIDI data transfer is complete.
● Support USB HOST MIDI IN and simultaneously, a bomb piano accompaniment, a piano
playing the melody, wherever can form a small band.
● Pianobox mini is not only small and exquisite, powerful, and easy to operate.
● With the Program, Volume and Reverb adjustment function, easy operation, ready to bring up
the tone, volume and reverb effects as you want.
● Built-in 2500mAh rechargeable lithium battery that can power your MIDI device (USB output
current ≤ 500mA); acceptable as long as your USB-powered MIDI device, it will be able to use
our sources, keyboard theoretical power for up to 5 hours . The music really makes
you carry out no longer have to worry about supply problems.
● In order to better protect the battery and prolong battery life, the Pianobox mini will indicate
when the battery is less than 15% into the "low battery indicator status", the screen and LED
will flash once every 5 seconds. When the battery is below 10%, the screen and LED will blink
7
Safety warning: This product contains a lithium ion battery, it is strictly
prohibited to open the shell, avoid electric core may cause damage or other
damage.
It is strictly prohibited to dismantle, extrusion, puncture, shorting the product or into the
water, fire or exposed to high temperature environment.

quickly. The power will automatically shut down when less than 5%.
● The Pianobox mini device's USB port (USB HOST) provides a standard USB 5V 500mA current
output, your mobile phone can act as emergency mobile charger.
● Power supply: Everywhere Micro-USB charging / power supply (mostly the USB interface on
the phone, such as Samsung), pick up your phone charger can charge for our audio / power
supply; If you are using the iPhone do not worry, the annex with Micro-USB interface cable, as
long as this cable into your iPhone's charging head, you can charge / power supply; You can
also connect to any USB port (PC using the Micro-USB interface cable, MAC, mobile power
supply, etc.) on Pianobox mini charging.
● Interface: 3.5mm TS audio output interface, MIDI input interface, USB HOST Interface (USB
peripherals), Micro-USB charging / power connector.
Control and Interface
Indicator: Communication between devices circumstances indicate that when there is data ①
transmission indicator flashes.
Display: Display program number, volume value, reverb and other data values and the ②
remaining charge.
Switch to the volume control: When you press this button, the button lights up, adjust the ③
volume through the large knob; display shows the current volume value.
Switch to the timbre adjustment: When you press this button, the button lights up, through the ④
large knob to adjust the tone; display shows the current Voice number.
Switch to the reverb adjustment: When you press this button, the button lights up, adjust the ⑤
size of the reverb through the large knob; display shows the current value of the reverb.
Knob: Used to adjust the Program, Volume and Reverb value.⑥
8

Headphone/output interface: Connect to headphones or other output device.⑦
MIDI IN/USB IN connector: Connect MIDI OUT or MIDI devices with USB output interface ⑧
functions. Note: Use the MIDI IN connector to connect the device, you need an external power
supply keyboard.
Power/Charging Interface: Micro-USB interface that provides power and charging.⑨
Power switch: Equipment switch, press 5 seconds on or off; in the boot state, click to open the ⑩
key, the display will show the remaining power value, three seconds after the absence of any
operation, it will automatically switch back to the previous interface.
Operating Instructions
The Pianobox mini sound effects can be adjusted through its above silicone button and knob. Press
the function you want to adjust, button lights up, the display shows the current value of the
function.
Turn the knob to adjust, adjust the effect you want.
Note: The default boot PROGRAM function, that tone adjustment function, PROGRAM button
lights up.
MIDI device can be adjusted Pianobox mini sound effects.
The Pianobox connection with your MIDI device, the device can be adjusted via MIDI sound
effects, specific operational procedures, please check that you are using the product manual.When
your device is adjusted to the Program, Volume and Reverb function, value and function keys light
display Pianobox mini is also displayed on the corresponding changes.
Two Pianobox mini MIDI devices connected simultaneously playing method of operation.
1. The two MIDI devices are connected to the Pianobox mini cable with USB and MIDI. (MIDI
device MIDI cable to connect the need for additional power supply).
2. MIDI device will be transferred to two different channels (MIDI CHANNEL) on. (MIDI device
itself only through selected channels).
3. A device by pressing random keys, and then through Pianobox mini adjusting the tone that
you want to use and effects; same way, adjusting the tone and effect of another MIDI device, so you
can play simultaneously achieve two MIDI devices. (Tone sounds and effects can be adjusted via
MIDI device itself features).
NOTE: hen connecting two MIDI devices, data on the Pianobox mini data display is your last operation. hen
adjusting the tone and effect, make sure the current Pianobox mini control which MIDI devices.
* If anything update, please received in kind prevail, latest information and please pay
attention to the official website.
9

General MIDI sound list
0 Acoustic Grand Piano 43 Contrabass 86 Lead 7(fifths)
1 Bright Piano 44 remolo Strings 87 Lead 8(Bass+Lead)
2 Electric Grand Piano 45 Pizzicato Strings 88 Pad 1(new age)
3 Honky- onk Piano 46 Orchestral Harp 89 Pad 2(warm)
4 Electric Piano 1 47 impani 90 Pad 3(polysynth)
5 Electric Piano 2 48 String Ensemble 1 91 Pad 4(choir)
6 Harpsichord 49 String Ensemble 2 92 Pad 5(bowed)
7 Clavi 50 Synth Strings 1 93 Pad 6(metallic)
8 Celesta 51 Synth Strings 2 94 Pad 7(halo)
9 Glockenspiel 52 Choir Aahs 95 Pad 8(sweep)
10 Music Box 53 Voice Oohs 96 Fx 1(rain)
11 Vibraphone 54 Synth Voice 97 Fx 2(sound track)
12 Marimba 55 Orchestra Hit 98 Fx 3(crystal)
13 Xylophone 56 rumpet 99 Fx 4(atmosphere)
14 ubular Bells 57 rombone 100 Fx 5(brightness)
15 Dulcimer 58 uba 101 Fx 6(goblins)
16 Drawbar Organ 59 Muted rumpet 102 Fx 7(echoes)
17 Percussive Organ 60 French Horn 103 Fx 8(sci-fi)
18 Rock Organ 61 Brass Section 104 Sitar
19 Church Organ 62 Synth Brass 1 105 Banjo
20 Reed Organ 63 Synth Brass 2 106 Shamisen
21 Accordion 64 Soprano Sax 107 Koto
22 Harmonica 65 Alto Sax 108 Kalimba
23 ango Accordion 66 enor Sax 109 Bag Pipe
24 Acoustic Guitar(Nylon) 67 Baritone Sax 110 Fiddle
25 Acoustic Guitar(Steel) 68 Oboe 111 Shanai
26 Electric Guitar(Jazz) 69 English Horn 112 inkle Bell
27 Electric Guitar(Clean) 70 Bassoon 113 Agogo
28 Electric Guitar(Muted) 71 Clarinet 114 Steel Drums
29 Overdriven Guitar 72 Piccolo 115 Woodblock
30 Distortion Guitar 73 Flute 116 aiko Drum
31 Guitar Harmonics 74 Recorder 117 Melodic om
32 Acoustic Bass 75 Pan Flute 118 Synth Drum
33 Electric Bass(Finger) 76 Blown Whistle 119 Reverse Cymbal
34 Electric Bass(Pick) 77 Shakuhachi 120 Guitar Fret Noise
35 Fretless Bass 78 Whistle 121 Breath Noise
36 Slap Bass 1 79 Ocarina 122 Seashore
37 Slap Bass 2 80 Lead 1(Square) 123 Bird weet
38 Synth Bass 1 81 Lead 2(Sawtooth) 124 elephone Ring
39 Synth Bass 2 82 Lead 3(Calliope) 125 Helicopter
40 Violin 83 Lead 4(Chiff) 126 Applause
41 Viola 84 Lead 5(Charang) 127 Gunshot
42 Cello 85 Lead 6(Voice)
Specifications
PRODUCT SPECIFICATIONS
MODEL NAME Pianobox mini
MODULE Built-in Sound
MAXIMUM POLYPHONY 64 notes
INS RUMEN S 128GM List Sound
JACK Headphone (LINE) OU 、MIDI IN、USB host、Micro-
USB
Power source Micro-USB (≥500mA)
BA ERY CAPACI Y 2500mAh
DISPLAY 3 Digital LED
A ACHMEN Owner’s manual、3.5mm S to MIDI cable、Micro-USB
cable
INPUT / OUTPUT
HEADPHONE (LINE)
OU
3.5mm stereo headphone jack
MIDI IN MIDI input jack
USB HOS USB output jack (to MIDI equipment)
Micro-USB Charging / Power jack
Design and specifications subject to change without notice.
No liability for printing mistakes
10
