COLOUR VIDEO INTERCOM 7"
CONTENTS
A - SAFETY INSTRUCTIONS 05
1 - INTRODUCTION 05
2 - MAINTENANCE AND CLEANING 05
3 - RECYCLING 05
B - PRODUCT DESCRIPTION 06
1 - KIT CONTENTS 06
2 - MONITOR 06
3 - INTERCOM PANEL 07
4 - WALL BRACKET 07
5 - MAINS ADAPTOR 07
C - INSTALLATION 08
1 - INSTALLATION OF THE EXTERIOR PANEL 08
2 - INSTALLING THE MONITOR 09
3 - CONNECTIONS 10
3.1 - CONNECTION BETWEEN THE MONITOR AND THE INTERCOM PANEL 11
3.2 - CONNECTIONS 12
3.2.1 - CONNECTIONS 2 MONITORS + 1 INTERCOM PANEL + 1 CAMERA 12
3.2.2 - CONNECTION TO AN ELECTRIC STRIKE PLATE WITH ADDITIONAL
POWER SUPPLY
12

3EN
D - USING THE PRODUCT 13
1 - IDENTIFY AND SPEAK TO THE VISITOR 13
2 - ACTIVATE THE INTERCOM PANEL FROM THE MONITOR 13
3 - OPENING AN ELECTRIC LOCK AND AN AUTOMATIC
CONTROL SYSTEM (OPTIONAL) 13
4 - INTERCOM FEATURE 13
5 - DISPLAY OF ADDITIONAL CAMERA 14
6 - MONITOR SETTINGS 14
E - TECHNICAL AND LEGAL INFORMATION 15
1 - TECHNICAL CHARACTERISTICS 15
2 - WARRANTY 16
3 - HELP AND ADVICE 16
4 - PRODUCT RETURNS/AFTER SALES SERVICE 16
5 - DECLARATION OF CONFORMITY 16

5EN
COLOUR VIDEO INTERCOM 7"
A - SAFETY INSTRUCTIONS
1 - INTRODUCTION
This video intercom system pairs two modules: a
receiver-monitor and an easy-to-install
and use intercom panel.
Key features:
• Colour video reception: when a visitor touches
the intercom panel call button, the panel
immediately transmits the image to the screen
and a chime indicates the visitor's presence.
• Short-circuit protection
• Reverse polarity protection
• Automatic exposure correction: the video
camera automatically adjusts its exposure to
match the ambient light conditions.
• Enables control over two entrances (lock and
automatic control system).
• Integrated infrared vision enables the video
camera to identify visitors without needing
additional light.
• Opening the door and a control system: by
pressing buttons on the monitor, you can
control an electric lock and a dry contact for an
automatic control system (not included).
IMPORTANT: You must read these instructions
carefully prior to installation. In the event of
problems, our Hotline technicians are at
your service for any information.
WARNING: any connection error may
cause damage to the device and void the
warranty.
2 - MAINTENANCE AND CLEANING
Before installing the intercom, it is important to
check the following points:
• Do not install in cases of extreme humidity,
temperatures, corrosion risk or dust.
• Do not expose to direct sunlight, rain, or high
humidity.
• Do not plug the device into a multi-socket plug
adaptor or extension cord.
• Do not install near other electronic devices such
as computers, televisions or video recorders.
• Do not install near acidic chemicals, ammonia
or sources of toxic gases.
• Do not clean with abrasive or corrosive
products. Use a damp cloth with soapy water.
• Unplug the device if it is not being used for an
extended period of time.
• Do not plug the device into national
telecommunications installations.
• The cable between the monitor and intercom
panel must not be extended. Avoid junctions
(insulating screw joints, soldered joints, etc.)
3 - RECYCLING
This logo denotes that devices which are
no longer in use must not be disposed of
as household waste.
They are likely to contain hazardous
substances that are dangerous to both
health and the environment. Return
the equipment to your local distributor or use the
recycling collection service provided by your local
council.
Pour en savoir plus :
www.quefairedemesdechets.fr

6
EN
COLOUR VIDEO INTERCOM 7"
B - PRODUCT DESCRIPTION
1 - CONTENTS OF THE KIT
2 - MONITOR
1 4.3" LCD screen
2 Microphone
3 Menu access button (hold 5 secs)
4 Door opening/camera button (if
connected) or top arrow
5 Electric strike plate button or bottom
arrow
6 Handset button to answer calls,
call another monitor (ref. 112279) or
left arrow
7 Surveillance mode to view the intercom panel
or right arrow
1x 1
5x 5 6x 1 7x 1
2x 1 3x 1 4x 5
1 Monitor
2 Intercom panel
3 Monitor wall bracket
4 Dowels (2 for the monitor, 3 for the intercom
panel)
5 Screws (2 for the monitor, 3 for the intercom
panel)
6 Screws for the intercom panel
7 Mains adapter
7
6
2
5
8
10
4
3
1
9

7EN
COLOUR VIDEO INTERCOM 7"
B - PRODUCT DESCRIPTION
8 Loudspeaker
9 Power supply terminals
10 Communication terminals for and to the
other parts of the installation
*Subject to availability.
3 - INTERCOM PANEL
2
1
6
4
5
1 Microphone
2 IR LED
3 Lens
4 Call button
5 Loudspeaker
6 Connection terminals
4 - WALL BRACKET
The monitor is designed to be fixed to the wall. A wall bracket and the necessary fasteners are included.
5 - MAINS ADAPTER
A 230 Vac 50 Hz/17 Vdc 1.5 A mains adapter for powering the monitor is included in the kit. Do not use other
power supplies as they could cause irreparable damage to the device and invalidate the warranty.
Do not cut or shorten the wire of the mains adapter or the warranty will be void.
3

8
EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"
The recommended installation height for the intercom panel is about 160 cm from the ground and 150 cm
from the floor for the indoor unit.
50cm
160cm 150cm
70°
NOTE: For obvious safety reasons, the connections must only be made after shutting off the power supply.
1 - INTERCOM PANEL INSTALLATION
The intercom panel must not be directly exposed to bad weather. It should preferably be installed under a
porch or covered area.
Attach the intercom panel hood to your support using the screws and wall plugs suited to the support (the
screws and plugs supplied are suitable for solid walls).
95mm
35mm
ø6 mm
After making the connections on the intercom panel (see the connections paragraph), put the intercom panel
into the hood.

9EN
Then screw the intercom panel to the hood with the screw provided.
Put on the name label.
2 - INSTALLING THE MONITOR
Attach the wall mount to the wall using the screws and wall plugs suited to the support (the screws and plugs
supplied are suitable for solid walls).
After connecting the monitor (refer to the "connections" paragraph), fit the monitor onto its support.
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"

10
EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"
60mm
ø6 mm
3 - CONNECTIONS
• Do not increase the number of insulating screw joints or connectors on the connecting wire between the
intercom panel and the monitor
• Keep the connecting wire between the intercom panel and the monitor more than 50 cm away from any
electromagnetic interference (230 V cable, WiFi device, microwave ovens, etc.)
• You can connect and use the electric strike plate (not provided) with your intercom panel, with or
without mechanical memory.
Between the monitor and the intercom panel (100m maximum)
To ensure good audio and video quality, it is advised to not use more than 100m of cable between the
intercom and the intercom panel. Connect the wires as follows (incorrect wiring can damage the intercom
panel).

11 EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"
The cable's length determines which cable section is to be used:
Cable length Section to use
0 to 50 m 0.75 mm2
50 m to 100 m 1.5 mm2
Between the intercom panel and an electric strike plate (not included)
Use a 12V/1.1A maximum electric latch with or without mechanical memory.
For the connection between the intercom panel and the door release, use a cable of this kind:
Cable length Section to use
0 to 50 m 0.75 mm2
Between the intercom panel and the automated gate (not included)
Section to use: Min. 0.75 mm2
3.1 - CONNECTION BETWEEN THE MONITOR AND THE INTERCOM PANEL
Monitor
Intercom panel
IMPORTANT: connect terminals 3 and 4 directly to the opening/closing contact of the automatic control
system (automated entryway wired control system input).

12
EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"
3.2 - CONNECTIONS

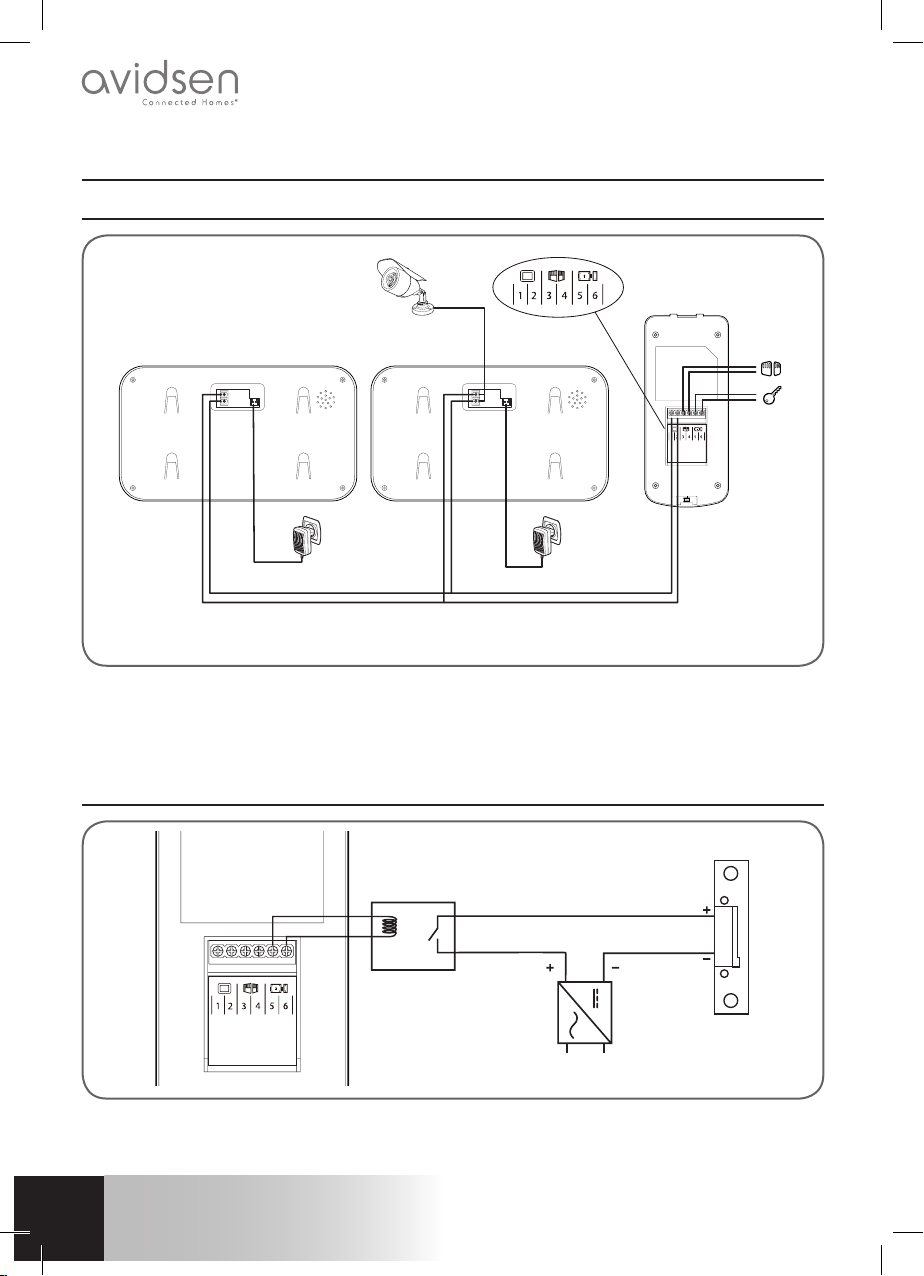

3.2.1 - CONNECTIONS 2 MONITORS + 1 INTERCOM PANEL + 1 CAMERA
Monitor
ref. 112279 Monitor
Intercom
panel
IMPORTANT: if you have trouble opening the lock, which may be caused by a large distance between the
screen and the intercom panel, for example, we recommend that you connect it to a separate power supply.
If you use a separate power supply, you must connect a 12 V relay (not supplied) to control it from the video
intercom, as illustrated.
3.2.2 - CONNECTION TO AN ELECTRIC STRIKE PLATE WITH ADDITIONAL POWER SUPPLY
12 VDC
Relay with 12 V coil
and NO contact
ref. 104765
230 VAC
13
14
5
9
CCTV
ref. 112248

13 EN
D - USING THE PRODUCT

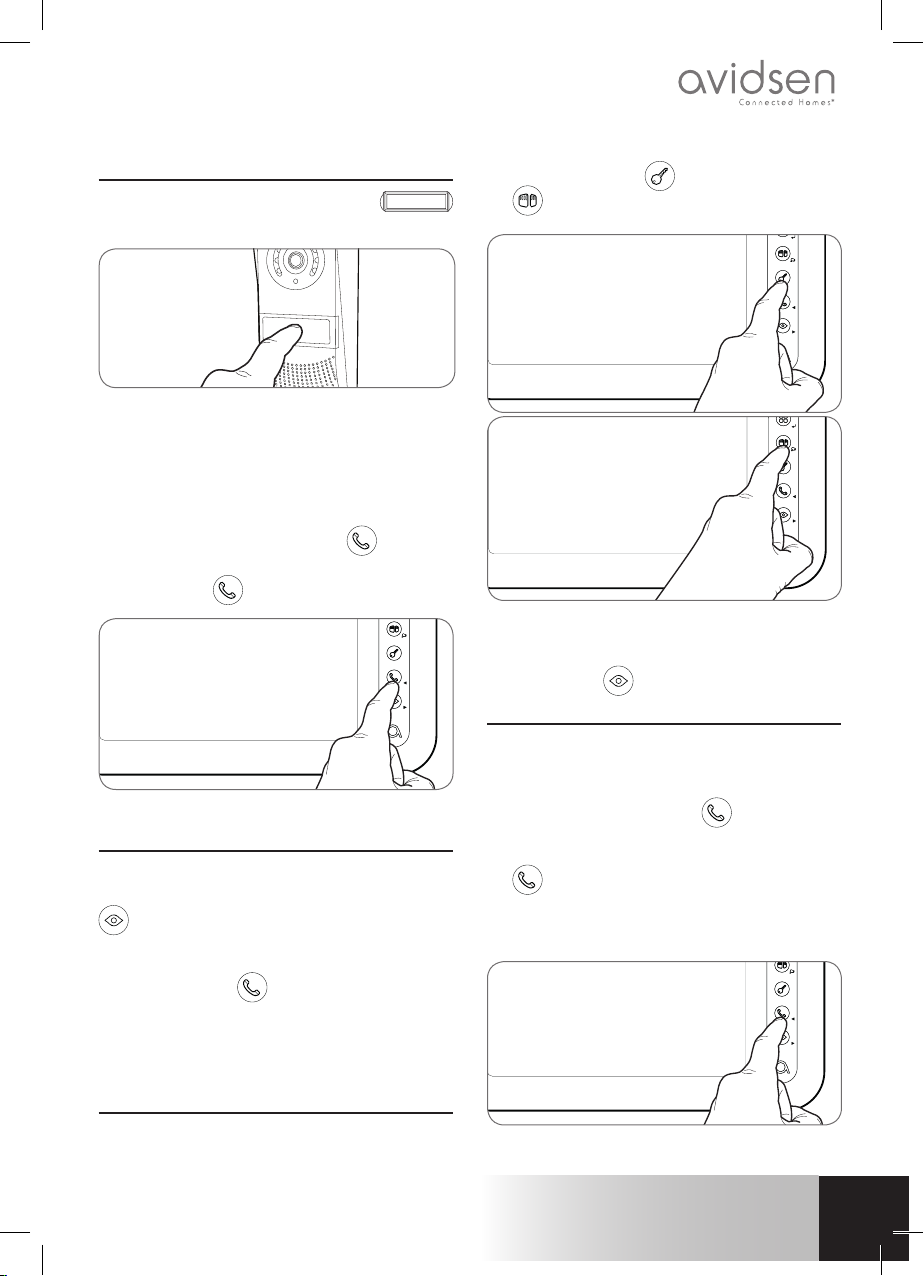

1 - IDENTIFY AND SPEAK TO THE VISITOR
The visitor presses the intercom panel
Nils Larsson
name plate:
The chime sounds through the monitor's speaker
and the intercom panel's video camera is activated.
If the visitor is positioned within the camera's field of
vision, their image will appear on the monitor for 30
seconds. After 30 seconds, the monitor will return
to sleep mode.
To speak with the visitor, press the button. To
end the conversation and deactivate the intercom
panel, press the button.
2 - ACTIVATE THE INTERCOM PANEL FROM
THE MONITOR
To identify a visitor without them knowing they are
being observed or to simply look outside, press the
button: the view from the intercom panel will
then appear on the screen for 60 seconds.
If you wish to communicate directly with the outside,
press once on the button when the external
video camera is displayed.
This particularly useful feature allows you to observe
the visitor, even if they haven't rung.
3 - OPENING AN ELECTRIC LOCK AND AN
AUTOMATIC CONTROL SYSTEM
If the device is equipped with an electric lock and/
or an automatic control system (see "Connection"
paragraph), press the button (for the lock) or
the button (for the automatic control system) to
let a visitor enter.
Warning: the screen must be switched on before
the dry contact and powered output controls can
function. If the screen is off, it must be switched on
using the button
4 - INTERCOM FEATURE
You can initiate internal communication with the
secondary monitor (if present) using the intercom
feature. This feature can be used when the monitor
is in sleep mode: Press the button on the
secondary monitor. You can call the secondary
monitor and vice versa. You can answer by pressing
the button and communicate for a maximum of
120 seconds. The terminal will then return to sleep
mode.
Communication with the intercom panel has priority.
COLOUR VIDEO INTERCOM 7"

14
EN
D - USING THE PRODUCT
COLOUR VIDEO INTERCOM 7"
5 - DISPLAY OF ADDITIONAL CAMERA
If you have installed an additional camera (112248),
it is possible to display it by pressing on
6 - MONITOR SETTINGS
With the screen is on, press the button to
display the following screen:
Browse the sub-menus by pressing on buttons
BRT
.2
0
18
18
21
05
05
CON .
COL .
CALL .
INCOME .
RING .
• BRT:
Brightness: press the and buttons to
decrease or increase the brightness level of the
image.
•CON:
Contrast: press the and buttons to
decrease or increase the contrast level of the image.
• COL:
Colour: press the and buttons to decrease
or increase the saturation level of the image.
• CALL:
Microphone volume: press the and
buttons to increase or decrease the microphone
volume.
• INCOME:
Chime volume: press the and buttons to
decrease or increase the ring volume.
• RING:
Choose the ring tone: press the and
buttons to select the desired tone.
Once in the RING sub-menu, press the button
to exit.

15 EN
1 - TECHNICAL CHARACTERISTICS
MONITOR
Screen
Resolution
Transmission system (audio and video)
Video standard
Supply voltage
Power supply
Protection
Ideal operating temperature range
Number of doorbell melodies
Max. degree of humidity
Dimensions
Ultra-flat 7" colour LCD
800 x (RGB) x 480
2 wires
PAL/NTSC
17 VDC 1.5 A (adapter included)
with 230 VAC 50 Hz / 17 VDC 1.5 A
mains adapter included
Short circuit and reverse polarity protection
-20 °C to 50 °C
6
85%
124 x 218 x 15.8 cm
Intercom panel
Video camera
Lens
Power supply
Max. consumption
Brightness
Dimensions
Night vision
Protection rating
CMOS 420TVL
90° (H) / 65° (V)
CC 13 V supplied by the monitor
200 mA
min. 0 lux
165 x 74.5 x 40.3 mm
from 0.5 to 1 m
IP44
E - TECHNICAL AND LEGAL INFORMATION
COLOUR VIDEO INTERCOM 7"

16
EN
E - TECHNICAL AND LEGAL INFORMATION
COLOUR VIDEO INTERCOM 7"
2 - WARRANTY
• This product is guaranteed for parts and labour
for 2 years from the date of purchase. Proof of
purchase must be retained for the duration of
the warranty period.
• The warranty does not cover damage caused
by negligence, knocks or accidents.
• None of the parts of this product may be
opened or repaired by any persons not
employed by Smarthome France.
• The warranty will be void if the device is
tampered with.
• Do not cut or extend the wire of the mains
adapter or the warranty will be void.
3 - HELP AND SUGGESTIONS
• If, despite the care we have taken in designing
our products and drafting these instructions,
you do encounter difficulties when installing
your product or you have any questions, we
recommend you contact one of our specialists
who will be glad to help.
• If you encounter operating problems during
the installation or a few days afterwards, it is
essential that you are in front of your installation
when contacting us, so that one of our
technicians can diagnose the source of the
problem, as it will probably be the result of a
setting that is incorrect or an installation that is
not to specification.
Contact our after sales service team technicians:
0,35 € / min
0 892 701 369
Monday to Friday, 9AM to 12PM and 2PM to 6PM.
Need some help?
Avidssy
will answer your questions on
www.avidsen.com
4 - PRODUCT RETURNS - AFTER SALES
SERVICE
If, despite the care we have taken in designing and
manufacturing your product, it needs to be returned
to our customer service centre, you can check the
progress of the work on our website at the following
address:
http://sav.avidsen.com
Smarthome France undertakes to keep a stock
of spare parts for this product throughout the
contractual warranty period.
5 - DECLARATION OF CONFORMITY
Per the RED directive
Smarthome France hereby declares that the
equipment designated below:
Ylva 3 (112266)
Complies with the RED directive and its conformity
has been assessed pursuant to the applicable
standards in force:
EN 55032: 2015
EN 55024: 2010 + A1: 2015
EN 62368-1: 2014 + A11: 2017
Tours, date: 20/07/2018
Alexandre Chaverot, CEO

Smarthome France
19 Avenue Marcel Dassault
ZAC des Deux Lions - 37200 Tours - France
