Avigilon ES-HD-IPM User manual
EN English - Instructions manual
ENGLISH
Outdoor HD Enclosure
PoE Module
ES-HD-IPM
Contents ENGLISH
1 About this manual........................................................................................................... 3
1.1 Typographical conventions.....................................................................................................................3
2 Notes on copyright and information on trademarks................................................. 3
3 Safety rules ..................................................................................................................... 3
4 Identification................................................................................................................... 4
4.1 Product description and type designation.........................................................................................4
4.2 Product markings....................................................................................................................................4
5 Preparing the product for use ...................................................................................... 4
5.1 Unpacking and contents ........................................................................................................................4
5.1.1 Unpacking.................................................................................................................................................................4
5.1.2 Contents...................................................................................................................................................................4
5.2 Safely disposing of packaging material............................................................................................4
6 Assembling and installing............................................................................................. 5
6.1 Installation ................................................................................................................................................. 5
6.1.1 How to open the housing .....................................................................................................................................5
6.1.2 Removal of the slide .............................................................................................................................................5
6.1.3 Installation of the cable glands ..........................................................................................................................5
6.1.4 Installation of the GEKO IRH illuminator (optional)........................................................................................5
6.1.5 Brackets and adaptors .........................................................................................................................................6
6.1.6 Installation of the version with double lter for air renewal .......................................................................6
6.1.7 Ethernet cable installation ...................................................................................................................................6
6.1.8 How to install the camera.................................................................................................................................... 7
6.1.9 Connection of the GEKO IRH illuminator (optional)......................................................................................7
6.1.10 PoE cable connection .........................................................................................................................................8
6.1.11 Connection of the de-icing heating of the glass (optional) ........................................................................8
6.1.12 Connection of the blower with double lter for air renewal (optional)...................................................8
7 Configuration .................................................................................................................. 8
Instructions manual - English - EN
3
1 About this manual
Before installing and using this unit, please read
this manual carefully. Be sure to keep it handy for
later reference.
1.1 Typographical conventions
DANGER!
Explosion hazard.
Read carefully to avoid danger of
explosion.
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
WARNING!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The quoted names of products or companies are
trademarks or registered trademarks.
3 Safety rules
The manufacturer declines all
responsibility for any damage caused
by an improper use of the appliances
mentioned in this manual. Furthermore,
the manufacturer reserves the right to
modify its contents without any prior
notice. The documentation contained
in this manual has been collected with
great care, the manufacturer, however,
cannot take any liability for its use. The
same thing can be said for any person
or company involved in the creation and
production of this manual.
• The device must be installed only and
exclusively by qualied technical personnel.
• Before any technical work on the appliance,
disconnect the power supply.
• Do not use power supply cables that seem worn
or old.
• Never, under any circumstances, make any
changes or connections that are not shown in
this handbook. Improper use of the appliance
can cause serious hazards, risking the safety of
personnel and of the installation.
• Use only original spare parts. Non-original spare
parts could cause re, electrical discharge or
other hazards.
• Before proceeding with installation check the
supplied material to make sure it corresponds
to the order specication by examining the
identication labels (4.2 Product markings, page
4).
• Power supply to the product must be exclusively
provided by the PoE cable (Power over
Ethernet).
• This device was designed to be permanently
installed on a building or on a suitable structure.
• When installing the device, comply with all the
national standards.
• Any device which could be installed inside the
product must comply with the current safety
standards.
EN - English - Instructions manual
4
• If the installation is NEMA TYPE 4X, the installer
must replace the cable glands of the product
with NEMA TYPE 4X cable glands.
• For all connections, use cables that are able to
withstand temperatures of at least 75°C (167°F).
• The product is designed to house only cameras
that are properly certied.
4 Identification
4.1 Product description and type
designation
The ES-HD-IPM module exploits in an optimal way
the POE and Hi-POE technology, using the power
supplied by the Ethernet cable as the sole source
of power for all the devices connected, thus
ensuring the maximum eciency and exibility
of the network system as well as user-friendly
installation and low costs.
The innovative IPM (Intelligent Power
Management) system enables extremely quick and
easy installation with the use of a single Ethernet
connecting cable.
The analog system, with previously installed
camera housings, can be retrotted on IPM system
simply by changing the slide and the internal
electronics. This enables the digital conversion,
speeding up the installation and thereby
minimizing costs and environmental impact.
4.2 Product markings
See the label attached to the product.
5 Preparing the product for
use
Any change that is not expressly approved
by the manufacturer will invalidate the
guarantee.
5.1 Unpacking and contents
5.1.1 Unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
Keep the packaging in case you need to send the
product for repairs.
5.1.2 Contents
Check the contents to make sure they correspond
with the list of materials as below:
• IPM module
• RJ45 cable
• Instructions manual
5.2 Safely disposing of
packaging material
The packaging material can all be recycled.
The installer technician will be responsible for
separating the material for disposal, and in any
case for compliance with the legislation in force
where the device is to be used.
When returning a faulty product we recommend
using the original packaging for shipping.
Instructions manual - English - EN
5
6 Assembling and installing
The assembly and installation must be
performed only by skilled personnel.
6.1 Installation
6.1.1 Preparing the Housing
To retrot the ES-HD-IPM module to Avigilon HD
enclosures, the existing control board, slide and
heater (if equipped) must rst be removed.
1. Remove all electrical connections from the
circuit board (02)
2. Remove the xing screws and the circuit
board.
3. Loosen the screws fastening the internal
supply slide (01).
4. Move the internal slide by sliding it until the
holes coincide with the slide locking screws.
5. Remove the internal slide.
6. The locking screws will be reused to secure
the IPM module, do not discard these.
7. For ES-HD-HWS or ES-HD-HWS-LG housings,
remove the heater plate (03) by unscrewing
the two xing screws.
03
01
02
Fig. 1
6.1.2 Completing the External
Installation
Refer to the housing manual for details on
installing the cable glands, mounting the brackets
and adjusting the air intake valves.
6.1.3 How to install the camera
It is possible to install only PoE type
cameras.

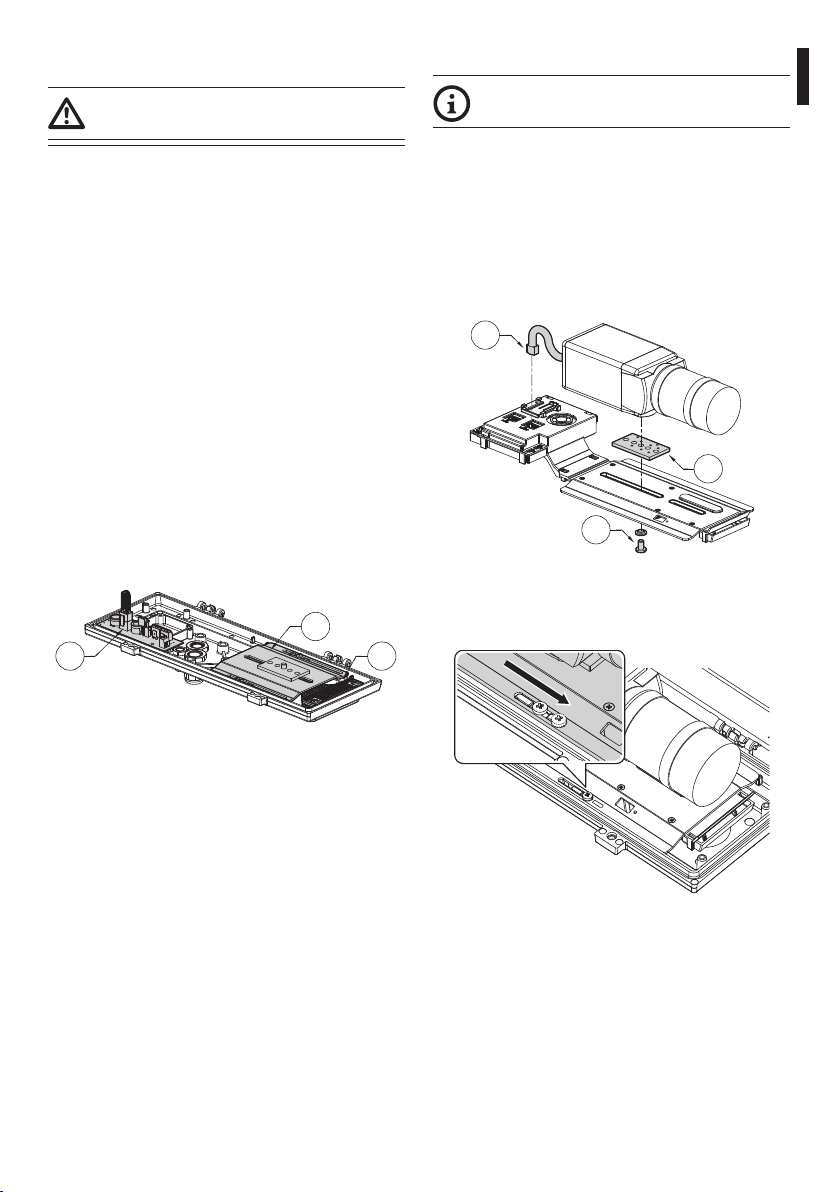

Mount the camera using the supplied screws (01)
and spacers (02).
Apply at least one spacer to guarantee electrical
isolation between the slide and the camera.
Position the camera lens close to the glass to
avoid visual interference or optical reections.
Connect the camera to the J2 connector (PoE
OUT) with the supplied cable (03).
02
01
03
Fig. 2
Ret the slide in its housing and x the previously
loosened screws.
Fig. 3
EN - English - Instructions manual
6
6.1.4 PoE cable connection

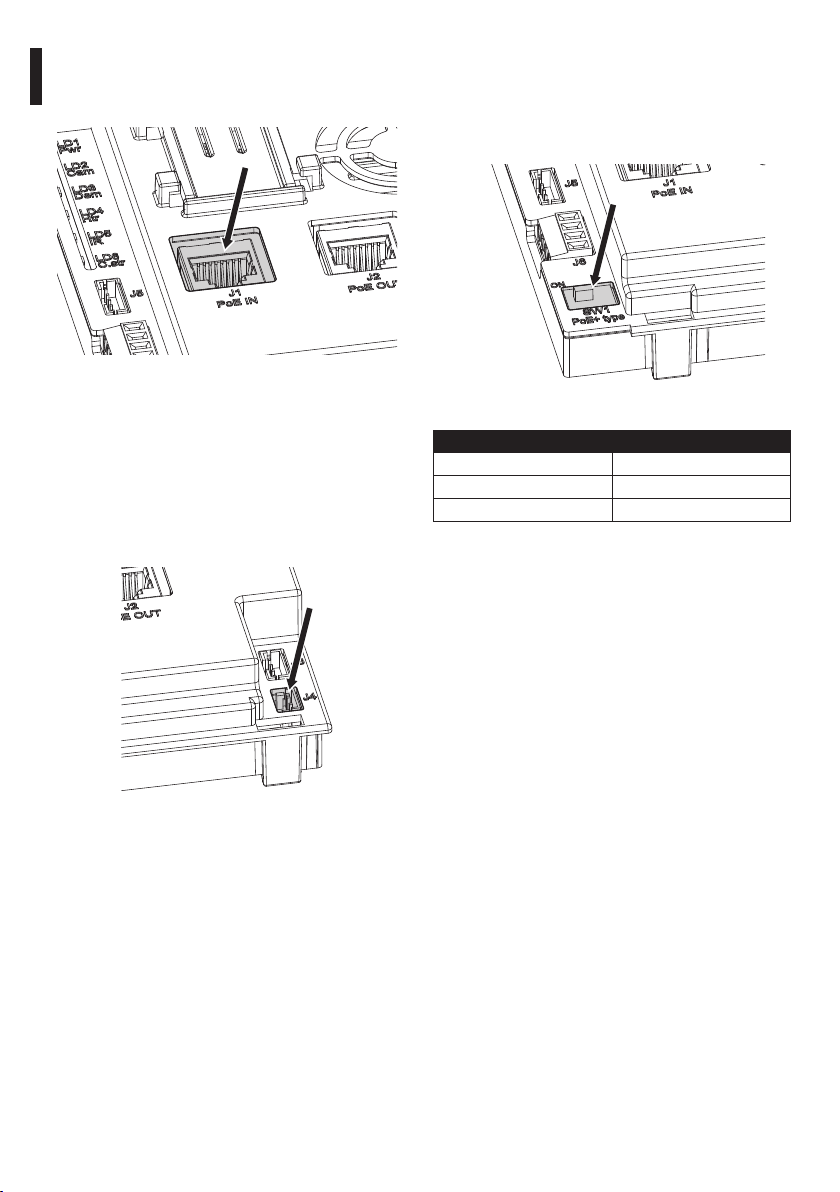

Connect the PoE cable from the Power Injector to
the J1 connector.
Fig. 3
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1 (7 Conguration,
page8).
6.1.5 Connection of the blower for
ES-HD-CWS and ES-HD-CWS-LG
Connect the fan cable to the J4 connector.
Fig. 4
7 Configuration
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1.
Fig. 5
ABSORBED POWER CONFIGURATION
SW1 Maximum power
OFF PoE class 3 (13W max)
ON Hi-PoE class 4 (25W max)
Tab. 1
According to the absorbed power, the system can
supply the options described in the table (Tab. 3,
page9).
Instructions manual - English - EN
7
8 Switching on
The automatic pre-heating (de-ice) process
could be started whenever the device is
switched on and the air temperature is
below 0°C. This process is used to ensure
that the device works properly even at
low temperatures. The duration ranges
between 60 and 120 minutes, depending
on conditions.
During the lighting phase the device reads the
status of the dip switch and automatically detects
all the connected options for the correct energy
management of the housing.
The 6 LEDs shown in the gure allow to check the
product’s operating status.
Fig. 6
Refer to the table to identify the operating status.
OPERATING STATUS
LED LED
Status
Apparatus Status
LD1 (Po-
wer)
O The device is not powered
On The device is correctly
powered
LD2
(Camera)
O The camera is not connected
or Cold Start is active
On The camera is correctly
powered
1 ashing The camera has a low identi-
cation resistance
2 ashings The camera has a high identi-
cation resistance
5 ashings The camera has an excessive
energy consumption
9 ashings The camera requires more
energy than the available
LD3 (Not used)
LD4 (He-
ater)
O Heating is not available or po-
wer available is not sucient
1 ashing Heating is inactive
On Heating is active
LD5 (Not used)
LD6
(Cold Start)
O Heating is not available
1 ashing The pre-heating procedure is
inactive
On The pre-heating procedure is
underway
Tab. 3
ESHDIPM : AVAILABLE MODELS AND FEATURES
Operating temperature Injector Camera Heating Fan with double air
filter
-10°C / +60°C
(14°F / 140°F)
PoE classe 3 (13W) PoE max. class 2 (7W) – ✓
Hi-PoE class 4 (25W) PoE max. class 3 (13W) – ✓
-10°C / +50°C
(14°F / 122 F°)
PoE classe 3 (13W) PoE max. class 2 (7W) – –
Hi-PoE class 4 (25W) PoE max. class 3 (13W) – –
-30°C / +50°C
(-22°F / +122°F)
Hi-PoE class 4 (25W) PoE max. class 3 (13W) ✓–
Hi-PoE class 4 (25W) PoE max. class 3 (13W) ✓–
Tab. 2
EN - English - Instructions manual
8
9 Cleaning
9.1 Window and plastic cover
cleaning (PC)
Avoid ethyl alcohol, solvents,
hydrogenated hydrocarbide, strong acid
and alkali. Such products may irreparably
damage the surface.
Surface dirt should be rinsed away with water
and then the window cleaned with a neutral
soap diluted with water, or specic products for
spectacle lens cleaning. These should be applied
with a soft cloth.
10 Disposal of waste
materials
This symbol mark and recycle system
are applied only to EU countries and not
applied to the countries in the other area
of the world.
Your product is designed and manufactured with
high quality materials and components which can
be recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed
of separately from your household waste.
Please dispose of this equipment at your local
Community waste collection or Recycling centre.
In the European Union there are separate
collection systems for used electrical and
electronic products.
11 Technical data
11.1 Mechanical
Unit weight: 0.6 kg (1.32 lb)
11.2 Electrical
Power absorbed in input: PoE class 3 (13W) or Hi-
PoE class 4 (25W) selectable from dip switch
Available power for camera (PoE IN class 3): PoE
classe 2 (7W)
Available power for camera (Hi-PoE IN class 4):
PoE class 3 (13W) with Ton -10°C ±2°C “cold start”
function
Data line: 10/100Base-T
Heating: 8W, electronically controlled, Ton
20°C±2°C (68°F±4°F), To 23°C±2°C (73.4°F±4°F)
Fan with thermostat for camera cooling for
versions with double air lter: Ton 35°C±2°C
(95°F±4°F), To 32°C±2°C (89.6°F±4°F)
Compatible with IEEE 802.3af, IEEE 802.3at/PoE
Plus
© — 2014 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other
intellectual property rights of Avigilon Corporation or its licensors.
AVIGILON, CAPTURE IT WITH CLARITY, HDSM, HIGH DEFINITION STREAM MANAGEMENT (HDSM), THE BEST EVIDENCE and LIGHTCATCHER are unregistered and/or registered
trademarks of Avigilon Corporation in Canada and other jurisdictions worldwide. Other product names mentioned herein may be the unregistered and/or registered trademarks of their
respective owners. ™ and ® are not used in association with each trademark in this document.
Table of contents
Other Avigilon Control Unit manuals
