AVLink BTTR1 User manual

Bluetooth® 2-in-1 Audio Transmitter &
Receiver
BTTR1
Item ref: 100.595UK
User Manual
An amazing and compact Bluetooth device that will open a new world of wireless audio enjoyment both at home or on the move.
Simply connect using the audio cable provided to your TV, projector or other audio device and stream wirelessly to Bluetooth
headphones, speakers or sound-bars. Alternatively connect to a set of traditional headphones, amplifier or in-car entertainment system
and you can then pair with your smartphone, tablet or other Bluetooth devices. With Multi-point support for shared listening, a 10m
transmission/reception range and in-built rechargeable battery providing up to 8 hours playback from a single charge, this handy little
device really is your perfect Bluetooth partner!
•Easily connects to any device with a 3.5mm audio input or output
•Transmitter will connect Bluetooth headphones, speakers or sound-bars to LED TV's and projectors
•Receiver will connect smartphones, tablets and MP3 players to headphones, amplifiers or car audio systems
•Multi-point Bluetooth capability allows you to connect to 2 devices at the same time, ideal for shared listening
•Wireless Bluetooth range of up to 10m
•Transmits audio for up to 8 hours on a single charge
•Receives audio for up to 6 hours on a single charge
•Ultra-compact, lightweight design with rechargeable battery inside
Technical Specifications
Bluetooth version:
V4.2 with multi-point support
Bluetooth profile:
A2DP, AVRCP
Bluetooth range:
Up to 10m
Battery:
160mAh Lithium-Ion
Operating time:
Up to 8 hours (transmit), 6 hours (receive)
Charging time:
Approx. 2 hours
USB lead length:
1m
Audio lead length:
1m
Dimensions:
48 x 35 x 12mm
Weight:
18g

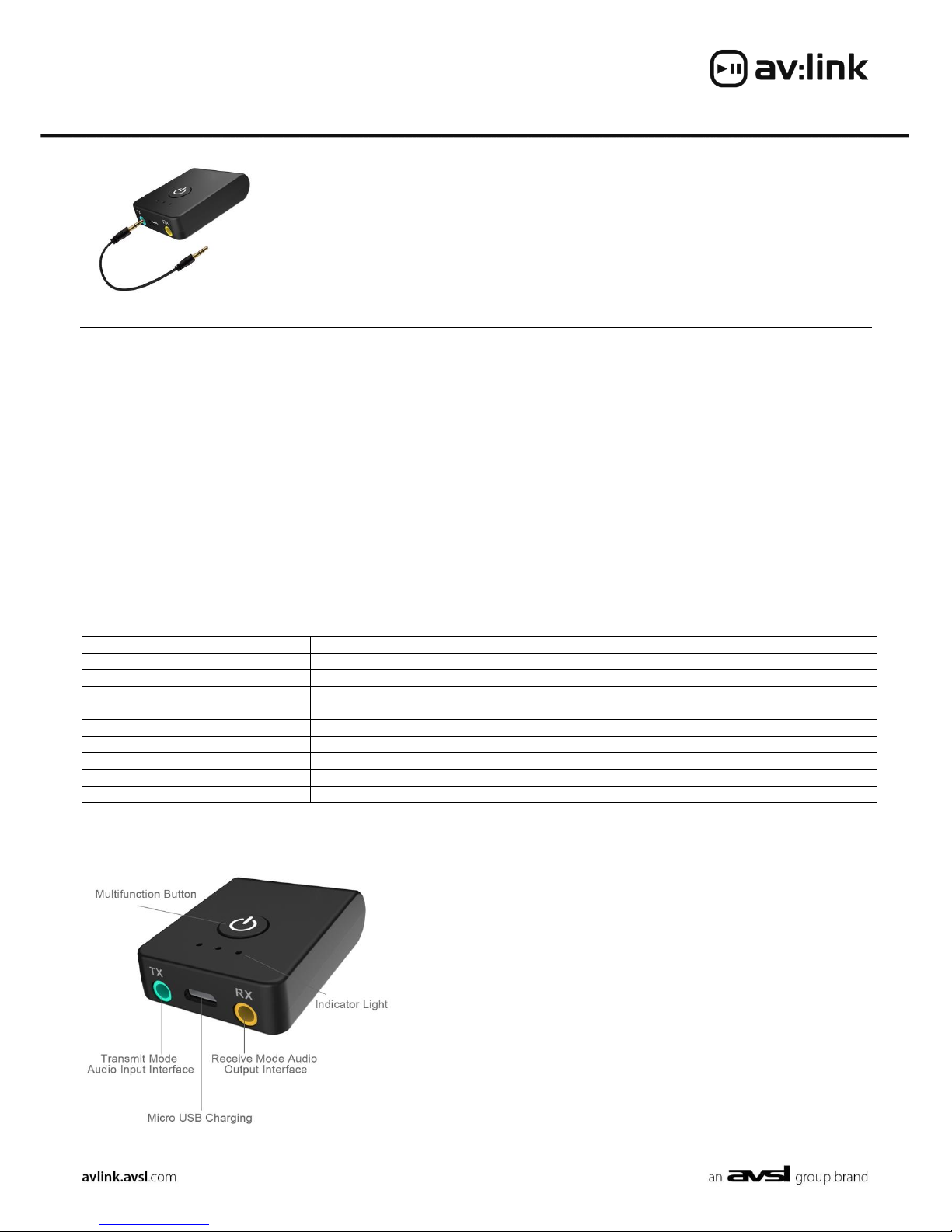

Overview
Powering on/off:
Press and hold the Multifunction button until the LED light goes blue. To
power off, press and hold the Mulitifunction button again until the LED light
blinks red indicating the unit is power down mode.
Pairing with your device in Transmission mode:
Insert the 3.5mm audio lead provided into the socket marked TX and the
other end into the piece of equipment you wish to send the audio from (i.e
the headphone socket on a TV, projector, stereo system or MP3 player). Press
and hold the Multifunction button until the LED blinks blue quickly, this is to
indicate the unit is now in Bluetooth transmission pairing mode. Set your
Bluetooth headphones, speakers or sound-bar to pairing mode and wait for
the devices to connect. Please be aware that due to the different protocols of
some devices the connection time can be a few minutes. If after this time you
are still unsuccessful, turn off both devices and try again. Once connected
successfully, a voice message can be heard and the LED on the unit blinks
blue intermittently.

Pairing with your device in receiving mode:
Insert the jack from a set of wired headphones or alternatively the 3.5mm audio lead provided, into the socket marked RX and other
end into the piece of equipment you wish to send the Bluetooth audio to (i.e stereo systems, amplifiers or car audio systems). Press
and hold the Multifunction button until alternating blue and red lights appear, this indicates the unit is now in Bluetooth receiver
pairing mode. When searching for the device in a list on a PC, smartphone or tablet, the pairing name is AV:Link BTTR1 and if your
device asks for a pairing code the default setting is 0000. Once connected successfully, a voice message can be heard and the LED on
the unit blinks blue intermittently. You can now play the audio from your PC, smartphone or tablet wirelessly to the device you are
connected to.
Pairing a second device in transmission or receiving mode:
This unit also has multi-point support, meaning it can connect to 2 Bluetooth devices at the same time. To pair a second device, press
the Multifunction button again after the initial pairing is successful and the red light will blink while the blue light stays constant. Once
pairing is successful on a second device, both the red and blue lights will blink intermittently. Using this feature, you can either share
your listening in transmission mode or listen to two devices alternately in receiving mode.
Charging the device:
To charge the device only use the USB cable supplied and ensure you charge fully on first use. Whilst charging a red LED will stay on,
which will turn blue when the unit is charged. Charging time is normally around 2 hours from flat and the device will last up to 8 hours
from a single charge. It’s possible to keep the device constantly charged using a USB port on a TV or PC/Laptop and leave it connected
when not in use. This means the unit will only be charging when the TV, PC or laptop is switched on and shouldn’t run out of power
when needed.
Connecting to Audio Equipment:
You can connect the unit to any audio device with a 3.5mm input or output using the stereo connection lead supplied. To connect to
devices with twin RCA inputs or outputs, a 3.5mm to RCA cable is required (not supplied).
In the Box:
1pc Bluetooth transmitter/receiver unit
1pc 3.5mm audio cable
1pc USB charging cable
1pc User manual
FAQ
Q) Bluetooth unit cannot pair with your device. A) Check that the unit is in pairing mode and that the Bluetooth mode is enabled on
your device and in scan mode. If after a few minutes you are still unsuccessful, turn off both devices and try again. If possible place
the 2 devices closer together and ensure they are in clear line of sight until paired.
Q) Bluetooth unit disconnects with my device well within the stated 10m transmission distance. A) The maximum transmission
distance stated is dependent on a clear line of sight between the unit and your device. If there are large metallic objects or other
devices transmitting radio or wireless signals in the vicinity, they can impact on the reception of the unit.
Q) Bluetooth unit won’t switch on. A) Check that the unit is charged sufficiently before operation.
Q) Bluetooth unit won’t connect to my PC. A) Please check that your PC supports the A2DP Bluetooth profile.
Safety Disclaimer
Do not attempt to service this product yourself as opening or removing covers may result in fire, electric shock or
equipment damage and will also invalidate the warranty. This product is only designed for indoor use and must be kept
away from water and high humidity along with high temperatures and direct sunlight.
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at
the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2017. AVSL Group Ltd.
