AVM OVATION MP 6.2 User manual

Operating instructions

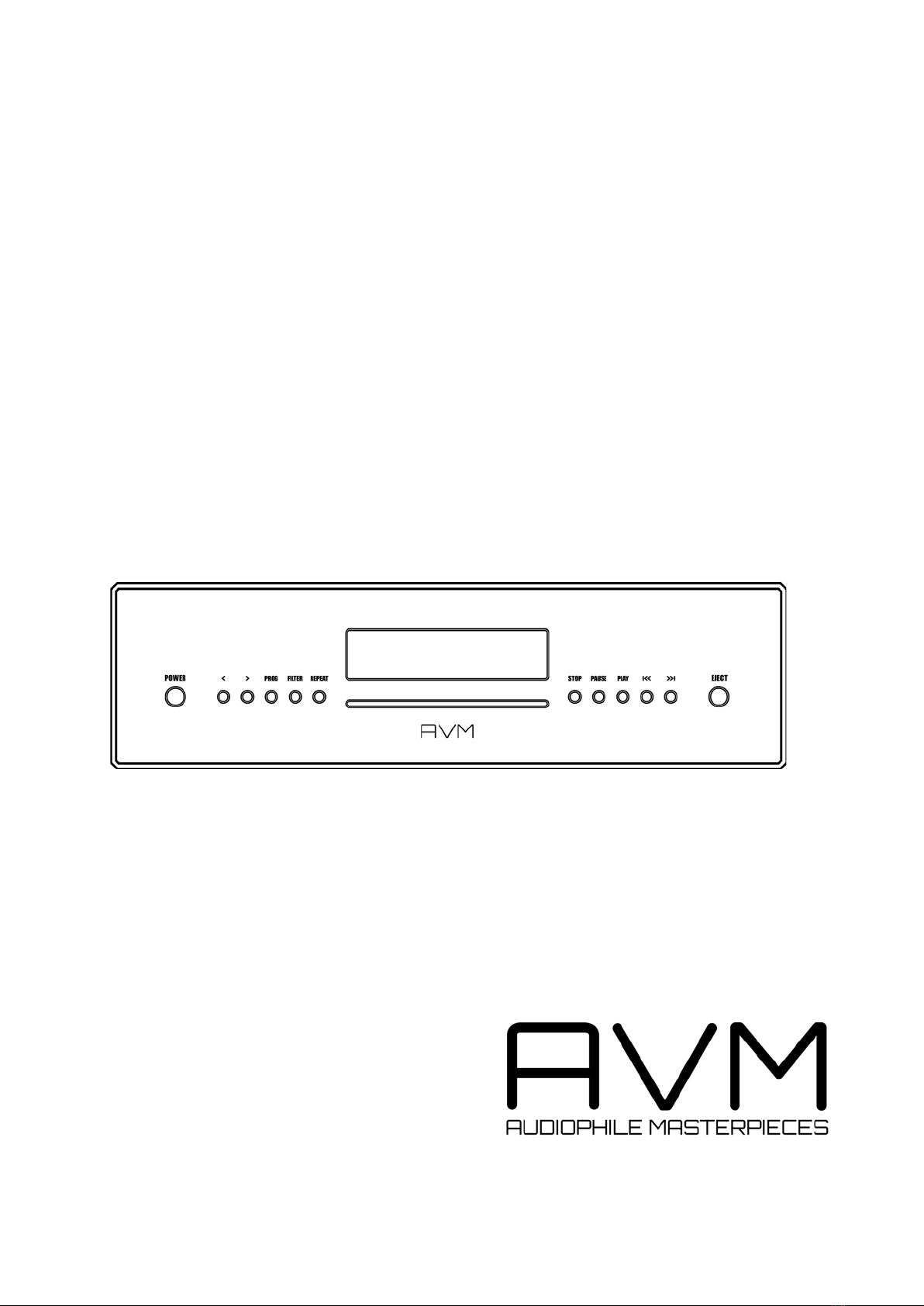

OVATION MP 6.2

Caution
This unit contains a class 1 laser diode. Do not open. Invisible laser radiation can damage
your eyes.
Laserdiode Typ: Ga-Al-As
Wavelength: 755 - 815 nm (25 °C)
Output power: max. 0,7 mW max.
Declaration of conformity (for EC only)
We herewith confirm, that the unit to which this manual belongs fulfills the EC rules necessary
to obtain the sign
the necessary measurements were taken with positive results.
AVM Audio Video Manufaktur GmbH
Daimlerstraße 8
D-76316 Malsch
Germany
www.avm.audio
[e-mail]

Dear customer
Thank you for purchasing this AVM product. You now own a versatile, excellent sounding hifi
component. Before enjoying music, please read this manual carefully. After that you will know
how to use your new MP 6.2 in the optimal way.
Please note that the range of functions of your AVM hifi component can be easily expanded by
means of a software update at any time. Hence, the present operating instructions will require
continued updates going forward. You you can always download the most current version from
our website at www.avm.audio.
Sincerely yours,
The AVM Team

Table of contents
1!Getting started...................................................................................................................... 6!
1.1!What’s in the box? .......................................................................................................... 6!
1.2!Control and operating elements...................................................................................... 6!
1.3!Installation and cooling ................................................................................................... 7!
1.4!Connection to mains ....................................................................................................... 7!
1.5!Connection to a preamplifier or integrated amplifier....................................................... 8!
1.6!Connection of digital signal sources ............................................................................... 8!
1.7!RC 9 remote control........................................................................................................ 8!
1.8!RC S App for iOS and Android........................................................................................ 8!
1.9!Network installation (LAN, WiFi) ...................................................................................... 9!
1.10!Software updates ........................................................................................................ 12!
2!Basic operation .................................................................................................................. 13!
2.1!First operation / self test ............................................................................................... 13!
2.2!Switching on / stand by................................................................................................. 13!
2.3!Display........................................................................................................................... 13!
2.4!CD Player ...................................................................................................................... 14!
2.5!Selecting the signal ....................................................................................................... 16!
2.6!Volume setting............................................................................................................... 16!
2.7!Samplerate and filter setting ......................................................................................... 17!
2.8!USB B digital input........................................................................................................ 17!
3!Advanced Settings ............................................................................................................. 18!
3.1!Personal Setup.............................................................................................................. 18!
3.2!Reset (factory default settings)...................................................................................... 19!
4!RC 9 Fernbedienung (optionally available) ...................................................................... 20!
4.1!Overview........................................................................................................................ 20!
4.2!Activation and stand by mode ...................................................................................... 21!
4.3!Battery charge............................................................................................................... 21!
4.4!Colour display ............................................................................................................... 21!
4.5!Entry of letters, numbers, and characters..................................................................... 22!
4.6!Hotkeys ......................................................................................................................... 22!
4.7!System settings............................................................................................................. 22!
4.8!Source Menu ................................................................................................................. 25!
4.9!Receiver Settings .......................................................................................................... 28!
5!Appendix ............................................................................................................................. 29!
5.1!Cleaning ........................................................................................................................ 29!
5.2!Troubleshooting ............................................................................................................ 29!
5.3!Conditions of warranty (EC only)................................................................................... 30!
6!Technical Data.................................................................................................................... 31!
6.1!Digital input ................................................................................................................... 31!
6.2!CD-Player ...................................................................................................................... 31!
6.3!Analogue out ................................................................................................................. 31!
6.4!Streaming capabilities................................................................................................... 31!

6
1Getting started
1.1 What’s in the box?
•OVATION MP 6.2 Compact Streaming CD-Receiver
•WLAN antenna
•Power cable
•Optional accessory: RC 9 remote control with docking station, power supply unit,
USB charging cable
CAUTION: After unpacking, please check the scope of delivery to ensure that all parts have
been supplied and are undamaged. In case the original packing has already been opened,
please contact your local dealer. Often, your dealer prepares your new device prior to delivery
to adapt and change the configuration to your personal needs.
1.2 Control and operating elements
The numbers in the drawings below mark the control elements. They refer to the numbers in
the text, where the operation of the unit is described.
1Power button (on / off)
2Option key < (Input, track programming)
3Option key > (Input, track programming)
4PROG button (track programming, RND)
5FILTER button
6REPEAT button
7Control LED
8CD slot
9Display
10 STOP button
11 PAUSE button
12 PLAY button
13 Skip / Search button back
14 Skip / Search button forward
15 EJECT button

7
16 Analogue output left (XLR)
17 Analogue output right (XLR)
18 Analogue output right (Cinch/RCA)
19 Analogue output left (Cinch/RCA)
20 Digital output optical
21 Digital output coaxial
22 USB B digital input
23 Digital input optical 2
24 Digital input optical 1
25 Digital input coaxial 2
26 Digital input coaxial 1
27 Digital input AES/EBU
28 WiFi antenna socket
29 USB digital input for storage media
30 Reset button
31 Network port (LAN)
32 Status LED
33 Update button (Streaming module)
34 Mains connector
35 Mains switch
36 Trigger outputs
37 Connector for external IR receiver
38 Phase LED
39 Link
40 Configuration port (updates)
1.3 Installation and cooling
The unit can become hot depending on demanded output power or environmental
temperature. Therefore it is important, that the cooling air can flow unhindered into the air
inlet in the bottom and flow out through the holes in the rear panel. Direct exposure to
sunlight is not recommended because this will heat up the unit and may cause unwanted
malfuctions.
1.4 Connection to mains
Connect the unit to the mains outlet (34) by using the power cord which is (in some countries)
delivered together with the unit. Make sure that mains voltage is according to the value
printed on the rear panel of the amp (near mains connector).
CAUTION: Keep the unit switched off (35) until all audio connections are made.

8
1.5 Connection to a preamplifier or integrated amplifier
Connect the analogue outputs (16-19) to the high-level inputs of a preamplifier or integrated
amplifier. The RCA-cinch outputs and the balanced XLR outputs are fully decoupled from
each other and can be used independently.
1.6 Connection of digital signal sources
Digital signal sources
Connect the outputs of your digital sources to the corresponding inputs of the MP 6.2:
- Optical inputs (23,24)
- Coaxial inputs (25,26)
- USB B input (22)
- AES/EBU input (27)
Digital input sources
The input of a digital recorder must be connected to the digital outputs (20, 21). The signal on
the digital outputs depends on the selected source (e.g. DIG COAX,DIG OPT).
1.7 RC 9 remote control
The optionally available RC 9 remote control allows for easy and comprehensive control of
the MP 6.2. Before you can use the RC 9 together with your MP 6.2, both components need
to be connected. This process is also referred to as Pairing. In order to start the pairing
process, please follow the instructions as described in section 4.7.5. For a detailed
description of functions and features of the optionally available RC 9 remote control, please
refer to chapter 4.
1.8 RC S App for iOS and Android
The RC S App for iOS and Android will turn your smartphone or tablet into an easy-to-use
remote control and provides a variety of intuitive features to get the most out of your network-
enabled AVM device. The RC S App is available free of charge and can be downloaded from
the Apple App Store and the Google Play Store. For detailed instructions on how to set-up
your AVM device with the RC S App, please refer to the RC S User Guide which can be
downloaded from our website at www.avm.audio.

9
1.9 Network installation (LAN, WiFi)
In order to use the integrated streaming functions (e.g. TIDAL, Airable, Webradio, Musik-
Server etc.) your MP 6.2 needs to be connected to the internet via a router in your home
network. You can choose from a wired ethernet connection (LAN) (31) or a wireless WiFi
connection (28).
In order to use the WiFi connection of the MP 6.2, the included WiFi antenna needs to be
installed (28). Please follow the instructions below to connect your MP 6.2 to your local home
network.
1.9.1 Network installation: Wired ethernet connection (LAN)
üPlease switch off the MP 6.2 on the rear side of the unit (35).
üPlug an ethernet cable from your local router into the network port of the MP 6.2 (31).
üSwitch on the MP 6.2 on the rear side of the unit (35). Wait until the device has started
and went into stand by mode. Now, switch it on with the power button on the front side
(1).
üAfter a brief starting process your MP 6.2 automatically connects to your local home
network and is ready to be operated via RC S App for iOS and Android.
1.9.2 Network installation: Wireless connection (WiFi)
In order to set up the MP 6.2 with a wireless connection, you need to download and install
the free RC S App for iOS and Android or the optionally available RC 9 remote control.
CAUTION: Before using the wireless functionality of the MP 6.2 an initial set-up of a wired
ethernet connection (LAN) according to the steps described in section 1.9.1 is required.
üPlease switch off the MP 6.2 on the rear side of the unit (35).
üPlug an ethernet cable from your local router into the network port of the MP 6.2 (31).
üSwitch on the MP 6.2 on the rear side of the unit (35). Wait until the device has started
and went into stand by mode. Now, switch it on with the power button on the front side
(1).
üAfter a brief starting process your MP 6.2 automatically connects to your local home
network and is ready to be operated via the RC S App for iOS and Android.

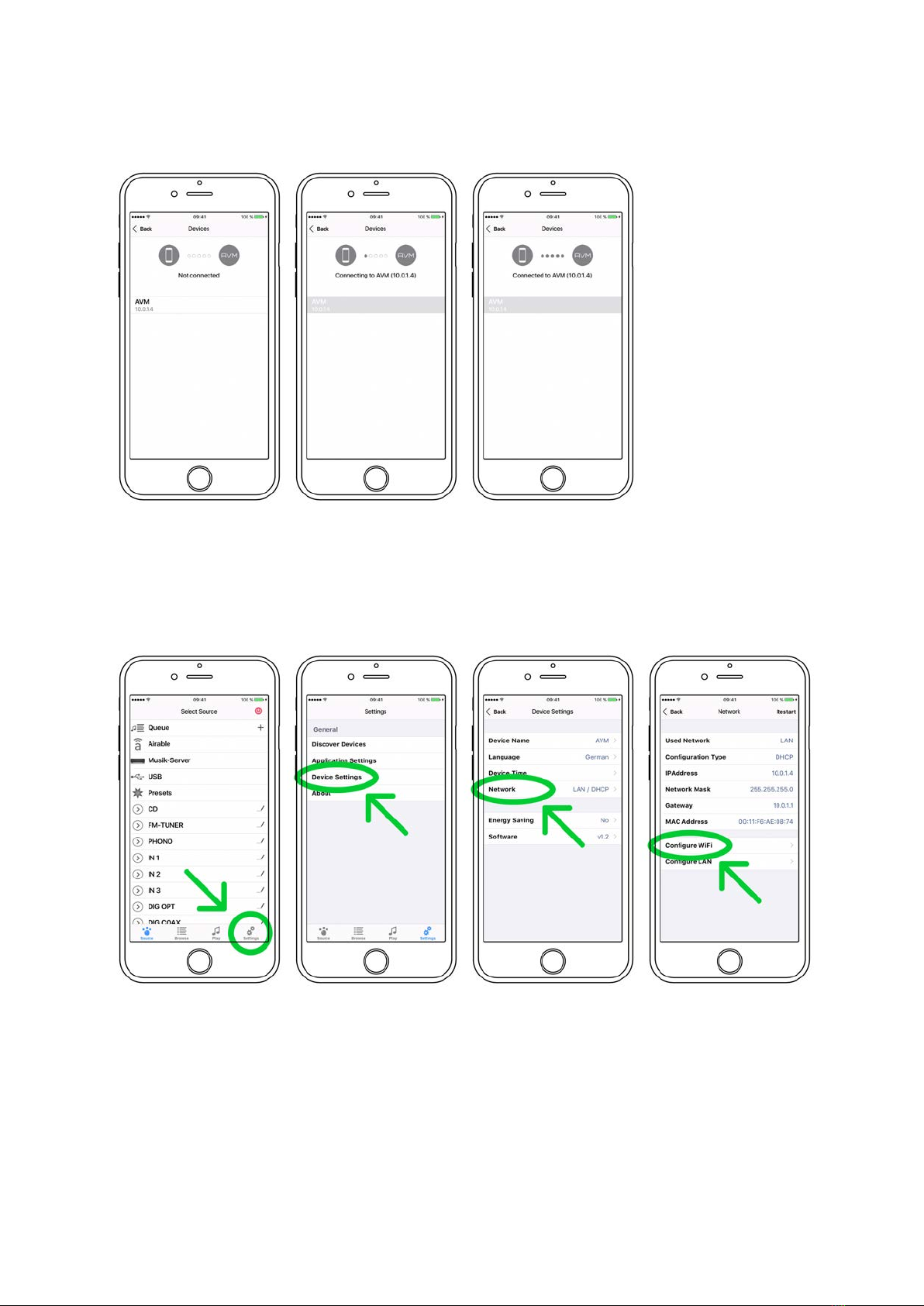

üLaunch the RC S App on your smartphone or tablet. The RC S App will now automatically
search and list all available AVM devices in your local network with their respective device
name and IP adress (e.g. "192.168.xxx.x" or "10.0.1.4").

10
üChoose one of the availbale devices and wait until a connection is established between
your RC S App and the MP 6.2 .

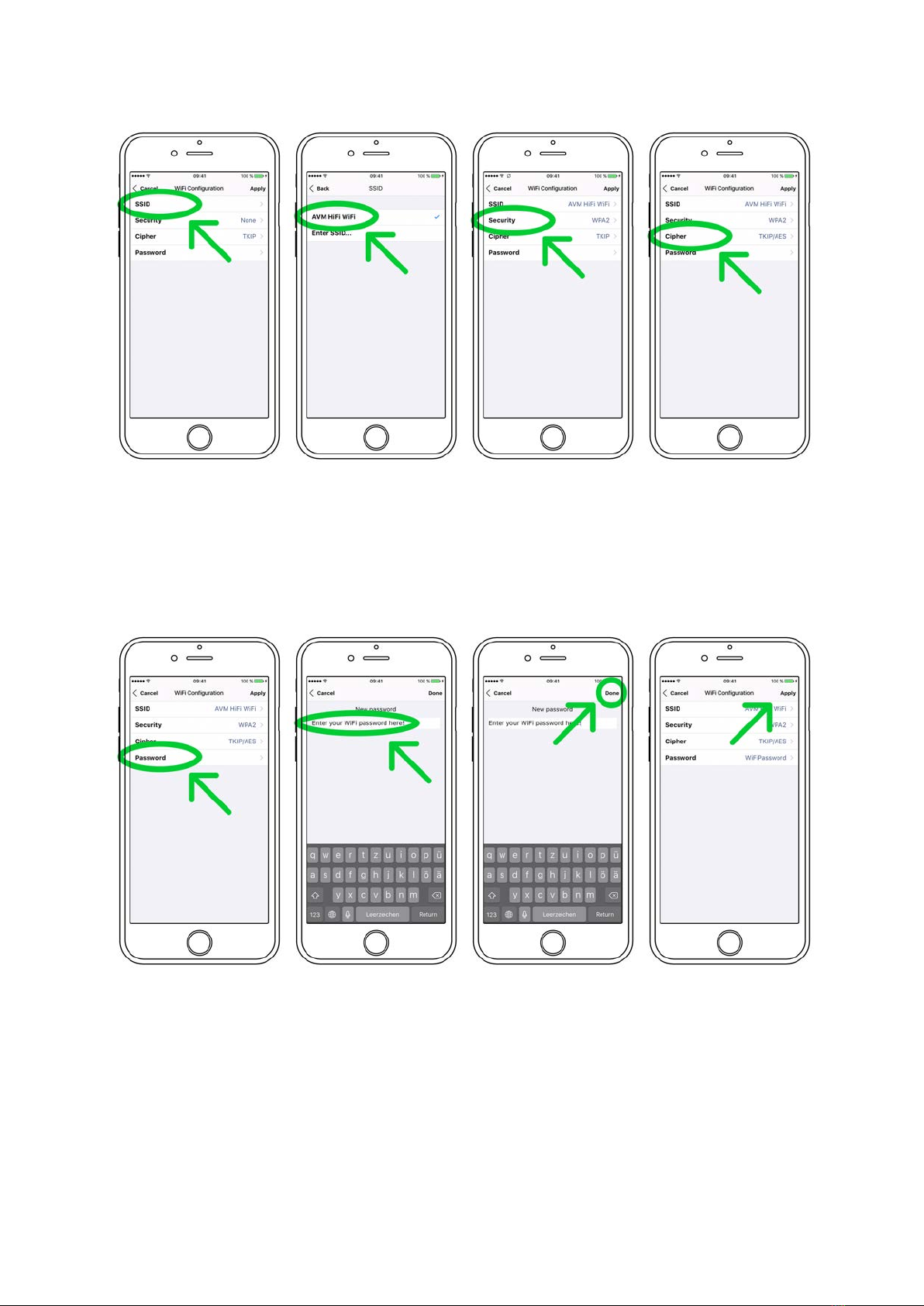

üNavigate to the Settings tab on the RC S App and choose Device Settings / Network /
Configure WiFi.
üAfter you have selected the SSID menu option, you will be provided with a list of all
available WiFi networks. Choose a WiFi network and select a respective Security and
Cipher setting.
