AVOCOR AVE-5530 User manual

AVE-5530
User Manual

AVE-5530 User Manual | 1
TABLE OF CONTENTS
Compliance Information .............................................................................................................................3
Declaration of Conformity ................................................................................................................................ 3
FCC Part 15......................................................................................................... Error! Bookmark not defined.
Caution.......................................................................................................................................................... 3
Industry Canada (ICES-003)............................................................................................................................... 3
Product Disposal ............................................................................................................................................... 3
Disposal of Old Electrical and Electronic Equipment ........................................................................................ 4
Introduction................................................................................................................................................5
About This Manual............................................................................................................................................ 5
Textual Conventions ......................................................................................................................................... 5
Graphic Conventions......................................................................................................................................... 6
What's in the Box? ......................................................................................................................................7
Specifications..............................................................................................................................................8
The display, at a glance ...............................................................................................................................9
Front Panel........................................................................................................................................................ 9
Back Panel....................................................................................................................................................... 10
Front Panel Interface ...................................................................................................................................... 11
Front Panel Guest Inputs ................................................................................................................................ 12
Rear Source Inputs.......................................................................................................................................... 13
Bottom-Rear Panel Inputs............................................................................................................................... 14
Installation................................................................................................................................................ 15
Ambient Considerations ................................................................................................................................. 16
Ambient Light.............................................................................................................................................. 16
Ambient Temperature ................................................................................................................................ 16
Ventilation .................................................................................................................................................. 16
Mounting the Display...................................................................................................................................... 17

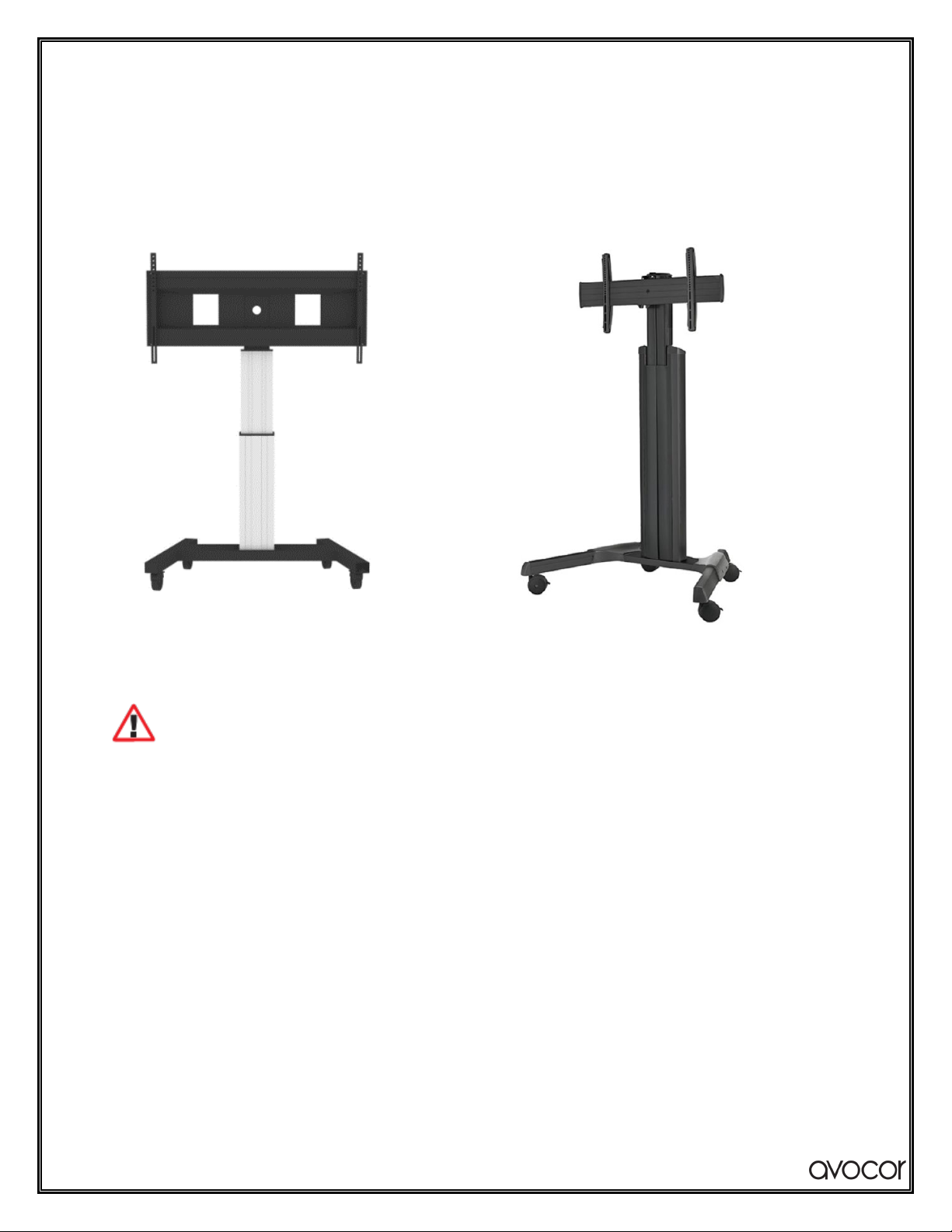

Stationary Stands ........................................................................................................................................ 17
Rolling Cart.................................................................................................................................................. 18

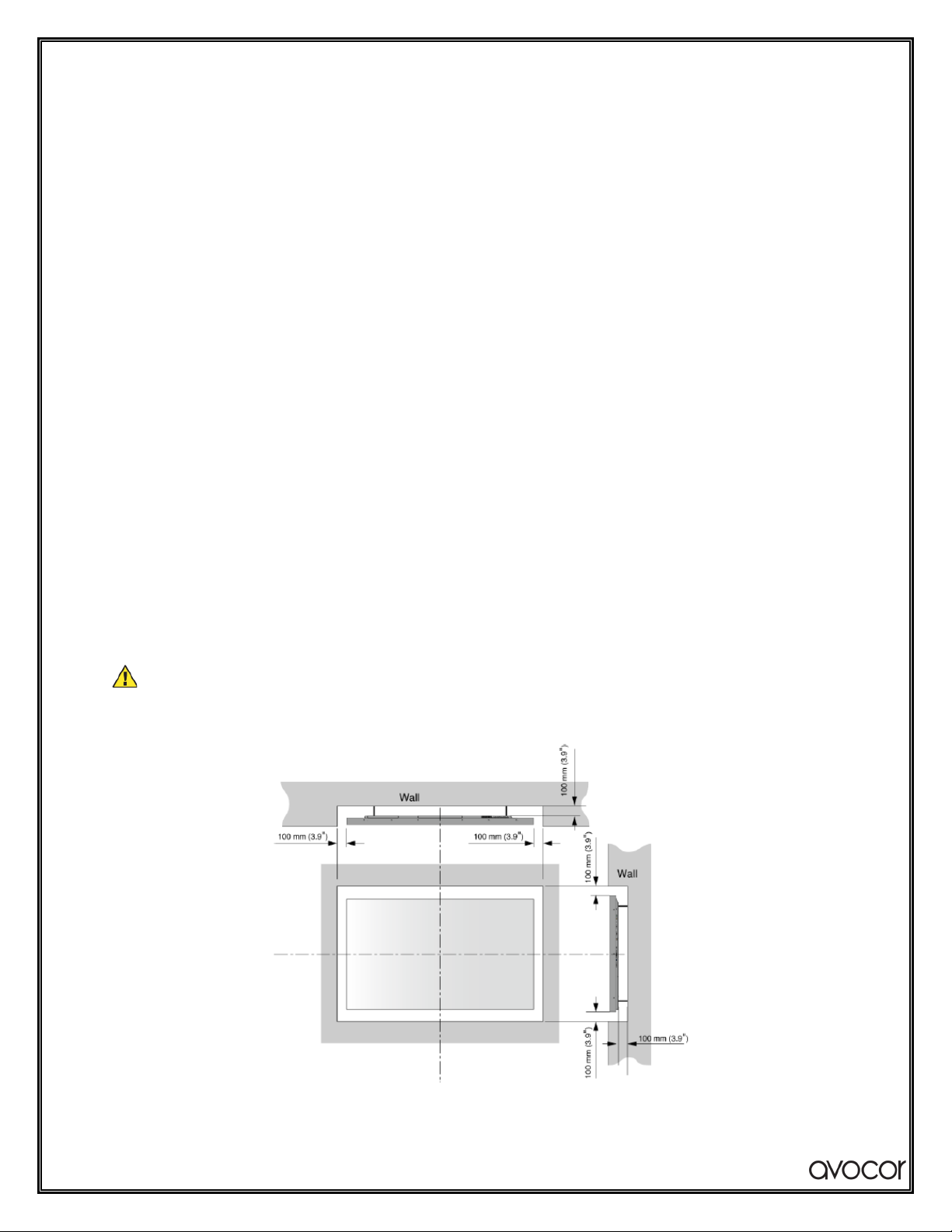

Wall Mount ................................................................................................................................................. 19

AVE-5530 User Manual | 2
Peripheral Connections................................................................................................................................... 20
Front Ports .................................................................................................................................................. 20
Rear-Side Ports............................................................................................................................................ 21
Lower Ports ................................................................................................................................................. 22
OPS Module .................................................................................................................................................... 23
OPS Installation Step-by-Step ..................................................................................................................... 23
Remote Control............................................................................................................................................... 25
Remote Control Batteries ........................................................................................................................... 26
Operation ................................................................................................................................................. 27
The Home Screen............................................................................................................................................ 27
The UiQ ........................................................................................................................................................... 28
Display Settings Tips ................................................................................................................................... 30
Network Settings Tips ................................................................................................................................. 32
Update System – Firmware......................................................................................................................... 38
External Control ........................................................................................................................................ 39
RS232 Connection and Port Configuration ..................................................................................................... 39
TCP/IP Control Configuration.......................................................................................................................... 39
Command and Response Format.................................................................................................................... 39
Serial Command List ....................................................................................................................................... 40
Warranty Information............................................................................................................................... 45

AVE-5530 User Manual | 3
COMPLIANCE INFORMATION
Declaration of Conformity
Avocor hereby declares that the following Product Model Number:
AVE-5530
conforms to the provisions of the following regulations:
•FCC:
oFCC CFR Title 47 Part 15 Subpart B Class A, CISPR22
oANSI C63.4
oICES-003
•CE:
oEN55032
oEN55035
oEN61000-3-2
oEN61000-3-3
•cULus:
oUL 62368-1
oCAN/CSA-C22.2 No. 62368-1
•CB:
oIEC 62368-1
•EEL
•Energy Star V8
CAUTION
Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
Industry Canada (ICES-003)
CAN ICES-3 (B)/NMB-3(B)
Product Disposal
The Product contains small amounts of tin, lead, and/or mercury. Disposal of these materials may be
regulated due to environmental considerations.

AVE-5530 User Manual | 4
Disposal of Old Electrical and Electronic Equipment
Applicable throughout the European Union and other European countries with separate collection programs
This symbol, found on your product or on its packaging, indicates that this product should
not be treated as household waste when you wish to dispose of it. Instead, it should be
handed over to an applicable collection point for the recycling of electrical and electronic
equipment. By ensuring that this product is disposed of correctly, you will help prevent
potential negative consequences to the environment and human health, which could
otherwise be caused by inappropriate disposal of this product.
The recycling of materials will help to conserve natural resources. This symbol is only valid in the European
Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.

AVE-5530 User Manual | 5
INTRODUCTION
Your new Avocor AVE-5530 display is an ultra-high definition interactive touch display supporting full range
4K@60hz resolution, up to 20 simultaneous touch points, multiple source inputs for your computers and
peripheral devices, and our new intuitive UiQ.
Our AVE-5530 display follows our agnostic approach to interactive displays: they are compatible with a wide
range of hardware and software, making it a great addition to any interactive meeting-room solution.
Whether you need a virtual meeting space for your conference room, or a powerfully adaptive whiteboard or
presentation hub for your classroom, the Avocor AVE-5530 will exceed your expectations.
About This Manual
This user manual was written to help you get the most out of your display.
In addition to detailed descriptions of the display and its features, this manual will guide you through the
installation and setup processes and provide tips, tricks, and best practices on how best to utilize the display.
We make every effort to ensure that this manual is accurate as of the date is was printed. However, it may
require periodic updating due to ongoing product improvements and customer feedback. Find the latest
version of our manuals at Avocor.com.
Textual Conventions
The following textual conventions are used in this manual to denote certain actions or information for
clarification purposes. Here are the details:
•Remote control and display keypad controls are set in CAPS. For example, "Press OK on the remote
control to accept your changes."
•Menus in the OSD and computer interface are in bold. The ">" symbol is used to help denote
submenu navigation. For example, "Open Display > Picture > Advanced Settings to adjust various
picture settings."
•Keyboard keys with functional names are capitalized and set in <Angle Brackets>. For example,
"press <Enter> to make your selection."
•In addition to the above, underlining, italics, or a combination of the two are used periodically to
help emphasize key points in the text of this manual.

AVE-5530 User Manual | 6
Graphic Conventions
The following symbols appear throughout this manual to emphasize key points. Keep these in mind not only
to benefit from their advice, but also to avoid problems with the display or personal injury.
TIP Highlights helpful guidelines and best practices for using certain features.
NOTE Provides supplemental information and emphasize text of special significance.
CAUTION Alerts that given actions may degrade the performance of the display or cause a
malfunction.
WARNING Alert that a given action may result in damage to equipment or personal injury.
DANGER Alert that a given action may cause serious personal injury or death.

AVE-5530 User Manual | 7
WHAT'S IN THE BOX?
•Avocor AVE-5530, 55" Interactive Display
•Quick Start Guide with QR code
•Remote Control & Batteries
•(2) Touch Stylus 3mm
•Power Cables
oUS Cable 2m
oUK Cable 2m
oEuropean Cable 2m
•(1) HDMI cable 3m
•(1) USB-C cable 1.5m
•(1) USB-A 3.0 cable 3m
•Cleaning Cloth

AVE-5530 User Manual | 8
SPECIFICATIONS
AVE-5530
Diagonal Size (Inches)
55
Backlight
Backlit LED
Aspect Ratio
16:9
Resolution
3840 x 2160 @ 60Hz
Response Time
8 ms
Brightness
370 (cd/m2)
Contrast Ratio
4000:1
Viewing Angle
178°/178
Supported Colors
30 Bit Deep Color
Display Orientation
Landscape
Touch System
Touch
Up to 20 Point Avocor Intelligent Touch – Supports 1 fine tip stylus
Glass
2mm Bonded, Anti-Glare, Anti-Fingerprint Glass
Supported OS
Windows 8 & 10; Mac OSX; Linux
Connectivity
Guest Inputs
1x HDMI 2.0, 1x USB-B Touch 3.0, 1x USB-A 3.0 Hub, 1x Type C
Side Inputs
2x HDMI 2.0, 1x DisplayPort 1.2, 1x USB- Touch 3.0
Other Inputs
1x USB-A 3.0, 1x USB Service Port, HDMI Out (4K@60Hz)
Audio
1x 3.5mm Audio Out, 1x Optical (SPDIF)
Control
1x LAN Ethernet (RJ-45) in, 1x LAN Ethernet (RJ-45) out, 1x RS232 (DB9 Female)
OPS Slot
Yes, 3840 x 2160 @ 60Hz
Audio
Built-in Speakers
2x 15W – Forward Facing
Display Functions
Auto-source detection, Source Preview, Wireless Presentation, Blank, Freeze
Physical Specifications
Product Dimensions
1286 x 78.4 x 802 mm / 50.6 x 3.1 x 31.6 in
Shipping Dimensions
1415 x 270 x 932 mm / 55.7 x 10.6 x 36.7 in
Weight
Net: 32.5 kg / 71.65 lbs | Gross: 44.5 kg / 98.11 lbs
Wall Mount (VESA)
400 x 600 mm
Handles
2
Power
Power Supply
AC100 – 240V (Worldwide), 50/60Hz
Max Power Consumption
<220W
Standby
≤0.5W
Environmental
Operating Temperature
0°C ~ 40°C / 32° F ~ 104° F
Storage Temperature
-20° C ~ 60° C / -4° F ~ 140° F
Humidity
20% ~ 80%
Warranty
Global
3 Year RTB with optional upgrades available (contact your reseller for more info)

AVE-5530 User Manual | 9
THE DISPLAY, AT A GLANCE
The following diagrams depict the front, side, and bottom panels of the display. The physical interface and
connections are labeled, and then described in the tables that follow.

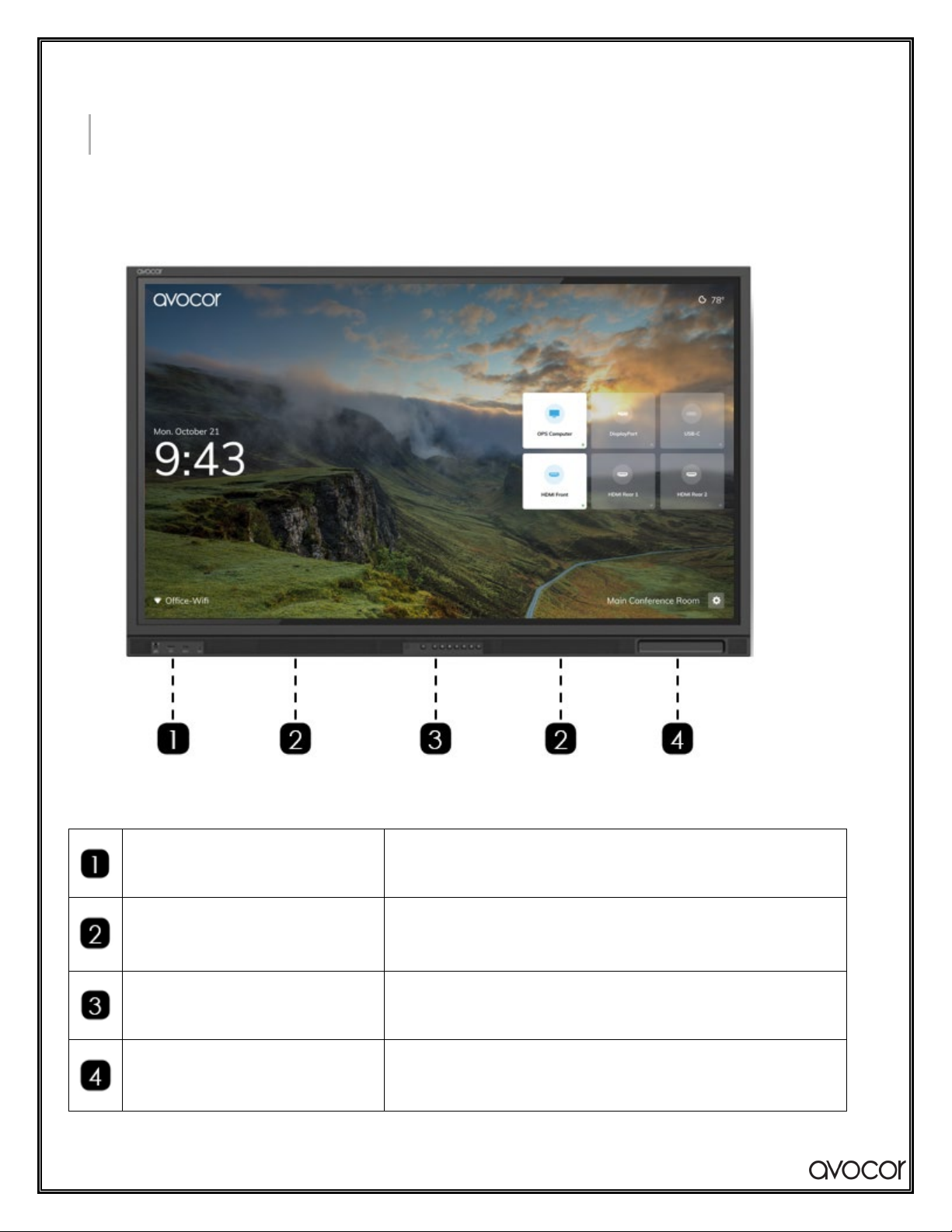

Front Panel
Front Panel Interface/Guest Inputs HDMI 2.0, USB Type C, Touch USB 3.0, USB 3.0 (Accessory Port)
Front Panel Speakers 2 X 15W; 12V
Front Panel Interface See Page 9 for more details.
Pen Tray Magnetized pen storage!

AVE-5530 User Manual | 10
Back Panel
Main Power Switch A/C Rocker Switch; toggles all power to the display.
Power Cord Socket Three-pin A/C Jack.
OPS Slot TX25A-80P standard OPS input; compatible with non-standard OPS-C structure.
Rear Source Inputs DisplayPort, HDMI 1, HDMI 2, USB Touch 3.0, USB 2.0 (Accessory), Audio Line Out,
VGA Audio, VGA, USB 3.0 (Accessory), HDMI Out.

AVE-5530 User Manual | 11
Front Panel Interface
[FPO]
LED Two-color
indicator Indicates the power status of the display.
Light inlet
window Ambient visible light detector.
Power Turn the display on/off.
Source Switch sources.
Menu Open UiQ Settings.
Home Access the Home screen.
Volume - Short press to reduce one level of volume; Long press, continue to reduce the
volume.
Volume + Short press to increase the volume; Long press, continue to increase the volume.
Freeze "Freeze" the active image on the display; press again to resume normal
operation.
Blank Disables the backlight.

AVE-5530 User Manual | 12
Front Panel Guest Inputs
USB Touch
USB Touch 3.0 Guest Input.
USB 2.0
USB Accessory Input.
HDMI
HDMI Guest Input.
Type C
USB Type C Guest Input for video and Touch

AVE-5530 User Manual | 13

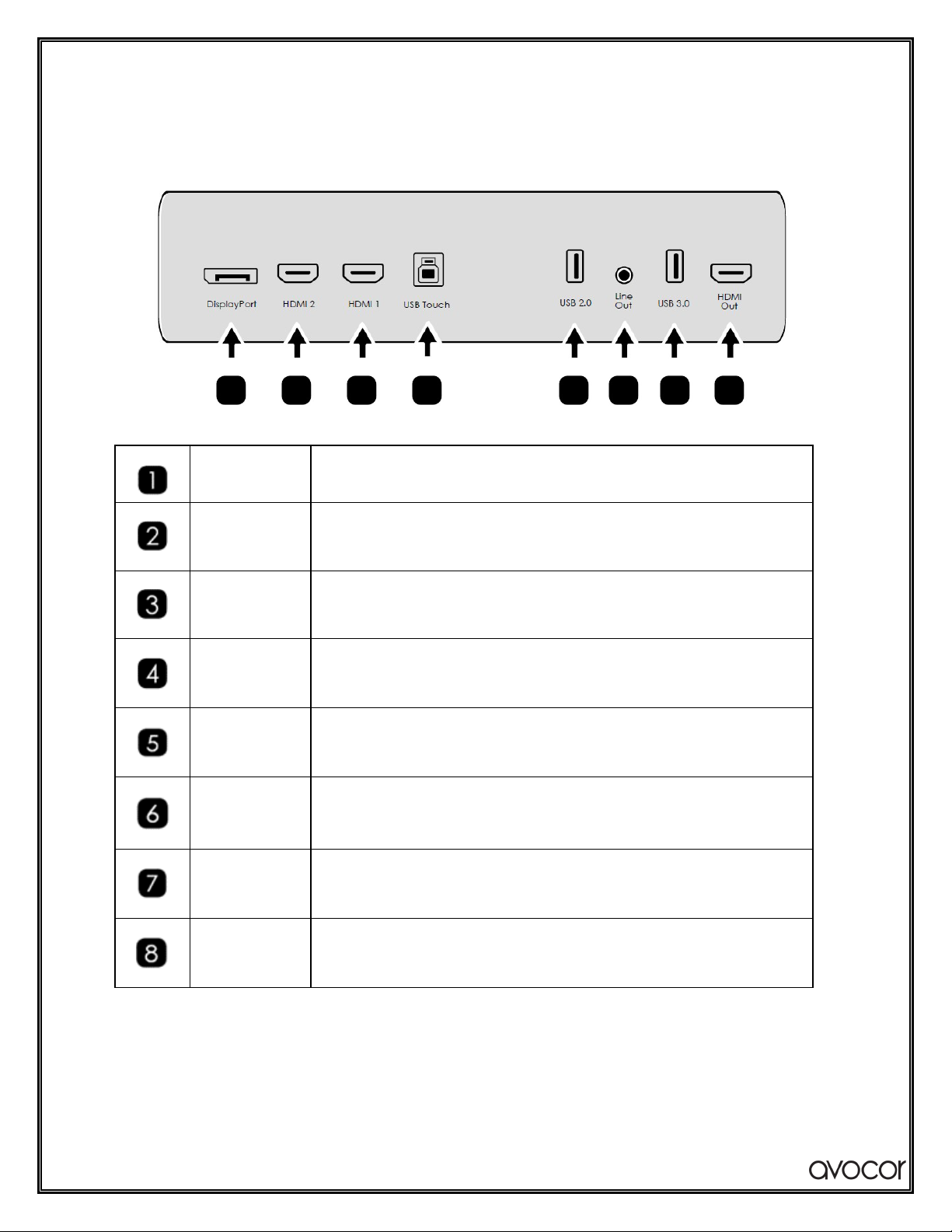

Rear Source Inputs
DP DP1.2 & HDCP2.2.
HDMI1
HDMI2.0B & HDCP2.2.
HDMI2 HDMI2.0B & HDCP2.2.
USB Touch USB 3.0 Type B for touch control.
USB 2.0 USB 2.0 accessory port.
Line out 3.5mm Analog audio output (no mic).
USB 3.0 USB 3.0 accessory port
HDMI Out HDCP compliant HDMI out.
1
2
3
4
5
6
7
8

AVE-5530 User Manual | 14

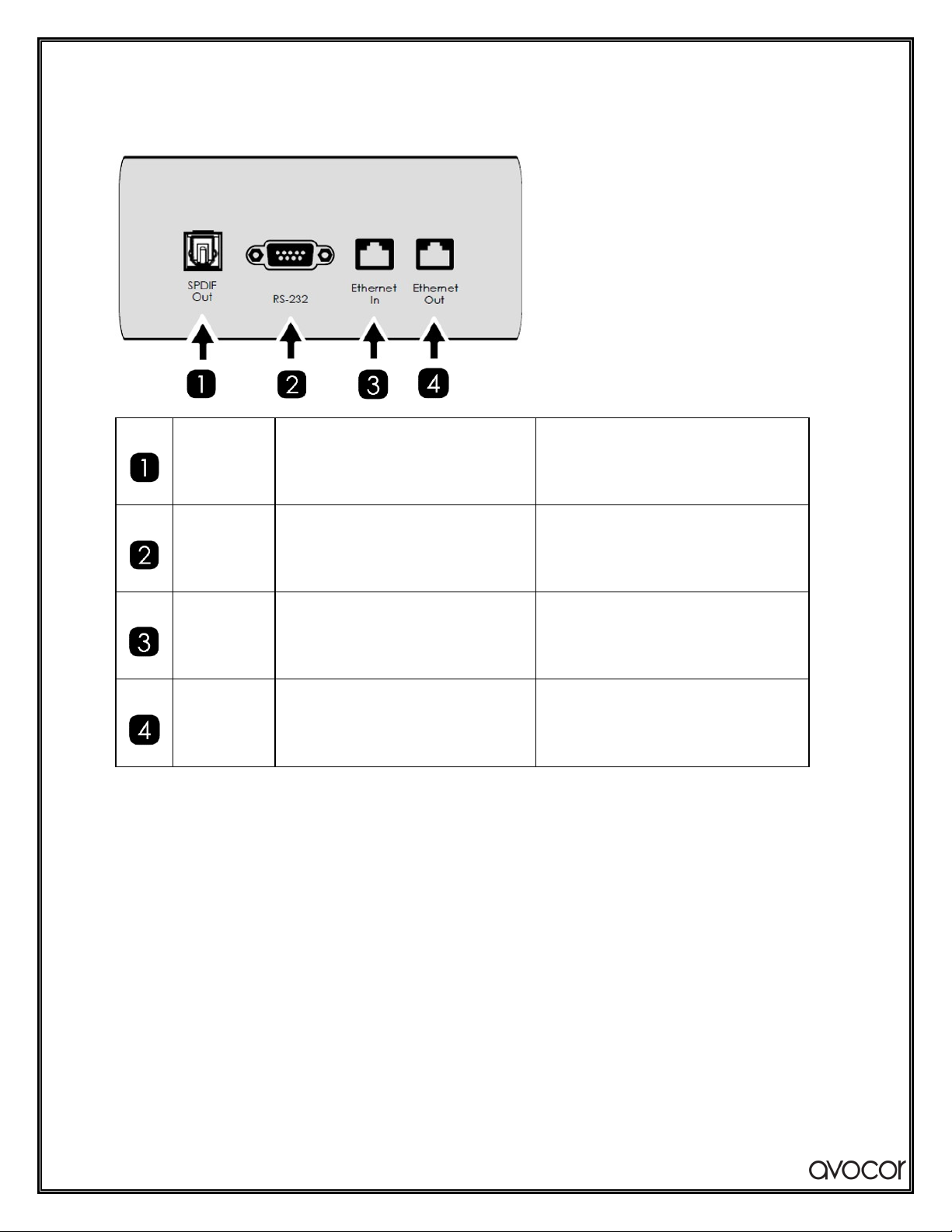

Bottom-Rear Panel Inputs
SPDIF Out Sony/Phillips Digital Interface
Connect external and digital powered
speakers, or an audio receiver or
amplifier.
RS232 DB9 Female Input For interfacing with a PC or
automation/control system.
Ethernet In RJ45 Input Lan In, 10/100Mbps.
Ethernet Out RJ45 Output Lan Out, 10/100Mbps.

AVE-5530 User Manual | 15
INSTALLATION
Please read the following precautions carefully before installing your new Avocor AVE-5530 display.
Failure to comply may result in damage to the display and equipment and may result in personal injury or
death.
•DO NOT install the display in a high temperature environment or near any apparatus that produce
heat.
oThis may cause damage to the panel and equipment. It may also cause personal injury due
to electrical shock resulting from overheating.
•DO NOT install the display in a high humidity environment or an environment where it can come into
contact with water.
oThis may cause damage to the panel and equipment. It may also cause personal injury due
to electrical shock resulting from overheating.
•DO NOT overload outlets or cables beyond their electrical capacity.
•DO NOT insert the power plug into an outlet rated outside the range of 100~240V A/C.
•DO NOT insert the power plug into a damaged outlet.
•DO NOT use a worn or damaged A/C power cable.
•DO NOT use an improper or mismatched A/C power cable.
•DO NOT place the display on an unstable shelf or surface.
•DO NOT place objects on the display as instructed below:
oDo not cover the vents on the display.
oDo not allow liquid or small particles to enter the vents or other parts of the display.
oDo not put heavy objects on the display.
•Please allow room between the wall and the display panel to maintain proper ventilation and avoid
overheating.
•Make sure you use the handles on the back of the display while lifting or moving the display, to avoid
touching the front panel during the move.
•When unpacking, and carrying the display please follow these guidelines:
o2 people are needed for displays up to 55”
Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and
the mount.

AVE-5530 User Manual | 16
Ambient Considerations
Environmental and ambient factors play a considerable role in determining your viewing experience and the
functional operation of the display. Make sure to follow these guidelines carefully to get the most out of your
display.
AMBIENT LIGHT
For the best viewing experience, make sure to minimize or remove light sources directed at the screen,
especially sunlight.
Any direct light may make images on the screen appear washed out and less vibrant, and direct sunlight may
even affect touch control operation.
AMBIENT TEMPERATURE
Maintain the ambient temperature of the room at a consistent level. This will ensure that the display
continues to operate smoothly.
Do not place the display near heat sources or air conditioning vents, and do not operate or store the display
in temperatures above 40 degrees Celsius (104 degrees Fahrenheit).
VENTILATION
The display should maintain a proper operating temperature provided that the ambient temperature is not
too high, and that the vents on the display have enough room to disperse any heat emanating from the
display.
Do not block the vents on the display! Leave a space of about 4 inches between all sides of the display
and surrounding walls or objects, as shown in the figure, below.

AVE-5530 User Manual | 17
Mounting the Display
The three primary types of mounting solutions are Stationary Stands, Rolling Carts, and Wall Mounts. This
chapter will examine each type and how they might fit into your installation.
NOTE
Leave mounting to the installation specialists.
Always make sure that your stand, or mount/wall is rated to hold the weight of your
display.
Make sure that the surface you place the mount or stand upon can support the weight
of your display.
Make sure the tilt degree of the display does not exceed 2°.
Always get help when moving or mounting the display.
o2 people are needed for displays up to 55”
STATIONARY STANDS
Stationary stands can come in the form of tabletop stands or floor stands. These stands are worthwhile for
either permanent or temporary installations; they are less mobile than rolling carts but are a bit more flexible
than wall mounts.
WARNING
If you decide to implement a tabletop stand, make sure that the table or surface you
plan to place the display on can support the weight of both the display and the stand.

AVE-5530 User Manual | 18
ROLLING CART
As the most mobile of mounting solutions, the rolling cart is perfect for those who want a flexible setup that
can be taken to different rooms.
WARNING
At least two people are needed to move a rolling cart with a mounted display.
When moving your cart, make sure that you have a clear path to your destination and
be sure to warn other people around you.

AVE-5530 User Manual | 19
WALL MOUNT
Though immobile and possibly the most time-consuming install, wall mounts benefit from the fact that they
take up much less space than their counterparts. This is a great option for those who want a permanent
sleek-looking setup, especially if extra time is taken to route any cabling through the wall.
WARNING
The wall must be capable of supporting a redundant weight factor of 3x the weight of
the display or be reinforced to support a 3x redundant weight factor.
Use only approved wall-mounting kits; talk to the installation experts for their
recommendations and advice.
