AVOCOR AVE-7510 User manual

AVE Series
Quick Start Guide
AVE-6510, AVE-7510, AVE-8610

v.08_08_2018 2
E Series Quick Start Guide Table of Contents
3. Contents of Packaging
4. The Display at a Glance
7. Display Input Sources
9. The Remote Control
10. Switching the display on and off
Source Selection
Connecting to the Display
11. Connecting to an external PC using a HDMI connection
12. Connecting to an external PC using a DisplayPort connection
13. Enabling the Touch System
14. Installing an OPS Module
15. Warranty Support

v.08_08_2018 3
Contents of Packaging
1. Accessory Carton
•Quick Start Guide
•Remote Control & Batteries
•2x Touch Stylus – 1x3mm & 1x6mm
•Eraser
•Power Cables - UK Cable 2m & European Cable 2m
•2x 3m HDMI Cable
•2x 3m USB-A – USB-A Cable
•Cleaning Cloth
•Pen Holder
Please visit www.avocor.com to download the full E-Series user manual
and the Pen Aware Touch Drivers.

v.08_08_2018 4
The Display at a Glance
Front View
Rear View

v.08_08_2018 5

v.08_08_2018 6
Front Buttons
Button
Operation
Function
Power Short Press
Power on/off Indicator
LED status:
● Solid Red : Sleep mode
● Solid Green : Working state
● Blinking Red and Green : Standby mode
Menu Short press Open the Settings menu
Source
Short press
Open the Source menu
Mute Short press Mutes the audio
VOL -
Short press
Decrease the audio volume in steps
Long press - more than 1 sec Decrease the sound volume continuously
VOL+ Short press Increase the audio volume in steps
Long press - more than 1 sec Increase the sound volume continuously

v.08_08_2018 7
E-Series Display Inputs
Front Ports

v.08_08_2018 8
Rear Ports

v.08_08_2018 9
Remote Control
Label
Description
Turns the display on and off.
Select the OPS PC source.
Blanks the display. Press again to restore.
Freezes the display. Press again to restore.
Navigates through menus and settings.
Selects highlighted menu choice
When the menu system is already open, pressing
this button will close the on screen menu.
Opens the display menu system.
Mutes the audio. Pressing Mute again restores the
audio
Decreases the Volume by pressing the - key
Increases the Volume by pressing the + key
Opens the Source Menu.
Selects DisplayPort
Selects the HDMI Sources
Selects each aspect ratio, in sequence: Full
Screen, Auto, Pillar Box

v.08_08_2018 10
Switching the Avocor display on and off
Switching on
1. Plug the end of the supplied power cord into side of the display
2. Connect the other end to the power source.
3. Turn on the main power switch at the side of the display. The power LED indicator lights
Red to indicate that the display is in “standby” mode.
4. Press the Power button and the power LED indicator on the left-hand side of the display
will then light up in green, which tells you that the screen is switched on.
5. After a brief warm-up period, the display will display an image
Switching off
1. Switch the display off by pressing the Power button on the display.
2. The display will then cycle and shut down.
Selecting the Source
You can access several sources on the Avocor E-Series display including, HDMI,
DisplayPort, & OPS.
The Source button is located on the Connect & Control Bar or on the Remote Control.
Once the menu has been selected, you will see the option to select the source you
require.
HDMI 1, HDMI 2, HDMI 3, DisplayPort, OPS, & Front HDMI
If there is no active signal from the chosen source, the screen will display the following
message: “No Signal”.
Connecting the Display
Proceed as follows to connect the display to your video sources, external controller.
When connecting your equipment:
1. Turn off all equipment before making any connections.
2. Use the correct signal cables for each source.
3. For best performance and to minimise cable clutter, use high-quality cables that are
only as long as necessary to connect two devices. (Don't use a cable longer than 5
metres).
4. Ensure that the cables are securely connected.

v.08_08_2018 11
Connecting to an external PC using a HDMI
connection
In addition to a HDMI connection, a USB touch connection is required when connecting
an external PC.
1. Connect the enclosed HDMI cable to the HDMI port of the touchscreen and to the
external PC.
2. Connect the enclosed USB cable to the corresponding touch USB port (USB-A) of
the touchscreen and to the USB port (USB-A) on the external PC.
3. Using the Remote Control select the HDMI source button or press the Source Button
(see operating buttons) on the Front Connection bar to select HDMI.
This display supports the VESA Display Data Channel (DDC)
standard. This standard provides “Plug and Play” capability;
the display and a VESA DDC-compatible computer
communicate their setting requirements, allowing for quick
and easy setup.
In order for Plug and Play to work correctly, you must turn
on the display before you turn on the connected
computer.
We recommend using a USB cable that is no longer than 5
metres.

v.08_08_2018 12
Connecting to an external PC using a
DisplayPort connection
In addition to a DisplayPort connection, a USB touch connection is required when
connecting an external PC.
4. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the
external PC.
5. Connect the enclosed USB cable to the touch USB port (USB-A) of the touchscreen
and to the USB port (USB-A) on the external PC.
6. Using the Remote Control select the DisplayPort source button or press the Source
Button (see operating buttons) on the Front Connection bar to select DisplayPort.
In order for Plug and Play to work correctly, you must turn on
the display before you turn on the connected computer.
We recommend using a USB cable that is no longer than 5 metres.

v.08_08_2018 13
Enabling the Touch Screen
Before setting up your display to support touch screen capability, ensure that:
•The touch screen controller host computer is turned off.
•The display is turned on.
•The video output from the computer is connected to a video input on the display.

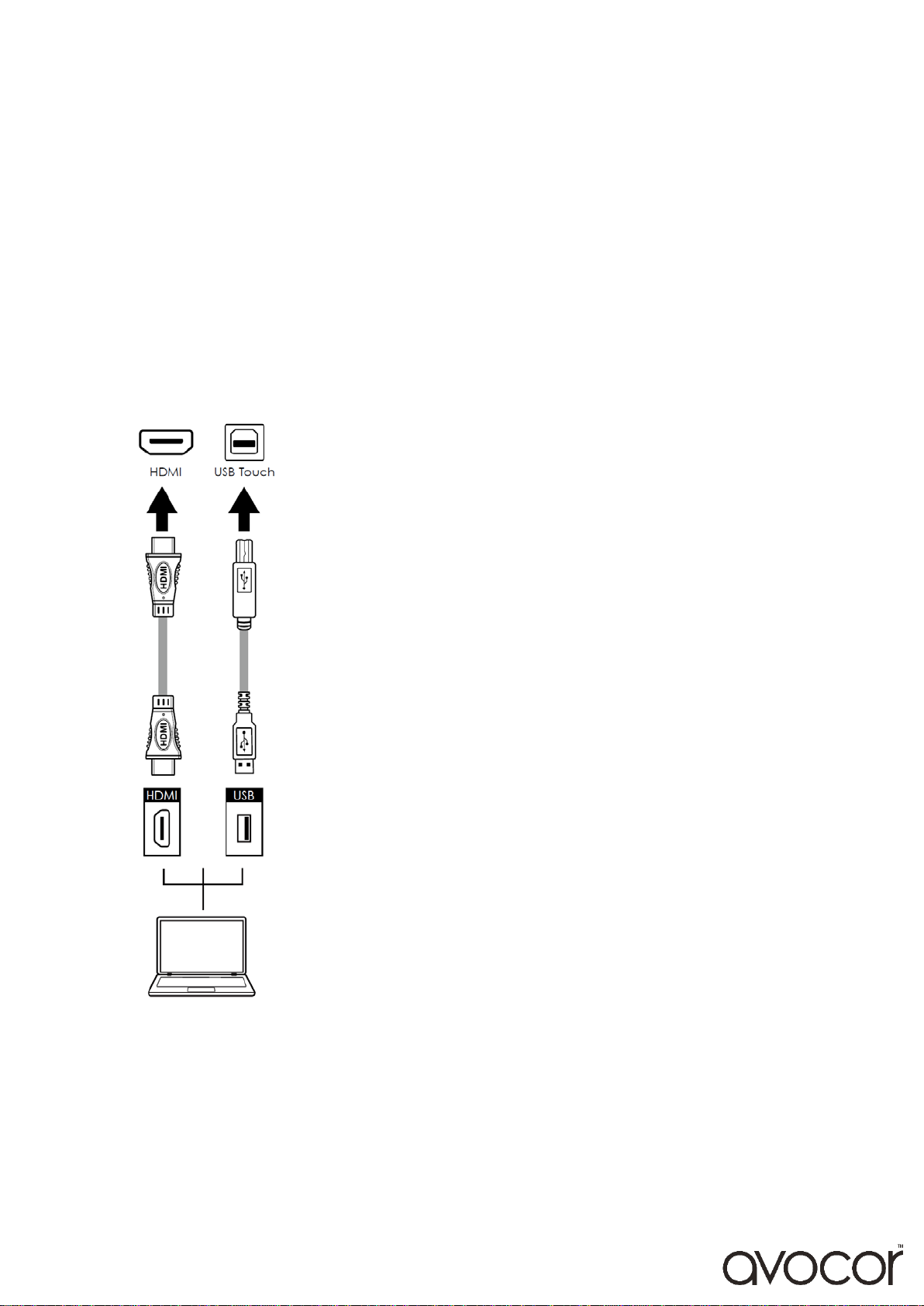

Connecting the Display to a Host Computer
1. Connect the signal cable to the display, and then turn on the display.
2. Connect the USB Cable (USB Type-A connector) to the display.
3. Connect the other end of USB cable (USB Type-A) to the USB port on the laptop/ PC.
See picture below.
4. Then turn on the computer.
5. When USB cable is fully connected, wait for 5 seconds and the touch function is
ready. It can be activated by using the stylus or finger.

v.08_08_2018 14
Installing an OPS Module
Follow the steps below to install an OPS module.
Step 1. Ensure that the display is turned off
Step 2. Use a screw driver to unscrew the OPS slot shield on the display input panel. Do not
lose the screws that are removed.
Step 3. Install the OPS module by sliding it into the OPS slot until you hear a click, indicating
the module is securely inserted. When using an Avocor OPS PC, the fan should be visible
Step 4. Secure the OPS module in position by screwing it onto the display input panel using
the screws that were removed earlier.
Step 5. Ensure the installation is complete before turning on the power.
Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on
the side of the OPS, this will indicate that the OPS PC is switched on and operational.
Note. When installing or de-installing an OPS PC, the display must be switched off. If the display is on when
performing the installation or deinstallation of the OPS PC, this could cause damage to either the display or OPS
PC invalidating the warranty for both.
Step 2
Step 3
Step 4
Step 5

v.08_08_2018 15
Warranty Support
Should you require assistance with any suspected hardware fault, please contact the
Warranty Support team. Please provide as much information to the support team about
the fault and any steps you have taken in trying to try and resolve the fault.
Remember the first instance to look for known faults and how to resolve them on the
avocor Website www.avocor.com/support
Organisation Name
Contact Person
1st Contact Number (Landline)
2nd Contact Number (Mobile/Cell)
Email
Address
(of on-site repair or unit exchange)
City
State
Postcode/ZIP
County/State
Days and hours of operation
Loading & Parking Available? (Yes or No)
Reseller Information (If Known)
Organisation Name
Contact Person
Contact Number (Landline)
Email
Product Information
Product / Model
Serial Number
Date of Purchase (If Known)
UK Warranty Support
UK & EMEA. Tel +44 ( 0) 1276 804 654 - [email protected]
