Installation
1. Reach inside facepiece and hold nosecup away from
vision correction assembly
2. Place the vision correction support frame on the stand-
off and push it down
3. Flex the facepiece in the temple strap area on the left
or right sides of the mask; gently push the support
frame-mounting tabs into the vision correction
mounting socket.
Vision Correction Assembly

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Vision Correction Assembly
Removal
1. Hold nosecup away from vision
correction assembly
2. Push the vision correction support
frame up to remove from the stand-off
3.
4. Flex the facepiece in the temple strap
area on the left or right sides of the
mask
5. Gently pull the vision correction
mounting tabs from the socket

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.

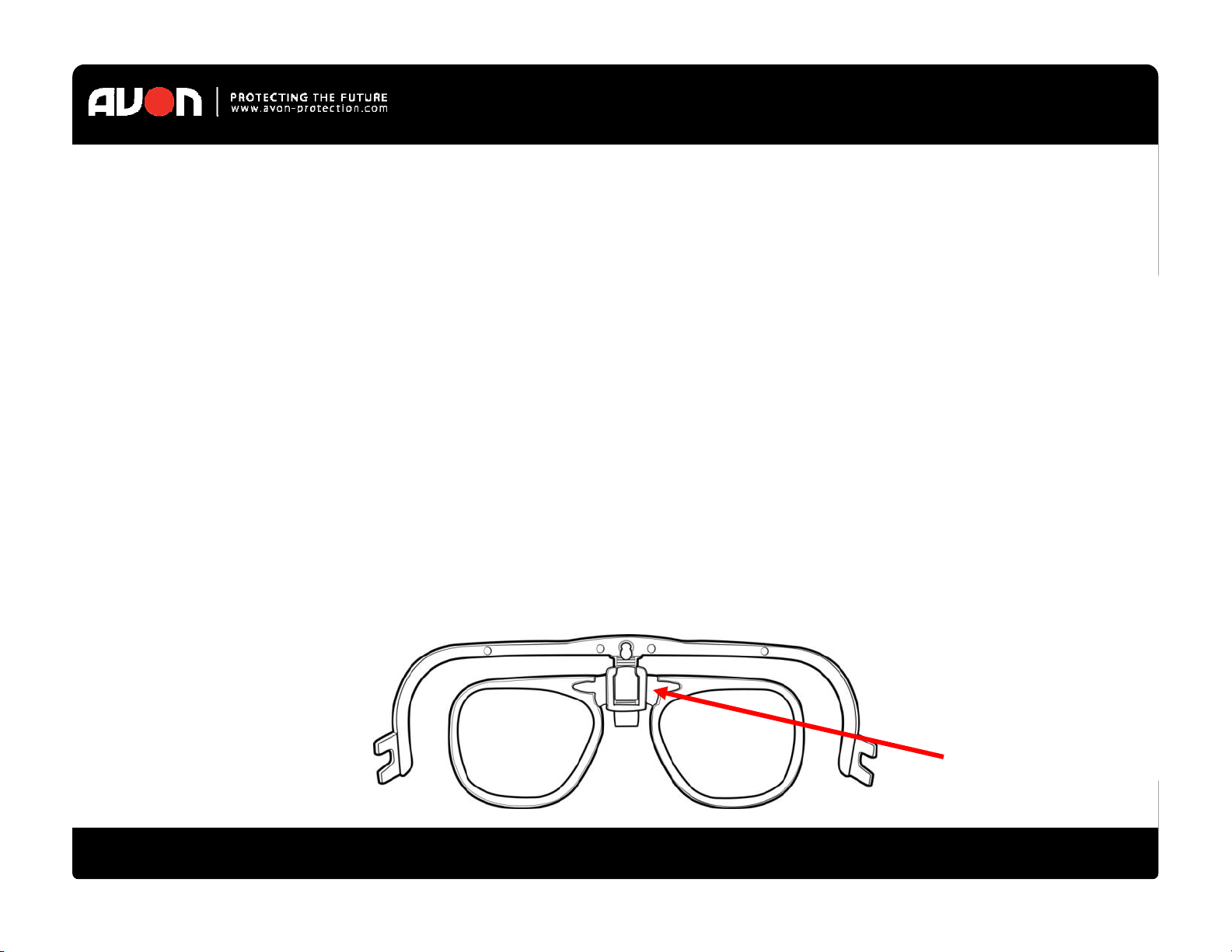

Vision Correction Adjustment
1. Don the mask; Eyes should be centered but if not determine
which direction the adjustment should be made – up or down
2. Doff the mask
3. Loosen the spectacle frame assembly cam lock
4. Slide frame assembly up or down to adjust
5. Lock in place with cam lock
6. Don and recheck adjustment
Cam Lock

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Changing filter side
•The C50 allows for LH and RH filter
configuration
•Filter plug can only be removed used the Avon
filter plug removal tool
•Insert tool into plug and unscrew anti-clockwise
to remove
•Inspect gasket, if damaged replace
•Insert filter plug into opposite filter mount after
inspecting gasket
•Use filter plug tool to tighten plug in a clockwise
direction
•Tighten well
•Leak test mask prior to re-use
This is a level 2 trained technician task
Filter plug
Filter plug
removal tool

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
C50 Protective Mask
Cleaning and Sanitizing

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
CAUTION
DO NOT use a high-pressure hose to clean mask, it may damage components.
CAUTION
DO NOT use hot water to clean the mask. Damage to the mask may result. Use warm
(comfortable to the touch) water.
WARNING
DO NOT use tissue paper or a paper towel to remove dirt or moisture from front
module cover, outlet valve, or outlet valve seat. Paper may break up and lodge in
outlet valve area causing leakage.
NOTE
Masks are to be cleaned as often as is required. However, MASK MUST BE
CLEANED AND SANITIZED BEFORE TRANSFERRING TO ANOTHER USER.
Use only potable water to clean mask.
Cleaning may be performed by the operator but must be closely supervised and
inspected by the NBC NCO or other trained personnel.
Cautions, Warnings & Notes

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Types of Cleaning & Sanitizing
• Light Cleaning
• Heavy Cleaning/Sanitizing

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Supplies Required
• Brush, scrub
• Bulb, aspirator
• Calcium hypochlorite (HTH)
• Cleaning compound, optical lens
• Cloth, cheesecloth
• Gloves, chemical and oil
• Isopropyl rubbing alcohol
• Pail, utility
• Soap, toilet

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
1. Remove mask assembly
2. Remove the VPU if attached
3. Remove dynamic microphone and microphone
adapter
4. Remove the filter.
5. Remove the hood if attached
6. Remove drink coupler from its housing.
7. Remove inlet valve disc
8. Remove greasy or oily substances with alcohol
Mask Preparation

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Light Cleaning
1. Using cheesecloth Clean:
• Facepiece
• Inlet valve disc
• Filter
2. Rinse by wiping with cheesecloth

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Heavy Cleaning
1. Remove all components and immerse and agitate
until all sand and dirt has been removed
2. Rinse in clear, warm water.
3. Dry with cheesecloth or allow to air dry.
4. Perform drink tube procedures (will discuss next
slide)
5. Install inlet valve disc in filter mount assembly.
6. Replace components
7. Perform function checks
8. Repack mask carrier

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Drink System Cleaning
1. Fill the canteen with water replace cap.
2. Connect the drink coupler and open the shut off
valve.
3. Hold the mask upside down and allow water to flow
through the drinking system. Repeat twice.
4. Remove the canteen cap blow from the canteen
through the mouthpiece
5. Remove the drink coupler from the canteen
cap/Camelbak
6. Check the drinking system for proper function.

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Sanitizing the Mask
1. Assure that calcium hypochlorite is fully dissolved
2. Remove all components and immerse in sanitizing solution
for 5 minutes; then agitate 3 minutes.
3. Rinse in clear, warm water.
4. Dry with cheesecloth or allow to air dry.
5. Perform drink tube procedures
6. Install new inlet valve disc
7. Replace components
8. Perform function checks.
9. Repack mask carrier.

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Sanitizing the Drink System
1. Fill canteen/Camelbak with calcium hypochlorite solution
2. Position facepiece face-up and connect the drink coupler
3. Open the shut off valve and invert canteen/Camelbak above
facepiece.
4. Squeeze canteen/Camelbak to force the sanitizing solution
through the quick disconnect drink coupler.
5. Lower canteen/Camelbak to upright position or squeeze sides
to vent canteen.
6. Rinse twice with clear water using the same process.
7. Remove the coupler and blow through the mouthpiece using
the bulb aspirator.
8. Dry all parts with cheesecloth or allow to air dry.

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Cleaning the Mask Carrier/Individual Equip. Carrier
1. Soak brush in pail of cool water then shake to
remove water.
2. Empty mask carrier/accessory pouch.
3. Remove dirt and foreign matter.
4. Use a damp/dry brush to clean exterior
5. Ensure the carrier, accessory pouch and mask
components are completely dry before repacking
mask.

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Operation and Storage Conditions
• Prior to issuing, the mask and filters should be stored in
their original packaging.
• Storage temperatures should be room temperature
(normal warehouse storage typically 15°C-25°C)
• Once the mask has been issued, it should be stored in
its carry bag.
• Avoid placing your mask where it may get crushed or
damaged by heavy items.
• Avoid long exposures to temperature extremes
76

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Operation and Storage Conditions
• Your FM12 mask is capable of operating within the
temperature range -25°C to +70°C. (~ -40°F to ~ 150°F)
• While operational and your mask is not being worn, it
should be kept in its carry bag.
• You should avoid carrying any other items in your carry
bag that may damage your mask.
• Avoid crushing your mask by sitting on it or placing it under
other objects
77

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Summary
As a level 2 Operator, you should now know how to:
• Properly size and fit a C50 correctly
• Properly don and doff your mask
• Be aware of the importance of the filter
• Correctly clean your mask
• Inspect and change replaceable components
78

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Summary
• Your C50 will save your life, but only if
you look after it correctly and you follow
the training you have been given
• If you have any questions in the future
please contact Avon Protection Systems
directly or through our Web Site:
www.avon-protection.com
79

C50 APR New Equipment Training Module – March 2010 Rev01 Avon’s products fall within the definition of significant military equipment in the United States Munitions list, International Traffic in Arms Regulations and may
only be supplied outside of the United States of America to customers who are licensed by the US Department of State, Directorate of Defence Trade Controls.
22 CFR 125.4(b)(5) applicable.
Questions?
80
