AVPro Edge AC-DA14-AU User manual

User Manual
AC-DA14-AUHD
A full 4K60 4:4:4 (Up to 18GBPS)
Distribution Amplifier with advanced EDID management
**Available in 1x2, 1x4, and 1x8
AC-DA14-AUHD
Page 1

Introduction
AC-DA14-AUHD is an 18GBPS, full bandwidth HDMI2.0a (HDR) with
HDCP2.2 four-way HDMI splitter. Functionally, distributes the input HDMI
signal to four identical HDMI outputs. These four outputs are synchronized.
AC-DA14-AUHD has the ability of pre-emphasis and equalization. Multiple
cascaded AC-DA14-AUHD achieves long distance transmission of HDMI signal of
more than 15 meters even in 4K (HDR) resolution.
AC-DA14-AUHD offers solutions for usage as a component of digital HDMI
distributions and entertainment systems also UHDTV/4K retail and general show
sites. Use in conjunction with UHDTV, UHD Projector, STB, UHD-BD, UHD Media
Player and in environment where noise, space and security are concerns. Fits
perfectly in data center control rooms, information distribution premises,
conference and presentation rooms, school educational facilities and
corporate training environments.
AC-DA14-AUHD
Page 2

Contents
HDMI Splitter .................................................................................................................... 2
Product Overview ............................................................................................................ 4
Features ............................................................................................................................. 4
Package Contents ............................................................................................................. 6
Connections and Operations ........................................................................................ 6
Specifications ................................................................................................................... 6
Panel Descriptions ........................................................................................................7-8
Typical Application .........................................................................................................15
Maintenance ................................................................................................................... 11
Product Service ..............................................................................................................12
Mail-In Service ............................................................................................................... 12
Warranty .......................................................................................................................... 12
Warranty Limits And Exclusions ................................................................................. 13
AC-DA14-AUHD
Page 3

Full 4K 60 (4:4:4) HDMI Splitter & Distribution Amplifier
■Product Overview ( Model Number: AC-DA14-AUHD)
■ Features
lEasy to Use: Install in seconds, no need for setting.
lDistribution: One HDMI input, four identical HDMI outputs.
lSupports up to 18GBPS with resolutions of 4K60(YUV444), 4K30, 1080p, 1080i, 720p and
other standard Video formats, PAL and NTSC.
lCustomer can configure EDID function to enable the best compatibility.
lSupports HDCP2.2
lHDMI 2.0(a) w/ HDR.
lMounting ears are included for easy fixation on wall, furniture or ceiling.
?Notice AVProEdge reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
AC-DA14-AUHD
Page 4

AC-DA14-AUHD
Page 5

■ Package Contents
①Main unit. P/N: AC-DA14-AUHD
②5VDC Power Supply.
③Mounting Ears
■ Connections and Operations
1) Connect the HDMI input source into AC-DA14-AUHD
2) Connect the HDMI output equipment (Displays) into AC-DA14-AUHD
3) Insert the DC side of 5v power supply into AC-DA14-AUHD and then
connect the AC side of the Power supply into the wall outlet.
4) Plugging in the unit automatically powers up the device.
&NOTE: Insert / Extract cables gently.
AC-DA14-AUHD
Page 6

■ Specifications

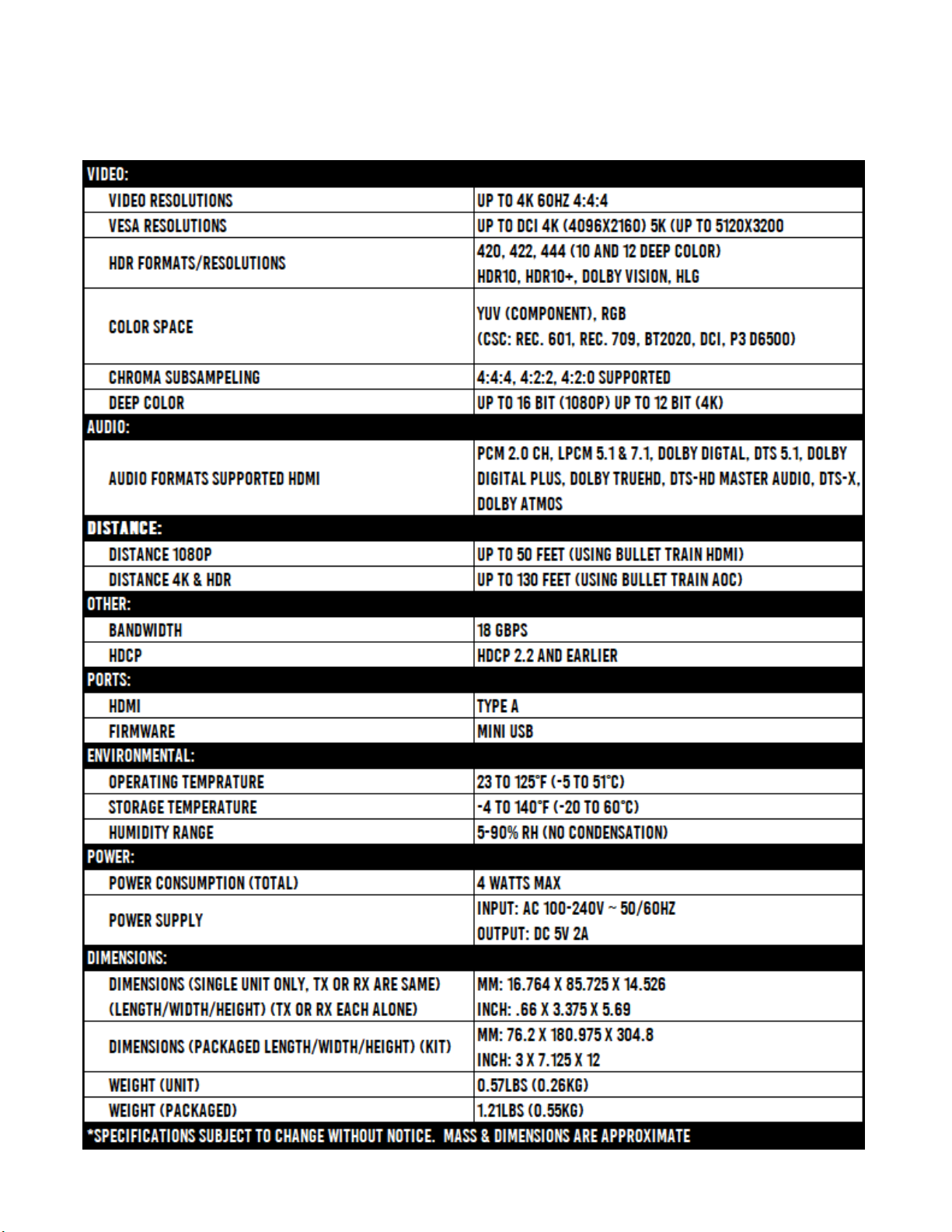

AC-DA14-AUHD
Page 7

①Power input.
②HDMI input.
③HDMI outputs (x4).
Device Top Cover
Device cover is labeled for DIP Switch (EDID setting) and ISP mini USB port and for
easy HDMI port recognition especially useful when Mounting Ears are used for
fixation. &NOTE: DIP Switch EDID setting index on next page.
Back Panel
AC-DA14-AUHD
Page 8

EDID Settings: The 5 DIP switches are located on the side of the device, and each switch
has two settings, 0 & 1 (UP=0, DOWN=1). The default mode is “00000” which is all up, in
this mode the device copies the EDID from the sink (display) plugged into OUTPUT 1.
Custom EDID settings are below.
10000: 1080P_2CH(PCM)_HDR
10001: 1080P_6CH_HDR
10010: 1080P_8CH_HDR
10011: 1080P_3D_2CH(PCM)_HDR
10100: 1080P_3D_6CH_HDR
10101: 1080P_3D_8CH_HDR
10110: 4K30Hz_3D_2CH(PCM)_HDR
10111: 4K30Hz_3D_6CH_HDR
11000: 4K30Hz_3D_8CH_HDR
11001: 4K60Hz(Y420)_3D_2CH(PCM)_HDR
11010: 4K60Hz(Y420)_3D_6CH_HDR
11011: 4K60Hz(Y420)_3D_8CH_HDR
11100: 4K60Hz_3D_2CH(PCM)_HDR
11101: 4K60Hz_3D_6CH_HDR
11110: 4K60Hz_3D_8CH_HDR
11111: Passthrough
EDID DIP Settings:
00000: EDID COPY (See NOTE 1)
00001: 1080P_2CH(PCM)
00010: 1080P_6CH
00011: 1080P_8CH
00100: 1080P_3D_2CH(PCM)
00101: 1080P_3D_6CH
00110: 1080P_3D_8CH
00111: 4K30Hz_3D_2CH(PCM)
01000: 4K30Hz_3D_6CH
01001: 4K30Hz_3D_8CH
01010: 4K60Hz(Y420)_3D_2CH(PCM)
01011: 4K60Hz(Y420)_3D_6CH
01100: 4K60Hz(Y420)_3D_8CH
01101: 4K60Hz_3D_2CH(PCM)
01110: 4K60Hz_3D_6CH
01111: 4K60Hz_3D_8CH
AC-DA14-AUHD
Page 9

Note1: EDID Copy mode: EDID will be copied from sink on OUTPUT 1. The
AC-DA14-AUHD is set this way by default for maximum “Plug & Play” Compatibility. If you
change sink (Display) plugged into OUTPUT 1, please follow the steps below if you wish to use
the new sink’s EDID.
1. Start with power off
2. Set DIP to ‘00000’ (all up).
3. Power on the unit
4. Power on the source device and connect the HDMI input port.
When Changing EDIDs, please follow the steps below
1. Start with power off
2. Set DIP to ‘00000’ (all up).
3. Power on the unit
4. Power on the source device and connect the HDMI input port.
AC-DA14-AUHD

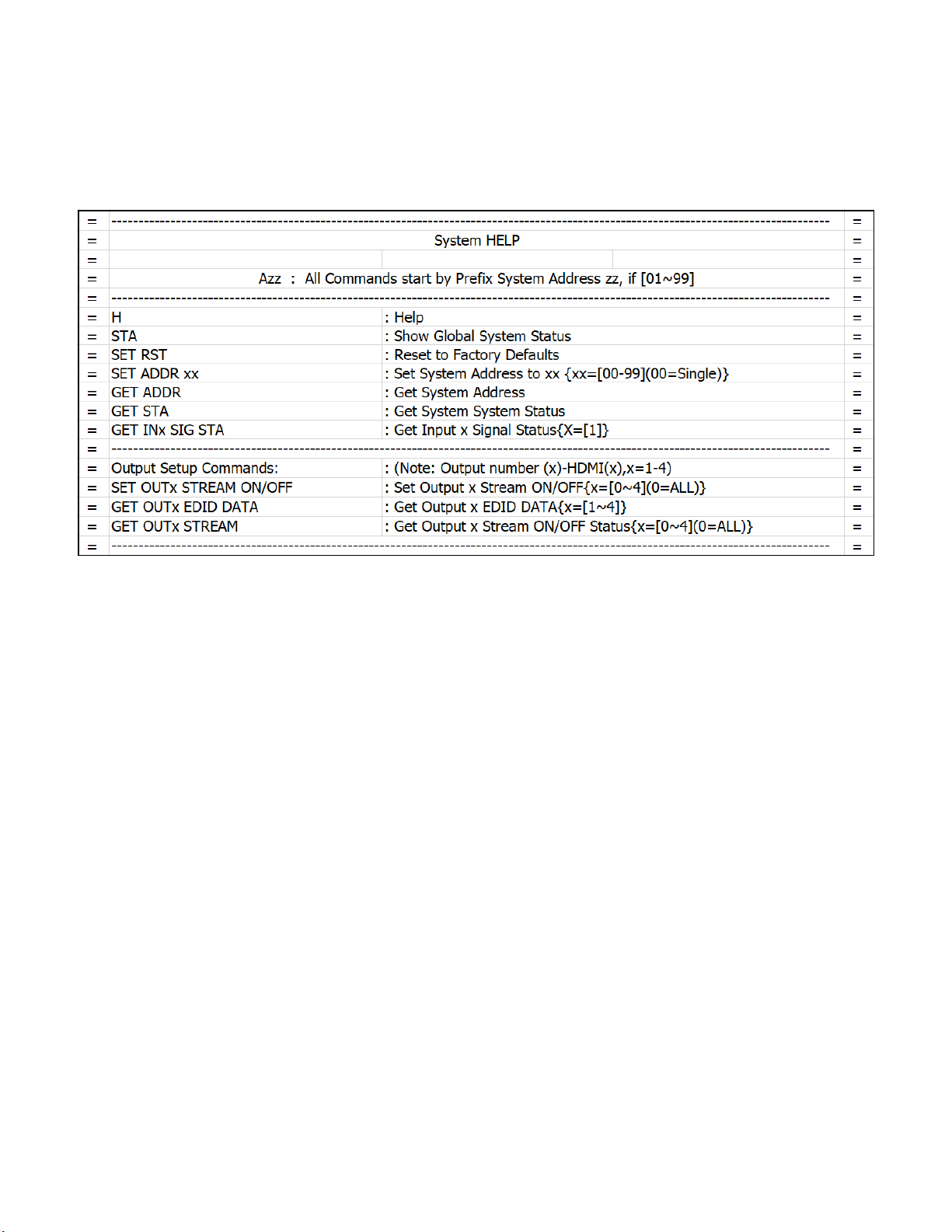

Page 10

AC-DA14-AUHD
Page 11

•Use the power supplies provided. If an alternate supply is required, check voltage,
polarity and that it has sufficient power to supply the device it is connected to.
•Do not operate these products outside the specified temperature and humidity range
given in the above specifications.
•Ensure there is adequate ventilation to allow this product to operate efficiently.
•Repair of the equipment should only be carried out by qualified professionals as these
products contain sensitive components that may be damaged by any mistreatment.
•Only use this product in a dry environment. Do not allow any liquids or harmful
chemicals to come into contact with these products.
•Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean
this unit.
Maintenance
To ensure reliable operation of this product as well as protecting the safety of any person
using or handling this device while powered, please observe the following instructions.
Damage Requiring Service
•The DC power supply cord or AC adaptor has been damaged
•Objects or liquids have gotten into the unit
•The unit has been exposed to rain
•The unit does not operate normally or exhibits a marked change in performance
•The unit has been dropped or the housing damaged
The unit should be serviced by qualified service personnel if:
AC-DA14-AUHD
Page 12

Support
Should you experience any problems while using this product, first, refer to the
Troubleshooting section of this manual before contacting Technical Support. When
calling, the following information should be provided:
•Product name and model number
•Product serial number
•Details of the issue and any conditions under which the issue is occurring
Warranty
If your product does not work properly because of a defect in materials or
workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the
period indicated as below, (Parts/Labor (10) Years), which starts with the date of original
purchase (“Limited Warranty period”), at its option either (a) repair your product with
new or refurbished parts, or (b) replace it with a new or a refurbished product. The
decision to repair or replace will be made by the warrantor. During the “Labor” Limited
Warranty period there will be no charge for labor. During the “Parts” warranty period,
there will be no charge for parts. You must mail-in your product during the warranty
period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is
required for Limited Warranty service.
This warranty extends to products purchased directly from AVPro or an authorized
dealer. AVPro is not liable to honor this warranty if the product has been used in any
application other than that for which it was intended, has been subjected to misuse,
accidental damage, modification or improper installation procedures, unauthorized
repairs or is outside of the warranty period. Please direct any questions or issues you may
have to your local dealer before contacting AVPro.
AC-DA14-AUHD
Page 13

Troubleshooting
•Verify Power - Front Panel Pg.8
oTry power-cycling the device while all cables are connected
•Verify Connections - Front Panel Pg.8
oIf the lights are not showing a connection, try Hot Plugging the cable (remove
and re-insert while powered up)
•Possible EDID issue. Default out of the box is EDID Copy from downstream device.
Try one of the Canned EDIDs built in - Pg.10
•Lights showing correct connecting but still no picture. Try the last EDID option (all
down), this will force what ever signal is going in, out - Pg.11
•1080p signal working but not 4k - Verify all connected devices are 4k capable.
•Still having issues, contact us
oSupport Direct [phone]
oAll inquiries [phone]
oSubmit a support request ticket
https://support.avproedge.com/hc/en-us/requests/new
AC-DA14-AUHD
Page 14

AC-DA14-AUHD
Page 15
AVProEdge
2222 E 52nd St N ~ Sioux Falls, SD 57104
1-877-886-5112 ~ 605-274-6055
[e-mail]
Thank you for choosing AVProEdge!
Please contact us with any questions. We are happy to be
of service!
