Avtech AVX913R6 User manual

338Z
X913r6_V1.0
All lead-free products offered by the company comply with requirements of the European law on the
Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and
products are strictly “lead-free” and without the hazardous substances cited on the directives.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be
collected separately at the product end-of-life. This applies to your product and any peripherals
marked with this symbol. Do not dispose of these products are unsorted municipal waste. Contact
your local dealer for procedures for recycling this equipment.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error right to revise or remove
any content in this manual at any time.
GENERAL DESCRIPTION
Power over Network Cable (PoN)
AVX913R6 supports 48V DC power supply to six IP cameras, and no need to insert
additional power.
Rich Diagnostic LED Indication
With LED indications, users can easily perceive the unusual situation to troubleshoot
themselves.
Flexible Installation
Multiple pieces of AVX913R6 can be chained together to expand the number of cameras
to connect.
SPECIFICATIONS*
Connection
PoN Port 6
LAN Port 2 (maximum connection distance of 100 meters**)
PoN Data Transmission Speed 10/100 Based-T
LAN Data Transmission Speed 10/100/1000 Based-T
General
LED Indications
PoN status x 6
NVR link status x 1
Power on status x 1
USB Port YES
Power Supply (±10%) External adaptor DC 48V
Max Power for PoN Port 300mA
Power Supply Short Circuit Protection YES (Resettable fuse)
PoN Short Circuit Protection YES
Operating Temperature 0°C ~40°C (50°F~104°F)
Dimensions (mm)*** 240(L) x 140 (W) x 46 (H)
* The specifications are subject to change without notice.
** The distance of connection might be affected by the cable quality and installation environment
*** Dimensional Tolerance: ± 5mm.
SYSTEM CONCEPT
We have combined NVR, IP cameras, and AVX913R6, PoN converter together to built video
surveillance systems with one cable solution, which requires only one cable to operate, and no
need to plug in power.
AVX913R6 is using PoN technology to pass electricity, along with data on a network cable.
Also, AVX913R6 enables you to connect multiple cameras to NVR at a time.
This simple solution helps you get into IP-based system easily, and especially it requires no
additional power and minimizes the clutter of extra cables.
The graph below shows how to connect a NVR, an AVX913R6 and IP cameras altogether.
Step 1: Plug a network cable into the LAN port of NVR and AVX913R6.
Note: The other LAN port on AVX913R6 is to connect AVX913R6 to another one to expand the number
of cameras in use.
Step 2: Plug a network cable into PoN port of AVX913R6 and IP camera. (One camera requires one
network cable and up to 6 IP cameras)
Step 3: Connect power adapters to NVR and AVX913R6.
Step 4: Turn on the NVR and AVX913R6.
LED STATUS INDICATION
There are multiple LED status indicators on AVX913R6 as shown below to indicate the power
and operational status. Please refer to the following table for troubleshooting.
Type* Color Description
Off No power supply and no connectivity
Red on 48V DC adapter supplies power to the IP camera;
the connection to IP camera is not on or unstable
Orange on 12V DC adapter supplies power to the IP camera;
the connection to IP camera is on
Green on 48V DC adapter supplies power to the IP camera;
the connection to IP camera is on
PoN
(A)
Green Blinking
48V DC adapter supplies power to the IP camera;
If the current is higher than 300mA, the status starts to blink,
and if it exceeds 400mA, the light will rapidly blink
Off No connectivity
NVR
(B) Green Connecting
Off No power supply
Power
(C) Green on 48V DC adapter power supply
Yellow on LAN speed: Gigabit
Yellow off LAN speed: 10/100Mbps
Green on LAN port is connected
LAN
(D)
Green blinking Data transmission
* Please see “Product Overview” to see where LED status indicators are located on AVX913R6
** If you power a camera from 48V DC adapter in the first place, and then, you connect 12V DC adapter to the camera as well, the camera will
receive power via coaxial cables and the camera adapter at the same time; the light would show green.
PRODUCT REVIEW

Other Avtech Media Converter manuals

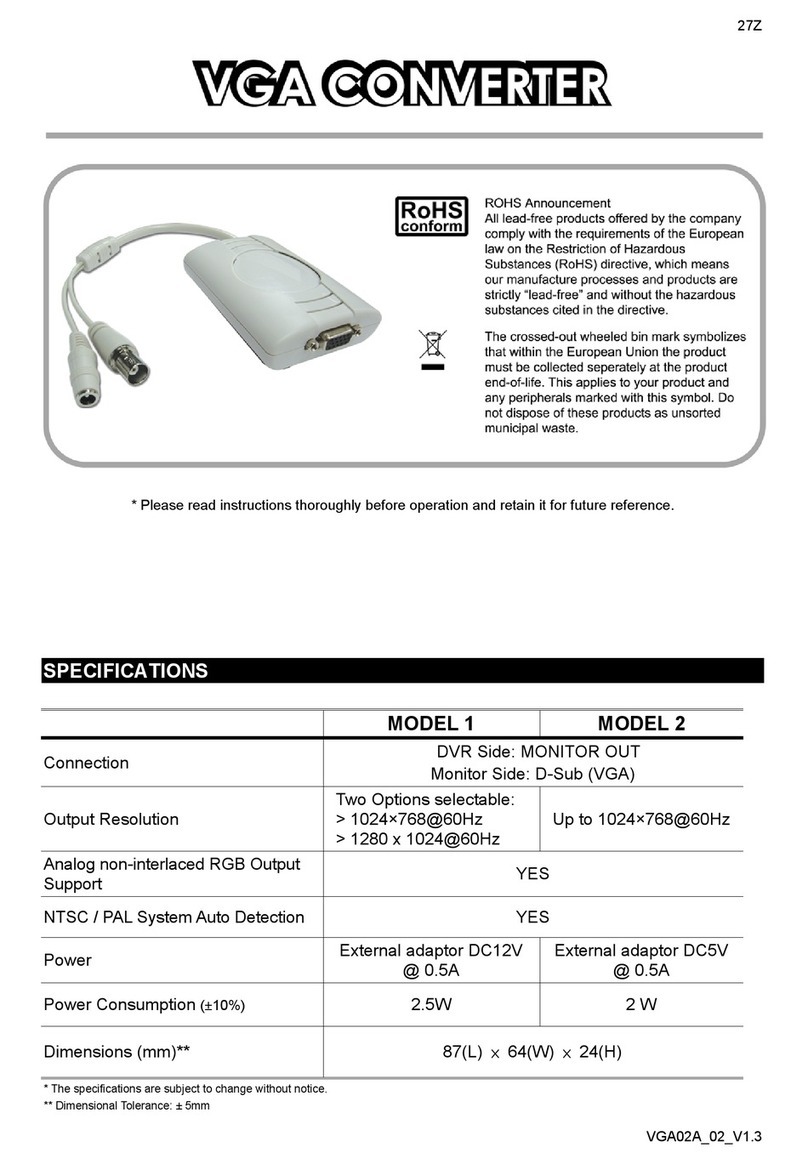

Avtech VGA02A User manual

Avtech

Avtech VGA02A User manual

Avtech AVX912R User manual

Avtech

Avtech AVX912R User manual

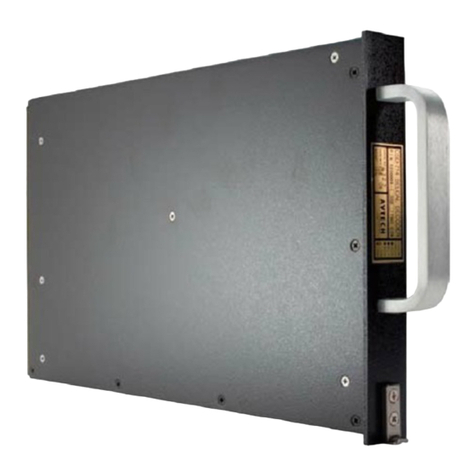

Avtech CSD-714 Selcal User manual

Avtech

Avtech CSD-714 Selcal User manual

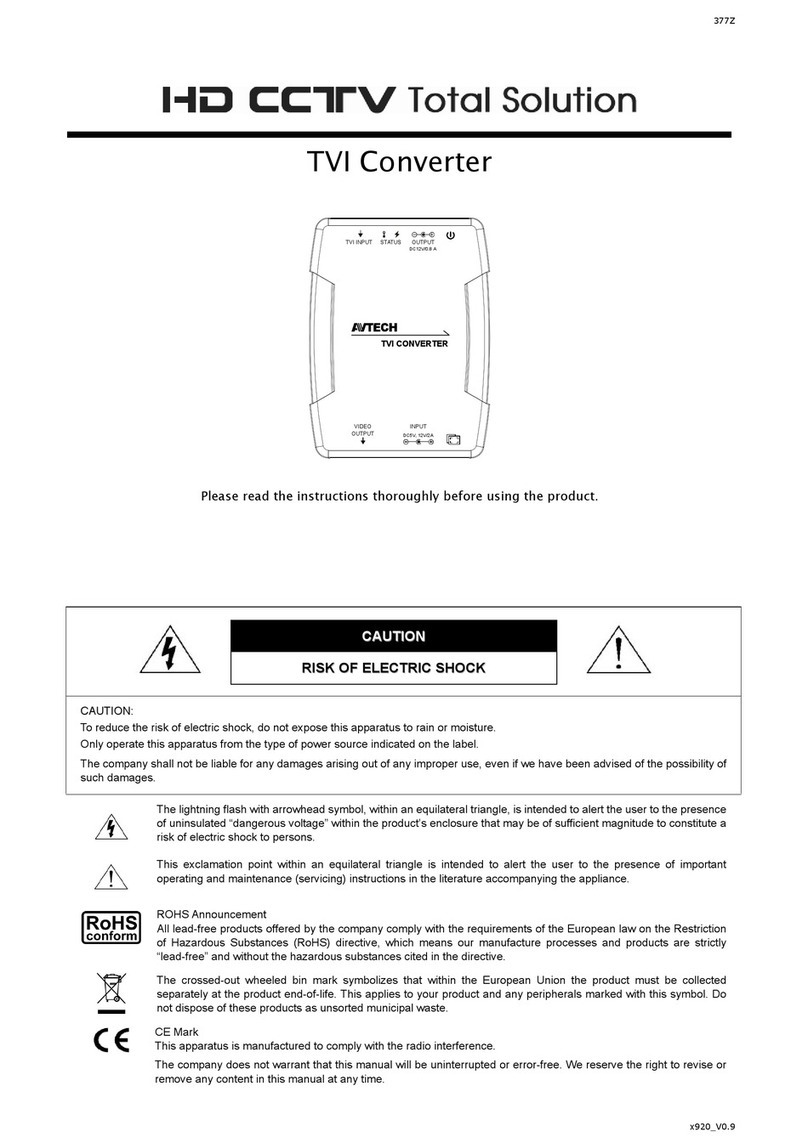

Avtech AVX920 User manual
