Avtex W150T User manual

TFT-LCD TV
READ CAREFULLY
BEFORE OPERATION
USER MANUALUSER MANUAL
W150T
W150T

Before connecting the AC power cord to the DC adapter outlet ,make sure the
voltage designation of the LCD TV corresponds to the local electrical supply .
If you are unsure of your power supply , ask your local power company .
Never insert anythingmetallic into thecabinet openings ofthe LCD TV;
otherwise may causethe danger ofelectric shock.
To avoid electric shock, never touch the inside of the LCD TV / adapter.
Only a qualified technician should open the case of the LCD TV/adapter.
Never use your LCD TV/adapter when the power cord has been damaged .
Make sure thereis nothing restingon the powercord, and keepthe cord
away from places where people can trip over it .
Be sure to hold the plug, not the cord when disconnecting the adapter from
an electric socket.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
TO PREVENT ELECTRICAL SHOCK.
DO NOT REMOVE THIS COVER. NO
USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates
dangerous voltage
inside the product that
presents a risk of electric
shock or personal injury.
This symbol indicates
important instructions
accompanying the
product.
Please read thismanual carefully before using this product.
IMPORTANT SAFETY INSTRUCTIONS
Openings in the LCD TV/adapter cabinet are provided for ventilation.
To prevent overheating, these openings should not be blocked or covered.
Also, avoid usingthe LCD TV on abed ,sofa ,rug,or other soft surface. As
this, may block the ventilation openings in the bottom of the cabinet. If you
put the LCD TV in a bookcase or some other airless space, be sure to provide
adequate ventilation.
Do not exposethe LCD TV to extreme temperature conditions or to extreme
humidity conditions.
The apparatus shouldnot be exposedto dripping orsplashing and noobjects
filled with liquids,such as vases,should be placedon the apparatus.

Do not clean the front with keton-type materials (e.g.Acetone ),ethyl alcohol,
toluene, ethy lacid, methyl, or chloride-these may damage the panel.
Locate your DCadapter near aneasily accessibleAC outlet.
If your LCD TV does not operate normally in particular, if there are any
unusual sounds or smells coming from it unplug it immediately and
contact an authorized dealer or service center.
High temperature cancause problems. Don t use yourLCD TV in direct
sunlight, and keep it away from heaters, stoves, fireplaces, and other
sources of heat.
'
Unplug the DCadapter when itis going tobe left unusedfor a long time .
To reduce the risk of fire or electric shock, and annoying interference, use the
recommended accessories only.
If the LCD TV is broken, do not try to repair it yourself. Contact qualified service
personnel.
Unplug your DC adapter from the AC outlet before any service.
Be sure the service technician uses authorized replacement parts or their equi-
valents. Unauthorized partsmay cause fire,electrical shock, orother hazards.
Following any serviceor repair,be sure theservice technician performssafety
checks to certify that your TFT-LCD TV is in a safe operating order.
The apparatus withCLASS I constructionshall be connectedto a MAINS
socket outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS

CONTENT
AV and SCART SETUP
Video setting menu
17
EXTERNAL EQUIPMENT
Connecting diagram
4
LET'S START
Changing source operation
8
REMOTE CONTROL HANDSET
Remote buttons
5Battery installation
7
TV MENU SETUP
Sound
TV setup Function
9
11
12 14
PANELBUTTON FUNCTIONS
Panel control
23
Rear panel
INSTALLATION
Normal installation
1
TELETEXT FUNCTION
Teletext display
Mix mode
Page selection
Lock
Zoom in teletext
16
Index
Display mode
16 Colorized buttons
16
15
15
15
15
15
SPECIFICATIONS
Specifications
27
TROUBLE SHOOTING
Display troubleshooting
Sound and TV troubleshooting
26
26
DVB FUNCTION SETUP
General setup
22
DVB-T setup
Video setup
23
22
Password setup
25
DISPLAY MODE
Display mode
28
VGA SETUP
Sound
TV setup Function
18
19
20 21

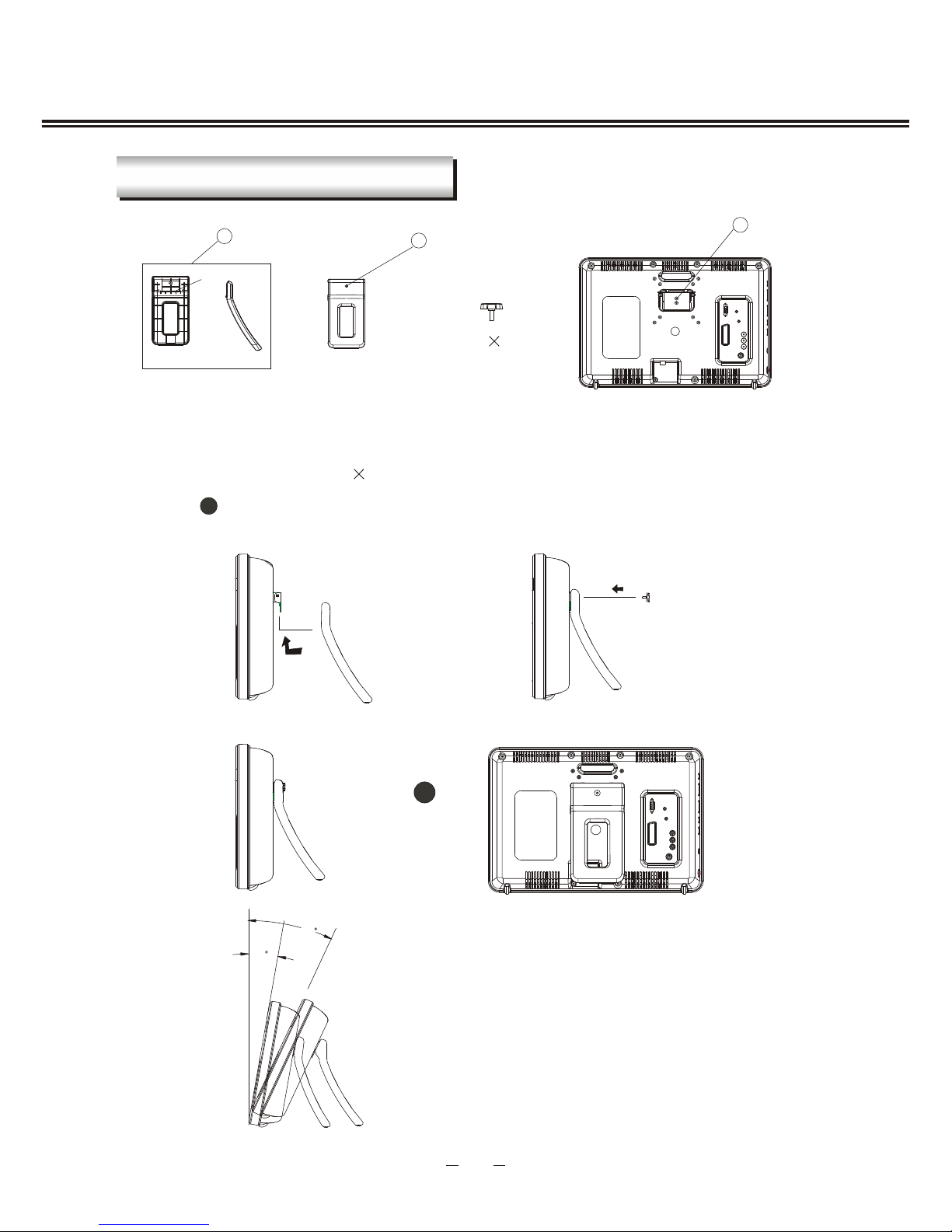

1, Hook thetache (labeledA)of the kickstand onto theplate (labeled C).
2, Tightenthe screws (M4 10) through the ostium (labeled B).
3, Figure shows the finished installation. The kickstand can rotate 15 -degree.
Kickstand
Ostium
Rear viewing ofLCD TV
1
1
1
INSTALLATION
NORMAL INSTALLATION
AB
M4 10
Screw 1pcs
C
Hook
10
25

2
PANEL BUTTON FUNCTIONS
Indicator( )Indicator is redwhen in standbymode, green whenworking normally.
1IR sensor window
2
Front panel
CH+/- (Increase or decreasechannel number)
6
5
VOL+/-(Increase or decrease volume)
SOURCE (Enter to exitsource menu)
7
4
SETUP (Enter or exit setup menu)
STANDBY (Toswitch between standby mode and power-on mode)
8
Left panel
9
Headphone jack
PANEL CONTROL
3
POWER(Turns on or off the power supply).
12
3
4
5
6
7
8
9

PANEL BUTTON FUNCTIONS
3
REAR PANEL
SCART input terminal
2
Composite video/audio input
4
312V DC inputterminal
1
1VGA inputterminal
2
3
4
5
Coaxial digital audiooutput
5
7
PC audio input
6
COAXIAL
SCART
PC IN
VGA AUDIO
6
R input terminal
F
7

R cable
F
DVD or VCR player
RL
EXTERNAL EQUIPMENT
NOTE

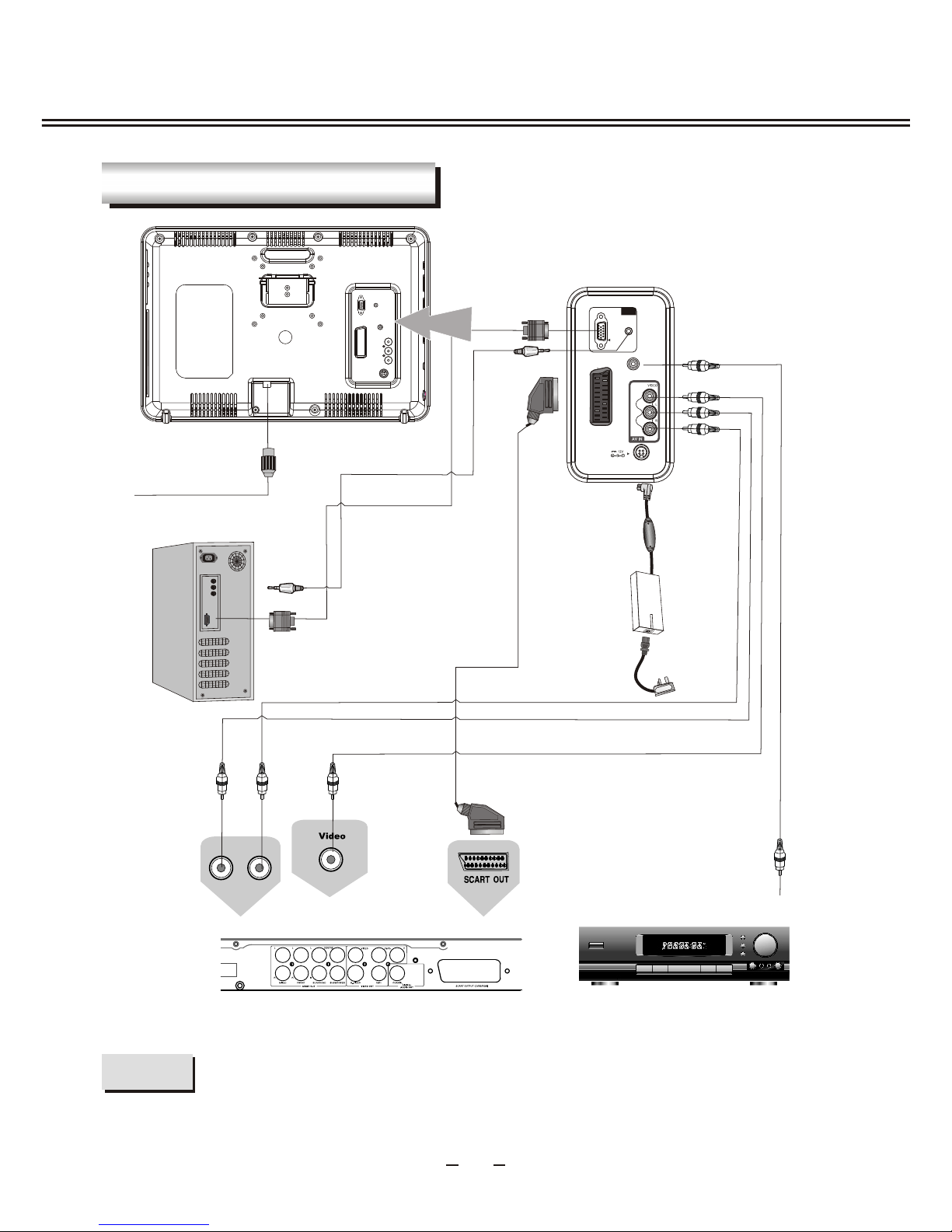

CONNECTING DIAGRAM
You should connect all interconnecting cables BEFORE plugging in the power cord.
Power amplifier (with coaxial digital audio in)
4
COAXIAL
SCART
PC IN
VGA AUDIO

W150T
2 3
456
78 9
1
0
REMOTE CONTROLLER
5

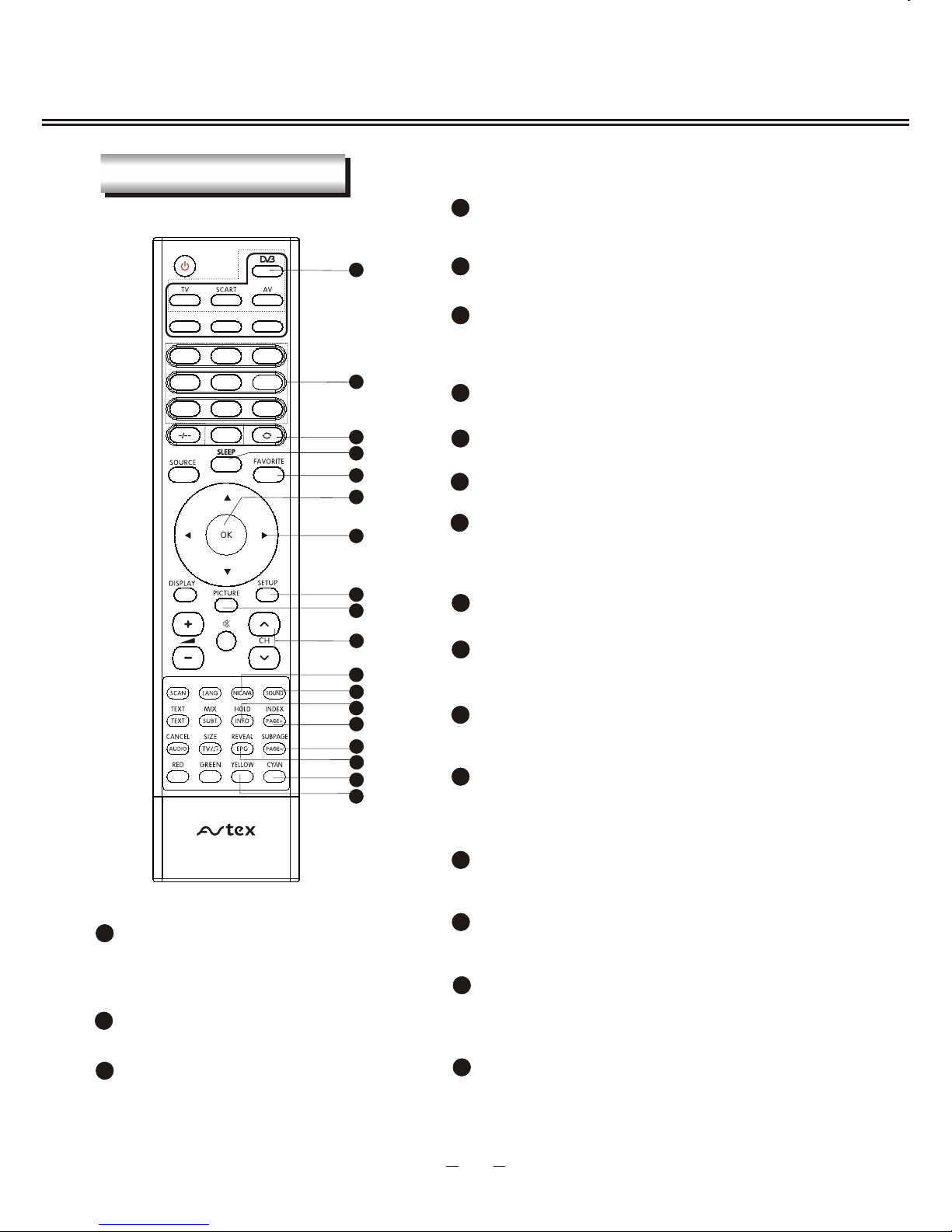

REMOTE BUTTONS
Direct source buttons
1
Select signal sourcedirectly: TV, DVB, AV,
SCART.
Number button
2
Toselect program number.
OK button
6
Toconfirm the selections.
14 INDEX/PAGE+
Todisplay main content page when playing
the teletext /browsethe next page of teletext
in DVB mode(not support MHEG5).
15 SUBPAGE/PAGE-
Todisplay the subpage of the teletext/browse
the previous pageof teletext inDVB mode( not
support MHEG5).
16 REVEAL/EPG
Display the hiddenteletext information
/ in DVB
mode
Todisplay the program guide
.
17 CYAN
CYAN button.
SETUP
8
Enter or exitsetup menu.
NICAM
Switch in NICAM,A2and mono channel (It is
effective in TV signal inputwith NICAM orA2
function).
11
12 SOUND
Toselect different sound field modes: User,
Music, Film, News.
1
2
3
4
5
8
14
7
10
6
12
17
4
Toset the sleep timer.
SLEEP
10 CHANNEL+/-
Toincrease or decrease program number in
TV/DVBmode.
7Left/Right cursor(menu adjustment)
Tomove leftward/ rightward or adjust the
selected item inthe menu, oradjust sound
volume (invalid inDVB mode).
13 HOLD/INFO
Tostop teletext on current page/To display the
language and soundtrack in DVBmode.
18 YELLOW
YELLOW button.
3RETURN
Toexchange channel between the previous
program and thecurrent program inTV and
DVB mode.
5FAVORITE
Display your favoritechannel list inDVB mode.
9
11
13
15
16
18
9
Toselect different picture modes: User,
Standard, Dynamic, Soft.

6
REMOTE CONTROLLER
SOURCE
Toselect input source: TV, DVB, AV, SCART,
VGA.
22
UP/DOWN cursor
Toselect upward/downward in the menu or
change the channelin TV/DVB mode.
23
Todisplay TV and teletext in the same time
/Selects the subtitlelanguage in DVB mode.
MIX/SUBT
30
Volume +/-
26
Toincrease or decrease sound volume.
RED button.
RED
33
22
23
TEXT/TEXT
29
Toenable or disable the function of teletext.
GREEN
Green button.
34
DISPLAY
Todisplay current source information.
24
33
26
25
27
STANDBY
19
Toswitch between standby mode and power-
on mode.
34
32
31
29
30
28
21 TWO-DIGIT NUMBER BUTTON
Toswitch between one or two-digit program
number.
MUTE
Sound mute switch.
25
LANG
27
Toswitch the output language in DVB mode.
CANCEL/AUDIO
Tocancel teletext/To change theaudio
language and soundtrack in DVB mode.
31
28 SCAN
Long press thebutton to start scanning
automatically in TV/DVB mode.
SIZE/TV/
Tomagnify teletext page/To switch between
TV and Radiomodes in DVB mode.
32
W150T
2 3
456
78 9
1
0
19
21
24
20
No function
20

7
REMOTE CONTROLLER
Remove the batterycover. Insert two SUM-4(AAA) batteriesmatching the -/+polarities of
the battery tothe -/+ marks inside the batterycompartment, as inthe following figure:
BATTERYLIFE
Generally speaking, the battery may beused for oneyear, but the battery lifeis also
related to the usage times andremote controller operation.
If the remotecontroller is still not operating when very near tothe remote sensor window,
please replace thebattery.
Please use SUM-4(AAA) battery.
NOTES
Never use rechargeablebattery.
Never charge, short-circuit, disassemble and heatthe battery, or throwit into fire.
Pay attention not to fall orknock the remotecontroller, which may cause damageor
function failure to it.
Do not use new and oldbattery together.
If electrolyte splashes into body, please clean it with water.
CAUTION
Please put thebattery in aplace children cannot access. If swallowed by accident,
please contact yourlocal doctor immediately.
BATTERY INSTALLATION
When not usingthe remote controller for a longtime, please takeout the batteries to avoid
liquid leakage. Beforereplacing new batteries, please clean theelectrolyte in theremote
controller.
Please confirm whether the accessories containthe power adapter.
Please make sure to use poweradapter within the specification range, otherwiseit will
cause damage.
POWER SUPPLY
Use the car adapter in theaccessories, connect one end to the socket in youcar, the
other to the DC socket inthe TV.
The input voltage of the car adapter shouldbe 12Volts.

LET'S START
You can change theinput source byusing the source Menu. Press [SOURCE]button or
[SOURCE] key toshow the menu as follows:
The current sourceitem is highlighted. Press [ ]button on theremote control or [ CH+
/CH- ] keyon the left side of LCD TV to select different source, Press [ ] button, [VOL+
/VOL-] key or[OK] button to confirm your choice.
CHANGE SOURCE OPERATION
TV
DVB
AV
SCART
VGA
8

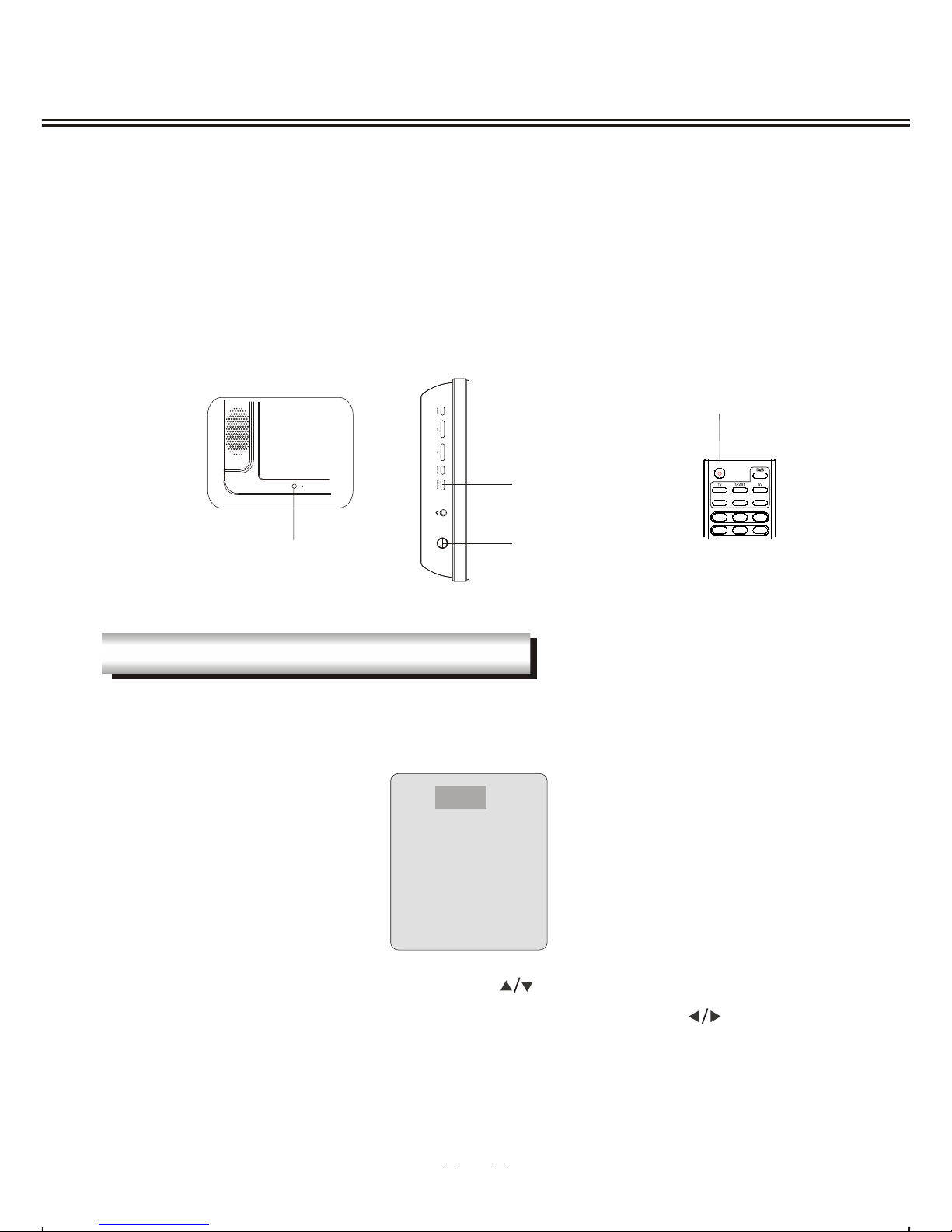

INDICATOR
STANDBY
STANDBY
After thisunit is well fixed on the desk or onthe wall, and the cords arewell connected
for input andoutput, what you should do nextis:
Firstly, connect the adapter to the LCD TV,and turn on the power switchthen the unitwill go
into standby mode,you can see the indicator turnred.
Secondly, press [STANDBY] key onthe left side of the LCD TV or [STANDBY] button on the
remote control tomake the unit switch into workingmode, and youwill see the indicator turns
green. Now youcan enjoy all exciting features ofthe whole newproduct.
Power switch
23
456
1

Item
BRIGHTNESS
Toadjust brightness.
CONTRAST Toadjust contrast.
SATURATION
Toadjust color saturation.
This product can store up to 100-channel programs (0 99). You can scan and
store all of the channels through manual or automatic scan mode.

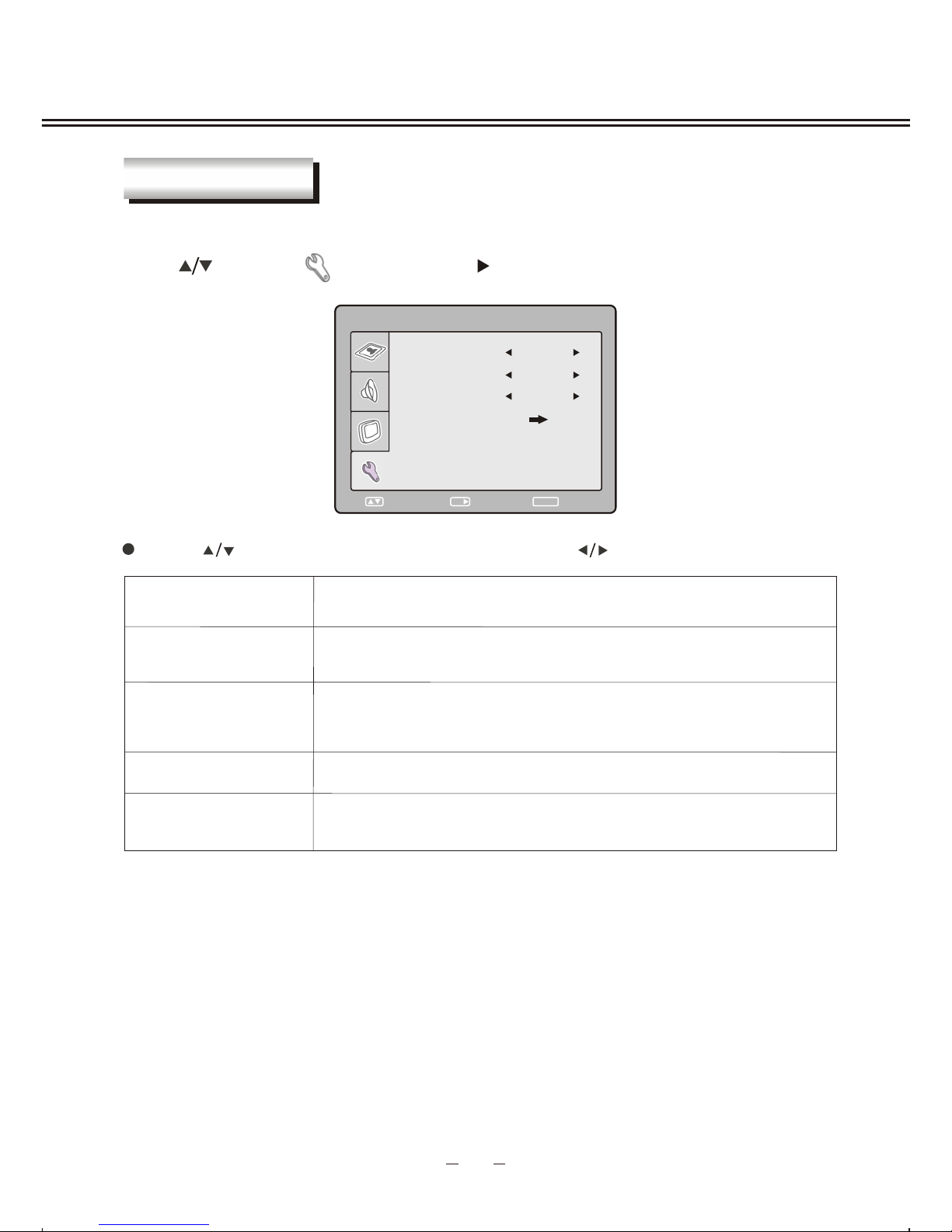

In TV mode, press [SETUP]button and the setup menu will show as follows:
Pressing [ ]button on the remote control,
you can selectsetup menu sections(setup menu
consist of
. Press [ ] or [OK]
button to enter this menu section.
" PICTURE ", " SOUND " , " TV
SETUP " , " FUNCTION")
Press [ ]button on the remote control to select
the item, andthen press [ ] button toadjust
parameters. Press [SETUP]button to return to
main menu sections.
Select " " and menu willshow as follows:
Press [ ]button to select different items and
[ ] buttonto adjust them.
TV MENU SETUP
Description
TINT Toadjust picture tint, only valid in N 3.58/N 4.43/PAL60 and display
mode with V-scanning frequency equal to 60HZ (pleaserefer to P28).
9
MODE
Can be changedbetween : "USER ", "STANDARD ", " DYNAMIC "
and "SOFT ".
TINT
BRIGHTNESS
SATURATION
CONTRAST
50
40
50
50
SELECT RETURN
SETUP
ENTER
OK
PICTURE MODE USER
SATURATION
CONTRAST
70
TINT 50
50
70
SHARPNESS
SELECT RETURN
SETUP
ADJUST
SHARPNESS
COLOR TEMP.
Toadjust picture sharpness.
Select color temperaturemode : "NORMAL ", " WARM "and "COOL ".
NORMAL
COLOR TEMP.

TV MENU SETUP
10
" " Means there are moreitems in thispage, you can press [ ]button to selectthem.
NOTE
Select "BRIGHTNESS " toadjust it, the sub item will show as follows:
press [ ]button to adjust the value of brightness.
BRIGHTNESS
50
RETURN
SETUP
ADJUST

Item
BALANCE
TREBLE
Toadjust balance of left and rightchannels.
To adjust bass.
To adjust treble.
Select " "and menu will show as follows:
TV MENU SETUP
BASS
Description
SOUND MODE Can be changed between USER , , FILM ." " "MUSIC" " " and "NEWS"
11
SOUND
Press [ ]button to select different items and press [ ] button toadjust them. The
following are thedescriptions of the sound item.
50
50
50
SOUND MODE
BASS
BALANCE
TREBLE
SOUND
USER
NICAM MONO
NICAM
Nicam/A2 function isonly valid in TV mode while current program coming with Nicam/A2
signal.
If you canreceive Nicam/A2 signal, you can operate as follows toenjoy that.
You can select Nicam stereo, mono channel or bilingualthrough NICAM button onthe remote
control. If Nicam/A2 signalis too weak, thisunit will switch into mono channel automatically.
When selecting monochannel, "MONO" willshow on screen; when selecting bilingual I,
"DUAL I " will show on screen; whenselecting bilingual II, "DUAL I I " will show on screen
and when selectingstereo, " STEREO" will show on screen.
NOTES
Select the NICAMmode( please refer to the notes).
SELECT RETURN
SETUP
ENTER
OK

TV MENU SETUP
12
Press [ ]button to select different items and press [ ] button to adjust them.
Item
CHANNEL Tochange the channel number.
CHANNEL EDIT
FINE TUNING Toadjust the channel frequency accurately to make the sound
and picture effect better.
MANUAL SEARCH
Toscan programs manually.
Description
AUTO SEARCH
Toscan programs and store all ofthem automatically.
Select " " and TV setup menu will show as follows:
TV SETUP
NOTES
Toenter a submenu to set channel skip and channelswap.
Please refer tothe next page.
TV SETUP
CHANNEL
COLOR SYSTEM
SOUND SYSTEM
FINE TUNING
AUTO SEARCH
1
AUTO
I
40.00MHZ
SELECT RETURN
SETUP
ENTER
OK
COLOR SYSTEM
SOUND SYSTEM
Can be changedbetween: "AUTO ", "PAL " and " SECAM ".
Can be changedbetween: "B/G ","D/K " ," L " and " I ".
Which COLOR SYSTEM mode and SOUND SYSTEM mode to useis related to the
local TV broadcasting system.
""""
If the local system isSECAM L, the color system must be selected as "SECAM"and sound
system must be selected as"L".
TV SETUP
SOUND SYSTEM
FINE TUNING
AUTO SEARCH
I
40.00MHZ
MANUAL SEARCH
SELECT RETURN
SETUP
ADJUST
CHANNEL EDIT

Item
CHANNEL
Description
SKIP
SWAP
SAVE
Toselect current channel here.
Toselect "YES "or "NO ", you can select "YES " tomake current
channel unaccessible while using [ ]button to browse
channels.
Select or enterthe channel numberdirectly to swap with current
channel.
Highlight this optionand press the[OK] button to confirm the swap
function.
13
TV MENU SETUP
CHANNEL EDIT
SELECT RETURN
SETUP
ADJUST
SKIP
SWAP
SAVE
5
CHANNEL
NO
?
_ _
Select "CHANNEL EDIT " , the menu will show as follows:
AUTO SEARCH
112.25MHZ
RETURN
SETUP
FOUND: 3
VHF L
Select "AUTO SEARCH " ,the searching menu will show as follows:
3
1
2
3
4
The number ofprograms have found.
The current searchingfrequency Band, 3Bands in total: "VHF L" ,"VHFH"," UHF".
The current searchingfrequency.
4During the searching,you can press[SETUP] button to stop it.
2
1

TV MENU SETUP
Press [ ]to select " " item andpress [ ] button to enterthe following section:
14
FUNCTION
You can setup systemconfiguration here.
Description
LANGUAGE
TRANSPARENCY
RESET
Set OSD language.
Toreset all value to default.
Press [ ]button to select different items and press [ ] button to adjust them.
Item
FUNCTION
LANGUAGE ENGLISH
TRANSPARENCY LEVEL 3
SLEEP OFF
RESET
SELECT RETURN
SETUP
ENTER
OK
SLEEP Toset the sleep timer.
Toadjust transparency of OSD. it canbe change fromOFF
to LEVEL6, 7levels in total.

15

TELETEXT FUNCTION
Press [REVEAL] buttonto display the hidden teletext information.Press this buttonagain
to cancel teletextinformation displaying.
DISPLAY MODE
COLORIZED BUTTONS (RED, YELLOW, GREEN, CYAN)
Select the correspondingteletext page throughcolorized buttons.
When teletext pageshows, you may double zoom in to display thisteletext page;
Press [SIZE] buttonto zoom in the upper half part of teletextpage;
Press [SIZE] buttonagain to enter the under half part of teletextpage;
Press this buttonfor the third time to return to original displaymode.
ZOOM IN TELETEXT
16
User could press[SUBPAGE] button to select to the subpage of teletext.
SUBPAGE
