Avtex W152D User manual

TFT-LCD TV
READ CAREFULLY
BEFORE OPERATION
USER MANUAL
W152D
W152D

Before connecting the AC power cord to the DC adapter outlet ,make sure the
voltage designation of the LCD TV corresponds to the local electrical supply .
If you are unsure of your power supply , ask your local power company .
Never insert anythingmetallic into thecabinet openings ofthe LCD TV;
otherwise may causethe danger ofelectric shock.
To avoid electric shock, never touch the inside of the LCD TV / adapter.
Only a qualified technician should open the case of the LCD TV/adapter.
Never use your LCD TV/adapter when the power cord has been damaged .
Make sure thereis nothing restingon the powercord, and keepthe cord
away from places where people can trip over it .
Be sure to hold the plug, not the cord when disconnecting the adapter from
an electric socket.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
TO PREVENT ELECTRICAL SHOCK.
DO NOT REMOVE THIS COVER. NO
USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates
dangerous voltage
inside the product that
presents a risk of electric
shock or personal injury.
This symbol indicates
important instructions
accompanying the
product.
Please read thismanual carefully before using this product.
IMPORTANT SAFETY INSTRUCTIONS
Openings in the LCD TV/adapter cabinet are provided for ventilation.
To prevent overheating, these openings should not be blocked or covered.
Also, avoid usingthe LCD TV on abed ,sofa ,rug,or other soft surface. As
this, may block the ventilation openings in the bottom of the cabinet. If you
put the LCD TV in a bookcase or some other airless space, be sure to provide
adequate ventilation.
Do not exposethe LCD TV to extreme temperature conditions or to extreme
humidity conditions.
The apparatus shouldnot be exposedto dripping orsplashing and noobjects
filled with liquids,such as vases,should be placedon the apparatus.

Do not clean the front with keton-type materials (e.g.Acetone ),ethyl alcohol,
toluene, ethy lacid, methyl, or chloride-these may damage the panel.
Locate your DCadapter near aneasily accessibleAC outlet.
If your LCD TV does not operate normally in particular, if there are any
unusual sounds or smells coming from it unplug it immediately and
contact an authorized dealer or service center.
High temperature cancause problems. Don t use your LCD TV in direct
sunlight, and keep it away from heaters, stoves, fireplaces, and other
sources of heat.
'
Unplug the DCadapter when itis going tobe left unusedfor a long time .
To reduce the risk of fire or electric shock, and annoying interference, use the
recommended accessories only.
If the LCD TV is broken, donot try to repair ityourself. Contact qualifiedservice
personnel.
Unplug your DC adapter from the AC outlet before any service.
Be sure the service technician uses authorized replacement parts or their equi-
valents. Unauthorized partsmay cause fire,electrical shock, orother hazards.
Following any serviceor repair,be sure theservice technician performssafety
checks to certify that your TFT-LCD TV is in a safe operating order.
The apparatus withCLASS I constructionshall be connectedto a MAINS
socket outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS

CONTENT
AV, S CART and YPBPRSETUP
Video setting menu 17
VGASETUP
Picture Sound
Monitor setup Function
18
20
19
21
EXTERNAL EQUIPMENT
Connecting diagram 4
LET'S START
Changing source operation 8
REMOTE CONTROL HANDSET
Remote buttons 5Battery installation 7
TV MENUSETUP
Picture Sound
TV setup Function
9
11
12 14
PANELBUTTON FUNCTIONS
Panel control 23
Rear panel
INSTALLATION
Normal installation 1
FM OPERATION
FM Sound
22 23
Function 23
TELETEXTFUNCTION
Teletext display
Mix mode
Page selection
Lock
Zoom in teletext 16
Index
Display mode 16Colorized buttons 16
15
15
15
15
15

CONTENT
DISPLAY MODE
51
Display mode
SPECIFICATIONS
Specifications 50
TROUBLE SHOOTING
DVDtroubleshooting 49
Display troubleshooting Sound and TV troubleshooting 48
48
DVDFUNCTION SETUP
General setup 40
Video setup
43
Audio setup
Password setup
42
42
40
Preference setup
Usage of USBequipment 38
CARD READERANDUSBOPERATION
Headphone enjoying 37
Fast playback
32Repeat playback ofselected segment 33
Zooming the displayedframe 35
34
MPEG4 and JPEGfile playing 35
DVDOPERATION
Brief introduction toDVD24
Features 25
Compatible disc types 26
Volume control 27
Playback 27
Play/pause playback
28
Information 28DVDmenu playback 28
PBC playback
2930
Direct play 30
Memory 31
Repeat playback
31
Select language/audio 31
VCD, SVCD menuplayback
Select track toplay directly
by number buttons
33 Play from thedesired position
DVBFUNCTION SETUP
General setup 44
DVB-Tsetup
Video setup
45
44
Password setup 47

1, Hook thetache (labeledA)of the kickstand onto theplate (labeled C).
2, Tightenthe screws (M4 10) through the ostium (labeled B).
3, Figure shows the finished installation. The kickstand can rotate 15 -degree.
Kickstand
Ostium
Rear viewing of
LCD TV
1
1
1
INSTALLATION
NORMAL INSTALLATION
AB
M4 10
Screw 1pcs
C
Hook
10
25

2

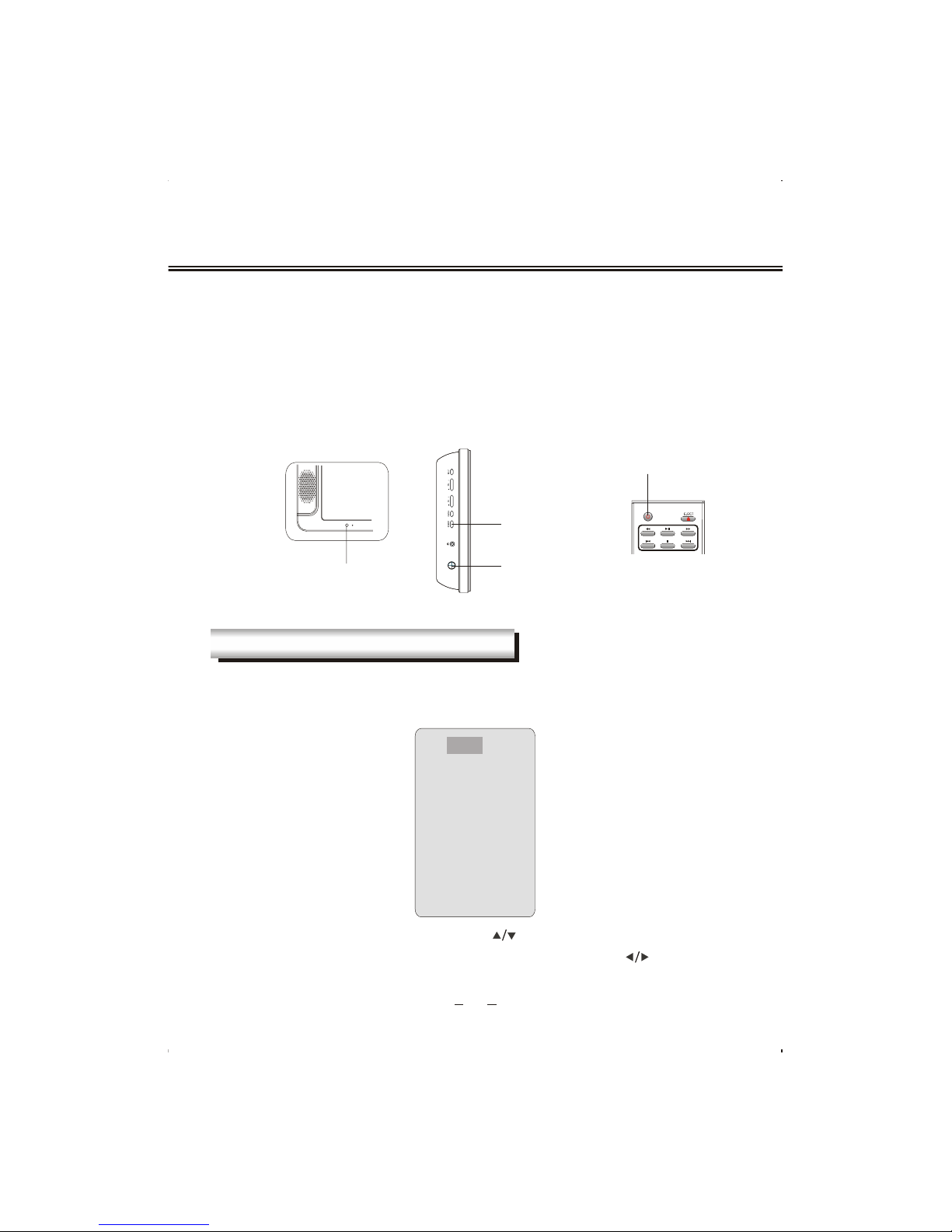

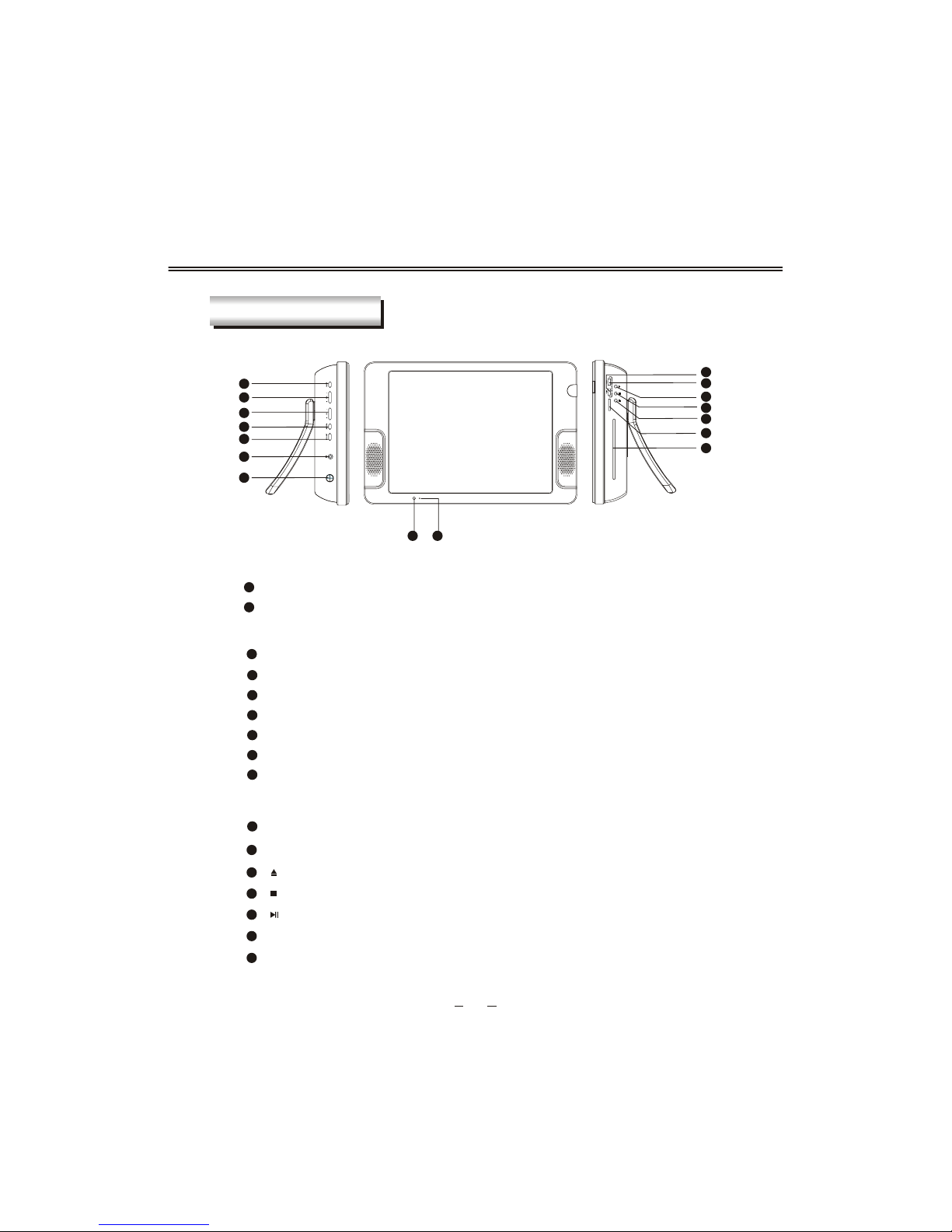

PANEL BUTTON FUNCTIONS
Indicator( )Indicator is redwhen in standbymode, green whenworking normally.
1IRsensor window
2
Front panel
CH+/- (Increase or decreasechannel number)
6
5
VOL+/-(Increase or decrease volume)
SOURCE (Enter to exitsource menu)
7
4
SETUP (Enter or exit setup menu)
STANDBY (Toswitch between standbymode and power-onmode)
8
Left panel
11 USB1jack
9
Headphone jack
Right panel
14
13
Disc in/out door
16
(Stop button)
15
(Eject button)
(Play/puase button)
PANEL CONTROL
3
POWER(Turns on or off the power supply).
10USB2jack
1 2
3
4
5
6
7
8
9
14
13
10
11
12
12
MEDIACARDsocket
15
16

DVDor VCR player
RL

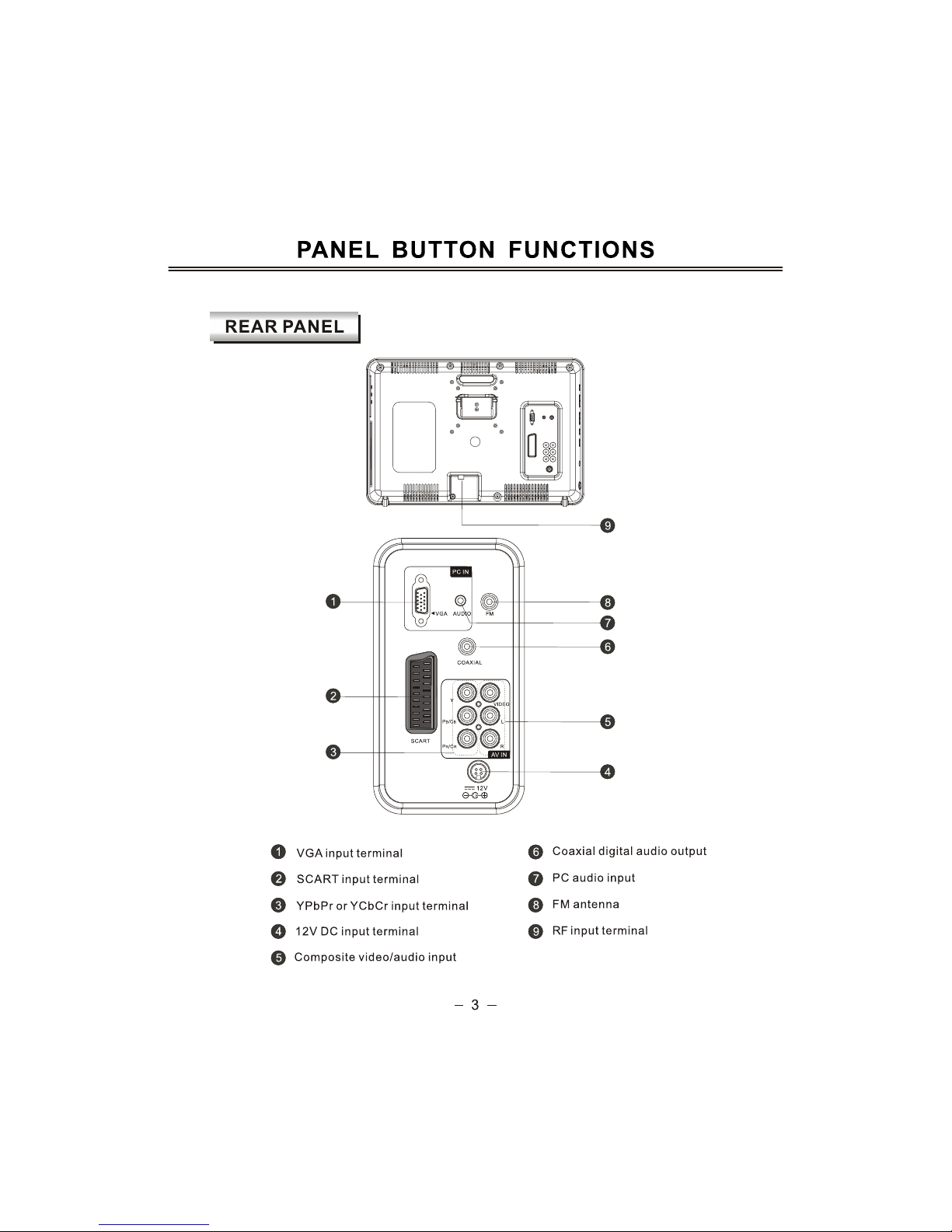

EXTERNAL EQUIPMENT
NOTE
CONNECTING DIAGRAM
You should connect all interconnecting cables BEFORE plugging in the power cord.
Power amplifier (with coaxial digital audio in)
PC IN
VGA AUDIO
COAXIAL
SCART
AV IN
VIDEO
Y
PB/CB
PR/CR
L
R
Rcable
F
4
FM ANTENNA

23
456
789
1
0
W152D
SLEEP
SAVESCAN

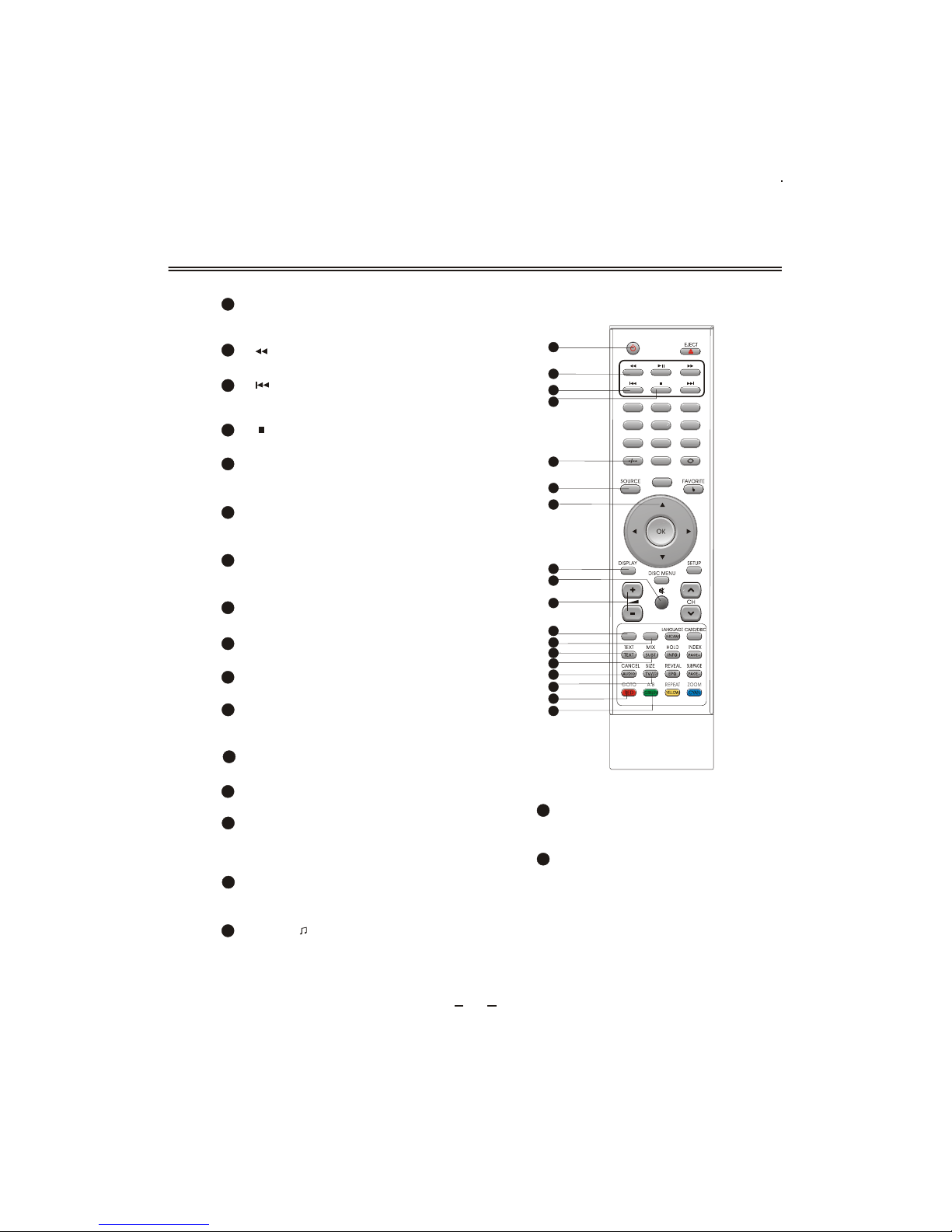

REMOTE CONTROLLER
5
REMOTE BUTTONS
EJECT
1
Disc in/out inDVDmode.
Number button
5
Toselect program number.
OK button
9
Toconfirm the selections.
17INDEX/PAGE+
Todisplay main contentpage when playingthe
teletext /Change tothe program innext page in
DVBmode.
18SUBPAGE/PAGE-
Todisplay the subpageof the teletext/
Change to theprogram in previous
page in DVBmode.
19REVEAL/EPG
Display the hiddenteletext information
/ in DVB
mode
Todisplay the programguide
.
20ZOOM/CYAN
Tozoom in andzoom out thepicture
in DVDmode/CYAN button.
SETUP
11
Enter or exitsetup menu.
DISC MENU
12
Togo to theDVDmain menu.
LANGUAGE/NICAM
Toswitch the outputlanguage in DVD/DVB
mode/Switch in NICAM,A2and mono channel
(It is effective in TVsignal input withNICAM
or A2 function).
14
15 CARD/DISC
Switches between thecard reader,DVDand
USBmode(valid inDVDmode).
1
2
3
4
5
8
9
15
13
11
18
14
7
10
6
12
16
17
19
20
21
7
Toset the sleeptimer.
SLEEP
13CHANNEL+/-
Toincrease or decreaseprogram number in
TV/DVB/FM mode.
Toplay normally orpause playing inDVDmode.
[ ] button
2
3
Tofast-forwards DVDplaybackin DVDmode.
[ ] button
[ ] button
4
Toselect the nextchapter or trackin DVDmode.
10Left/Right cursor(menu adjustment)
Tomove leftward/ rightwardor adjust the
selected item inthe menu, oradjust sound
volume (invalid inDVDand DVBmode).
16HOLD/INFO
Tostop teletext oncurrent page/To display the
language and soundtrack in DVD/DVBmode.
21 REPEAT/YELLOW
Torepeat playback inDVDmode/
YELLOW button.
6RETURN
Toexchange channel betweenthe previous
program and thecurrent program inTV/DVB/
FM mode.
8FAVORITE/Q-PLAY
Display your favoritechannel list inDVBmode
/Play DVDdirectly in DVDmode.

23
456
789
1
0
W152D
SLEEP
SAVESCAN
6
REMOTE CONTROLLER
SOURCE
Toselect input source:TV,DVB, DVD, FM, AV,
SCART, YPBPRand VGA.
27
UP/DOWN cursor
Toselect upward/downward inthe menu or
change the channelin TV/DVBmode.
28
Todisplay TV and teletext in the same time
/Selects the subtitlelanguage in DVD/DVB
mode.
MIX/SUBT
35
Volume +/-
31
Toincrease or decreasesound volume.
Toplay from acertain time point
in DVDmode/REDbutton.
GOTO/RED
38
23
22
24
25
27
28
29
26
TEXT/TEXT
34
Toenable or disablethe function ofteletext.
A-B/GREEN
Tosegment repeat inDVDmode
/Green button.
39
DISPLAY
Todisplay current sourceinformation.
29
38
31
30
32
STANDBY
22
Toswitch between standbymode and power-
on mode.
39
37
36
34
35
33
[ ] button
Tofast backward playbackin DVDmode.
23
26TWO-DIGIT NUMBER BUTTON
Toswitch between oneor two-digit program
number.
24[ ] button
Toselect the previouschapter or trackin DVD
mode.
MUTE
Sound mute switch.
30
SAVE
33
Save the channelin FM mode.
CANCEL/AUDIO
Tocancel teletext/To change the audio
language and soundtrack in DVBmode.
36
25 [ ] button
Tostop playing in DVDmode.
32SCAN
Long press thebutton to startscanning
automatically in TV/DVB/FM mode.
SIZE/TV/
Tomagnify teletext page/To switch between
TV and Radiomodes in DVBmode.
37

7
REMOTE CONTROLLER
Remove the batterycover. Insert two SUM-4(AAA) batteriesmatching the -/+polarities of
the battery tothe -/+ marksinside the battery compartment, as in the following figure:
BATTERYLIFE
Generally speaking, the battery may beused for oneyear, butthe battery life is also
related to the usage times andremote controller operation.
If the remotecontroller is stillnot operating whenvery near to the remote sensor window,
please replace thebattery.
Please use SUM-4(AAA) battery.
NOTES
Never use rechargeablebattery.
Never charge, short-circuit, disassemble and heatthe battery, or throwit into fire.
Pay attention not to fall orknock the remotecontroller, whichmay cause damage or
function failure to it.
Do not use new and oldbattery together.
If electrolyte splashes into body, please clean it with water.
CAUTION
Please put thebattery in aplace children cannotaccess. If swallowedby accident,
please contact yourlocal doctor immediately.
BATTERY INSTALLATION
When not usingthe remote controllerfor a long time, please take out the batteriesto avoid
liquid leakage. Beforereplacing new batteries,please clean theelectrolyte in the remote
controller.
Please confirm whether the accessories containthe power adapter.
Please make sure to use poweradapter within thespecification range, otherwiseit will
cause damage.
POWER SUPPLY
Use the car adapter in theaccessories, connect oneend to thesocket in you car, the
other to the DC socket inthe TV.
The input voltage of thecar adapter should be 12Volts.

LET'S START
You can change theinput source byusing the sourceMenu. Press [SOURCE] button or
[SOURCE] key toshow the menuas follows:
The current sourceitem is highlighted.Press [ ]button on the remote control or[ CH+
/CH- ] keyon the leftside of LCDTV to select different source, Press [ ] button, [VOL+
/VOL-] key or[OK] button toconfirm your choice .
CHANGE SOURCE OPERATION
TV
DVB
DVD
FM
AV
SCART
YPBPR
VGA
8
INDICATOR
STANDBY
STANDBY
After this unit is well fixed on thedesk or onthe wall, and the cords are well connected
for input andoutput, what youshould do next is:
Firstly, connect the adapter to the LCD TV,and turn onthe power switchthen the unit will go
into standby mode,you can seethe indicator turnred.
Secondly, press [STA NDBY] key on the left side of the LCDTV or [STANDBY] button on the
remote control tomake the unitswitch into working mode, and you will see theindicator turns
green. Now youcan enjoy allexciting features ofthe whole new product.
Power switch

Item
BRIGHTNESS Toadjust brightness.
CONTRASTToadjust contrast.
SATURATIONToadjust color saturation.
This product can store up to 100-channel programs (0 99). You can scan and
store all of the channels through manual or automatic scan mode.
In TV mode, press [SETUP] button and the setup menu willshow as follows:
Pressing [ ]button on theremote control,
you can selectsetup menu sections(setupmenu
consist of
. Press [ ] or [OK]
button to enter this menu section.
" PICTURE ", " SOUND" , "TV
SETUP " , " FUNCTION ")
Press [ ]button on theremote control toselect
the item, andthen press [ ] button toadjust
parameters. Press [SETUP]button to returnto
main menu sections.
Select " " and menu will show as follows:
Press [ ]button to selectdifferent items and
[ ] buttonto adjust them.
TV MENU SETUP
Description
TINTToadjust picture tint,only valid inN 3.58/N 4.43/PA L 60 and display
mode with V-scanning frequency equalto 60HZ (please refer to P51).
9
PICTURE Can be changedbetween : "USER", "STA NDARD ", "DYNAMIC"
and "SOFT".
TINT
BRIGHTNESS
SATURATION
CONTRAST
50
40
50
50
SELECT RETURN
SETUP
ENTER
OK
PICTUREMODEUSER
SATURATION
CONTRAST
70
TINT50
50
70
SHARPNESS
SELECT RETURN
SETUP
ADJUST
SHARPNESS
COLOR TEMP.
Toadjust picture sharpness.
Select color temperaturemode : "NORMAL ", " WARM "and "COOL ".
NORMAL
COLOR TEMP.

TV MENU SETUP
10
" " Means there are moreitems in thispage, you canpress [ ] button to select them.
NOTE
Select "BRIGHTNESS " toadjust it, thesub item willshow as follows :
press [ ]button to adjustthe value ofbrightness.
BRIGHTNESS
50
RETURN
SETUP
ADJUST

Item
BALANCE
TREBLE
Toadjust balance ofleft and rightchannels.
To adjust bass.
To adjust treble.
Select " "and menu will showas follows:
TV MENU SETUP
BASS
Description
SOUNDMODECan be changedbetween USER, ,FILM."""MUSIC" " " and "NEWS"
11
SOUND
Press [ ]button to selectdifferent items and press [ ] button toadjust them. The
following are thedescriptions of thesound item.
50
50
50
SOUNDMODE
BASS
BALANCE
TREBLE
SOUND
USER
NICAM MONO
NICAM
Nicam/A2 function isonly valid inTV mode while current programcoming with Nicam/A2
signal.
If you canreceive Nicam/A2 signal,you can operateas follows to enjoy that.
You can select Nicam stereo, mono channel or bilingualthrough NICAM button onthe remote
control. If Nicam/A2 signalis too weak, thisunit will switch intomono channel automatically.
When selecting monochannel, "MONO" willshow on screen;when selecting bilingual I,
"DUAL I " will show on screen; whenselecting bilingual II,"DUAL II " willshow on screen
and when selectingstereo, " STEREO" will showon screen.
NOTES
Select the NICAMmode( please referto the notes).
SELECT RETURN
SETUP
ENTER
OK

TV MENU SETUP
12
Press [ ]button to selectdifferent items and press [ ] button to adjust them.
Item
CHANNELTochange the channelnumber.
CHANNELEDIT
FINE TUNING Toadjust the channelfrequency accurately tomake the sound
and picture effect better.
MANUAL SEARCH
Toscan programs manually.
Description
AUTO SEARCH
Toscan programs andstore all ofthem automatically.
Select " " and TV setup menu willshow as follows:
TV SETUP
NOTES
Toenter a submenuto set channelskip and channel swap.
Please refer tothe next page.
TV SETUP
CHANNEL
COLOR SYSTEM
SOUNDSYSTEM
FINE TUNING
AUTO SEARCH
1
AUTO
I
40.00MHZ
SELECT RETURN
SETUP
ENTER
OK
COLOR SYSTEM
SOUNDSYSTEM
Can be changedbetween: "AUTO ", "PA L " and " SECAM " .
Can be changedbetween: "B/G ","D/K " ," L" and "I ".
Which COLOR SYSTEM mode and SOUNDSYSTEM mode to useis related tothe
local TV broadcasting system.
""""
If the local system isSECAM L, the color systemmust be selected as "SECAM" and sound
system must be selected as"L".
TV SETUP
SOUNDSYSTEM
FINE TUNING
AUTO SEARCH
I
40.00MHZ
MANUAL SEARCH
SELECT RETURN
SETUP
ADJUST
CHANNELEDIT

Item
CHANNEL
Description
SKIP
SWAP
SAVE
Toselect current channelhere.
Toselect "YES "or "NO", you can select "YES " tomake current
channel unaccessible while using [CH+/-] buttonto browse
channels.
Select or enterthe channel numberdirectly to swapwith current
channel.
Highlight this optionand press the[OK] button toconfirm the swap
function.
13
TV MENU SETUP
CHANNEL EDIT
SELECT RETURN
SETUP
ADJUST
SKIP
SWAP
SAVE
5
CHANNEL
NO
?
__
Select "CHANNELEDIT" , the menu will show as follows:
AUTO SEARCH
112.25MHZ
RETURN
SETUP
FOUND:3
VHF L
Select "AUTO SEARCH " ,the searching menuwill show asfollows:
3
1
2
3
4
The number ofprograms have found.
The current searchingfrequency Band, 3Bands in total:"VHF L" ,"VHF H"," UHF".
The current searchingfrequency.
4During the searching,you can press[SETUP] button tostop it.
2
1

TV MENU SETUP
Press [ ]to select " " item andpress [ ]button to enterthe following section:
14
FUNCTION
You can setup systemconfiguration here.
Description
LANGUAGE
TRANSPARENCY
RESET
Set OSDlanguage.
Toreset all valueto default.
Press [ ]button to selectdifferent items and press [ ] button to adjust them.
Item
FUNCTION
LANGUAGE ENGLISH
TRANSPARENCY LEVEL3
SLEEPOFF
RESET
SELECT RETURN
SETUP
ENTER
OK
SLEEPToset the sleeptimer.
Toadjust transparency ofOSD. it canbe change from OFF
to LEVEL6, 7levels in total.

15
