AWA MSDV1906-F3-D0 User manual

USER MANUAL
Please read this User Manual carefully to ensure use of this product and keep this
manual for future reference
MSDV1906-F3-D0
N294
19" 48cm HD READY LCD Television
with Built in DVD Player

CONTENTS
-1-
SAFETY INSTRUCTIONS.................................................................................................2
INSTALLATION......................................................................... ......................................3
WALLMOUNTING INSTALLATION GUIDLINES.............................................................4
ACCESSORIES................................................................................................................5
FRONT PANEL................................................................................................................ 5
KEY BOARD(RIGHTSIDE)............................................................................................. 6
REAR PANEL..................................................................................................................6
ANTENNACONNECTION...............................................................................................7
CONNECTING TO PC......................................................................................................8
PC PRESET......................................................................................................................9
CONNECTING TOAVEQUIPMENT.................................................................................10
REMOTE CONTROL................................................................ .......................................11
BATTERY INSTALLATION..............................................................................................11
KEYS FUNCTION............................................................................................................12
OPERATION.....................................................................................................................13
BASIC OPERATION......................................................................................................... 13
TELETEXT.......................................................................................................................14
EPG..................................................................................................................................15
MENU OPERATION..........................................................................................................16-20
DVD PLAYBACK...............................................................................................................21
DVD operation...................................................................................................................22-26
TROUBLESHOOTINGS....................................................................................................27
TECHNICAL SPECIFICATION........................................................................................ 28

-2-
SAFETY ANDWARNINGS
IMPORTANT SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
The symbol indicates that dangerous
voltages constituting a risk of electric shock
are present within this unit.
The symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
To reducethe risk offire or electricshock, do
not expose thisapparatus to rain or moisture.
WARNING:
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do notuse this apparatus near water.
6) Clean onlywith dry cloth.
7) Do notblock any ventilation openings, install
in accordance withthe instructions.
8) Do notinstall near any heat sources suchas
radiators, heat pumps,stoves, or other apparatus
(including amplifiers) thatproduce heat.
9) Protect thepower cord from being walked on
or pinched particularlyat plugs, convenience
receptacles, and thepoint where they exit from
the apparatus.
10) Only useattachments/accessories specified
by the manufacturer.
11) Unplugthis apparatus duringlightning
storms or whenunused for long periods of time.
12) Refer allservicing to qualified service
personnel. Servicing isrequired when the
apparatus has beendamaged in any way, suchas
power-supply cord orplug is damaged,liquid
has been spilledor objects have fallen into the
apparatus, the apparatushas been exposed to
rain or moisture,does not operate normally, or
has been dropped.
13) Mains plugis used as the disconnect device,
the disconnect deviceshall remain readily
operable.
14) The ventilationshould not beimpeded by
covering the ventilationopenings with items,
such as newspapers,table-cloth, curtains, etc.
15) No nakedflame sources, such as lighted
candles, should beplaced on the apparatus.
16) Attentionis drawn tothe environmental
aspects of batterydisposal.
17) This deviceis not warrantedfor use in
Unreasonably hot ,cold,or humid environments.
18) The apparatusshall not beexposed to
dripping or splashingand no objects filled with
liquids, such asvases, shall be placed on the
apparatus.
This symbol indicates thatthis product incorporates
double insulation between hazardousmains voltage
and user accessible parts.When servicing use only
identical replacement parts.
The batteries shallnot be exposed to
excessive heat suchas sunshine, fire or the
like.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING

-3-
INSTALLATION
High voltages are used in the operation of this television
receiver. Do not remove the cabinet back from your set.
Refer servicing to qualified service personnel.
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure of
electrical components.
Do not trap the power supply cord under the television
receiver.
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual , and damage
to the television, may result if it falls.
When the televisionreceiver is notused for an
extended period of time, it isadvisable to disconnect
the ACpower cord fromthe ACoutlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.

For wall mountingwith the optional bracket, please readthe following instructionand the bracket
instruction. Make surequalified service personnel perform the operation.
AWA bears no responsibility forimproper mounting that results in accidentor injury.
Wall MountingHoles Spacing and Location
Base Stand DisassembleIllustration
How to removethe stand from the TV
(The LCD Displayis very fragile, and must beprotected at alltimes when removing the
base stand. Besure that no hard or sharpobject, or anythingthat could scratch or
damage the LCDdisplay, comesinto contact withit. DO NOTexert pressure on the front
of the unitat any time because the screencould crack.)
1.Use the screwdriverto remove 3 screws from thescrew location.
2.Remove the basestand from the Main body.
4 Wall mount M4 Screws
-4-
INSTALLATION
100 mm100 mm
100 mm100 mm

FRONT PANEL
AC Power Cord......................... 1
Infrared Remote Control............ 1
User s Manual ........................ 1
Battery(AAA)........................... 2
ACCESSORIES
INSTALLATION
-5-
1: Remote control sensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Key board
4: AC power switch:Press to turn ON/OFF TV.
5: DVD Player.
30 30
1
3
4
2
5

INSTALLATION
KEY BOARD
1.SOURCE
To displaythe input sourcemenu.
2.MENU
To displaymain MENU.
3.CH+/CH-
In TV mode to change thechannel up
and down.
In MENU mode,to select the menu items .
In standby mode,it can turn on the TV.
4.VOL+/VOL-
To adjustsound level.
In MENU mode,toselect the menu items.
REAR PANEL
-6-
DVD SIDE PANEL
×ó
ÓÒ
µçÔ´ÊäÈë
All the terminals are(from left to right):
AC POWER SOCKET, HDMI input,VGA ,YPbPr input,AV,Rear Audio input,PC AUDIO input,
ANTENNA SOCKET.
Note: 1.AV and YPbPr share the Rear Audio input channel.
2. When HDMI port get DVI signal ,the audio signal receives from the PC Audio channel.
SOURCE
MENU
CH+
CH-
VOL+
VOL-
SD/MMC/MS
USB
Disc label side
Disc data side facing you
OPEN/CLOSE
PLAY/PAUSE
STOP
PREV
NEXT
USB
In DVD modewhen no discis playing, insert
a USB drive(or an MP3player with USB
interface) into theUSB socket. Pressthe
DVD/USB button onthe Remote Controlunit,
and use the / keys toselect USB modefor
playing MP3 orJPEG files.
3 in 1Card Reader
In DVD modewhen no discis playing, insert
three kinds ofcard (SD ,MMC,MS). Press
DVD/USB button onthe Remote control
and use the / key toselect SD/MS/MMC
mode for playingMP3 or JPEGfiles. Allthe
function is thesame to playinga disc.
Caution:
When using USB/3in 1 CardReader
function, please donot insert inthe wrong
direction, or elseit will damagethe unit.

ANTENNA CONNECTION
INSTALLATION
Note:
Aerial connections:IEC(female).
Input impendance:75 unbalanced.
-7-

STEPS:
CONNECTING TO PC
Be sure boththe TV and computer are set to Poweroff.
1.Connect VGA and audio cable.
2.Connect the powercord.
3.Power on theTV, switch theinput source to VGA mode.
4.Power on thePC.
This sequence isvery important.
INSTALLATION
-8-
×ó
ÓÒ
µçÔ´ÊäÈë

PRESET MODE
INSTALLATION
PC PRESET
-9-
1
2
3
4
5
6
7
8
9
720*400
640*480
800*600
800*600
800*600
800*600
1024*768
1024*768
1024*768
70
60
56
60
75
72
60
70
75
31.47
31.47
35.156
37.88
46.88
48.08
48.36
56.48
60.02
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

INSTALLATION

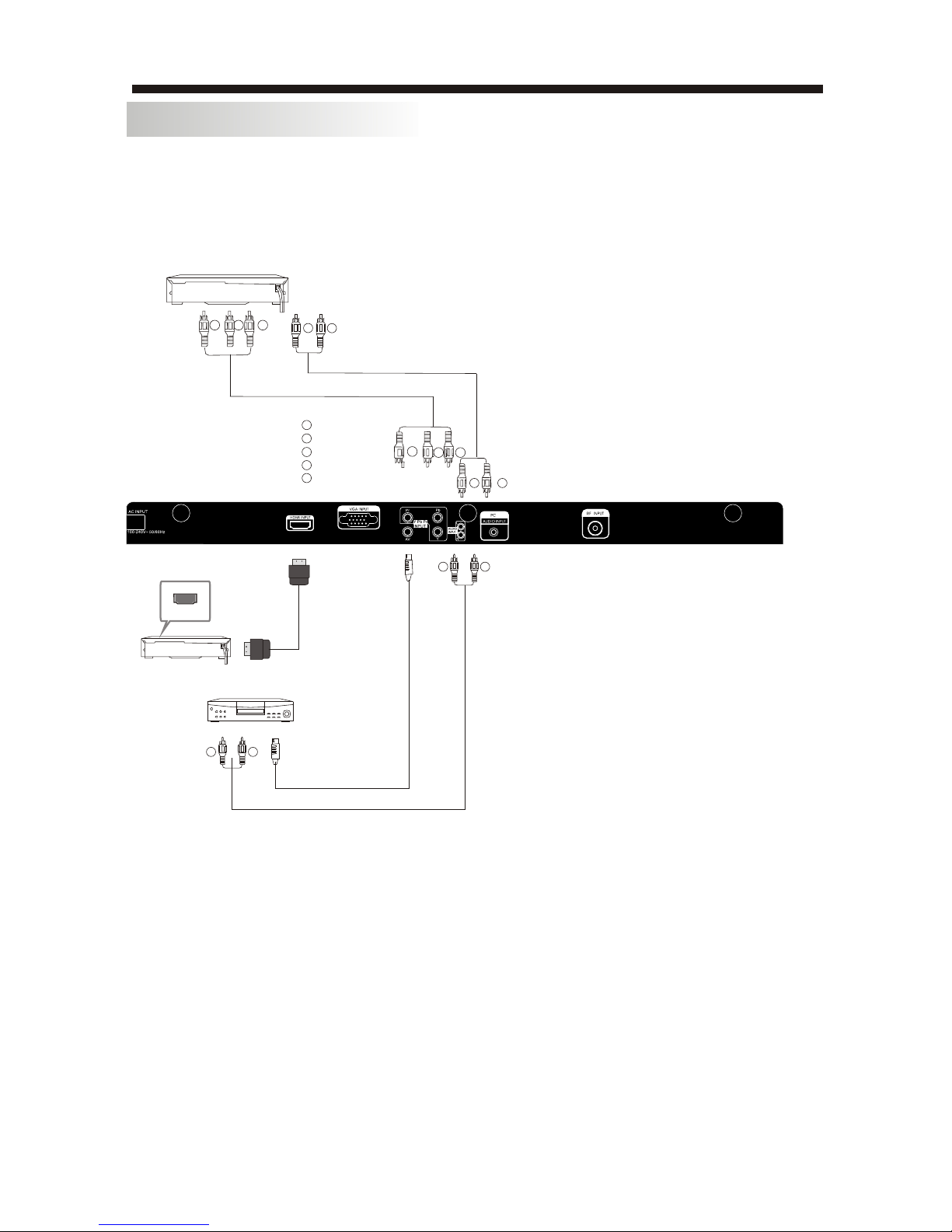

CONNECTING TO AV EQUIPMENTS
-10-
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.
This TV provides one group of AV, one group of YPbPr for convenient connectionto VCR,
DVD or other video equipment. Please refer to the owner's manual of the equipment to be
connected as well.
You can use the input terminals on TV set rear as follows.
×ó
ÓÒ
µçÔ´ÊäÈë
To audio outputs
VIDEO EQUIPMENT
TO VIDEO
output
WR
W R
W R
GBR
GBR
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
HDMI
VIDEO EQUIPMENT with YPbPr
WR

REMOTE CONTROL
-11-
Remark:

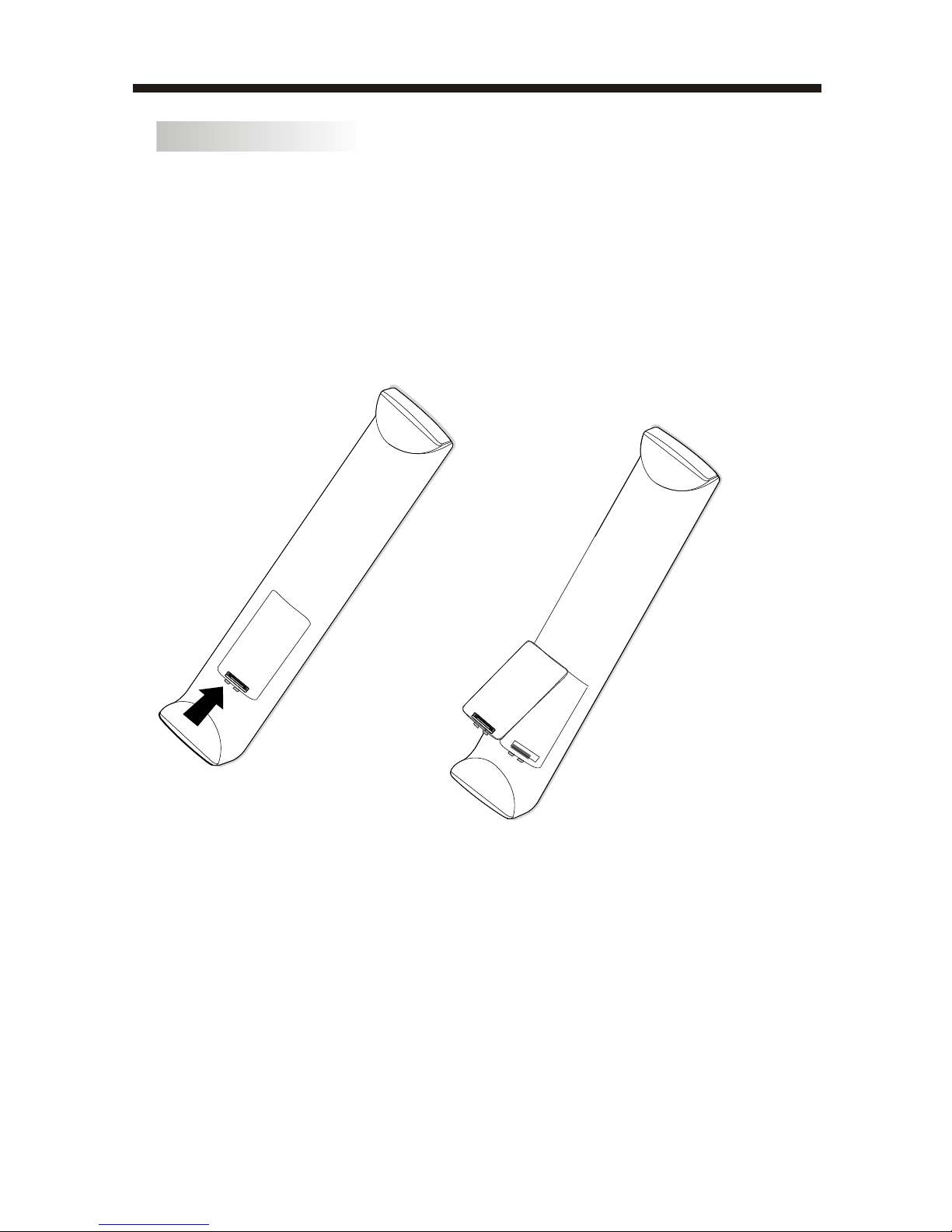

BATTERY INSTALLATION
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries
matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the TV set begins to show
the following symptoms: Operation is unsteady or erratic. Sometimes the TV set does
not function with Remote Control Unit.
1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the remote control is not to be used for
an extended period of time.

REMOTE CONTROL
KEYS FUNCTION
-12-
1
OK
23
456
7890
+
CH
_
+
_
VOL
POWER MUTE
TV AUDIO
RECALL/GOTO
TV MENU SOURCE
DVD MENU SOUND EXIT
PIC
SLEEP ASPECT
TEXT
TV/RADIO
DVD SETUP
EPG FAV INFO
DISPLAY DVD AUDIO
ANGLEPBCDVD/USB TITLE
SUBPAGE SIZE MIX
REVEAL HOLD LIST INDEX
RETURN SUBTITLE
FREEZE
2
3
4
1
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1:POWER:Power On/Standby.
2:NUMERIC KEYPAD.
3:TV MENU:Displays Main TVmenu.
4:CURSOR:To navigatewithin menus.
5:DVD MENU:Displays DVD disc’smain menu.
Pressagain to resume playback.
6:VOL+/- :To adjustsound level.
7:PIC:To switchpicture mode.
8:SLEEP:Set timer toturn off theTV.
9:DVD SETUP:Default settings forDVD.
10:TV/RADIO:In DTV mode,switches between
Digital TVand Sound OnlyBroadcasts.
DVDMODE:Repeat
11:DTV Mode:Electronic Program Guide
DVD Mode:Play/Pause.
12:DTV Mode:Access Favourites List
DVD Mode:Stop Playback.
13:DTV Mode:RED Teletextbutton
DVD Mode:selects between disc and USB/card media.
14:DTV Mode:GREEN TeletextButton
DVD Mode:Displays DVD s main menu.
15:DVD Reverse PictureSearch.
16:DVD Forward PictureSearch.
17:RETURN:return to themenu (DVD/VCD/SVCD)
18:DISPLAY:Shows DVD Player s Current Status.
19:TELETEXT KEYS:(page 14)
20:MUTE:To disableor enable thesound output.
21:DTV Mode:Selects AvailableAudio languages
DVD Mode:Ejects Disc.
22:DTV Mode:RECALL:Jumps to last channel viewed
DVD Mode:GOTO:Allows direct chapter/timeinput.
23:SOURCE:To selectinput source.
24:OK:To confirmselection.
25:EXIT:To returnto the previousmenu
or exit menu.
26:SOUND:To switchsound mode.
27:CH+/CH-:To accessthe next orprevious
channels.
28:ASPECT: Tochange picture aspectratio.
29:TEXT:To enteror exit TELETEXT(DTVonly).
30:INFO:To displayinformation about the
channel being viewedor further information
about the programwhen in small EPG
screen in DTVmode.
31:DTV Mode:BLUE TeletextButton.
DVD Mode:Select View angle(if available on disc).
32:DTV Mode:YELLOW Teletext Button
DVD Mode:PBC Function(VideoCD only).
33:DVD Chapter SkipForward.
34:DVD Chapter SkipReverse.
35:SUBTITLE:(DVD and DTV)Cyclesthrough
available subtitle languagesand off .
37:FREEZE:Freezes current image.
Sound continues asnormal.
'
'

OPERATION
-13-
BASIC OPERATION
TURN ON THEUINT
Press the POWERbutton on the remote control toswitch on thepower. Thepower
indicator will lightup in green colour, press the POWER buttonagain to switchoff
the power,and the indicatorwill change to red.
CHANNEL SEARCH
Press the SOURCEbutton on the remote control toselect the TVor DTV inputmode,
and press theOK button to confirm.If you areusing the unitfor the first time, an
Installation Guide menuwill be displayed to guide youthrough
WATCH TV PROGRAM
Press the CH-or CH+ button to select theprevious or nextchannels or press the 0-9
buttons to entera channel number directly.Press CH.LISTbutton to viewthe channels
list and press the buttons to selectthe desired TVprogrammes.
CHANGE VOLUME
Press the VOL- or VOL+ button toadjust the volume level. Press theVOL -button
repeatedly to decreasethe volume; press the VOL+ button repeatedly to increase
the volume from0 to 100.
Press the PIC button repeatedly tocycle through the available video picturemodes.
CHANGE SOUND MODE
Press the SOUND button repeatedly tocycle through the available sound modes.
VIEW CHANNELINFORAMTION
Press the INFObutton to display the preset channelinformation.
MUTE
Press the MUTE button to cutoff the soundoutput, press this button again toresume
sound output.
CHANGE INPUT SOURCE
Press the SOURCE button then pressthe buttons to select the inputsource and
press the OKbutton to confirm.
the channel scan,
Use the remotecontrol to finish channel scan (youcan also referto CHANNEL MENU
(page 16) inthis manual for the channel scanoperation).
CHANGE PICTURE MODE
EXIT MENU
OK
NEW INSTALLATION
Menu Language English
Auto Tuning

OPERATION
-14-
E
TEXT

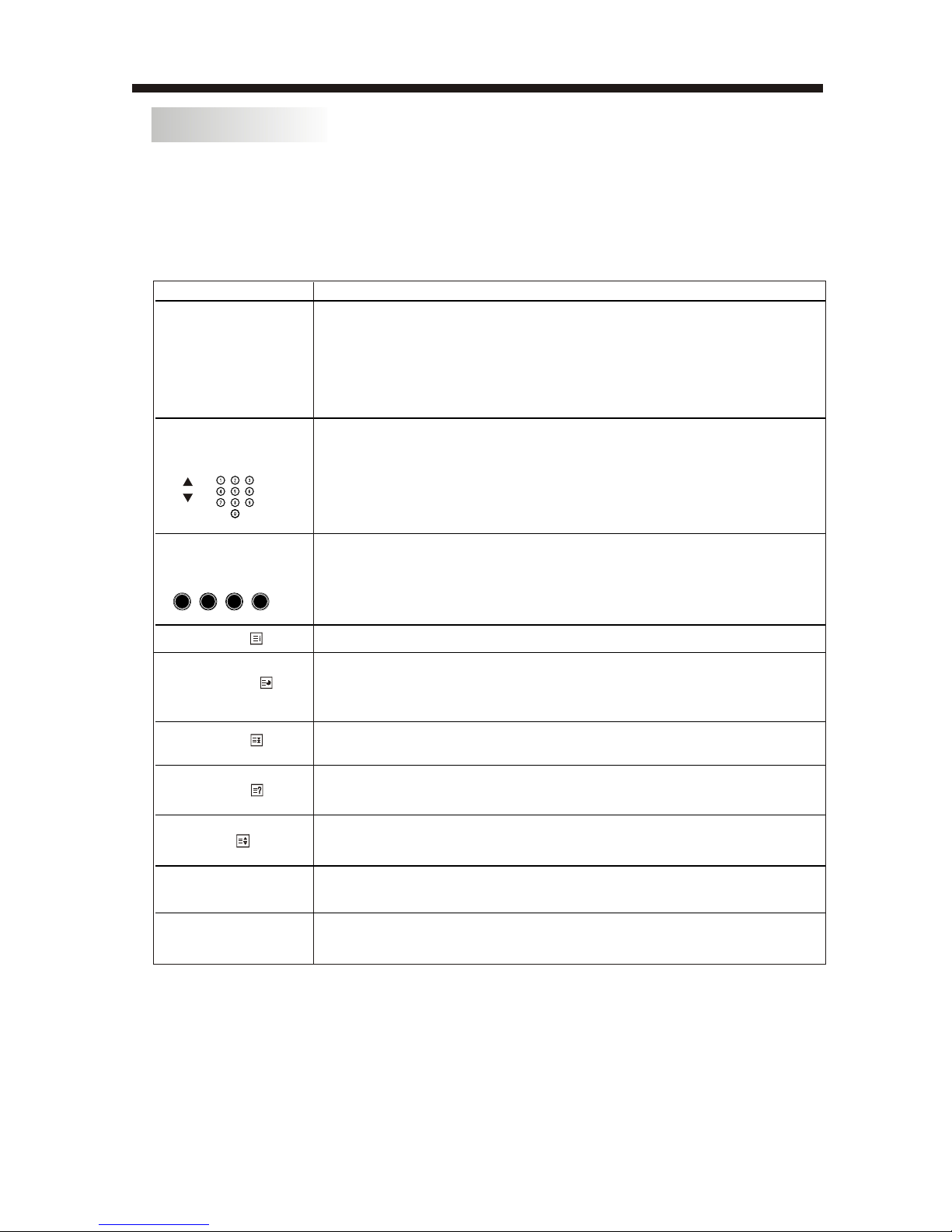

SELECTING A PAGE
DIRECT ACCESS
TO THE ITEMS
INDEX
SUB PAGE
HOLD
REVEAL
Press: You will obtain:
TELETEXT
Enter the numberof the page required using the0 to 9
up/down. Example: page120, enter 120. The number is
displayed top left,the counter turns and then thepage is
displayed. Repeat thisoperation to view another page. If
the counter continuesto search, this means that thepage is
not transmitted. Select another number.
Coloured icons aredisplayed at the bottom of thescreen. The 4
coloured buttons onthe remote control are used toaccess the
items or correspondingpages. The colouredicons flash when
the item orthe page is not yet available.
This returns tothe contents page (usually page 100).
Certain pages containsubpages which are automatically
displayed successively.This key isused to stopor resume sub-
page acquisition. Theindication appears topleft.
To freeze the page.
To display or hide the concealed information (games solutions).
This is usedto enter orexit teletext mode.The summary
appears with alist of items that can beaccessed. Each item
has a corresponding 3 digit page number. If the channel
selected does notbroadcast teletext, theindication 100 will
be displayed andthe screen will remain blank (inthis case,
exit teletext andselect another channel).
Teletextis an informationsystem broadcast bycertain channels whichcan be
consulted like anewspaper. Italso offers accessto subtitles forviewers with
hearing problems orwho are not familiar with thetransmission language (cable
networks, satellite channels,etc.)
SIZE To zoom the page.
LIST To saveand display your favouritepages.
MIX To mixteletext with video pictures.

OPERATION
-15-
EPG (Electronic Programme Guide)
DTV
800 France 2
802 France 5
803 ARTE
804 LCP
805 France 3
801 France 4
PROGRAMME GUIDE DTV 801 France 4
1555.1625 Last Exit
20 Feb 2006 16:07
20 Feb
16:00 17:00
Information
Last Exit
Programme 2
Programme 3
Programme 4
Programme 5
EXIT Reminder
OK
INFO
Movie 1
DATE
Schedule
The EPG (ElectronicProgramme Guide) menu is used tolook at whatis
being broadcast ona DTV orRadio channel at a later pointin time.
he detailed programme
information of thechannel currently being viewed will bedisplayed.
Press the EPGbutton to access the EPG menu,t
To seewhat is goingto be broadcast after the currentprogramme, press the
button to viewfuture programmes andpress the buttonto return towards
the programmes televisedat the current time.
To viewa different channel,press the or button. To book awanted
programme for laterwatching, press the blue button toenter Reminder menu.
Press the greenbutton to enter the schedule list.
To exitthe EPG menuand watch the selected channel, pressthe EPG
or EXIT button.

OPERATION
-16-
EXIT MENU
OK
CHANNEL
Auto Tuning
DTV Manual Tuning
ATV ManualTuning
Programme Edit
1.CHANNEL MENU
The first itemof the menuis CHANNELmenu( for TVsource only).
Youcan search channelsand edit programshere.
1).Auto Tuning:Search all the channels automatically(ATV, DTV &Radio)
Press the buttonsto select countrythen press the buttons to select start or
cancel.
Press the OKbutton to start or exit autotuning .
NOTE: Allthe channels includingATV, DTV andRadio can betuned at theone time .
2).DTV Manual Tuning: Youcan select aDTV channel then find the programin this
channel.
Pls press the buttons to selectthe channel ,then press the OK button tosearch
the programs .
NOTE: Bad NormalGood refers tothe signal intensity.
Please select country first
then select Start toupdate info
Country selection
Start Cancel
Australia
DTV Manual Tuning
UHF CH 30
Please select channel then
press OK to search
Bad Nomal Good
EXIT MENU
MENU OPERATION
OK

OPERATION
-17-
icon will disappear.
3). ATV Manual Tuning :Youcan change thesound system to search the analog
TV channels andfine tune thechannels, then store the channels youselected.
Press the red button to store the channel aftermanual tuning .
4). Programme Edit:Youcan edit programs in the followingitems.
Delete
Press the redbutton, it will shows a reddelete cursor.
Press the buttons to choose the program.
Press the redbutton again, the program will bedeleted.
Rename
Youcan only rename ATV programs.
Move the cursorto the program, press the greenbutton to renamethe program,
Press the TVMENU button to exit edit ,Press the EXITbutton to exit the menu.
Move
Move the cursorto the program, press the yellowbutton, it willshow a yellow
cursor, Pressthe buttons tomove the program.
Skip
Press the buttons to choose the program, then pressthe blue buttonto skip
this program, the icon will showon the rightside of the program.
Choose the skippedprogram and press the blue buttonagain to cancelskip, the
FAV
Press the buttons to choose the program, press theFAV button, itwill show
on the rightside of the program.Choose the FAV program andpress the FAV button
again to cancelFAV, the icon will disappear .
SKIP
SKIP
ATV ManualTuning
Storage To
EXIT SAVE
System BG
Current CH 1
Search
Fine-Tune
Skip Yes
Frequency 255.25MHz
Once your favouritegroup is created,youcan press theFAV button toquickly access
your favourite channellist.
Storage To: To select the channel number you want to save to.
System: To select the TV sound system.
Current CH: To select the current channel.
Search: Tosearch backward/forward.
Fine-Tune:To fine tuning when the signal level of current channel isweak.
Skip: When its setto Yes, the currentchannel will be skipped while you are
changing channels by pressing the CH+ orCH- buttons.

-18-

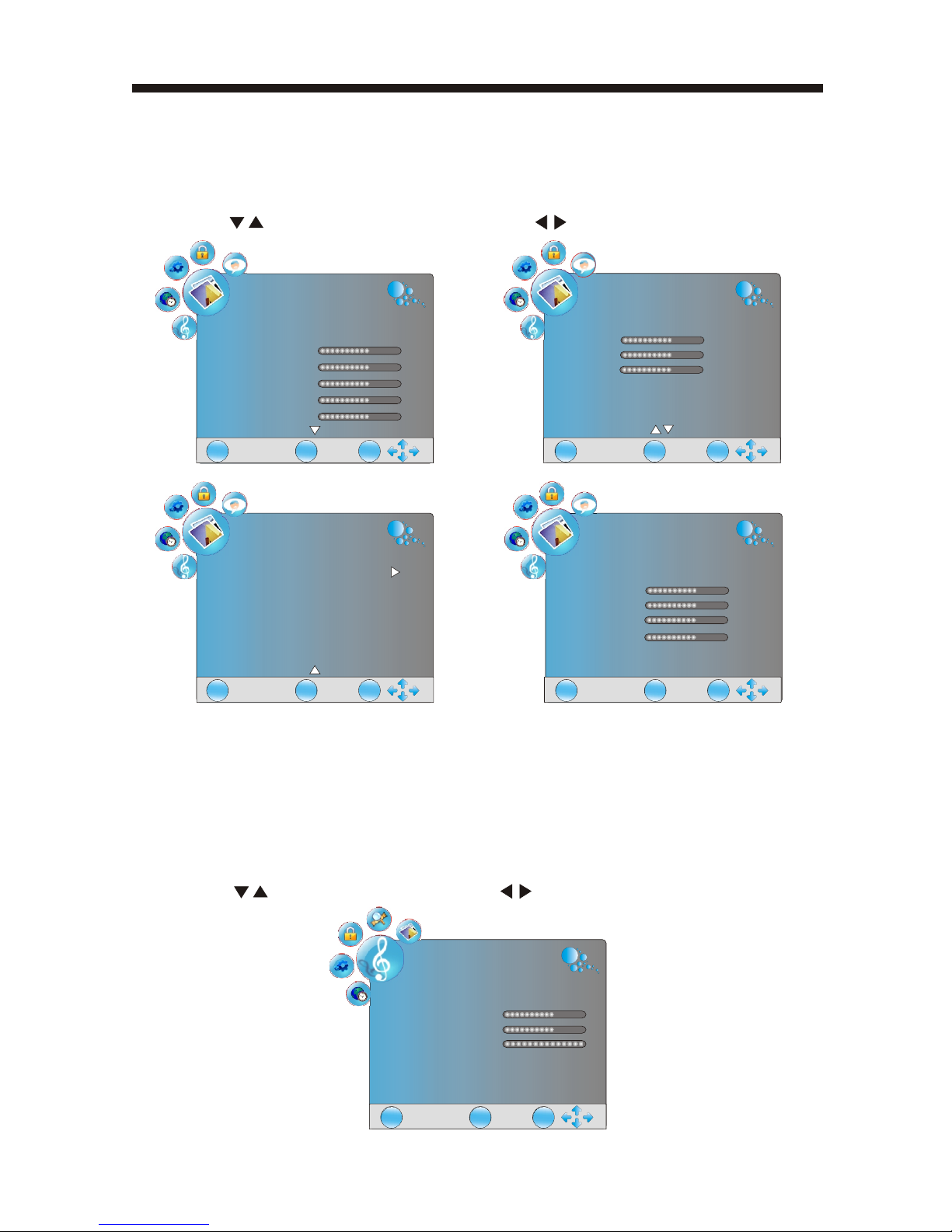

The second itemof the menuis PICTURE menu.
You can adjustpicture effect here,including contrast, brightnessand colour as
well as otherpicture functions.
Press the buttonsto select items and press the buttons to adjust.
EXIT MENU
OK
Picture Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
70
70
70
70
0
OPERATION
NOTE:
1).Tint is available in NTSCsystem only.
2).PC Setup isavailable in VGAmode only.
EXIT MENU
OK
SOUND
Sound Mode Standard
Treble
Bass
Balance
Surround Sound Off
3.SOUND MENU
The third itemof the menu is the SOUNDmenu.
Youcan adjust the sound effect here,including treble, bassand balance as well
as other soundfunctions.
Press the buttonsto select and press the buttonsto adjust.
50
50
0
2. PICTURE MENU
EXIT MENU
OK
Colour Temp Normal
Red
Green
Blue
Aspect Ratio 16:9
Noise Reduction ON
70
70
70
EXIT MENU
OK
PC Setup
EXIT MENU
OK
Auto Adjust
H-Position
V-Position
Clock
Phase
70
70
70
70
(1) (2)
(3) (4)
