AWA MSDV2611-O3-D0 User manual

MSDV2611-O3-D0
26" 66cm HD LCD Television
with Built in DVD Player
USER MANUAL
Thank you for purchasing this LCD TV. Before connection and operation of this
product please read the manual carefully and completely.
Please keep this manual for future reference.
N294
Version 1.1

Contents
-1-
INTRODUCTION..............................................................................1
SAFETY AND WARNINGS............................................................. 2-4
BASE STAND ASSEMBLY INSTRUCTION..........................................5
WALL MOUNTING INSTALLATION GUIDELINES................................6
INSTALLATION...........................................................................7-12
REMOTE CONTROL.................................................................13-14
OPERATION.............................................................................15-19
ELECTRONIC PROGRAM GUIDE (EPG MENU)................................20
PERSONAL VIDEO RECORDER (PVR)............................................21
DIGITAL MEDIA PLAYER (DMP)...................................................... 24
DVD OPERATION......................................................................25-28
DVD TROUBLE SHOOTING............................................................ 29
TROUBLE SHOOTING................................................................... 30
TECHNICAL SPECIFICATIONS.......................................................31

-2-
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
This symbol indicates that dangerous
voltages, constituting a risk of electric
shock are present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
WARNING:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings,
install in accordance with the instructions.
8) Do not install near any heat sources such
as radiators, air conditioners, stoves, or
other apparatus (including amplifiers) that
produce heat.
9) Protect the power cord from being
walked on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
10) Only use attachments/accessories
specified by the manufacturer.
11) Unplug this apparatus before lightning
storms or when unused for long periods of
time.
12) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as when the power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
13) The Mains plug is used as the power
disconnect device, and the disconnect
device shall remain readily accessible and
operable.
14) The ventilation should not be impeded
by covering the ventilation openings with
items such as newspapers, table-cloth,
curtains, etc.
15) No naked flame sources, such as
lighted candles, should be placed on or
near the apparatus.
16) This device is not warranted for use in
unreasonably hot, cold, or humid
environments.
17) The apparatus shall not be exposed to
dripping or splashing and no objects filled
with liquids, such as vases, shall be placed
on or near the apparatus.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts. When servicing use only
identical replacement parts.
The batteries shall not be exposed to
excessive heat such as sunshine, fire or
the like.
WARNING:

-3-

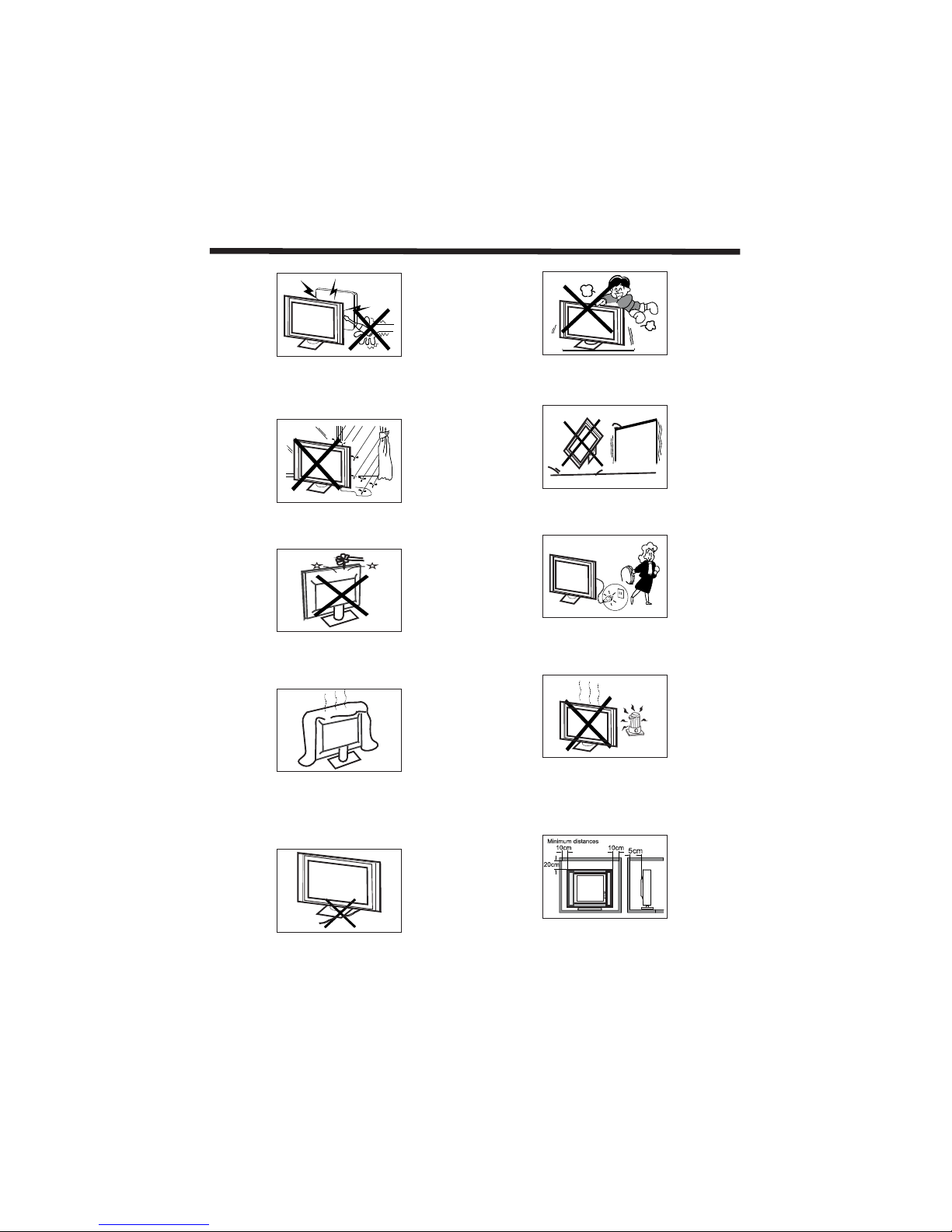

High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set.
Refer servicing to qualified service personnel.
To prevent fire or electrical shock hazard, do not
expose the television receiver to rain or moisture.
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Do not block the ventilation holes in the back
cover.
Adequate ventilation is essential to prevent
failure of electrical components.
Do not trap the power supply cord under the
television receiver.
Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if it
falls.
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an individual,
and damage to the television may result if it falls.
When the television receiver is not used for an
extended period of time, it is advisable to
disconnect the from the AC outlet.AC power cord
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.
Dim:515*320mm(）
SAFETY AND WARNINGS

-4-
SAFETY AND WARNINGS
CAUTION
Never tamper with any components inside the TV, or any other adjustment controls not mentioned in
this manual.
All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD
PANEL or CABINET, the power cord should be physically removed from the mains outlet. You may
then wipe the TV with a dry soft cloth. Before thunder and lightning events arrive, unplug the power
cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be
performed by qualified TV service personnel.
Warning: Change or modifications to this unit not expressly by the part responsible for compliance
could void the user 's authority to operate the Equipment.
a. Do not expose to dripping or splashing.
b. No objects filled with liquids, such as vases, shall be placed on or near the apparatus.
C. is used as the power disconnect device and shall remain readily
accessible and operable.
d. No naked flame sources, such as lighted candles, should be placed on or near the apparatus.
e. Allow suitable distances around the apparatus for sufficient ventilation. Ventilation should not be
impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and
such like.
The mains plug of this device
The display panel is a very sensitive high technology product, giving you finely detailed
pictures. Occasionally, a few non-active pixels may appear on the screen as a fixed point of
black, blue, green or red. Please note that this does not affect the performance of your product.
About After- Image:
The extended use of fixed image programme material can cause a permanent after - image on
the screen. This background image is viewable on normal programs in the form of a stationary
fixed image. This type of irreversible screen deterioration can be limited by:
A. Reduce the brightness/contrast setting to a minimum viewing level.
B. Do not display any fixed image for extended periods of time.
C. Turn the power off when not in actual use.
Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed
Image Displays.
Do not allow a still picture to be displayed for an extended period, as this can cause a
permanent after-image to remain on the screen.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.
CAUTION:
The permanent after-image on the screen resulting from fixed image use is not an operating
defect. This product is not designed to display fixed images for extended periods of time.

-5-
This STAND INSTALLATION GUIDE is provided to help you easily install the stand. Please carefully follow
Step 1 through Step 3.
STAND INSTALLATION GUIDE
Open the box and find the parts
Open the box and find the following parts.
- Stand x1 pc
- Screws x 4 pcs
Packing
Stand
Packing
TV
Screws
Stand
Place the Stand on the TV
1. Place the TV with the display side down
on a table or desk (flat, totally clean surface).
2. Place the Stand on the TV as shown below.
Stand
Secure the Stand to the TV
Secure the Stand to the TV by using the 4 supplied screws.
12
43

For wall mounting with the optional bracket, please read the following instruction and the
bracket instruction. Make sure qualified service personnel perform the operation.
AWA bears no responsibility for improper mounting that results in accident or injury.

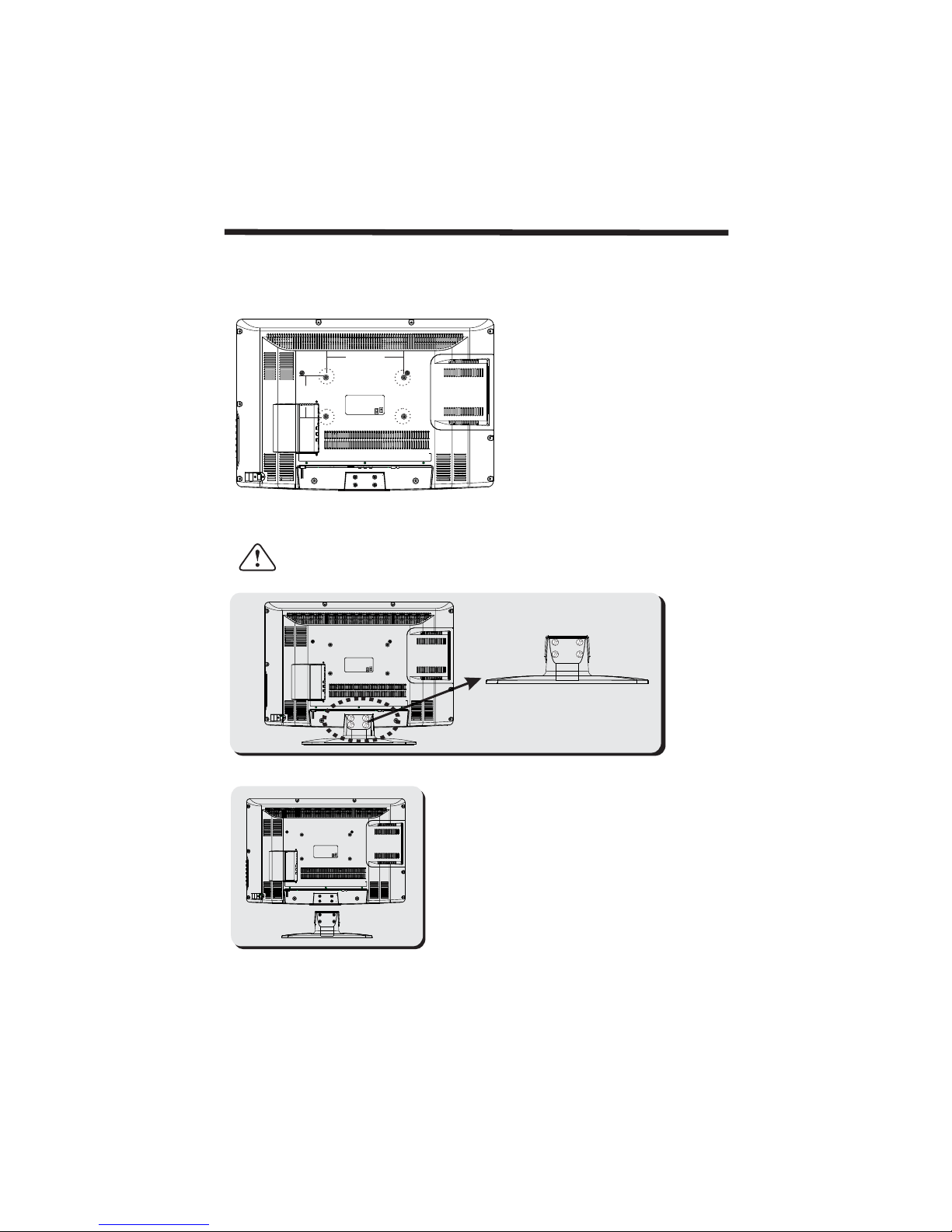

Wall Mounting Holes Spacing and Location
Base Stand Disassemble Illustration
How to remove the stand from the TV
(The LCD Display is very fragile, and must be protected at all times when removing the
base stand. Be sure that no hard or sharp object, or anything that could scratch or
damage the LCD display, comes into contact with it. DO NOT exert pressure on the front
of the unit at any time because the screen could crack.)
1.Use the screwdriver to remove 4 screws from the screw location.
2.Remove the base stand from the Main body.
4 Wall mount M4 Screws
-6-
INSTALLATION
200 mm
100 mm

FRONT PANEL
AC Power Cord.........................1
Infrared Remote Control............1
User's Manual ........................ 1
Battery (AAA).......................... 2
ACCESSORIES
INSTALLATION
-7-
Stand mounting screws.........................4
Wall mounting M4 screws......................4
3
1 2 3
4 5 6
7 8 9 0
+
CH
_
+
_
VOL
30 30
1
2
(on side of TV).
4: Main power switch (on bottom rear of TV)
1: Remote control sensor.
2: Indicator LED:
GREEN = POWER ON.
RED = STANDBY.
3: Key board
4

INSTALLATION
KEY BOARD
REAR PANEL
-8-
All the terminals are (from left to right):
AC Power input, HDMI2 input, HDMI1 input, YPbPr , AV1 input,
Rear Audio input, PC AUDIO input, AV output, VGA input, Antenna socket.
Note: 1. AV1 and YPbPr share the Rear Audio input channel.
2. When HDMI1 port receives a DVI signal, the matching audio signal is received by
the PC Audio input.
(component video) input
1. SOURCE:
2. MENU:
3. CH+/CH-
4. VOL+/VOL-
5. STANDBY
Displays the input source Menu.
Displays the main MENU.
In TV mode, press "CH+" or "CH-" to change the channel up and down.
In MENU mode, press "CH+" or "CH-" to select items.
Adjusts the sound level.
In MENU mode, press "VOL+" or "VOL-" to adjust the item that you have selected.
Once the TV's main power switch has been activated, press this button to turn the
unit ON from STANDBY mode.
Press it again to return the set back to STANDBY.
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
VGA INPUT RF INPUT
PC
AUDIO INPUT
100-240V~ 50/60Hz
AC-INPUT HDMI1 INPUT
HDMI2 INPUT
AV LR
AV OU TPU T

ANTENNA CONNECTION
INSTALLATION
Note:
Aerial connections: IEC(female).
Input impedance: 75 unbalanced.
-9-

STEPS:

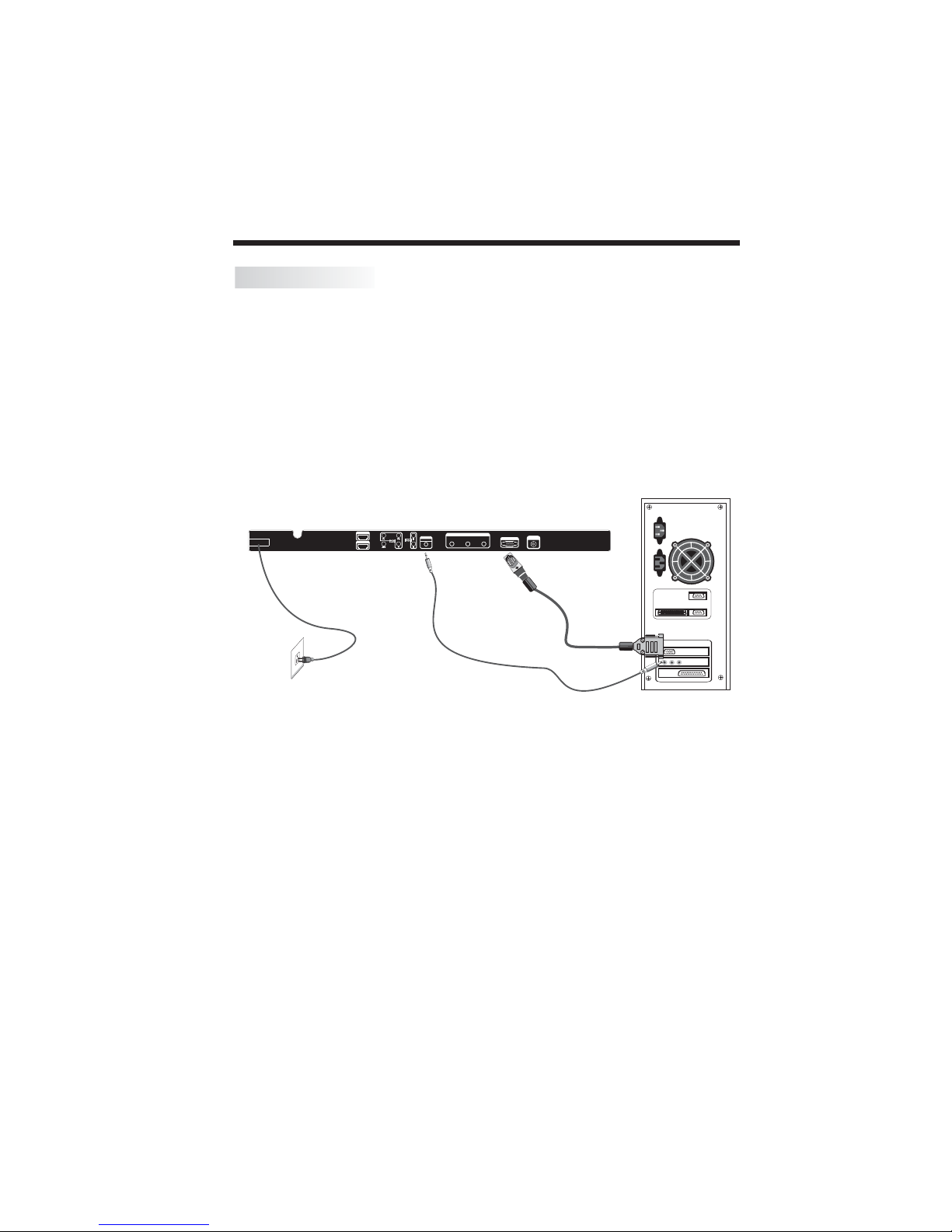

CONNECTING TO PC
Be sure both the TV and computer are set to Power off.
1.Connect VGA and audio cable.
2.Connect the power cord.
3.Power on the TV, switch the input source to VGA mode.
4.Power on the PC.
This sequence is very important.
INSTALLATION
-10-
VGAINPUT RF INPUT
PC
AUDIOINPUT
100-240V~ 50/60Hz
AC-INPUT HDMI1 INPUT
HDMI2 INPUT
AV LR
AV OUT PUT
VGA and audio cable
not supplied

PRESET MODE
INSTALLATION
PC PRESET
-11-
1
2
3
4
5
6
7
720*400
640*480
800*600
800*600
800*600
1024*768
1024*768
70
60
56
60
72
60
70
31.47
31.47
35.156
37.88
48.08
48.36
56.48
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
The above resolutions are the only ones guaranteed to be supported. Other resolutions up to
1920 x 1080 may also be supported, but this must be assessed by the user on a case-by-case
basis. This is also subject to the limitiations of the computer’s video card.

INSTALLATION
CONNECTING TO AV EQUIPMENT
-12-
It can be connected to the following appliances: VCR,
multi disc player, DVD, camcorder, video game or
stereo system, etc.....
YPbPr can support these video
formats: 480i,576i,480p,576p,720p,1080i.
Side panel inputs:
The side panel inputs provide one composite video
input, and one pair (stereo) of Audio inputs.
(component video)
This TV provides two group of AV, one group of YPbPr (component video) inputs for convenient
connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the
equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
WR
To audio outputs
VIDEO EQUIPMENT with Composite output
TO VIDEO output
W R
W R
GBR
GBR
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
HDMI
VIDEO EQUIPMENT with YPbPr (component) output
WR
W R
W R
TO AUDIO INPUTS
VIDEO EQUIPMENT
TO VIDEO
INPUTS
VGA INPUT RF INPUT
PC
AUDIO INPUT
100-240V~ 50/60Hz
AC-INPUT HDMI1 INPUT
HDMI2 INPUT
AV LR
AV OU TPU T
USB
VIDEO
L
R
AV2

-13-
REMOTE CONTROL
Remote Control - TV section
1: :Press to turn the unit on or off.
2: :Press for direct access to channels.
3: :Press to display TV Main Menu.
4: :Press to scroll through the Menu.
6: :Press to adjust the sound level.
7: :Press to switch between picture modes.
8: :Press to set Sleep Timer.
9: :Press to record the TV program you are watching in
DTV mode,
10: :Press to switch between TV and Radio modes.
11: :Press to display the 7 Day Electronic Program Guide
For information on the show you are watching.
12: :Press to access your favourite channels list in TV or
DTV mode.
15: :Press to rewind play in USB Mode .
16: :Press to Fast Forward play in USB mode .
17: :Press the Play Button in USB Mode to begin or
continue Playback.
18: :Press the Pause Button to pause play in USB Mode .
19: :Refer to page 14.
20: :Press to disable or enable the sound output.
21: :To select the available audio language of TV
programs.
22: :Press to return to the previously viewed
channel.
23: :Press to display the Input Source List.
24: :Press to confirm Menu selections.
25: :To exit the main menu, press the Exit Button or to
cancel setting selections.
26: :Press to switch between the sound modes.
27: :Press to scroll through your Channel List.
28: :Press to change the picture aspect ratio.
29: :Press to enter or exit TELETEXT mode.
30: :To display the program information of the show you
are watching, press the Info Button.
33: :Press to skip the next file or track in
USB Mode.
34: :Press to skip the previous file or
Track in USB Mode.
35: :To turn on Subtitles press the Subtitle Button
in DTV mode.
36: :
37: :Press to freeze the picture you are watching.
POWER
NUMERIC KEY
TV MENU
CURSOR
VOL+/-
PIC
SLEEP
REC
TV/RADIO
EPG
FAV
REWIND
FAST FORWARD
PLAY
PAUSE
TELETEXT KEYS
MUTE
TV/AUDIO
RECALL/GOTO
SOURCE
OK
EXIT
SOUND
CH+/CH-
ASPECT
TEXT
INFO
SKIP FORWARD
SKIP BACKWARD
SUBTITLE
FREEZE
Press to stop playing in USB mode.
DVD/USB
NOTE: For the function of DVD button, please
refer to the DVD part at the back of this
instruction book. ( )Page 25-28

-14-
REMOTE CONTROL
TELETEXT
TEXT
SELECTING A PAGE
DIRECT ACCESS
TO THE ITEMS
INDEX
SUB PAGE
HOLD
REVEAL
Press: You will obtain:
LIST
Enter the number of the page required using the 0 to 9 up/down.
Example: page 120, enter 120. The number is displayed top left, the
counter turns and then the page is displayed. Repeat this operation to
view another page. If the counter continues to search, this means
that the page is not transmitted. Select another number.
Coloured buttons correspond to the colours at the bottom of the
screen. The 4 coloured keys are used to access the items or
corresponding pages. The coloured areas flash when the item or the
page is not yet available.
This returns to the contents page (usually page 100).
Certain pages contain sub-pages which are automatically
displayed successively. This key is used to stop or resume sub-
page acquisition. The indication appears top left.
To freeze the page.
To display or hide the concealed information (games solutions).
The user can set four favourite pages to be directly linked to the four
color keys. While list mode is activated, it is not possibility to use TOP
or FLOF navigation with the colourkeys. The favourite page numbers
should be stored and restored to/from nonvolatile memory for each
channel by the system software.
This is used to call or exit teletext modes. The summary appears with
a list of items that can be accessed. Each item has a corresponding
3 digit page number. If the channel selected does not broadcast
teletext, the indication 100 will be displayed and the screen will
remain blank (in this case, exit teletext and select another channel).
Teletext is an information system broadcast by certain channels which can be
consulted like a newspaper. It also offers access to subtitles for viewers with hearing
problems or who are not familiar with the transmission language (cable networks,
satellite channels, etc.)

-15-
OPERATION
Installation Guide
Press to select search type, then press to select country (eg. Australia), then press the OK
button to start auto tuning.
This screen only appears when the TV is turned on for the first time, or reset to factory settings. You can
choose language, country and auto tuning programs. After tuning, the screen will skip to the first DTV program.
1.CHANNEL MENU
The first item of the MENU is channel menu (for ATV or DTV source only). ATV = Analogue TV, DTV = Digital TV.
You can search channels and edit programs here.
1).Auto Tuning:
Search all the channels automatically (you can select ATV, DTV, or DTV+ATV searching).
ATV Manual Tuning
Programme Edit
Signal Information
< >
CHANNEL
Auto Tuning
DTV Manual Tuning
Software Update(USB)
Software Update(OAD)Off
Dansk
Deutsch
Hrvatski
Italiano
Please select an OSD Language
OK
Magyar
Nederlands
Norsk
PolskiEnglish
Cesky
E ka
Espanol
~
Fran ais
Portugues
Pycck
Austria
Belgium
Country
OK
Australia
Croatia Finland Greece Luxembourg
Czech France Hungary Netherlands
Bulgaria Denmark Germany Italy
Tune Type DTV+ATV
MENU
Austria
Belgium
Australia
Croatia
Czech
Bulgaria
Finland
France
Denmark
NOTE:
All the channels including ATV, DTV and Radio can be tuned at once, if the Tune Type is set to DTV+ATV.
Any previously stored channels will be deleted after auto tuning is carried out.
After auto tuning, the receiver will skip to the first DTV channel.
The radio channels are the ones provided by some TV stations. This unit does not receive
DAB+Digital Radio broadcasts.
Channel Tuning
TV : 0 Programme(s)
DTV : 0 Programme(s)
Radio : 0 Programme(s)
96% UHF CH 68 DTV
To select the MENU mode, press the menu button on the side keyboard of the TV, or press the TV/menu button
on the remote control.

2).DTV Manual tuning:
You can select a DTV channel then find the program in this channel.
Press to select the channel, then press OK to search the programs .
OPERATION
NOTE:
The Bad Normal Good bar graph on this screen shows signal intensity during DTV reception only.
3). ATV Manual tuning :
You can change the sound system, search the analog TV channels and fine tune them, then store the
channels you selected. In Australia, select the BG sound system.
""
ATV Manual Tuning
Storage To 1
System BG
Current CH 1
Search
Fine-Tune
Frequency 255.25 MHz
Save MENU
_+
DTV Manual Tuning
VHF CH 5
_+
Bad Nomal Good
Press OK to search
NOTE:
Press the teletext red button on the remote control to store the channels after manual tuning.
4).
You can Delete, Rename, Move, Skip, or FAV most TV programs.
Program edit:
-16-
Rename:
You can only rename ATV programs.
Move the cursor to the program, press the teletext green button to rename the program.
Press to choose the character. Press to move the cursor .
Press MENU button to exit edit, Press EXIT to exit the menu.
Note: ATV program names can only be 5 characters long, DTV program names can be up to 25 characters.
Press to choose the program, press the teletext blue button to skip this program, the symbol will
show on the right side of the program.
Choose the skipped program, press the blue button again, you can cancel the skip and the symbol will
disappear.
Delete
Press the teletext red button, the program in the cursor will be deleted.
Favourite
Press to choose the program, press the FAV button and it will show on the right side of the program.
Choose the FAV program, press FAV button again, you can cancel the FAV and will disappear .
Once your favorite group is created, you can press the FAV key to quickly access your favourite channel.

-17-

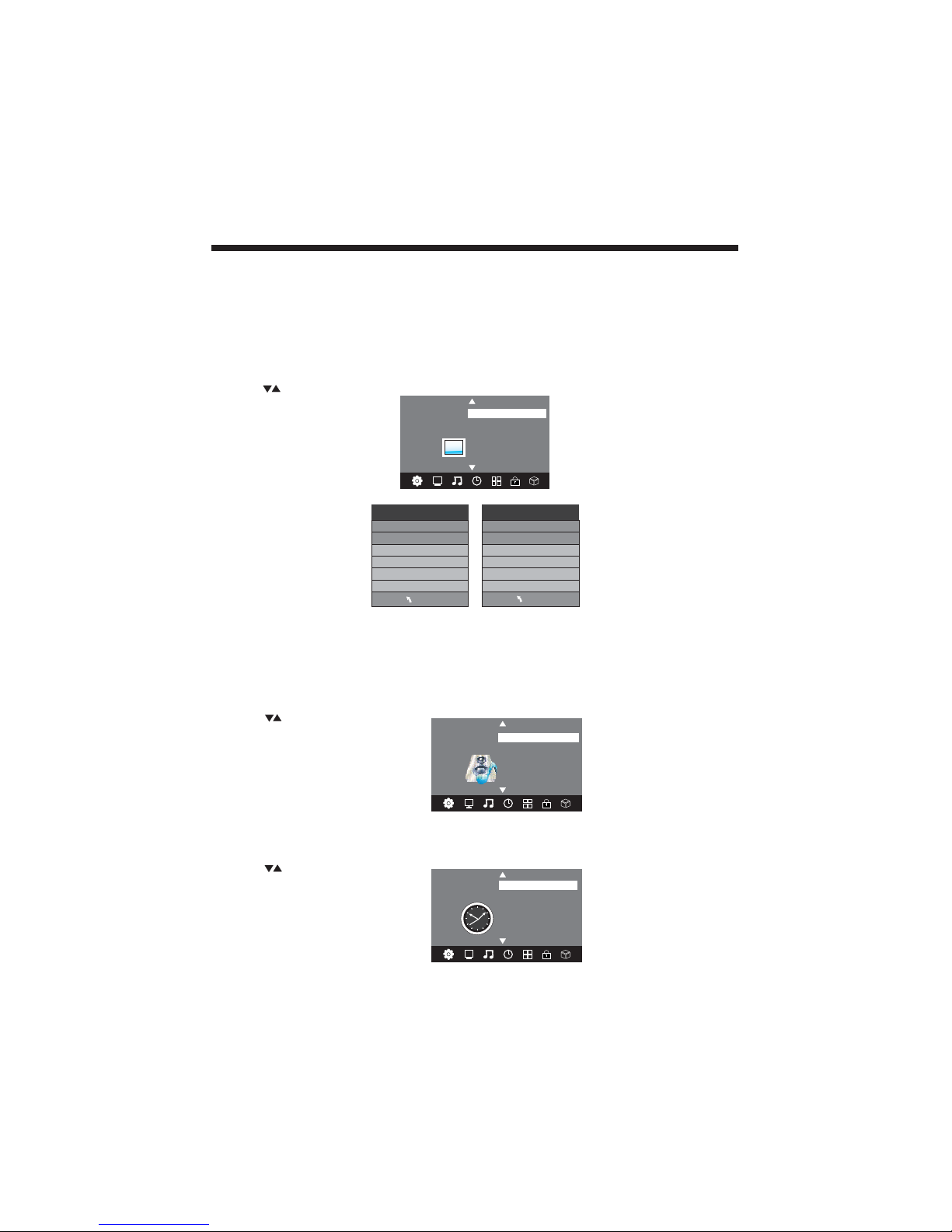

OPERATION
The second item of the MENU is PICTURE MENU.You can adjust picture effects here, such as contrast,
brightness, etc.
Press to move, press OK to adjust.
2. PICTURE MENU
Color Temperature
Aspect Ratio
Noise Reduction
Screen
Picture Mode Standard
< >
MENU
Picture Mode Standard
Contrast 50
Brightness 50
Color 50
Sharpness 50
Tint 50
Color Temperature Medium
Red 50
Green 50
Blue 30
MENU
NOTE:
1).Tint is available in NTSC system only.
2).There are four color temperature modes that can be selected: medium, warm, cool, user.
3).The Screen option is only available once the Input Source is set to PC , which allows you to adjust
Horizontal position, vertical position, size and phase or select an Auto Adjust mode.
""
TV default mode seting is standard mode and it is recommended for end used watch at home.""
3.SOUND MENU
The third item of the MENU is the SOUND MENU.
You can adjust the sound effect here such as treble, bass, balance etc.
Press to move, press OK to adjust.
< >
Balance
Auto Volume
Sound Mode Standard
SOUND
Note:
Auto volume: only available when the input signal volume is too large or there is distortion.
4.TIME MENU
The fourth item of the menu is the TIME MENU. You can adjust the clock, power on/off time, sleep time etc
Press to move, press OK to adjust.
NOTE:
The clock time is automatically set by the Digital TV transmissions.
Off Time
On Time
Sleep Timer
Auto Sleep
Time Zone
Clock -- -- -- --
TIME
< >
Displays the signal information in DTV (digital TV) mode only.
Do not attempt to use this option unless you have a valid software program for the
TV stored on a compatible USB drive, and the drive is connected to the TV. Please
remove the antenna cable from the TV RF port, go to the channel Menu, select Software Update (USB)
and press OK to run the software update.
5). Signal Information:
6). Software Update:
WARNING:
""
MSDV2611-O3-D0

< >
PVR File System
OSD Language English
OPTION
Audio Languages
Subtitle Languages
Country Australia
Restore Factory Default
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
Select Disk C:
In PVR File System Sub-menu you will be asked to format your USB 2.0 drive or Hard Disc for PVR
Operation. If you are not familiar with the various drive or partition options for storage devices, start this
process using a blank (ie. unused storage device), or one which does not hold sensitive or required data.
Select Disc
To view and select the USB file or the allocated space on your Hard Disc that you would like to record to,
press OK button to enter the Select Disk sub-menu and then press or buttons on your remote control
to select the particular partition/file for recording.
Press the Menu Button to return to the Main Menu.
Check PVR File System
Press the OK Button to start checking the file system of your USB storage or Hard Disk. Once SUCCESS
is shown after checking, you will then be able to begin recording or use the Time Shift function. If FAIL is
shown after checking, you then need to format your USB drive or Hard Disc before being able to record or
use Time Shift feature.
Format
When you format your USB drive or Hard Disc partition any saved data will be lost. Please ensure
that you start with a blank partition on your Hard Disc to ensure you don't lose any data.
PVR File System Type
There are two types of supported formats: FAT32 and Hi Speed Format. You can press or buttons to
choose the type of formatting. If FAT32 is selected, you will have to format the whole size of your USB
drive or the allocated partition for recording. If Hi Speed Format is selected, you will then be able to
press or buttons to select the size you wish to use (for example 1G, 10G, 20G... or All). Once a
particular size is booked for recording, you will be able to use the remaining space of your USB drive or
Hard Disc for other data storage.
WARNING: Please note no matter which size is booked for recording, all the data in the allocated partition
of the Hard Disc will be lost after formatting.
Speed
This will show the supported speed of recording, and whether your storage device can support HD DTV
recording.
Record Limit
This will show the approximate time you will be able to record on to your USB drive or Hard Disc.
the
File System Size
PVR File System Type FAT32
MENU
PVR File System Size All
SD 13 Mins
HD 3 Mins
-18-
OPERATION
5.OPTION MENU
To enter the Option Menu, press MENU button and then press or buttons to select the Option Menu.
Once in Option Menu, press or buttons to select the settings you wish to adjust. Press MENU button
to return to the Main Menu.
NOTE:
Restore Factory Default will clear all the programs and password.
