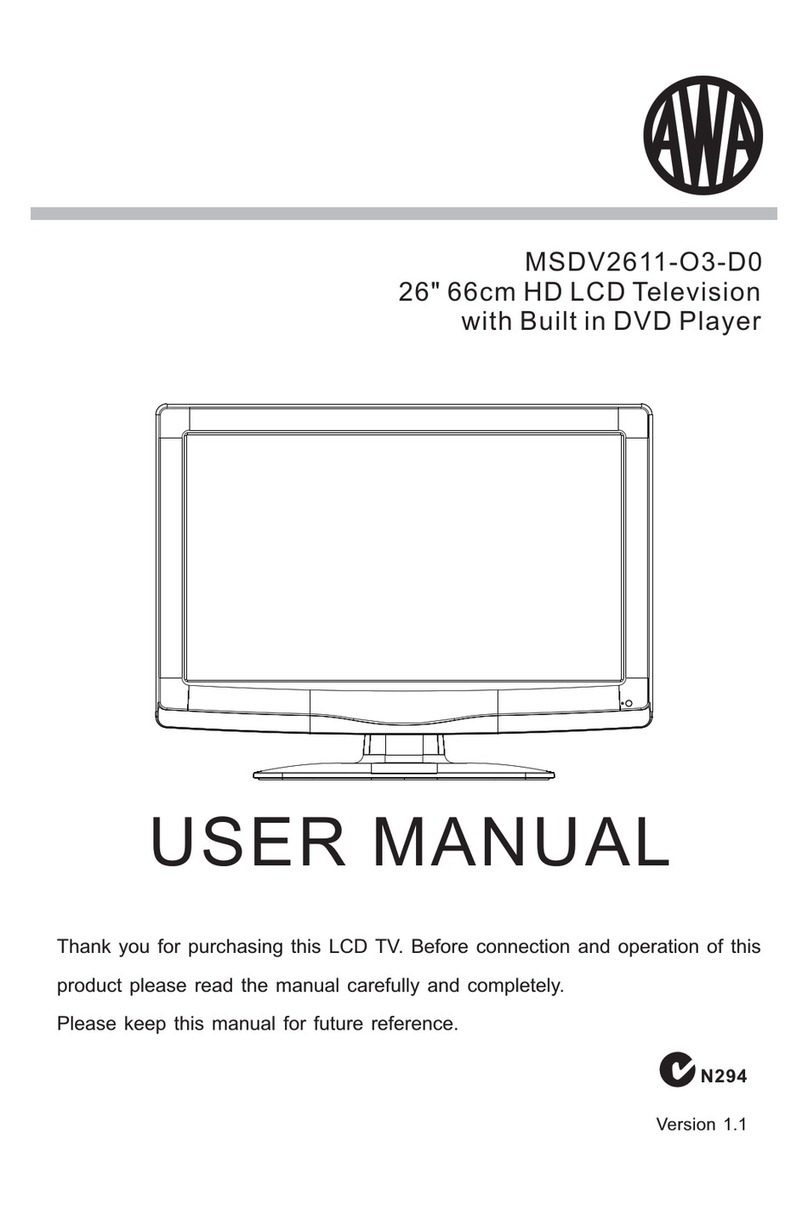

AWA MSDV2611-O3 User manual

MSDV2611-O3
26" 66cm FULL HD LCD Television
with Built in DVD Player
USER MANUAL
Thank you for purchasing this LCD TV. Before connection and operation of this
product please read the manual carefully and completely.
Please keep this manual for future reference.
N294
Version 1.0

Contents
-1-
INTRODUCTION..............................................................................1
SAFETY ANDWARNINGS.............................................................2-4
WALL MOUNTING INSTALLATION GUIDLINES...............................5-6
INSTALLATION.......................................................................... 7 -12
REMOTE CONTROL.................................................................13-14
OPERATION.............................................................................15-19
DVD OPERATION......................................................................20-23
DVD TROUBLE SHOOTING............................................................ 24
TROUBLE SHOOTING....................................................................25
TECHNICAL SPECIFICATIONS.......................................................26

-2-
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
The symbol indicates that dangerous
voltages constituting a risk of electric
shock are present within this unit.
The symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Toreduce the riskof fire or electric shock,
do not exposethis apparatus to rain or
moisture.
WARNING:
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do notuse this apparatus near water.
6) Clean onlywith dry cloth.
7) Do notblock any ventilation openings,
install in accordancewith the instructions.
8) Do notinstall near any heat sources such
as radiators, heatregisters, stoves, orother
apparatus (including amplifiers)that
produce heat.
9) Protect thepower cord frombeing
walked on orpinched particularly at plugs,
convenience receptacles, andthe point
where they exit from the apparatus.
10) Only useattachments/accessories
specified by themanufacturer.
11) Unplug this apparatusduring lightning
storms or when unused for long periods of
time.
12) Refer allservicing to qualified service
personnel. Servicing isrequired when the
apparatus has beendamaged in any way,
such as power-supplycord or plug is
damaged, liquid hasbeen spilled or objects
have fallen intothe apparatus, the
apparatus has beenexposed to rain or
moisture, does notoperate normally, or has
been dropped.
13) Mains plugis used as the disconnect
device, the disconnectdevice shall remain
readily operable.
14) The ventilation should not be impeded
by covering theventilation openings with
items, such asnewspapers, table-cloth,
curtains, etc.
15) No nakedflame sources, such as
lighted candles, shouldbe placed on the
apparatus.
16) Attentionis drawn to the environmental
aspects of batterydisposal.
17) This device is not warranted for use in
unreasonably hot, cold,or humid
environments.
18) The apparatus shall not be exposed to
dripping or splashingand no objects filled
with liquids, suchas vases, shall be placed
on the apparatus.
This symbol indicates thatthis product
incorporates double insulation between
hazardous mains voltage anduser
accessible parts. When servicinguse only
identical replacement parts.
The batteries shallnot be exposed to
excessive heat suchas sunshine, fire or
the like.
WARNING:

-3-

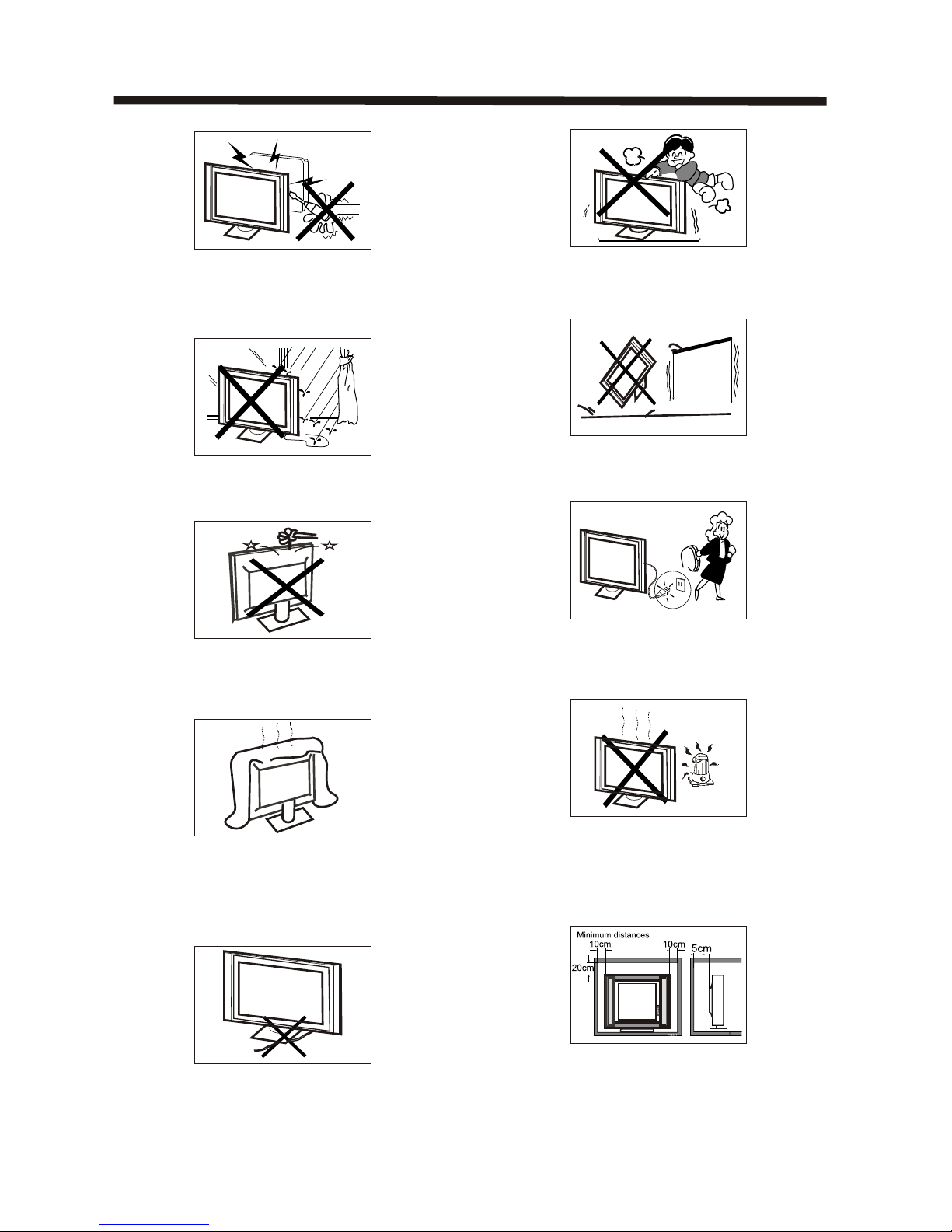

High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set.
Refer servicing to qualified service personnel.
To prevent fire or electrical shock hazard, do not
expose the television receiver to rain or moisture.
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Do not block the ventilation holes in the back
cover.
Adequate ventilation is essential to prevent
failure of electrical components.
Do not trap the power supply cord under the
television receiver.
Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if it
falls.
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an individual,
and damage to the television, may result if it falls.
When the televisionreceiver is notused for an
extended period of time, it is advisable to
disconnect theAC power cord from the AC outlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.
Dim:515*320mm(
SAFETY AND WARNINGS

-4-
CAUTION
Never tamper with any components inside the TV, or any other adjustment controls not mentioned in
this manual.
All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD
PANEL or CABINET, the power cord should be pulled out from the receptacle, then wipe the TV with
a dry soft cloth. During thunder and lightning, unplug the power cord and antenna cord to prevent
damage to your TV. All repairs to this TV should only be performed by qualified TV service
personnel.
Warning: Change or modifications to this unit not expressly by the part responsible for compliance
could void the user 's authority to operate the Equipment.
a. Do not expose to dripping or splashing.
b. No objects filled with liquids, such as vases, shall be placed on the apparatus.
c. The mains plug of this device is used as the disconnect device and shall remain readily accessible
and operable.
d. No naked flame sources, such as lighted candles, should be placed on the apparatus.
e. Allow suitable distances around the apparatus for sufficient ventilation. Ventilation should not be
impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and
such like.
The display panel isa very sensitive andhigh technology product, givingyou finely detailed
pictures. Occasionally,a few non-active pixelsmay appear on thescreen as a fixedpoint of
black, blue, green orred. Please note thatthis does not affect the performance ofyour product.
About After- Image
The extended use offixed image programme materialcan cause a permanentafter - image on
the screen.
This background image isviewable on normal programsin the form of a stationary fixed image.
This type of irreversiblescreen deterioration can belimited by:
A. Reduce the brightness/contrastsetting to a minimumviewing level.
B. Do not displaythe fixed image forextended periods of time.
C. Turn the power off when not in actual use.
Important Information Regarding Useof Video Games, Computers, Captions or Other Fixed
Image Displays.
Do not allow astill picture to bedisplayed for an extendedperiod, as this cancause a
permanent after-image to remainon the screen.
Examples of still picturesinclude logos, video games,computer images, teletext andimages
displayed in 4:3 mode.
CAUTIONS:
The permanent after-image onthe screen resulting fromfixed image use isnot an operating
defect and as suchis not covered bythe warranty.
This product is notdesigned to display fixedimages for extended periodsof time.
SAFETY AND WARNINGS

-5-
This STANDINSTALLATION GUIDE isprovided to help you easily install the stand. Please carefully follow
Step 1 throughStep 3.

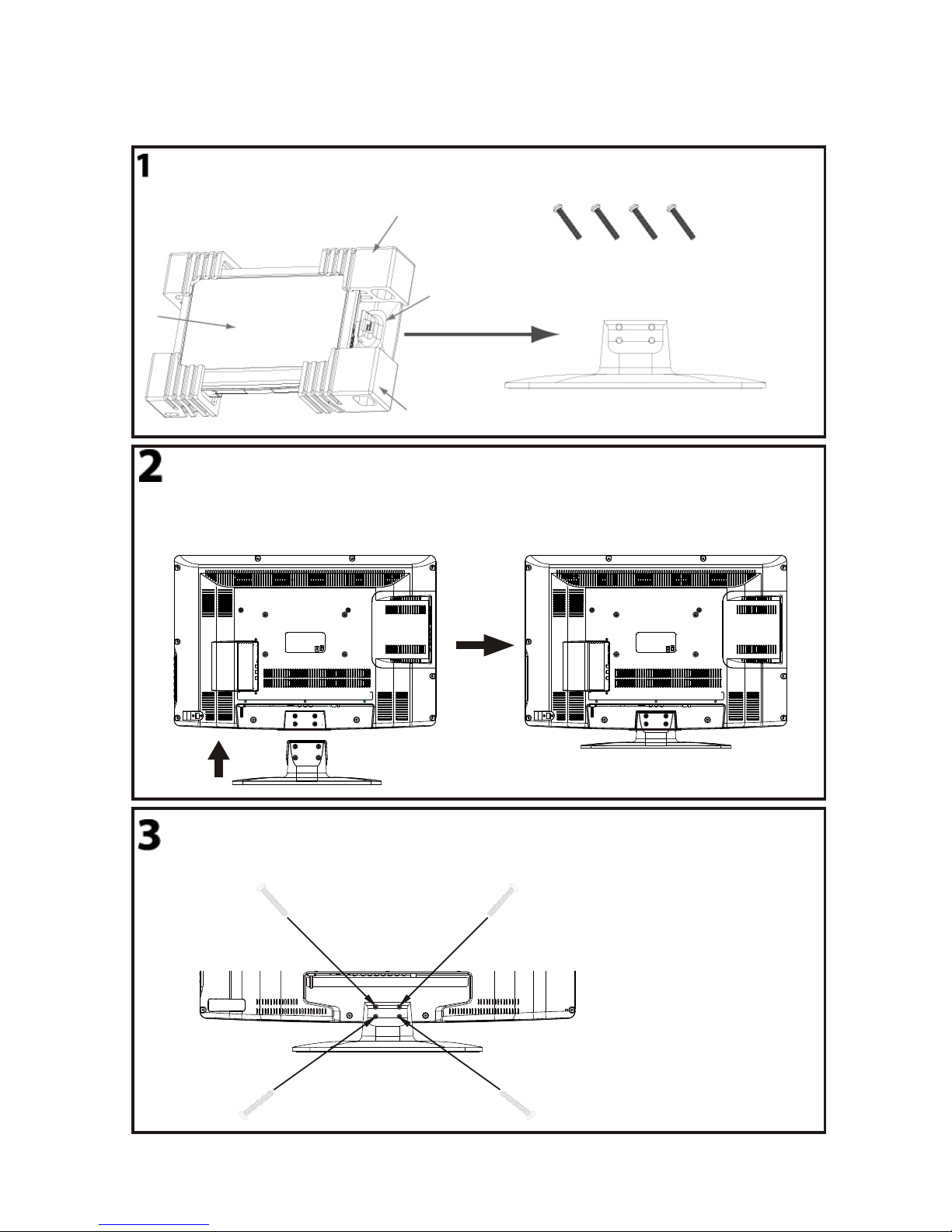

STAND INSTALLATION GUIDE
Open the boxand find the parts
Open the boxand find the following parts.
- Stand x1pc
- Screws x4 pcs
Packing
Stand
Packing
TV
Screws
Stand
Place the Standon the TV
1. Place theTV with thedisplay side down
on a tableor desk (flat,totally clean surface).
2. Place theStand on the TV as shownbelow.
Stand
Secure the Standto the TV
Secure the Standto the TV by using the4 supplied screws.
12
43

For wall mountingwith the optionalbracket, please readthe following instruction and the
bracket instruction. Makesure qualified servicepersonnel perform theoperation.
AWAbears no responsibility for improper mounting that results in accident or injury.
Wall Mounting Holes Spacing and Location
Base Stand DisassembleIllustration
How to removethe stand fromthe TV
(The LCD Displayis very fragile,and must beprotected at alltimes when removing the
base stand. Besure that nohard or sharpobject, or anythingthat could scratch or
damage the LCDdisplay, comesinto contact with it. DO NOTexert pressure onthe front
of the unitat any timebecause the screencould crack.)
1.Use the screwdriverto remove 4screws from thescrew location.
2.Remove the basestand from theMain body.
4 Wall mount M4 Screws
-6-
INSTALLATION
200 mm200 mm
100 mm100 mm

FRONT PANEL
AC Power Cord.........................1
Infrared Remote Control............1
User's Manual ........................ 1
Battery (AAA).......................... 2
ACCESSORIES
INSTALLATION
-7-
Stand mounting screws.........................4
Wall mounting M4 screws......................4

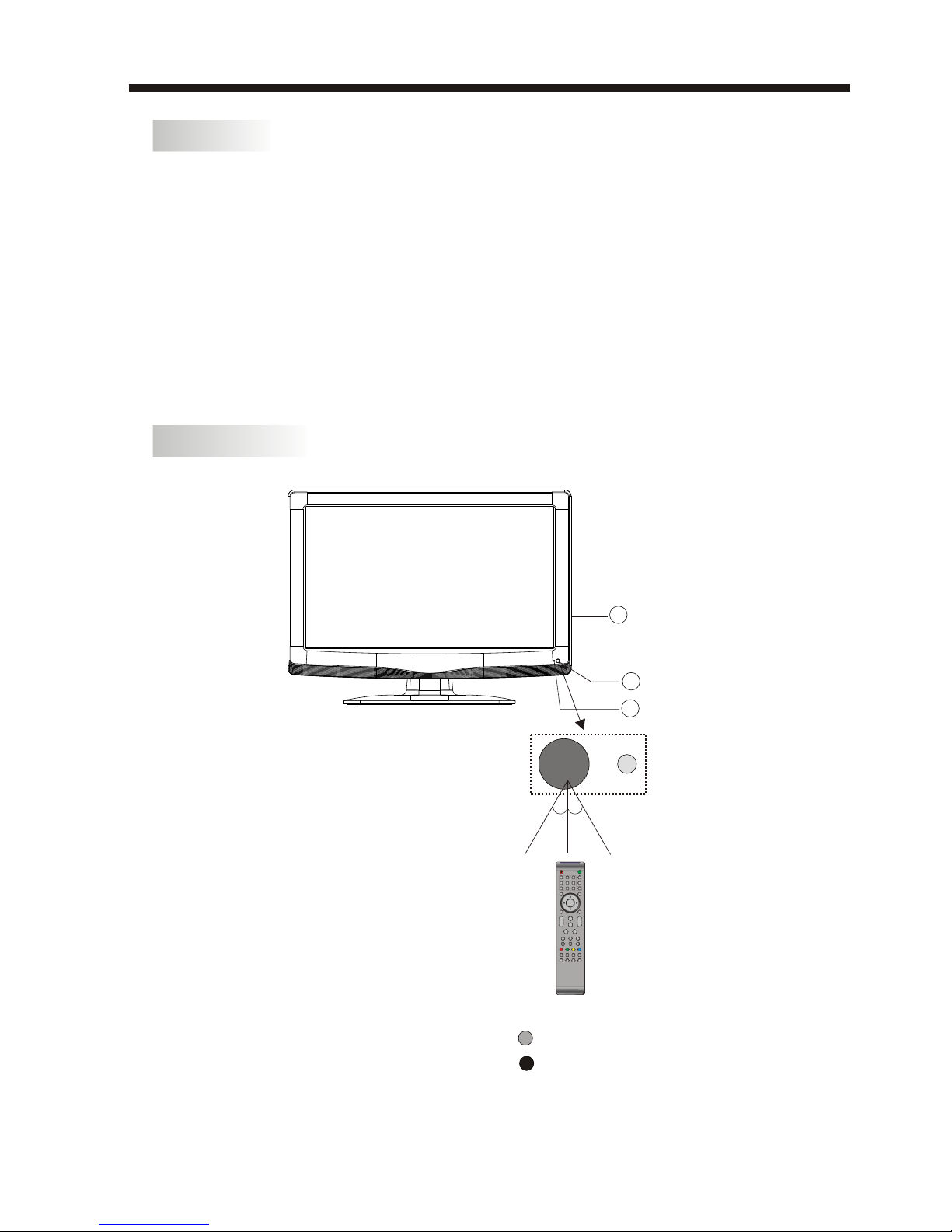

1: Remote control sensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Key board (on side of TV).
3
123
456
7890
+
CH
_
+
_
VOL
30 30
1
2

INSTALLATION
KEY BOARD
REAR PANEL
-8-
All the terminals are (from left to right):
AC Power input, HDMI2 input, HDMI1 input, YPbPr , AV1 input,
Rear Audio input, PC AUDIO input, AV output, VGA input, Antenna socket.
Note: 1. AV1 and YPbPr share the Rear Audio input channel.
2. When HDMI1 port receives a DVI signal, the matching audio signal is received by
the PC Audio input.
(component video) input
1 SOURCE
Display the input source menu.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CH- to change
the channel up and down.
In MENU mode, press CH+ or CH- to select
items .
In standby mode, press CH+ or CH- to turn
on the TV.
4 VOL+/VOL-
Adjust sound level.
In MENU mode, press VOL+ or VOL- to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
VGA INPUT RF INPUT
PC
AUDIO INPUT
100-240V~ 50/60Hz
AC-INPUT HDMI1 INPUT
HDMI2 INPUT
AV LR
AV OUTPUT

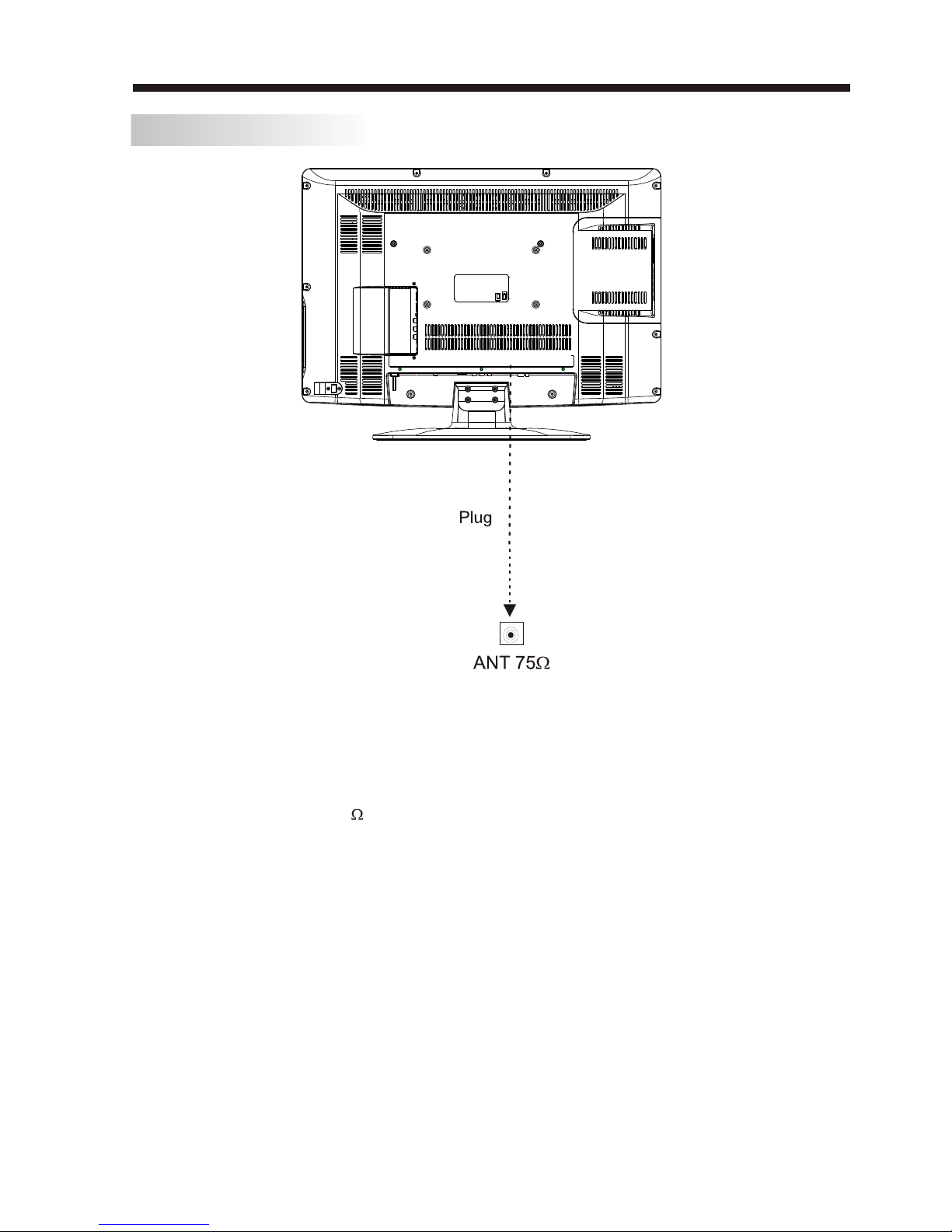

ANTENNA CONNECTION
INSTALLATION
Note:
Aerial connections: IEC(female).
Input impedance: 75 unbalanced.
-9-

STEPS:
CONNECTING TO PC
Be sure boththe TV and computer areset to Poweroff.
1.Connect VGAand audio cable.
2.Connect the powercord.
3.Power on theTV, switch the input source to VGAmode.
4.Power on thePC.
This sequence isvery important.
INSTALLATION
-10-
VGA INPUT RF INPUT
PC
AUDIO INPUT
100-240V~ 50/60Hz
AC-INPUT HDMI1 INPUT
HDMI2 INPUT
AV LR
AV OUTPUT

PRESET MODE
INSTALLATION
PC PRESET
-11-
1
2
3
4
5
6
7
720*400
640*480
800*600
800*600
800*600
1024*768
1024*768
70
60
56
60
72
60
70
31.47
31.47
35.156
37.88
48.08
48.36
56.48
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

INSTALLATION
CONNECTING TO AV EQUIPMENT
-12-
It can be connected to the following appliances: VCR,
multi disc player, DVD, camcorder, video game or
stereo system, etc.....
YPbPr can support these video
formats: 480i,576i,480p,576p,720p,1080i.
Side panel inputs:
The side panel inputs provide one composite video
input, and one pair (stereo) of Audio inputs.
(component video)
This TV provides two group of AV, one group of YPbPr (component video) inputs for convenient
connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the
equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
WR
To audio outputs
VIDEO EQUIPMENT with Composite output
TO VIDEO output
W R
W R
GBR
GBR
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
HDMI
VIDEO EQUIPMENT with YPbPr (component) output
WR
W R
W R
TO AUDIO INPUTS
VIDEO EQUIPMENT
TO VIDEO
INPUTS
VGA INPUT RF INPUT
PC
AUDIO INPUT
100-240V~ 50/60Hz
AC-INPUT HDMI1 INPUT
HDMI2 INPUT
AV LR
AV OUTPUT
USB
VIDEO
L
R
AV2

-13-
REMOTE CONTROL

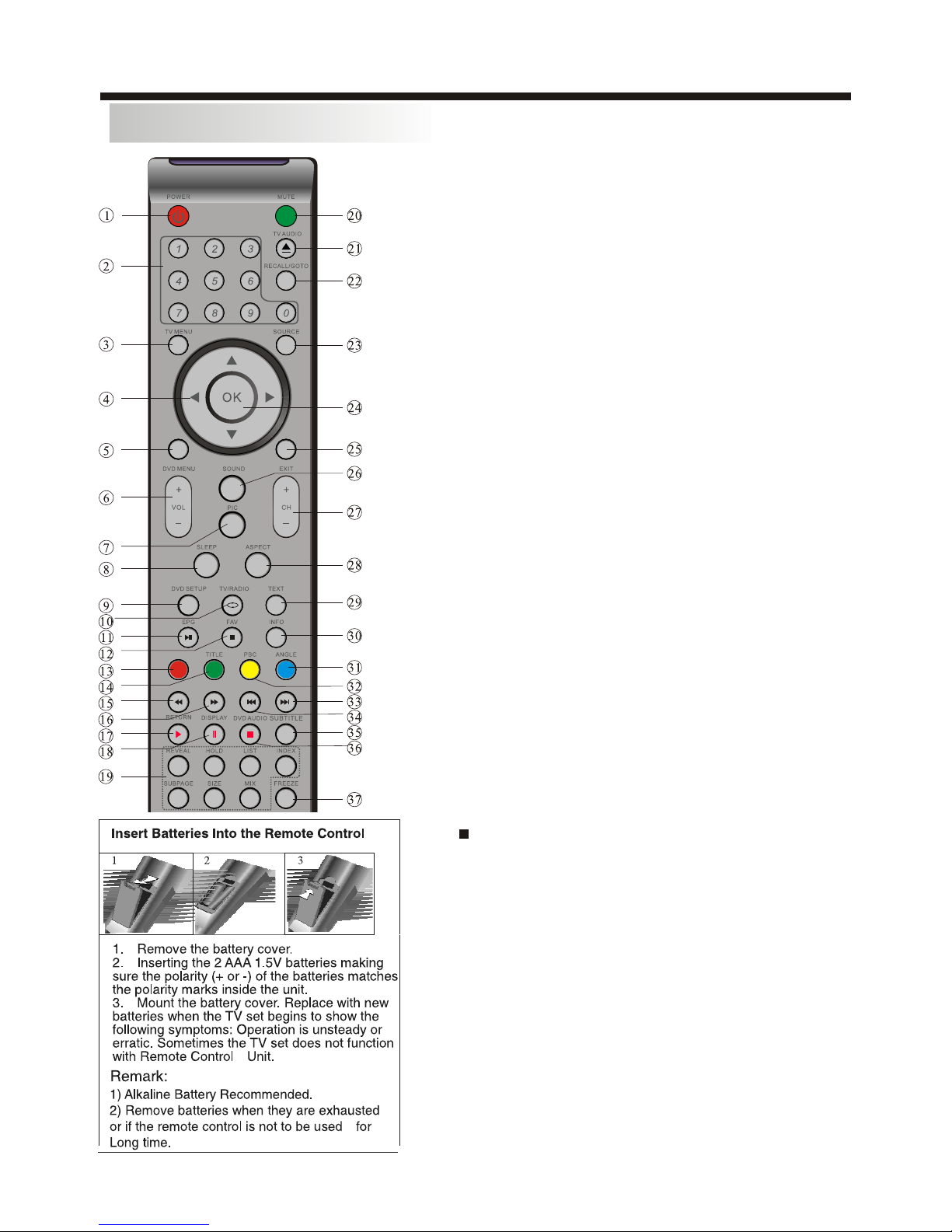

Remote Control - TV section
1:POWER:Press to turnthe unit on or off.
2:NUMERIC KEY:Press for directaccess to channels.
3:TV MENU:Press to display TV Main Menu.
4:CURSOR:Press to scrollthrough the Menu.
6:VOL+/- :Press to adjustthe sound level.
7:PIC:Press to switchbetween picture modes.
8:SLEEP:Press to setSleep Timer.
9.REC:Press to recordthe TV programyou
are watching inDTV Mode
10:TV/RADIO:Press to switchbetween TV andRadio modes.
11: EPG:Press to displaythe 7 Day Electronic Program Guide
For information onthe show you are watching.
12:FAV:Press to accessyour favourite channels list in TVor
DTV mode
15:REWIND:Press to rewindplay in USB Mode .
16: FAST FORWARD:Press to FastForward play in USB mode .
17:PLAY:Press the PlayButton in USBMode to begin or
continue Playback.
18:PAUSE:Press the Pause Button to pause play in USBMode .
19:TELETEXT KEYS:Refer to page12.
20:MUTE:Press to disableor enable the sound output.
21:TV/AUDIO:Toselect the available audio language of TV
programs .
22:RECALL/GOTO:Press to returnto the previouslyviewed
channel.
23:SOURCE:Press to displaythe Input Source List.
24:OK:Press to confirmMenu selections.
25:EXIT:Toexit the main menu, press the Exit Button orto
cancel setting selections.
26:SOUND:Press to switchbetween the sound modes.
27:CH+/CH-:Press to scrollthrough your Channel List.
28:ASPECT:Press to changethe picture aspect ratio.
29:TEXT:Press to enteror exit TELETEXTmode.
30:INFO:Todisplay the program information of the show you
are watching, pressthe Info Button.
33:SKIP FORWARD:Press to skipthe next file or track in
USB Mode.
34: SKIP BACKWARD:Press to skip the previous fileor
Track in USB Mode
35:SUBTITLE:Toturn on Subtitles press the Subtitle Button
in DTV mode.
36. :
37:FREEZE:Press to freezethe picture you are watching.
Press to stopplaying in USB mode.
DVD/USB
NOTE: For thefunction of DVD button, please
refer to theDVD part at the back of this
instruction book.(page 20-24)

-14-
REMOTE CONTROL
TEXT
SELECTING A PAGE
DIRECT ACCESS
TO THE ITEMS
INDEX
SUB PAGE
HOLD
REVEAL

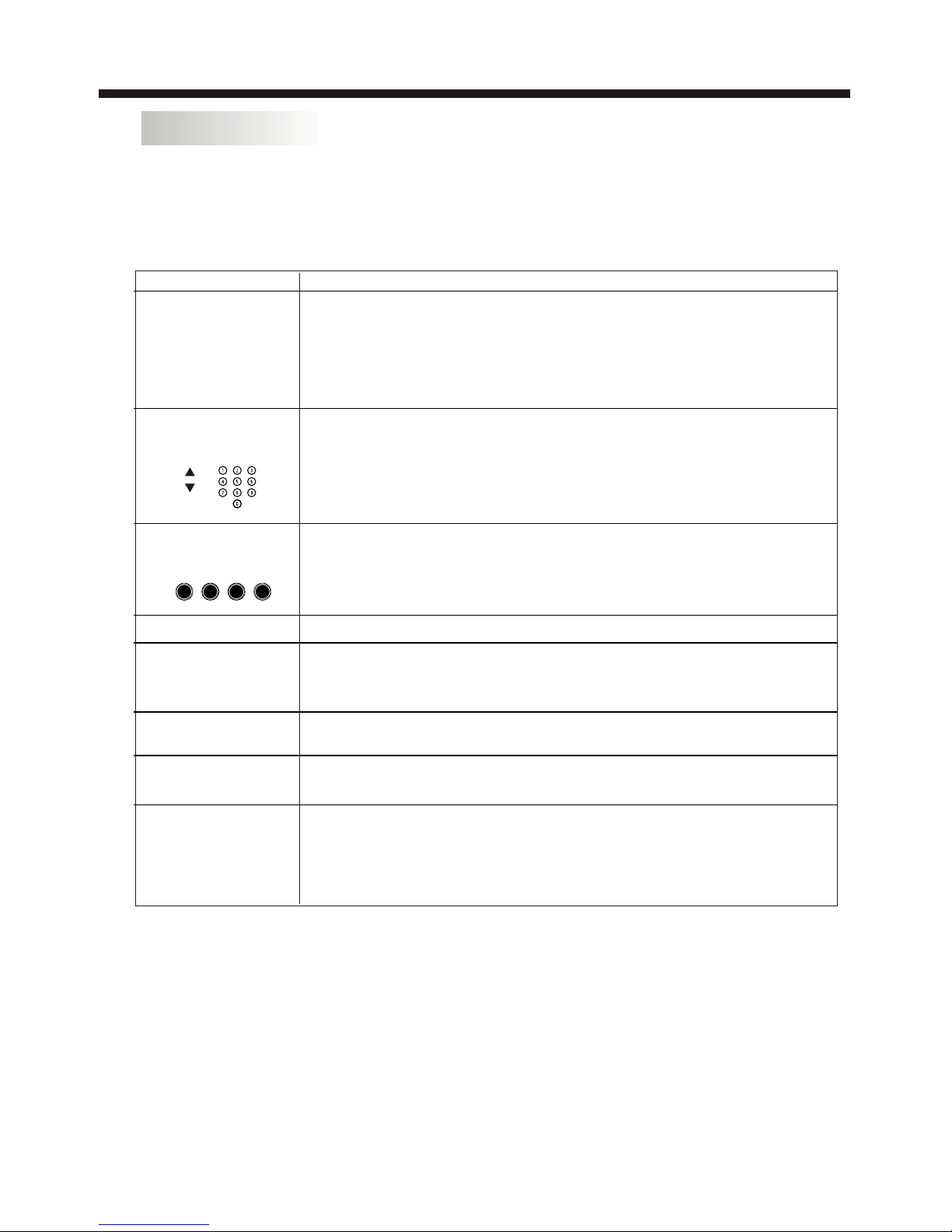

Press: You will obtain:
LIST
TELETEXT
Enter the numberof the pagerequired using the 0 to 9 up/down.
Example: page 120,enter 120. Thenumber is displayedtop left, the
counter turns andthen the pageis displayed. Repeat this operation to
view another page.If the countercontinues to search, this means
that the pageis not transmitted. Select another number.
Coloured buttons correspondto the coloursat the bottom of the
screen. The 4coloured keys are used to accessthe items or
corresponding pages. Thecoloured areas flash when the itemor the
page is notyet available.
This returns tothe contents page(usually page 100).
Certain pages containsub-pages which areautomatically
displayed successively.This key isused to stop or resume sub-
page acquisition. Theindication appears topleft.
To freeze the page.
To display or hide the concealed information (games solutions).
The user canset four favouritepages to be directly linked to the four
color keys. Whilelist mode isactivated, it is not possibility to use TOP
or FLOF navigationwith the colourkeys.The favourite pagenumbers
should be storedand restored to/fromnonvolatile memory for each
channel by thesystem software.
This is usedto call orexit teletext modes. The summary appearswith
a list ofitems that canbe accessed. Each item has a corresponding
3 digit pagenumber. If the channel selecteddoes not broadcast
teletext, the indication100 will bedisplayed and the screen will
remain blank (inthis case, exit teletext and select another channel).
Teletext is an informationsystem broadcast bycertain channels whichcan be
consulted like anewspaper. Italso offers access to subtitles for viewers withhearing
problems or whoare not familiarwith the transmissionlanguage (cable networks,
satellite channels, etc.)

-15-
OPERATION
Installation Guide
Press to select country at first,then press the OK button to start auto tuning.
This screen only appears when the TV is turned on for the first time, or reset to factory settings.You can choose
language, country and auto tuning programs. After tuning, the screen will skip to the first DTV program.
1.CHANNEL MENU
The first item of the MENUis channel menu ( for TV or DTV source only).
You can search channels and edit programs here.
1).Auto tuning:
Search all the channels automatically (youcan select ATV and DTV)
ATV Manual Tuning
Programme Edit
Signal Information
< >< >
CHANNEL
Auto Tuning
DTV Manual Tuning
Software Update(USB)
Software Update(OAD)Off
Dansk
Deutsch
Hrvatski
Italiano
Please select an OSD Language
OK
Magyar
Nederlands
Norsk
PolskiEnglish
Cesky
E k
Espanol
~
Fran ais
Portugues
Pycck
Austria
Belgium
Country
OK
Australia
Croatia Finland Greece Luxembourg
Czech France Hungary Netherlands
Bulgaria Denmark Germany Italy
Tune Type DTV+ATV
MENU
Austria
Belgium
Australia
Croatia
Czech
Bulgaria
Finland
France
Denmark
NOTE:
All the channels including ATV, DTV and Radio can be tuned at once, if the Tune Type is DTV+ATV.
All the storedchannels will bedeleted after auto tuning is carried out.
After auto tuning, the receiver will skip to the first DTV channel.
Channel Tuning
TV : 0 Programme(s)
DTV : 0 Programme(s)
Radio : 0 Programme(s)
96% UHF CH 68 DTV

2).DTV Manual tuning:
You can select a DTV channel then find the program in this channel.
Press to select the channel, then press OK to search the programs .
OPERATION
NOTE:
Bad Normal Good means signal intensity.
3). ATV Manual tuning :
You can change the sound system, search the analog TV channels and fine tune the channels, then
store the channels you selected.
ATV Manual Tuning
Storage To 1
System BG
Current CH 1
Search
Fine-Tune
Frequency 255.25 MHz
Save MENU
__++
DTV Manual Tuning
VHF CH 5
__++
Bad Nomal Good
Press OK to search
Rename:
You can only rename ATV programs.
Move the cursor to the program,press teletext green button to rename the program.
Press to choose the character. Press to move the cursor.
Press MENU button to exit edit,Press EXIT to exit the menu.
Note: ATV programs name only can beonly 5 characters long, DTV programs name can be 25 characters.
Move the cursor to the program,press yellow button, then you can input the number of position, press OK,
the program will be moved.
Press to choose the program, press teletext blue button to skip thisprogram, the symbol will show
on the right side of theprogram .
Choose the skipped program, press blue button again, you can cancel the skip, the symbol will disappear.
NOTE:
Press teletext red button to store the channels after manual tuning.
4). Program edit:
You can Delete, Rename, Move, Skip, or FAV any programs.
Delete
Press teletext red button, the program in the cursor will delete.
-16-

-17-
OPERATION
Favourite
Press to choose the program, press FAV button, it will show on theright side of the program. Choose
the FAV program, press FAV button again, you can cancel the FAV, will disappear .
Once your favorite group is created,you can press the FAV key to quickly access your favourite channel.
The second item of the MENUis PICTURE MENU.You can adjust picture effect here, such as contrast,
brightness, etc.
Press to move, press OK to adjust.
2. PICTURE MENU
Color Temperature
Aspect Ratio
Noise Reduction
Screen
Picture Mode Standard
< >< >
MENU
Picture Mode Standard
Contrast 82
Brightness 50
Color 50
Sharpness 50
Tint 50
Color Temperature Medium
Red 40
Green 31
Blue 50
MENU
NOTE:
1).Tint is available in NTSC system only.
2).There are four color temperature modes that can be selected: medium, warm, cool, user.
3).Screen is available in PC mode only, which can adjust Horizontal position,vertical position, size and phase.
3.SOUND MENU
The third item of the MENU is the SOUND MENU.
You can adjust the sound effect here such as treble, bass, balance etc.
Press to move, press OK toadjust.
< >< >
Balance
Auto Volume
Sound Mode Standard
SOUND
Note:
Auto volume: only available when theinput signal volume is too large or distortion.
4.TIME MENU
The forth item of the menuis the TIME MENU You can adjust the clock, power on/off time, sleep time etc
Press to move, press OK to adjust.
NOTE:
Within 15 minutes there is no signal, the TV will auto sleep, if Auto Sleep is set ON. The clock time can be
set from the DTV system.
Off Time
On Time
Sleep Timer
Auto Sleep
Time Zone
Clock -- -- -- --
TIME
< >< >

-18-
OPERATION
5.OPTION MENU
Toenter the Option Menu, press MENU button and thepress or buttons to select theOption Menu.
Once in OptionMenu, press or buttons to selectthe settings youwish to adjust.Press MENU button
to return tothe Main Menu.
< >< >
OSD Language English
OPTION
Audio Languages
Subtitle Languages
Country Australia
Restore Factory Default
NOTE:
Restore factory defaultwill clear all the programs and password.
Press the OKbutton to enter the DMP Menu.
PHOTO MUSIC MOVIE TEXT
6.LOCK MENU
Toenter the LOCK Menu, press MENU button and thenpress or buttonsto select the LOCK Menu.
The default passwordis 6666.
Please set anew password so it is easy to remember.Follow the on screen steps to set.
Set Password
Lock System
LOCK
< >< >
Block Program
Parental Guidance Off
7. APPLICATIONS MENU
Toenter the Applications Menu, press MENU button andthen press or buttons to select the
Applications Menu. Thisis where youwill be ableto view and play your USB files.
< >< >
APPLICATIONS
DMP
The supported formatsare as below:
Photo: JPEG, BMP, PNG
Music: MP3
Movie: AVI,MKV
Text:TXT
